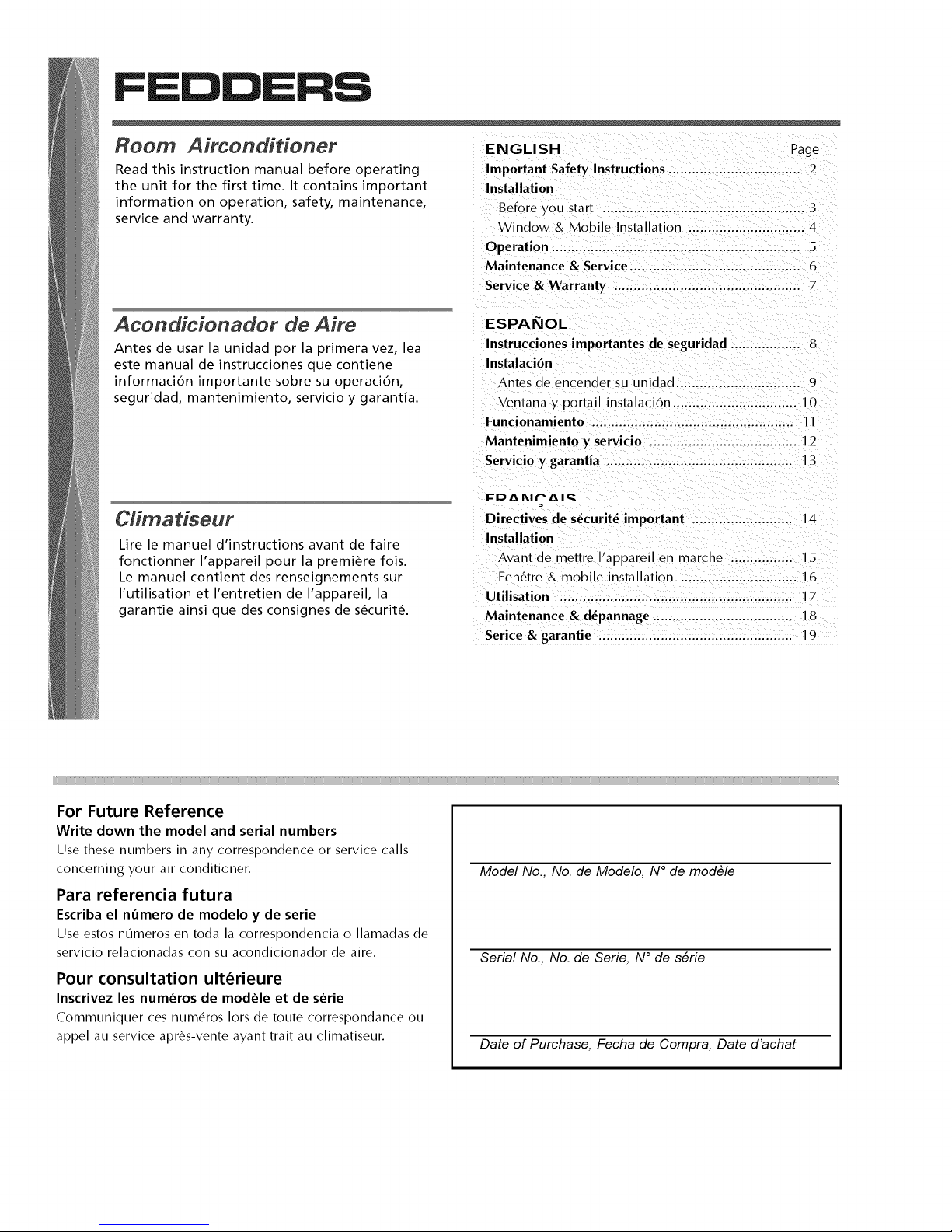

Room Airconditioner
Read this instruction manual before operating
the unit for the first time. It contains important
information on operation, safety, maintenance, service and warranty.
Installation
Before you start ............................................. !3
Window & Mobile Installation ............................. 4
Acondicionador de Aire
Antes de usar la unidad por la primera vez, lea este manual de instrucciones que contiene
informaci6n importante sobre su operaci6n, seguridad, mantenimiento, servicio y garantia.
C#matiseur
Lire le manuel d'instructions avant de faire fonctionner I'appareil pour la premiere fois.
Le manuel contient des renseignements sur
I'utilisation et I'entretien de I'appareil, la
garantie ainsi que des consignes de s_curit&
ESPAI_IOL
Instalaci6n
Antes de encender su unidad ............................... 9
Ventana _ portail instalaci6n ................................ l0
Funcionamiento .................................................... 11
Mante nimiento y servicio ..................................... 12
I_P A IMi"?A I¢_
Directives de s_curit_ important .......................... 14
Installation
Avant de mettre I'appareil en marche ................ 15
Fen6tre & mobi e installation .............................. 16
Utilisation ............................................................ 17
Mainlenance & d_pannage .................................... 18
Serice & garantie .................................................. 19
For Future Reference
Write down the model and serial numbers Use these numbers in any correspondence or service calls
concerning your air conditioner.
Para referencia futura
Escriba el n0mero de modelo y de serie Use estos n0meros en toda la correspondencia o Ilamadas de
servicio relacionadas con su acondicionador de aire.
Pour consultation ulterieure
Inscrivez les numeros de modele et de serie
Communiquer ces num6ros Iors de toute correspondance ou appel au service apr_s-vente ayant trait au climatiseur.
Model No., No. de Modelo, N ° de module
Serial No., No. de Serie, N° de s4rie
Date of Purchase, Fecha de Compra, Date d'achat

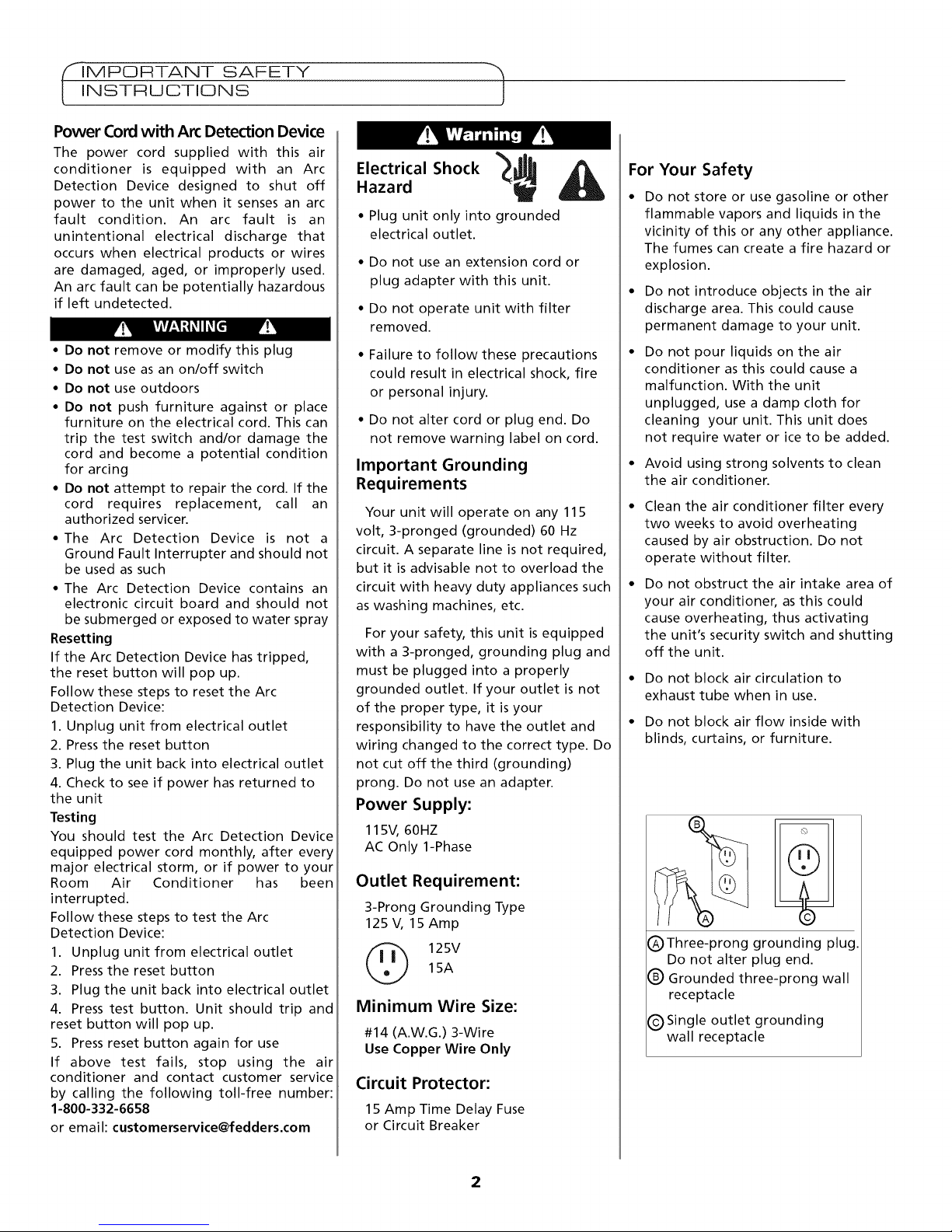

INSTRUCTIONS
"IMPORTANT SAFETY
Power Cord with Arc Detection Device
The power cord supplied with this air conditioner is equipped with an Arc
Detection Device designed to shut off power to the unit when it senses an arc
fault condition. An arc fault is an
unintentional electrical discharge that occurs when electrical products or wires are damaged, aged, or improperly used.
An arc fault can be potentially hazardous
if left undetected.
_ kVlVl.,1:__11_[€ LF!'WI
• Do not remove or modify this plug
• Do not use as an on/off switch
• Do not use outdoors
• Do not push furniture against or place
furniture on the electrical cord. This can trip the test switch and/or damage the
cord and become a potential condition for arcing
• Do not attempt to repair the cord. If the
cord requires replacement, call an authorized servicer.
• The Arc Detection Device is not a
Ground Fault Interrupter and should not
be used as such
• The Arc Detection Device contains an
electronic circuit board and should not
be submerged or exposed to water spray
Resetting If the Arc Detection Device has tripped,
the reset button will pop up. Follow these steps to reset the Arc
Detection Device:
1. Unplug unit from electrical outlet
2. Press the reset button
3. Plug the unit back into electrical outlet
4. Check to see if power has returned to the unit
Testing
You should test the Arc Detection Device equipped power cord monthly, after every
major electrical storm, or if power to your Room Air Conditioner has been
interrupted. Follow these steps to test the Arc
Detection Device:
1. Unplug unit from electrical outlet
2. Pressthe reset button
3. Plug the unit back into electrical outlet
4. Press test button. Unit should trip and reset button will pop up.
5. Press reset button again for use If above test fails, stop using the air
conditioner and contact customer service by calling the following toll-free number:
1-800-332-6658
or email: cust°merservice@fedders'c°m
J
HazardElectricalSh°ck_
• Plug unit only into grounded electrical outlet.
• Do not use an extension cord or plug adapter with this unit.
• Do not operate unit with filter removed.
• Failure to follow these precautions
could result in electrical shock, fire
or personal injury.
• Do not alter cord or plug end. Do not remove warning label on cord.
Important Grounding Requirements
Your unit will operate on any 115 volt, 3-pronged (grounded) 60 Hz circuit. A separate line is not required,
but it is advisable not to overload the
circuit with heavy duty appliances such
as washing machines, etc.
For your safety, this unit is equipped
with a 3-pronged, grounding plug and
must be plugged into a properly grounded outlet. If your outlet is not of the proper type, it is your responsibility to have the outlet and
wiring changed to the correct type. Do
not cut off the third (grounding) prong. Do not use an adapter.
Power Supply:
115V, 60HZ
AC Only 1-Phase
Outlet Requirement:
3-Prong Grounding Type
125 V, 15 Amp
_ 125V
Minimum Wire Size:
#14 (A.W.G.) 3-Wire
Use Copper Wire Only
Circuit Protector:
15 Amp Time Delay Fuse
or Circuit Breaker
15A
For Your Safety
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
The fumes can create a fire hazard or explosion.
Do not introduce objects in the air discharge area. This could cause permanent damage to your unit.
Do not pour liquids on the air conditioner as this could cause a
malfunction. With the unit unplugged, use a damp cloth for
cleaning your unit. This unit does not require water or ice to be added.
Avoid using strong solvents to clean the air conditioner.
Clean the air conditioner filter every two weeks to avoid overheating caused by air obstruction. Do not operate without filter.
Do not obstruct the air intake area of your air conditioner, as this could
cause overheating, thus activating the unit's security switch and shutting
off the unit.
• Do not block air circulation to exhaust tube when in use.
• Do not block air flow inside with blinds, curtains, or furniture.
(_)Three-prong grounding plug.
Do not alter plug end.
l_ Grounded three-prong wall
receptacle
(_Single outlet grounding
wall receptacle
2

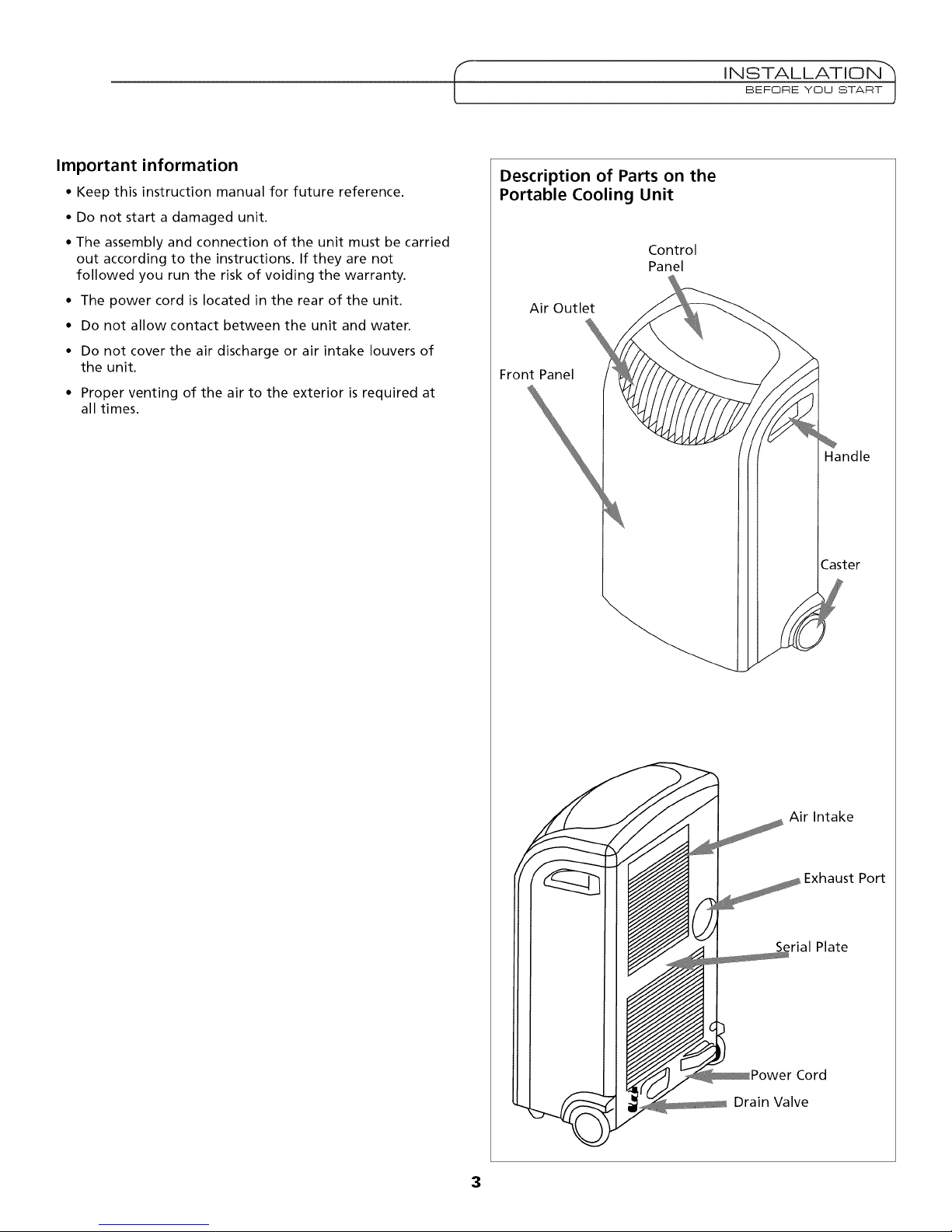

INSTALLATION"]
/
BEFORE YOU START J
Important information
• Keep this instruction manual for future reference.
• Do not start a damaged unit.
• The assembly and connection of the unit must be carried out according to the instructions. If they are not
followed you run the risk of voiding the warranty.
• The power cord is located in the rear of the unit.
• Do not allow contact between the unit and water.
• Do not cover the air discharge or air intake louvers of
the unit.
• Proper venting of the air to the exterior is required at
all times.
Description of Parts on the Portable Cooling Unit
Control Panel
Air Outlet
Front Panel
Handle
Caster
Air Intake
Exhaust Port
¢ial Plate
Cord
Drain Valve
3

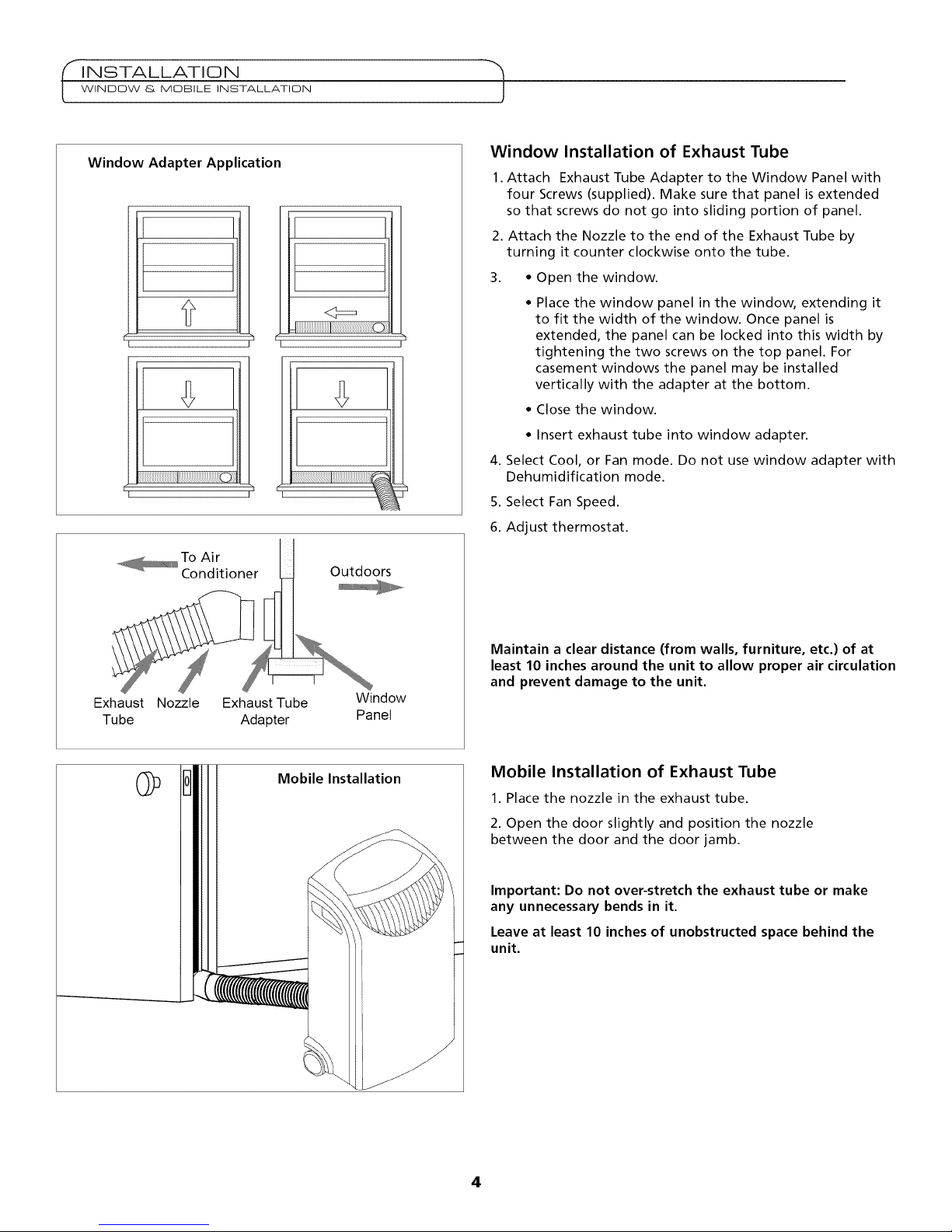

WlNDDW & MDBILE INSTALLATIDN
"-INSTALLATION
%
J
Window Adapter Application
1
Tc°A_l_tioner
Window Installation of Exhaust Tube
1.Attach Exhaust Tube Adapter to the Window Panel with four Screws (supplied). Make sure that panel is extended
so that screws do not go into sliding portion of panel.
2. Attach the Nozzle to the end of the Exhaust Tube by turning it counter clockwise onto the tube.
3. • Open the window. Place the window panel in the window, extending it
to fit the width of the window. Once panel is extended, the panel can be locked into this width by
tightening the two screws on the top panel. For casement windows the panel may be installed
vertically with the adapter at the bottom.
• Close the window.
• Insert exhaust tube into window adapter.
4. Select Cool, or Fan mode. Do not use window adapter with
Dehumidification mode.
5. Select Fan Speed.
6. Adjust thermostat.
Exhaust Nozzle Exhaust Tube
Tube Adapter
Mobile Installation
Maintain a clear distance (from walls, furniture, etc.) of at least 10 inches around the unit to allow proper air circulation
and prevent damage to the unit.
Window
Panel
Mobile Installation of Exhaust Tube
1. Place the nozzle in the exhaust tube.
2. Open the door slightly and position the nozzle
between the door and the door jamb.
Important: Do not over-stretch the exhaust tube or make any unnecessary bends in it.
Leave at least 10 inches of unobstructed space behind the unit.
4

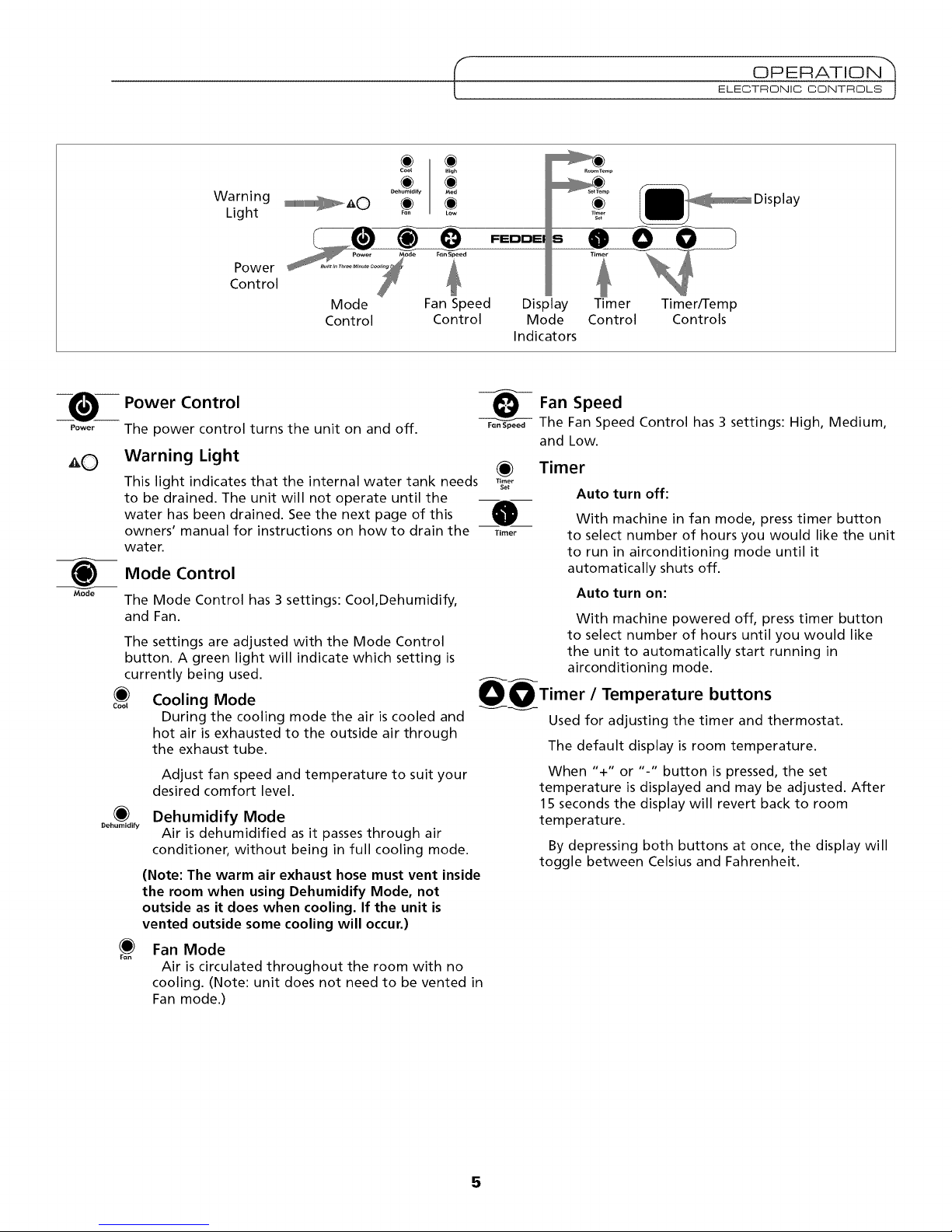

OPERATION _']
ELECTRONIC CONTROLS J
Power Control
Power
AO
The power control turns the unit on and off.
Warning Light
This light indicates that the internal water tank needs T,;_ to be drained. The unit will not operate until the
water has been drained. See the next page of this __-- owners' manual for instructions on how to drain the TJmor
water.
Mode Control
Mode
The Mode Control has 3 settings: Cool,Dehumidify,
and Fan.
The settings are adjusted with the Mode Control
button. A green light will indicate which setting is currently being used.
(_ Cooling Mode
Cool
Dehumidify
(Note: The warm air exhaust hose must vent inside the room when using Dehumidify Mode, not outside as it does when cooling. If the unit is
vented outside some cooling will occur.)
Warning
Dehumidify Med
Light
Power
Control
Mode
Control
Fan Speed
Control
During the cooling mode the air is cooled and
hot air is exhausted to the outside air through
the exhaust tube.
Adjust fan speed and temperature to suit your
desired comfort level. Dehumidify Mode
Air is dehumidified as it passes through air
conditioner, without being in full cooling mode.
Fan Mode
Air is circulated throughout the room with no
cooling. (Note: unit does not need to be vented in Fan mode.)
FEDDEI
Display Timer Timerfremp
Mode Control Controls
Indicators
Fan Speed
FanSpeed
The Fan Speed Control has 3 settings: High, Medium,
and Low.
Timer
Auto turn off: With machine in fan mode, press timer button
to select number of hours you would like the unit to run in airconditioning mode until it
automatically shuts off.
Auto turn on: With machine powered off, press timer button
to select number of hours until you would like the unit to automatically start running in
airconditioning mode.
__OvTimer/Temperature buttons
Used for adjusting the timer and thermostat.
The default display is room temperature. When "+" or "-" button is pressed, the set
temperature is displayed and may be adjusted. After
15 seconds the display will revert back to room
temperature.
By depressing both buttons at once, the display will
toggle between Celsius and Fahrenheit.
play
5
MAINTENANCE &
SERVICE
/
Cleaning and Maintenance
• The unit has an air filter that must be cleaned with water every two weeks and put back in the unit after it is
completely dry.
• The air discharge grille can be cleaned with a rag or sponge, warm water and mild detergent.
• Never use hot water, bleach, gasoline, acids, cleaning fluid or a brush to clean the unit. This will damage the cabinet
and the air discharge area.
• Do not wash the unit with a hose.
Before using at the start of a season
• Clean the air filter.
• Clean the cabinet and air discharge areas if necessary.
Draining excess water
Drain excess water from the tank by placing a pan under
the lower drain valve, remove the drain plug, and let the water drain into the pan. When the water stops draining out,
replace the drain plug, put the tube back in the clip pointing up, and remove the pan of water. Operate the air conditioner
in fan mode to dry the interior of the unit.
Removing the Filter
Service Instructions
Read carefully before callingfor service If the unit fails to start
• Make sure the unit is plugged into an outlet.
• Make sure the unit is not in the off position.
• Make sure the circuit breaker has not been tripped.
If the unit does not cool sufficiently
• Make sure the exhaust tube and nozzle fit correctly to each other and to the window adapter.
• Make sure the exhaust tube is not bent.
• Adjust the thermostat to a lower temperature.
• Make sure the exhaust tube and nozzle have nothing inside them.
If the unit is too loud
• Make sure the exhaust tube and nozzle fit correctly to each other and to the window mount.
• Make sure the exhaust tube and nozzle have nothing inside.
Air Conditioner Remote Control
The functions work the same
as your air conditioner's touch controls.
Batteries: Remove the cover
on the back of the remote controller and insert the
batteries with the (+) and (-) poles pointing in the proper
direction.
CAUTION:
• Use only AAA or
IEC R03 1.5V batteries.
• Do not attempt to recharge the supplied
batteries
• All batteries should be replaced at the
same time.
• Do not dispose of the batteries in a fire as
they may explode.
• Do not mix old and new batteries.
Do not install the batteries with the polarity (+/-) reversed.
Keep batteries and other things that could be swallowed away from young children.
Contact a doctor immediately if an object is swallowed.
6
Loading...
+ 14 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
