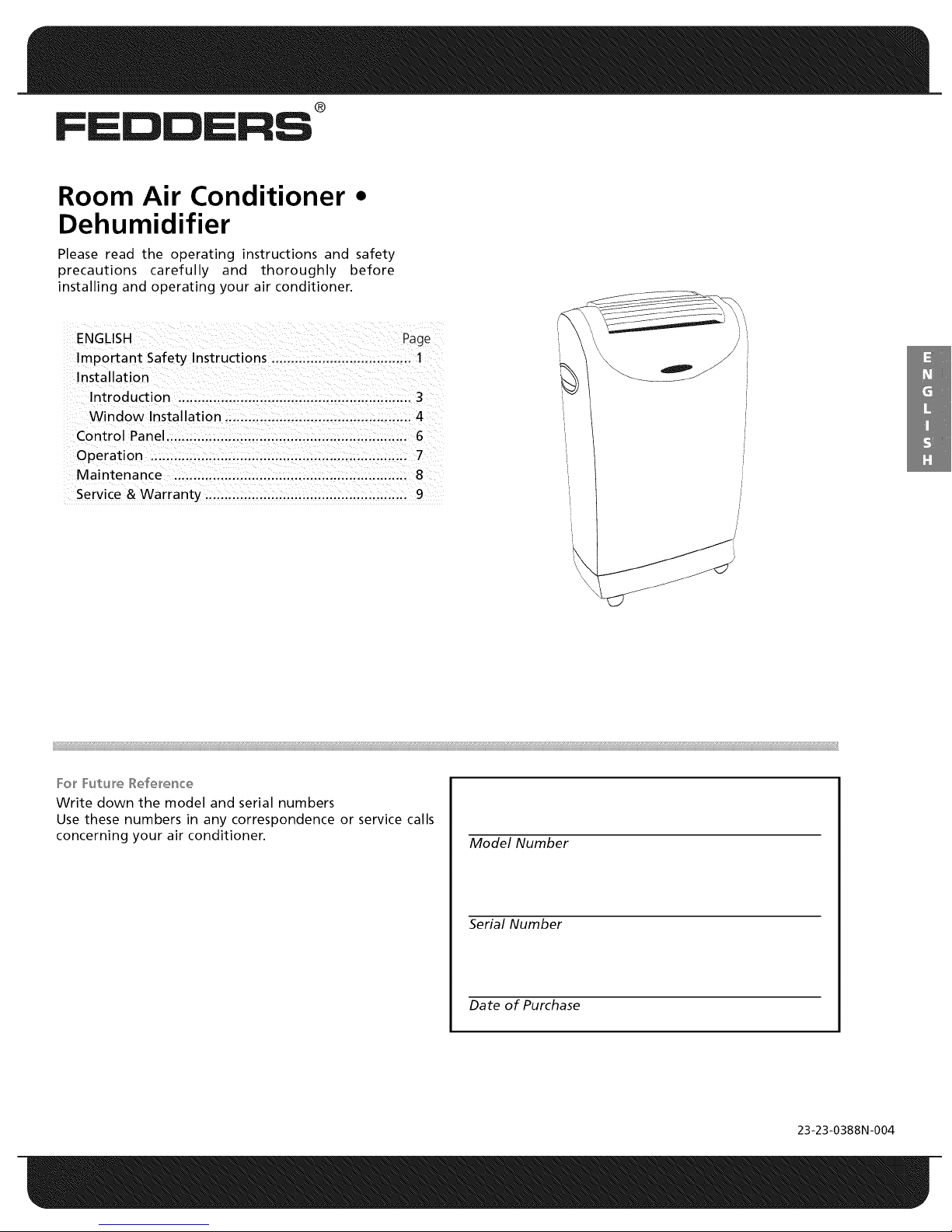

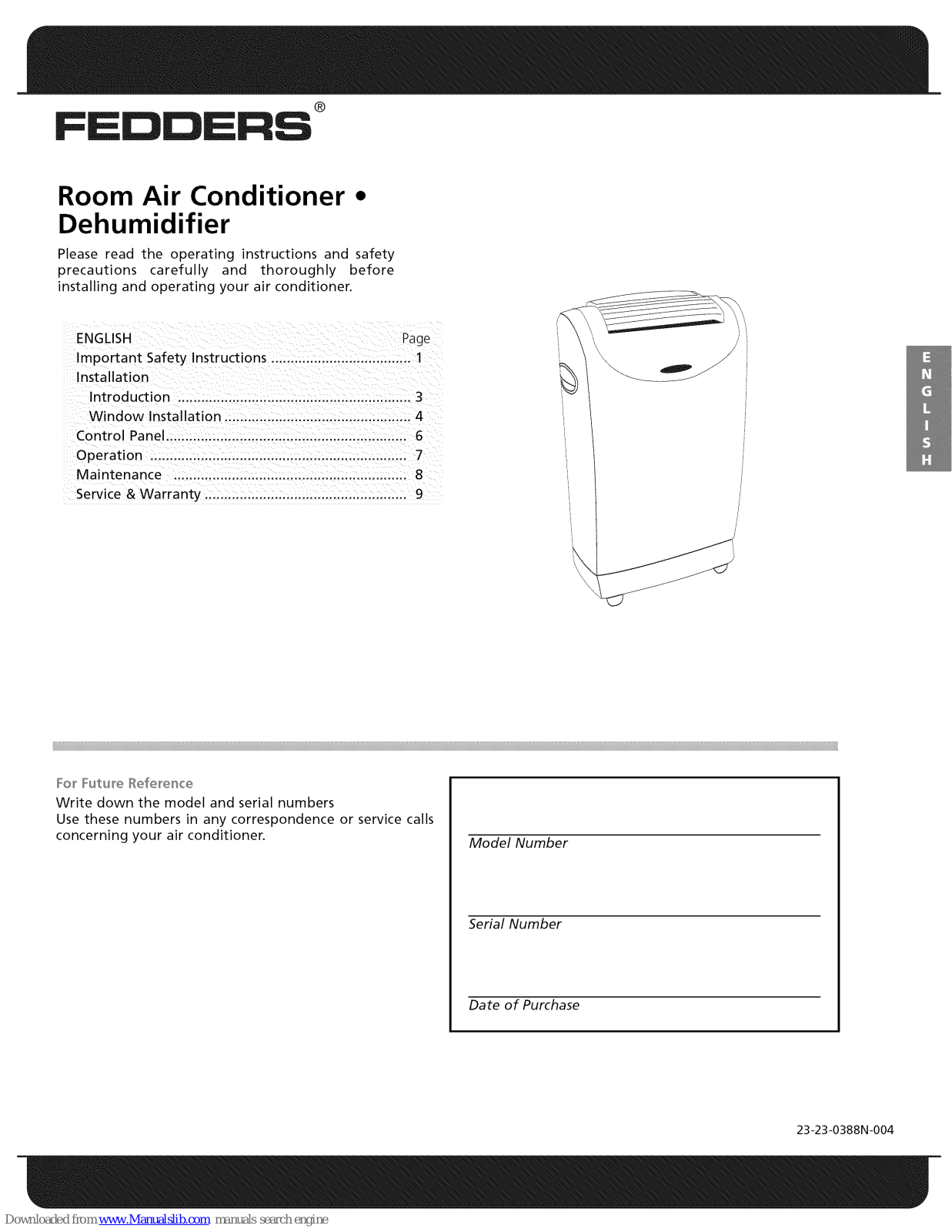

Room Air Conditioner •
Dehumidifier
Please read the operating instructions and safety
precautions carefully and thoroughly before
installing and operating your air conditioner.
ENGLISH Page
Important Safety Instructions ......................................
Installation
Introduction ..............................................................
Window Installation ...................................................
Control Panel .............................................................. 6
Operation ................................................................ 7
Maintenance ............................................................. 8
Service & Warranty .................................................... 9
For Future R÷f_r_[_ce
Write down the model and serial numbers
Use these numbers in any correspondence or service calls
concerning your air conditioner.
Model Number
Serial Number
Date of Purchase
23-23-0388N-004

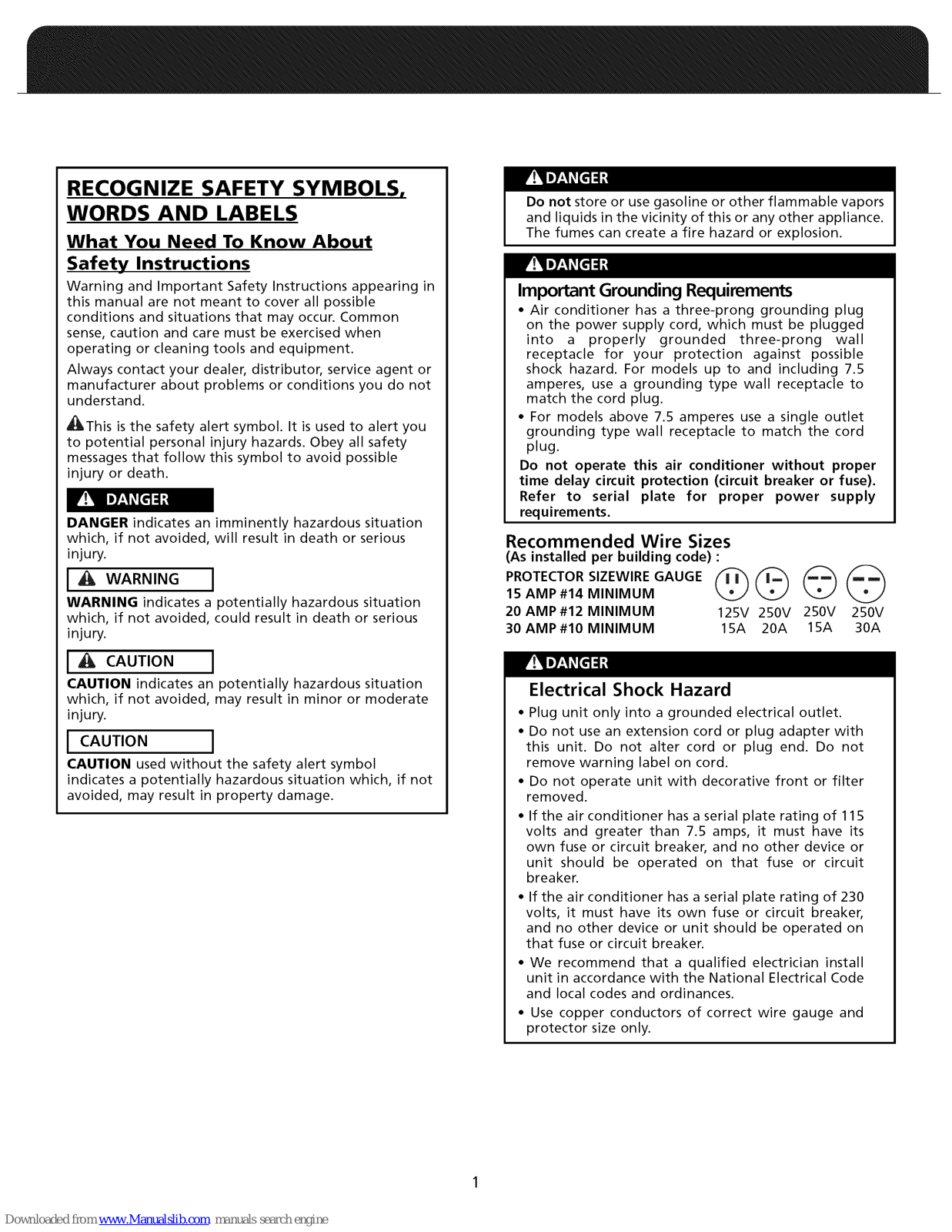

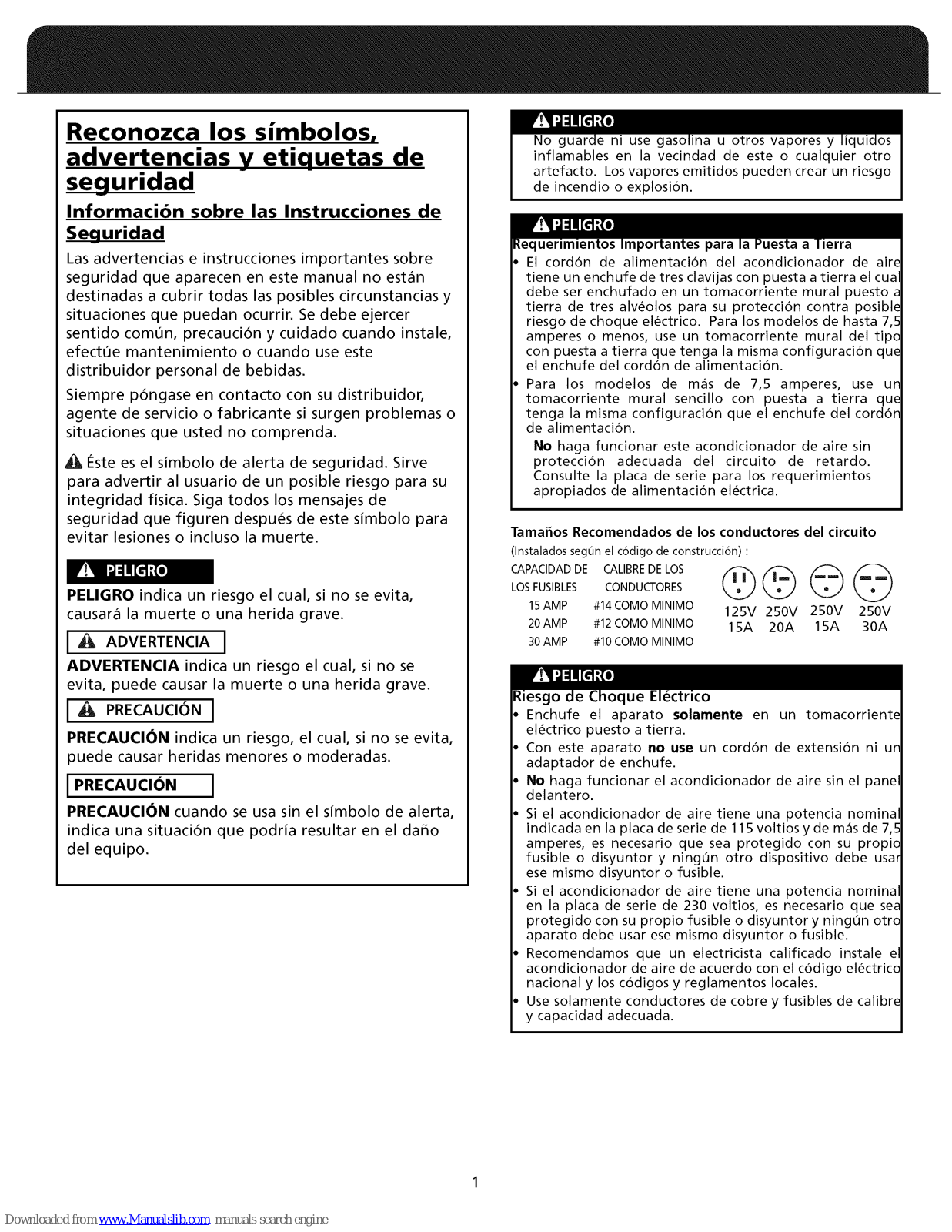

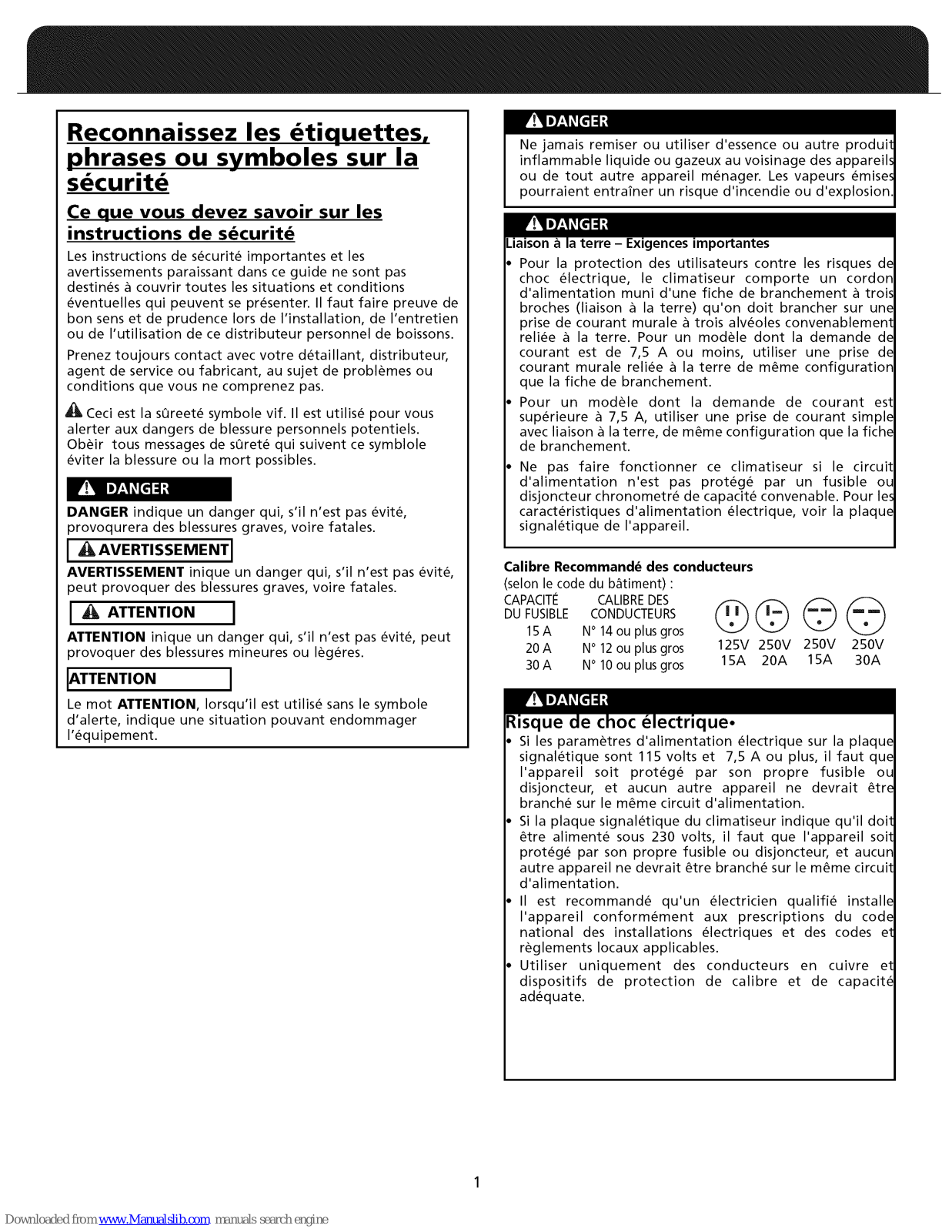

RECOGNIZE SAFETY SYMBOLS,
WORDS AND LABELS
What You Need To Know About
Safety Instructions
Warning and Important Safety Instructions appearing in
this manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
operating or cleaning tools and equipment.
Always contact your dealer, distributor, service agent or
manufacturer about problems or conditions you do not
understand.
_This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
The fumes can create a fire hazard or explosion.
Important Grounding Requirements
• Air conditioner has a three-prong grounding plug
on the power supply cord, which must be plugged
into a properly grounded three-prong wall
receptacle for your protection against possible
shock hazard. For models up to and including 7.5
amperes, use a grounding type wall receptacle to
match the cord plug.
• For models above 7.5 amperes use a single outlet
grounding type wall receptacle to match the cord
plug.
Do not operate this air conditioner without proper
time delay circuit protection (circuit breaker or fuse).
Refer to serial plate for proper power supply
requirements.
Recommended Wire Sizes
(As installed per building code) :
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
C UT,O.I
CAUTION indicates an potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
I CAUTION I
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
PROTECTORSIZEWIREGAUGE (_(_
15 AMP #14 MINIMUM
20 AMP #12 MINIMUM 125V 250V
30 AMP #10 MINIMUM 15A 20A
©©
250V 250V
15A 30A
Electrical Shock Hazard
• Plug unit only into a grounded electrical outlet.
• Do not use an extension cord or plug adapter with
this unit. Do not alter cord or plug end. Do not
remove warning label on cord.
• Do not operate unit with decorative front or filter
removed.
• If the air conditioner has a serial plate rating of 115
volts and greater than 7.5 amps, it must have its
own fuse or circuit breaker, and no other device or
unit should be operated on that fuse or circuit
breaker.
• If the air conditioner has a serial plate rating of 230
volts, it must have its own fuse or circuit breaker,
and no other device or unit should be operated on
that fuse or circuit breaker.
• We recommend that a qualified electrician install
unit in accordance with the National Electrical Code
and local codes and ordinances.
• Use copper conductors of correct wire gauge and
protector size only.

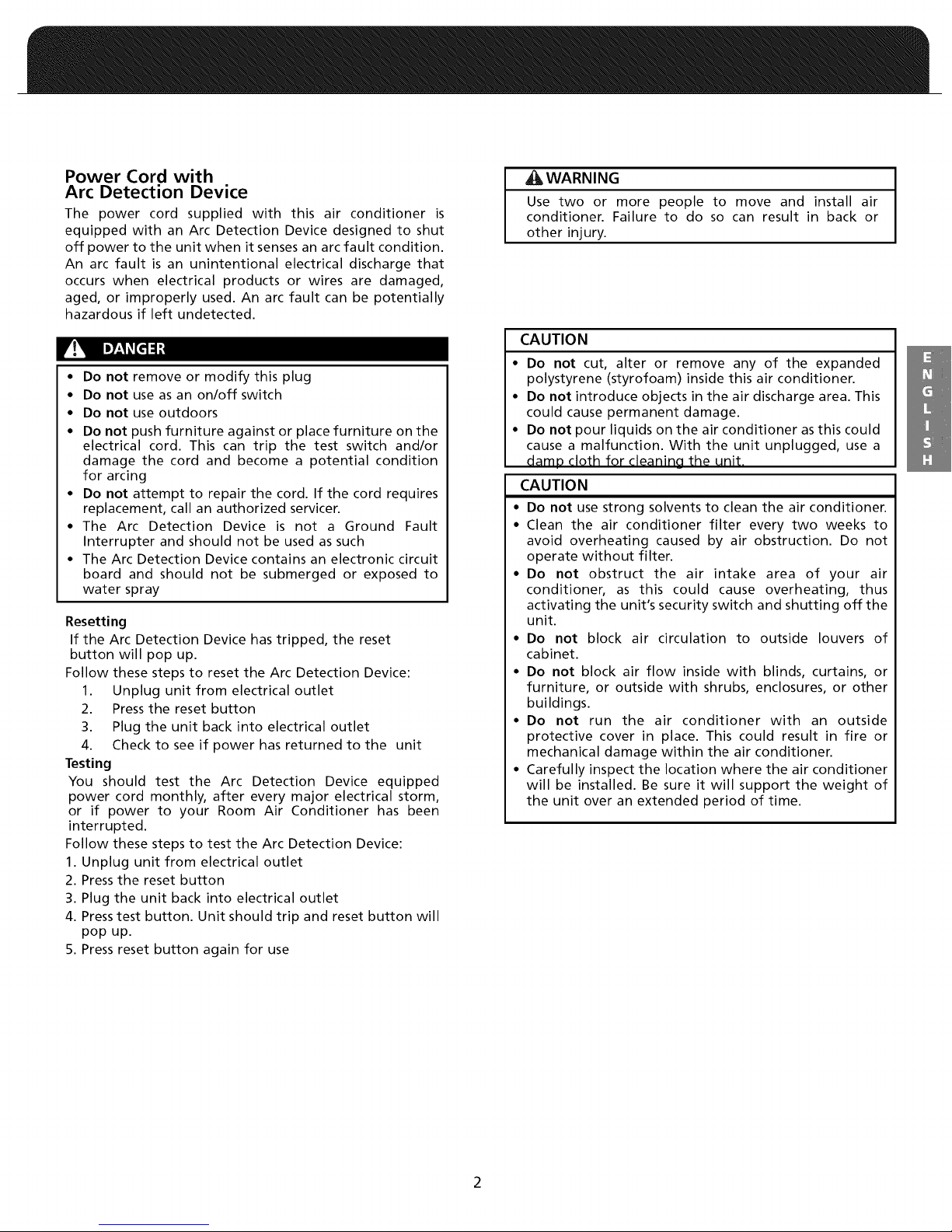

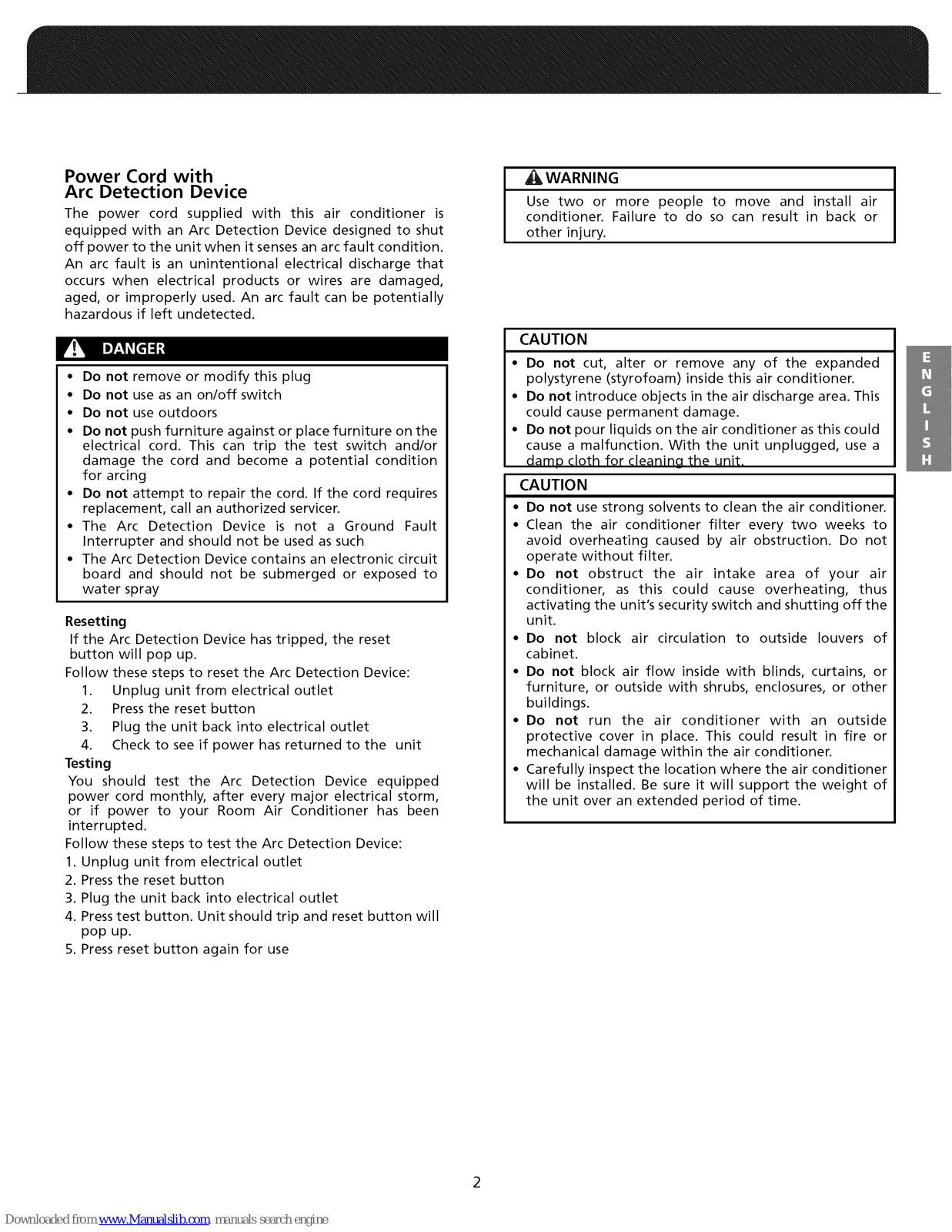

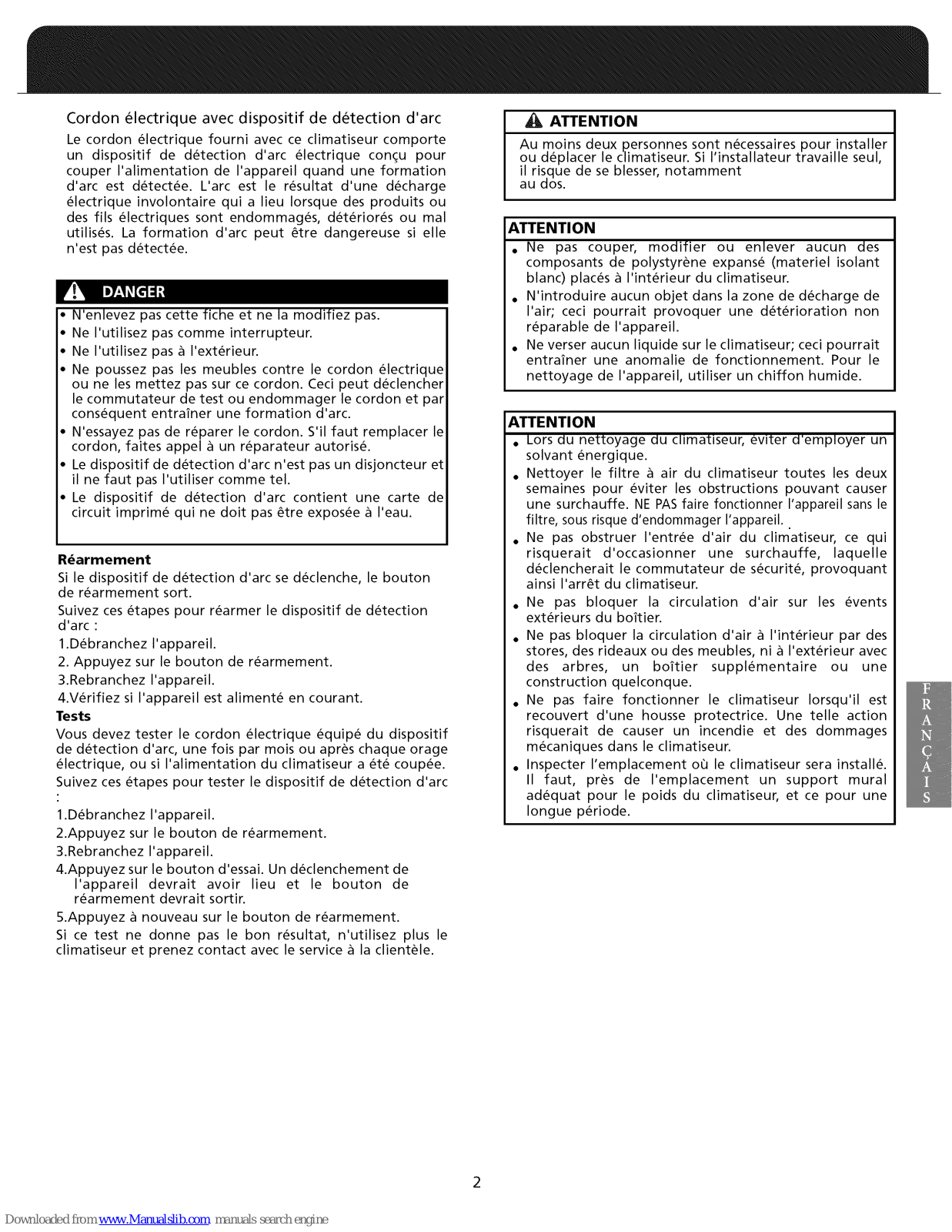

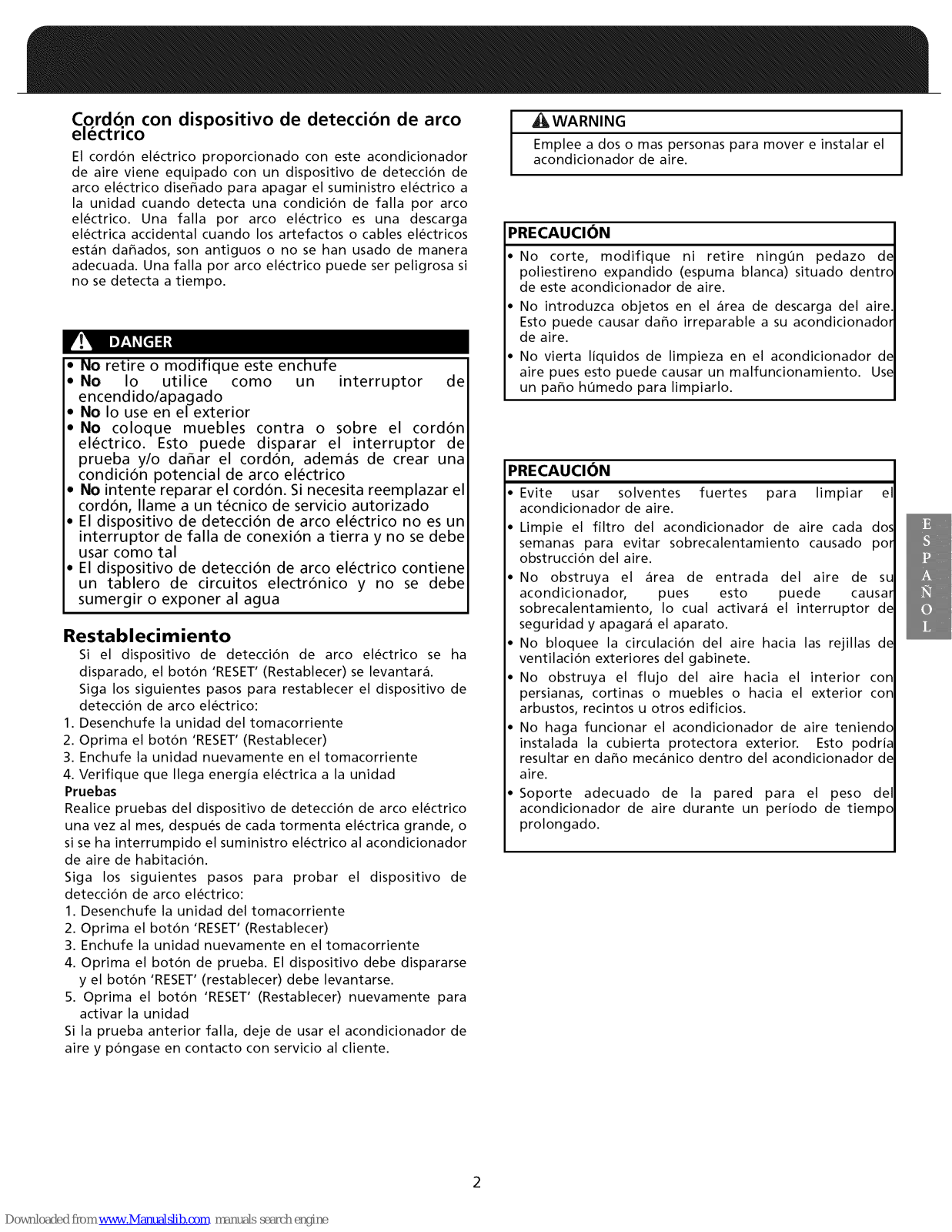

Power Cord with
Arc Detection Device
The power cord supplied with this air conditioner is
equipped with an Arc Detection Device designed to shut
off power to the unit when it senses an arc fault condition.
An arc fault is an unintentional electrical discharge that
occurs when electrical products or wires are damaged,
aged, or improperly used. An arc fault can be potentially
hazardous if left undetected.
• Do not remove or modify this plug
• Do not use as an on/off switch
• Do not use outdoors
• Do not push furniture against or place furniture on the
electrical cord. This can trip the test switch and/or
damage the cord and become a potential condition
for arcing
• Do not attempt to repair the cord. If the cord requires
replacement, call an authorized servicer.
• The Arc Detection Device is not a Ground Fault
Interrupter and should not be used as such
• The Arc Detection Device contains an electronic circuit
board and should not be submerged or exposed to
water spray
Resetti ng
If the Arc Detection Device has tripped, the reset
button will pop up.
Follow these steps to reset the Arc Detection Device:
1. Unplug unit from electrical outlet
2. Press the reset button
3. Plug the unit back into electrical outlet
4. Check to see if power has returned to the unit
Testing
You should test the Arc Detection Device equipped
power cord monthly, after every major electrical storm,
or if power to your Room Air Conditioner has been
interrupted.
Follow these steps to test the Arc Detection Device:
1. Unplug unit from electrical outlet
2. Press the reset button
3. Plug the unit back into electrical outlet
4. Press test button. Unit should trip and reset button will
pop up.
5. Press reset button again for use
WARNING
Use two or more people to move and install air
conditioner. Failure to do so can result in back or
other injury.
CAUTION
• Do not cut, alter or remove any of the expanded
polystyrene (styrofoam) inside this air conditioner.
• Do not introduce objects in the air discharge area. This
could cause permanent damage.
• Do not pour liquids on the air conditioner asthis could
cause a malfunction. With the unit unplugged, use a
damp cloth for cleaning the unit.
CAUTION
• Do not use strong solvents to clean the air conditioner.
• Clean the air conditioner filter every two weeks to
avoid overheating caused by air obstruction. Do not
operate without filter.
• Do not obstruct the air intake area of your air
conditioner, as this could cause overheating, thus
activating the unit's security switch and shutting off the
unit.
• Do not block air circulation to outside louvers of
cabinet.
• Do not block air flow inside with blinds, curtains, or
furniture, or outside with shrubs, enclosures, or other
buildings.
• Do not run the air conditioner with an outside
protective cover in place. This could result in fire or
mechanical damage within the air conditioner.
• Carefully inspect the location where the air conditioner
will be installed. Be sure it will support the weight of
the unit over an extended period of time.

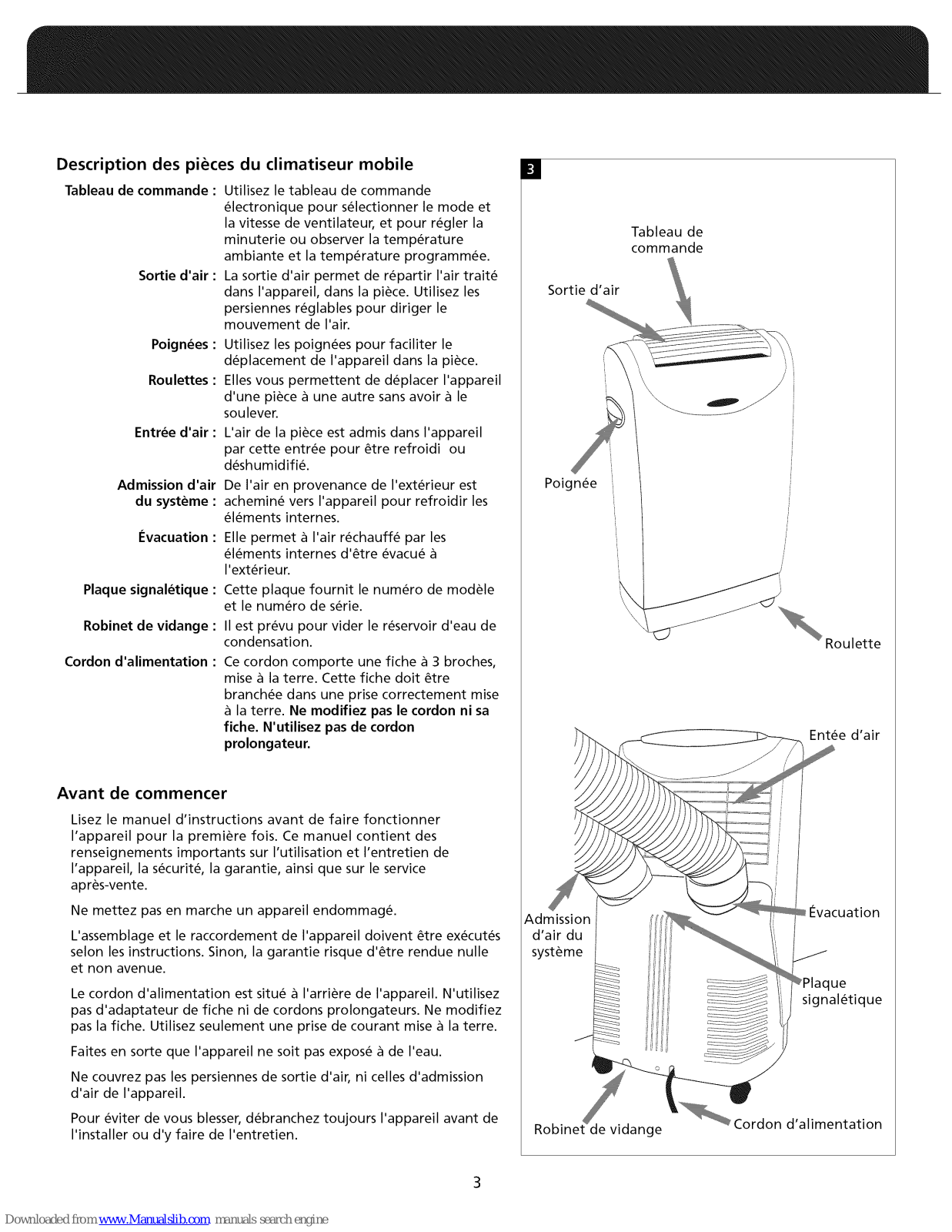

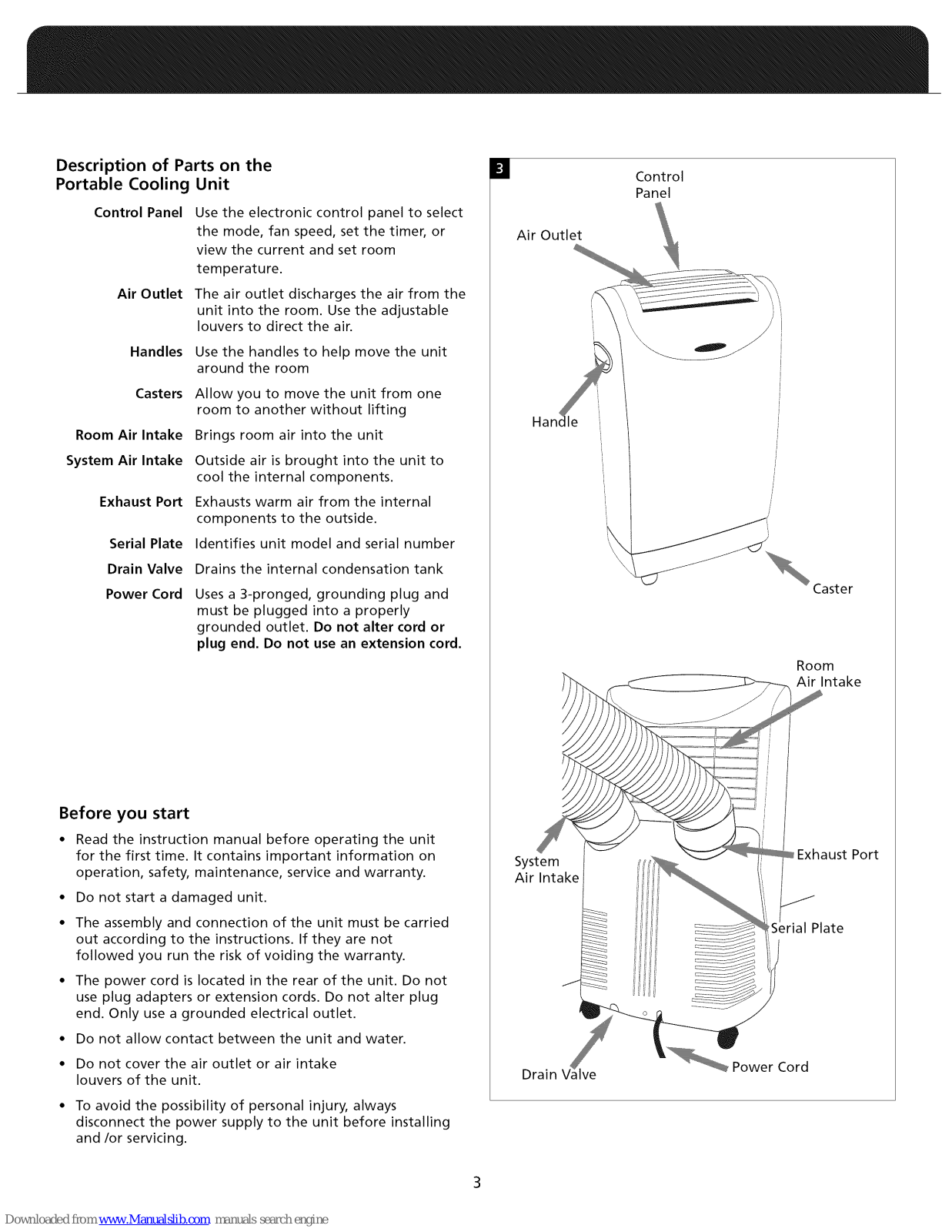

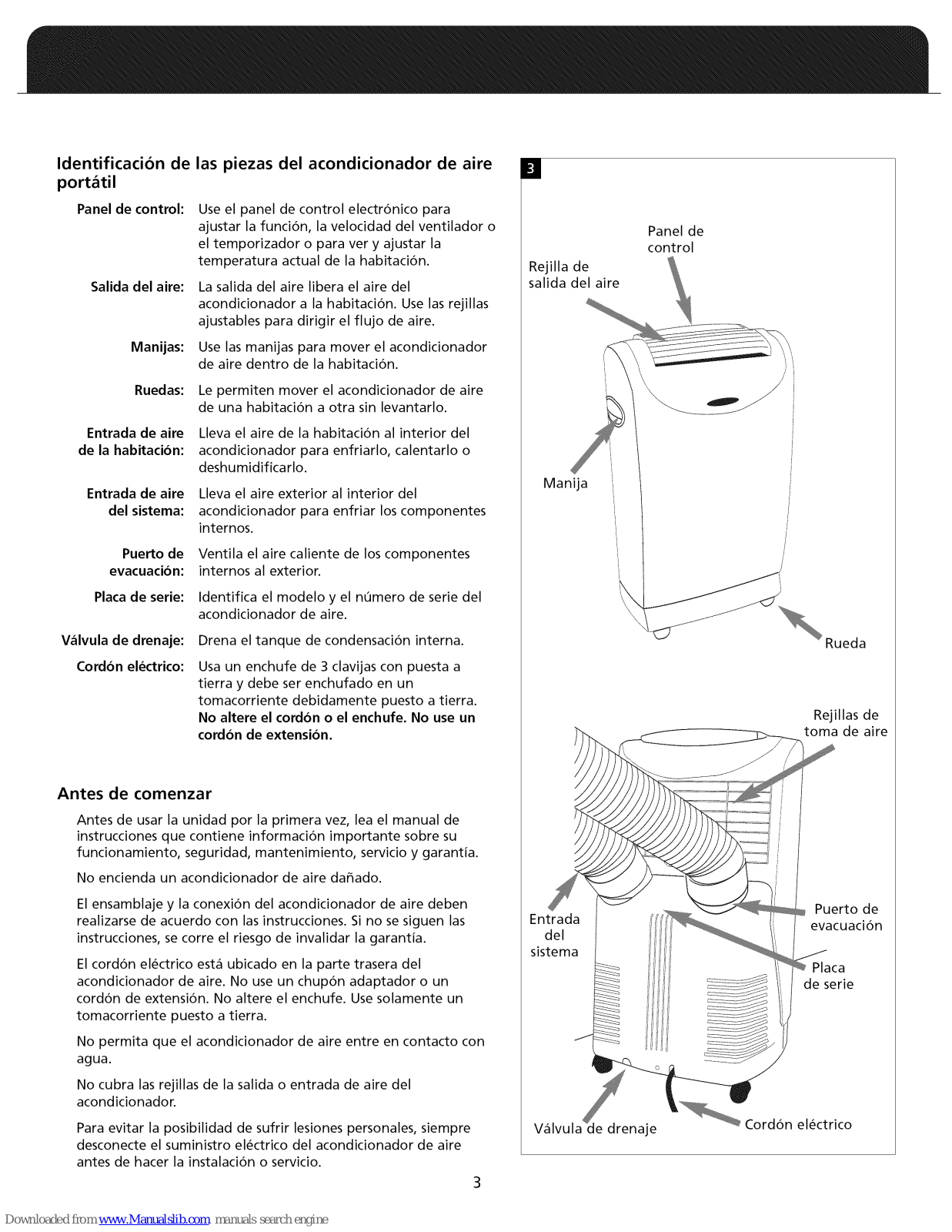

Description of Parts on the
Portable Cooling Unit
Control Panel
Air Outlet
Handles Use the handles to help move the unit
Casters
Room Air Intake
System Air Intake
Exhaust Port
Serial Plate
Drain Valve
Power Cord
Use the electronic control panel to select
the mode, fan speed, set the timer, or
view the current and set room
temperature.
The air outlet discharges the air from the
unit into the room. Use the adjustable
louvers to direct the air.
around the room
Allow you to move the unit from one
room to another without lifting
Brings room air into the unit
Outside air is brought into the unit to
cool the internal components.
Exhausts warm air from the internal
components to the outside.
Identifies unit model and serial number
Drains the internal condensation tank
Uses a 3-pronged, grounding plug and
must be plugged into a properly
grounded outlet. Do not alter cord or
plug end. Do not use an extension cord.
n
Air Outlet
Control
Panel
i
i
J
J
J
Room
Air Intake
Before you start
• Read the instruction manual before operating the unit
for the first time. It contains important information on
operation, safety, maintenance, service and warranty.
• Do not start a damaged unit.
• The assembly and connection of the unit must be carried
out according to the instructions. If they are not
followed you run the risk of voiding the warranty.
• The power cord is located in the rear of the unit. Do not
use plug adapters or extension cords. Do not alter plug
end. Only use a grounded electrical outlet.
• Do not allow contact between the unit and water.
• Do not cover the air outlet or air intake
louvers of the unit.
• To avoid the possibility of personal injury, always
disconnect the power supply to the unit before installing
and/or servicing.
System
Air Intake
Drain
Exhaust Port
Plate
Power Cord

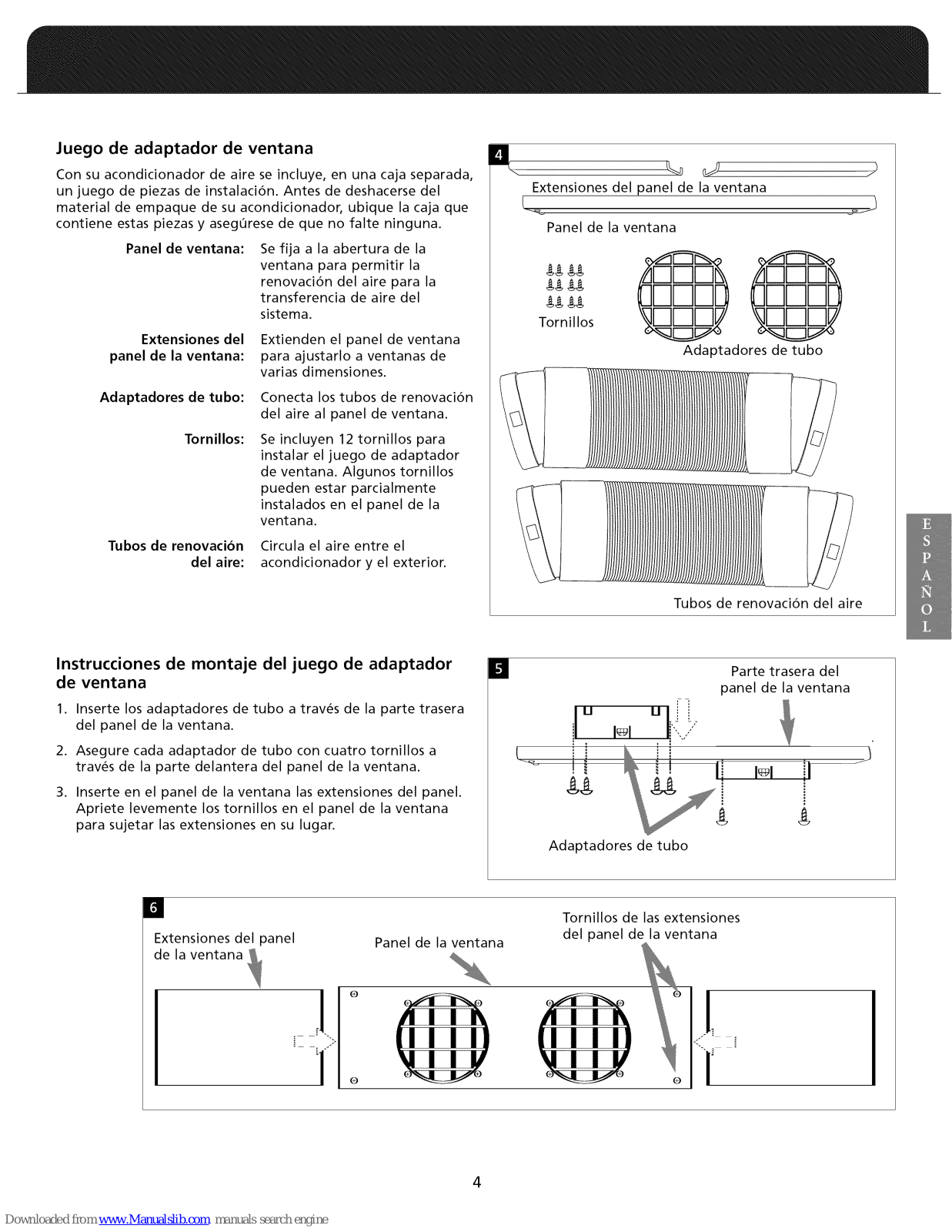

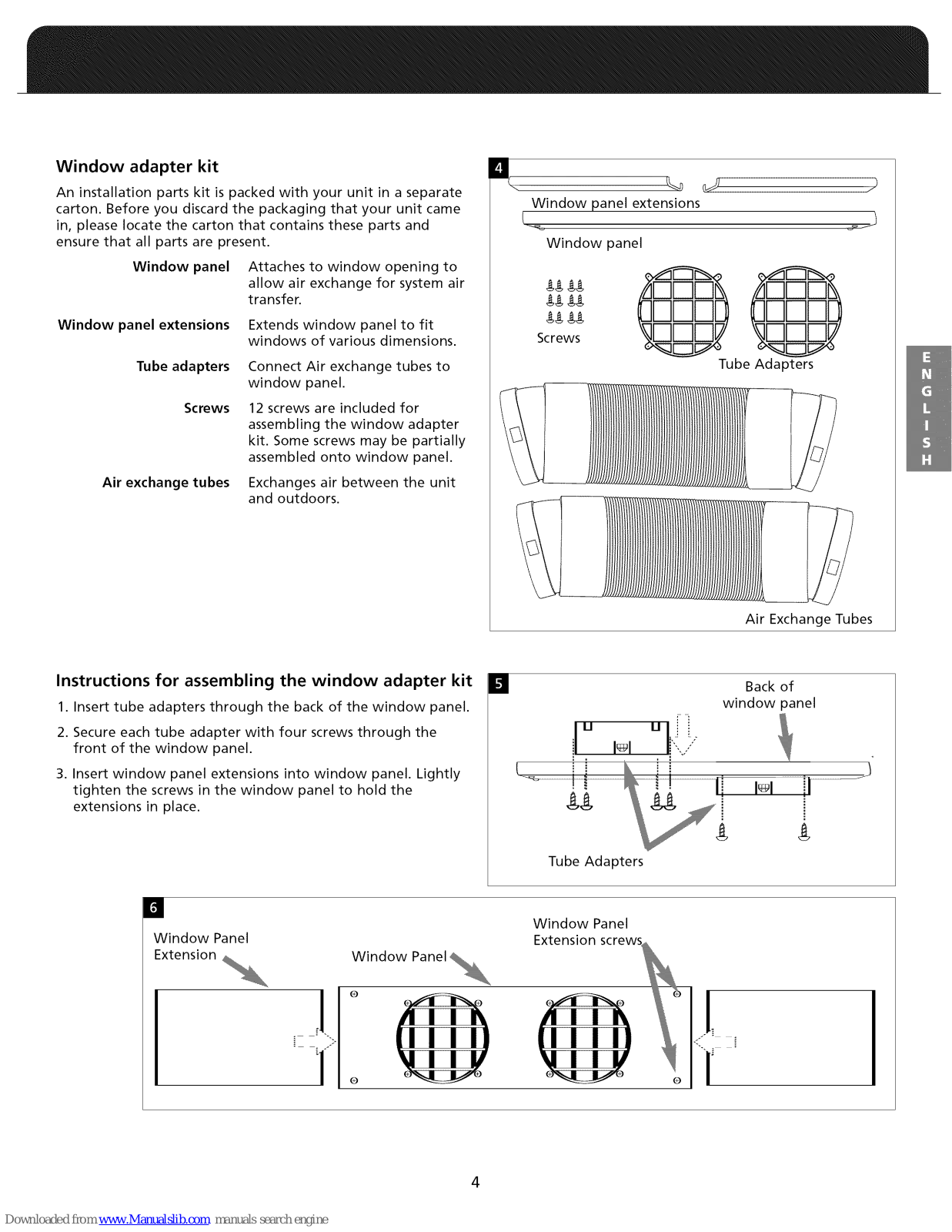

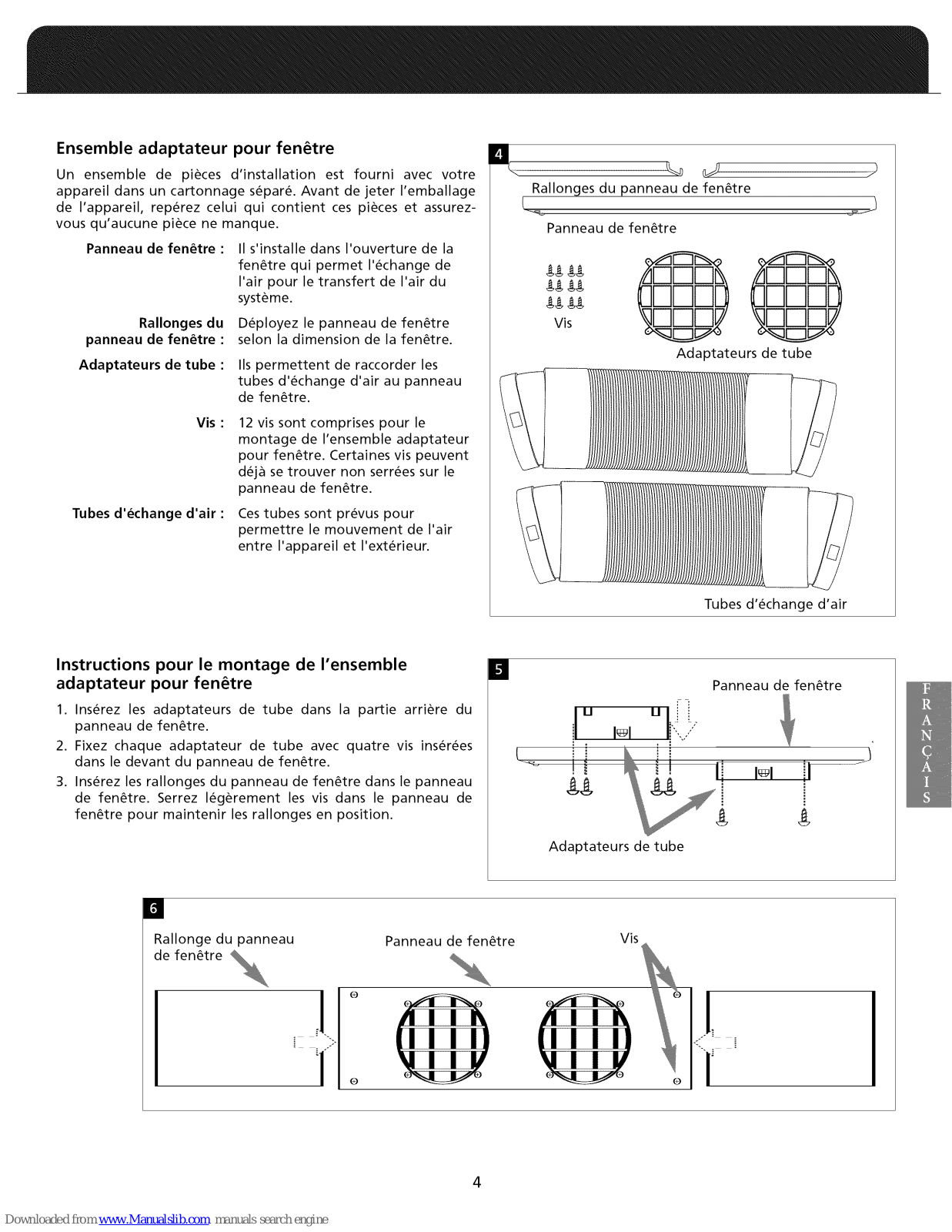

Window adapter kit
An installation parts kit is packed with your unit in a separate
carton. Before you discard the packaging that your unit came
in, please locate the carton that contains these parts and
ensure that all parts are present•
Window panel Attaches to window opening to
allow air exchange for system air
transfer.
11
Window panel extensions
t 3_
Window panel
Window panel extensions Extends window panel to fit
Tube adapters
Screws
Air exchange tubes
Instructions for assembling the window adapter kit
1. Insert tube adapters through the back of the window panel•
2. Secure each tube adapter with four screws through the
front of the window panel•
3. Insert window panel extensions into window panel• Lightly
tighten the screws in the window panel to hold the
extensions in place•
windows of various dimensions•
Connect Air exchange tubes to
window panel•
12 screws are included for
assembling the window adapter
kit. Some screws may be partially
assembled onto window panel•
Exchanges air between the unit
and outdoors•
Screws
[] Back of
u
Uli
•... j ";"
. I
O
Tube Adapters
Air Exchange Tubes
window panel
11
Window Panel
Extension
!1
Window Panel
Q
Tube Adapters
Window Panel
Extension screws

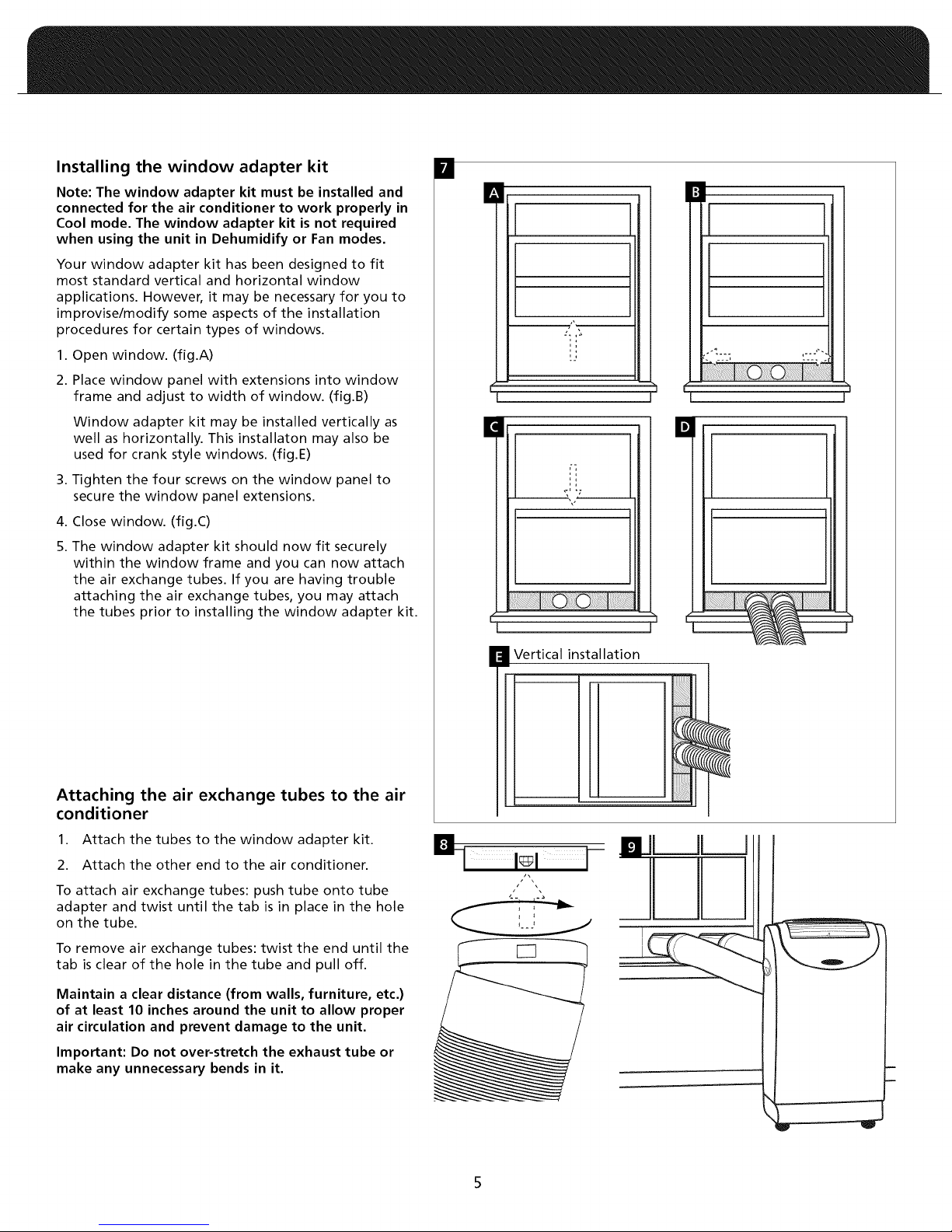

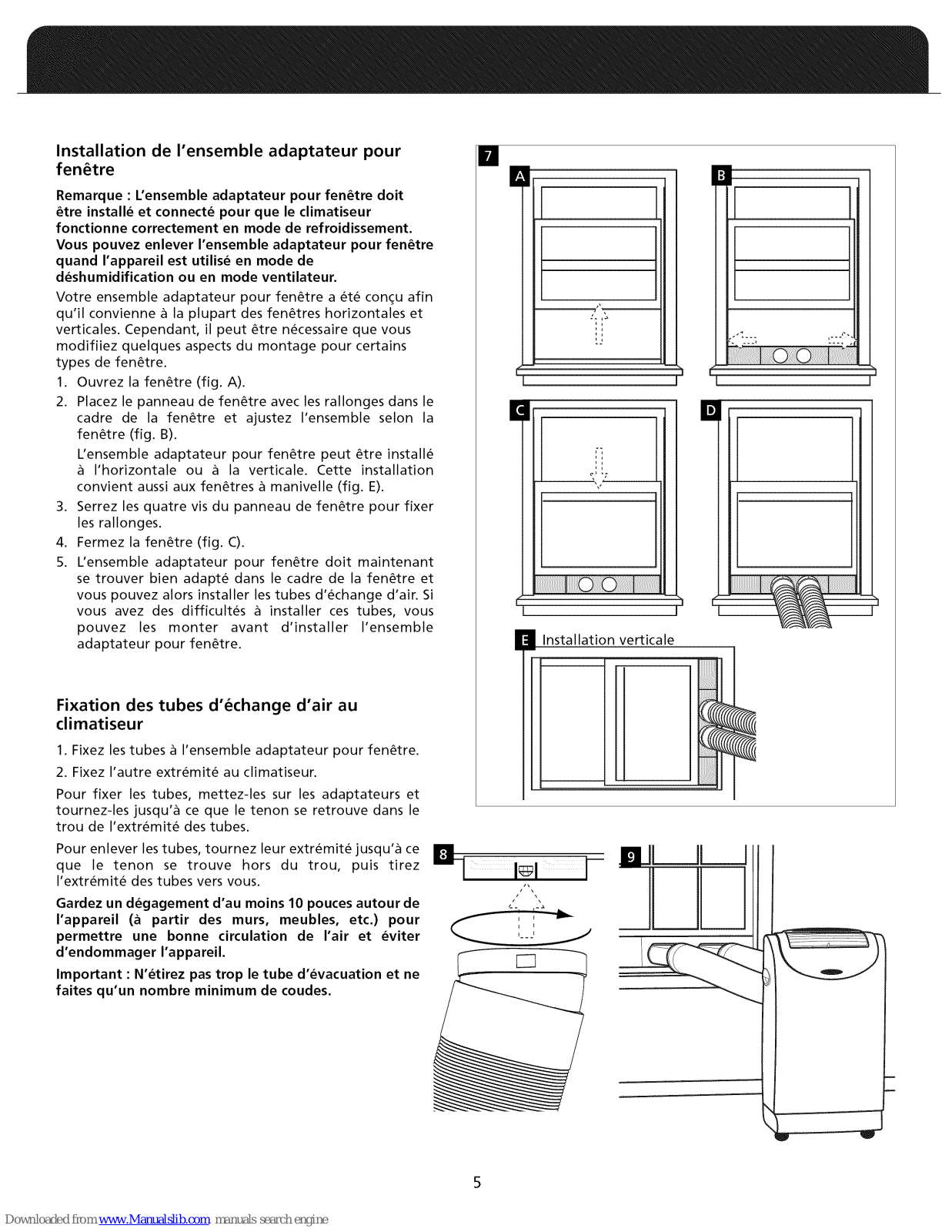

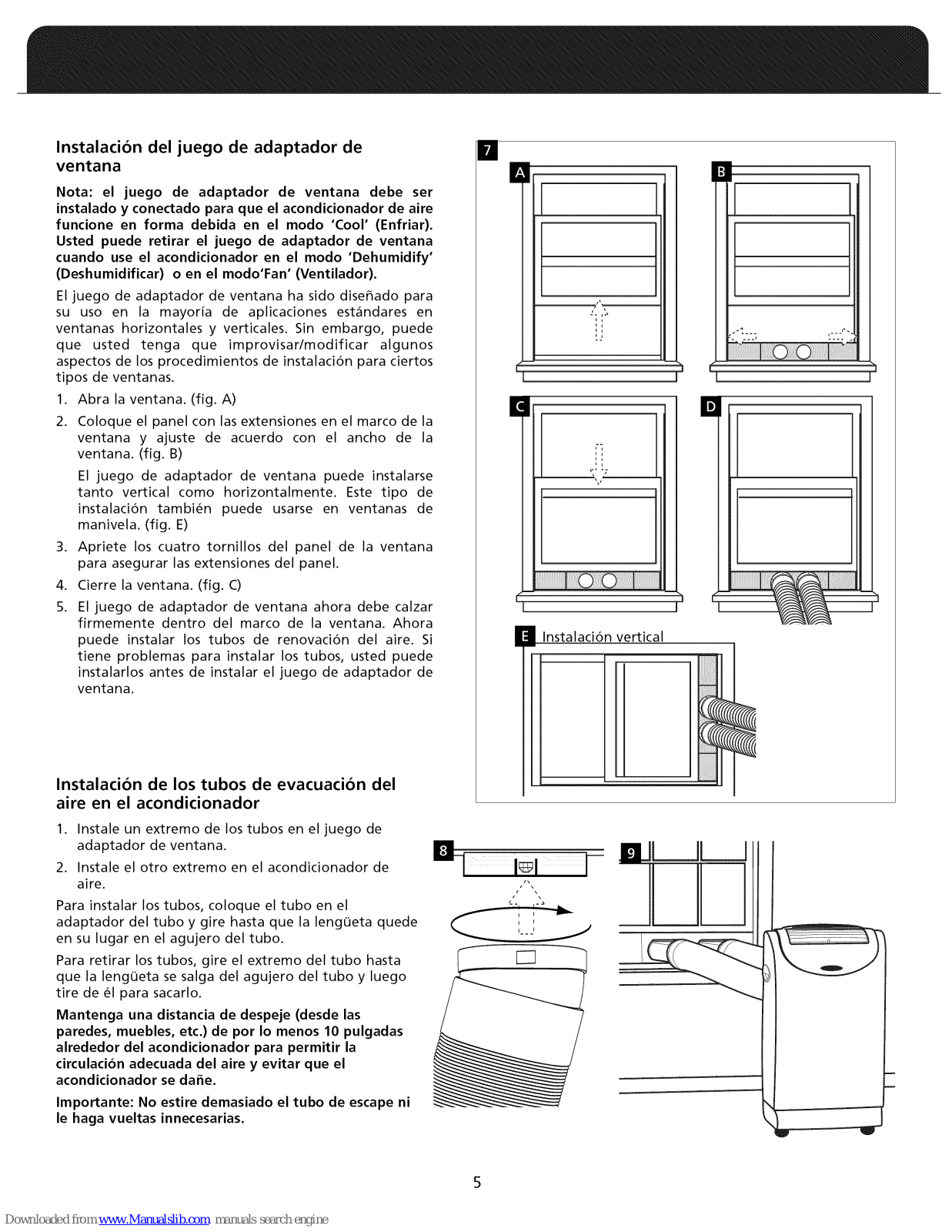

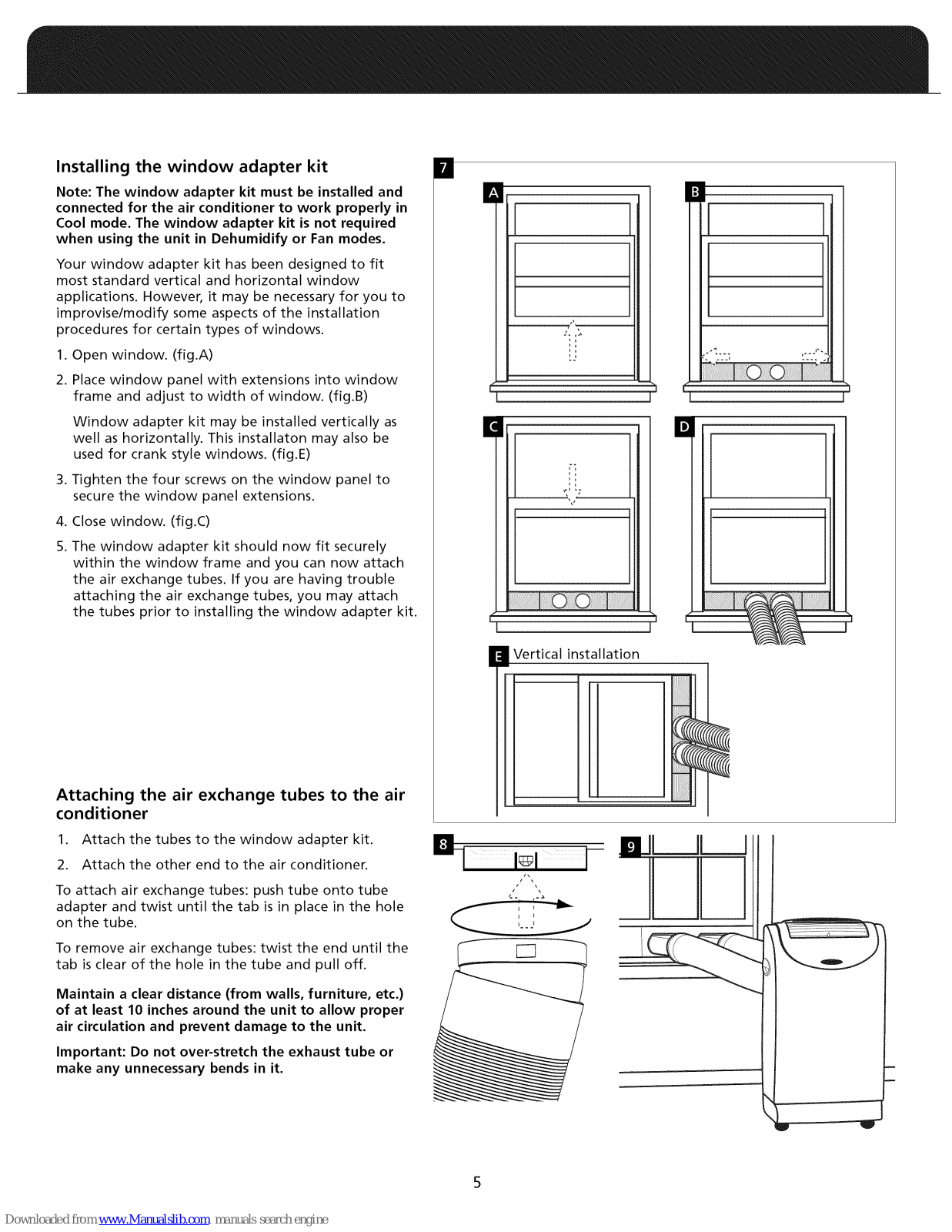

Installing the window adapter kit
Note: The window adapter kit must be installed and
connected for the air conditioner to work properly in
Cool mode. The window adapter kit is not required
when using the unit in Dehumidify or Fan modes.
Your window adapter kit has been designed to fit
most standard vertical and horizontal window
applications. However, it may be necessary for you to
improvise/modify some aspects of the installation
procedures for certain types of windows.
1. Open window. (fig.A)
2. Place window panel with extensions into window
frame and adjust to width of window. (fig.B)
Window adapter kit may be installed vertically as
well as horizontally. This installaton may also be
used for crank style windows. (fig.E)
3. Tighten the four screws on the window panel to
secure the window panel extensions.
4,
Close window. (fig.C)
5.
The window adapter kit should now fit securely
within the window frame and you can now attach
the air exchange tubes. If you are having trouble
attaching the air exchange tubes, you may attach
the tubes prior to installing the window adapter kit.
m
m
Attaching the air exchange tubes to the air
conditioner
1. Attach the tubes to the window adapter kit.
2. Attach the other end to the air conditioner.
To attach air exchange tubes: push tube onto tube
adapter and twist until the tab is in place in the hole
on the tube.
To remove air exchange tubes: twist the end until the
tab is clear of the hole in the tube and pull off.
Maintain a clear distance (from walls, furniture, etc.)
of at least 10 inches around the unit to allow proper
air circulation and prevent damage to the unit.
Important: Do not over-stretch the exhaust tube or
make any unnecessary bends in it.

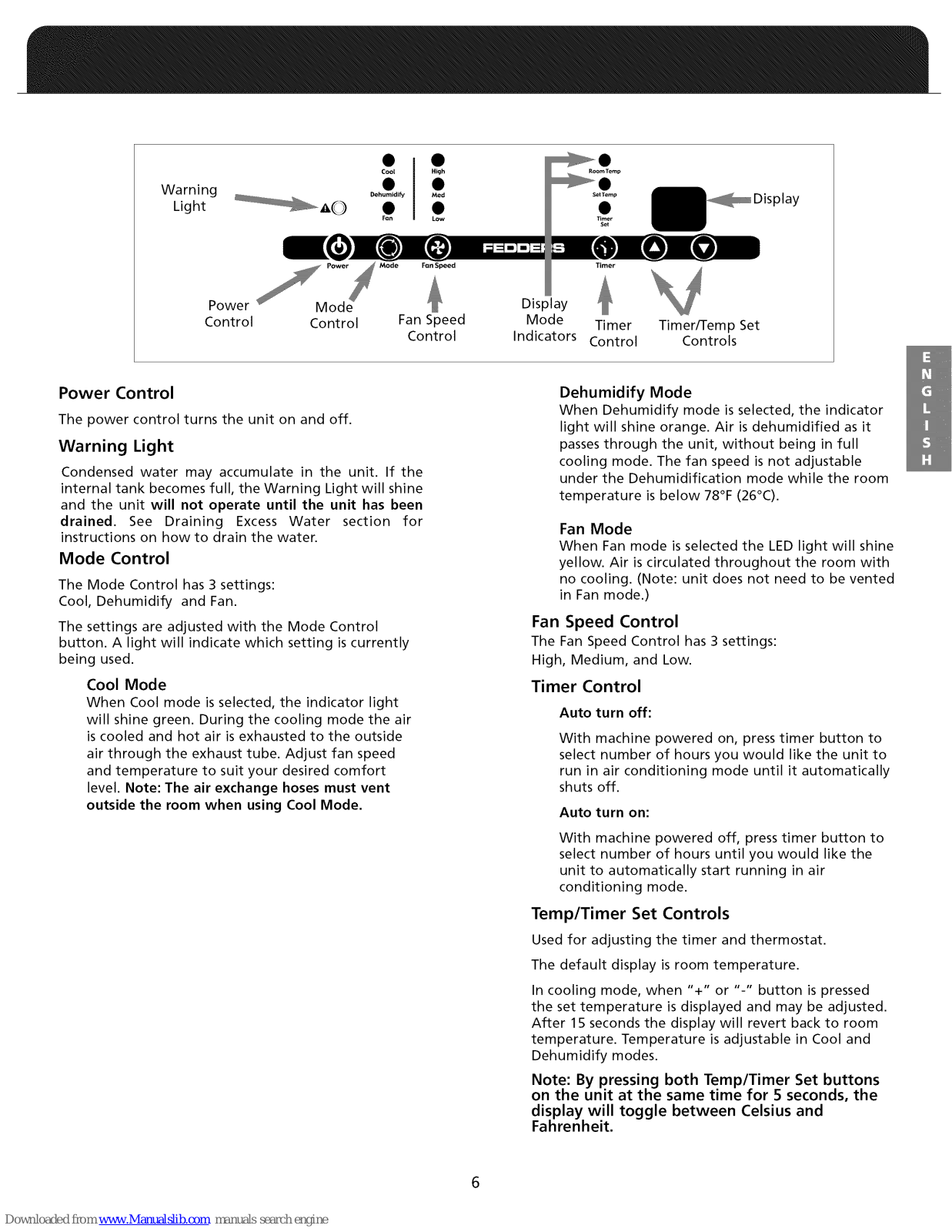

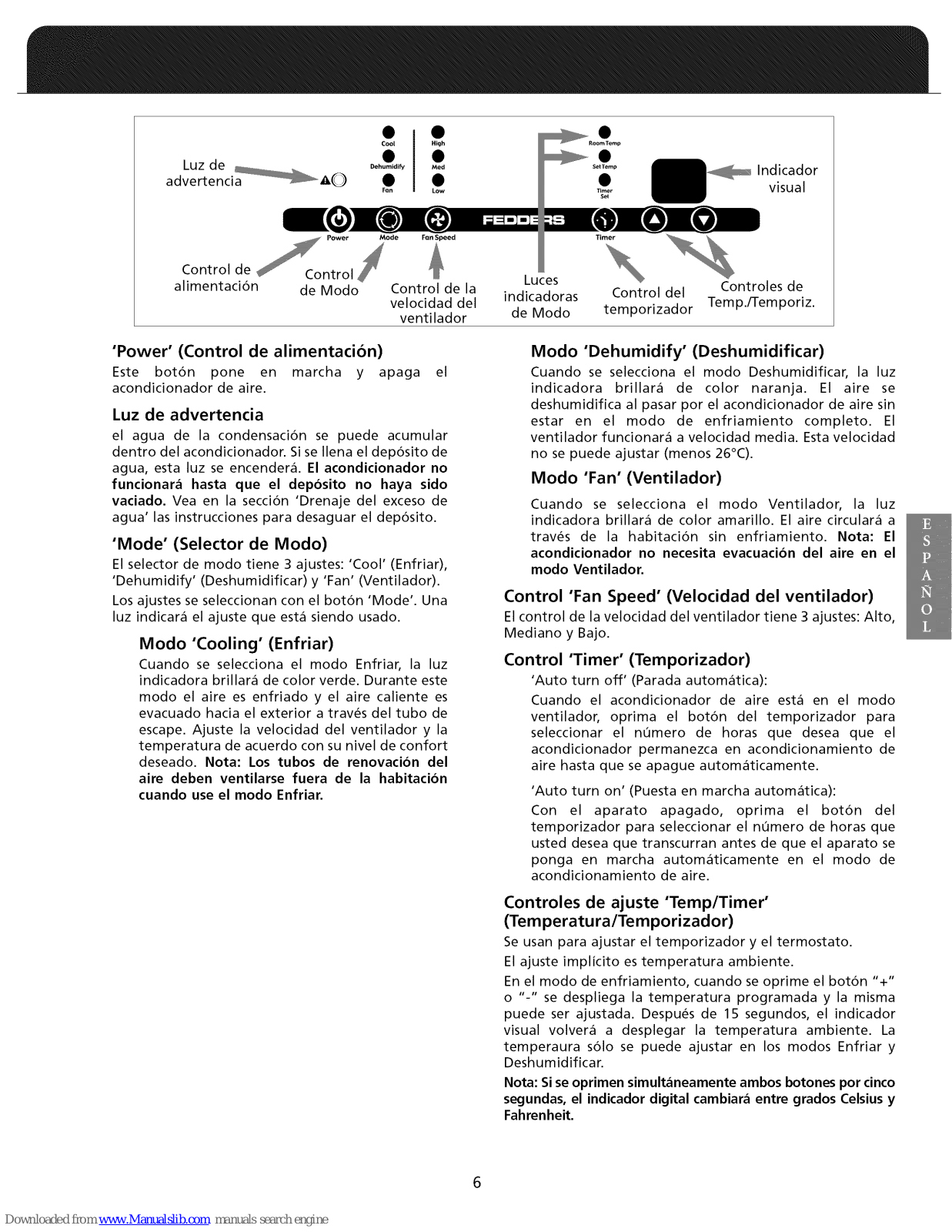

Vertical installation

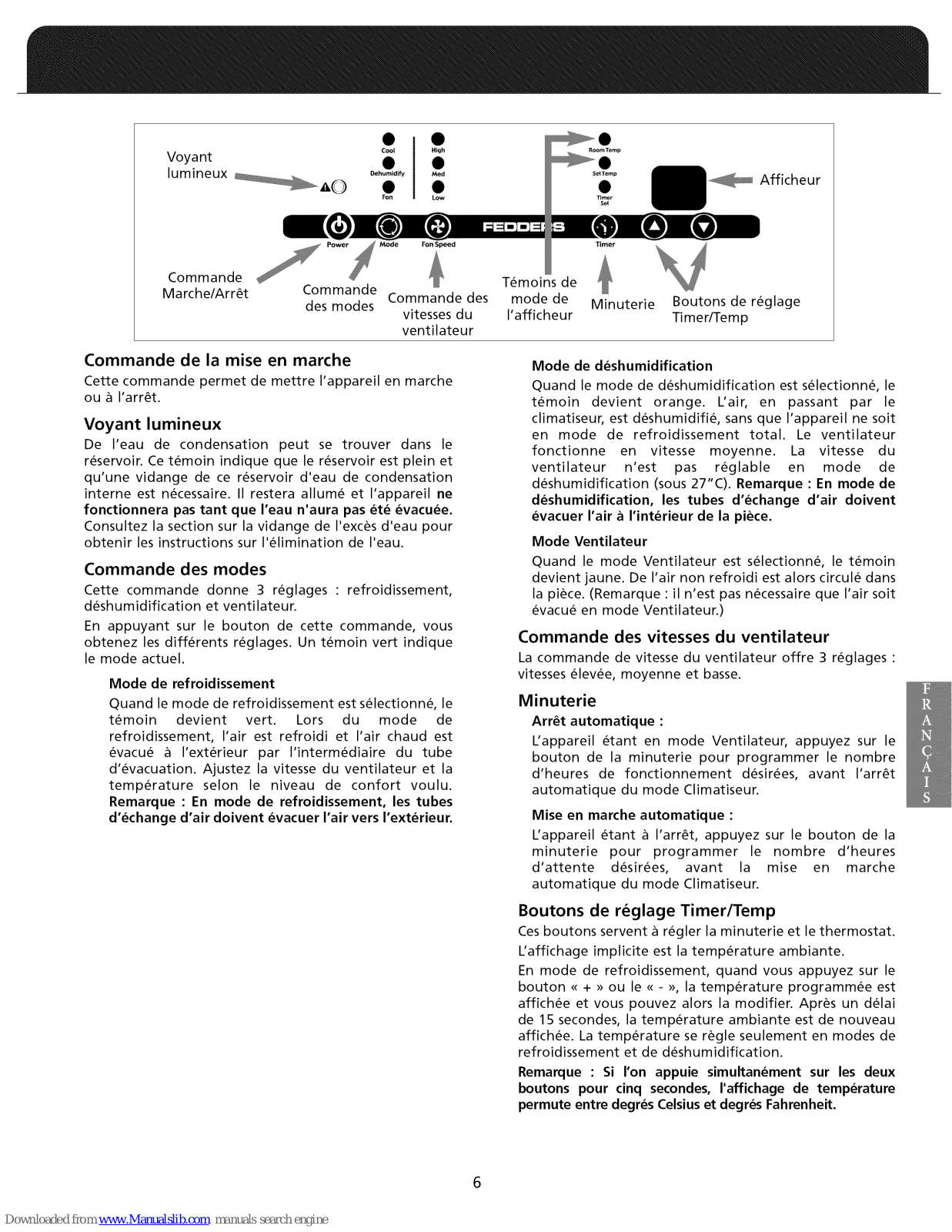

Warning
Light
High
Dehumidify
Fan Speed
JM P°wer
Power ode
Control Control
Fan Speed
Power Control
The power control turns the unit on and off.
Warning Light
Condensed water may accumulate in the unit. If the
internal tank becomes full, the Warning Light will shine
and the unit will not operate until the unit has been
drained. See Draining Excess Water section for
instructions on how to drain the water.
Mode Control
The Mode Control has 3 settings:
Cool, Dehumidify and Fan.
The settings are adjusted with the Mode Control
button. A light will indicate which setting is currently
being used.
Cool Mode
When Cool mode is selected, the indicator light
will shine green. During the cooling mode the air
is cooled and hot air is exhausted to the outside
air through the exhaust tube. Adjust fan speed
and temperature to suit your desired comfort
level. Note: The air exchange hoses must vent
outside the room when using Cool Mode.
Control
Display
Mode Timer Timer/Tem p Set
Indicators Control Controls
Dehumidify Mode
When Dehumidify mode is selected, the indicator
light will shine orange. Air is dehumidified as it
passes through the unit, without being in full
cooling mode. The fan speed is not adjustable
under the Dehumidification mode while the room
temperature is below 78°F (26°C).
Fan Mode
When Fan mode is selected the LED light will shine
yellow. Air is circulated throughout the room with
no cooling. (Note: unit does not need to be vented
in Fan mode.)
Fan Speed Control
The Fan Speed Control has 3 settings:
High, Medium, and Low.
Timer Control
Auto turn off:
With machine powered on, press timer button to
select number of hours you would like the unit to
run in air conditioning mode until it automatically
shuts off.
Auto turn on:
With machine powered off, press timer button to
select number of hours until you would like the
unit to automatically start running in air
conditioning mode.
Temp/Timer Set Controls
Used for adjusting the timer and thermostat.
The default display is room temperature.
In cooling mode, when "+" or "-" button is pressed
the set temperature is displayed and may be adjusted.
After 15 seconds the display will revert back to room
temperature. Temperature is adjustable in Cool and
Dehumidify modes.
Note: By pressing both Temp/Timer Set buttons
on the unit at the same time for 5 seconds, the
display will toggle between Celsius and
Fahrenheit.

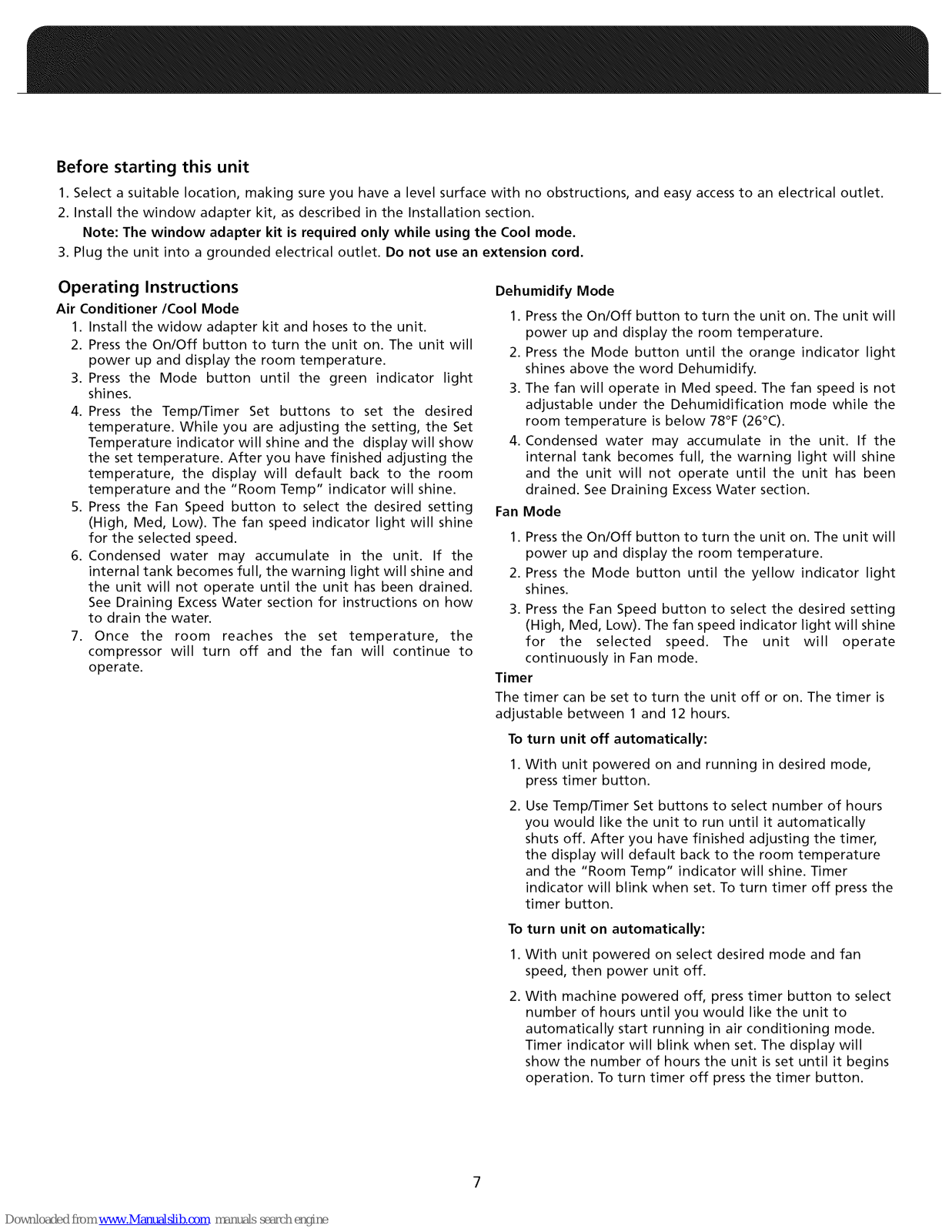

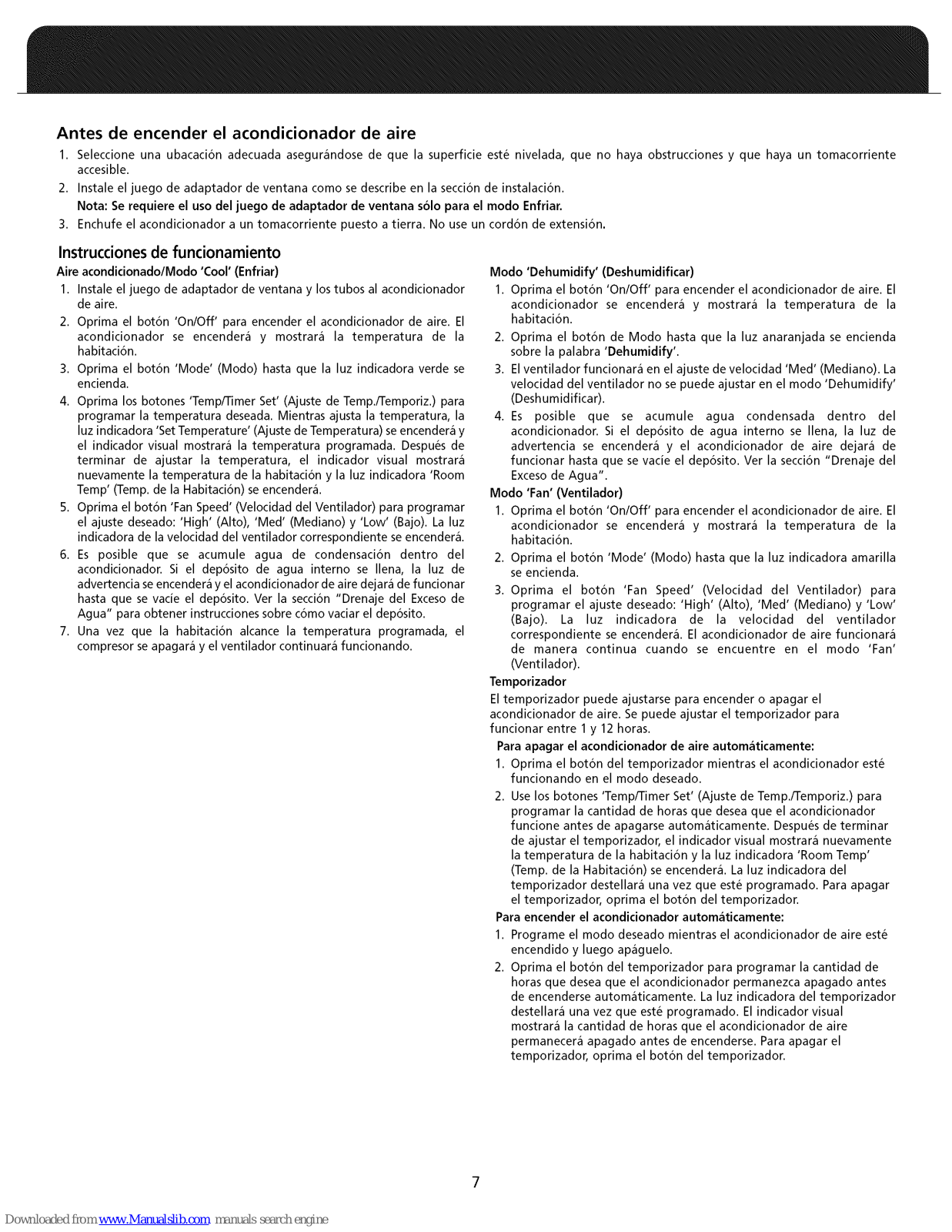

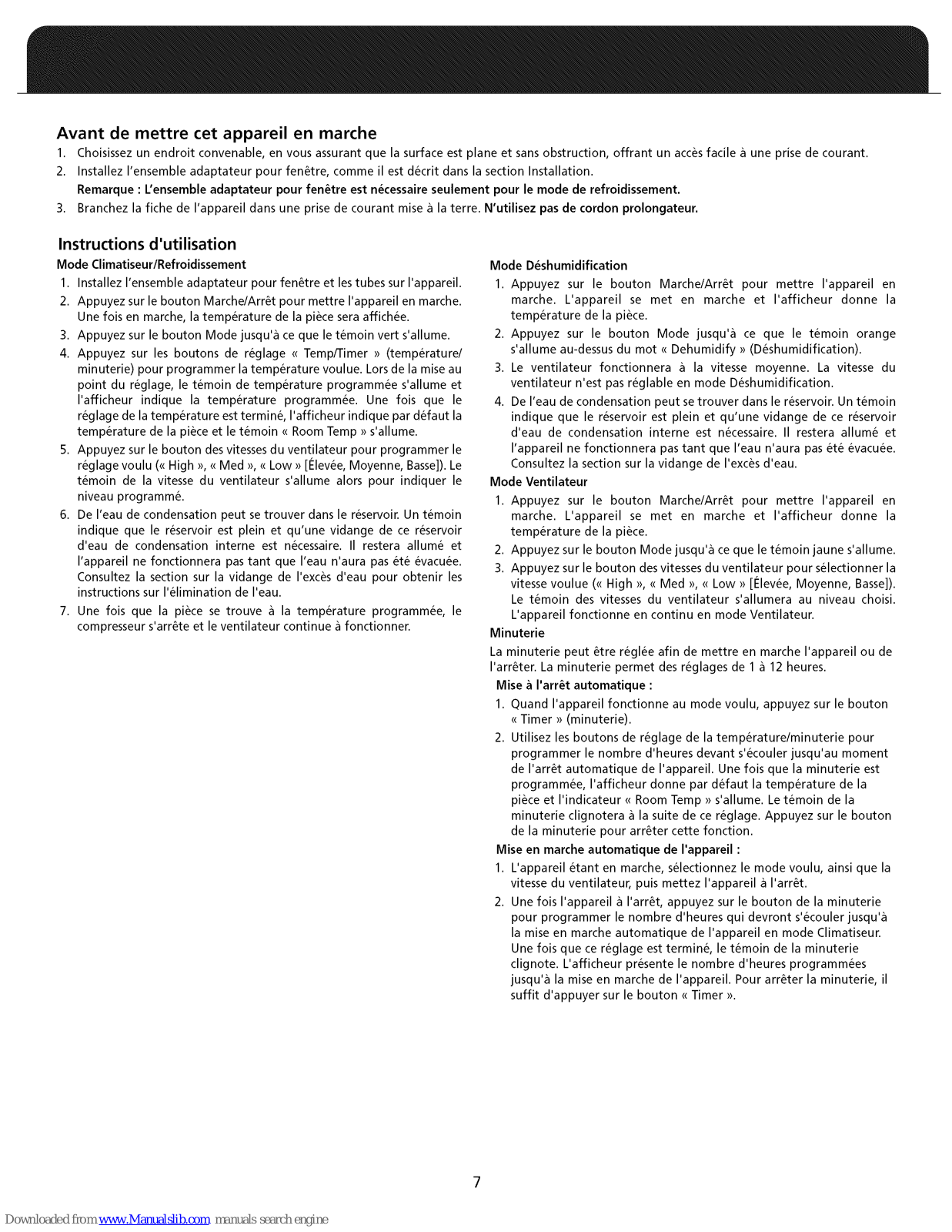

Before starting this unit
1. Select a suitable location, making sure you have a level surface with no obstructions, and easy access to an electrical outlet.
2. Install the window adapter kit, as described in the Installation section.
Note: The window adapter kit is required only while using the Cool mode.
3. Plug the unit into a grounded electrical outlet. Do not use an extension cord.
Operating Instructions
Air Conditioner/Cool Mode
1. Install the widow adapter kit and hoses to the unit.
2. Press the On/Off button to turn the unit on. The unit will
power up and display the room temperature.
3. Press the Mode button until the green indicator light
shines.
4. Press the Temp/Timer Set buttons to set the desired
temperature. While you are adjusting the setting, the Set
Temperature indicator will shine and the display will show
the set temperature. After you have finished adjusting the
temperature, the display will default back to the room
temperature and the "Room Temp" indicator will shine.
5. Press the Fan Speed button to select the desired setting
(High, Med, Low). The fan speed indicator light will shine
for the selected speed.
6. Condensed water may accumulate in the unit. If the
internal tank becomes full, the warning light will shine and
the unit will not operate until the unit has been drained.
See Draining Excess Water section for instructions on how
to drain the water.
7. Once the room reaches the set temperature, the
compressor will turn off and the fan will continue to
operate.
Dehumidify Mode
1. Press the On/Off button to turn the unit on. The unit will
power up and display the room temperature.
2. Press the Mode button until the orange indicator light
shines above the word Dehumidify.
3. The fan will operate in Med speed. The fan speed is not
adjustable under the Dehumidification mode while the
room temperature is below 78°F (26°C).
4. Condensed water may accumulate in the unit. If the
internal tank becomes full, the warning light will shine
and the unit will not operate until the unit has been
drained. See Draining Excess Water section.
Fan Mode
1. Press the On/Off button to turn the unit on. The unit will
power up and display the room temperature.
2. Press the Mode button until the yellow indicator light
shines.
3. Press the Fan Speed button to select the desired setting
(High, Med, Low). The fan speed indicator light will shine
for the selected speed. The unit will operate
continuously in Fan mode.
Timer
The timer can be set to turn the unit off or on. The timer is
adjustable between 1 and 12 hours.
To turn unit off automatically:
1. With unit powered on and running in desired mode,
press timer button.
2,
Use Temp/Timer Set buttons to select number of hours
you would like the unit to run until it automatically
shuts off. After you have finished adjusting the timer,
the display will default back to the room temperature
and the "Room Temp" indicator will shine. Timer
indicator will blink when set. To turn timer off press the
timer button.
To turn unit on automatically:
1. With unit powered on select desired mode and fan
speed, then power unit off.
2,
With machine powered off, press timer button to select
number of hours until you would like the unit to
automatically start running in air conditioning mode.
Timer indicator will blink when set. The display will
show the number of hours the unit is set until it begins
operation. To turn timer off press the timer button.

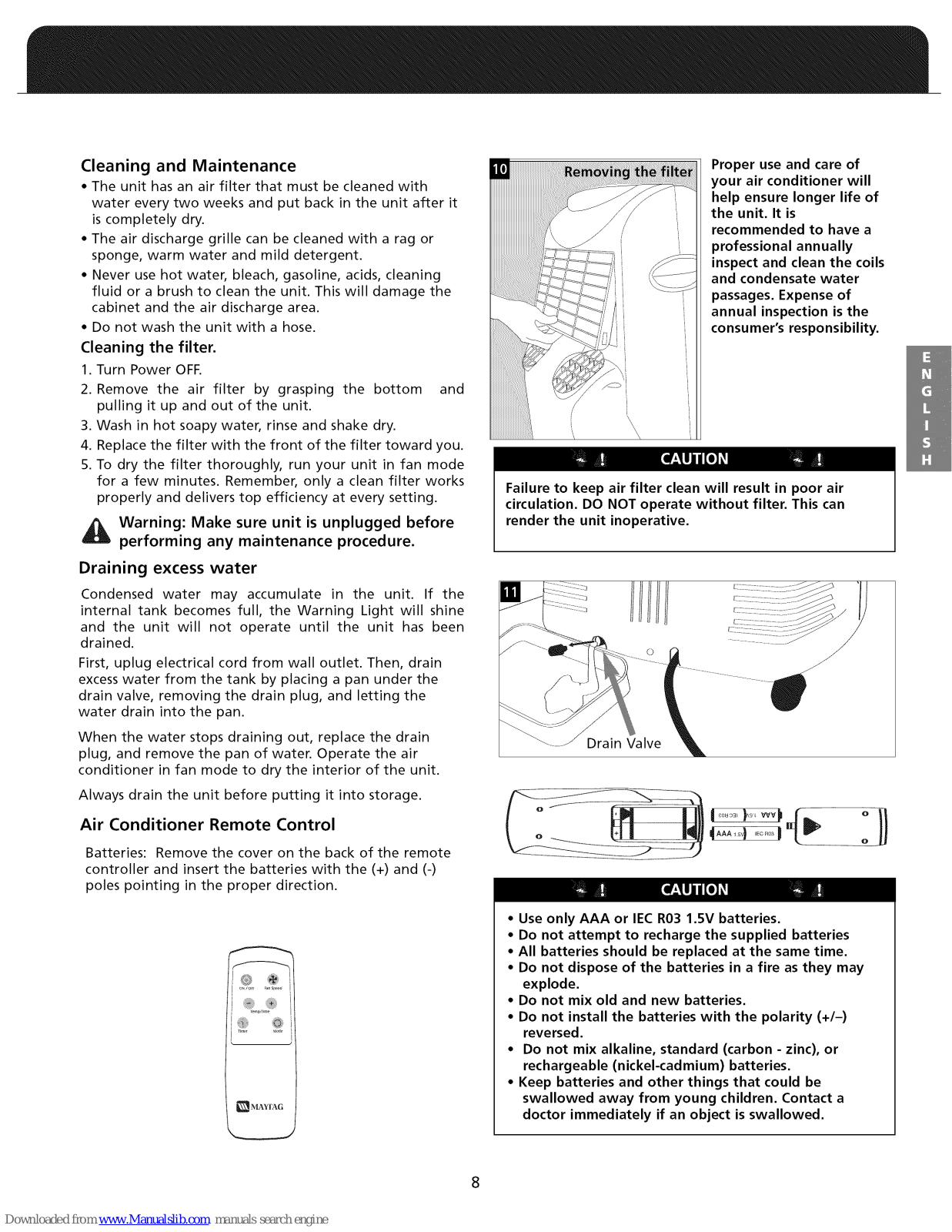

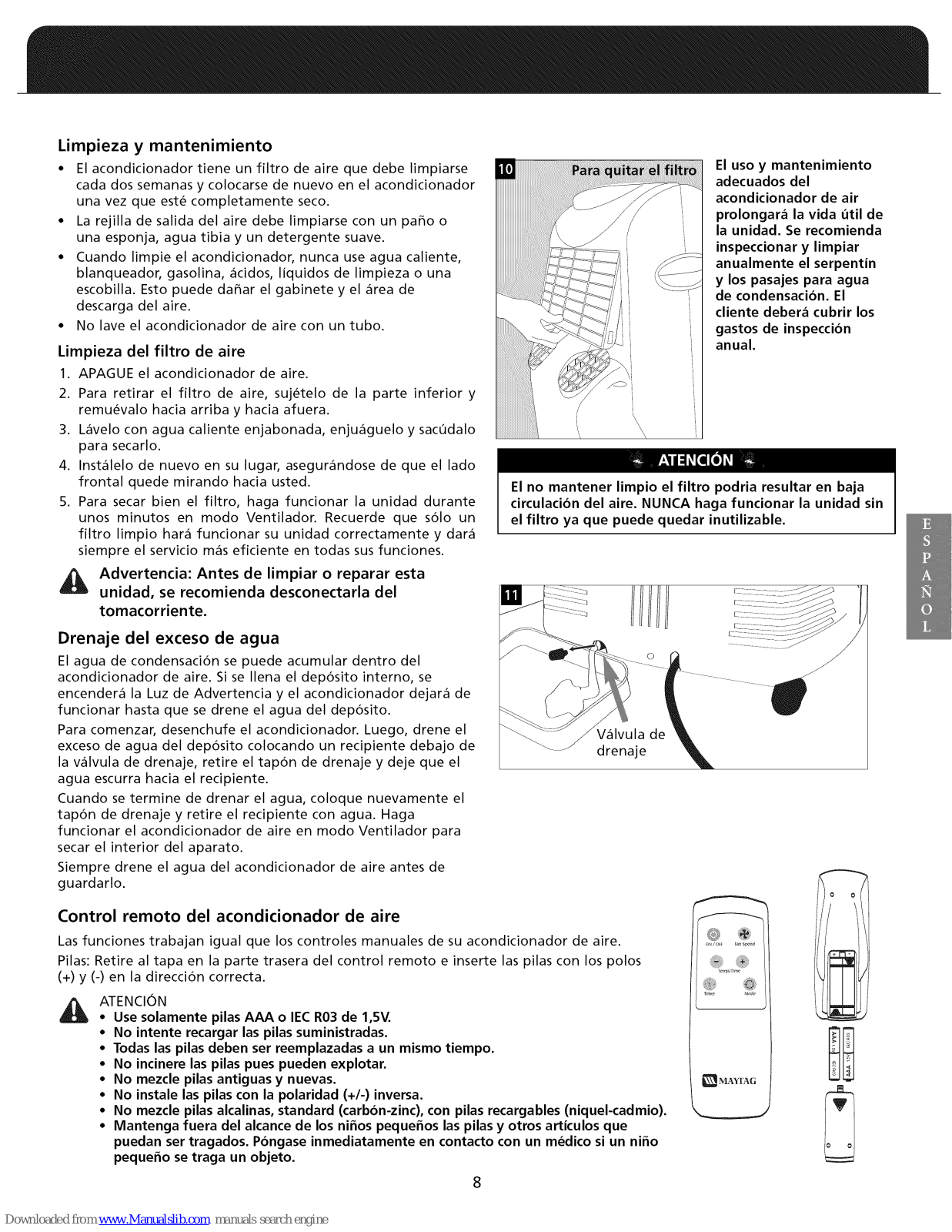

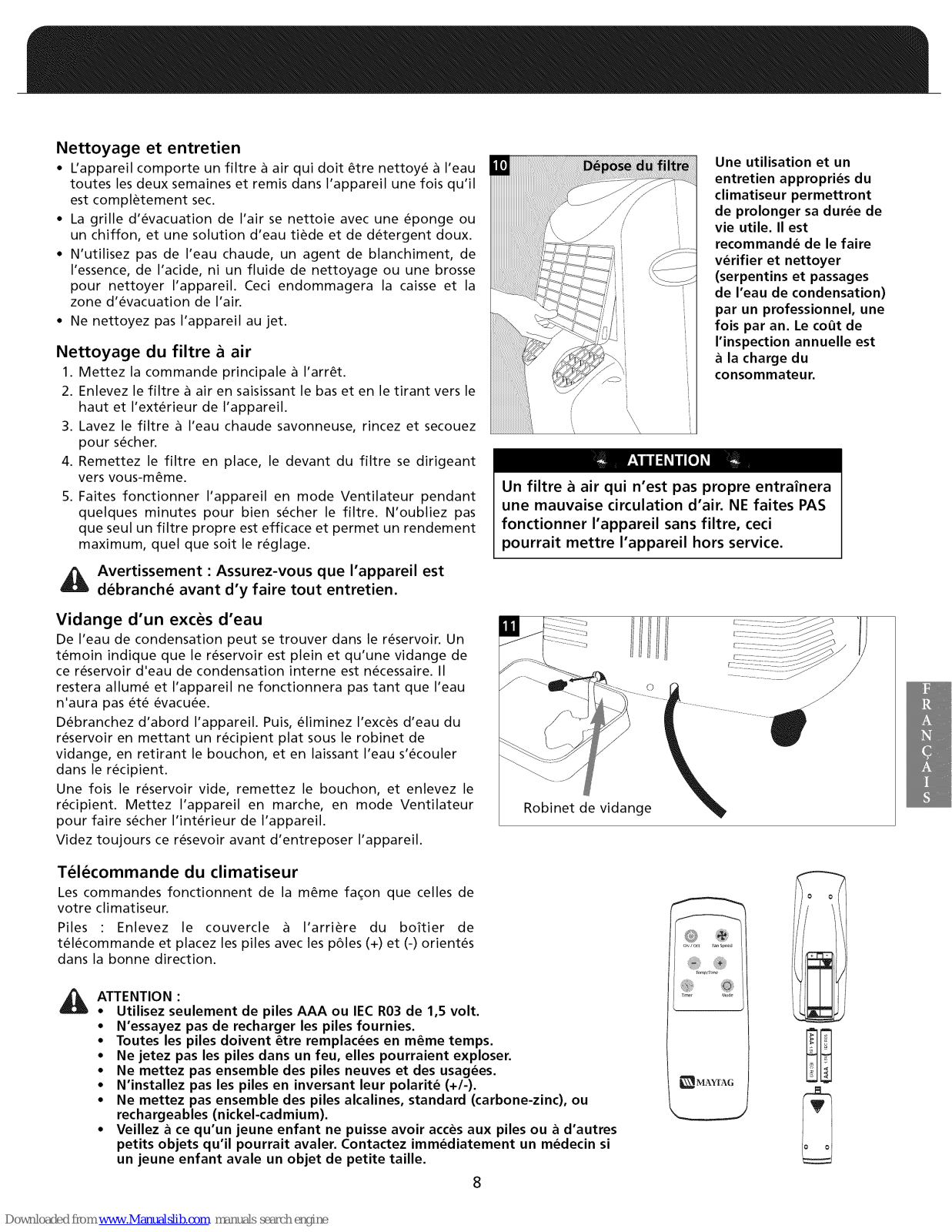

Cleaning and Maintenance
• The unit has an air filter that must be cleaned with
water every two weeks and put back in the unit after it
is completely dry.
• The air discharge grille can be cleaned with a rag or
sponge, warm water and mild detergent.
• Never use hot water, bleach, gasoline, acids, cleaning
fluid or a brush to clean the unit. This will damage the
cabinet and the air discharge area.
• Do not wash the unit with a hose.
Cleaning the filter.
1. Turn Power OFF.
2. Remove the air filter by grasping the bottom and
pulling it up and out of the unit.
3. Wash in hot soapy water, rinse and shake dry.
4. Replace the filter with the front of the filter toward you.
5. To dry the filter thoroughly, run your unit in fan mode
for a few minutes. Remember, only a clean filter works
properly and delivers top efficiency at every setting.
_lb Warning: Make sure unit is unplugged before
performing any maintenance procedure.
Draining excess water
Condensed water may accumulate in the unit. If the
internal tank becomes full, the Warning Light will shine
and the unit will not operate until the unit has been
drained.
First, uplug electrical cord from wall outlet. Then, drain
excess water from the tank by placing a pan under the
drain valve, removing the drain plug, and letting the
water drain into the pan.
When the water stops draining out, replace the drain
plug, and remove the pan of water. Operate the air
conditioner in fan mode to dry the interior of the unit.
Always drain the unit before putting it into storage.
Proper use and care of
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!!!!!!!!_!_!_!J!
ii'i'i_!
your air conditioner will
help ensure longer life of
the unit. It is
recommended to have a
professional annually
inspect and clean the coils
and condensate water
passages. Expense of
annual inspection is the
consumer's responsibility.
[a_:,_!Jii[o)_J
Failure to keep air filter clean will result in poor air
circulation. DO NOT operate without filter. This can
render the unit inoperative.
Drain Valve
Air Conditioner Remote Control
Batteries: Remove the cover on the back of the remote
controller and insert the batteries with the (+) and (-)
poles pointing in the proper direction.
o
[e_:,_!Jii[o)_J
• Use only AAA or IEC R03 1.5V batteries.
• Do not attempt to recharge the supplied batteries
• All batteries should be replaced at the same time.
• Do not dispose of the batteries in a fire as they may
explode.
• Do not mix old and new batteries.
• Do not install the batteries with the polarity (+/-)
reversed.
• Do not mix alkaline, standard (carbon - zinc), or
rechargeable (nickel-cadmium) batteries.
• Keep batteries and other things that could be
swallowed away from young children. Contact a
doctor immediately if an object is swallowed.

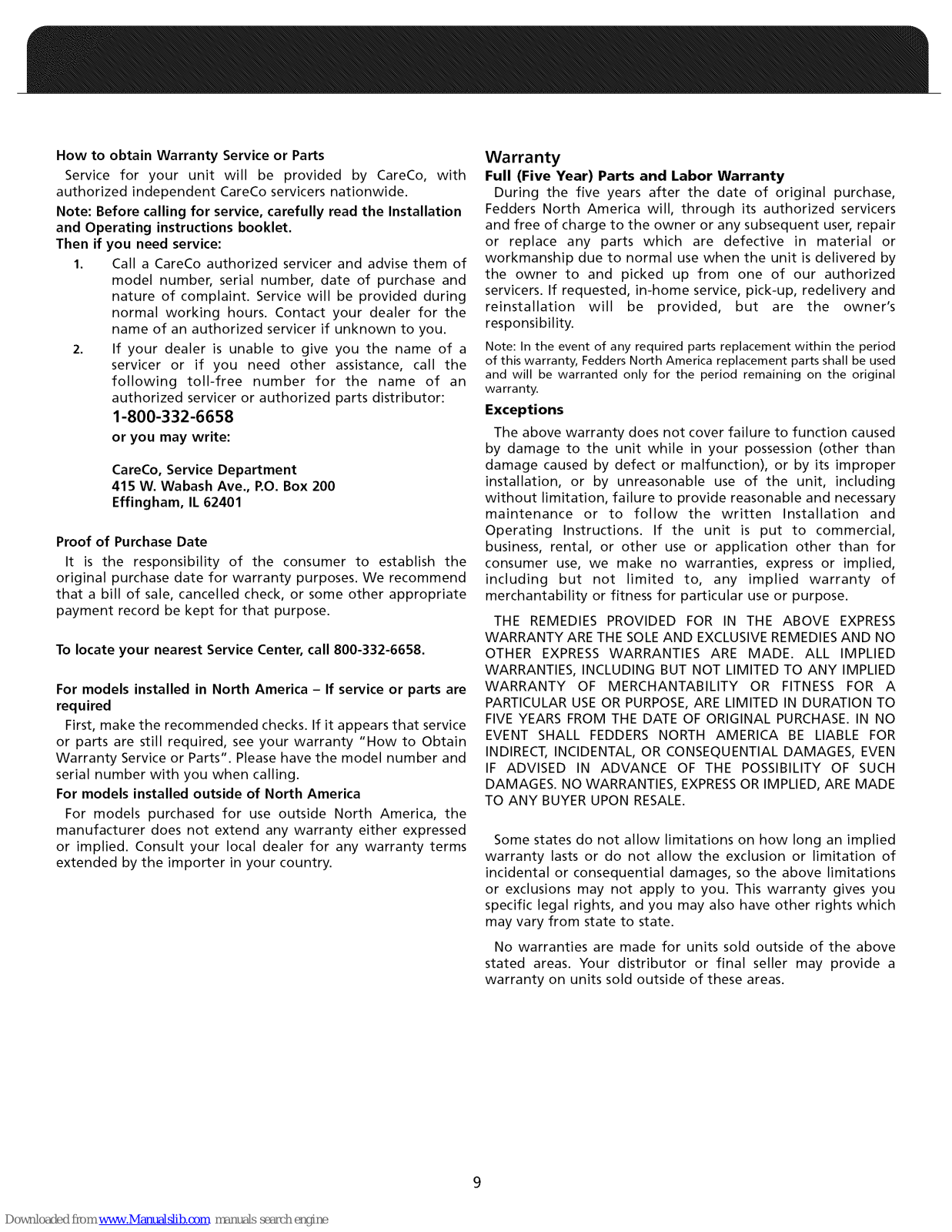

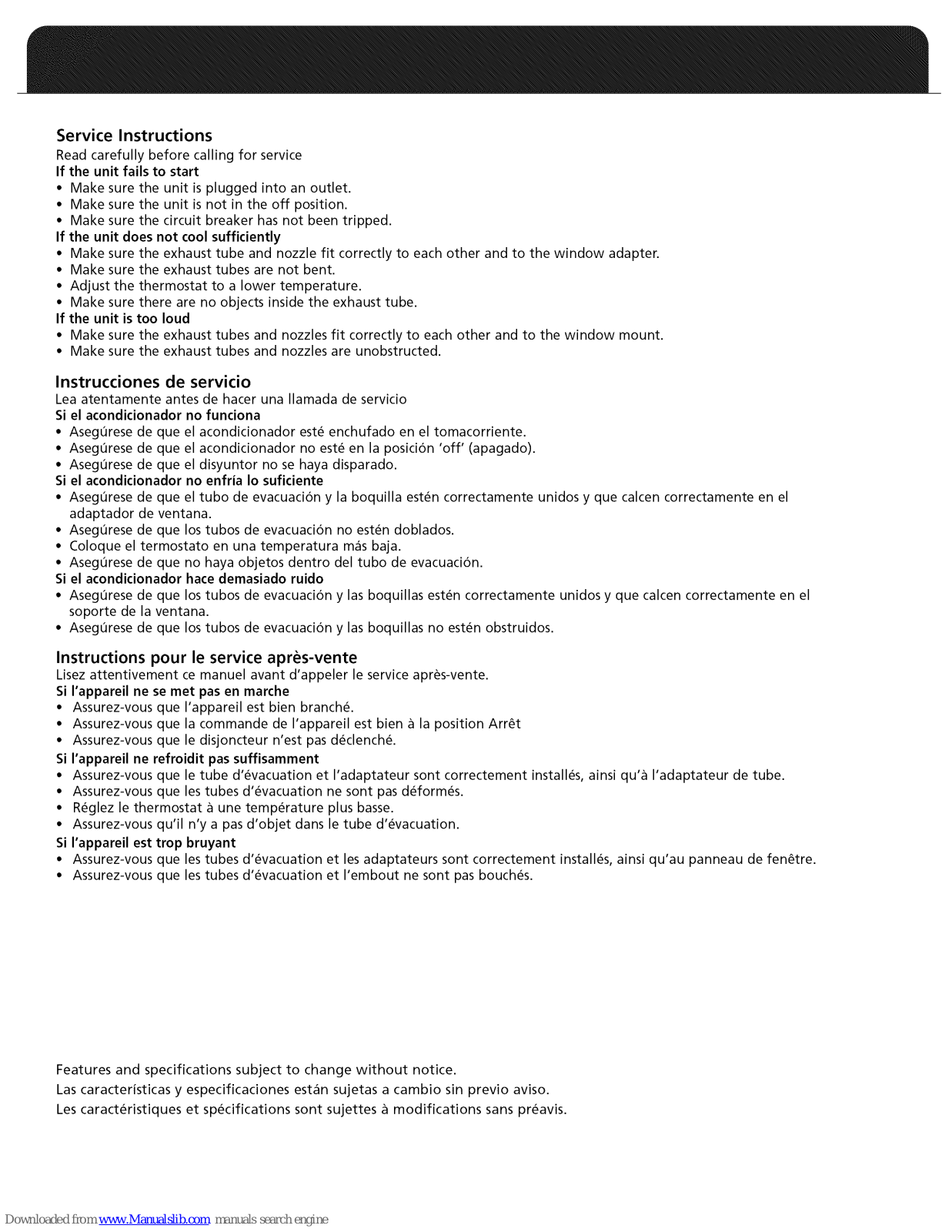

Howto obtain Warranty Service or Parts
Service for your unit will be provided by CareCo, with
authorized independent CareCo servicers nationwide.
Note: Before calling for service, carefully read the Installation
and Operating instructions booklet.
Then if you need service:
1. Call a CareCo authorized servicer and advise them of
model number, serial number, date of purchase and
nature of complaint. Service will be provided during
normal working hours. Contact your dealer for the
name of an authorized servicer if unknown to you.
2. If your dealer is unable to give you the name of a
servicer or if you need other assistance, call the
following toll-free number for the name of an
authorized servicer or authorized parts distributor:
1-800-332-6658
or you may write:
CareCo, Service Department
415 W. Wabash Ave., RO. Box 200
Effingham, IL 62401
Proof of Purchase Date
It is the responsibility of the consumer to establish the
original purchase date for warranty purposes. We recommend
that a bill of sale, cancelled check, or some other appropriate
payment record be kept for that purpose.
To locate your nearest Service Center, call 800-332-6658.
For models installed in North America - If service or parts are
required
First, make the recommended checks. If it appears that service
or parts are still required, see your warranty "How to Obtain
Warranty Service or Parts". Please have the model number and
serial number with you when calling.
For models installed outside of North America
For models purchased for use outside North America, the
manufacturer does not extend any warranty either expressed
or implied. Consult your local dealer for any warranty terms
extended by the importer in your country.
Warranty
Full (Five Year) Parts and Labor Warranty
During the five years after the date of original purchase,
Fedders North America will, through its authorized servicers
and free of charge to the owner or any subsequent user, repair
or replace any parts which are defective in material or
workmanship due to normal use when the unit is delivered by
the owner to and picked up from one of our authorized
servicers. If requested, in-home service, pick-up, redelivery and
reinstallation will be provided, but are the owner's
responsibility.
Note: In the event of any required parts replacement within the period
of this warranty, Fedders North America replacement parts shall be used
and will be warranted only for the period remaining on the original
warranty.
Exceptions
The above warranty does not cover failure to function caused
by damage to the unit while in your possession (other than
damage caused by defect or malfunction), or by its improper
installation, or by unreasonable use of the unit, including
without limitation, failure to provide reasonable and necessary
maintenance or to follow the written Installation and
Operating Instructions. If the unit is put to commercial,
business, rental, or other use or application other than for
consumer use, we make no warranties, express or implied,
including but not limited to, any implied warranty of
merchantability or fitness for particular use or purpose.
THE REMEDIES PROVIDED FOR IN THE ABOVE EXPRESS
WARRANTY ARE THE SOLEAND EXCLUSIVE REMEDIES AND NO
OTHER EXPRESS WARRANTIES ARE MADE. ALL IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO
FIVE YEARS FROM THE DATE OF ORIGINAL PURCHASE. IN NO
EVENT SHALL FEDDERS NORTH AMERICA BE LIABLE FOR
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN
IF ADVISED IN ADVANCE OF THE POSSIBILITY OF SUCH
DAMAGES. NO WARRANTIES, EXPRESSOR IMPLIED, ARE MADE
TO ANY BUYER UPON RESALE.
Some states do not allow limitations on how long an implied
warranty lasts or do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations
or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which
may vary from state to state.
No warranties are made for units sold outside of the above
stated areas. Your distributor or final seller may provide a
warranty on units sold outside of these areas.
Loading...
