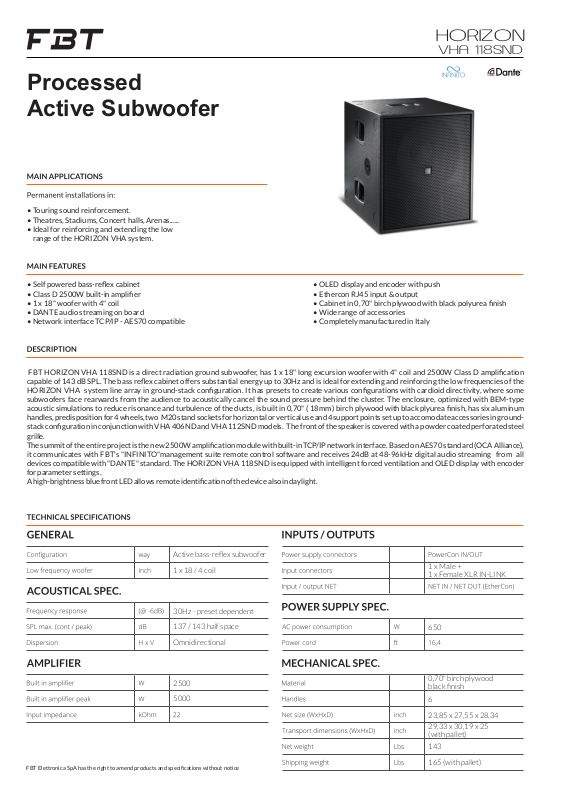

Page 1
Processed
Active Subwoofer
• Touring sound reinforcement.
• Theatres, Stadiums, Concert halls, Arenas......
• Ideal for reinforcing and extending the low
range of the HORIZON VHA system.
HORIZON
VHA 118SND
• Self powered bass-reflex cabinet
• Class D 2500W built-in amplifier
• 1 x 18" woofer with 4" coil
• DANTE audio streaming on board
• Network interface TCP/IP - AES70 compatible
FBT HORIZON VHA 118SND is a direct radiation ground subwoofer, has 1 x 18" long excursion woofer with 4" coil and 2500W Class D amplification
capable of 143 dB SPL. The bass reflex cabinet offers substantial energy up to 30Hz and is ideal for extending and reinforcing the low frequencies of the
HORIZON VHA system line array in ground-stack configuration. It has presets to create various configurations with cardioid directivity, where some
subwoofers face rearwards from the audience to acoustically cancel the sound pressure behind the cluster. The enclosure, optimized with BEM-type
acoustic simulations to reduce risonance and turbulence of the ducts, is built in 0,70" ( 18mm ) birch plywood with black plyurea finish, has six aluminum
handles, predisposition for 4 wheels, two M20 stand sockets for horizontal or vertical use and 4 support points set up to accomodate accessories in groundstack configuration in conjunction with VHA 406ND and VHA 112SND models. The front of the speaker is covered with a powder coated perforated steel
grille.
The summit of the entire project is the new 2500W amplification module with built-in TCP/IP network interface. Based on AES70 standard (OCA Alliance),
it communicates with FBT's "INFINITO"management suite remote control software and receives 24dB at 48-96kHz digital audio streaming from all
devices compatible with "DANTE" standard. The HORIZON VHA 118SND is equipped with intelligent forced ventilation and OLED display with encoder
for parameter settings.
A high-brightness blue front LED allows remote identification of the device also in daylight.
Active bass-reflex subwoofer
1 x 18 / 4 coil
• OLED display and encoder with push
• Ethercon RJ45 input & output
• Cabinet in 0,70" birch plywood with black polyurea finish
• Wide range of accessories
• Completely manufactured in Italy
1 x Male +
1 x Female XLR IN-LINK
30Hz - preset dependent
137 / 143 half space
Omnidirectional
2500
5000
FBT Elettronica SpA has the right to amend products and specifications without notice
650
0,70" birch plywood
black finish
6
23,85 x 27,55 x 28,34
29,33 x 30,19 x 25
(with pallet)
143
165 (with pallet)
Page 2
CONNECTION PANEL
HORIZON
VHA 118SND
DIMENSIONAL DRAWING
23,85"
ONLY FOR GROUND STACK CONFIGURATION
27,55"
28,34"
Page 3
ACCESSORIES
VHA-B406
METAL BASE FOR ARRAY GROUND CONFIGURATION OR ABOVE
SUBWOOFER
• Manufacture: Steel
• Safety factor: 2 modules on the ground / 3 modules above subwoofer
• Dimensions: 23,85" x 2,87" x 19,76"
606 x 73 x 502 mm
• Weight: 22,70 lb / 10,3kg
VHA-T118
TROLLEY FOR TRANSPORT
• Manufacture: Steel
• Safety factor: Max. 2 modules subwoofer
• Dimensions: 31,69" x 7,12" x 27,16"
805 x 181 x 690 mm
HORIZON
VHA 118SND
MS-F210
FIXING SUBWOOFER
• Manufacture: Steel
• Safety factor: Max. 6 modules
• Dimensions: 27" x 3,93" x 25,66"
686 x 100 x 652
KB W100 4S
WHEELS
• Ø 4" / 100mm
Accessory for ground stack
configuration using FBT MUSE
210SND / SN system.
MS-J210
METAL JOINT
• Manufacture: Steel
VHA-RC118
RAIN COVER FOR AMPLIFIER MODULE
VHA-C118S
NYLON COVER WITHOUT WHEELS
VHA-CH118S
NYLON COVER WITH WHEELS
