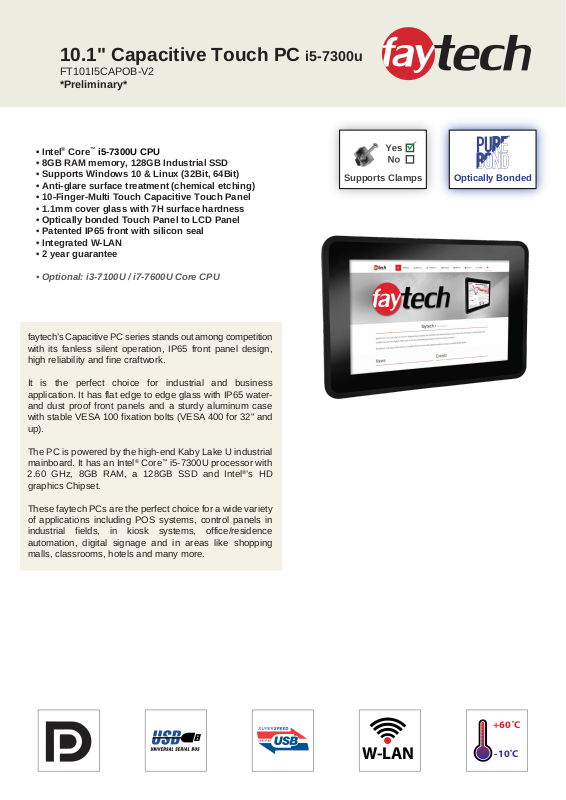

10.1" Capacitive Touch PC i5-7300u
W-LAN
FT101I5CAPOB-V2
*Preliminary*
®
• Intel
• 8GB RAM memory, 128GB Industrial SSD
• Supports Windows 10 & Linux (32Bit, 64Bit)
• Anti-glare surface treatment (chemical etching)
• 10-Finger-Multi Touch Capacitive Touch Panel
• 1.1mm cover glass with 7H surface hardness
• Optically bonded Touch Panel to LCD Panel
• Patented IP65 front with silicon seal
• Integrated W-LAN
• 2 year guarantee
• Optional: i3-7100U / i7-7600U Core CPU
faytech’s Capacitive PC series stands out among competition
with its fanless silent operation, IP65 front panel design,
high reliability and fine craftwork.
It is the perfect choice for industrial and business
application. It has flat edge to edge glass with IP65 waterand dust proof front panels and a sturdy aluminum case
with stable VESA 100 fixation bolts (VESA 400 for 32" and
up).
Core™ i5-7300U CPU
✓
Optically BondedSupports Clamps
The PC is powered by the high-end Kaby Lake U industrial
mainboard. It has an Intel
2.60 GHz, 8GB RAM, a 128GB SSD and Intel®’s HD
graphics Chipset.
These faytech PCs are the perfect choice for a wide variety
of applications including POS systems, control panels in
industrial fields, in kiosk systems, office/residence
automation, digital signage and in areas like shopping
malls, classrooms, hotels and many more.
®
Core™ i5-7300U processor with
+60˚C
-10˚C
Product name
Model number / EAN number
Global Article Code European Article Code Release date
3030504408
Screen diagonal (Inch/cm)
Display active screen size (cm)
Aspect ratio
Physical resolution
External Maximum showable resolution - HDMI, DP
Colours displayed
Brightness (cd/m
Contrast
Typical reaction time Tr / Tf (ms)
Visual Angle horizontal / vertical (°)
Backlight / Backlight Lifetime (hours)
Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg)
Gross weight (kg)
Housing material Rubber front case, Aluminum IPC back case
Housing (mm) L × W × H (available soon)
Cut-out for clamp supports (mm) L × H (available soon)
Amount of clamps required (available soon)
Mounting VESA 100
1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, Single channel memory
3x RS232/RS485 COM connectors switchable in BIOS
2x LCD Backlight control/LCD panel voltage box
1x 4-pin SATA power connector 1x S/PDIF output pin header
1x 8-bit Digital I/O interface 1x Line-out / Mic-in header
1x Front Panel box header 1x Serial ATA 6Gb/s
1x MIPI CSI connector 1x LVDS box header
1010501877 29/04/2020
IP65 Front / IP40 Back
2
)
Operation / Mechanical
Internal Connectors (occupied)
10.1" Capacitive Touch PC i5-7300U
FT101I5CAPOB-V2 / 6920734010158
Global Article Code European Article Code Release date
IP Rating
LCD Panel
10.1/25.65
21.70×13.60
16:10
1280×800
1920×1200
16.7M
350
800:1
10/15
170/170
LED / 20,000
2.30
4.00 (incl. cartonage)
1x 12V DC power connector (2-pin)1x 5V/12V SATA power connector
2x USB 3.0 box header
PC System
CPU Intel
Graphic GPU Intel
Audio
Memory 8GB DDR4 non-ECC (max. 16GB)
Storage (switchable) faytech Industrial 128GB SSD
Network
Driver Support
Preinstalled OS Linux Ubuntu
Touch Panel
Touch Technology Projected Capacitive 10-Point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etching)
Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 12
Stand-By Consumption (W) <1
External Connectors
1x 12V DC-In (screwable)
1x W-LAN antenna connector (RP-SMA male)
4x USB 3.0 1x DP
1x HDMI
1x 8-PIN DIO as RJ45
2x COM port Full-PIN - RS232/485; 5V/12V
2x COM port 3-PIN - RX, TX, GND; RS232/485; 5V/12V
2x 10/100/1000Mbit RJ45 Ports
1x S/PDIF-Out (1x Cinch, 1x Torx module)
1x 2.5" module slot, changeable SSD included
1x MIC-In & EAR-Out
®
Core™ i5-7300U Processor Kaby Lake
®
HD Graphics
Realtek ALC3236 Audio CODEC
2x Realtek PCIe GB LAN 8111G (1000Mbps)
M.2 E-key Wi-Fi module
Win10; Linux; 32Bit/64Bit
Power
30Power Consumption (W)
Expansion Slots
1x mSATA full size (occupied by SSD)
1x M.2 E-Key Slot (occupied by Wifi card)
1x SATA connector
1x External PCIe x1 Straddle connector
Included in the Delivery
Power Supply (see Power section)
W-LAN antenna (RP-SMA female)
Short Installation Manual
Standard Stand
Tolerance: ± ...mm
