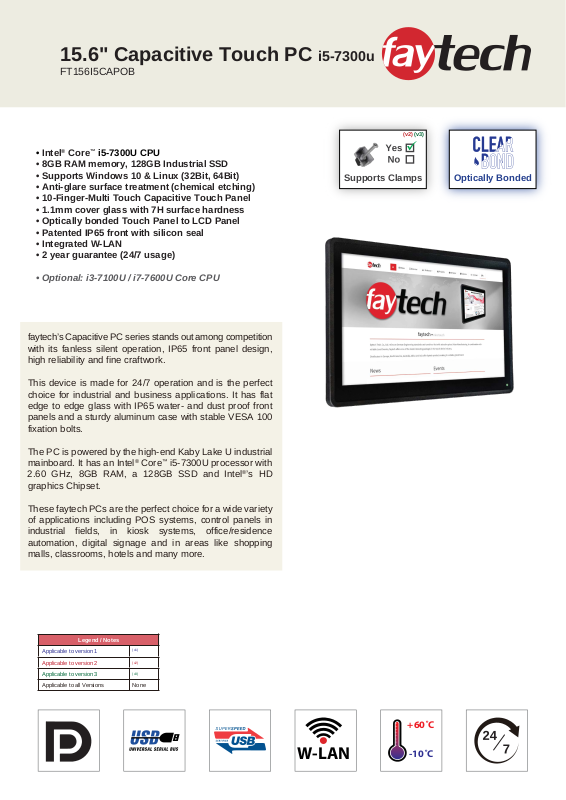

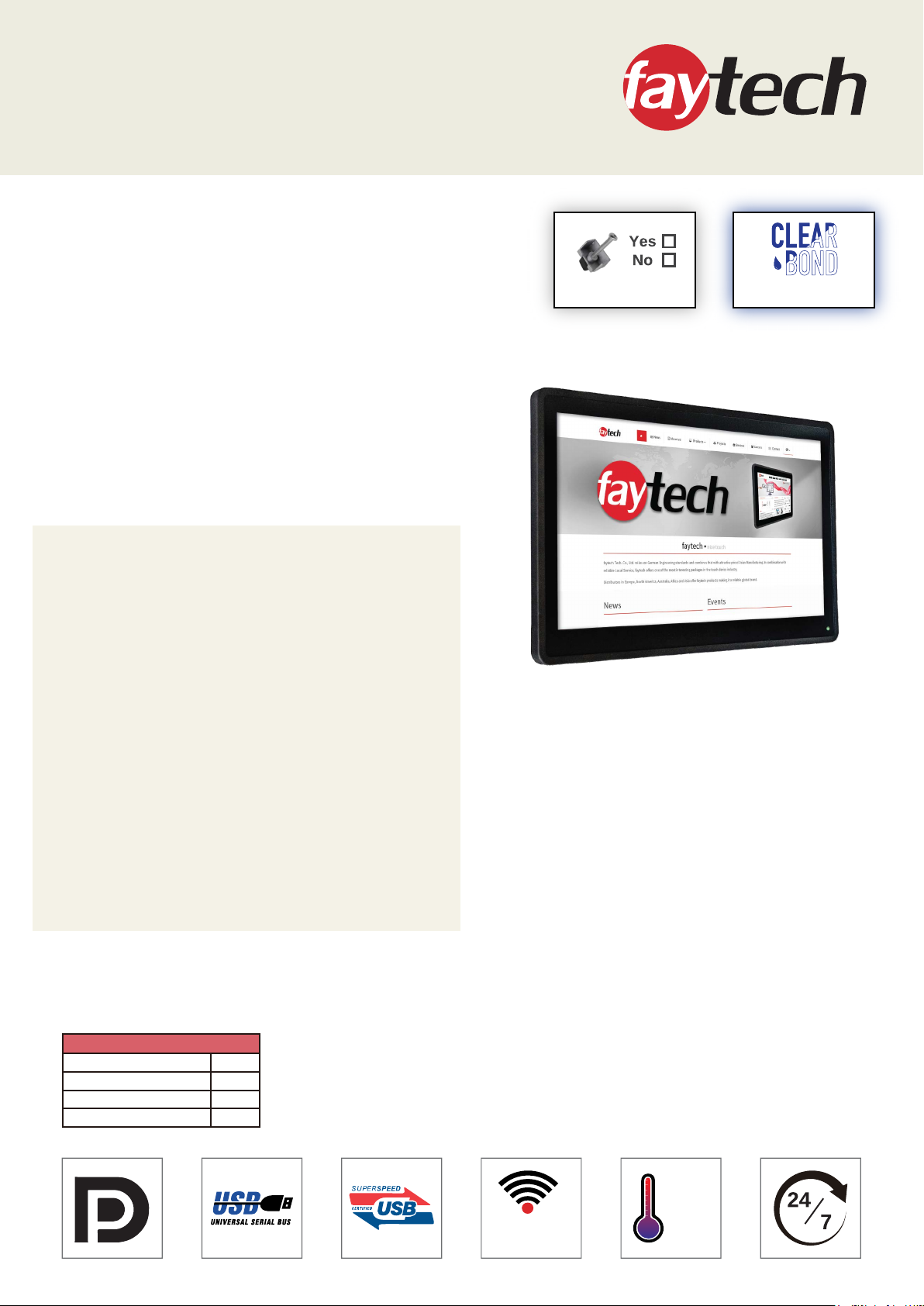

15.6" Capacitive Touch PC i5-7300u
W-LAN
FT156I5CAPOB
• Intel® Core™ i5-7300U CPU
• 8GB RAM memory, 128GB Industrial SSD
• Supports Windows 10 & Linux (32Bit, 64Bit)
• Anti-glare surface treatment (chemical etching)
• 10-Finger-Multi Touch Capacitive Touch Panel
• 1.1mm cover glass with 7H surface hardness
• Optically bonded Touch Panel to LCD Panel
• Patented IP65 front with silicon seal
• Integrated W-LAN
• 2 year guarantee (24/7 usage)
• Optional: i3-7100U / i7-7600U Core CPU
(v2) (v3)
✓
Supports Clamps
Optically Bonded
faytech’s Capacitive PC series stands out among competition
with its fanless silent operation, IP65 front panel design,
high reliability and fine craftwork.
This device is made for 24/7 operation and is the perfect
choice for industrial and business applications. It has flat
edge to edge glass with IP65 water- and dust proof front
panels and a sturdy aluminum case with stable VESA 100
fixation bolts.
The PC is powered by the high-end Kaby Lake U industrial
®
mainboard. It has an Intel
Core™ i5-7300U processor with
2.60 GHz, 8GB RAM, a 128GB SSD and Intel®’s HD
graphics Chipset.
These faytech PCs are the perfect choice for a wide variety
of applications including POS systems, control panels in
industrial fields, in kiosk systems, office/residence
automation, digital signage and in areas like shopping
malls, classrooms, hotels and many more.
Applicable to version 1
Applicable to version 2
Applicable to version 3
Applicable to all Versions
Legend / Notes
(v1)
(v2)
(v3)
None
+60˚C
-10˚C

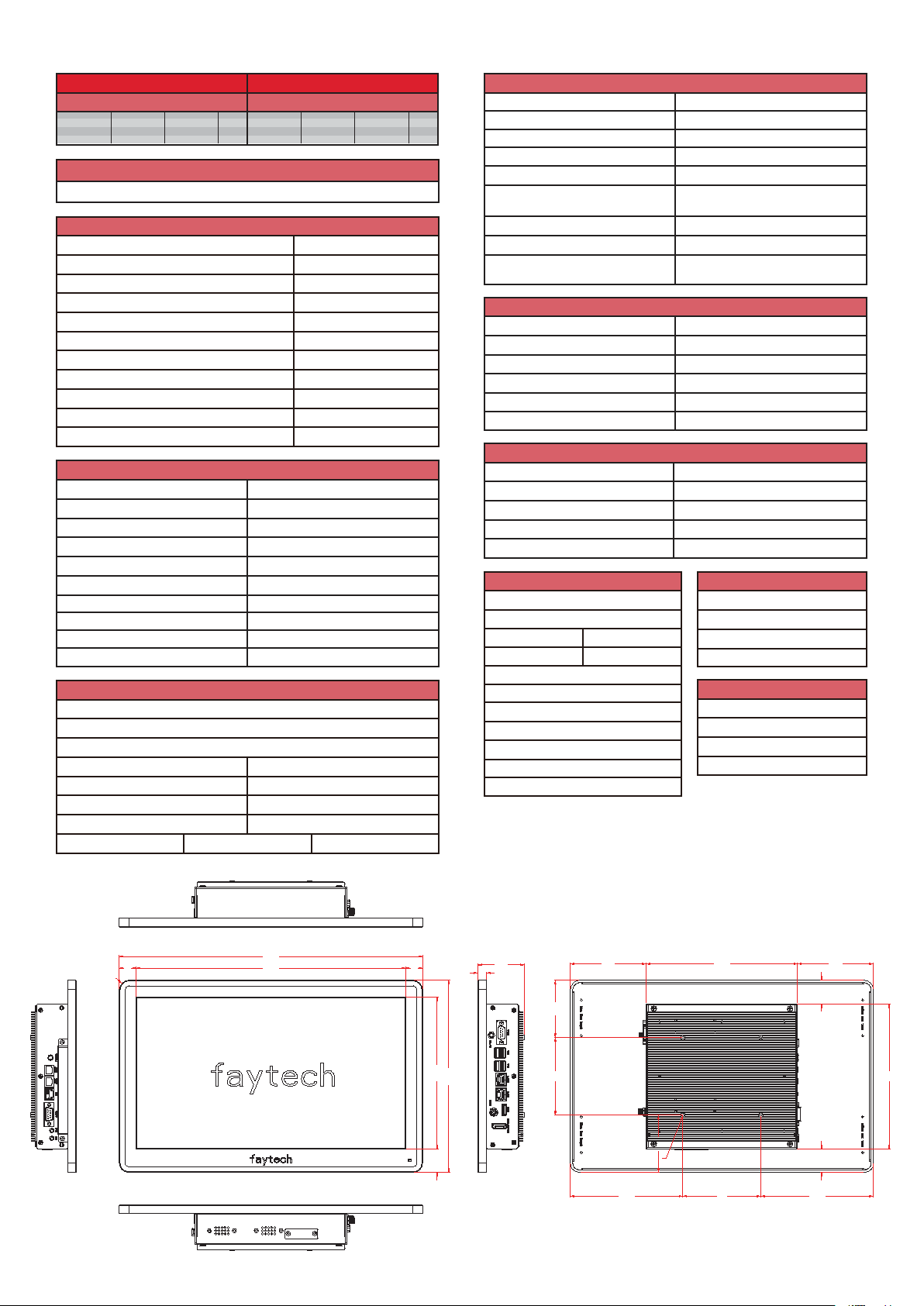

Product name
Model number / EAN number
3030502965
3030504414
3030504502
1010501658 03/12/2019 v1
1010501885 29/04/2020 v2
1010501943 18/01/2021 v3
15.6" Capacitive Touch PC i5-7300U
FT156I5CAPOB / 6920734011568
Global Article Code European Article Code Release date (D/M/Y) VersionGlobal Article Code European Article Code Release date (D/M/Y) Version
IP Rating
IP65 Front / IP40 Back
LCD Panel
Screen diagonal (Inch/cm)
Display active screen size (cm)
Aspect ratio
Physical resolution
External Maximum showable resolution - HDMI, DP
Colours displayed
2
Brightness (cd/m
)
Contrast
Typical reaction time Tr / Tf (ms)
Visual Angle horizontal / vertical (°)
Backlight / Backlight Lifetime (hours)
15.6/39.6
34.42×19.36
16:9
1920×1080
1920×1200
262K
250
800:1
15/15
170/170
LED / min. 15,000
Operation / Mechanical
Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg)
Gross weight (kg)
4.40
6.30 (incl. cartonage)
Housing material Rubber frame, Aluminum IPC back case
Housing (mm) L × W × H 389.3 × 246.8 × 59.3
Cut-out for clamp supports (mm) L × H 371.0 × 218.0
Max. wall thickness for clamp supports (mm) 5.0
Amount of clamps required 4
(v2) (v3)
(v2) (v3)
(v2) (v3)
Mounting VESA 100
Internal Connectors (occupied)
1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, Single channel memory
3x RS232/RS485 COM connectors switchable in BIOS
2x LCD Backlight control/LCD panel voltage box
1x 12V DC power connector (2-pin)1x 5V/12V SATA power connector
1x 4-pin SATA power connector 1x S/PDIF output pin header
1x 8-bit Digital I/O interface 1x Line-out / Mic-in header
1x Front Panel box header 1x Serial ATA 6Gb/s
1x MIPI CSI connector 1x LVDS box header
2x USB 3.0 box header
PC System
CPU Intel
Graphic GPU
Audio
®
Core™ i5-7300U Processor Kaby Lake
Intel® HD Graphics
Realtek ALC3236 Audio CODEC
Memory 8GB DDR4 non-ECC (max. 16GB)
Storage (switchable) faytech Industrial 128GB SSD
Network
Driver Support
2x Realtek PCIe GB LAN 8111G (1000Mbps)
M.2 E-key Wi-Fi module
Win10; Linux; 32Bit/64Bit
Preinstalled OS Linux Ubuntu
Docking Station Concept Exchangeable from LCD Panel front kit
(mounted using screws)
Touch Panel
Touch Technology Projected Capacitive 10-Point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etching)
Glass Strengthening Chemically Strengthened
Power
Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 12
34Power Consumption (W)
Stand-By Consumption (W) <1
External Connectors
1x 12V DC-In (screwable)
1x W-LAN antenna connector (RP-SMA male)
4x USB 3.0 1x DP
1x HDMI
1x 8-PIN DIO as RJ45
1x 10-PIN DIO as RJ50
1x MIC-In & EAR-Out
(v1) (v2)
(v3)
2x COM port Full-PIN - RS232/485; 5V/12V
2x COM port 3-PIN - RX, TX, GND; RS232/485; 5V/12V
2x 10/100/1000Mbit RJ45 Ports
1x S/PDIF-Out (1x Cinch, 1x Torx module)
(v1) (v2)
Expansion Slots
1x mSATA full size (occupied by SSD)
1x M.2 E-Key Slot (occupied by Wifi card)
1x SATA connector
1x External PCIe x1 Straddle connector
Included in the Delivery
Power Supply (see Power section)
W-LAN antenna (RP-SMA female)
Short Installation Manual
Standard Stand
1x 2.5" module slot, changeable SSD included

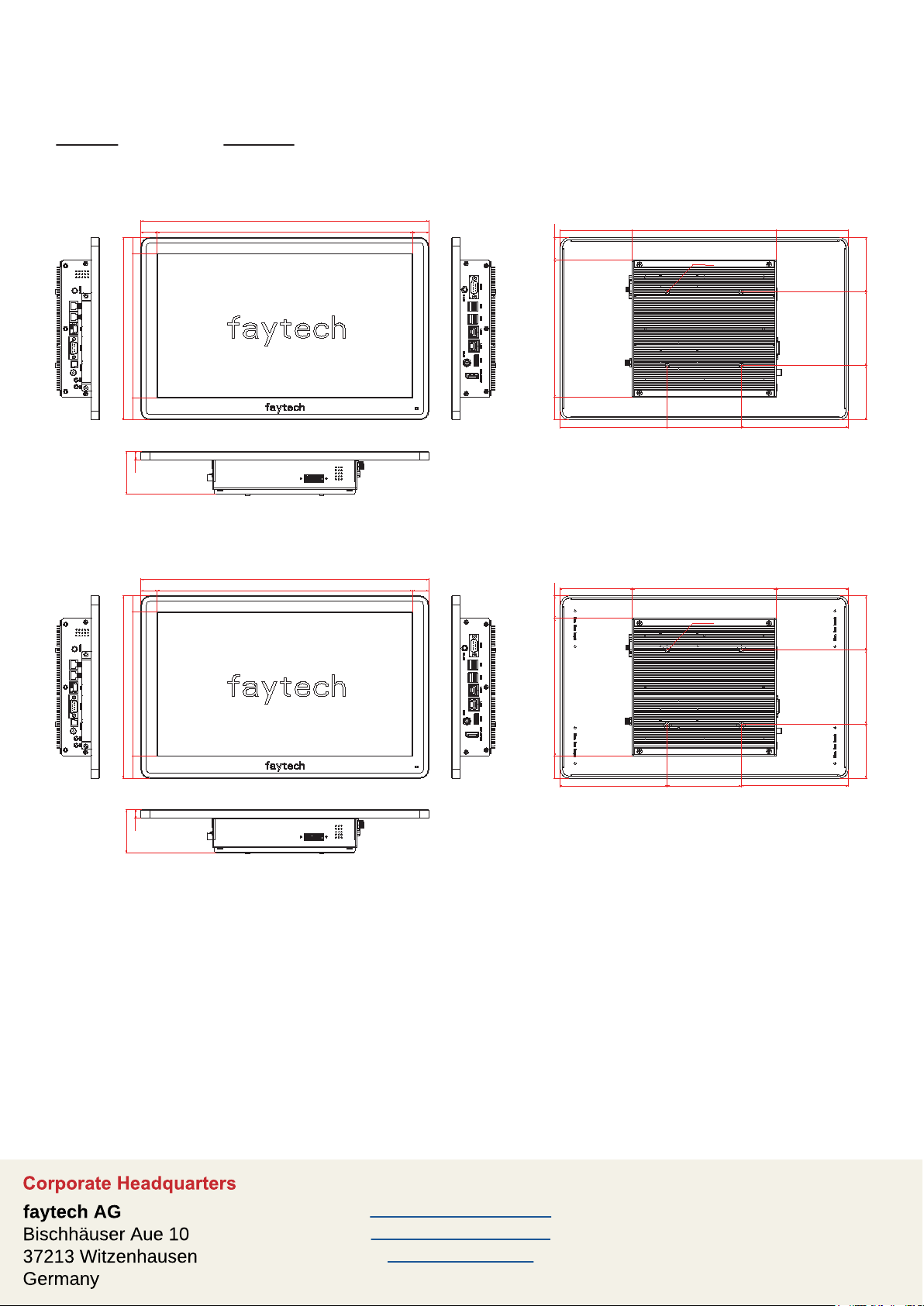

R12.2
22 345.3 22
389.3
30.2 194.6
246.8
59.3
11.3
97.4 194.5 97.4
100 73.4
73.4
4-M4
144.7 100 144.7
30.4
30.4
Tolerance: ± 1mm
Errata and technical modifications reserved
186
Update Notes:
Version: Changes:
v1 - First version
21.8 345.3 22
22194.630.2
246.8
11.3
58.3
389.1
97.4 194.5 97.4
30.4186
30.4
144.7
v2 - Added screwholes for the the clamp support mounting option
21.8 345.3 22
22194.630.2
389.1
97.4 194.5 97.4
30.4186
4*M4
100
4*M4
73.410073.4
144.7
73.410073.4
246.8
30.4
11.3
58.3
v3 - Update of internal wiring and components
Removed the S/PDIF-Out (1x Cinch, 1x Torx module)
Switched the 8-PIN DIO as RJ45 to 10-PIN DIO as RJ50
144.7
100
144.7
support@faytech.com
contact@faytech.com
www.faytech.com
China: +86 755 8958 0612
Germany: +49 5542 30374 10
USA: +1 646 843 0877
India: +91 11 49707436
Japan: +070 4127 5167
