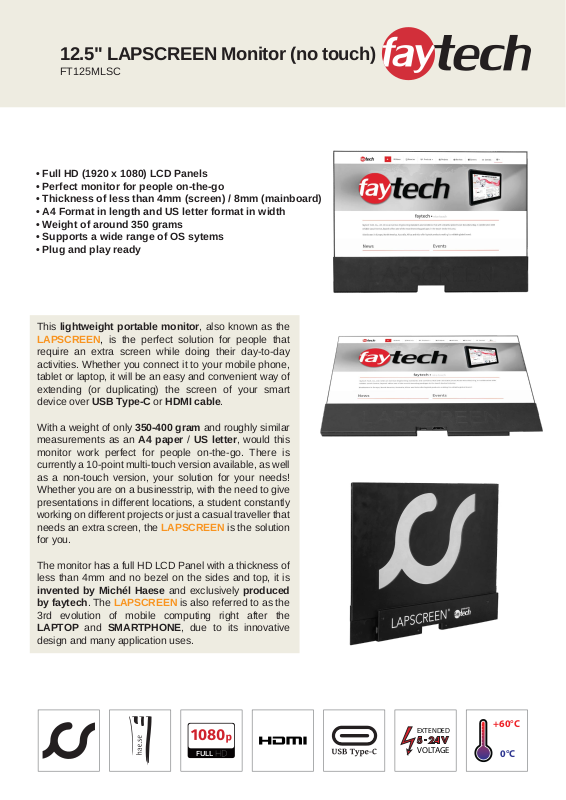

Faytech FT125MLSC User Manual

12.5" LAPSCREEN Monitor (no touch)

+60°C

FT125MLSC

• Full HD (1920 x 1080) LCD Panels

• Perfect monitor for people on-the-go

• Thickness of less than 4mm (screen) / 8mm (mainboard)

• A4 Format in length and US letter format in width

• Weight of around 350 grams

• Supports a wide range of OS sytems

• Plug and play ready

This lightweight portable monitor, also known as the

LAPSCREEN, is the perfect solution for people that

require an extra screen while doing their day-to-day
activities. Whether you connect it to your mobile phone,
tablet or laptop, it will be an easy and convenient way of
extending (or duplicating) the screen of your smart
device over USB Type-C or HDMI cable.

With a weight of only 350-400 gram and roughly similar
measurements as an A4 paper / US letter, would this
monitor work perfect for people on-the-go. There is
currently a 10-point multi-touch version available, as well
as a non-touch version, your solution for your needs!
Whether you are on a businesstrip, with the need to give
presentations in different locations, a student constantly
working on different projects or just a casual traveller that
needs an extra screen, the LAPSCREEN is the solution
for you.

The monitor has a full HD LCD Panel with a thickness of
less than 4mm and no bezel on the sides and top, it is

invented by Michél Haese and exclusively produced
by faytech. The LAPSCREEN is also referred to as the

3rd evolution of mobile computing right after the
LAPTOP and SMARTPHONE, due to its innovative
design and many application uses.

FULL HD

EXTENDED

VOLTAGE

0°C

Product name

Article code / EAN number FT125MLSC / 6920734012541

Screen diagonal (Inch/cm) 12.5/31.75

Display active screen size (cm) 27.60×15.60

Aspect ratio 16:9

Physical resolution 1920×1080

Maximum showable resolution 1920×1200

Colours displayed 16.7M

Brightness (cd/m

Contrast 700:1

Typical reaction time Tr/ Tf (ms) 14/11

Visual Angle horizontal/vertical (°) 178/178

Backlight / Backlight Lifetime (hours) LED / min. 15,000

2

) 300

Included in the Delivery

USB Type-C Cable

12.5" LAPSCREEN Monitor (no touch)

IP Rating

IP40

LCD Panel

Operation / Mechanical

Operating Temperature (°C) 0 ~ +60

Humidity Range (RH) 20% - 80%

Net weight (kg) 0.35

Gross weight (kg) 1.10 (incl. cartonage)

Housing material Black powdered aluminum

Housing (cm) L × W × H 28.52 × 21.37 × 0.79

Power

Working Power (V) 5-24

Power Consumption (W) 4.5

Stand-By Consumption (W) 0.5

External Connectors

1x HDMI

1x USB Type-C - for Video (side connector)

1x USB Type-C - for Power (bottom connector)

159.953.8

282.4

142.6 142.6

3.6

7.9

282.7

170.743
