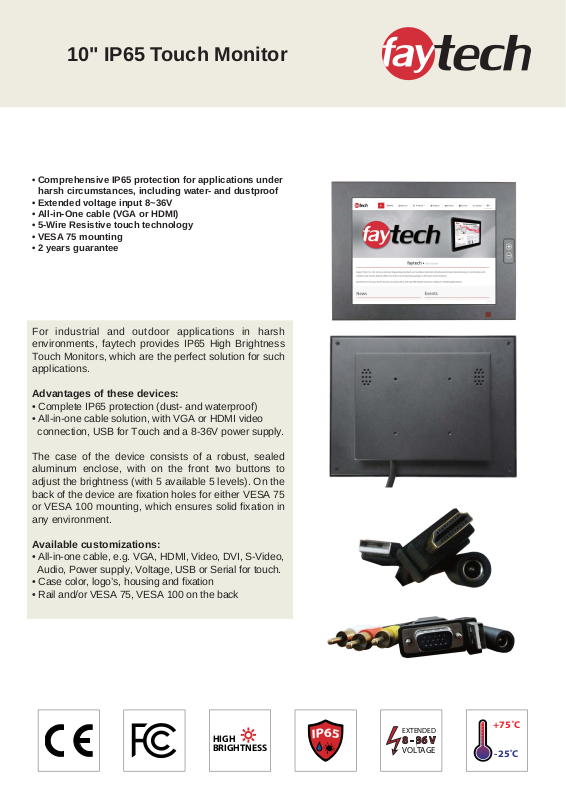

Faytech FT10TMIP65HDMI User Manual
10" IP65 Touch Monitor
EXTENDED
• Comprehensive IP65 protection for applications under
harsh circumstances, including water- and dustproof
• Extended voltage input 8~36V
• All-in-One cable (VGA or HDMI)
• 5-Wire Resistive touch technology
• VESA 75 mounting
• 2 years guarantee
For industrial and outdoor applications in harsh
environments, faytech provides IP65 High Brightness
Touch Monitors, which are the perfect solution for such
applications.
Advantages of these devices:
• Complete IP65 protection (dust- and waterproof)
• All-in-one cable solution, with VGA or HDMI video
connection, USB for Touch and a 8-36V power supply.
The case of the device consists of a robust, sealed
aluminum enclose, with on the front two buttons to
adjust the brightness (with 5 available 5 levels). On the
back of the device are fixation holes for either VESA 75
or VESA 100 mounting, which ensures solid fixation in
any environment.
Available customizations:
• All-in-one cable, e.g. VGA, HDMI, Video, DVI, S-Video,
Audio, Power supply, Voltage, USB or Serial for touch.
• Case color, logo’s, housing and fixation
• Rail and/or VESA 75, VESA 100 on the back
HIGH
BRIGHTNESS
VOLTAGE
+75˚C
-25˚C
Product name
Article code / EAN number
10" IP65 Touch Monitor
FT10TMIP65HB / 6920734010219
FT10TMIP65HBHDMI / 6920734010226
IP Rating
IP65
LCD Panel
Screen diagonal (Inch/cm) 9.7/24.64
Display active screen size (cm) 20.28×15.20
Aspect ratio 4:3
Physical resolution 1024×768
Maximum showable resolution 1920×1080
Colours displayed 16.7M
Brightness (cd/m
2
) 350
Contrast 800:1
Typical reaction time Tr/ Tf (ms) 10/15
Visual Angle horizontal/vertical (°) 170/170
Backlight / Backlight Lifetime (hours) LED / 20,000
External Connectors
All-In-One cable VGA version 1x VGA
1x Video-In ( RCA, AV )
2x Audio-In ( R/W )
1x USB-Touch
1x 8-36V DC-In
All-In-One cable HDMI version 1x HDMI
1x USB-Touch
1x 8-36V DC-In
Touch Panel
Touch Technology 5-Wire Resistive
Touch Panel Drivers Windows; Linux; Mac; Android
Touch Life (Contacts) 10 million in 1 location without failure
Surface Hardness 3H
Surface Treatment Anti-glare
Operation / Mechanical
Operating Temperature (°C) -25 ~ +75
Humidity Range (RH) 10% - 90%
Net weight (kg) 1.80
Gross weight (kg) 2.50 (incl. cartonage)
Housing material Aluminum
Housing (cm) L × W × H 25.72 × 19.64 × 3.95
Mounting VESA 75
Power
Power Indicator Green LED
Power Supply 100-240V ACDC active switching;
12V DC-Out
Working Power (V) 8~36
Power Consumption (W) 8
Stand-By Consumption (W) <1
Included in the Delivery
Power Supply (see Power section)
Driver DVD
Short Installation Manual
All-In-One cable (VGA or HDMI)
Stylus
Remote Controller
196.4
33.6 190.0 33.6
19.4
150.0
27.0
91.1
25.0
39.5
257.2
75.0
56.9
75.0
64.5
91.1
support@faytech.com
contact@faytech.com
www.faytech.com
29.2 198.8 29.2
19.3
149.9
27.3
China: +86 755 8958 0612
Germany: +49 5542 30374 10
USA: +1 646 205 3214
India: +91 11 49707436
Japan: +070 4127 5167
