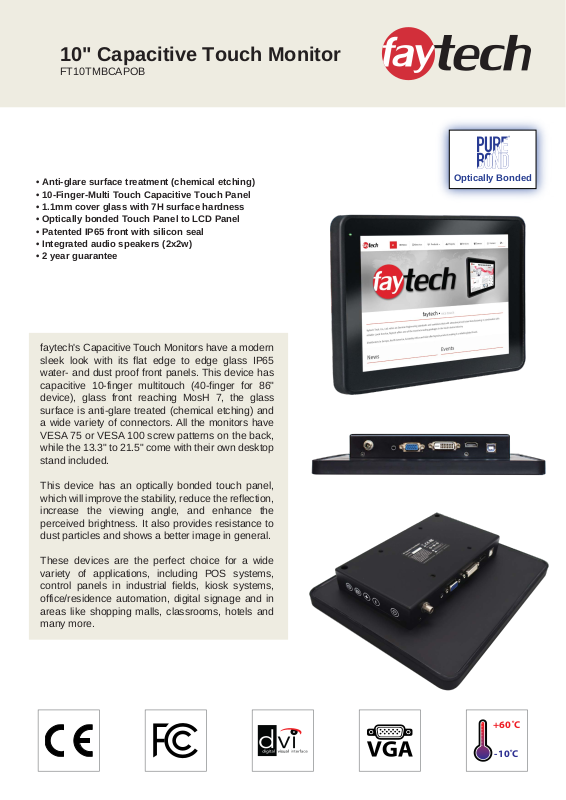

10" Capacitive Touch Monitor
FT10TMBCAPOB
• Anti-glare surface treatment (chemical etching)
• 10-Finger-Multi Touch Capacitive Touch Panel
• 1.1mm cover glass with 7H surface hardness
• Optically bonded Touch Panel to LCD Panel
• Patented IP65 front with silicon seal
• Integrated audio speakers (2x2w)
• 2 year guarantee
faytech's Capacitive Touch Monitors have a modern
sleek look with its flat edge to edge glass IP65
water- and dust proof front panels. This device has
capacitive 10-finger multitouch (40-finger for 86"
device), glass front reaching MosH 7, the glass
surface is anti-glare treated (chemical etching) and
a wide variety of connectors. All the monitors have
VESA 75 or VESA 100 screw patterns on the back,
while the 13.3" to 21.5" come with their own desktop
stand included.
Optically Bonded
This device has an optically bonded touch panel,
which will improve the stability, reduce the reflection,
increase the viewing angle, and enhance the
perceived brightness. It also provides resistance to
dust particles and shows a better image in general.
These devices are the perfect choice for a wide
variety of applications, including POS systems,
control panels in industrial fields, kiosk systems,
office/residence automation, digital signage and in
areas like shopping malls, classrooms, hotels and
many more.
+60˚C
-10˚C
Product name
Article code / EAN number FT10TMBCAPOB / 6920734010103
IP65 Front / IP40 Back
Screen diagonal (Inch/cm) 9.7/24.64
Display active screen size (cm) 19.7×14.7
Aspect ratio 4:3
Physical resolution 1024×768
Maximum showable resolution 1920×1080
Colours displayed 16.7M
Brightness (cd/m
Contrast 800:1
Typical reaction time Tr/ Tf (ms) 10/15
Visual Angle horizontal/vertical (°) 170/170
Backlight / Backlight Lifetime (hours) LED / 20,000
Video 1x HDMI 1.3 (incl. HDCP)
Audio 1x PC-Audio
Touch Connector 1x USB
Connectors 1x 12V DC-In (screwable)
2
) 250
External Connectors
10" Capacitive Touch Monitor
IP Rating
LCD Panel
1x DVI-D
1x VGA
Touch Panel
Touch Technology Projected Capacitive 10-point Multitouch
Touch Panel Drivers Windows; Linux; Mac; Android
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etching)
Operation / Mechanical
Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg) 0.90
Gross weight (kg) 2.20 (incl. cartonage)
Housing material Rubber front, Plastic ABS back case
Housing (cm) L × W × H 24.49 × 19.58 × 3.90
Mounting VESA 75
Power
Power Indicator Green LED
Power Supply 100-240V ACDC active switching;
Working Power (V) 12
Power Consumption (W) 8
Stand-By Consumption (W) <1
Included in the Delivery
Power Supply (see Power section)
Short Installation Manual
Cables - VGA, USB Touch, Audio Cable
12V DC-Out
23.7148.5
195.8
23.7
39
244.9
197.6 23.7
28.5 188 28.5
15.4105
30.475
4*M4
75.4
84.9 75 85
12
90.4
Tolerance: ± 0.5mm
