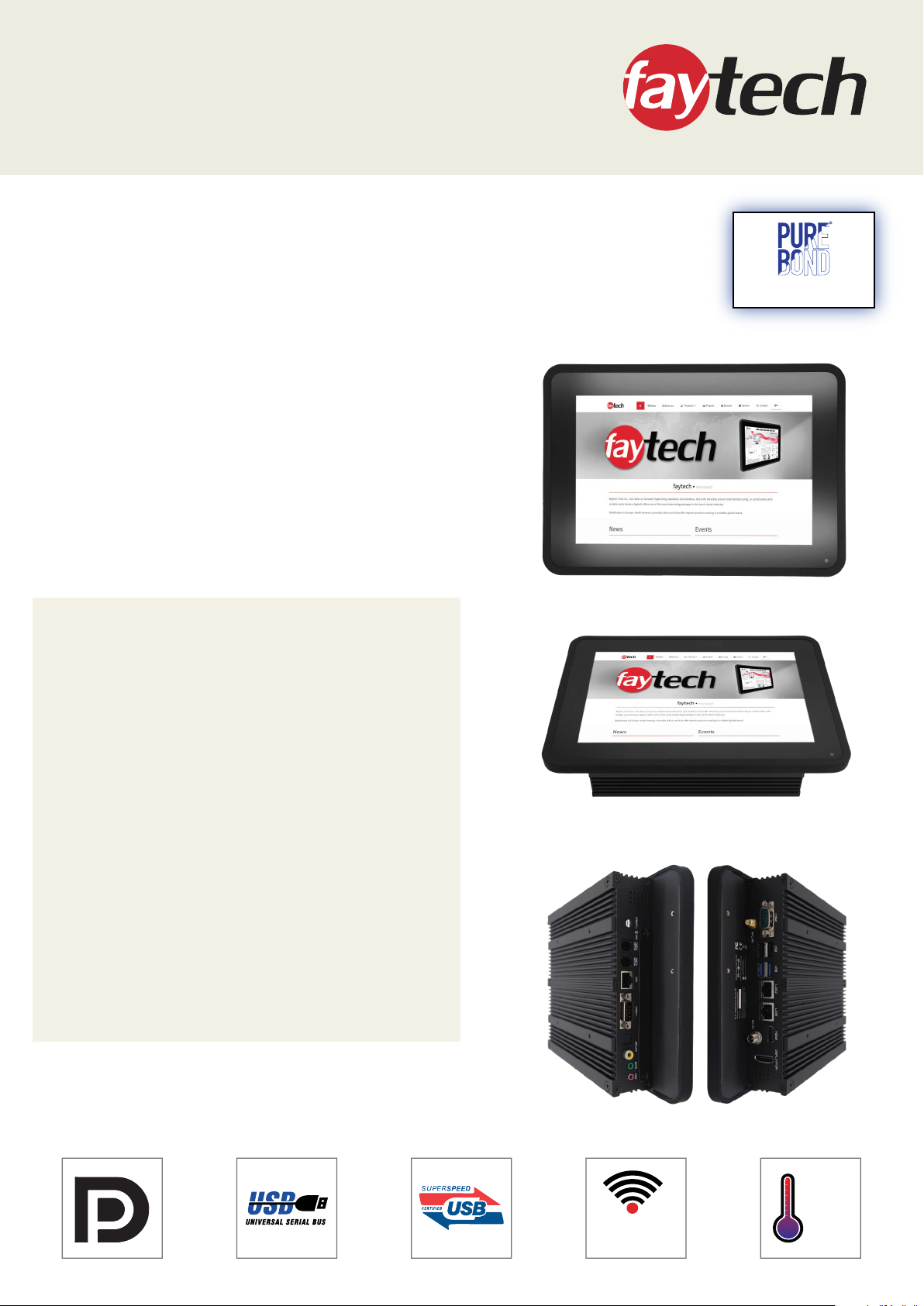

10.1" Capacitive Touch PC
W-LAN
FT101N4200CAPOB
®
• Intel
• 4GB RAM memory, 128GB Industrial SSD
• Supports Windows 10 & Linux (32Bit, 64Bit)
• Anti-glare surface treatment (chemical etching)
• 10-Finger-Multi Touch Capacitive Touch Panel
• 1.1mm cover glass with 7H surface hardness
• Optically bonded Touch Panel to LCD Panel
• Patented IP65 front with silicon seal
• Integrated W-LAN
• 2 year guarantee
faytech’s Capacitive PC series stands out among competition
with its fanless silent operation, IP65 front panel design,
high reliability and fine craftwork.
It is the perfect choice for industrial and business
application. It has flat edge to edge glass with IP65 waterand dust proof front panels and a sturdy aluminum case
with stable VESA 100 fixation bolts (VESA 400 for 32" and
up).
Pentium™ N4200 QuadCore CPU
Optically Bonded
The touch PC is powered by faytech’s industrial Apollo
Lake mainboard. It is driven by the powerful Intel®
Pentium® N4200 QuadCore processor with up to 2.50 GHz
clock frequency. This version versions is equipped with
4GByte RAM, 128G SSD and Intel’s HD Graphic chipset,
supporting FullHD, DirectX 11.1 and OpenGL 4.0.
These faytech PCs are the perfect choice for a wide variety
of applications including POS systems, control panels in
industrial fields, in kiosk systems, office/residence
automation, digital signage and in areas like shopping
malls, classrooms, hotels and many more.
+60˚C
-10˚C
Product name
Model number / EAN number
IP65 Front / IP40 Back
Screen diagonal (Inch/cm)
Display active screen size (cm)
Aspect ratio
Physical resolution
External Maximum showable resolution - HDMI, DP
Colours displayed
Brightness (cd/m
Contrast
Typical reaction time Tr / Tf (ms)
Visual Angle horizontal / vertical (°)
Backlight / Backlight Lifetime (hours)
Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Gross weight (kg) 2.90 (incl. cartonage)
Housing material Rubber front case, Aluminum IPC back case
Housing (cm) L × W × H
Mounting VESA 100
1x SO-DIMM, max. 4GB, DDR3L 1333/1600/1867 non-ECC Single channel memory
3x RS232/RS485 COM connectors switchable in BIOS
1x 12V DC power connector (2-pin)
1x 5V/12V SATA power connector 1x SIM-card-Header (connected to MiniPCIe)
1x 4-pin SATA power connector 1x S/PDIF output pin header
1x 8-bit Digital I/O interface 1x Line-out / Mic-in header
1x Front Panel box header 1x Serial ATA 6Gb/s 2x USB 3.0 box header
1x MIPI CSI connector 1x LVDS box header 1x DIO connector
2
)
Operation / Mechanical
Internal Connectors
10.1" Capacitive Touch PC
FT101N4200CAPOB / 6920734010172
IP Rating
LCD Panel
10.1/25.65
21.70×13.60
16:10
1280×800
1920×1200
16.7M
350
800:1
10/15
170/170
LED / 20,000
2.00Net weight (kg)
27.80 × 20.36 × 4.93
2x LCD Backlight control/LCD panel voltage box
PC System
CPU Intel
Chipset
Graphic GPU Intel
Audio
Memory 4GB DDR3L non-ECC
Storage (switchable) faytech Industrial 128GB SSD
Network
Driver Support
Preinstalled OS Linux Ubuntu
Touch Panel
Touch Technology Projected Capacitive 10-Point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etching)
Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 12
Stand-By Consumption (W) <1
External Connectors
1x 12V DC-In (screwable)
1x HDMI 1x DP
2x USB 3.0 2x USB 2.0
1x LVDS
8x In/Out GPIO as RJ45
2x COM port Full-PIN - RS232/485; 5V/12V
2x COM port 3-PIN - RX, TX, GND; RS232/485; 5V/12V
2x 10/100/1000Mbit RJ45 Ports
1x S/PDIF-Out (1x Cinch, 1x Torx module)
1x 2.5" module slot, changeable SSD included
1x MIC-In & EAR-Out
1x W-LAN antenna connector
®
Pentium™ QuadCore N4200
Intel® E3900
®
HD Graphics
Realtek ALC3236 Audio CODEC
2x Realtek PCIe GB LAN 8111G
(1x optional with POE); W-LAN
Win10; Linux; 32Bit/64Bit
Power
14Power Consumption (W)
Expansion slots
1x Mini PCIe + mSATA (with SIM card)
(2x Full Height/Half height changeable)
1x PCIeX1 Straddle Connector
1x M.2 E-key for wireless device
Included in the Delivery
Power Supply (see Power section)
W-LAN antenna
Short Installation Manual
