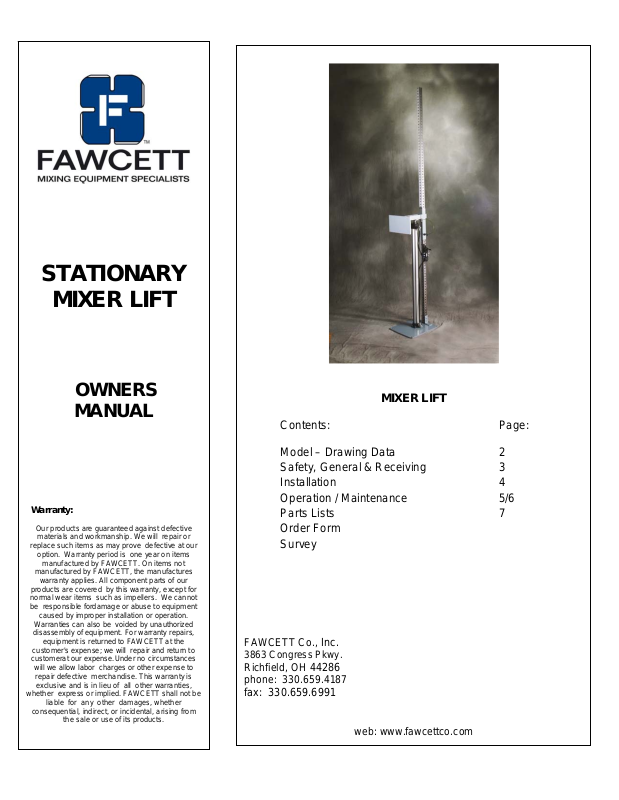

Fawcett ML-4581 User Manual

STATIONARY

MIXER LIFT

OWNERS

MANUAL

Warranty:

Our products are guaranteed against defective

materials and workmanship. We will repair or

replace such items as may prove defective at our

option. Warranty period is one year on items

manufactured by FAWCETT. On items not

manufactured by FAWCETT, the manufactures

warranty applies. All component parts of our

products are covered by this warranty, except for
normal wear items such as impellers. We cannot
be responsible fordamage or abuse to equipment

caused by improper installation or operation.

Warranties can also be voided by unauthorized

disassembly of equipment. For warranty repairs,

equipment is returned to FAWCETT at the

customer's expense; we will repair and return to

customerat our expense.Under no circumstances

will we allow labor charges or other expense to

repair defective merchandise. This warranty is

exclusive and is in lieu of all other warranties,

whether express or implied. FAWCETT shall not be

liable for any other damages, whether

consequential, indi rect, or incidental, arising from

the sale or use of its products.

MIXER LIFT

Contents: Page:

Model – Drawing Data 2
Safety, General & Receiving 3
Installation 4
Operation / Maintenance 5/6
Parts Lists 7
Order Form
Survey

FAWCETT Co., Inc.

3863 Congress Pkwy.

Richfield, OH
phone: [phone]

fax: [phone]

44286

web: www.fawcettco.com

FAX FEEDBACK SHEET

Our objective is to provide you the best products possible.

You may help us by providing feedback to us.

Please complete this survey and fax it back to us within 10 days.

Shipment No.:__________________

Shipment Date: _________________

Please circle your responses and FAX to [phone]

If you are RECEIVING or PURCHASING personnel, please answer the following:

Was this shipment received within the timeframe established by your company? YES NO
Did this shipment contain the correct items and quantity? YES NO
Was the box damage free? YES NO
Does the level of product quality meet your requirements and expectations? YES NO
Are you aware of our website?

If you are TECHNICAL personnel, please answer the following:

Did you need to contact our Technical Support staff? YES NO
If you did contact us, was our staff helpful and professional? YES NO
Did you use the installation, programming and/or hookup instructions? YES NO
Were the installation, programming and/or hookup instruction clear for you? YES NO

Completed By: ______________________________ Your Function: _____________________________
Company: _________________________________________
City, State, Zip: _________________________________

Phone: _________________________
Email: _________________________________

Thank you for helping us continually improve the products and services we provide you. For more detailed feedback, feel free to
contact our Customer Service Personnel at [phone] ext.2300 or via email at

www.fawcettco.com YES NO

[email protected]

Fawcett Co., Inc. The Home of Mixed Flow Impellers

* Manufactured in the USA *

FAWCETT CO., INC.

PHONE: [phone]

3863 Congress Pkwy. FAX: [phone]

Richfield OH 44286 E-MAIL: [email protected]

ORDER FORM

Person Placing Order : ____________________________________ P.O. # : ______________________

Phone # : ________________________ FAX # : __________________________

SHIP TO:

Attention Attention

Location Location

Street Address Street Address

BILL TO:

City State Zip City State Zip

Req. Date

Quantity

Requesitioner

Ship Via

Buyer

F.O.B.

Richfield, OH

Item Description Unit Price Total

NET 30 Days

Terms

Sales tax will be added to deliveries in the state of Ohio
unless a tax exempt certificate is on file.

All orders are F.O.B. shipping point. Shipping charges
will be added to invoice.

Subtotal

Tax

Shipping

Miscellaneous

Balance Due

Model: MLA-4581 SP
Serial No.: 1001388-1
Date: 4/06

Accessories:

2390 C2

Mixer Mtg. Brkt.

________________
________________
________________
________________
________________
________________

Mixer Lift

FAWCETT, Inc. MLA manual 03/06

Safety

Please follow the below safety precautions. If there are
any questions, please call FAWCETT at 330 659-4187.

Please read this complete manual before trying to operate
your mixer lift. Failure to follow these instructions could
result in serious bodily injury or death.

• Do not touch moving parts while mixer lift is operating.
Do not wear loose-fitting clothes or jewelry around an

operating mixer lift. Keep all hands, feet, clothes,
neckties, necklaces and other objects clear of moving
parts.

• The unit must be anchored to the floor before operating.

• Have a qualified individual bring air to your unit.

Air Cylinder Safety:

The air cylinder is driven by compressed air and under no
circumstances be driven with any other gases. Fluids,
particles, solids or any substance mixed with air, will likely
cause damage to the internal components. Do not allow
corrosive gases or particulate material to enter the
cylinder. Water vapor, oil-based contaminants, or other
liquids must be filtered out.

• Only experienced individuals should adjust the flow

controls located at each port.

• Ambient temperature should not exceed 200°F.

• Beware of any exposed and/or movable parts to prevent

personal and/or property damage.

• Solid or liquid material exiting unit can cause eye or skin

damage. Keep away from air stream.

• Always disconnect air supply before servicing.

• Do not allow air cylinder to “run free” at high speeds in

either direction.

• Always use safety pin when cylinder is extended to

prevent “free fall” if air supply is removed

Receiving

Before removing any packing, visually inspect the exterior
of the shipment for any sign of damage. Should there be
any damage, bring it to the attention of the delivering UPS
or truck line and note the same on the receiving ticket.
Should there be damage you must place a claim with the
truck line. They are the only ones who will pay for the
damage done and you are the only one who can place
that claim.

FAWCETT, Inc. ML manual 03/06 page 3 of 7

Installation

Your new mixer lift is supplied partially assembled. For
more information, see the parts list pages for general
arrangement drawings.

Valve Handle:

To install the valve handle, simply screw the handle
into the valve. It is removed for shipping purposes
only.

Assembly:

1.) Anchor the base to the floor using either ½”
lag bolts for wooden floors or one piece
concrete anchors for poured floors.

2.) Assemble air hose to inlet port of the valve.

3.) Make sure air control valve is in the center off
position before connecting the air supply.

4.) Have a qualified technician adjust the flow
controls for a steady raise and lowering of the
mixer.

Mixer lift is now ready to operate.

FAWCETT Co, Inc. ML manual 03/06 page 4 of 7

MAINTENANCE

It is your responsibility to regularly inspect this product in
order to maintain proper operation. Fawcett recommends
the use of in-line air filters with this unit.

Check in-line air filters (if applicable) weekly for the first 100
hours of operation. Clean filters and determine how frequently
filters should be checked during future operation. This one
procedure will help assure the product’s performance and
service life.

www.fawcettco.com

1FAWCETT, Inc. LS manual 03/06 Page 6 of 7

PHONE: [phone]

FAX: [phone]
E-MAIL: [email protected]

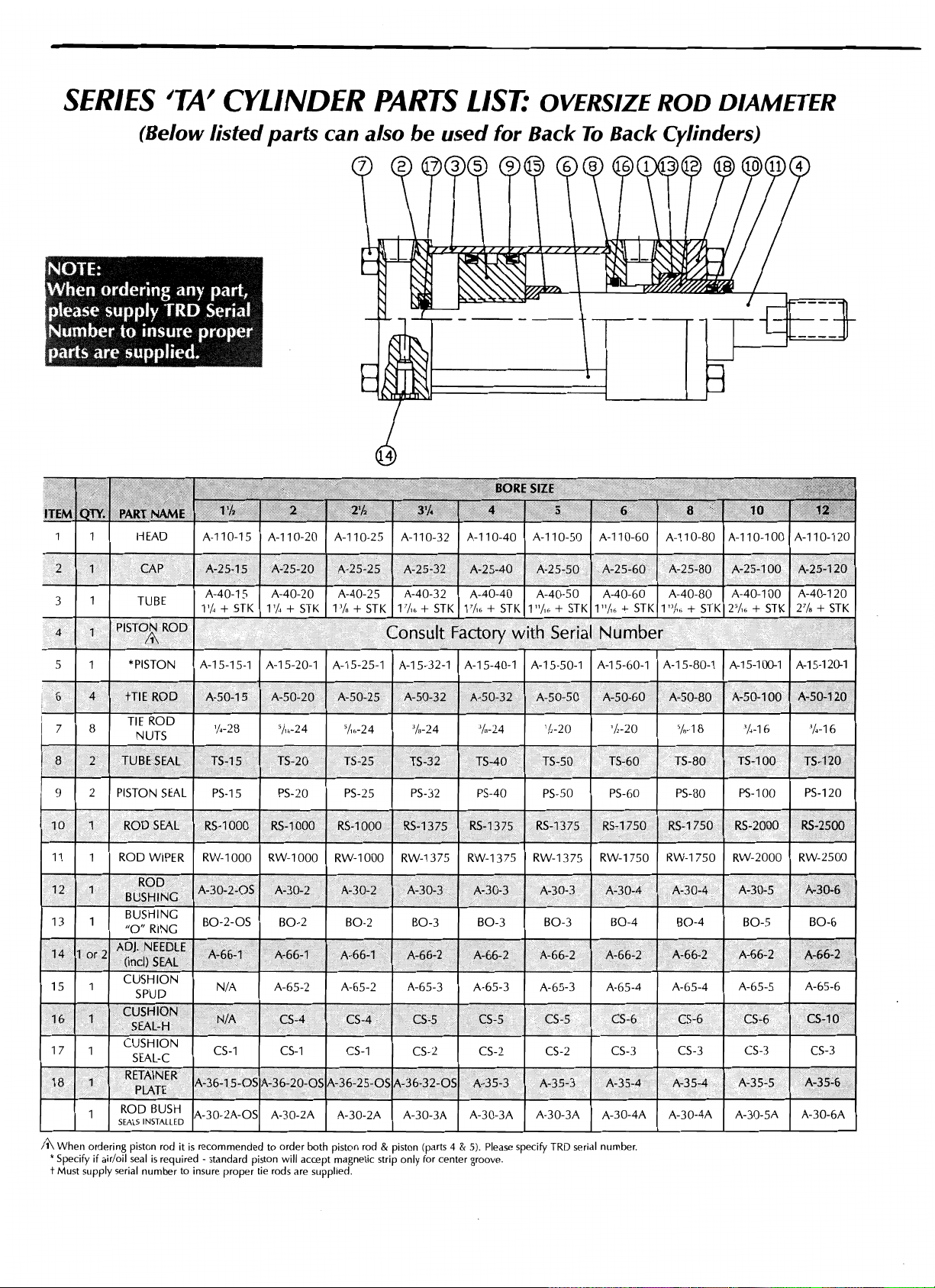

MLA-4581 DESCRIPTION

1 2390C2 POST
2 2390C1 BASE
3 MF2-2 X 34 OS LIFT CYLINDER
4 FQP-6 FLOW CONTROL
5 2390C3 MIXER MTNG. BRKT.
6 5208 11000 VALVE
7 9833K22 BREATHER VENT
8 3/8FX1/2M TUBE FITTING
9 3/8 BLK URETH TUBING

10 9375A6 LOCK PIN

FAWCETT CO., INC. LS manual 03/06 Page 7 of 7
