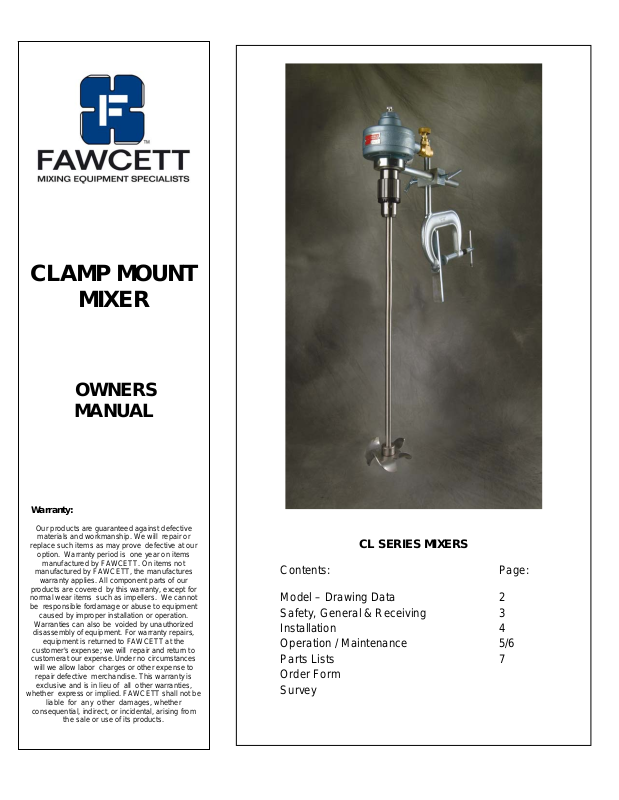

Page 1
CLAMP MOUNT
MIXER
OWNERS
MANUAL
Warranty:
Our products are guaranteed against defective
materials and workmanship. We will repair or
replace such items as may prove defective at our
option. Warranty period is one year on items
manufactured by FAWCETT. On items not
manufactured by FAWCETT, the manufactures
warranty applies. All component parts of our
products are covered by this warranty, except for
normal wear items such as impellers. We cannot
be responsible fordamage or abuse to equipment
caused by improper installation or operation.
Warranties can also be voided by unauthorized
disassembly of equipment. For warranty repairs,
equipment is returned to FAWCETT at the
customer's expense; we will repair and return to
customerat our expense.Under no circumstances
will we allow labor charges or other expense to
repair defective merchandise. This warranty is
exclusive and is in lieu of all other warranties,
whether express or implied. FAWCETT shall not be
liable for any other damages, whether
consequential, indirect, or incidental, arising from
the sale or use of its products.
CL SERIES MIXERS
Contents: Page:
Model – Drawing Data 2
Safety, General & Receiving 3
Installation 4
Operation / Maintenance 5/6
Parts Lists 7
Order Form
Survey
Page 2
CL Series Mixers
Model: CL-2000
Date:_____________________
Order No.:_________________
Motor:
Part No.: 20A
H.P.: .75 max
RPM: 300 – 3,000
Repair Kit #: K202
Accessories:
DR-7 Clamp & L-4 Block
________________
________________
________________
Shaft(s):
Part #’s : SB-15 1/2” X 15”
________________
Impellers:
Part #’s : MF-43H
________________
________________
FAWCETT, Inc. CL manual 04/06 Page 2 of 7
Page 3
Safety
Please follow the below safety precautions. If there are
any questions, please call FAWCETT at 330 659-4187.
Please read this complete manual before trying to operate
your mixer. Failure to follow these instructions could result
in serious bodily injury or death.
• Do not touch moving parts while mixer is operating.
Do not wear loose-fitting clothes or jewelry around an
operating mixer. Keep all hands, feet, clothes, neckties,
necklaces and other objects clear of moving parts.
• Never move the unit with the motor running.
• Have a qualified individual bring air to your unit.
• Never run the unit in open air.
• Never adjust the speed without the unit running.
Air Motor Safety:
The air motor is designed to be driven by compressed air
and under no circumstances be driven with any other
gases. Fluids, particles, solids or any substance mixed
with air, particularly combustible substances likely to
cause explosions, must not drive air motor.
• Air motor is designed for air only. Do not allow corrosive
gases or particulate material to enter motor. Water vapor,
oil-based contaminants, or other liquids must be filtered
out.
• Do not use a hammer or force coupling onto shaft when
installing drive onto air motor. This causes end thrust that
could damage air motor.
• Ambient temperature should not exceed 200°F.
• Beware of any exposed and/or movable parts to prevent
personal and/or property damage.
• Solid or liquid material exiting unit can cause eye or skin
damage. Keep away from air stream.
• Always disconnect air supply before servicing.
• Do not allow air motor to “run free” at high speeds with
no loads. Excessive internal heat build-up, loss of
internal clearances and rapid motor damage will result.
• Some models may exceed 85dB (A) sound level.
Hearing protection should be worn when in close
proximity to these models.
General
• All models include an air hose (size & length vary).
• All models include an air control valve (types vary).
• 4000X models include a filter & lubricator.
• Air motors include exhaust muffler.
CL-2200 – Gear Driven Series
Gear Drive Models - The 15:1 ratio gearhead provides plenty
of torque for all sorts of tough jobs. They will quickly mix
containers of higher viscosity materials like heavy paints,
resins, polymers, etc., as well as re-suspend settled materials.
As the direct drive models above, they come with an air hose
and valve
Receiving
Before removing any packing, visually inspect the exterior of
the shipment for any sign of damage. Should there be any
damage, bring it to the attention of the delivering UPS or truck
line and note the same on the receiving ticket. Should there be
damage you must place a claim with the truck line. They are
the only ones who will pay for the damage done and you are
the only one who can place that claim.
FAWCETT, Inc. CL manual 04/06 page 3 of 7
Page 4
Installation
Your new mixer is supplied partially assembled. For
more information, see the parts list pages for general
arrangement drawings.

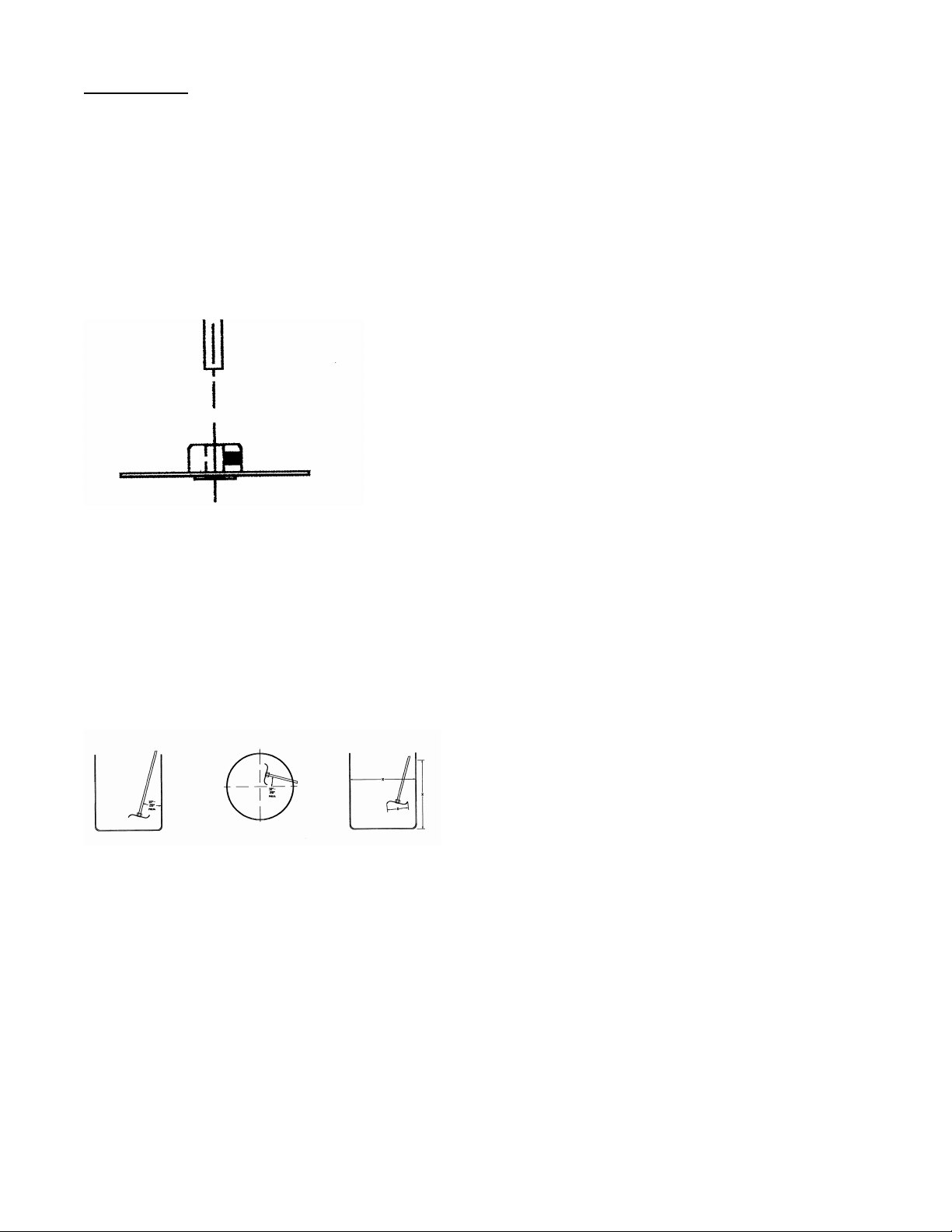

Impellers:
To install the impeller, back off the set screw as far as
possible without removing them. Insert mixing shaft
into the bore and tighten the set screw firmly to secure
the impeller to the shaft.
Impeller Placement:
Begin by mounting it I to 2 impeller diameters distance
off the bottom of mixing container.
The above guideline is a “rule of thumb” and may not
be the best for your situation. Experimenting with
impeller placement may provide your best results.
Assembly:
1.) Assemble clamp to drum.
2.) Insert the “L” mounting block onto the clamp
rod and tighten the “T” handle.
3.) Insert the powerhead with mounting ring into
the “L” block.
4.) Assemble the shaft/impeller to the chuck &
tighten securely.
5.) Adjust the powerhead to the desired height
and tighten the “T” handle.
6.) Connect air supply to inlet port.
7.) Make sure air control valve is closed.
Mixer is now ready to operate.
FAWCETT Co, Inc. CL manual 04/06 page 4 of 7
Page 5
LUBRICATED AIR MOTORS
OPERATION & MAINTENANCE
IMPORTANT: PLEASE READ THIS MANUAL AND
SAVE FOR FUTURE REFERENCE.
Thank you for purchasing this Fawcett product. It is
manufactured to the highest standards using quality materials.
Please follow all recommended maintenance, operational and
safety instructions and you will receive years of trouble free
service.
Product Use Criteria:
• Operate at temperature up to 250ºF (121ºC).
• Protect unit from dirt and moisture.
• Use ONLY compressed air to drive motor.
• Air lines connected to motor should be the same size or the
next size larger than the intake port for efficient output and
speed control.
• Protect all surrounding items from exhaust air.
• Bearings are grease packed.
• Use #AD220 or a detergent SAE#10 automotive engine oil
for lubricating.
General information
• Clearances: Model Total End Clearance (in/mm) Top
Clearance (in/mm)
LS101 0.0020/0.0508 0.0015/0.0381
LS102 0.0025/0.0635 0.0015/0.0381
LS103 0.0035/0.0889 0.0015/0.0381
LS104 0.0035/0.0889 0.0015/0.0381
LS105 0.0048/0.1219 0.0015/0.0381
• Vane Life: Depends upon speed, operating pressure and
motor maintenance.
• Operating Pressure: 100 psi or below (7 bar)
Correct installation is your responsibility. Make sure you
have the proper installation conditions and that the specified
installation clearances are available.
INSTALLATION
Connection
Check the direction of the motor airflow. A single rotation motor
will operate properly only in one direction. Install a filter in the
air line before the connection to the motor. Connect lines to
motor in the proper direction. A reversible motor will work
equally well in both directions. Connecting a 4-way valve with
piping to both air ports of the motor will make reversing
possible.
Do not add any thrust to the end or side of the shaft when
making connections. Do not use a hammer on the shaft or
connections.
Mounting
This product can be installed in any orientation. Mount the
motor to a solid base plate that is mounted to a stable, rigid
operating surface. Install a pressure regulator or simple shutoff valve to control motor.
Consult your Fawcett Co. representative for additional filter
recommendations. Install a moisture trap and filter in the air
line ahead of the motor. For the most efficient output and
control of speed, use air lines that are the same size or the
next pipe size larger than the motor intake port. An
automatic air line lubricator should be installed 18” or as
close as possible in the air line just ahead of the motor.
Adjust the lubricator to feed one drop of oil for every 50-75
CFM of air moving through the motor. Air consumption at
various speeds and pressures are available from your local
Fawcett representative.
It is your responsibility to operate this product at
recommended speeds, loads and room ambient
temperatures. Do not run the motor at high speeds with
no load. This will result in excessive internal heat that
may cause motor damage.
The starting torque is less than the running torque. The
starting torque will vary depending upon the position of the
vanes when stopped in relation to the air intake port. Use a
pressure regulator and/or simple shut-off valve to regulate
the motor’s speed and torque. This will provide the required
power and will conserve air.
OPERATION
Injury Hazard
Air stream from product may contain solid or liquid
material that can result in eye or skin damage. Do Not
use combustible gases to drive this motor. Wear hearing
protection. Sound level from motor may exceed 85db(A).
Failure to follow these instructions can result in burns,
eye injury or other serious injury.
Air Power:
Check to ensure the air valve is in the closed position, then
connect air supply. Check rotation to be sure the mixer shaft
is rotating in a clockwise direction, looking downward into the
container.
Once the mixer is in the container, it is now safe to operate.
CAUTION:
• Never run mixer without an Impeller.
• Never run the impeller in open air.
• Never run impeller outside a container.
1FAWCETT, Inc. CL manual 04/06 Page 5 of 7
Page 6
MAINTENANCE
Injury Hazard
Disconnect air supply and vent all airlines. Wear eye
protection when flushing this product. Air stream from
product may contain solid or liquid material that can result
in eye or skin damage. Flush this product in a wellventilated area. Do Not use kerosene or other combustible
solvents to flush this product. Failure to follow these
instructions can result in burns, eye injury or other
serious injury.
It is your responsibility to regularly inspect and make
necessary repairs to this product in order to maintain
proper operation.
Check intake and exhaust filters after first 500 hours of
operation. Clean filters and determine how frequently filters
should be checked during future operation. This one procedure
will help assure the product’s performance and service life.
Flushing
Flushing this product to remove excessive dirt, foreign
particles, moisture or oil that occurs in the operating
environment will help to maintain proper vane performance.
Flush the motor if it is operating slowly or inefficiently.
Use only #AH255B Flushing Solvent. DO NOT use
kerosene or ANY other combustible solvents to flush this
product.
Lubrication
Use only #AD220 or a detergent SAE #10 automotive engine
oil for lubricating. Lubricating is necessary to prevent rust on all
moving parts. Excessive moisture in the air line may cause rust
or ice to form in the muffler when air expands as it passes
through the motor. Install a moisture separator in the air line
and an after cooler between compressor and air receiver to
help prevent moisture problems.
Manual Lubrication
Shut the air motor down and oil after every 8 hours of
operation. Add 10-20 drops of oil to the air motor intake port.
Automatic Lubrication
Adjust inline oiler to feed 1 drop of oil per minute for high
speed or continuous duty usage. Do Not overfeed oil or
exhaust air may become contaminated.
1. Disconnect air line and muffler.
2. Add flushing solvent directly into motor. If using liquid
solvent, pour several tablespoons directly into the intake port. If
using #AH255B, spray solvent for 5-10 seconds into intake
port.
3. Rotate the shaft by hand in both directions for a few
minutes.
4. You must wear eye protection for this step. Cover
exhaust with a cloth and reconnect the air line. Slowly apply
pressure until there is no trace of solvent in the exhaust air.
5. Listen for changes in the sound of the motor. If motor
sounds smooth, you are finished. If motor does not sound like
it is running smoothly, installing a service kit will be required.
(See “Service Kit Installation”).
Check that all external accessories such as relief valves or
gauges are attached and are not damaged before
operating product.
Shutdown
It is your responsibility to follow proper shutdown
procedures to prevent product damage.
1. Turn off air intake supply.
2. Disconnect plumbing.
3. Remove air motor from connected machinery.
4. Wear eye protection. Keep away from air stream. Use
clean, dry air to remove condensation.
5. Lubricate motor with a small amount of oil in chamber.
Rotate shaft by hand several times.
6. Plug or cap each port.
7. Coat output shaft with oil or grease.
8. Store motor in a dry environment.
www.fawcettco.com
1FAWCETT, Inc. CL manual 04/06 Page 6 of 7
Page 7
PHONE: 330.659.4187
FAX: 330.659.6991
E-MAIL: [email protected]
1 DR-7 DR-7 DR-7 DR-7 CLAMP
2 MF-31R MF-43H MF-53H MF-43H IMPELLER
3 01J 03J 03J 01-J CHUCK
4 01-RR 03-RR 03-RR 01RR ROD & RING
5 L-4 L-4 L-4 L-4 CLAMP BLOCK
6 01-M K1-6 K1-6 01-M MUFFLER
7 10-A 20A 30A 10GR MOTOR
8 01-V 02-V 03-V 04-V VALVE
9 - 025-N 025-N - NIPPLE
10 LT-4 LT-4 LT-4 LT-4 TEE HANDLE
11. S-15 SB-15 SB-15 SB-15 SHAFT
CL-1000 CL-2000 CL-30000 CL-2200 DESCRIPTION
FAWCETT CO., INC. CL manual 04/06 Page 7 of 7
Page 8
FAX FEEDBACK SHEET
Our objective is to provide you the best products possible.
You may help us by providing feedback to us.
Please complete this survey and fax it back to us within 10 days.
Shipment No.:__________________
Shipment Date: _________________
Please circle your responses and FAX to (330) 659-6991
If you are RECEIVING or PURCHASING personnel, please answer the following:
Was this shipment received within the timeframe established by your company? YES NO
Did this shipment contain the correct items and quantity? YES NO
Was the box damage free? YES NO
Does the level of product quality meet your requirements and expectations? YES NO
Are you aware of our website?
If you are TECHNICAL personnel, please answer the following:
Did you need to contact our Technical Support staff? YES NO
If you did contact us, was our staff helpful and professional? YES NO
Did you use the installation, programming and/or hookup instructions? YES NO
Were the installation, programming and/or hookup instruction clear for you? YES NO
Completed By: ______________________________ Your Function: _____________________________
Company: _________________________________________
City, State, Zip: _________________________________
Phone: _________________________
Email: _________________________________
Thank you for helping us continually improve the products and services we provide you. For more detailed feedback, feel free to
contact our Customer Service Personnel at (330) 659-4187 ext.2300 or via email at
www.fawcettco.com YES NO
Fawcett Co., Inc. The Home of Mixed Flow Impellers
* Manufactured in the USA *
Page 9
FAWCETT CO., INC.
PHONE: 330.659.4187
3863 Congress Pkwy. FAX: 330.659.6991
Richfield OH 44286 E-MAIL: [email protected]
ORDER FORM
Person Placing Order : ____________________________________ P.O. # : ______________________
Phone # : ________________________ FAX # : __________________________
SHIP TO:
Attention Attention
Location Location
Street Address Street Address
BILL TO:
City State Zip City State Zip
Req. Date
Quantity
Requesitioner
Ship Via
Buyer
F.O.B.
Richfield, OH
Item Description Unit Price Total
NET 30 Days
Terms
Sales tax will be added to deliveries in the state of Ohio
unless a tax exempt certificate is on file.
All orders are F.O.B. shipping point. Shipping charges
will be added to invoice.
Subtotal
Tax
Shipping
Miscellaneous
Balance Due
Loading...
