User’s Manual v1.0.0.0
F741-SD
A/2013
www.favite.com
Copyright○C2013, Favite, Inc.
Page 2
F740 User Guide
Table of Contents
1. Introduction ...........................................................................................................1
1.1 Overview ..........................................................................................................1
1.2 Requirement......................................................................................................1
1.3 Reference Documents.......................................................................................2
1.4 Specifications....................................................................................................2
2. Reader Hardware Installation and Operation ........................................................8
2.1 Receiving the RFID Reader.............................................................................. 8
2.2 Diagnostic LEDs.............................................................................................10
2.3 Antenna Panel.................................................................................................12
2.4 Demonstration Software Guide ......................................................................12
Figures
Figure 1: F741-SD Reader Physical Size
Figure 2: F741-SD Reader I/O Terminal
Figure 3:
Antenna Port Terminal Interface
Figure 4: F741-SD GPIO Pin definition and I/O description
Figure 5: F741-SD (1)
Figure 6: F741-SD (2)
Figure 7: F741-SD Power Supply and Adapter cable
Figure 8: F741-SD Reader Diagnostic LEDs
Figure 9: Demo Program
i
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 3
F740 User Guide
Tables
Table 1: Reference Documents ........................................................................................
Table 2: Specification of the F741-SD.............................................................................
ii
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 4
F740 User Guide
1. Introduction
This user’s manual guide is providing instruction for installing and operating the
F741-SD RFID reader.
This document is designed for use by RFID system integrators and software developer
who develops relatively program and extended systems that take full advantage of the
RFID Reader's capabilities.
1.1 Overview
F741-SD, one of FAVITE RFID reader family, is an Intel ATOM CPU based
smart reader. The F741-SD is embedded with Impinj R2000 chip and following EPC
Class1 Gen2 Dense Reader mode (DRM) / ISO 18000-6C. The F741-SD is equipped
with 4 TNC RF antenna ports which could support 4 mono-static antennas that could
support to the richest enterprise applications. With the powerful combination of TI
ARM9 and 1GB memory, the F741-SD is the smartest RFID reader available and
capable of running complex RFID applications.
The RFID Reader is delivered with the following components and accessories:
One (1) RFID Reader.
One (1) power supply and cord.
Operation system:
A. Linux embedded operation system with SCO server.
1.2 Requirement
The list following is the requirements of environment of the F741-SD:
Standard DC 19V +/ - 0.5V
2.6A Power supply
Favite demo software/ the software developed based on Favite Software
Development Kit
1
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 5
F740 User Guide
NCC: 922
1.3 Reference Documents
Table 1: Specification of the F741-SD System
Chipset
PHY: Impinj R2000
MAC: ATMEL AT91SAM7S-256
Protocol
RFID Protocol Support EPC Gen 2 , ISO 18000-6C
Support EPC DRM Yes (with DRM Filter) Switchable
RF
Frequency
US: 902 ~ 928MHz󶁘FHSS󶁙
EU: 865 ~ 868MHz
SRRC: 920~925MHz
JP:952~954MHz
-928MHz
Demodulation ASK
Modulation Depth 90% nominal
Data Encoding FM0 or Miller code
Bit Rate Supports uplink data rates of up to 640 Kbps (DRM)
TX Output power 5 ~ 32dBm in 0.1dB step
Antenna Type 4Port Mono-static
Antenna connector 4 Reverse Polarity TNC connectors
Regulatory and Environmental Compliance
FCC 47 CFG Ch.1 Part 15 (US)
ETSI EN 302 208-1 (V1.1.1) (EU)
EMC certification
NCC CAAI10LP0970(TW)
SRRC SRTC2010-A070-0016 (China)
DSP RJ9905 10C02 (JP)
Safety Certification CE/FCC Class A, UL, CCC
Environment
Temperature Range
Operating: 0 ~ 55 degree C @ 80%RH
Storage: -20 ~ 85 degree C @ 90%RH
Humidity 10% ~ 85% Non-condensing
System Architecture
Processor TI ARM9
System Memory 1GB DDR2 SDRAM
Internal Storage 1GB Flash
2
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 6
F740 User Guide
Software
Operation System Linux with SCO server
General Characteristics
Dimension 500mm x 245 mm x 50.49mm
Weight 2.5 Kg
Base Material Die-cast aluminum
Mounting Wall mounting, vertical placement
Power Input DC 19V +- 0.5V / 1.5A @ 33dBm
Power Consumption 28.5 W (Typical)
Communication
USB USB2.0
Ethernet 10/100 Base-T (RJ-45)
GPIO 4 digital input, 4 digital output
3
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 7
F740 User Guide
MMMMechanical: Reader Physical Size
echanical: Reader Physical Size
echanical: Reader Physical Sizeechanical: Reader Physical Size

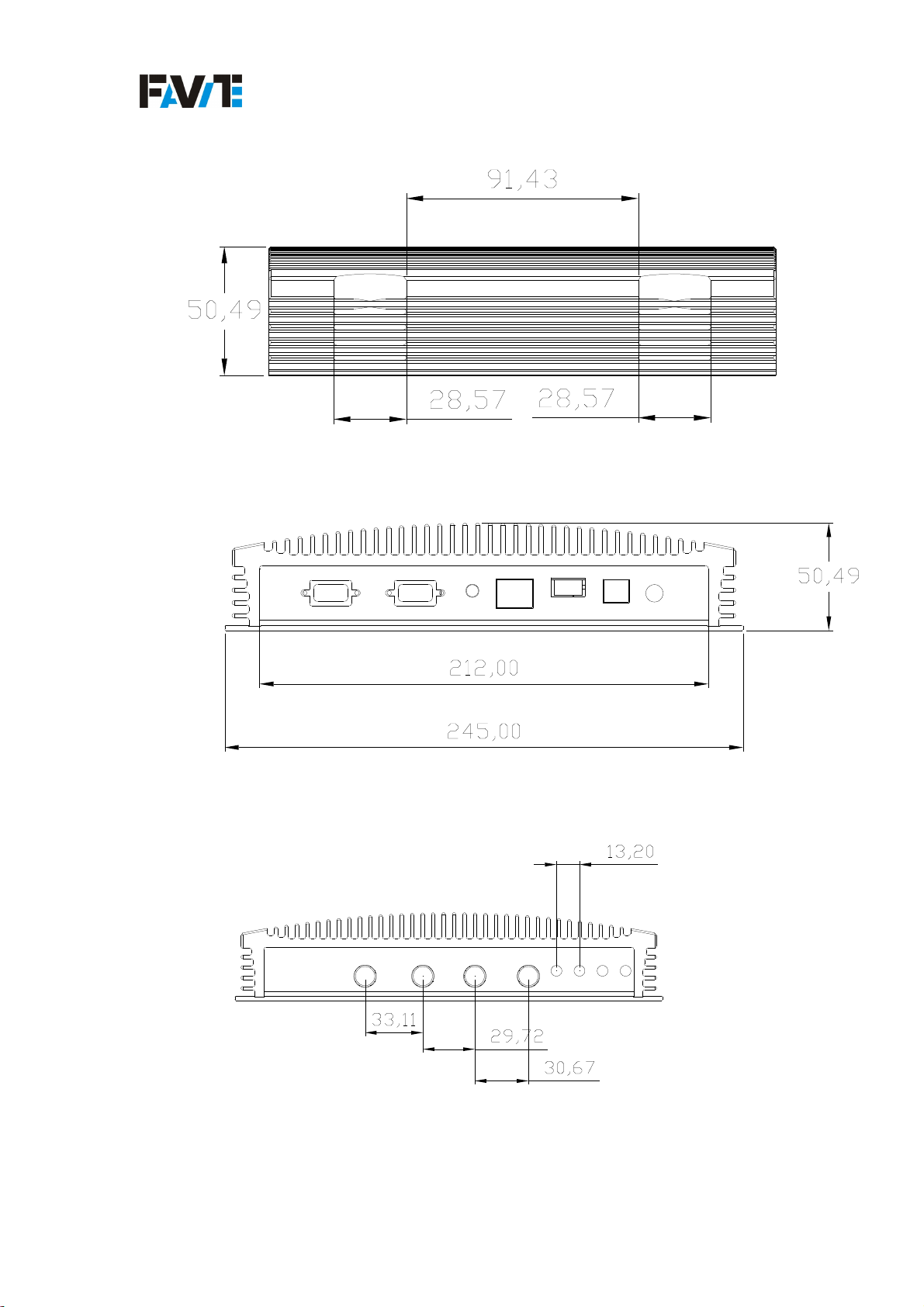

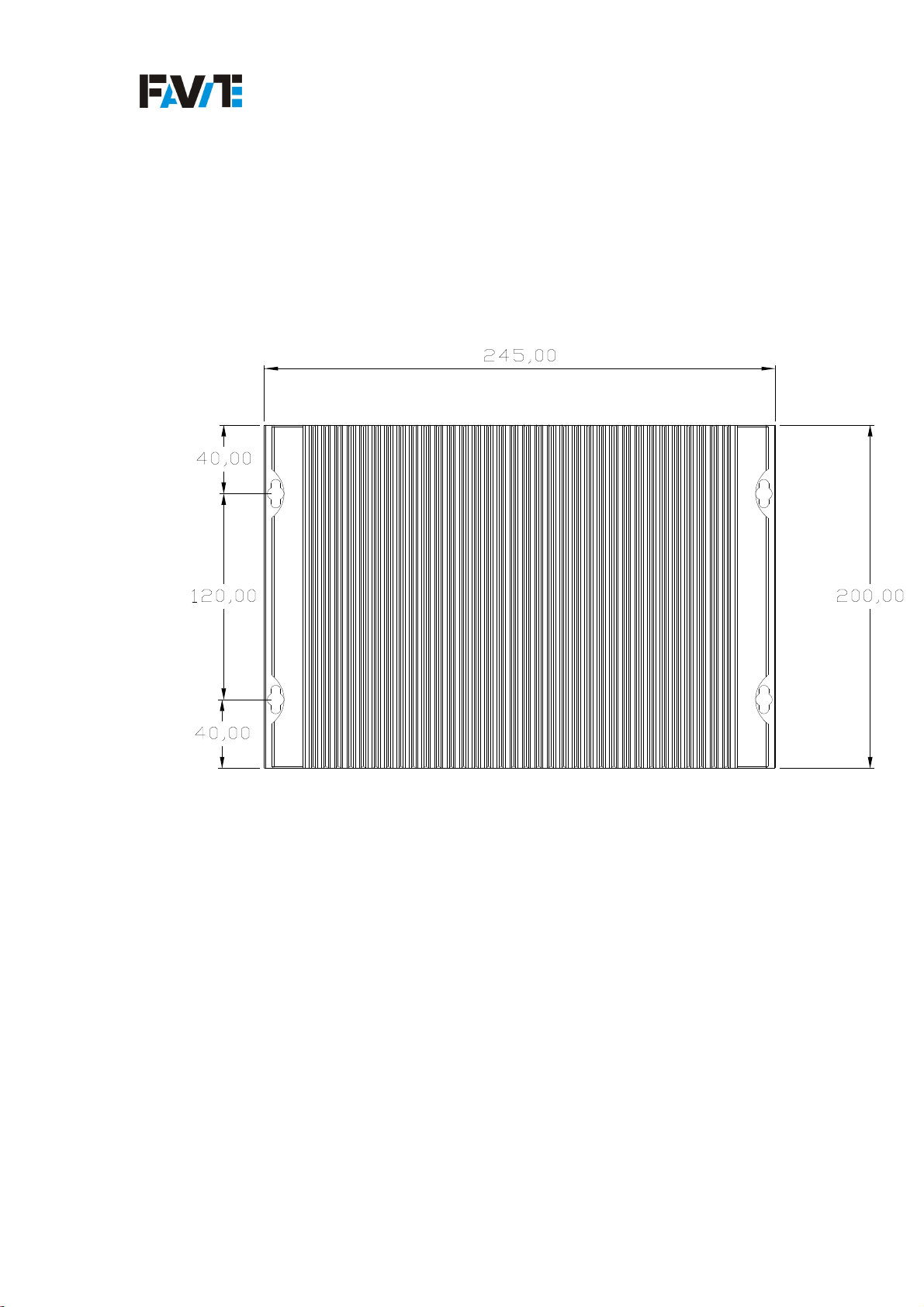

Figure 1: F741-SD Reader Physical Size
4
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 8
F740 User Guide
5
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 9
F740 User Guide

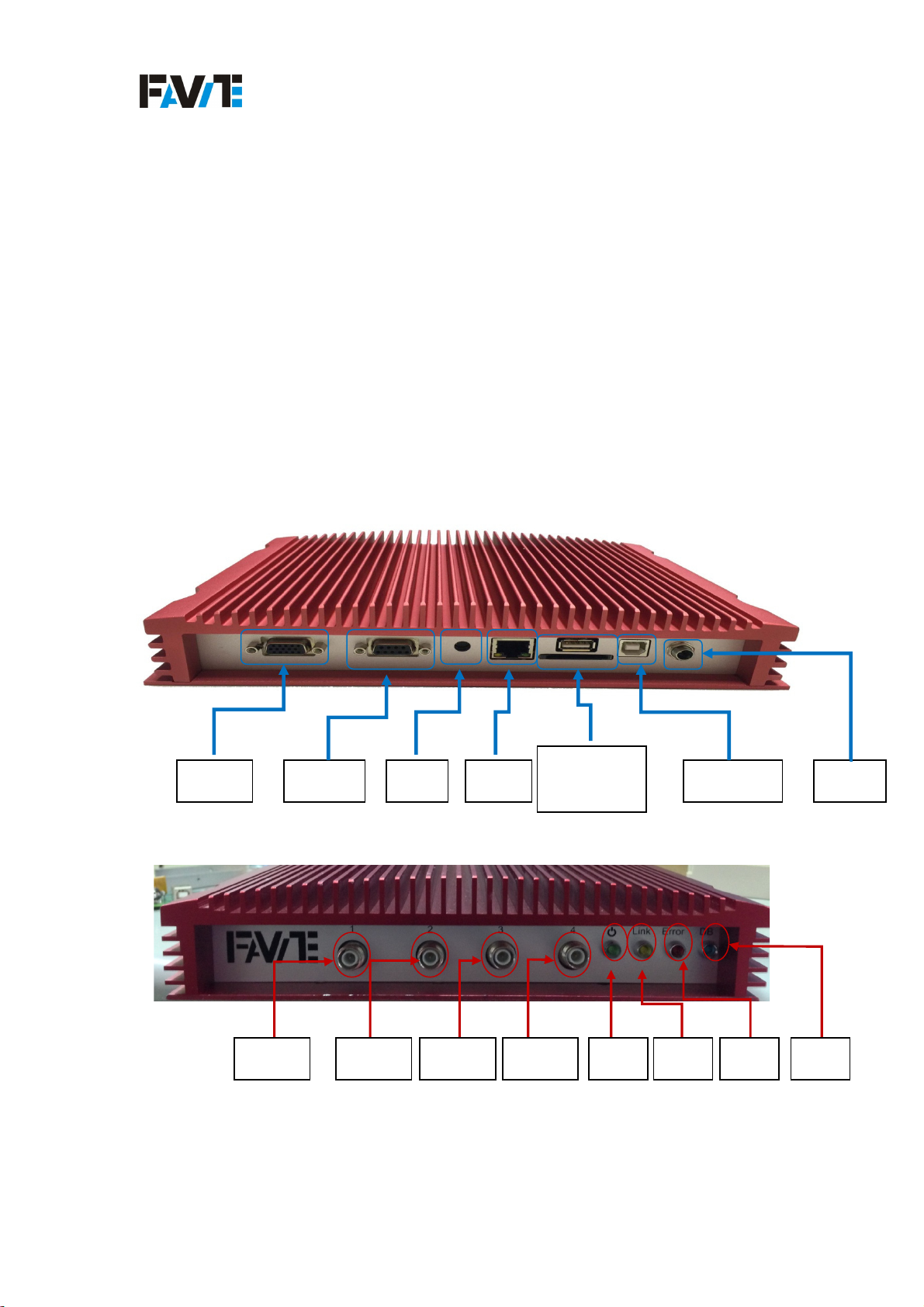

Figure 2: F741-SD Reader I/O Terminal
USB2.0/
SD card cocket
FTDI com port
power
GPIO
RS232
Figure 3:
reset
RJ45
Antenna Port Terminal Interface
Antenna1
Antenna2
Antenna3 Antenna4
power
link error
debug
6
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 10
F740 User Guide

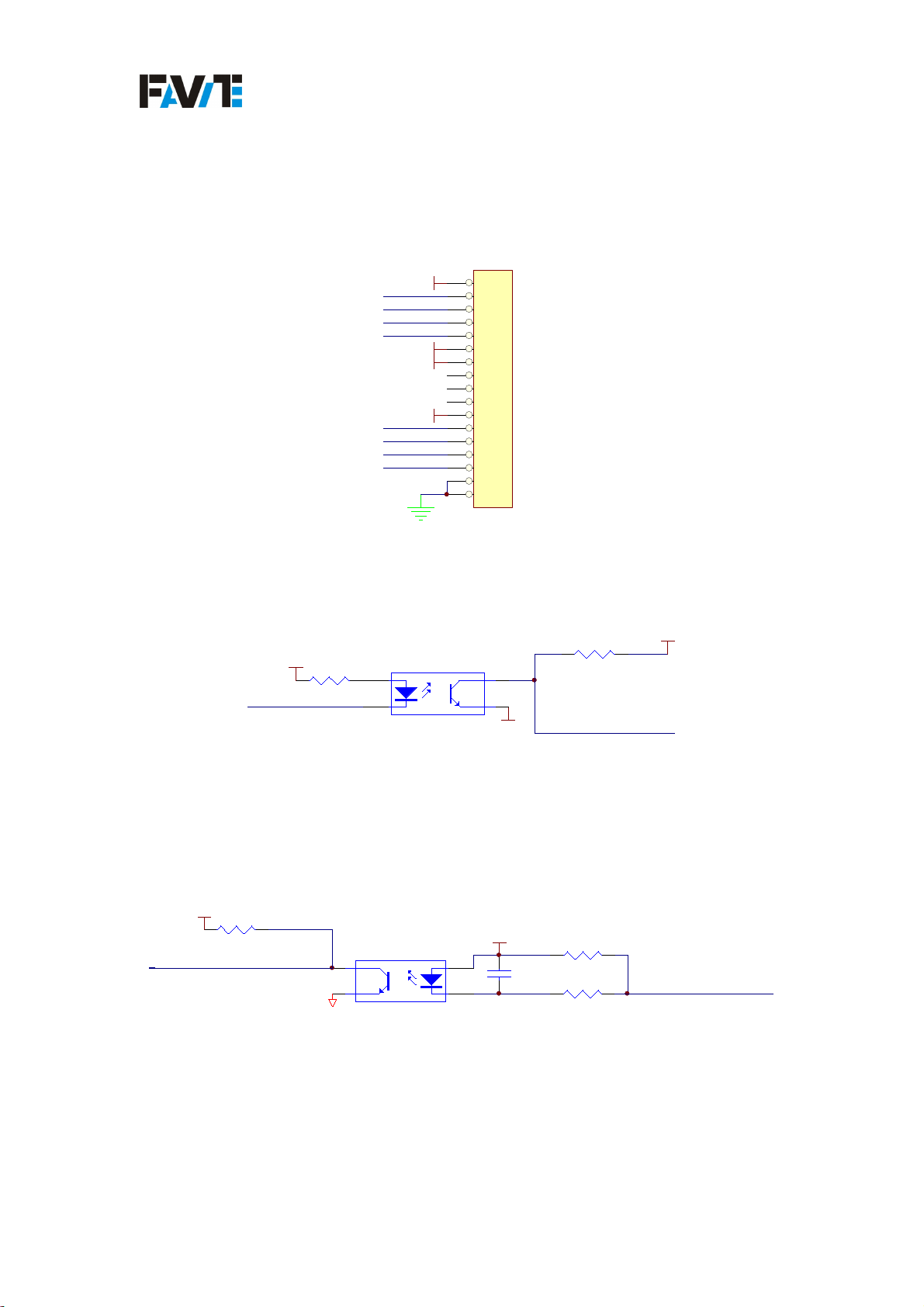

Figure 4: F741-SD GPIO Pin definition and I/O description.
Pin definition
Pin definition
Pin definitionPin definition
D-SUB 15pin
V1 1
GPIO_O1
GPIO_O2
GPIO_I1
GPIO_I2
GND-1
GND-2
GPIO_O3 GPIO_O4
GPIO_I3
GPIO_I4
V2
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
GPIO
VDD3.3VGP
R96
4K7/4
GPIO_IN4
GPIO-OUT Circuit diagram (add figure#)
VDD3.3VGP
R94
4K7/4
GPIO_OUT4
U13
1
2
UPC817
4
3
GND-2
GPIO-IN Circuit diagram(add figure#)
V2
GND
4
3
U14
UPC817
1
2
C68
0.1uF/4
R95
47K/6
R98
47K/6 R99
10K/6
GPIO_O4
V2
GPIO_I4
Note:
Please add the 4k7 electric resistances. The limitation of voltage is from 12V to 24V.
7
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 11
F740 User Guide
If F741-SD is going to transmit signal to other device, please connect to the device
which is below 48V and 10mA.
If user wants
F741-SD to receive data from other device through GPIO, please
connect 24V power source to PIN19 or PIN20 and connect the device output line to
Pin 1~ Pin8.
The development of programming of receiving data from GPIO could reference the
document “FAVITE F741-SD GPIO Programming Guide_DotNet CSharp” for read
data from GPIO with application method.
If user wants F741-SD to transmit data to other device though GPIO, please connect
to Pin 9~ Pin 16.
The programming of transmitting data to other device (like light stack) could
reference the document “FAVITE F741-SD GPIO Programming Guide_DotNet
CSharp” for write data from GPIO with application method. The device should
connect to independent power source.
8
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 12
F740 User Guide
2. Reader Hardware Installation and Operation
2.1 Receiving the RFID Reader
Your RFID Reader Kit is shipped with the items listed below. Please verify the
contents of your received shipment before assembling.
• RFID reader.
• Power supply and cables (two sections: one attached, one detached).
• CD-ROM containing demonstration software, user guides and documentation.

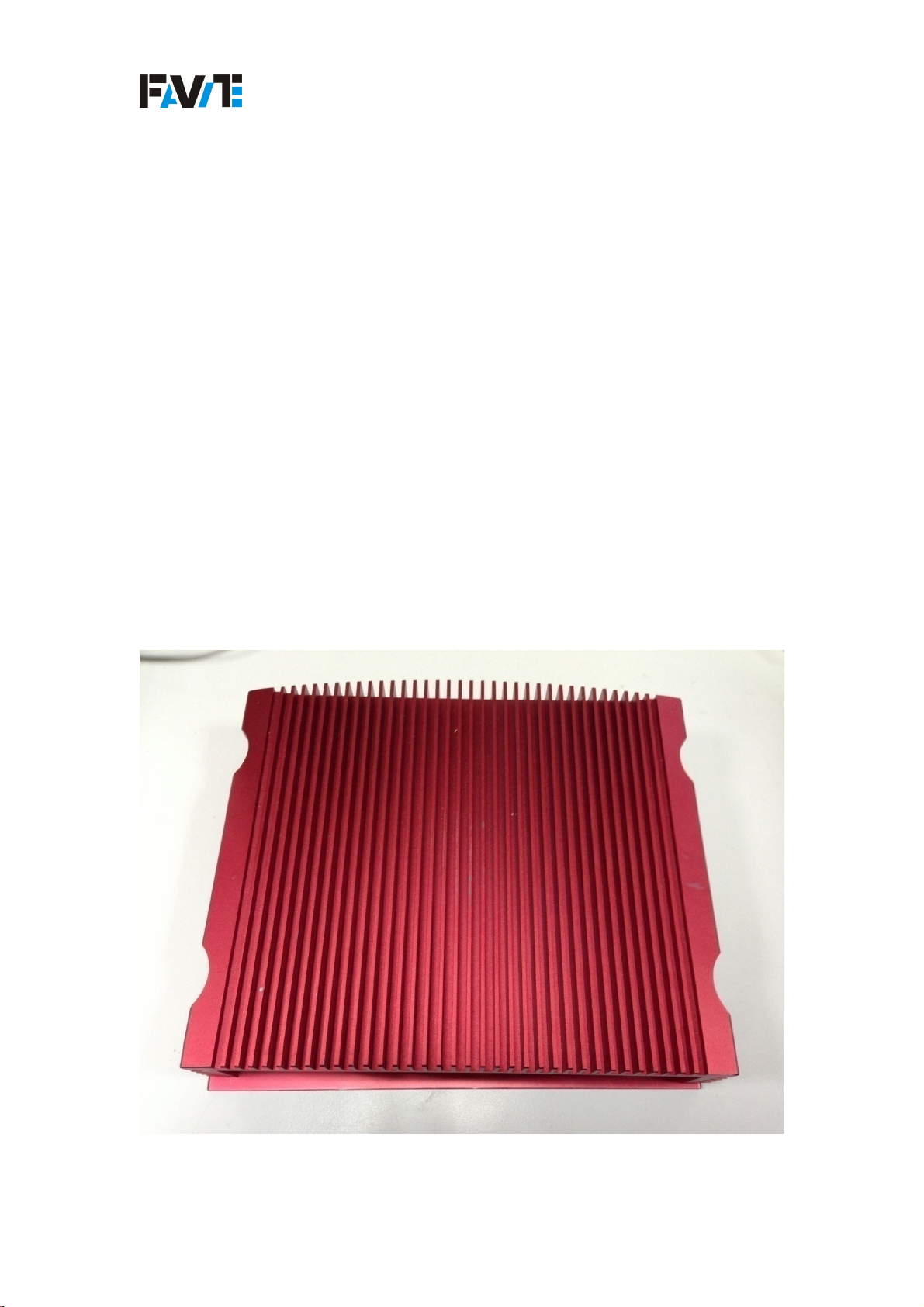

Figure 5: F741-SD (1)
9
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 13
F740 User Guide

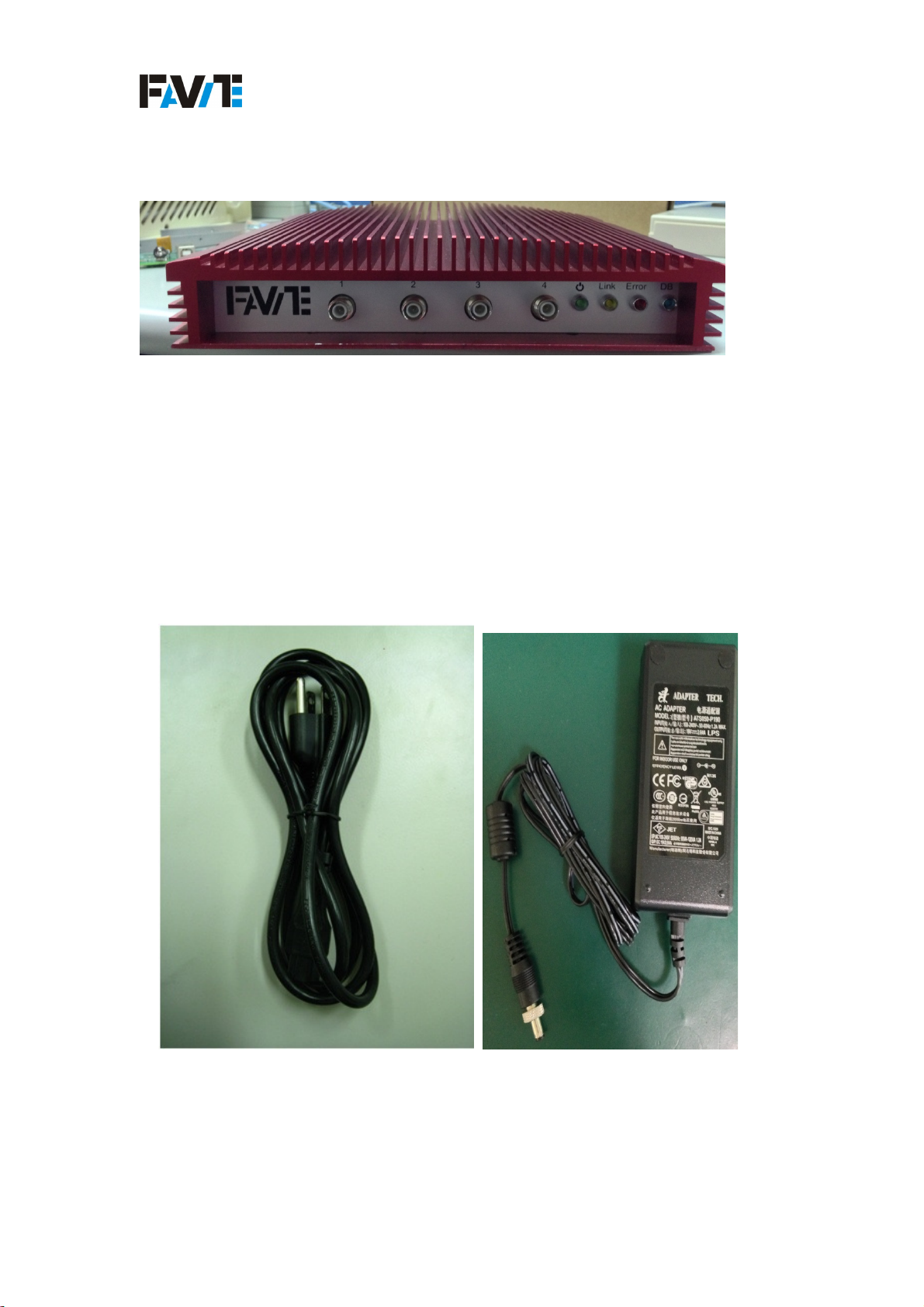

Figure 6: F741-SD (2)
Figure 7: F741-SD Power Supply and Adapter cable
10
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 14
F740 User Guide
2.2 Diagnostic LEDs
The F741-SD is including diagnostic LEDs on the face of the reader to provide easy
and convenient external indication for various operating conditions:
POWER (green) – indicates that power is applied to the reader.
Read (yellow) – indicates that the reader is receiving data from a tag.
Fault (red) – indicates that a fault condition like CRC check error.
debug (blue) – indicates that the F741-SD is into debug mode

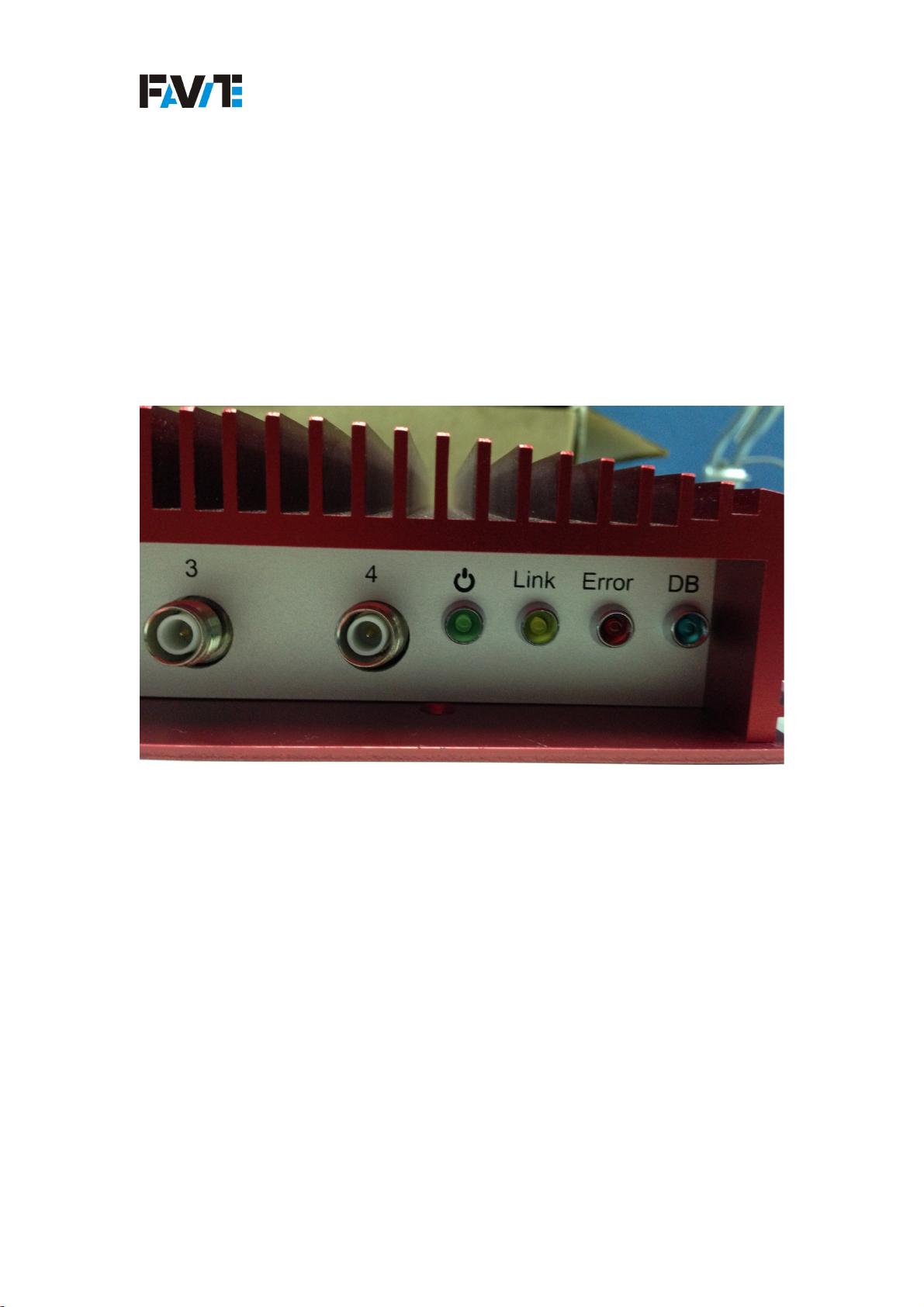

Figure 8: F741-SD Reader Diagnostic LEDs
11
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 15
F740 User Guide
Antenna Panel
The antenna panel is containing four coax antenna connector ports, which is TNC
connector, as shown below. These are TNC connectors.
2.3 Installation & Demonstration Software Guide
Installation 󶁪
First , please let F740 connect with the power cable and RJ45 network cable, then the
debug and power two LEDs of front side will be blink . Until power LED still bright
and debug LED slake , it can execute the tool as picture.
Demonstration Software󶁪
Please refer to the document “FAVITE API Programming Guide_DotNet CSharp”,
“FAVITE SDK Getting Started Guide CSharp”, “FAVITE Saturn Demo API User
Guide” and “F740 GPIO Programming Guide_DotNet CSharp”.Please refer to the
document “FAVITE API Programming Guide_DotNet CSharp”, “FAVITE SDK
Getting Started Guide CSharp”, “FAVITE Saturn Demo API User Guide” and
“F741-SD GPIO Programming Guide_DotNet
CSharp”.
12
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 16
F740 User Guide

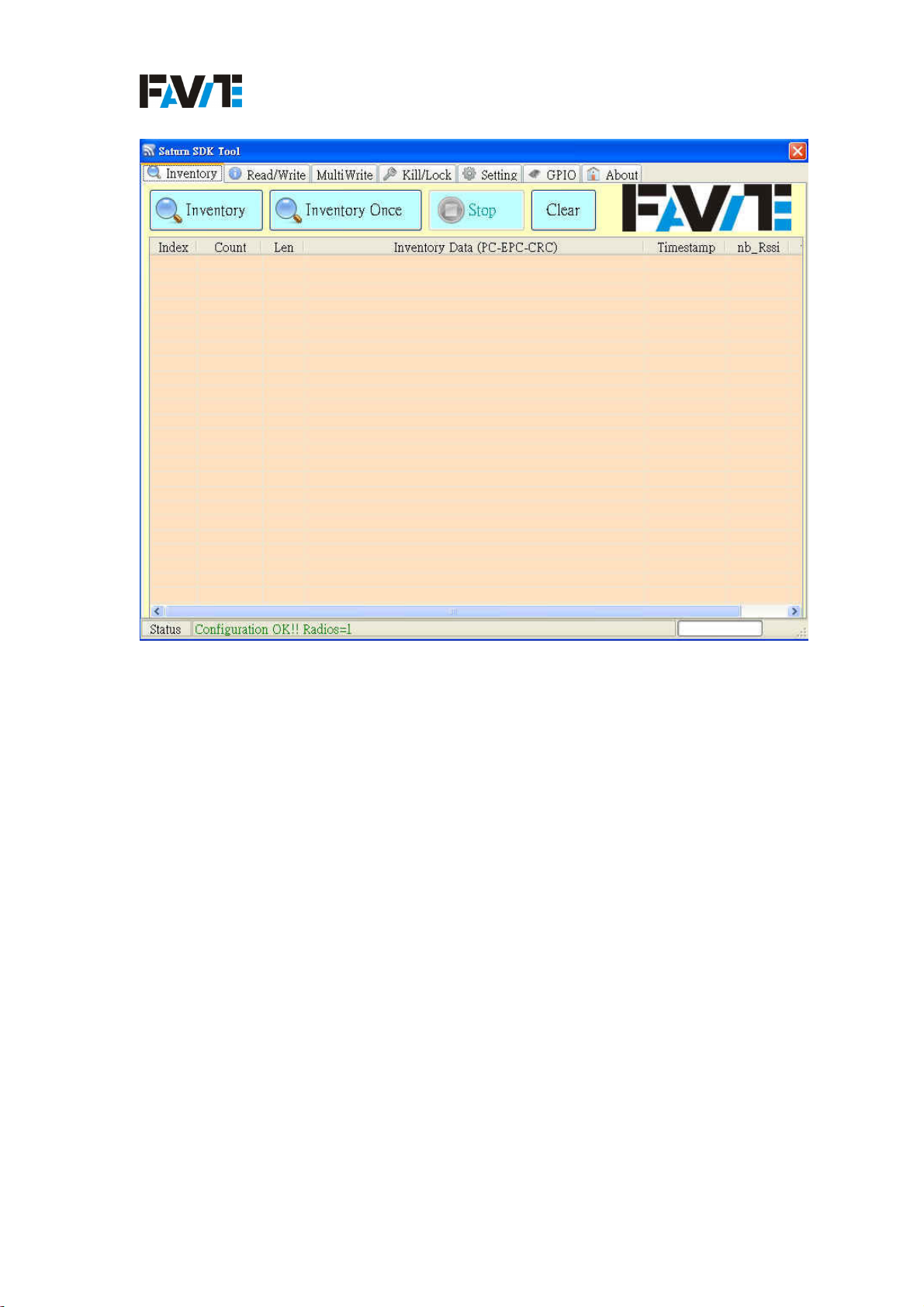

Figure 9: Demo Program
NCC Declaration:
Article 12—Without permission granted by the NCC, any company, enterprise,
or user is not allowed to change frequency, enhance transmitting power or alter
original characteristics as well as performance of an approved low power
radio-frequency device.
第十二條 經型式認證合格之低󱇨率射頻電機,非經許可,公司商號或使用者均不得擅自變更
頻率󱇩大󱇨率或變更原設計之特性及󱇨能
Article 14—The low power radio-frequency device shall not influence aircraft
security and interfere legal communication; if such influence or interference is found,
the user shall cease operating immediately until no interference is achieved. The said
legal communications means radio communications are operated in compliance with
the Telecommunications Act. The low power radio-frequency devices must be
susceptible with the interference from legal communications or ISM radio wave
radiated devices.
13
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 17
F740 User Guide
第十四條 低󱇨率射頻電機之使用不得影響飛航安全及干擾合法通信󶁫經發現有干擾現象時,應
改善至無干擾時方得繼續使用前項合法通信,指依電信法規定作業之無線電通信低󱇨率射頻
電機須忍受合法通信或工業科學及醫療用電波輻射性電機設備之干擾
FCC Declaration:
FCC statement in User’s Manual (for class B)
“Federal Communications Commission(FCC) Statement”
This Equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC rules. These Limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
‐Reorient or relocate the receiving antenna.
‐Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
1. The device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
14
v2.2.1.0, Copyright○C2013, Favite, Inc
Page 18
F740 User Guide
that may cause undesired operation.
2. This device and its antenna(s) must not be co‐located or operating in conjunction
with any other antenna or transmitter.
3. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment.
FCC Radiation Exposure Statement:
1. This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
2. This equipment should be installed and operated with minimum distance 23cm
between the radiator and your body.
Professional Use:
FCC NOTICE: To comply with FCC part 15 rules, the system must be professionally
installed to ensure compliance with the Part 15 certification. It is the responsibility of
the operator and professional installer to ensure that only certified systems are
deployed in the United States.
15
v2.2.1.0, Copyright○C2013, Favite, Inc
Loading...
