Faure FBB7294 User Manual

User manual
Fridge-Freezer
FBB7294
Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 Operation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4 First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4 Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4 Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Safety information
In the interest of your safety and to ensure the correct use, before installing and first usin g the appliance, read this user manual carefully, including its hints and warn­ings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appli­ance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it i s moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervi­sion or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7 What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8 Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10 Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10 Environmental concerns _ _ _ _ _ _ _ _ _ _ _ _ _ 13
Subject to change without notice
General safety
Caution! Keep ventilation openings clear of
obstruction.
• The appliance is intended for keeping foodstuff and/ or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained with­in the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appli­ance, be certain that none of the components of the refrigerant circuit become damaged. If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition – thoroughly ventilate the room in which the appli-
ance is situated
2
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.
Warning! Any electrical componen t (power cord, plug, compressor) must be replaced by a certified
service agent or qualified service personnel.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed
or damaged by the back of the appliance. A squashed or damaged power plug may over­heat and cause a fire.
3. Make sure that you can come to the mains plug
of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert
the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the
1)
lamp cover
of interior lighting.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily Use
• Do not put hot pot on the plastic parts in the appli­ance.
• Do not store flammable gas and liquid in the appli­ance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommenda­tions should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the contain-
1) If the lamp cover is foreseen
2) If the appliance is Frost Free
3) If a water connection is foreseen
2)
er, which may cause it to explode, resulting in dam­age to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
Important! For electrical connection carefully follow
the instructions given in specific paragraphs.
• Unpack the appliance and check if there are dam­ages on it. Do not connect the appliance if it is dam­aged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before con­necting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the ap­pliance, lacking this leads to overheating. To ach­ieve sufficient ventilation follow the instructions rel­evant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
Connect to potable water supply only.
3)
Service
• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
3
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its refrig-
erant circuit or insulation materials. The appliance shall
Operation
not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local author­ities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on
this appliance marked by the symbol
are recyclable.
Switching on
Insert the plug into the wall socket. Turn the Temperature regulator clockwise to a medium setting.
Switching off
To turn off the appliance, turn the Temperature regu­lator to the "O" position.
Temperature regulation
The temperature is automatically regulated. To operate the appliance, proceed as follows:
• turn the Temperature regulator toward lower set­tings to obtain the minimum coldness.
• turn the Temperature regulator toward higher set­tings to obtain the maximum coldness.
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm wa­ter and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.
Daily use
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. To freeze fresh foods it is not necessary to change the medium setting. However, for a faster freezing operation, turn the tem­perature regulator toward higher settings to obtain the maximum coldness.
Important! In this condition, the refrigerator compartment temperature might drop below 0°C. If thi s
4
A medium setting is generally the most suitable.
However, the exact setting should be chosen keeping in mind that the temperature inside the appliance de­pends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.
Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.
Important! Do not use detergents or abrasive pow­ders, as these will damage the finish.
occurs reset the temperature regulator to a warmer setting.
Place the fresh food to be frozen on the top compart­ment.
Storage of frozen food
When first starting-up or after a period out of use, before putting the products in the compartment let the appli­ance run at least 2 hours on the higher settings.
If large quantities of food are to be stored, remove all drawers and baskets from appliance and place food on cooling shelves to obtain the best performance.
Warning! Make sure that foods do not exceed the load limit stated on the side of the upper
section (where applicable)
Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).
Freezing Calendar
The symbols show different types of frozen goods. The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and treating before freezing.
Thawing
Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room tem­perature, depending on the time available for this op­eration. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.
Ice-cube production
This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.
Important! Do not use metallic instruments to remove the trays from the freezer.
Temperature indicator
To assist you in controlling your appliance correctly we have fitted a temperature indicator to your refrigerator, placed in the coldest area.
The coldest area of the refrigerator compartment is at the level of the lower glass shelf.
The symbol opposite shows the location of the coldest area of your refrigerator. The space directly above the glass shelf of the fruit and vegetable drawer is the coldest region of the refriger­ator compartment as shown by the shelf or the sticker on the wall of your appliance. For proper storage of the food in your refrigerator and particularly in the coldest area, ensure that the tem­perature indicator is displaying “OK”. If “OK” is not displayed, the average temperature in the area is too high. Adjust the temperature controller to a colder setting. Since the “OK” display is in black, it is difficult to see if the temperature indicator is poorly il­luminated. Correct illumination makes it easy to read. Each time the temperature controller is adjusted, wait for the temperature inside the appliance to stabilise before checking whether another adjustment is re­quired. Only adjust the controller gradually and wait at least 12 hours before checking and perhaps adjusting it again.
Important! After putting fresh food into the appliance or after opening the door repeatedly or for a long period, it is normal for the indicator not to show “OK”; wait at least 12 hours before readjusting the temperature controller.
If the evaporator of the refrigeration compartment (wall at the bottom of the appliance) has an abnormal cov­ering of ice (appliance too full, high ambient tempera­ture, thermostat too high, frequent door opening), grad­ually move the thermostat control to a lower setting until there are once more periods when the compressor stops. The automatic defrosting of the refrigerator com­partment will not work correctly unless the compressor stops from time to time.
5
Thermostat requires adjustment
Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be placed at different heights.
Correct temperature
OK
Movable shelves
The walls of the refriger­ator are equipped with a series of runners so that the shelves can be posi­tioned as desired.
Helpful hints and tips
Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temper­ature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator to­ward warmer settings to allow automatic defrosting and so a saving in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in the refrigerator
Gradually pull the shelf in the direction of the ar­rows until it comes free, then reposition as re­quired.
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it
Hints for refrigeration
Useful hints: Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most. Cooked foods, cold dishes, etc..: these should be cov­ered and may be placed on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
6
Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or pol­ythene bags to exclude as much air as possible. Milk bottles: these should have a cap and should be stored in the bottle rack on the door. Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
Hints for freezing
To help you make the most of the freezing process, here are some important hints:
• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rap­idly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touc h food which is already frozen, thus avoiding a rise in temperature of the latter;
Care and cleaning
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the stor­age time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and can­not be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.
Caution! Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cool­ing unit; maintenance and recharging must there-
fore only be carried out by authorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm wa­ter and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.
Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.
Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption.
Important! Take care of not to damage the cooling system.
Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added. After cleaning, reconnect the equipment to the mains supply.
Defrosting of the refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost wa­ter drains out through a trough into a special container
7
at the back of the appliance, over the motor compres­sor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.
Defrosting the freezer
A certain amount of frost will always form on the freezer shelves and around the top compartment. Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.
Important! About 12 hours prior to defrosting, set the Temperature regulator toward higher settings , in order to build up sufficient chill reserve for the interruption in operation.
To remove the frost, follow the instructions below:
1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers
of newspaper and put it in a cool place.
Caution! Do not touch frozen goods with wet hands. Hands can freeze to the goods.
3. Leave the door
open and insert the plastic scraper in the appropriate seating at the bot­tom centre, plac­ing a basin under­neath to collect the defrost water
In order to speed up the defrosting process, place
a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete.
4. When defrosting is completed, dry the interior thor-
oughly and keep the scraper for future use.
5. Switch on the appliance.
6. After two or three hours, reload the previously re-
moved food into the compartment.
Warning! Never use sharp metal tools to scrape
off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.
Periods of non-operation
When the appliance is not in use for long periods, take the following precautions:
disconnect the appliance from electricity supply
• remove all food
• leave the door/doors ajar to prevent unpleasant
If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.
4)
defrost
and clean the appliance and all accesso-
ries
smells.
What to do if…
Warning! Before troubleshooting, disconnect
the mains plug from the mains socket.
4) If foreseen.
8
Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.
Important! There are some sounds during normal use (compressor, refrigerant circulation).
Problem Possible cause Solution
The appliance does not oper­ate. The lamp does not oper­ate.
The mains plug is not connected to
The appliance has no power. There
The lamp does not work.
The lamp is defective. Refer to "Replacing the lamp".
The compressor operates continually.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too fre-
The product temperature is too high. Let the product temperature decrease
The room temperature is too high. Decrease the room temperature.
Water flows on the rear plate of the refrigerator.
Water flows into the refriger­ator.
Products prevent that water flows in-
Water flows on the ground.
The temperature in the appli­ance is too low.
The temperature in the appli­ance is too high.
The door is not closed correctly. Refer to "Closing the door".
The product temperature is too high. Let the product temperature decrease
Many products are stored at the
The appliance is switched off. Switch on the appliance.
Connect the mains plug to the mains
the mains socket correctly.
is no voltage in the mains socket.
The lamp is in stand-by. Close and open the door.
The temperature is not set correctly. Set a higher temperature.
quently.
During the automatic defrosting process, frost defrosts on the rear plate.
The water outlet is clogged. Clean the water outlet.
to the water collector.
The melting water outlet does not flow in the evaporative tray above the compressor.
The temperature regulator is not set correctly.
The temperature regulator is not set correctly.
same time.
socket correctly.
Connect a different electrical appli­ance to the mains socket. Contact a qualified electrician.
Do not keep the door open longer than necessary.
to room temperature before storage.
This is correct.
Make sure that products do not touch the rear plate.
Attach the melting water outlet to the evaporative tray.
Set a higher temperature.
Set a lower temperature.
to room temperature before storage.
Store less products at the same time.
9
Problem Possible cause Solution
There is no cold air circulation in the
appliance.
Make sure that there is cold air circu­lation in the appliance.
Replacing the lamp
Caution! Disconnect the plug from the mains
socket.
1. Remove the screw from the lamp cov­er.
2. Remove the lamp cover (refer to the illustration).
3. Replace the used lamp with a new lamp of the same
power (the maximum power is shown on the lamp cover).
4. Install the lamp cover.
5. Tighten the screw to the lamp cover.
6. Connect the plug to the mains socket.
7. Open the door. Make sure that the light comes on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.
Technical data
Dimension of the recess
Height 1780 mm
Width 560 mm
Depth 550 mm
Rising Time 20 h
The technical information are situated in the rating plate on the internal left side of the appliance and in the en­ergy label.
Installation
Caution! Read the "Safety Information" carefully
for your safety and correct operation of the
appliance before installing the appliance.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:
10
Climate
class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Ambient temperature
Electrical connection
Before plugging in, ensure that the voltage and fre­quency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply ca­ble plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, con­nect the appliance to a separate earth in compliance with current regulations, consulting a qualified electri­cian.
• Loosen the upper pin and remove the spacer.
• Remove the upper pin and the upper door.
• Loosen the middle hinge.
The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.
Door reversibility
The door of the appliance opens to the right. If you want to open the door to the left, do these steps before you install the appliance:
On the opposite side:
• Install the lower pin.
• Install the lower door.
• Tighten the middle hinge.
• Install the upper door.
• Tighten the spacer and
• Remove the lower door.
• Loosen the lower pin.
tighten the upper pin.
Ventilation requirements
The airflow behind the appliance must be suffi­cient.
50 mm
min. 200 cm
Installing the appliance
Caution! Make sure that the mains cable can
2
min.
2
200 cm
move freely.
Do the following steps:
11
2
4mm
1
44mm
I
I

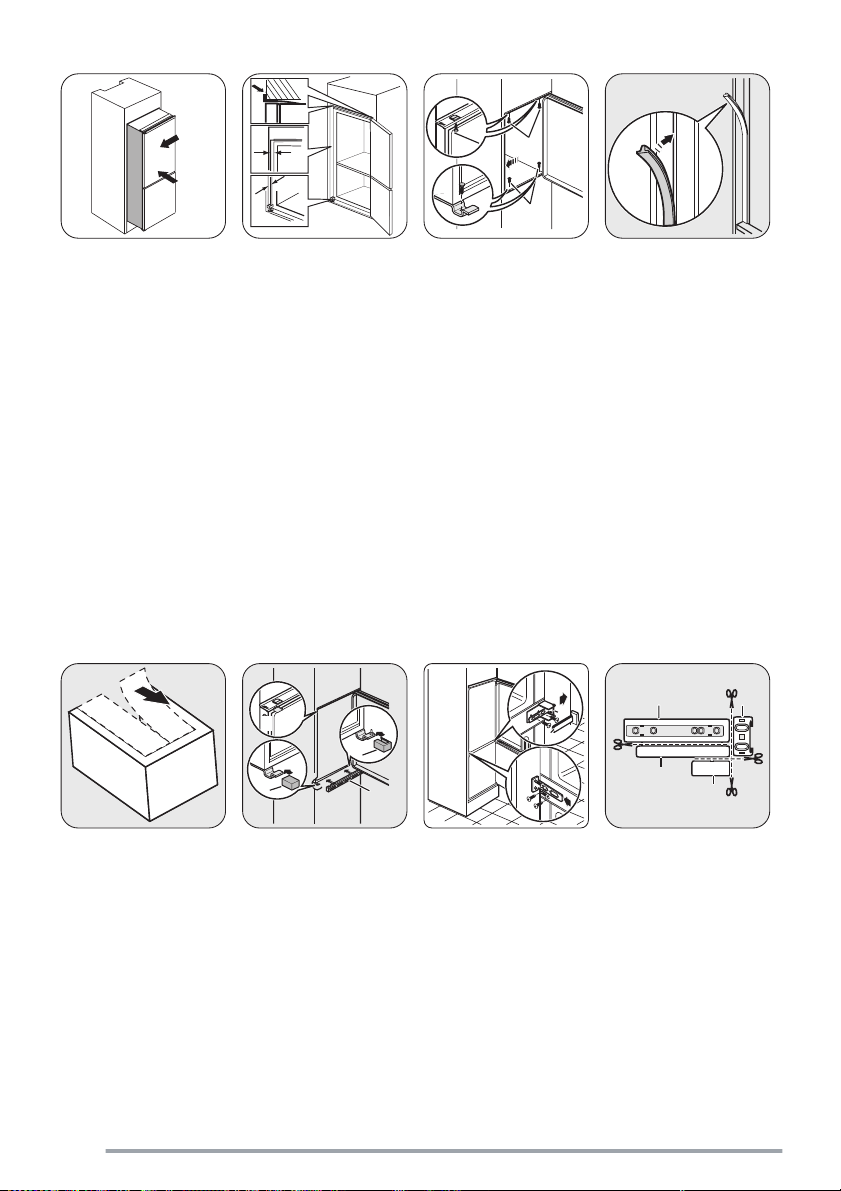

Install the appliance in the niche. Push the appliance in the direction of the arrows (1) until the upper gap cover stops against the kitchen furniture. Make sure that the distance between the appliance and the cup­board front-edge is 44 mm. Push the appliance in the direction of the arrows (2) against the cupboard on the opposite side of the hinge. Make sure that the clearance between the appliance and the cup­board is 4 mm.
Adjust the appliance in the niche. The lower hinge cover (in the accessories bag) makes sure that the dis­tance between the appli­ance and the kitchen fur­niture is correct. Open the door. Put the lower hinge cover in posi­tion.
C
D
E
E
B
Attach the appliance to the niche with 4 screws.
G
H
Push the sealing strip be­tween the appliance and the adjacent cabinet.
Ha
Hb
Hc
Hd
Remove the correct part from the hinge cover (E). Make sure to remove the part DX, in the case of right hinge, SX in opposite case.
12
Attach the covers (C, D) to the lugs and the hinge holes. Install the vent grille (B). Attach the hinge covers (E) to the hinge.
Connect the appliance lat­erally to the kitchen furni­ture sidewall:
1. Loosen the screws of
the part (G) and move the part (G) till the fur­niture sidewall.
2. Tighten the screws of
the part (G) again.
3. Attach the part (H) to
the part (G).
Disconnect the parts (Ha), (Hb), (Hc) and (Hd).
ca. 50 mm
90°
21 mm
90°
ca. 50 mm
21 mm
Install the part (Ha) on the inner side of the kitchen furniture.
Ha
Hc
Push the part (Hc) on the part (Ha).
Hb
8 mm
Ha
8 mm
K
Ha
Hb
Open the appliance door and the kitchen furniture door at an angle of 90°. Insert the small square (Hb) into guide (Ha). Put together the appliance door and the furniture door and mark the holes.
Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).
Hb
Place the small square on the guide again and fix it with the screws supplied. Align the kitchen furniture door and the appliance door by adjusting the part Hb.
Do a final check to make sure that:
• All screws are tightened.
• The magnetic sealing strip is attached tightly to the cabinet.
Press the part (Hd) on the part (Hb).
Hd
Environmental concerns
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent
Important! If the ambient temperature is low (for example, in the Winter), the size of the gasket decreases. The size of the gasket increases when the ambient temperature increases.
potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
13
14
15
www.electrolux.com
212713161-00-07102009
Loading...
