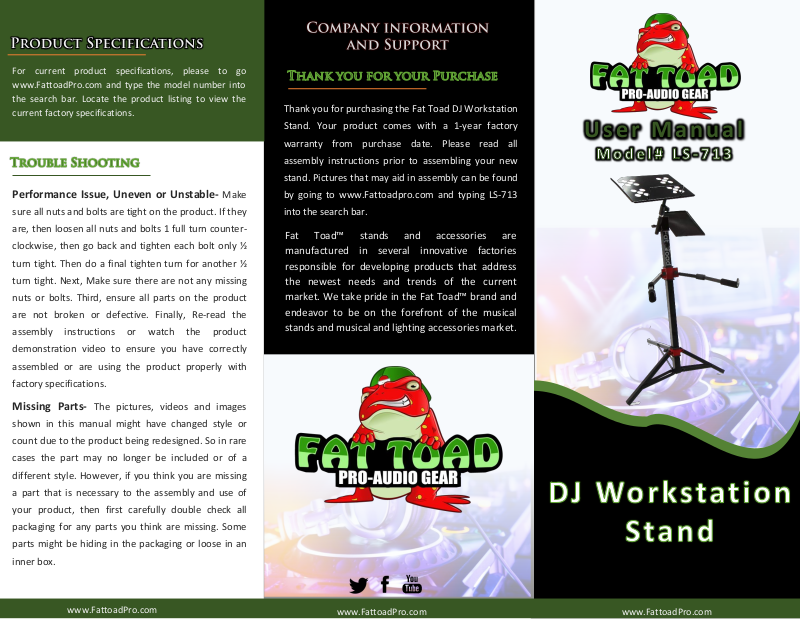

Fat Toad™ stands and accessories are
manufactured in several innovative factories
responsible for developing products that address
the newest needs and trends of the current
market. We take pride in the Fat Toad™ brand and
endeavor to be on the forefront of the musical
stands and musical and lighting accessoriesmarket.
Performance Issue, Uneven or Unstable- Make
sure all nuts and bolts are tight on the product. If they
are, then loosen all nuts and bolts 1 full turn counterclockwise, then go back and tighten each bolt only ½
turn tight. Then do a final tighten turn for another ½
turn tight. Next, Make sure there are not any missing
nuts or bolts. Third, ensure all parts on the product
are not broken or defective. Finally, Re-read the
assembly instructions or watch the product
demonstration video to ensure you have correctly
assembled or are using the product properly with
factory specifications.
Missing Parts- The pictures, videos and images
shown in this manual might have changed style or
count due to the product being redesigned. So in rare
cases the part may no longer be included or of a
different style. However, if you think you are missing
a part that is necessary to the assembly and use of
your product, then first carefully double check all
packaging for any parts you think are missing. Some
parts might be hiding in the packaging or loose in an
inner box.
User Manual
For current product specifications, please to go
www.FattoadPro.com and type the model number into
the search bar. Locate the product listing to view the
current factory specifications.
Thank you for purchasing the Fat Toad DJ Workstation
Stand. Your product comes with a 1-year factory
warranty from purchase date. Please read all
assembly instructions prior to assembling your new
stand. Pictures that may aid in assembly can be found
by going to www.Fattoadpro.com and typing LS-713
into the search bar.
Page 2
Please scan the QR Code below for the product
demonstration video. Or go to the URL shown here and find
the product video. www.FattoadPro.com/Videos

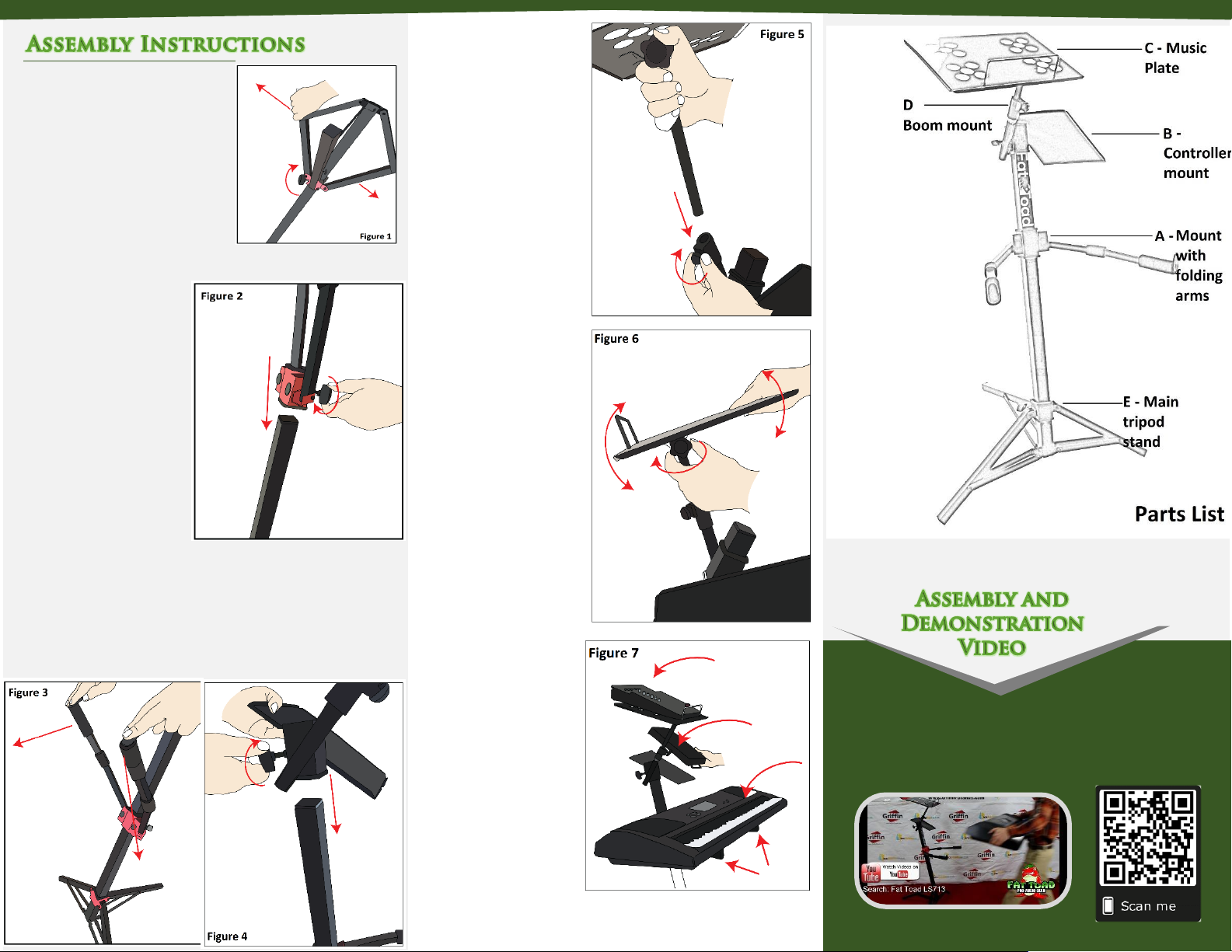

Step 3 – Push down the arms of Part A (folding mounting
arms) as seen on Figure 3.
Step 1 - Take the tripod stand
and open the legs wide, push it
down as this will be the base of
the stand. Make sure to tighten
the knob where the tripod legs
meet on the stand. (See Figure
1). Its very important that the
legs must be spread all the way
out and down for max stability.
Step 2 - Take Part A
(folding mounting arms)
as labeled in the Parts
List and insert it on the
top of the main shaft
(Part E). The height of
Part A or the mount for
mixers is fully adjustable
by adjusting it along the
shaft where your desired
height would be. When
you are satisfied on
where the mount is on
the main shaft, tighten
the knob as shown in
Figure 2.
Step 4 – Take Part B (controller mount) and slide it into
the main shaft. This is also completely adjustable to
which height you prefer. Once you are satisfied where
the controller mount is situated, tighten the knob to
secure Part B. (See Figure 4)
Step #5 - Get Part D
which is the boom
mount for the top
music plate (Part C)
and insert it through
the small post of Part
B, this can also be
adjusted to your
preferred height.
Tighten the knob to
secure the boom
mount as shown in
Figure 5.
Step 6 – Just below the
metal music plate
there is a knob, loosen
this to adjust the angle
of the plate and
tighten to secure the
angle. (See Figure 6)
Step 7 – If the book
plate is spinning from
left to right or vice
versa, unmount the
boom arm (Part D) and
push down the coupler
to where the insert is
mounted, you can use
a hammer to push it
down and secure. This
should solve the issue
of the spinning book
plate.
Step 8 – For safety
reasons, please always
make sure to test the
stability and safety of
the product before use.
Double check all nuts
and bolts, knobs and
connectors, make sure
that these are tight and
securely fastened
before use of your
product. Test the
product under light use
confirm assembly and structure of the product is correct.
