Fat Toad™ stands and accessories are
manufactured in several innovative factories
responsible for developing products that address
the newest needs and trends of the current
market. We take pride in the Fat Toad™ brand and
endeavor to be on the forefront of the musical
stands and musical andlighting accessories market.
Performance Issue, Uneven or Unstable- Make
sure all nuts and bolts are tight on the product. If they
are, then loosen all nuts and bolts 1 full turn counterclockwise, then go back and tighten each bolt only ½
turn tight. Then do a final tighten turn for another ½
turn tight. Next, Make sure there are not any missing
nuts or bolts. Third, ensure all parts on the product
are not broken or defective. Finally, Re-read the
assembly instructions or watch the product
demonstration video to ensure you have correctly
assembled or are using the product properly with
factory specifications.
Missing Parts- The pictures, videos and images
shown in this manual might have changed style or
count due to the product being redesigned. So in rare
cases the part may no longer be included or of a
different style. However, if you think you are missing
a part that is necessary to the assembly and use of
your product, then first carefully double check all
packaging for any parts you think are missing. Some
parts might be hiding in the packaging or loose in an
inner box.
User Manual
For current product specifications, please to go
www.FattoadPro.com and type the model number into
the search bar. Locate the product listing to view the
current factory specifications.
Thank you for purchasing the Fat Toad Folding DJ
Laptop Stand. Your product comes with a 1-year
factory warranty from purchase date. Please read all
assembly instructions prior to assembling your new
stand. Pictures that may aid in assembly can be found
by going to www.Fattoadpro.com and typing LS400
into the search bar.
Fat Toad| 11408 Hwy 64 W, Tyler, TX 75704 |
[email protected] | www.FattoadPro.com
Page 2
Step 3 – For safety reasons, please always make sure to
test the stability and safety of the product before use.
Double check all nuts and bolts, knobs and connectors,
make sure that these are tight and securely fastened
before use of your product. Test the product under light
use or light loads the first time to confirm assembly and
structure of the product is correct.

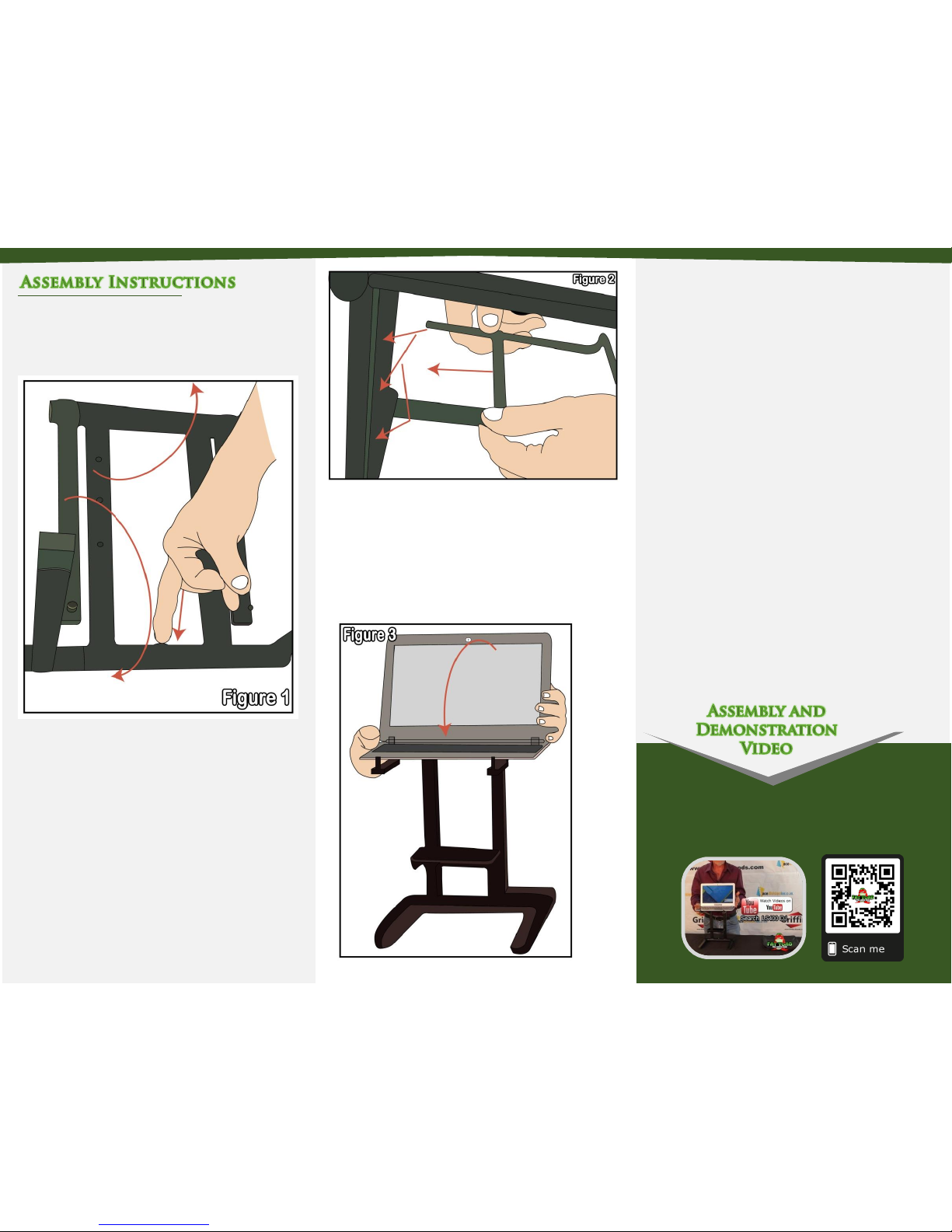

Step 1 – Take the stand and push the locking pins. This
will allow the upper and lower part of the stand to rotate
90°. Guide the upper and lower part to rotate as shown
in Figure 1.
Please scan the QR Code below for the product
demonstration video. Or go to the URL shown here and find
the product video. www.FattoadPro.com/Videos
Step 2 – Take the middle shelf and place it in the middle
of the stand. There will be 4 pairs of holes, place the
middle shelf to your preference (See Figure 2). Once the
middle stand is inserted, use the locking pin to secure the
middle shelf. Insert the locking pin in the hole of the
middle shelf at the back of the stand. This can be put
either in front or back.
Please note that hardware bolts to assemble the stand
maybe screwed into the parts themselves. So, for
example, if you are missing a bolt that goes into the
bottom base support tube, then look at the end of the
bottom base support tube and you will see that hardware
bolt is already screwed into the stand. All you need to do
is unscrew that bolt and then screw it back in to
assemble the two parts that connect on that end. If the
stand is wobbly loosen up each bolt on the stand slightly.
Then tighten up 1 bolt all the way as much as it will
tighten. After that start on the next bolt that is
completely opposite of the 1st bolt that you tightened.
For example, if you first tightened up the bolt in the top
right of the stand, then next start to tighten up the bolt
on the bottom left. Keep going in order of the opposite
bolt that you tightened up last. Once you are done,
repeat the process of going through and tightening up
the bolts one more time.
