Fat Toad™ stands and accessories are
manufactured in several innovative factories
responsible for developing products that address
the newest needs and trends of the current
market. We take pride in the Fat Toad™ brand and
endeavor to be on the forefront of the musical
stands and musical andlighting accessories market.
Performance Issue, Uneven or Unstable- Make
sure all nuts and bolts are tight on the product. If they
are, then loosen all nuts and bolts 1 full turn counterclockwise, then go back and tighten each bolt only ½
turn tight. Then do a final tighten turn for another ½
turn tight. Next, Make sure there are not any missing
nuts or bolts. Third, ensure all parts on the product
are not broken or defective. Finally, Re-read the
assembly instructions or watch the product
demonstration video to ensure you have correctly
assembled or are using the product properly with
factory specifications.
Missing Parts- The pictures, videos and images
shown in this manual might have changed style or
count due to the product being redesigned. So in rare
cases the part may no longer be included or of a
different style. However, if you think you are missing
a part that is necessary to the assembly and use of
your product, then first carefully double check all
packaging for any parts you think are missing. Some
parts might be hiding in the packaging or loose in an
inner box.
User Manual
For current product specifications, please to go
www.FattoadPro.com and type the model number into
the search bar. Locate the product listing to view the
current factory specifications.
Thank you for purchasing the Fat Toad DJ Laptop
Computer Stand. Your product comes with a 1-year
factory warranty from purchase date. Please read all
assembly instructions prior to assembling your new
stand. Pictures that may aid in assembly can be found
by going to www.Fattoadpro.com and typing LS01
into the search bar.
Fat Toad| 11408 Hwy 64 W, Tyler, TX 75704 |
[email protected] | www.FattoadPro.com
Page 2
Step 3 – For safety reasons, please always make sure to
test the stability and safety of the product before use.
Double check all nuts and bolts, knobs and connectors,
make sure that these are tight and securely fastened
before use of your product. Test the product under light
use or light loads the first time to confirm assembly and
structure of the product is correct.
Step 1 – Attach
the stick on pads
(Part No. 6) to
parts 5, 9 and 12.
Use two stick on
pads per part. One
in the front and
one in the back.
Please scan the QR Code below for the product
demonstration video. Or go to the URL shown here and find
the product video. www.FattoadPro.com/Videos
FOR TABLE TOP

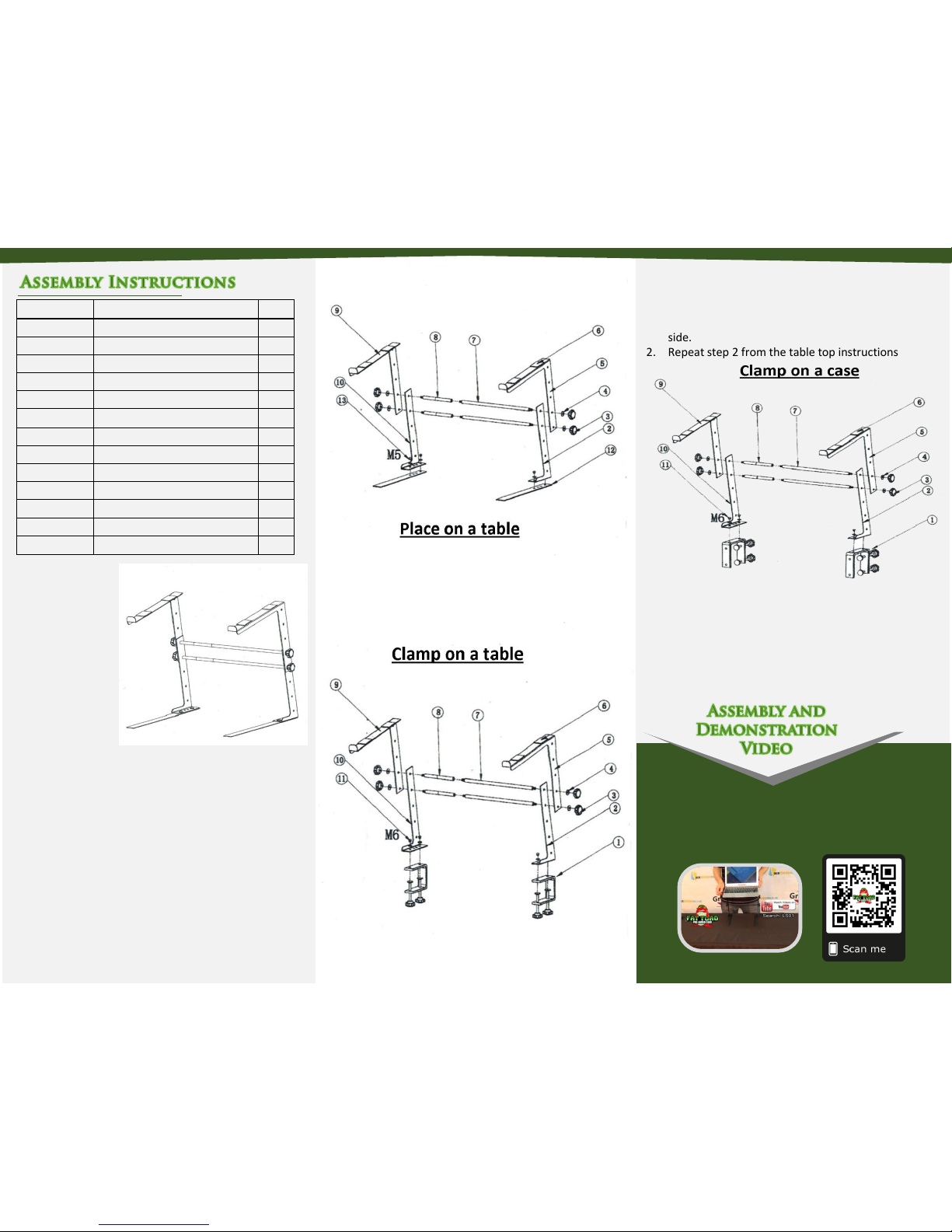

1. Attach part 2 to part to part 12 as shown in the
diagram using the four of the smaller screws (M5
screws). NOTE: The base has four holes. Only two
holes are threaded. Repeat using parts 10 and 12 for
the other side.
2. There are six round cross supports included. The two
long ones (part 7) are the main cross supports. The
stand can be widened by attaching either one or two
of the shorter rods (part 8) to each of the main cross
supports. Line up the holes of the left top holder
(Part 9) with the holes of the left bottom support
(part 10) to the desired height and insert the rods
through the holes. Place a washer (part 4) on the end
and secure with the plastic knobs (part 3). Repeat for
the right side using parts 5 and 2.
PART NO. PART NAME
QTY1Table or case clamp
2
2
Right bottom support
1
3
Plastic knob
4
4
Rubber wash
8
5
Right top holder
1
6
EVA Pad
4
7
Cross rod
2
8
Width adding piece
2
9
Left top holder
1
10
Left bottom support
1
11
M6 Screw
4
12
Level table bar
2
13
M5 Screw
4
TO CLAMP TO A TABLE
1. Attach part 2 to part 1 using the larger M6 screws
(part 11) with the knobs pointed down. Repeat using
parts 1 and 10 for the other side.
2. Repeat step two from the table top instructions.
TO CLAMP TO A STAND
1. Attach part 2 to part 1 using the larger M6 screws
(Part 11) with the knobs pointed toward the rear of
the stand. Repeat using parts 1 and 10 for the other
side.
2. Repeat step 2 from the table top instructions
