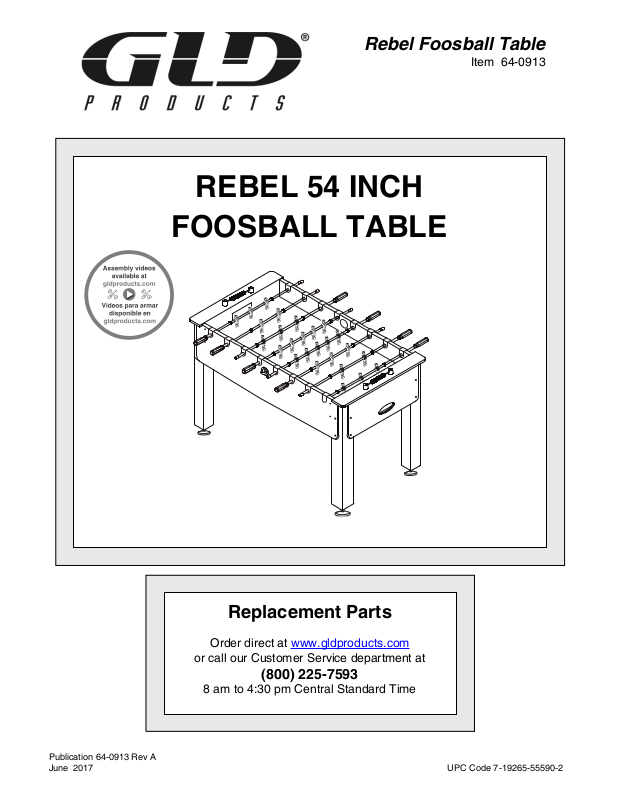

Page 1
Rebel Foosball Table
REBEL 54 INCH
FOOSBALL TABLE
Item 64-0913
Replacement Parts
Order direct at www.gldproducts.com
or call our Customer Service department at
(800) 225-7593
8 am to 4:30 pm Central Standard Time
Publication 64-0913 Rev A
June 2017 UPC Code 7-19265-55590-2
Page 2
GLD Products Rebel Foosball Table
Item 64-0913
Staple your receipt here.
Important: A copy of your receipt will be needed to activate your warranty (see page 16).
Page 3
GLD Products Rebel Foosball Table
Item 64-0913
Congratulations and THANK YOU for purchasing the
Rebel 54 Inch Foosball Table. You have chosen a
product that should provide years of entertainment.
To assist you with customer service and warranty
claims, staple your receipt to the inside cover, then
keep this manual in a safe place for future reference.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: 1-800-841-6944
Email: [email protected]
Web: www.gldproducts.com
This manual may have been updated. For the latest manual visit the GLD products website.
Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.
If you notice missing or defective parts, please call us at:
1-800-225-7593
Please read and understand all instructions before beginning assembly.
This assembly will require 2 adults.
This product is not for use by children without adult supervision.
3 1-800-225-7593
www.gldproducts.com
Page 4

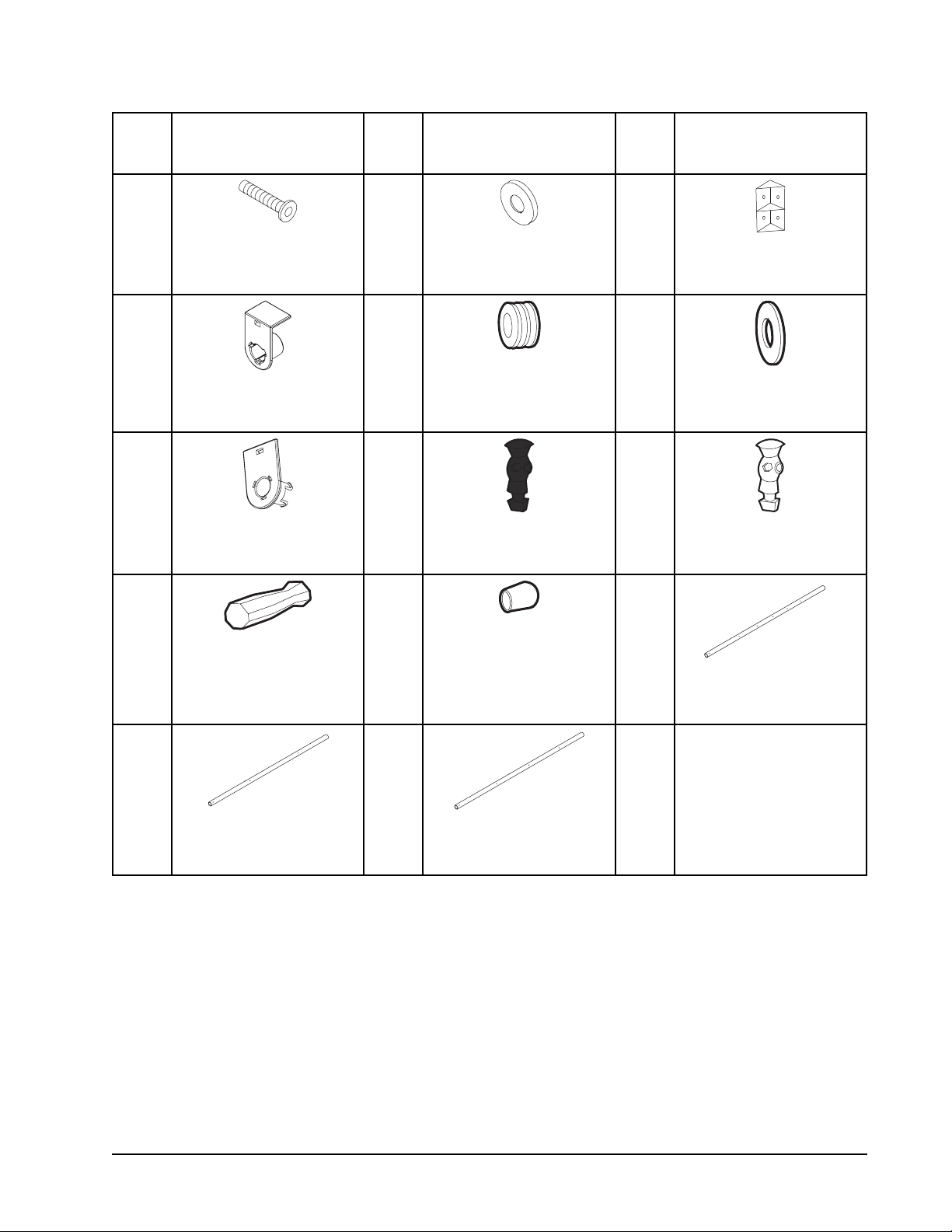

GLD Products

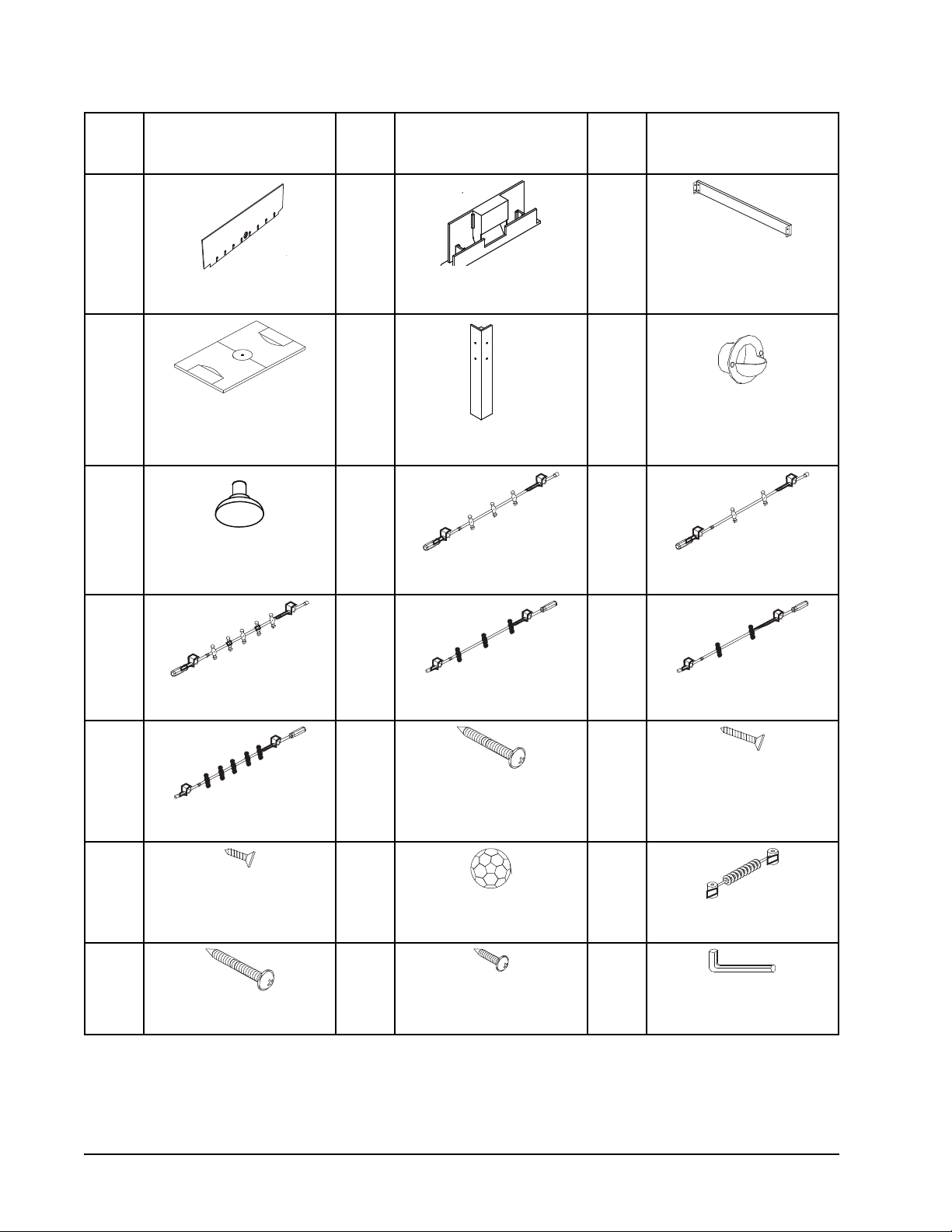

Parts Identi• er
Part
No./
Qty
1
Illustration/
Order Number
Part
No./
Qty
2
Illustration/
Order Number
Rebel Foosball Table
Item 64-0913
Part
No./
Qty
3
Illustration/
Order Number
Qty 2
4
Qty 1
7
Qty 4
10
Qty 1
Side Apron
Order No. 3-347
Play! eld
Order No. 3-350
Leg Base
Order No. 3-352
Qty 2
5
Qty 4
8
Qty 2
11
Qty 2
End Apron
Order No. 3-348
Leg
Order No. 3-351
3 Player Rod-Ivory
Qty 2
Support Brace
Order No. 3-349
6
Qty 2
Ball Entry Cup
Order No. 3-324
9
Qty 1
2 Player Rod-Ivory
12
Qty 1
13
Qty 1
16
Qty 4
19
Qty 8
5 Player Rod-Ivory
5 Player Rod-Red
3.5 x 12 mm Screw
Order No. 3-330
4 x 40 mm Screw
Order No. 3-353
14
Qty 16
17
Qty 2
20
Qty 8
3 Player Rod-Red
3.5 x 35 mm Screw
Order No. 3-332
Soccer Ball
Order No. 27-0209
3.5 x 12 mm Screw
Order No. 3-334
15
Qty 4
18
Qty 2
21
Qty 1
2 Player Rod-Red
3.5 x 18 mm Screw
Order No. 3-329
Scorers
Order No. 3-331
Allen Key
Order No. 1-288
www.gldproducts.com
41-800-225-7593
Page 5
GLD Products
Parts Identi• er
Part
No./
Qty
22
Illustration/
Order Number
Part
No./
Qty
23
Illustration/
Order Number
Rebel Foosball Table
Item 64-0913
Part
No./
Qty
24
Illustration/
Order Number
Qty 16
25
Qty 16
28
Qty 16
31
Qty 8
34
M8 x 28 mm Bolt
Order No. 3-335
Bushing - Outside
(Pre Installed)
Order No. 3-345
Bushing - Inside
(Pre Installed)
Order No. 3-346
Grip - Molded
(Pre Installed)
Order No. 3-338
Qty 16
26
Qty 16
29
Qty 13
32
Qty 8
35
M8 Washer
Order No. 3-336
Bumper
(Pre Installed)
Order No. 3-340
Player - Red
(Pre Installed)
Order No. 3-354
Rod End Cap
(Pre Installed)
Order No. 3-339
Qty 4
Plastic Bracket
(Pre Installed)
Order No. 3-328
27
Qty 16
Rod Washer
(Pre Installed)
Order No. 3-341
30
Qty 13
Player - Ivory
(Pre Installed)
Order No. 3-355
33
Qty 2
5 Player Rod Only
(Pre Installed)
Order No. 3-327
Qty 2
2 Player Rod Only
(Pre Installed)
Order No. 3-326
Qty 4
3 Player Rod Only
(Pre Installed)
Order No. 3-325
5 1-800-225-7593
www.gldproducts.com
Page 6
GLD Products Rebel Foosball Table
Item 64-0913
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST:
Please refer to page 16.
GLD Products
Available 8 am to 4:30 pm Central Standard Time
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: 1-800-841-6944
Email: [email protected]
Web: www.gldproducts.com
For all claims, please have your receipt and item number when you call. The product
item number can be found on the front cover.
If you are instructed to return the product for service, you are responsible for
shipping the unit at your expense.
PRODUCT REGISTRATION
Important: The product registration form on page 17 and a copy of your receipt
must be completed and returned within 10 days of purchase to validate your
warranty.
Go to http://gldproducts.com/warranty-information or click on this link. Follow the online
instructions.
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Some parts may be in
obscure locations of the packaging. Check inside any tubes or sleeves. Save all
packing material until the product is fully assembled and functional.
• Compare the parts in your package with the Parts Identi! er description on
pages 4 and 5.
• After unpacking large products, some disassembly may be required prior to
beginning the assembly.
www.gldproducts.com
61-800-225-7593
Page 7
GLD Products Rebel Foosball Table
Item 64-0913
Tools Required
• Allen wrench (#23) - Included with table
• Phillips screwdriver - Not included with table
• Level - Not included
CAUTION: Electric screwdriver may be helpful. You must set at LOW
TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.
Assembly Tips
Make sure you understand the following before you begin to assemble your foosball table.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. You will need a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box on a ! at surface (! oor). You may want this near your area of
assembly.
• Unpack the boxes and part bags. Inspect and count the parts. The Parts Identi" er
page can be used to record your results.
• If any parts are damaged or missing contact GLD customer service.
• Missing fasteners may be purchased at a hardware store using the descriptions on
the Parts Identi" er page(s).
7 1-800-225-7593
www.gldproducts.com
Page 8
GLD Products Rebel Foosball Table
2
2
1
1
1
1
4
19
19
Step 2
2X
Step 4
2X
Step 5
Item 64-0913

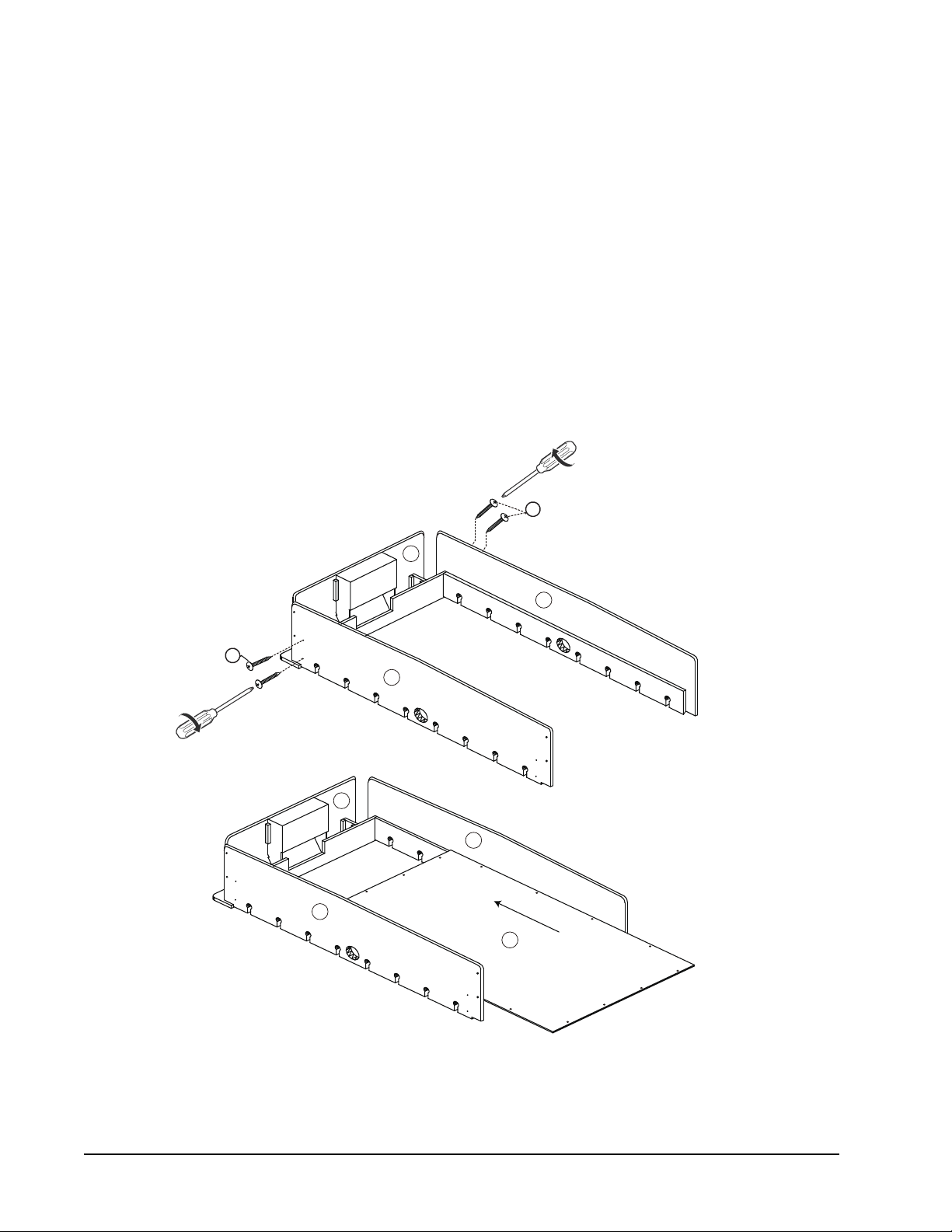

STEPS FOR ASSEMBLING TABLE BASE
1. Place side apron (#1) with the color graphics facing outward and the top edge facing
down.
2. Attach one goal end apron (#2) to the side apron (#1) using two screws (#19). Tighten
the screws.
3. Now slide the second side apron (#1) into position. The color graphics of the side apron
must face outward. The slots for the player rods on both side aprons (#1) must be down.
4. Use two screws (#19) to secure the side apron (#1) to the end apron (#2). Tighten the
screws.
5. Slide the play! eld (#4) onto the shoulders ot the two side aprons (#1). The graphics
should face down.
www.gldproducts.com
81-800-225-7593
Page 9
GLD Products Rebel Foosball Table
2
19
19
Step 6
2X
Step 6
2X
14
14
Step 7
16X
4
Item 64-0913

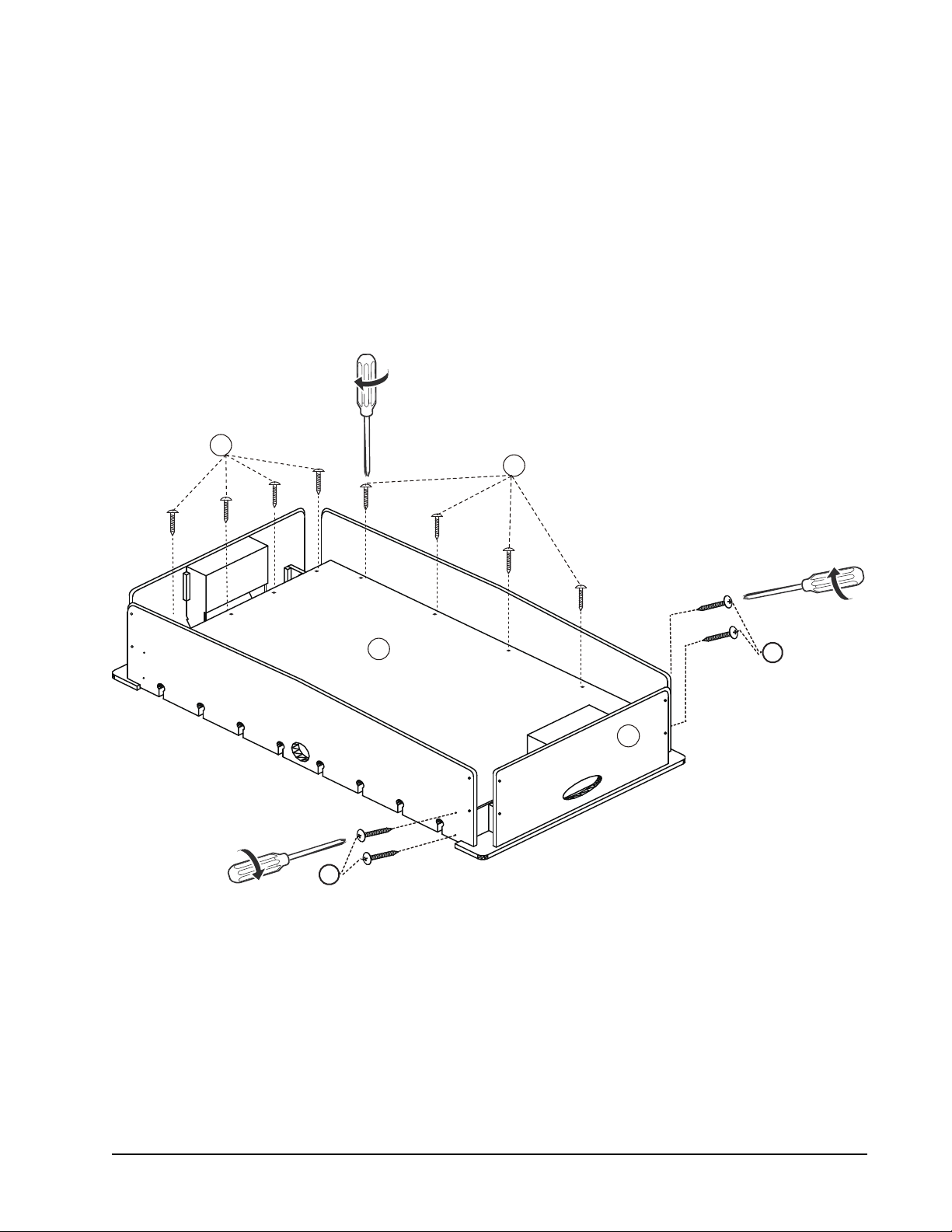

6. Attach the second goal end apron (#2) to the side aprons (#1) using two screws (#19)
on each side.
Note: Be sure that the two side aprons (#1) and the end aprons (#2) are square.
7. Secure the play! eld (#4) to the goal end aprons (#2) and the side aprons (#1) using 16
washer head screws (#14) in the pre-drilled holes.
CAUTION: The 16 screws (#14) are installed close to the side aprons. The use of a power
screwdriver is likely to install the screws on an angle. To prevent damage, use
a long shaft phillips screwdriver.
9 1-800-225-7593
www.gldproducts.com
Page 10
GLD Products Rebel Foosball Table
20
3
3
2X
Step 8
8X
Item 64-0913

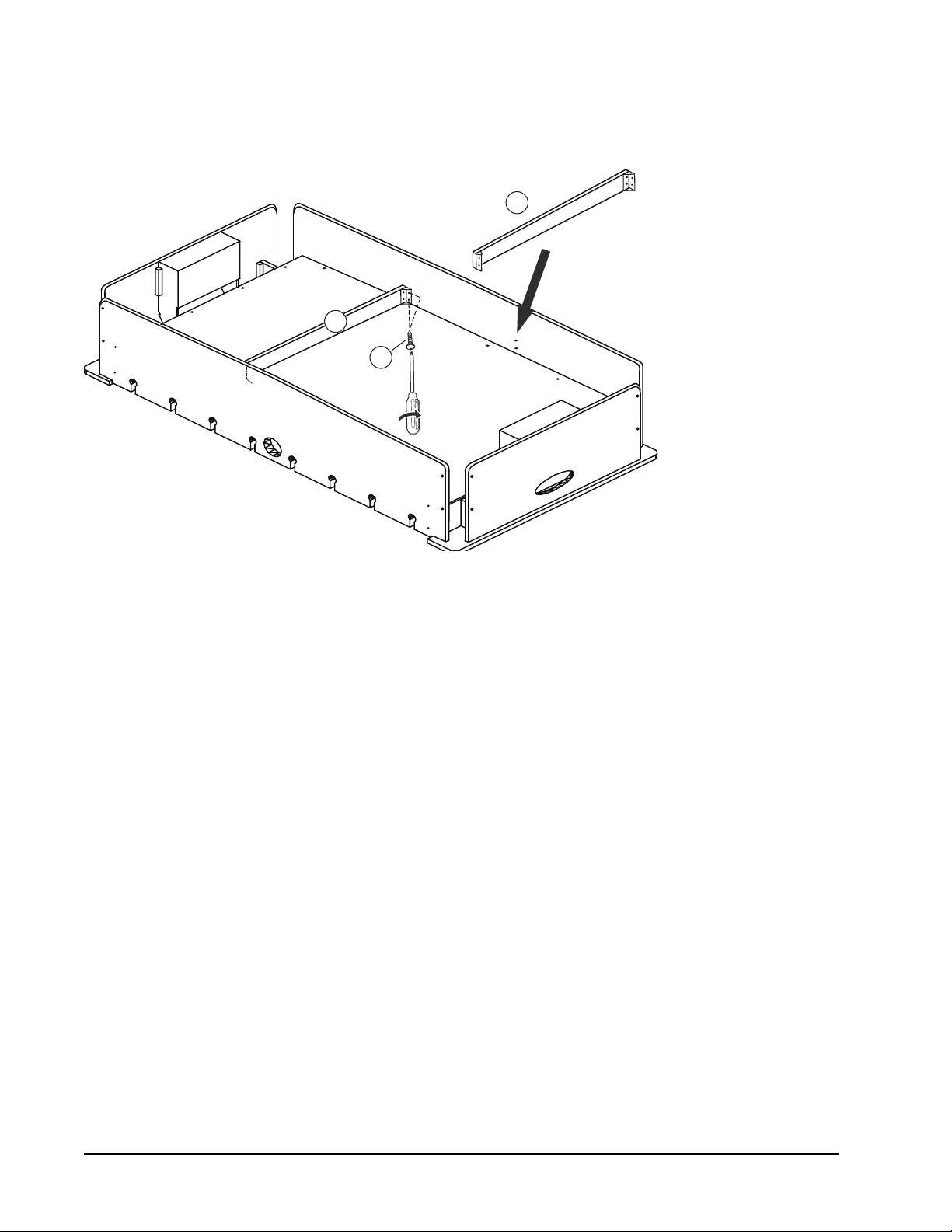

8. Place two support braces (#3) on the play! eld (#4). Attach them by screwing in two
washer head screws (#20) on each side of the table.
www.gldproducts.com
101-800-225-7593
Page 11
GLD Products Rebel Foosball Table
23
23
23
23
22
22
22
22
7
5
5
5
5
Step 3
4X
Step 4
12X
Item 64-0913

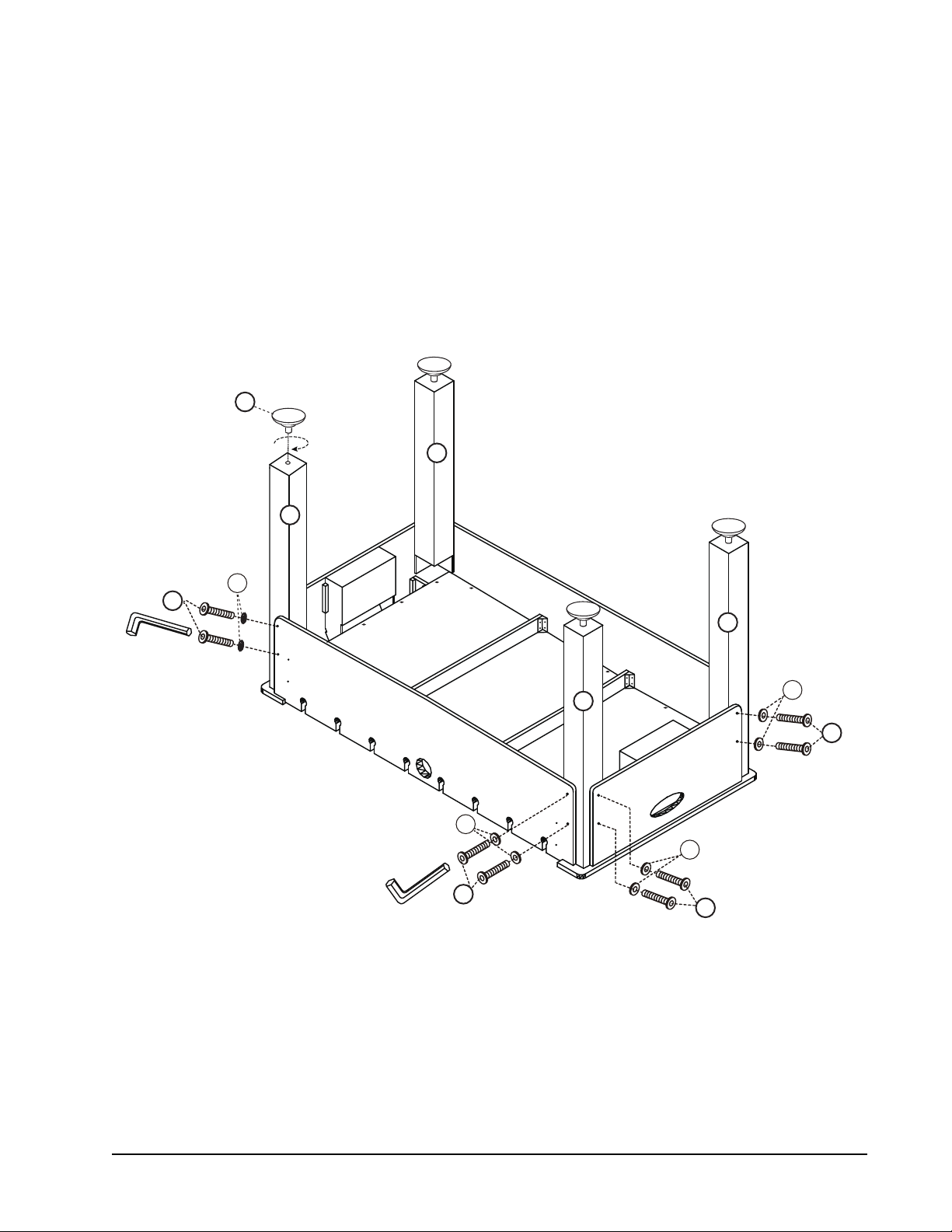

STEPS FOR ATTACHING THE LEGS
1. Locate the legs (#5). Place the legs (#5) into position on the inside corners of the side
apron (#1) and the end apron (#2).
2. Use four bolts (#22) with washers (#23) and ! nger start one through each hole in the
aprons.
3. Tighten the four bolts (#24).
4. Repeat steps 2 and 3 for the other three legs.
11 1-800-225-7593
www.gldproducts.com
Page 12
GLD Products Rebel Foosball Table
= RED
=
IVOR
Y
9
9

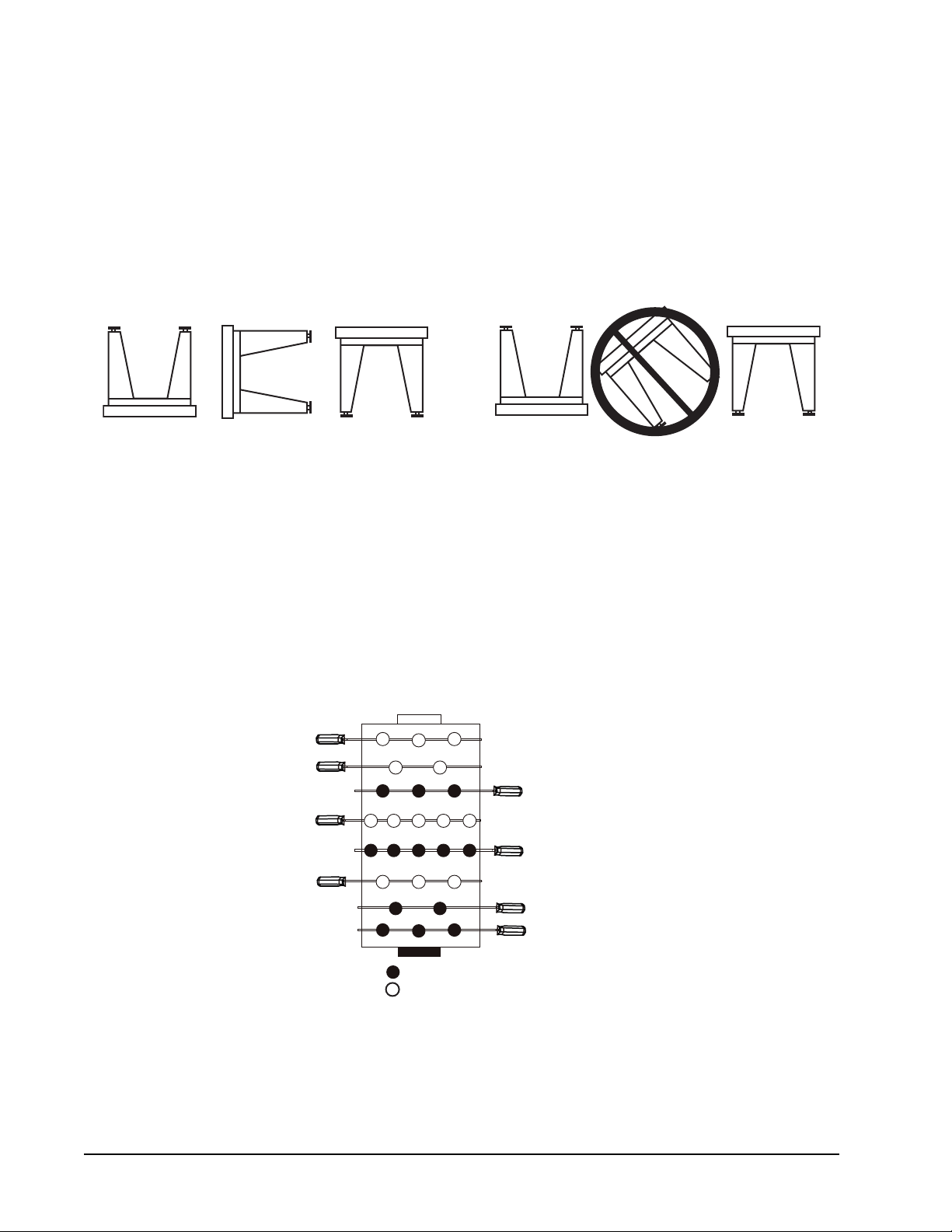

ORDER OF PLAYERS
(OVERHEAD VIEW)
10
11
12
13
8
8
11
Item 64-0913
TO TURN BASE OVER
The base assembly is ready to be turned over.
USE AT LEAST TWO PEOPLE TO LIFT THE BASE ASSEMBLY AND TURN IT OVER TO
REST ON THE LEGS.
DO NOT ROLL THE TABLE OVER. This will place a sideways force on the legs. The legs
should be off the ! oor until the base assembly is rotated completely. Set the base assembly
down.
STEPS TO FINISH ASSEMBLY
Note: The player rods are pre assembled. The installer only needs to locate the correct
position and direction. The rods are then snapped into position
1. Use the illustration to position each correct player rod into the proper slot.
Note: The handles for each color team will be on the same side.
Note: The player rod should spin freely.
www.gldproducts.com
121-800-225-7593
Page 13
GLD Products Rebel Foosball Table
28
25
6
16
Step 7
2X
Step 3
16X
Step 6
2X
28
25
18
15
Item 64-0913

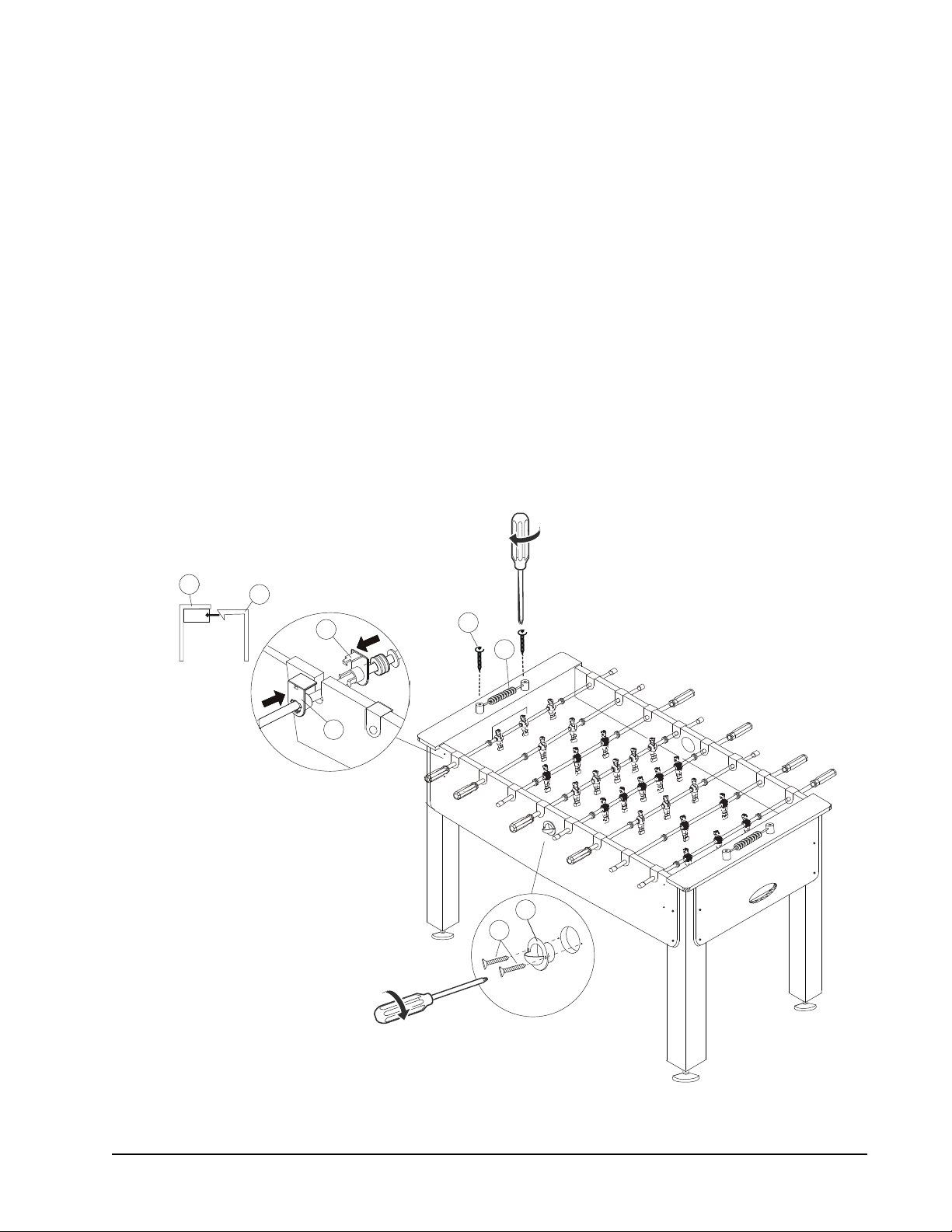

2. There are two bushings (#25 and #28) on each end of a player rod. These pieces
must be on opposite sides of the side aprons (#1) when the player rod is dropped into
position.
3. At one end of a player rod, move the two bushings (#25 and #28) together with the side
apron (#1) between them.
Note: One bushing (#28) has a ! at insert that will snap into a slot at the top of the other
bushing (#25).
4. Snap the two bushings together to hold the player rod into the side apron (#1).
5. Repeat for all the remaining player rod bushings.
6. Position the two slide scorers (#18) above the goals. Use two screws (#15) in each one
to secure it to the table.
7. Place a ball entry cup (#6) into the hole on one of the side boards (#1). Use two screws
(#16) to hold it in place. Repeat for the other side.
13 1-800-225-7593
www.gldproducts.com
Page 14
GLD Products Rebel Foosball Table
7
Item 64-0913

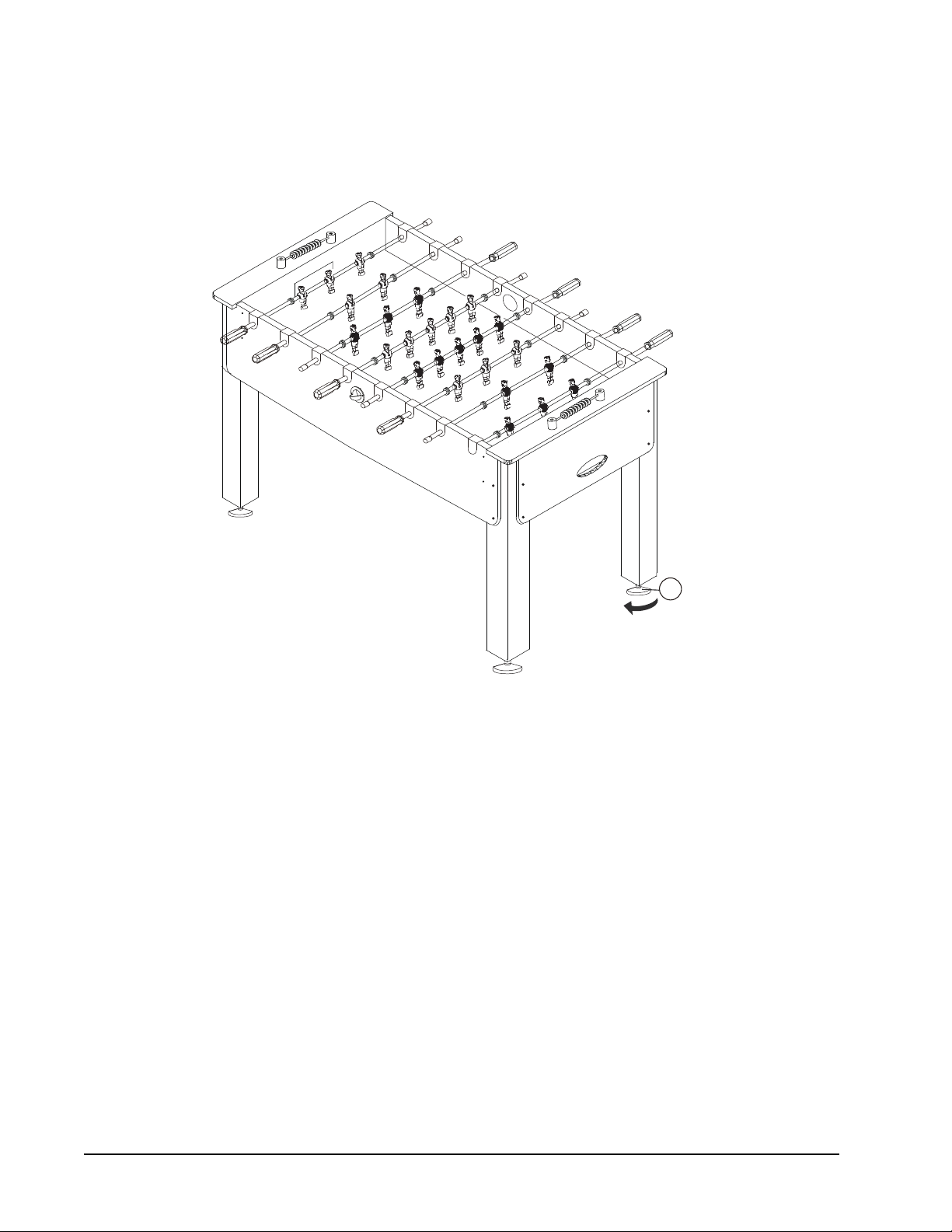

STEPS TO LEVEL THE TABLE
Use a carpenters level to adjust the leg levelers (#7) on the legs as needed until the table is
level. Only basic leveling is needed as this is a fast game and the ball is always moving.
www.gldproducts.com
141-800-225-7593
Page 15
GLD Products Rebel Foosball Table
Item 64-0913
CARE AND USE OF YOUR TABLE
• This product is intended for INDOOR use only.
• DO NOT sit, climb, or lean on the table.
• DO NOT drag the table when moving it. This will damage the legs.
• To clean the hard surfaces spray a cloth with a mild cleaner and wipe.
15 1-800-225-7593
www.gldproducts.com
Page 16
GLD Products Rebel Foosball Table
Item 64-0913
90-DAY LIMITED WARRANTY
The Manufacturer warrants to the original retail purchaser that this product is free from
defects in material and workmanship under normal use and conditions for a period of
ninety (90) days from the date of original purchase. The Manufacturer’s liability is limited to
the repair or replacement, at its option, of any defective product and shall not include any
liability for indirect, incidental or consequential damages of any kind.
Should this product become defective due to material or workmanship within the warranty
period, contact our Customer Service Department. This warranty is not transferable and
does not cover normal wear and tear or damage caused by improper usage, negligence,
misuse, abuse, transportation damage, acts of nature, or accident (including failure to
follow the instructions in this manual). It does not cover expendable items such as batteries,
light bulbs, fuses, accessories, cosmetic parts and other items that wear out due to normal
usage, including felt covered areas of the playing surface. This warranty is also void if the
product is disassembled and reassembled, damaged, modi! ed from its original state, or
used for other than indoor personal residential use (no commercial or rental applications).
This warranty gives you speci! c legal rights, and you may have other rights which vary from
state to state.
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST (8 - 4:30 CST):
Please have your receipt and item number (found on the front cover) when you call.
Cross Refrence
warranty
If you are instructed to return the product for service, you are responsible for
shipping the unit at your expense to the above address in packaging that will
protect against further damage. All warranty or repair requests require a Return
Authorization Number prior to returning the item.
S84 W19093 Enterprise Drive
Web: www.gldproducts.com
PRODUCT REGISTRATION
Important: The product registration form on page 17 must be completed and returned along
with a copy of your receipt within 10 days of purchase to validate your warranty.
GLD Products
Muskego, WI 53150 USA
1-800-225-7593
Fax: 1-800-841-6944
Email: [email protected]
On-line registration is also available. Go to
click on this link. Follow the online instructions.
www.gldproducts.com
http://gldproducts.com/warranty-information or
161-800-225-7593
Page 17
REGISTER YOUR PRODUCT
GAME TABLES
GAMES AND ACCESSORIES
BILLIARD ACCESSORIES
SOFT-TIP DARTS
FLIGHTS AND SHAFTS
HOME CASINO
BILLIARD CUES
DARTBOARDS
STEEL-TIP DARTS
DART CASES AND ACCESSORIES
www.gldproducts.com
Complete this form, include a copy of your receipt, fold, tape
(do not staple) and return within 10 days of purchase. This
protects your warranty and will help us develop new products!
GLD Products
Warranty Department
S84 W19093 Enterprise Drive
Place postage here
Cut here.
Fold here second.
Cross Refrence Product
Reg
Muskego, WI 53150 USA
Fold here ! rst.
Name Date of Purchase
Address Phone-Day
City Phone-Evening
State Zip Email
Purchase Price: Item: 64-0913 Rebel Foosball Table
Store Name:
Remember to attach a copy of your receipt.
Page 18
This page is left intentionally blank.
Page 19
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593 • FAX 800-841-6944
Email: [email protected]
Web Site: www.gldproducts.com
Rebel Foosball Table
Item 64-0913
Parts Order Form
Please call or consult the GLD website,
gldproducts.com, to order the following parts.
Order No. Description
3-347 Side Apron
3-348 End Apron
3-349 Support Brace
3-350 Play! eld
3-351 Leg
3-324 Ball Entry Cup
3-352 Leg Leveler
3-332 3.5 x 35 mm Screw
3-329 3.5 x 18 mm Screw
3-330 3.5 x 12 mm Screw
27-0209 Soccer Ball
3-331 Scorers
3-353 4 x 40 mm Screw
3-334 3.5 x 12 mm Washer Head Screw
1-288 Allen Key with Phillips
3-335 M8 X 28 mm Bolt
3-336 M8 Washer
3-338 Grip - Molded
3-339 Rod End Cap
3-340 Bumper
3-341 Rod Washer
3-354 Player - Red
3-355 Player - Ivory
3-345 Bushing - Outside
3-346 Bushing - Inside
3-327 5-Player Rod
3-326 2-Player Rod
3-325 3-Player Rod
19 1-800-225-7593
www.gldproducts.com
Page 20
GLD Products Revelocity Foosball Table
Item 64-0912
www.gldproducts.com
201-800-225-7593
Page 21
www.gldproducts.com
GAME TABLES
HOME CASINO
GAMES AND ACCESSORIES
BILLIARD CUES
BILLIARD ACCESSORIES
DARTBOARDS
SOFT-TIP DARTS
STEEL-TIP DARTS
FLIGHTS AND SHAFTS
DART CASES AND ACCESSORIES
Page 22
PROUD MANUFACTURER OF
S84 W19093 Enterprise Drive • Muskego, WI 53150 USA
262.679.8730 or 1.800.225.7593 tele
262.679.8738 or 1.800.841.6944 fax
Email: [email protected]
www.gldproducts.com
Loading...
