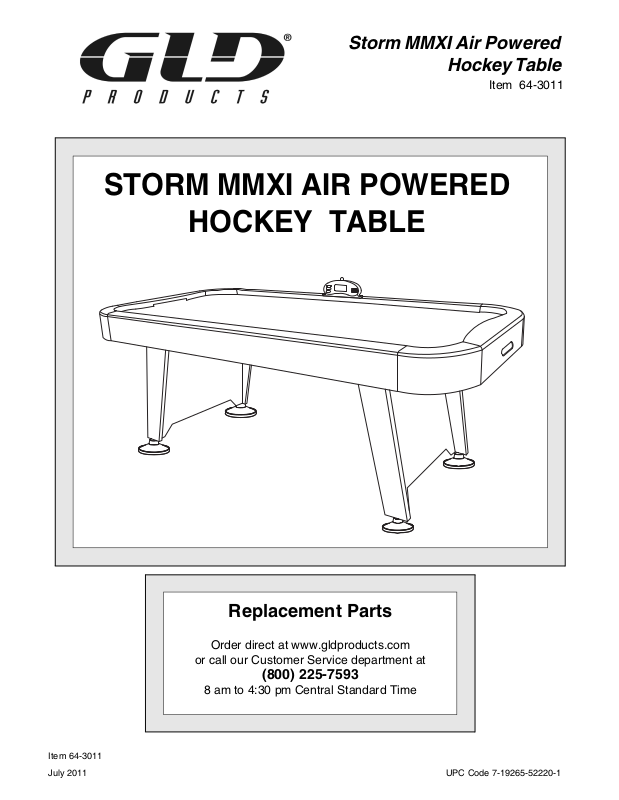

Page 1
GLD Products Storm MMXI Air Powered
Hockey Table
Item 64-3011
STORM MMXI AIR POWERED
HOCKEY TABLE
Replacement Parts
Order direct at www.gldproducts.com
or call our Customer Service department at
(800) 225-7593
8 am to 4:30 pm Central Standard Time
Item 64-3011
July 2011 UPC Code 7-19265-52220-1
Page 2
GLD Products Storm MMXI Air Powered
Hockey Table
Item 64-3011
Staple your receipt here.
Important: A copy of your receipt will be needed to activate your warranty (see page 14).
Page 3
GLD Products Storm MMXI Air Powered Hockey Table
Item 64-3011
Congratulations and THANK YOU for purchasing the
Storm MMXI Air Powered Hockey Table. You have
chosen a product that should provide years of
entertainment. To assist you with customer service
and warranty claims, staple your receipt to the inside
cover, then keep this manual in a safe place for future
reference.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: 1-800-841-6944
Email: [email protected]
Web: www.gldproducts. com
This manual may have been updated. For the latest manual visit the GLD Products website.
Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.
If you notice missing or defective parts, please call us at:
1-800-225-7593.
Please read and understand all instructions before beginning assembly.
This assembly will require 2 adults.
This product is not for use by children without adult supervision.
3 1-800-225-7593
www.gldproducts.com
Page 4
GLD Products Storm MMXI Air Powered HockeyTable
Item 64-3011
1-800-225-7593 4
www.gldproducts.com
Page 5
GLD Products Storm MMXI Air Powered Hockey Table
HOME
VISITOR
ON/OFF
SOUND OFF
MIN - UP
DOWN
START/PAUSE
RESET
PEROID 1 2 3
MINS
SECS
03
29
02
08

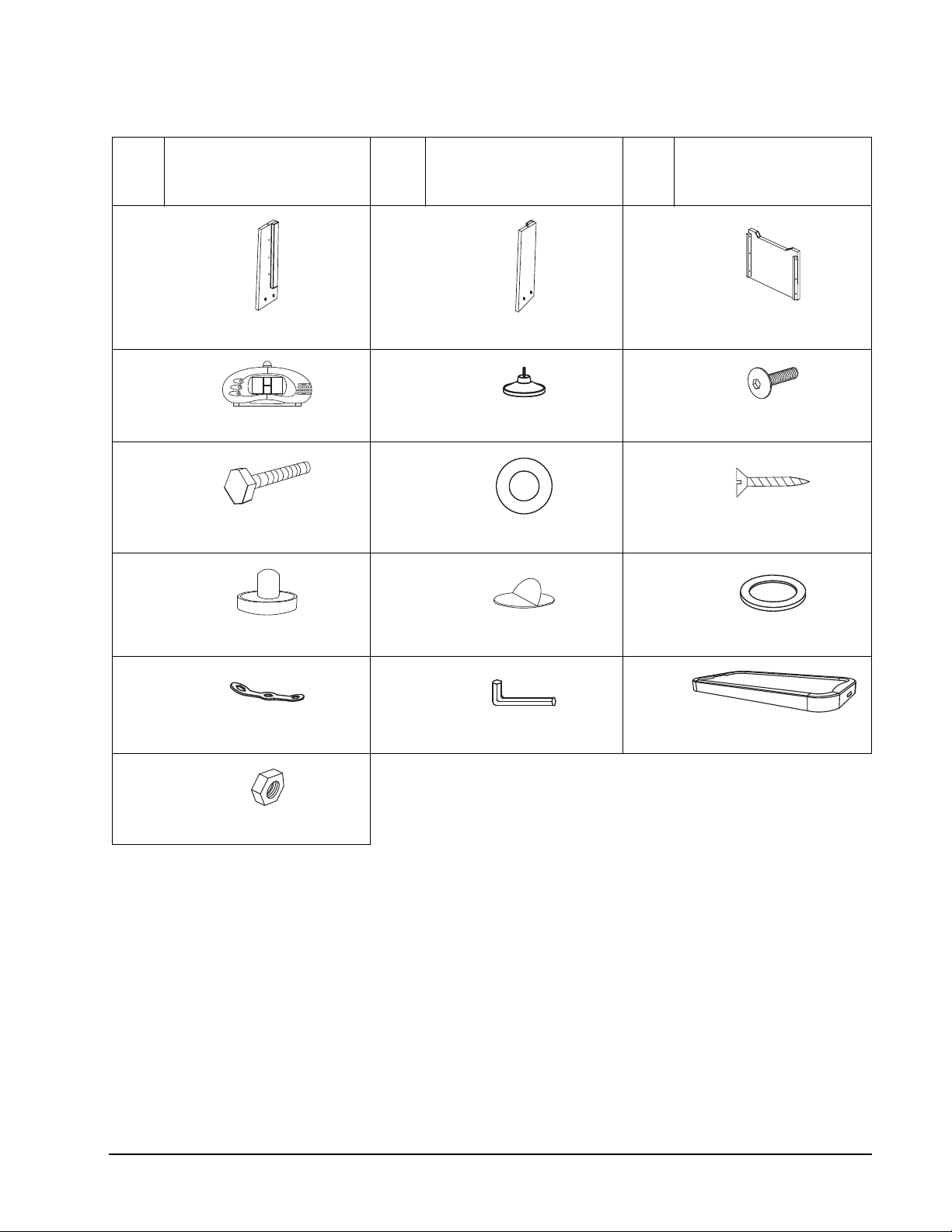

Parts Identifier Item 64-3011
Part
No./
Qty
1
Qty.
2
4
Qty.
1
7
Qty.
8
10
Illustration/
Order Number
Left Leg
Order No. 4-109
Scoreboard
Order No. 4-112
5/16" x 1-1/2" Bolt
Order No. 4-115
Part
No./
Qty
2
Qty.
2
5
Qty.
4
8
Qty.
16
11
Illustration/
Order Number
Right Leg
Order No. 4-110
Leg Leveler
Order No. 4-113
1/4" Washer 19 mm
Order No. 1-220
Part
No./
Qty
3
Illustration/
Order Number
Qty.
2
Leg End Panel
Order No. 4-111
6
Qty.
12
1/4" x 1-1/4" Bolt
Order No. 4-114
9
Qty.
2
F4 x 3/4" Screw
Order No. 4-116
12
Qty.
2
13
Qty.
1
16
Qty.
8
Goalie
Order No. 2-18
Wrench
Order No. 1-17
5/16" Nut
Order No. 2-139
Qty.
14
Qty.
Qty.
2
Hockey Felt
2
Order No. 2-19
Hockey Puck
Order No. 4-117
15
1
Allen Wrench
Order No. 2-116
Qty.
1
Table Top Assembly
Order No. 4-118
5 1-800-225-7593
www.gldproducts.com
Page 6
GLD Products Storm MMXI Air Powered Hockey Table
Item 64-3011
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST
Please see page 14.
GLD Products
Available 8 am to 4:30 pm Central Standard Time
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: 1-800-841-6944
Email: [email protected]
Web: www.gldproducts.com
For all claims, please have your receipt and item number when you call. The
product item number can be found on the front cover.
If you are instructed to return the product for service, you are
responsible for shipping the unit at your expense.
PRODUCT REGISTRATION
Important: The product registration form on page 15 and a copy of your
receipt must be completed and returned within 10 days of purchase to
validate your warranty.
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Check
inside any tubes or sleeves. Save all packing material until the
product is fully assembled and functional.
• Compare the parts in your package with the Parts Identifier
description on page 5.
• After unpacking large products, some disassembly may be required
prior to beginning the assembly.
Tools Required
• Wrench (#13)
• Phillips screwdriver (not included)
• Allen Wrench (#14)
• Level (not included)
• Electric screwdriver may be helpful. CAUTION: You must set at
LOW TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.
6 1-800-225-7593
www.gldproducts.com
Page 7
GLD Products Storm MMXI Air Powered Hockey Table
Item 64-3011
Assembly Tips
Make sure you understand the following before you begin to assemble your game table.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. You may need a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box on a flat surface (floor). You may want this near your
area of assembly.
• Unpack the boxes and part bags. Inspect and count the parts. The
Parts Identifier page can be used to record your results.
• If any parts are damaged or missing, contact GLD Customer
Service.
• Missing fasteners may be purchased at a hardware store using the
descriptions on the Parts Identifier page.
Games
This game table includes the equipment and game pieces for Air Powered Hockey.
The rules for this game are not discussed in this manual.
7 1-800-225-7593
www.gldproducts.com
Page 8
GLD Products Storm MMXI Air Powered Hockey Table
Item 64-3011

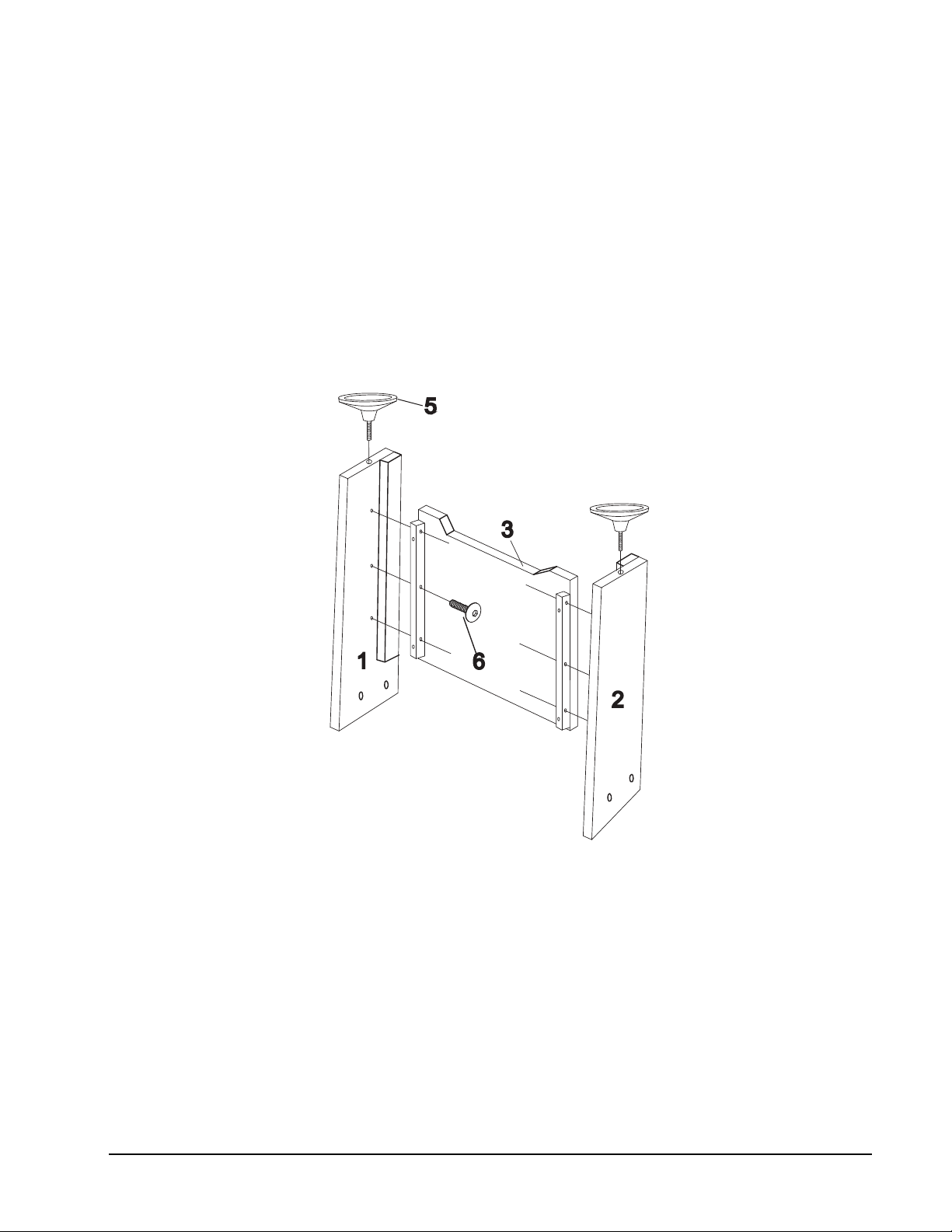

STEP 1 - ASSEMBLE THE LEGS
Each leg has three main pieces. The two legs (#1 & #2) are not the same.
1. Position leg (#1) to fit against the leg end panel (#3). Use three bolts (#6) to hold the two
pieces together.
2. Attach the other leg in the same manner.
3. Repeat the second leg assembly.
4. Screw a leg leveler (#5) into the holes on the bottom of each leg. The levelers should be
screwed in half way.
8 1-800-225-7593
www.gldproducts.com
Page 9
GLD Products Storm MMXI Air Powered Hockey Table
8
16
7
8
Item 64-3011

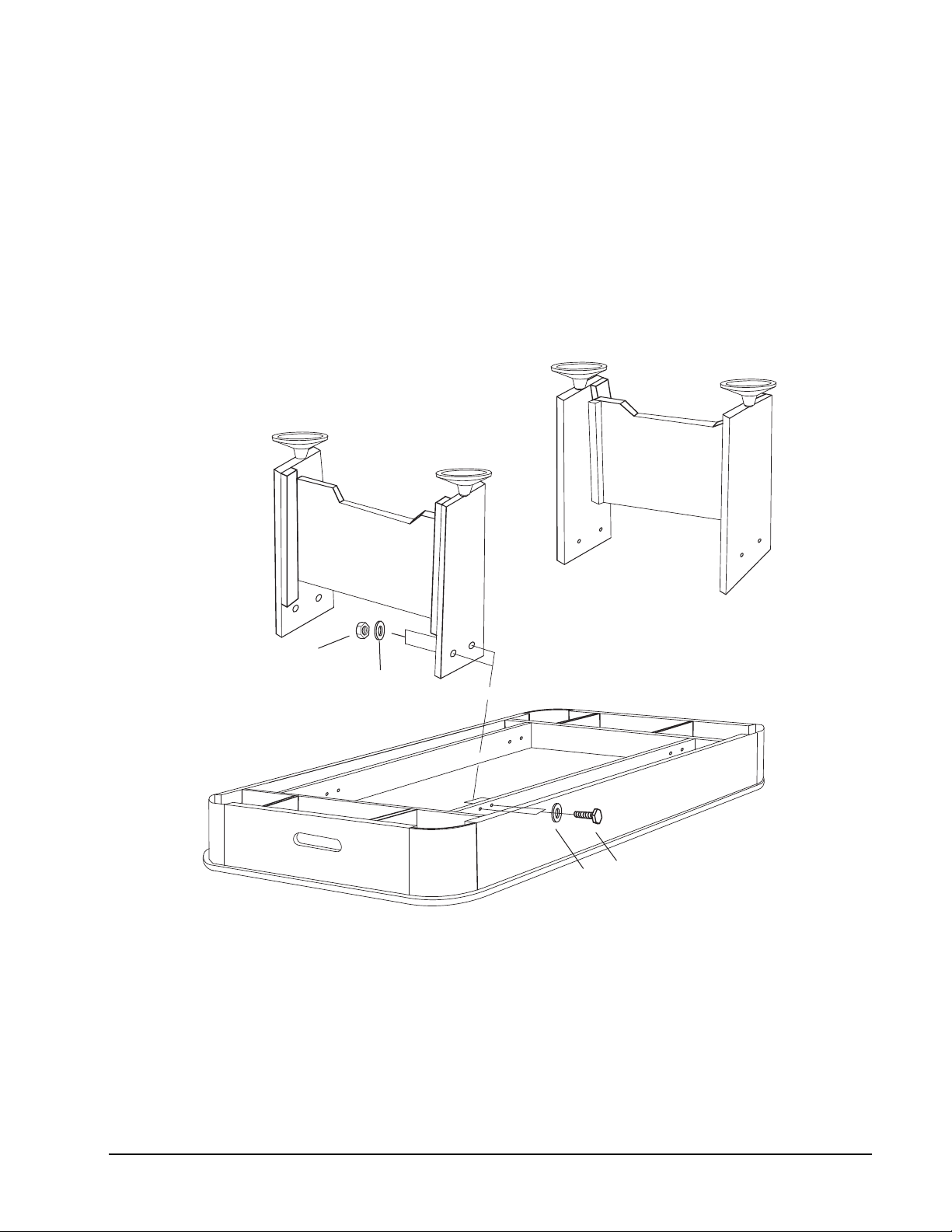

STEP 2 - ATTACH THE LEGS
Both of the leg assemblies are the same.
1. Position a leg assembly so the top ends are inside the table top and the bolt holes are
lined up.
2. Insert a bolt (#7) and washer (#8) into both holes on each leg. Place a washer (#8) and a
nut (#16) on each bolt. Tighten the bolts (#7).
3. Repeat for the remaining legs.
9 1-800-225-7593
www.gldproducts.com
Page 10
GLD Products Storm MMXI Air Powered Hockey Table

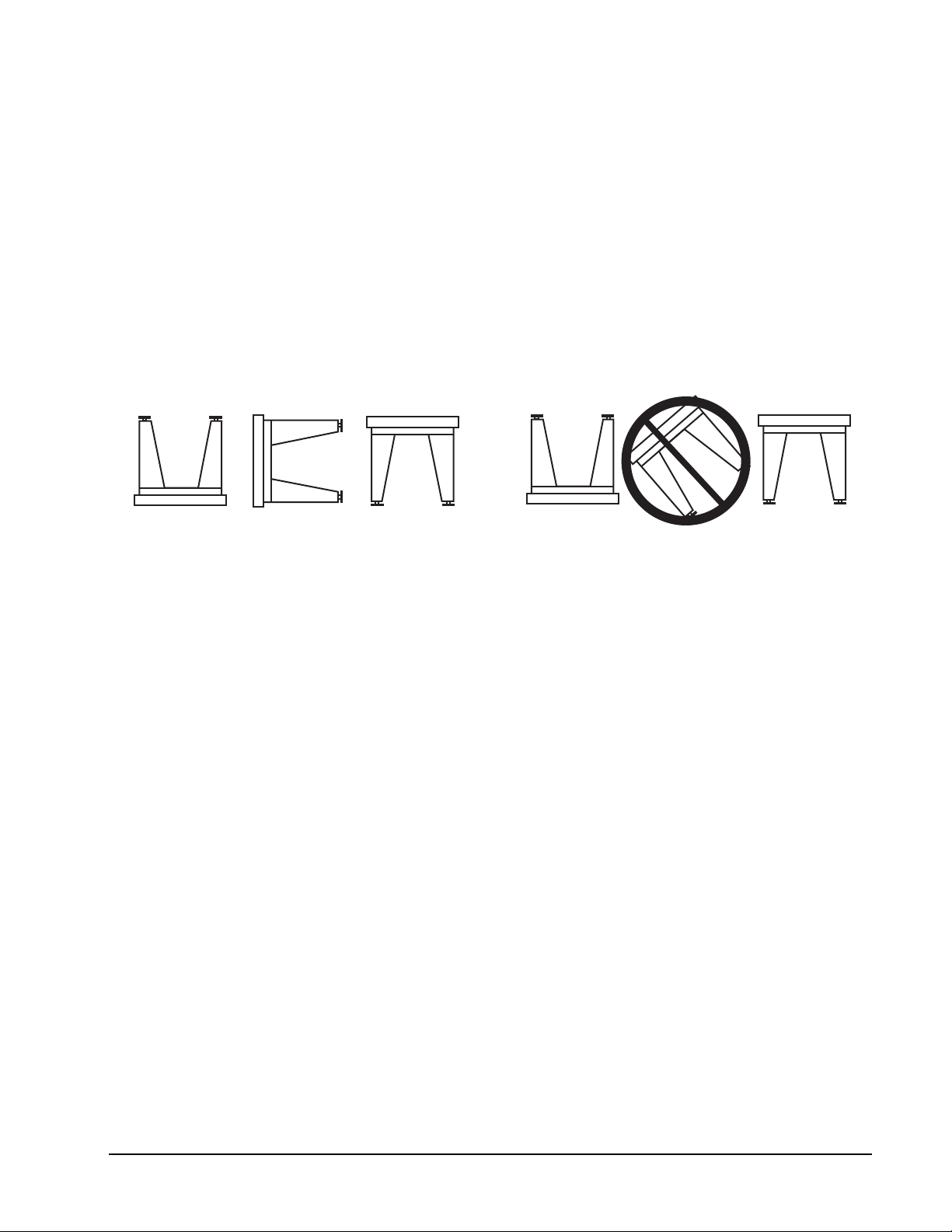

DO THIS NOT THIS
Item 64-3011
STEP 3 - TURN THE TABLE OVER
The table is ready to be turned over.
USE AT LEAST TWO PEOPLE TO LIFT THE TABLE ASSEMBLY AND TURN IT OVER TO
REST ON THE LEGS.
DO NOT ROLL THE TABLE OVER. This will place a sideways force on the legs. The legs
should be off the floor until the table assembly is rotated completely. Set the table down.
10 1-800-225-7593
www.gldproducts.com
Page 11
GLD Products Storm MMXI Air Powered Hockey Table

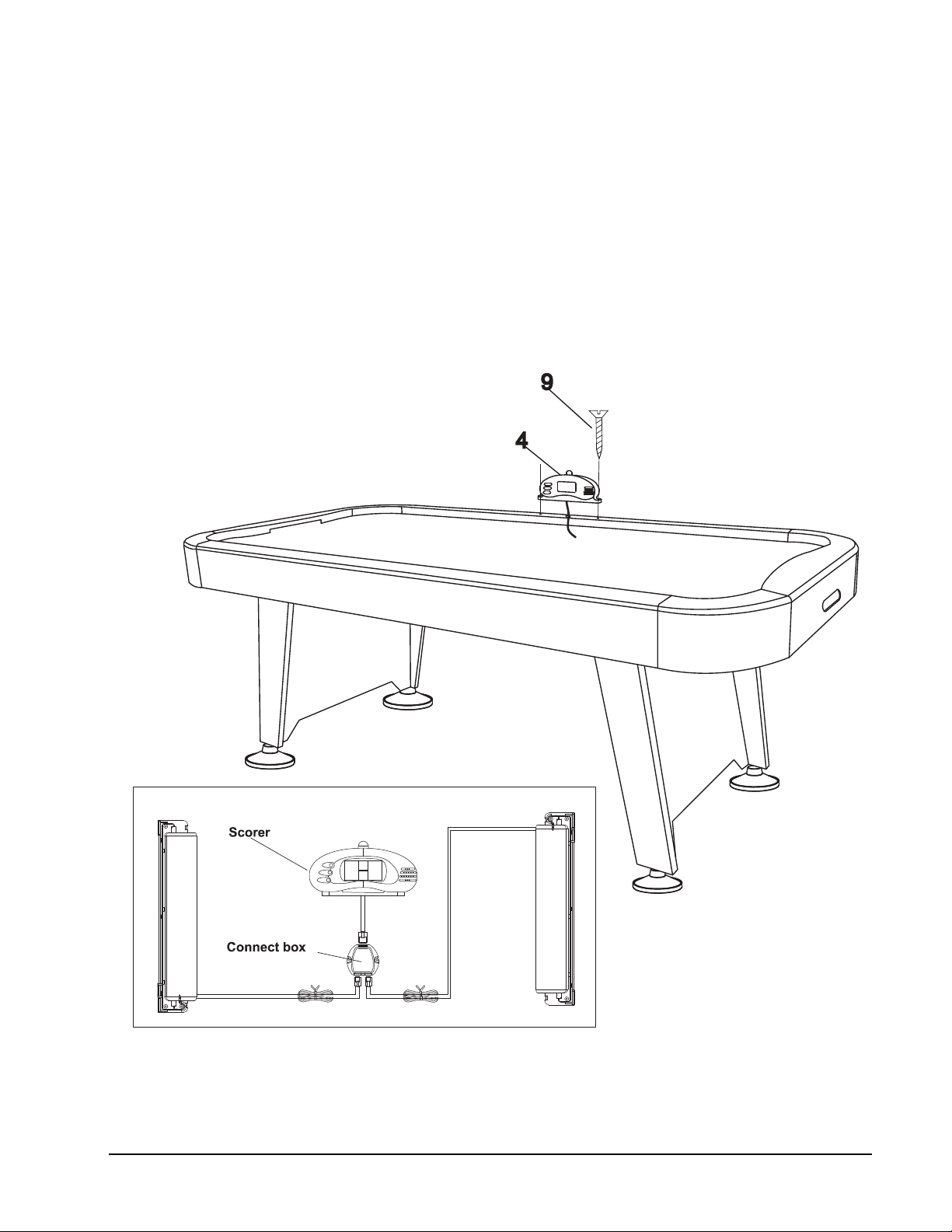

Scoreboard Wiring Diagram
HOME VISITOR
ON/OFF
SOUND OFF
MIN - UP
DOWN
START/PAUSE
RESET
PEROID 1 2 3
MINS
SECS
03
29
02
08
Item 64-3011

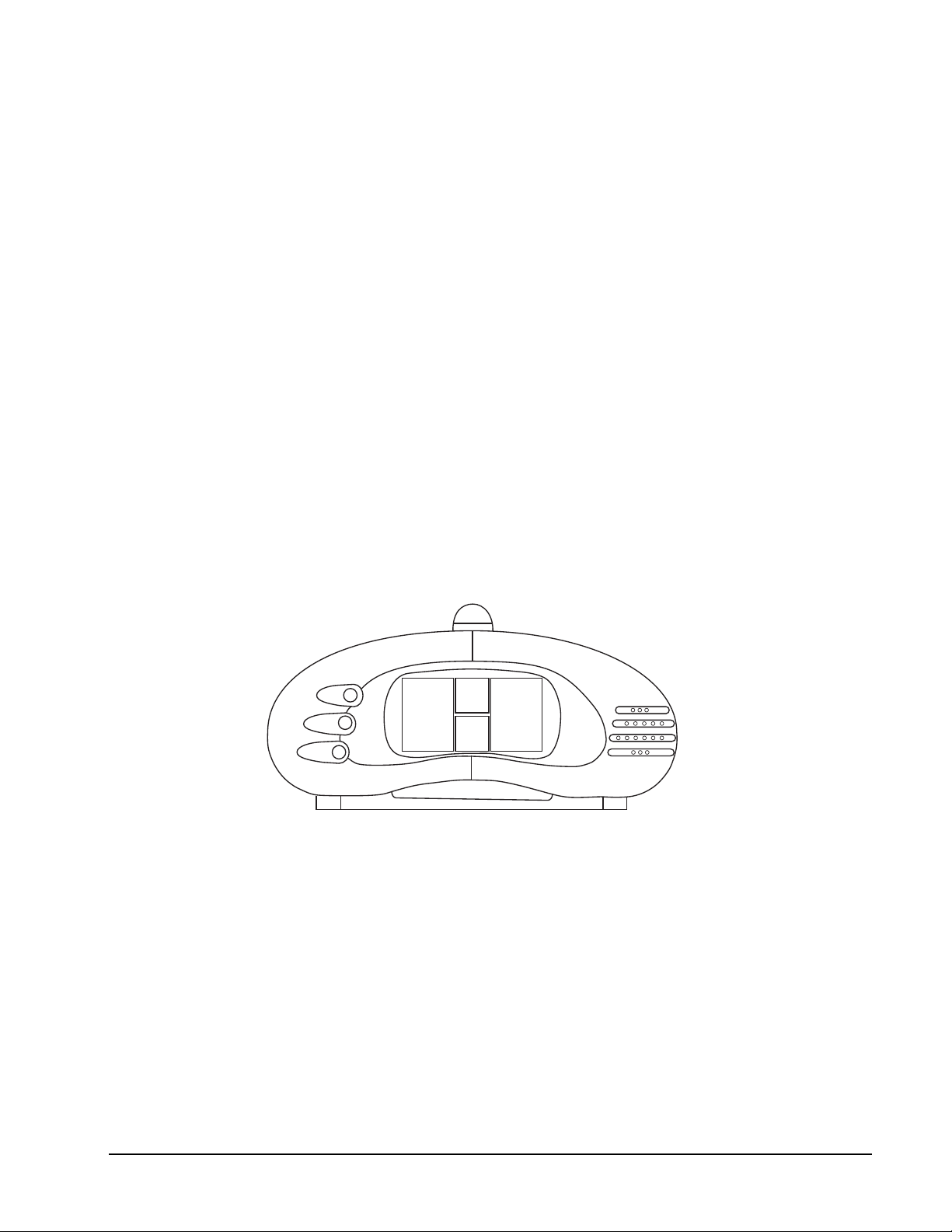

STEP 4 - MOUNT THE SCOREBOARD
1. Position the scoreboard (#4) over the hole in the table side rail.
2. Insert the wire from the scoreboard into the hole. Set the scoreboard down on the table
side rail.
3. Hold the scoreboard (#4) in position and insert two screws (#9) into the table to hold the
scoreboard. Tighten the screws.
4. Under the table top, plug the scoreboard into the connection box.
11 1-800-225-7593
www.gldproducts.com
Page 12
GLD Products Storm MMXI Air Powered Hockey Table
HOME VISITOR
ON/OFF
SOUND OFF
MIN - UP
DOWN
START/PAUSE
RESET
PEROID 1 2 3
MINS
SECS
03
29
02
08
Item 64-3011
STEP 5 - OPERATION
1. Plug the fan electrical cord into a standard wall plug.
2. On the scoreboard, remove the battery cover. Insert three AAA batteries (not included).
Follow the polarity shown on the inside cover. To turn the scoreboard on, press the On/
Off button once. To turn the scoreboard off, press and hold the On/Off Button for three
seconds.
3. The clock will display a game time of 10 minutes. Press the Up/Down button to change
the length of the game.
4. Press the start button to begin a game. Scoring is registered automatically. To start a
new game, press and hold the start button for three seconds.
5. To turn the sound off, press the On/Off button once. Press again to turn the sound back
on.
6. To pause the game, press the pause button once. To continue, press the pause button
again.
7. The scoreboard has two periods of play. When a peroid is over there will be an audible
beep.
STEP 6 - LEVEL THE TABLE
1. Place the table in position.
2. Use a carpenters level to find the low side of the table.
3. Raise or lower the leg levelers as needed to level the table.
4. Level the table side-to-side and end-to-end. When the game is turned on, the puck will
float to a low side. Final leveling can be performed if needed.
12 1-800-225-7593
www.gldproducts.com
Page 13
GLD Products Storm MMXI Air Powered Hockey Table
Item 64-3011

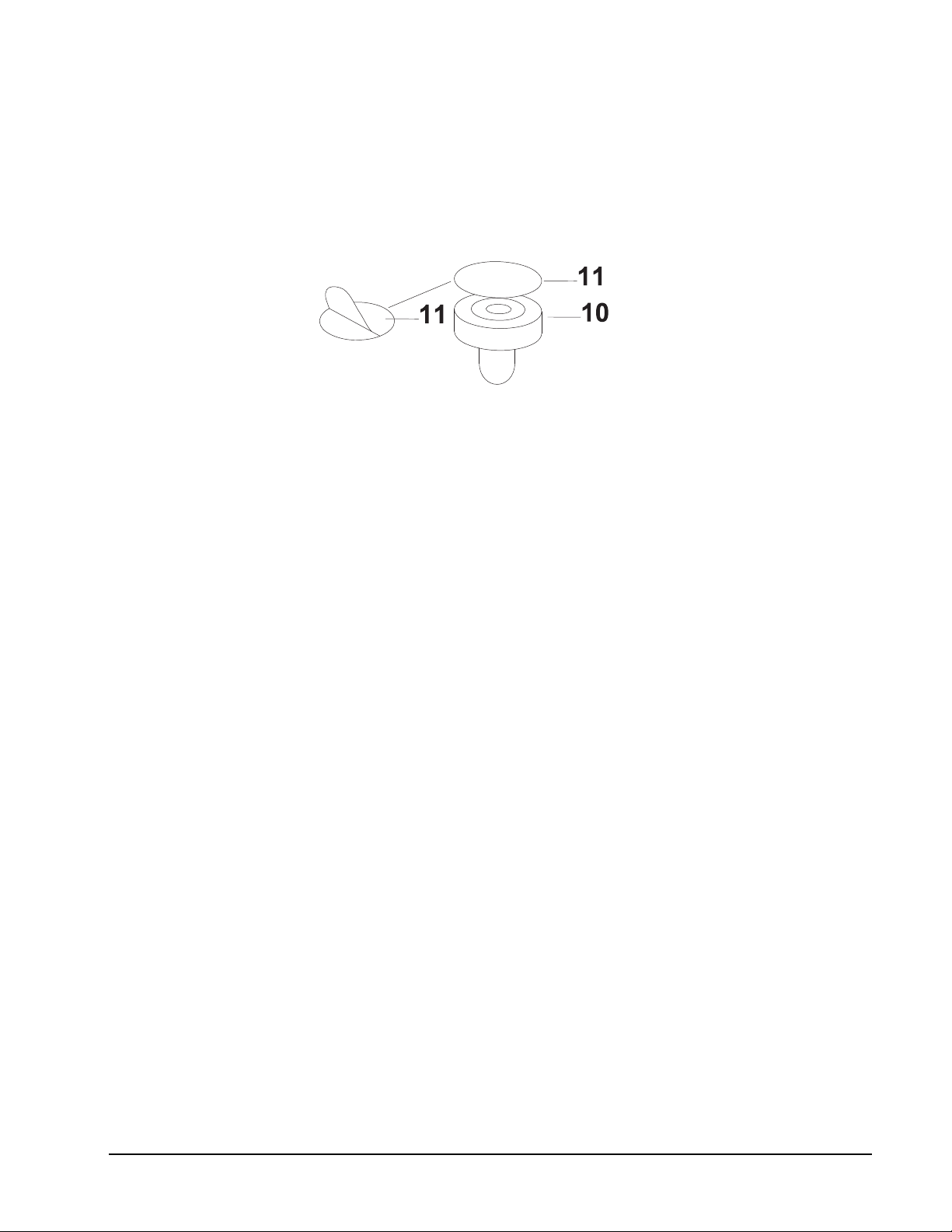

STEP 7 - ASSEMBLE GOALIE
1. Peel paper from one of the hockey felt pieces (#11).
2. Attach the felt to the bottom of the goalie (#10).
Care and Use of your Table
• This product is intended for INDOOR use only.
• DO NOT sit, climb, or lean on the table.
• DO NOT drag the table when moving it. This will damage the legs.
• Keep your table covered.
• To clean the hard surfaces spray a cloth with a mild cleaner and
wipe.
• Pucks that fly off the table may have chipped edges. Inspect the
puck and replace if needed.
• The air holes may become plugged, causing the puck to drag. A
small drill bit can be used to re-open the holes. DO NOT use a
power drill. Instead, hold the drill bit in your fingers and clear the
holes.
13 1-800-225-7593
www.gldproducts.com
Page 14
GLD Products Storm MMXI Air Powered Hockey Table
Item 64-3011
90-DAY LIMITED WARRANTY
The Manufacturer warrants to the original retail purchaser that this product is free from
defects in material and workmanship under normal use and conditions for a period of ninety
(90) days from the date of original purchase. The Manufacturer’s liability is limited to the
repair or replacement, at its option, of any defective product and shall not include any liability
for indirect, incidental or consequential damages of any kind. Should this product become
defective due to material or workmanship within the warranty period, contact our Customer
Service Department. This warranty is not transferable and does not cover normal wear and
tear or damage caused by improper usage, negligence, misuse, abuse, transportation
damage, acts of nature, or accident (including failure to follow the instructions in this
manual). It does not cover expendable items such as batteries, light bulbs, fuses,
accessories, cosmetic parts and other items that wear out due to normal usage, including
felt covered areas of the playing surface. This warranty is also void if the product is
disassembled and reassembled, damaged, modified from its original state, or used for other
than indoor personal residential use (no commercial or rental applications).
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST (8 - 4:30 CST)
Please have your receipt and item number (found on the front cover) when you call.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: 1-800-841-6944
Email: [email protected]
Web: www.gldproducts.com
If you are instructed to return the product for service, you are responsible for
shipping the unit at your expense to the above address in packaging that will protect
against further damage. All warranty or repair requests require a Return
Authorization Number prior to returning the item.
PRODUCT REGISTRATION
Important: The product registration form on page 15 must be completed and returned
along with a copy of your receipt within 10 days of purchase to validate your warranty.
14 1-800-225-7593
www.gldproducts.com
Page 15
REGISTER YOUR PRODUCT Place postage here
www.gldproducts.com
GAME TABLES HOME CASINO
GAMES AND ACCESSORIES BILLIARD CUES
BILLIARD ACCESSORIES DARTBOARDS
SOFT-TIP DARTS STEEL-TIP DARTS
FLIGHTS AND SHAFTS DART CASES AND ACCESSORIES
Complete this form, include a copy of your receipt, fold, tape (do
not staple) and return within 10 days of purchase. This protects
your warranty and will help us develop new products!
GLD Products
Warranty Department
Cut here.
Fold here second.
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
Fold here first.
Name Date of Purchase
Address Phone-Day
City Phone-Evening
State Zip Email
Item:
Purchase Price:
64-3011 Storm MMXI Air Powered Hockey Table
Store Name:
1. What are the top two reasons that influenced the purchase of this product? Select two.
Brand reputation Prior experience with another GLD product
Saw in an advertisement Color/appearance
Quality/durability Other
Value for price
Page 16
2. How did you become aware of this product? Select two.
Saw in an advertisement Saw it in the store
Saw or used a friend’s or relative’s Recommended by another person
Received as a gift Other
3. Rate your satisfaction with each of the following?
Excellent Good Fair Poor
Assembly instructions
Ease of assembly
Packaging
Overall product satisfaction
4. Were there any parts missing?
Yes No If so, which ones? Order No.
5. Based on your experience, would you buy another GLD product?
Yes No
6. Is this the first GLD product that you’ve owned? If No, what other product have you owned?:
Yes No
7. Have you owned products from:
Sportcraft Harvard Classic Sport Other
8. When did you decide to purchase this product?
Before entering the store. While in the store/impulse purchase
9. How many times per month will you use it?
1 to 3 4 to 8 9 to 15 16 +
10. Are you the intended user of this product?
Yes No, indicate who:
11. Where will you use this product?
Home Other:
12. Please tell us your gender? 13. And your marital status?
Male Female Married Single
14. Age?
Under 25 25 - 40 40 - 60 Over 60
15. Which best describes your family income?
Under $25,000 $25,000 - $49,999 $50,000 - $99,999
$100,000 - 149,999 $150,000 - $199,999 Over $200,000
16. Education:
Some high school College degree
Completed high school Graduate degree
Remember to attach a copy of your receipt.
Page 17
Mail To: GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593 · FAX 800-841-6944
Email: [email protected]
Web Site: www.gldproducts.com
Name Date
Address Phone-Day
City Phone-Evening
State Zip Email
Storm MMXI Air Powered
Hockey Table
Item 64-3011
Parts Re-Order Form
Unit
Order No. Description
Price
(each)
4-109 Left Leg 30.00
4-110 Right Leg 30.00
4-111 Leg End Panel 35.00
4-112 Scoreboard 25.00
4-113 Leg Leveler 12.00
4-114 1/4" x 1-1/4" Bolt 2.00
4-115 5/16" x 1-1/4" Bolt 2.00
1-220 1/4" Washer 19 mm 0.20
4-116 F4 x 3/4" Screw 0.20
2-18 Goalie 6.00
2-19 Hockey Felt 1.00
4-117 Hockey Puck 1.50
1-17 Wrench 1.00
2-116 Allen Wrench 1.00
4-118 Table Top Assembly 150.00
4-119 Fan - preassembled 25.00
Subtotal
Shipping will be added. If paid by Check or Money Order, call for quote.
5.1% Waukesha Wisconsin tax will apply (subject to change).
S/H
Tax
Total
Qty.
Total
Amount
17 1-800-225-7593
www.gldproducts.com
Page 18
GLD Products Storm MMXI Air Powered
Hockey Table
Item 64-3011
Method of Payment
_________Check or Money Order
_________ Credit Card
_____ Visa _____ MasterCard _____ Discover _____ American Express
Card #________________________________________________________
Security Code #__________________Billing Address Zip code____________
Signature______________________________________Exp. Date________
Shipping Address
Name___________________________________________________________________________________
Address___________________________________________Phone_________________________________
City______________________________________________State________________Zip________________
1-800-225-7593 18
www.gldproducts.com
Page 19
www.gldproducts.com
GAME TABLES
HOME CASINO
GAMES AND ACCESSORIES
BILLIARD CUES
BILLIARD ACCESSORIES
DARTBOARDS
SOFT-TIP DARTS
STEEL-TIP DARTS
FLIGHTS AND SHAFTS
DART CASES AND ACCESSORIES
Page 20
PROUD MANUFACTURER OF
S84 W19093 Enterprise Drive Muskego, WI 53150 USA
262.679.8730 or 1.800.225.7593 tele
262.679.8738 or 1.800.841.6944 fax
262.679.8739 international fax
Email: [email protected]
www.gldproducts.com
Loading...
