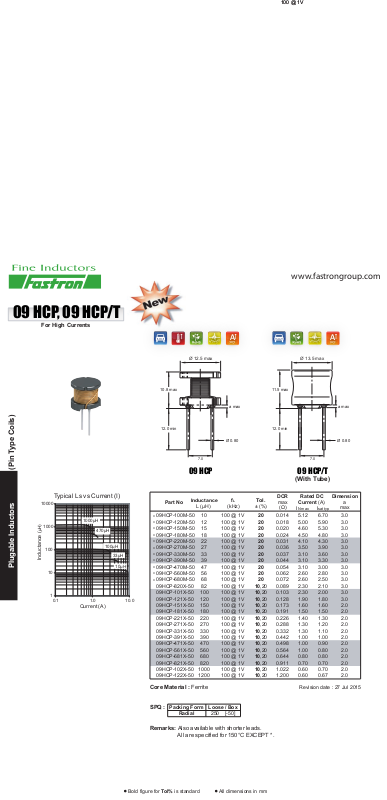

09 HCP, 09 HCP/T
1
10
100
1000
10000
0.1 1.0 10.0
100µH
470µH
1000µH
For High Currents
www.fastrongroup.com
A
Ø 12.5 max
10.8 max
a max
12.0 min
Ø 0.80
7.0
(Pin Type Coils)
09 HCP
11.5 max
12.0 min
Ø 13.5 max
7.0
09 HCP/T
A
a max
Ø 0.80
(With Tube)
Typical Ls vs Current (I)
Part No
09HCP-100M-50
*
09HCP-120M-50
*
09HCP-150M-50
µH)
Inductance (
Plugable Inductors
33µH
10µH
Current (A)
*
09HCP-180M-50
*
09HCP-220M-50
*
09HCP-270M-50
*
09HCP-330M-50
*
09HCP-390M-50
*
09HCP-470M-50
*
09HCP-560M-50
*
09HCP-680M-50
*
09HCP-820X-50
09HCP-101X-50
09HCP-121X-50
09HCP-151X-50
09HCP-181X-50
09HCP-221X-50
09HCP-271X-50
09HCP-331X-50
09HCP-391X-50
09HCP-471X-50
09HCP-561X-50
09HCP-681X-50
09HCP-821X-50
09HCP-102X-50
09HCP-122X-50
Inductance
L (µH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
f
L
(kHz)
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
100 @ 1V
Tol.
± (%)
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
20
20
20
20
20
20
20
20
20
20
20
DCR
max
(Ω)
0.014
0.018
0.020
0.024
0.031
0.036
0.037
0.044
0.054
0.062
0.072
0.089
0.103
0.128
0.173
0.191
0.226
0.288
0.332
0.442
0.498
0.564
0.644
0.91
1.022
1.200
1
Rated DC
Current (A)
N max
I
5.12
5.00
4.60
4.50
4.10
3.50
3.10
3.10
3.10
2.60
2.60
2.30
2.30
1.90
1.60
1.50
1.40
1.30
1.30
1.00
1.00
1.00
0.80
0.70
0.60
0.60
I
sat typ
6.70
5.90
5.30
4.80
4.30
3.90
3.60
3.30
3.00
2.80
2.50
2.10
2.00
1.80
1.60
1.50
1.30
1.20
1.10
1.00
0.90
0.80
0.80
0.70
0.70
0.67
Dimension
a
max
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
Core Material : Ferrite
SPQ :
Packing Form
Radial
Loose / Box
250 [-50]
Remarks: Also available with shorter leads.
All are specified for 150°C EXCEPT *.
• • Bold figure for Tol% is standard •• All dimensions in mm
Revision date : 27 Jul 2015
