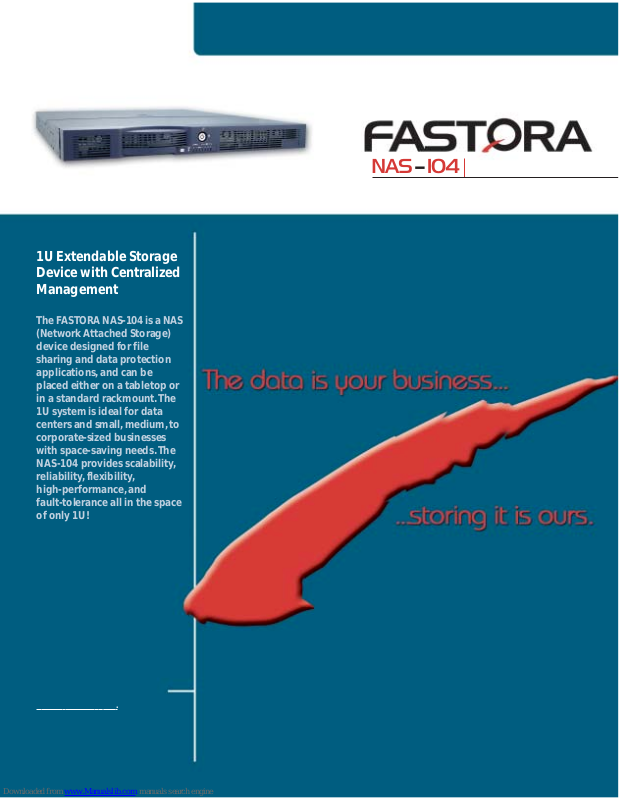

Fastora NAS-104 Specifications

1U Extendable Storage
Device with Centralized
Management

The FASTORA NAS-104 is a NAS
(Network Attached Storage)
device designed for file
sharing and data protection
applications,and can be
placed either on a tabletop or
in a standard rackmount.The
1U system is ideal for data
centers and small,medium, to
corporate-sized businesses
with space-saving needs.The
NAS-104 provides scalability,
reliability,flexibility,
high-performance,and
fault-tolerance all in the space
of only 1U!

NAS – 104

.

Product Highlights and
Benefits

• Reliability

– 4 ATA-133 Hot-Swappable HDD bays
– Supports RAID 0,1,5 and 5 with Hot-Spare
– Redundant Hot-Swappable power supplies available
– N-Way OS Mirroring secures data no mater if any HDD fails
– Hardware Monitoring,Auto-notifications,and Logging
– Dual 10/100 Map Ethernet with fail-over capability
– UPS (Uninterruptible Power Supply) support through serial port & SNMP Trap

• Performance

– Dual 10/100 Mbps Ethernet with trunking capability
– Gigabit Ethernet (auto-sensing) Support
– RAID 5 Device Layer Cache Support with 20% performance enhancement

• Scalability

– 1U Rack-mount design
– Volume concatenation support(*)
– Network Resilience-multi-subnets support
(*)Available with FASTORA Filer software for Enterprise Businesses

• Cost-Saving

– Hot-Swappable IDE HDD Interface,costs at least 30% lower than SCSI
– Affordable initial setup cost and competitive incremental cost

• Flexibility& Interoperability

– Mulit-Protocol system supports on Microsoft,Apple,UNIX/LINUX, and Novell networks
– Design for integration into Microsoft NT 4.0/2000 domain and NIS domain

• Security

– FASTORA Filer Backup to secure the data of NAS
– FASTORA Data Replicator to secure the data of client
– SCSI local backup function available

• Simplicity

– Friendly Browser-Based Graphic User Interface (GUI)
– Powerful and easy-to-use FASTORA Filer software for management

Form Factor
Capacity
Power Supply
Hard Drive
Rear Panel Connector

Front Panel LED

Processor
Main Memory
IDE Interface

Serial Port
Ethernet

Expansion

Compact-FlashTM
Hardware Monitoring
Dimensions
Weight
Operation environment

Storage environment

1U rack-mount/stacked-up on desktop design
From 0 to 640GB and beyond,depending on hard disk drive capacity
Single or Redundant 250W ATX power supplies
4 X Hot-Swappable Enhanced IDE HDD bays
2 x 10/100 Base-T Ethernet LAN port
1 x Gigabit Ethernet LAN port (via an optional mini-PCI adaptor)
1 x COM port
1 x SCSI port (via an optional mini-PCI adaptor)
4 x LEDs for HDD’s / 2 x LEDs for LANs
1 x LED for System / 1 X LED for Alarm
1 x push-button for system reset
1 x push-button for power on/off
Intel PIII CPU Architecture
One PC100/133 SDRAM DIMM (supports up to 512MB)
Two onboard IDE controllers to support four bus mastering ATA 66/100/133
Enhance IDE channels
One UART
Two 10/100 Base-T Ethernet and optional Gigabit Ethernet Supporting
Fail-over and Trunking
Three mini-PCI bus connectors for IDE,SCSI,and Gigabit Ethernet adaptor expan­sion
One IDE interface CompactFlashTM socket for embedded O.S.
Detection for six Fans,and for the CPU thermal temperature monitoring

482.6mm (19")(W) x 44mm(1.75")(H) x 520mm(20.5")(D)
Approx.8.7kg (Single Power) / 10.4kg (Dual Power),without hard drive
Air temperature:10ºC – 35ºC
Humidity: 8% – 90%
Air temperature:-20ºC – 65ºC
Humidity: 8% – 90%

Hardware Specifications

Ordering Information

NAS – 104

Top View

Back View

Model Number

NAS-104B: Dual 250W ATX power supply / Celeron 1.2GHz /256MB DIMM/ Gigabit
