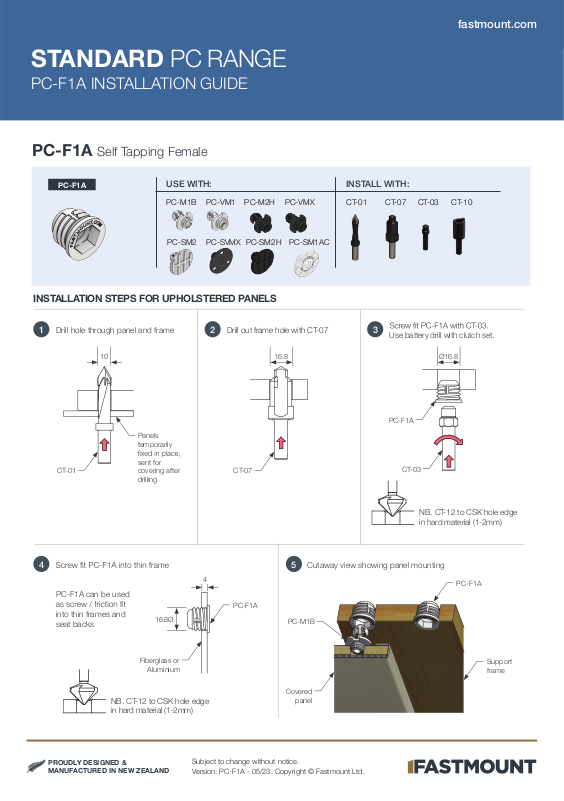

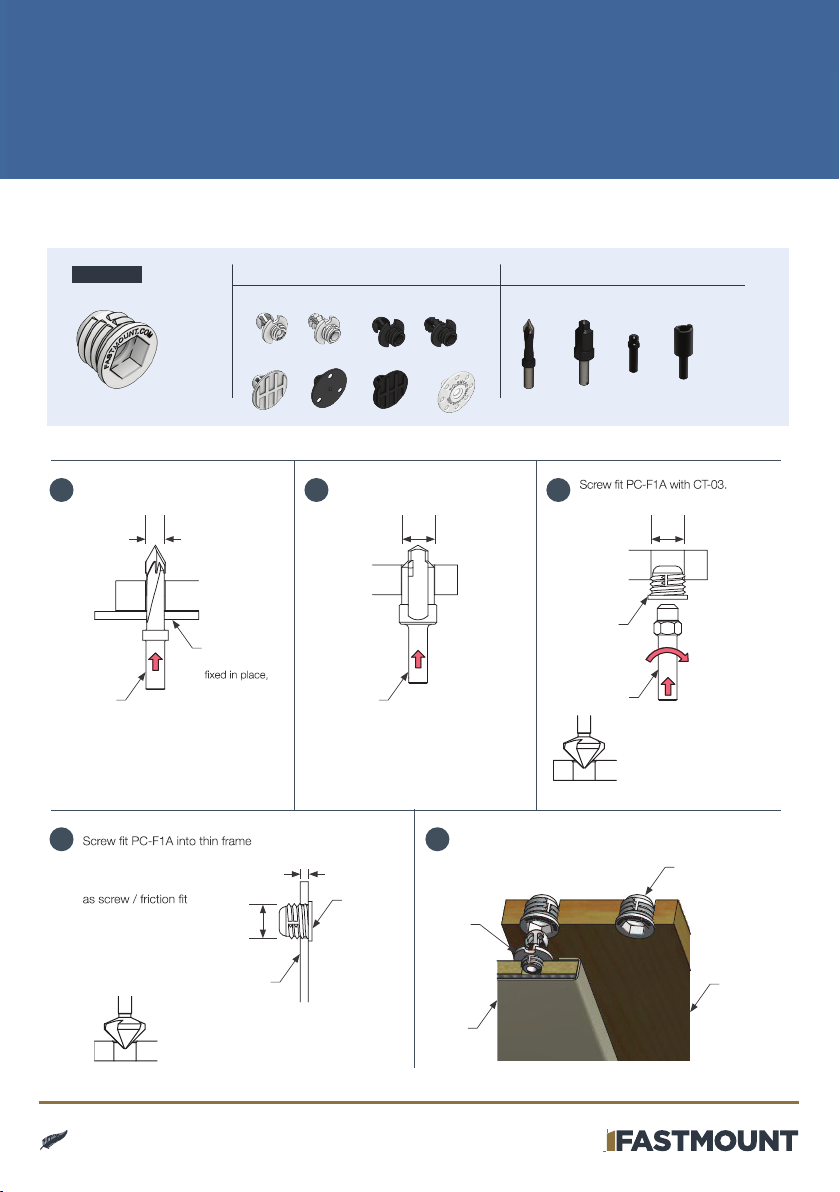

INSTALLATION STEPS FOR UPHOLSTERED PANELS
STANDARD PC RANGE
PC-F1A INSTALLATION GUIDE
PC-F1A Self Tapping Female
fastmount.com
PC-F1A
USE WITH: INSTALL WITH:
PC-M1B
PC-VM1
PC-M1B
PC-VM1
PC-SVMX
PC-SVMX
PC-SM2
PC-SM2
INSTALLATION STEPS FOR UPHOLSTERED PANELS
1
Drill hole through panel and frame Drill out frame hole with CT-07
10 16.8 Ø16.8
2 3
Panels
temporarily
sent for
CT-01
PC-F1A can be used
into thin frames and
seat backs
covering after
drilling
16.8Ø
CT-07
4
PC-F1A
PC-M2H
PC-VMX
PC-M2H
PC-VMX
PC-SM2H PC-SM1AC
PC-SM2H PC-SM1AC
54
Cutaway view showing panel mounting
PC-M1B
CT-01 CT-03CT-07 CT-10
CT-01 CT-03CT-07 CT-10
Use battery drill with clutch set.
PC-F1A
CT-03
NB. CT-12 to CSK hole edge
in hard material (1-2mm)
PC-F1A
Fiberglass or
Aluminium
NB. CT-12 to CSK hole edge
in hard material (1-2mm)
PROUDLY DESIGNED &
MANUFACTURED IN NEW ZEALAND
Covered
panel
Subject to change without notice.
Version: PC-F1A - 05/23. Copyright © Fastmount Ltd.
Support
frame
Page 2

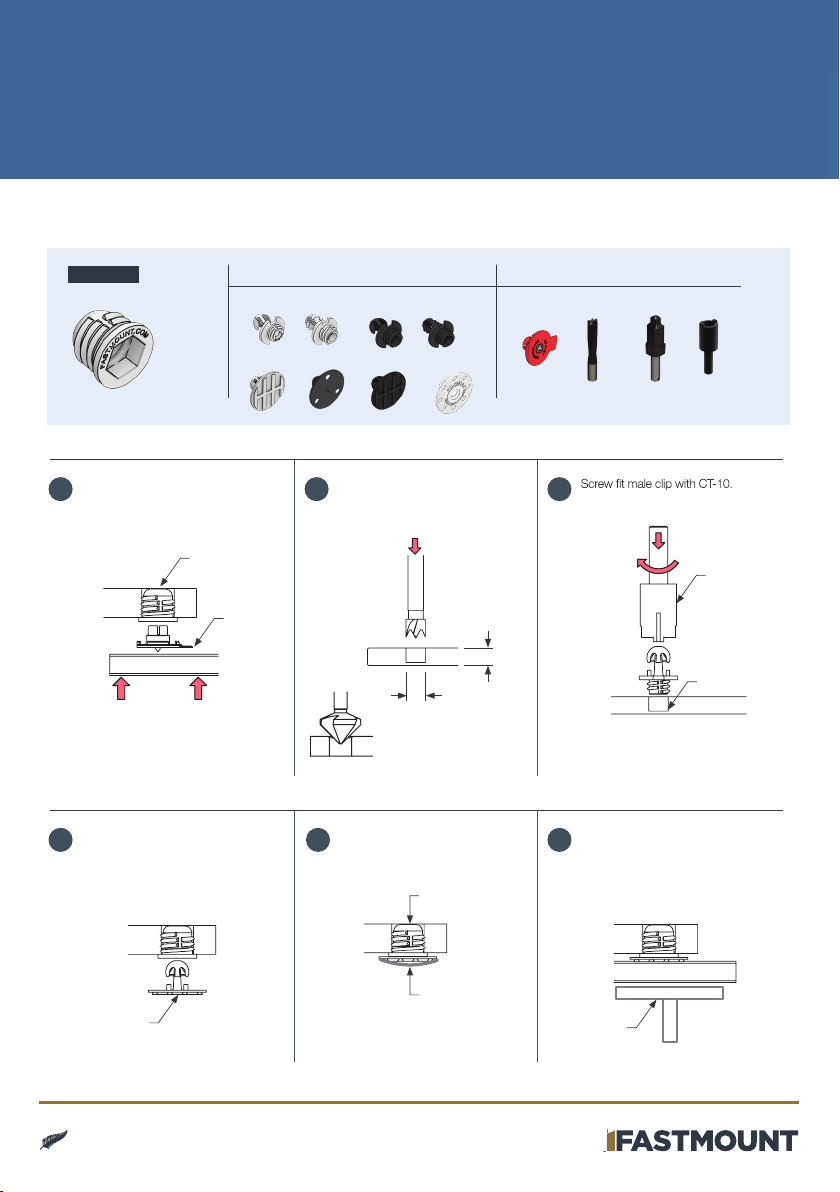

INSTALLATION STEPS FOR PAINTED OR PRE-FINISHED PANELS (First complete steps 1 to 3, page 1)
STANDARD PC RANGE
PC-F1A INSTALLATION GUIDE
PC-F1A Self Tapping Female
USE WITH: INSTALL WITH:
PC-F1A
INSTALLATION STEPS FOR PAINTED OR PREFINISHED PANELS (First complete steps 1 to 3, page 1)
USE WITH: INSTALL WITH:
PC-M1B
PC-SM2
PC-VM1
PC-SVMX
PC-M2H
PC-VMX
PC-SM2H PC-SM1AC
CP-01ST CT-09
CT-07 CT-10
fastmount.com
fastmount.com
Fit CP-01ST into PC-F1A
1
then push panel to mark center
PC-F1A
Drill panel on center mark with CT-09
2 3
6mm deep for PC-M1B, 8mm deep
for PC-VM1, PC-VMX, PC-M2H
Use battery drill with clutch set.
CP-01ST
10
10
NB. CT-12 to CSK hole edge
in hard material (1-2mm)
INSTALLING ADHESIVE FIT MALE CLIPS
Clip PC-SM2 into PC-F1A
PC-SM2
or PC-SM2H
(FIRST COMPLETE STEPS 1 TO 3, PAGE 1)
5 54
Apply adhesive to PC-SM2
PC-F1A
2 part epoxy
Place panel and support
while adhesive dries
Panel propped
in place
CT-10
10Ø hole
PROUDLY DESIGNED &
MANUFACTURED IN NEW ZEALAND
Subject to change without notice.
Version: PC-F1A - 05/23. Copyright © Fastmount Ltd.
