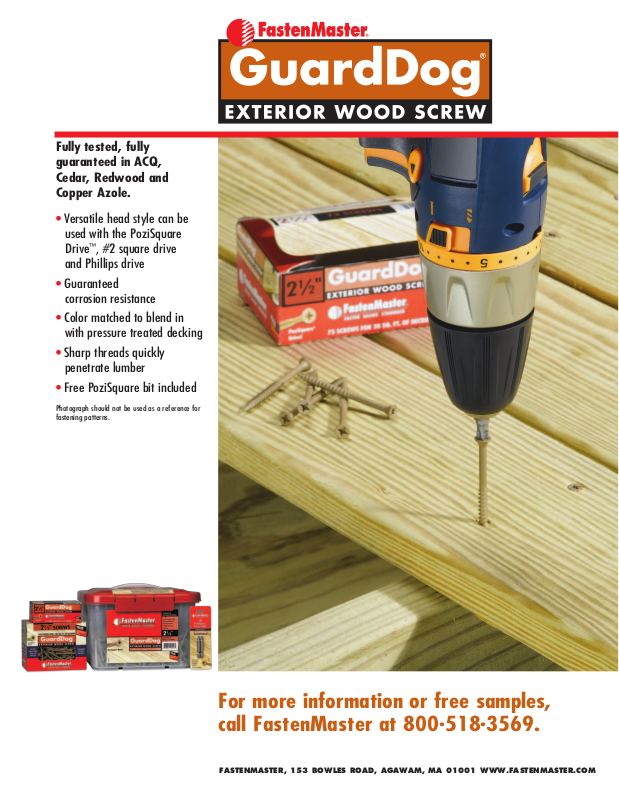

Fully tested, fully guaranteed in ACQ, Cedar, Redwood and Copper Azole.
Versatile head style can be
used with the PoziSquare Drive™, #2 square drive and Phillips drive
Guaranteed
corrosion resistance
Color matched to blend in
with pressure treated decking
Sharp threads quickly
penetrate lumber
Free PoziSquare bit included
Photograph should not be used as a reference for fastening patterns.
For more information or free samples, call FastenMaster at 800.518.3569.
FASTENMASTER, 153 BOWLES ROAD, AGAWAM, MA 01001 WWW.FASTENMASTER.COM
INSTALLATION PROCEDURE
Use a 0-1800 RPM variable speed drill (at least 14.4V if cordless). Use the PoziSquare driver bits provided. Install fastener perpendicular to deck, increasing drill speed as the screw threads into the deck. Slightly countersink. Do not overdrive. If cam-out occurs, remove and replace screw.
No Predrilling
GuardDog’s sharp piercing point allows for installation without predrilling for most applications. Predrilling is recommended at all seam joints, when fastening within 1 of end of board, and when using hardwoods.
GuardDog PoziSquare Drive – Versatility on the job
The patented PoziSquare Bit is engineered to work with:
The PoziSquare Drive (Recommended drive system–Free bit enclosed)
#2 Square Drive
#2 Phillips Drive
This versatile drive system allows for flexibility at the jobsite. The PoziSquare drive virtually eliminates cam-out during installation. (If cam-out does occur during installation, the fastener should be removed and replaced with a new GuardDog screw.)
GuardDog Coating: Fully Tested, Fully Guaranteed.
The GuardDog coating has been tested and approved for use in ACQ, Copper Azole PT, Cedar, and Redwood applications. This fastener is guaranteed to protect against rust for the life of the project.
Note: Corrosion guarantee does not apply when the fastener is used within 1,000 ft. of a saltwater or when de-icing salts will be in contact with decking.
For technical assistance or questions regarding proper use of this fastener, please contact FastenMaster Technical Support at 800.518.3569 or visit www.FastenMaster.com.
Item # Screw Length Qty. per Box Sq. Ft. of Deck*
FMGD158-75 15⁄8" 75 20
FMGD158-350 1
FMGD158-1750 1
FMGD002-75 2" 75 20
FMGD002-350 2" 350 100
FMGD002-1750 2" 1750 500
FMGD212-75 2
FMGD212-350 2
FMGD212-1750 2
FMGD003-75 3" 75 20
FMGD003-350 3" 350 100
FMGD003-1750 3" 1750 500
FMGD312-75 3
FMGD312-350 3
FMGD312-1350 3
FMPOZ12BIT-2PK Driver Bit for GuardDog w/ PoziSquare Drive (2 included)
FMGDSHEET (0211)
*Based on a fastening pattern of 2 screws per joist, spaced every 16”, into standard 6” wide decking
5
8" 350 100
5
8" 1750 500
1
2" 75 20
1
2" 350 100
1
2" 1750 500
1
2" 75 20
1
2" 350 100
1
2" 1350 350
PRODUCT FEATURES
1
⁄2"
SHARP PIERCING POINT FOR FAST INSTALLATION
VERSATILE
POZISQUARE
DRIVE
GUARANTEED
CORROSION
RESISTANT
COATING
AGGRESSIVE THREAD DESIGN FOR INCREASED HOLDING
POWER
FASTENMASTER, INC., 153 BOWLES ROAD, AGAWAM, MA 01001
800.518.3569 WWW.FASTENMASTER.COM
FastenMaster®, GuardDog™ and PoziSquare™ are trademarks of OMG, Inc. Copyright ©2011 OMG, Inc. All rights reserved.
