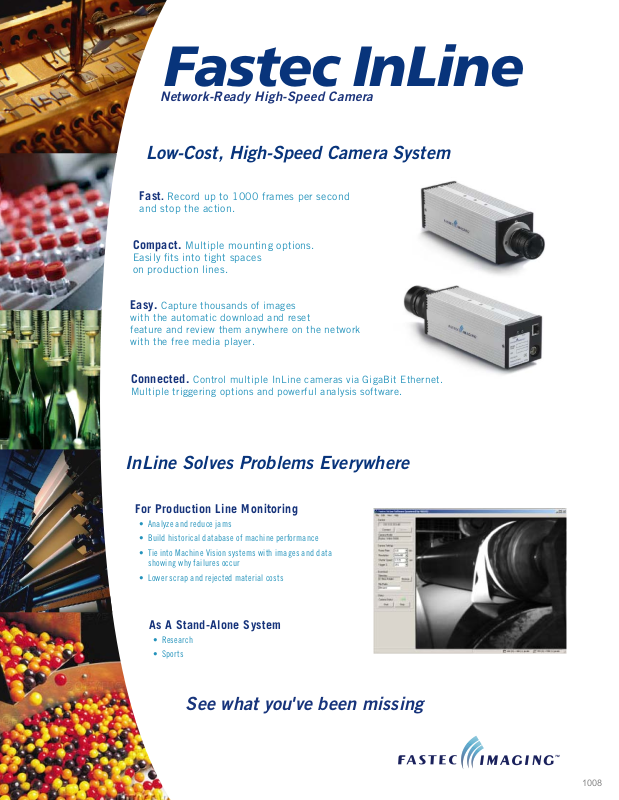

Fastec Imaging High-Speed Camera User Manual
Fastec InLine
Network-Ready High-Speed Camera
Low-Cost, High-Speed Camera System
Fast. Record up to 1000 frames per second
and stop the action.
Compact. Multiple mounting options.
Easily fits into tight spaces
on production lines.
Easy. Capture thousands of images
with the automatic download and reset
feature and review them anywhere on the network
with the free media player.
Connected.
Multiple triggering options and powerful analysis software.
Control multiple InLine cameras via GigaBit Ethernet.
InLine Solves Problems Everywhere
For Production Line Monitoring
• Analyze and reduce jams
• Build historical database of machine performance
• Tie into Machine Vision systems with images and data
showing why failures occur
• Lower scrap and rejected material costs
As A Stand-Alone System
• Research
• Sports
See what you've been missing
1008
Fastec InLine
Network-Ready High-Speed Camera
SPECIFICATIONS
MODELS
SENSOR
SHUTTER
RECORDING MODES
PLAYBACK MODES
DISPLAY
CONTROL FUNCTIONS
I/O CONNECTORS
TRIGGER INPUT
MOUNTS
SIZE & WEIGHT
Recording
Rate (fps)
50
60
125
250
InLine 250, InLine 500 and InLine 1000 (Monochrome and Color).
CMOS array, 8-bit monochrome resolution, 24-bit color resolution.
1x, 2x, 3x, 4x, 5x, 10x and 20x the recording rate.
Begins recording when the record function is enabled. Continues to record and store images in memory until an external trigger signal is received.
The adjustable trigger position determines how many frames are stored before and after the trigger signal is received.
Single step mode plus auto playback at 1, 2, 3, 4, 5, 10, 15, 25, 30, 50, 60, 125 and 250 frames per second, forward and reverse.
Uses PC monitor.
Via PC. Set Record Rate, Set Shutter Speed, Set Playback Rate, Set Trigger Point, Record, Stop, Download.
Power On/Off, Hirose multifunction input connector, Gigabit Ethernet RJ45.
Contact closure or standard TTL signal, 5 volt falling edge.
C-mount lens mount, multiple 1/4-20 tripod mounts top and bottom.
6cm W x 6cm H x 17cm D; 0.5 kg.
Resolution 512MB Memory
640 x 480
640 x 480
640 x 480
640 x 480
256MB Memory
Frames
1,096
1,096
1,096
1,096
Time (sec)
21.9
18.3
8.8
4.4
Frames
2,193
2,193
2,193
2,193
Time (sec)
43.9
36.6
17.5
8.8
1GB Memory
Frames
4,387
4,387
4,387
4,387
Time (sec)
87.7
73.1
35.1
17.5
2GB Memory
Frames
8,774
8,774
8,774
8,774
Time (sec)
175.5
146.2
70.2
35.1
50
60
125
250
500
50
60
125
250
500
50
60
125
250
500
1000
640 x 240
640 x 240
640 x 240
640 x 240
640 x 240
440 x 330
440 x 330
440 x 330
440 x 330
440 x 330
320 x 240
320 x 240
320 x 240
320 x 240
320 x 240
320 x 240
2,202
2,202
2,202
2,202
2,202
2,310
2,310
2,310
2,310
2,310
4,599
4,599
4,599
4,599
4,599
4,599
44.0
36.7
17.6
8.8
4.4
46.2
38.5
18.5
9.2
4.6
92.0
76.7
36.8
18.4
9.2
4.6
