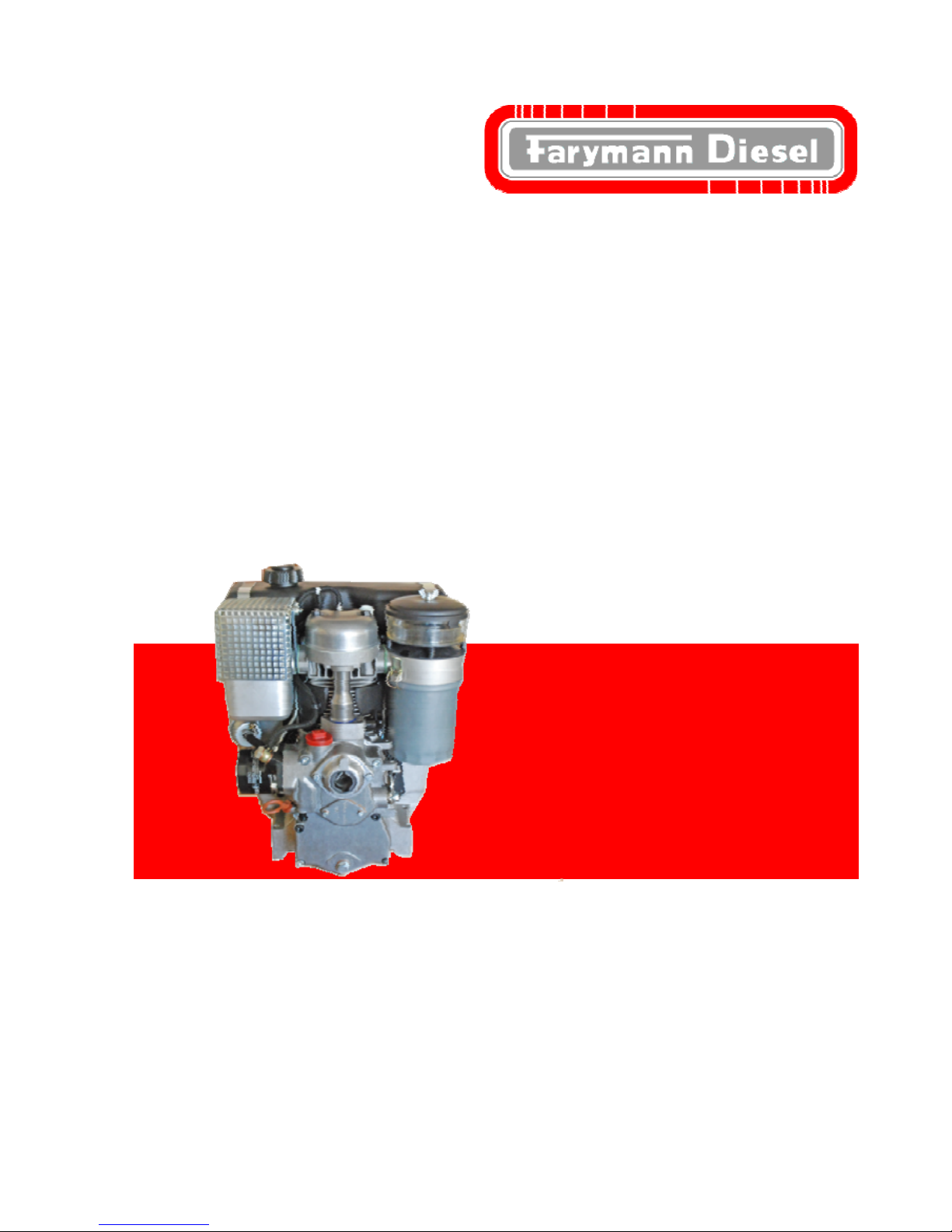

Diesel engine
Series 15B / 18B
,
Doc-ID: Grea-6600
Read the operating instructions before starting work!
2 2008-09-08
© Greaves Farymann Diesel GmbH
Industriestraße 19
68623 Lampertheim
Germany
Tel.: +49 (0) 62 06 / 5 07 - 0
Fax: +49 (0) 62 06 / 5 07 - 111
E-Mail: info@farymann.de
Internet: www.farymann.de
Release:
Created by:
Kothes!
Technische Kommunikation GmbH & Co. KG
www.kothes.de
Diesel engine Series 15B / 18B
Table of contents
2008-09-08 3
1
General....................................................................................6
1.1 Information about this manual.......................................6
1.2 Explanation of the symbols............................................7
1.3 Limitation of liability........................................................8
1.4 Copyright........................................................................9
1.5 Warranty terms..............................................................9
1.6 Customer service...........................................................9
2 Safety ....................................................................................10
2.1 Customer’s responsibility.............................................10
2.2 Personnel requirements...............................................12
2.2.1 Qualifications................................................12
2.3 Appropriate use ...........................................................13
2.4 Personal protective equipment....................................14
2.5 Specific dangers..........................................................15
2.6 Safety devices..............................................................18
2.7 Behaviour in the case of danger and accidents...........18
2.8 Environmental protection.............................................19
3 Technical data......................................................................20
3.1 Technical specifications...............................................20
3.2 Applications..................................................................20
3.3 Standard configuration.................................................21
3.4 Options.........................................................................21
3.5 Engine type plate.........................................................21
3.6 Engine type code.........................................................22
3.7 Engine data..................................................................23
3.8 Performance data........................................................24
3.9 Dimensions and weight................................................24
3.10 Temperatures...............................................................25
3.11 Pressures.....................................................................25
3.12 Operating materials .....................................................26
3.13 Engine oil specification................................................27
Diesel engine Series 15B / 18B
Table of contents
4 2008-09-08
4 Structure and function........................................................ 28
4.1 Overview..................................................................... 28
4.2 Electrical System......................................................... 30
4.2.1 Alternator (option)........................................ 30
4.2.2 Alternator regulator (option)......................... 30
4.2.3 Operating conditions.................................... 30
4.2.4 Dangers and cause of failure....................... 31
4.2.5 Batteries....................................................... 32
5 Transport, packing and storage ........................................ 33
5.1 Safety notes for transport............................................ 33
5.2 Transport inspection.................................................... 33
5.3 Packing ....................................................................... 34
5.4 Transport..................................................................... 35
6 Installation and commissioning ........................................ 36
6.1 Safety.......................................................................... 36
6.2 Installation................................................................... 36
6.2.1 Mounting the flywheel.................................. 36
6.2.2 Attaching stub shaft (option)........................ 38
6.2.3 Attaching speed controller........................... 39
6.3 Initial commissioning................................................... 40
6.4 Filling with engine oil................................................... 41
6.5 Filling with fuel............................................................. 43
6.5.1 Filling process 4.0 litre tank (option)............ 43
6.5.2 Refilling, venting for engines with fuel feed
pump (option)............................................... 44
7 Operation.............................................................................. 46
7.1 Safety.......................................................................... 46
7.2 Preparing for start....................................................... 49
7.3 Manual starting............................................................ 50
7.4 Starting with electric starter......................................... 54
7.5 Operation .................................................................... 56
7.6 Switching off................................................................ 57
7.6.1 Engine without electric starter ..................... 58
7.6.2 Engine with electric starter .......................... 58
7.7 Decommissioning........................................................ 59
Diesel engine Series 15B / 18B
Table of contents
2008-09-08 5
8 Maintenance .........................................................................60
8.1 Safety...........................................................................60
8.2 Maintenance plan ........................................................62
8.3 Cleaning the intake area..............................................65
8.4 Cleaning cooling air area.............................................66
8.5 Checking threaded connections..................................66
8.6 Changing engine oil.....................................................68
8.6.1 Version with oil drain plug ............................68
8.6.2 Version with oil drain valve...........................69
8.7 Replacing oil filter ........................................................70
8.8 Replacing fuel filter......................................................71
8.9 Replacing air filter........................................................73
8.9.1 Dry type air cleaner (standard engine).........73
8.9.2 Oil bath air cleaner (standard engine)..........75
8.10 Adjusting valve clearance............................................77
8.10.1 Engines with visible flywheel and O.T.
marking.........................................................78
8.10.2 Engines with covered flywheel (without
visible O.T. marking) ....................................82
9 Faults.....................................................................................86
9.1 Safety...........................................................................86
9.2 Troubleshooting chart..................................................89
9.2.1 Engine does not start ...................................89
9.2.2 Engine starts, however runs irregularly or
stops.............................................................91
9.2.3 Bad engine performance..............................92
9.2.4 Operating behaviour not faultless ................93
9.3 Startup after eliminating fault.......................................95
10 Replacement Parts List .......................................................96
10.1 Spare parts ..................................................................96
10.2 Ordering spare parts....................................................96
11 Service history .....................................................................99
11.1 Proof of purchase ........................................................99
11.2 Handover and servicing history .................................100
12 Index....................................................................................104
Notes...........................................................................................106
Diesel engine Series 15B / 18B
General
6 2008-09-08
Pos: 1.1 /KN2006-SM/Allgemeines/100 1 Allgemeines_ Titel @ 8\mod_1142088318714_2.doc @ 75729
1 General
Pos: 1.2 /KN2006-Projekte/Bukh-Farymann/Allgemein es/1.1 Informationen zu dieser Anleitung 2032 @ 49\mod_119312743 870 4_2.doc @ 760809
1.1 Information about this manual
This manual makes safe and efficient use of the engine possible.
The manual is an integral part of the machine and must be kept in
the immediate vicinity of the machine and accessible at any time
for the personnel. The personnel must have carefully read and
understood this manual before starting all work. The basic
prerequisite for safe working is compliance with all the safety and
handling instructions stated in this manual.
Furthermore, the local accident prevention regulations and general
safety conditions for the application of the machine are also
applicable.
Illustrations in this manual are provided for basic understanding
and can be different from the actual version of the engine for the
machine.
Pos: 1.3 /KN2006-SM/nL.......... Seitenumbruch .......... @ 8\mod_1141998334703_0.doc @ 75491
Diesel engine Series 15B / 18B
General
2008-09-08 7
Pos: 1.4 /KN2006-Projekte/Bukh-Farymann/Allgemein es/1.1 Symbolerklärung 2032 @ 49\mod_1193127594098_2.doc @ 760846
1.2 Explanation of the symbols
Safety information
Safety information in this manual is identified using symbols. The
safety information is introduced using signal words which express
the scale of the hazard.
Always comply with the safety instructions and act cautiously in
order to avoid accidents, injuries to persons and damage to
property.
DANGER!
… points out a directly dangerous situation which
results in death or severe injuries if it is not
avoided.
WARNING!
… points out a potentially dangerous situation
which can result in death or severe injuries if it is
not avoided.
CAUTION!
… points out a potentially dangerous situation
which can result in minor or slight injuries if it is not
avoided.
CAUTION!
… points out a potentially dangerous situation
which can result in damage to property if it is not
avoided.
Tips and recommendations
NOTE!
… highlights useful tips and recommendations and
information for efficient and trouble-free operation.
Pos: 1.5 /KN2006-SM/nL.......... Seitenumbruch .......... @ 8\mod_1141998334703_0.doc @ 75491
Diesel engine Series 15B / 18B
General
8 2008-09-08
Pos: 1.6 /KN2006-Projekte/Bukh-Farymann/Allgemein es/1.1 Haftungsbeschränkung 2032 @ 49\mod_1193127726621_2.doc @ 760863
1.3 Limitation of liability
All information and instructions for use in this manual have been
compiled taking account of the applicable standards and
regulations, the latest state of technology and our many years of
expertise and experience.
The manufacturer accepts no liability for damage due to:
Non-observance of the instructions
Improper use
Use of untrained personnel
Unauthorised modifications
Technical changes
Use of non-original spare parts
The actual scope of delivery can be different from the explanations
and illustrations stated here for special versions, the use of
additional ordered options or due to the latest technical changes.
The agreed obligations in the supply contract, the general terms
and conditions and the delivery conditions of the manufacturer and
the applicable legal regulations in force at the time of the
conclusion of the contract are applicable.
Pos: 1.7 /KN2006-SM/Allgemeines/131 1.1.0 Technisc he Änder ungen vorbehalten --> Wenn Kunde verlangt! @ 12\mod_1142965766069_2.doc @ 80003
We reserve the right to make technical modifications in order to
improve usability.
Pos: 1.8 /KN2006-SM/nL.......... Seitenumbruch .......... @ 8\mod_1141998334703_0.doc @ 75491
Diesel engine Series 15B / 18B
General
2008-09-08 9
Pos: 1.9 /KN2006-SM/Allgemeines/140 1.1 Urheberschu tz @ 8\mod_1142092015791_2.doc @ 75821
1.4 Copyright
This Manual is protected by copyright law and exclusively to be
used for internal purposes.
Passing this Manual on to third parties, duplication of any kind –
even in form of excerpts – as well as the use and/or disclosure of
the contents without the written consent of the manufacturer is not
permitted, except for internal purposes.
Violations oblige to compensation. The right for further claims
remains reserved.
Pos: 1.10 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 1.11 /KN2006-SM/Allgemeines/160 1.1 Garantiebe sti mmungen_Titel @ 9\mod_1144054714613_2.doc @ 84758
1.5 Warranty terms
Pos: 1.12 /KN2006-SM/Allgemeines/161 1.1.0 Garantiebes timmungen in den AGB des Herstellers @ 9\mod_1144054766031_2.doc @ 84765
The warranty terms are provided in the manufacturer's terms and
conditions.
Pos: 1.13 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 1.14 /KN2006-Projekte/Bukh-Farymann/Allgem ei nes/1.1 Kundendienst 2032 @ 48\mod_1191320054435_2.doc @ 636937
1.6 Customer service
Our customer service is pleased to provide further technical
information. Please refer to our website (www.farymann.de) or
telephone us on +49 (0)6206/507-0 for a list of our sales and
service partners.
Furthermore, our employees are always interested in new
information and experience arising from use and which can be
valuable for the improvement of our products.
Pos: 2.1 /KN2006-SM/Sicherheit/001 1 Sicherheit_Ti te l @ 8\mod_1142425976781_2.doc @ 77463
Diesel engine Series 15B / 18B
Safety
10 2008-09-08
2 Safety
Pos: 2.2 /KN2006-SM/Sicherheit/001 1.0 Einführung @ 8\mod_1 142427208593_2.doc @ 77492
This paragraph provides an overview of all important safety
aspects for optimal protection of personnel as well as safe and
trouble-free operation.
Disregarding this Manual and safety regulations specified therein
may result in considerable danger.
Pos: 2.3 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 2.4 /KN2006-SM/Sicherheit/003 1.1 Verantwortung de s Betreibers_Titel @ 8\mod_1142428931187_2.doc @ 77569
2.1 Customer’s responsibility
Pos: 2.5 /KN2006-Projekte/Bukh-Farymann/Sic her heit/verantwortung des Betreibers @ 47\mod_1190282719154_2.doc @ 627757
The system is used commercially. The owner of the machine is
thus subject to the legal obligations for health and safety at work.
As well as the operational safety instructions in this operator's
manual, the applicable safety, accident prevention and
environmental regulations for the application must also be
complied with. The following particularly apply:
The owner must inform himself about the applicable health and
safety conditions and also determine hazards arising from the
special operating conditions at the usage location of the
machine in a risk analysis. He must implement this in the form
of operating instructions for the operation of the machine.
During the complete usage time of the machine, the owner
must check whether the operating instructions created by him
correspond with the current status of the regulations and must
adapt these if necessary.
The owner must clearly regulate and specify the responsibilities
for installation, operation, maintenance and cleaning.
The owner must ensure that all employees involved with the
machine have read and understood the operating instructions.
He must also train the personnel and inform them about the
dangers at regular intervals.
The owner must provide the necessary protective equipment for
the personnel.
The owner is also responsible that the machine is always in proper
working condition. Therefore, strictly observe the following:
The owner must ensure that the maintenance intervals
specified in this manual are complied with.
The owner must arrange for all safety equipment to be checked
regularly for functionality and completeness.
Explosive and easily flammable substances must always be
kept away from the engine as the engine can become very hot
during operation.
Do not touch rotating parts while the engine is running.
Diesel engine Series 15B / 18B
Safety
2008-09-08 11
Only fill with fuel when the engine is switched off. Do not fill in
the vicinity of naked flames or ignitable sparks, do not smoke
and do not spill any fuel.
This operator's manual must be kept in the immediate vicinity of
the engine and must be accessible at any time to all persons
working on and with the engine.
The engine must only be operated if it is in proper working
condition. The engine must be checked for intactness before
every start-up.
In the case of doubt, always contact the nearest Greaves
Farymann Diesel service partner before starting the engine.
Only regular maintenance in accordance with the information in
this operator's manual maintains the operational readiness of
the engine.
Only perform maintenance and cleaning work when the engine
is switched off.
Strictly observe all the information in the operator's manual.
Observe all warning and information signs on the engine and
keep these in legible condition. If a warning or information sign
should be lost or difficult to read, always request a replacement
from the nearest Greaves Farymann Diesel service partner.
Pos: 2.6 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 2.7 /KN2006-SM/Sicherheit/004 Personal/004 1.1 Per sonalanforderungen_Titel @ 8\mod_1142431816578_2.doc @ 77627
Diesel engine Series 15B / 18B
Safety
12 2008-09-08
2.2 Personnel requirements
Pos: 2.8 /KN2006-Projekte/Bukh-Farymann/Sicher heit/1.1.1 Qualifikationen 6415 @ 56\mod_1199376239404 _2.doc @ 890447
2.2.1 Qualifications
WARNING!
Danger of injury for unqualified personnel!
Improper handling can result in severe personal
injury and/or material damage.
Therefore:
– Have all jobs carried out by qualified personnel
only.
In the operating instructions the following qualifications are cited for
various activity areas.
Pos: 2.9 /KN2006-Projekte/Bukh-Farymann/Sic her heit/Unterwiesenen personen 2032 @ 48\mod_1191321557844_2.doc @ 636962
Trained person
has been instructed by the owner about the tasks assigned to
him and possible dangers in the case of improper behaviour.
Technical personnel
are persons who on the basis of their professional training by
Greaves Farymann Diesel GmbH, experience and knowledge
of the relevant conditions can perform the work assigned to
them using the operating and repair instructions and can
recognise and avoid possible dangers themselves.
Pos: 2.10 /KN2006-SM/Sicherheit/004 Personal/004 1.1. 0 ...zuverlässiges Personal... @ 13\mod_1152892110812_2.doc @ 148628
Only persons who are expected to perform their tasks reliably are
permitted as personnel. Persons whose reaction capability is
impaired, e.g. through drugs, alcohol or medication are not
permitted.
When selecting the personnel, the stipulations regarding age
and occupation applying at the location must be observed.
Pos: 2.11 /FI/.......... Seitenumbruch ..... ..... @ 0\mod272_2.doc @ 1523
Diesel engine Series 15B / 18B
Safety
2008-09-08 13
Pos: 2.12 /KN2006-Projekte/Bukh-Farymann/Sicher heit/005 1.1 Bestimmungsgemäße Verwendung 43F @ 45\mod_1187809017952_2.doc @ 567587
2.3 Appropriate use
The system is designed and constructed exclusively for the
intended purpose described here.
The engine is provided exclusively for the intended purpose which
has been specified and tested by the manufacturer of the
equipment in which the engine is installed. Any other use is
considered to be improper. Greaves Farymann Diesel GmbH
accepts no liability for any dangers and damage resulting from
this. The risk is borne solely by the user.
The installation must be made so that all applicable safety
regulations for the operation of diesel engines are complied with.
Proper use also includes compliance with all the information in this
operator's manual.
Any use beyond the intended use and/or other types of use is
considered misuse and can result in dangerous situations.
WARNING!
Danger due to misuse!
Misuse can result in dangerous situations.
Refrain particularly from the following uses of the
system:
– Operation of the engine while it is not in the
installed condition.
– Operation of the engine without sufficient safety
devices.
– Operation of the engine with non-approved
fuels.
Any types of claims for damage arising from improper use are
excluded.
Pos: 2.13 /FI/.......... Seitenumbruch ..... ..... @ 0\mod272_2.doc @ 1523
Diesel engine Series 15B / 18B
Safety
14 2008-09-08
Pos: 2.14 /KN2006-SM/Sicherheit/006 Persönliche Sc hutzausstattung/006 1.1 Persönliche Schutzausrüstung @ 8\mod_1143360751363_2.doc @ 80982
2.4 Personal protective equipment
Wearing of personal protective equipment is required when
working to minimize the health hazards.
Always wear the protective equipment that is necessary for the
respective task when working.
Follow the instructions on personal protective equipment that
are posted in the work area.
Pos: 2.15 /KN2006-SM/Sicherheit/006 Persönliche Sc hutzausstattung/006 1.1.0_1 Grundsätzlich zu tragen_Titel @ 8\mod_1143360998458_2.doc @ 80991
Wear generally
Generally wear for all kind of work:
Pos: 2.16 /KN2006-Projekte/Bukh-Farymann/Sic her heit/Arbeitsschutzkleidung 2032 @ 49\mod_1193128375441_2.doc @ 760917
Protective clothing
is close fitting, with low resistance to tearing, with narrow sleeves
and without protruding parts. It mainly provides protection against
being entangled by moving machine parts.
Do not wear any rings and other jewellery.
Pos: 2.17 /KN2006-SM/Sicherheit/006 Persönliche Sc hutzausstattung/Sicherheitsschuhe @ 8\mod_1143362886212_2.doc @ 81072
Safety boots
to protect against heavy parts falling down or slipping on slippery
ground.
Pos: 2.18 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 2.19 /KN2006-SM/Sicherheit/006 Persönliche Sc hutzausstattung/006 1.1.0_2 Bei besonderen Arbeiten zu tragen_Titel @ 18\mod_1143361122656_2.d oc @ 81000
Personal protective equipment for
special tasks
When performing special tasks it is necessary to wear personal
protective equipment. This personal protective equipment will be
separately specified in the chapters of this Manual. This special
protective equipment is explained below.
Pos: 2.20 /KN2006-SM/Sicherheit/006 Persönliche Sc hutzausstattung/Gehörschutz @ 8\mod_1143361619070_2.doc @ 81018
Ear defenders
to protect against hearing damage.
Pos: 2.21 /KN2006-SM/Sicherheit/006 Persönliche Sc hutzausstattung/Schutzhelm @ 8\mod_1143362057320_2.doc @ 81054
Hard hat
to protect against parts and materials falling down and flying
around.
Pos: 2.22 /KN2006-SM/Sicherheit/006 Persönliche Sc hutzausstattung/Schutzhandschuhe @ 8\mod_1143361962043_2.doc @ 81045
Protective gloves
to protect the hand against friction, graze, punctures or deep cuts
as well as contact with hot surfaces.
Pos: 2.23 /KN2006-SM/Sicherheit/006 Persönliche Sc hutzausstattung/Schutzbrille @ 8\mod_1143361478889_2.doc @ 81009
Safety goggles
to protect the eyes against parts flying around or squirts of fluids.
Pos: 2.24 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Safety
2008-09-08 15
Pos: 2.25 /KN2006-SM/Sicherheit/007 Besondere Gefahr en/ 007 1.1 Besondere Gefahren_Titel und Einleitung @ 8\mod_1143366409048_2.doc @ 81172
2.5 Specific dangers
The following section lists the residual risks that have been
determined by the risk assessment.
Heed the safety instructions listed here, and the warnings in
subsequent chapters of this Manual, to reduce health hazards
and to avoid dangerous situations.
Pos: 2.26 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 2.27 /KN2006-Projekte/Bukh-Farymann/Sic her heit/Rotierende Bauteile 43F (P02032) @ 31\mod_1172219618482_2.doc @ 358635
Rotating parts
WARNING!
Risk of injury due to rotating parts
Rotating parts can cause severe injuries.
Therefore:
– Do not reach into or work on rotating parts
during operation.
– Do not open or remove covers during operation.
– Pay attention to the run-on time after switching
off the engine.
Ensure there are no parts still moving or the
engine is not running before opening the
covers.
– Wear close-fitting work clothing.
Pos: 2.28 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Safety
16 2008-09-08
Pos: 2.29 /KN2006-Projekte/Bukh-Farymann/Sic her heit/Gesundheitsgefährdende Stoffe 43F (P02032) @ 31\mod_1172226012495_2.doc @ 358852
Substances harmful to health
WARNING!
Danger of poisoning and danger of skin rashes
and allergies!
Fuels and lubricants contain substances harmful to
health and can result in severe poisoning and skin
rashes or allergies.
Therefore:
– Observe the safety data sheet of the
manufacturer of fuels and lubricants.
– Avoid spilling fuels and fog formation.
– In the case of inhalation, bring affected person
into the open air immediately. Contact a doctor.
– Contact doctor immediately in the case of
swallowing. Rinse mouth thoroughly with water.
– Avoid skin and eye contact:
Apply suitable skin protection cream before
working on tanks, piping or supply
equipment.
Wear protective gloves made of plastic or
rubber during the work.
– In the case of contact with the skin or eyes,
rinse immediately with a lot of water. Contact a
doctor.
– Dispose of contamination in the working area
properly and in accordance with environmental
regulations. Fuels and lubricants must not get
into the sewer system.
– Do not eat, drink or smoke when working.
Pos: 2.30 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Safety
2008-09-08 17
Pos: 2.31 /KN2006-SM/Sicherheit/007 Besondere Gefahr en/ Leicht entzündliche Stoffe_Warnung! @ 18\mod_1143370179640_2.doc @ 81274
Highly flammable materials
WARNING!
Fire hazard by highly flammable materials!
Highly flammable materials, liquids or gases may
catch fire causing serious and even fatal injuries.
Therefore:
– Do not smoke within the danger zone and the
immediate vicinity. Avoid using open flames or
ignition sources.
– Keep a fire extinguisher ready.
– Report suspicious materials, liquids or gases
immediately to the person in charge.
– Suspend any work activities in case of fire.
Leave the danger zone until the all clear signal
is given.
Pos: 2.32 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 2.33 /KN2006-Projekte/Bukh-Farymann/Sic her heit/Heiße Betriebsstoffe 6415 @ 56\mod_1199376659775_2.doc @ 890466
Hot operating materials
WARNING!
Risk of burns due to hot operating materials!
Operating materials can reach high temperatures
during operation and cause burns in the case of
contact.
Therefore:
– Check whether operating materials are hot
before handling them. If necessary, let them
cool down to the ambient temperature.
Pos: 2.34 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 2.35 /KN2006-Projekte/Bukh-Farymann/Sic her heit/Heiße Oberflächen der Motorkompo¬nenten 2032 @ 49\mod_1193128643148_2.doc @ 760934
Hot surfaces of the engine
components
CAUTION!
Risk of burns due to hot surfaces of the engine
components!
Contact with hot surfaces can cause burns.
Therefore:
– Always wear protective clothing and protective
gloves for all work in the vicinity of hot parts.
– Ensure that all parts have cooled down to the
ambient temperature before all work.
Pos: 2.36 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Safety
18 2008-09-08
Pos: 2.37 /KN2006-Projekte/Bukh-Farymann/Sic her heit/008 1.1 Sicherheitseinrichtungen 43F (P02032) @ 31\mod_1172221621537_3.doc @ 358700
2.6 Safety devices
WARNING!
Risk of injury due to non-functional safety
devices!
Safety is only ensured if the safety devices are
intact.
Therefore:
– Check whether the safety devices are functional
and correctly installed before starting work.
– Never deactivate safety devices.
NOTE!
See the Chapter "Design and function" for detailed
information about the position of the safety devices.
Pos: 2.38 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 2.39 /KN2006-Projekte/Bukh-Farymann/Sic her heit/1.1 Verhalten im Gefahrenf al l und bei Unfällen 2032 @ 49\mod_1193128878712_2.doc @ 760971
2.7 Behaviour in the case of danger and accidents
Preventive measures
Always be prepared for accidents or fire.
Keep first aid equipment (first aid kit, blankets etc.) and fire
extinguishers ready to hand.
Familiarise personnel with accident reporting, first aid and
rescue equipment.
Keep access routes clear for rescue vehicles.
Actions in the case of accidents
Operate the EMERGENCY STOP button on the machine (if
present) immediately.
Initiate first aid actions.
Rescue people from the danger zone.
Inform the responsible person at the usage location.
Notify the rescue services.
Keep access routes clear for rescue vehicles.
Pos: 2.40 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Safety
2008-09-08 19
Pos: 2.41 /KN2006-Projekte/Bukh-Farymann/Sic her heit/1.1 Umweltschutz 2032 @ 49\ mod_ 119 3129051298_2.doc @ 760988
2.8 Environmental protection
CAUTION!
Danger to the environment due to mishandling!
Significant environmental damage can occur,
particularly for incorrect disposal, if environmentally
hazardous operating materials are mishandled.
Therefore:
– Always observe the instructions mentioned
below.
– Take immediate action if environmentally
hazardous materials reach the environment.
Inform the responsible local authorities about
the damage in the case of doubt.
The following environmentally hazardous substances are used:
Pos: 2.42 /KN2006-Projekte/Bukh-Farymann/Sic her heit/Schmierstoffe, Kraftstoffe 43F (P02032) @ 31\mod_1172224150997_3.doc @ 358746
Lubricants, fuels
Fuels and lubricants such as, e.g. diesel fuel and engine oil contain
toxic substances. They must not reach the environment. The
disposal must be performed by a specialist disposal company.
Diesel engine Series 15B / 18B
Technical data
20 2008-09-08
Pos: 3.1 /KN2006-SM/Technische Daten/001 1 Technische Daten _Titel @ 8\mod_1143124628960_2.doc @ 80563
3 Technical data
Pos: 3.2 /KN2006-Projekte/Bukh-Farymann/Techni sc he Daten/1.1 Technische Beschreibung 6415 @ 54\mod_1196420214341_2.doc @ 834637
3.1 Technical specifications

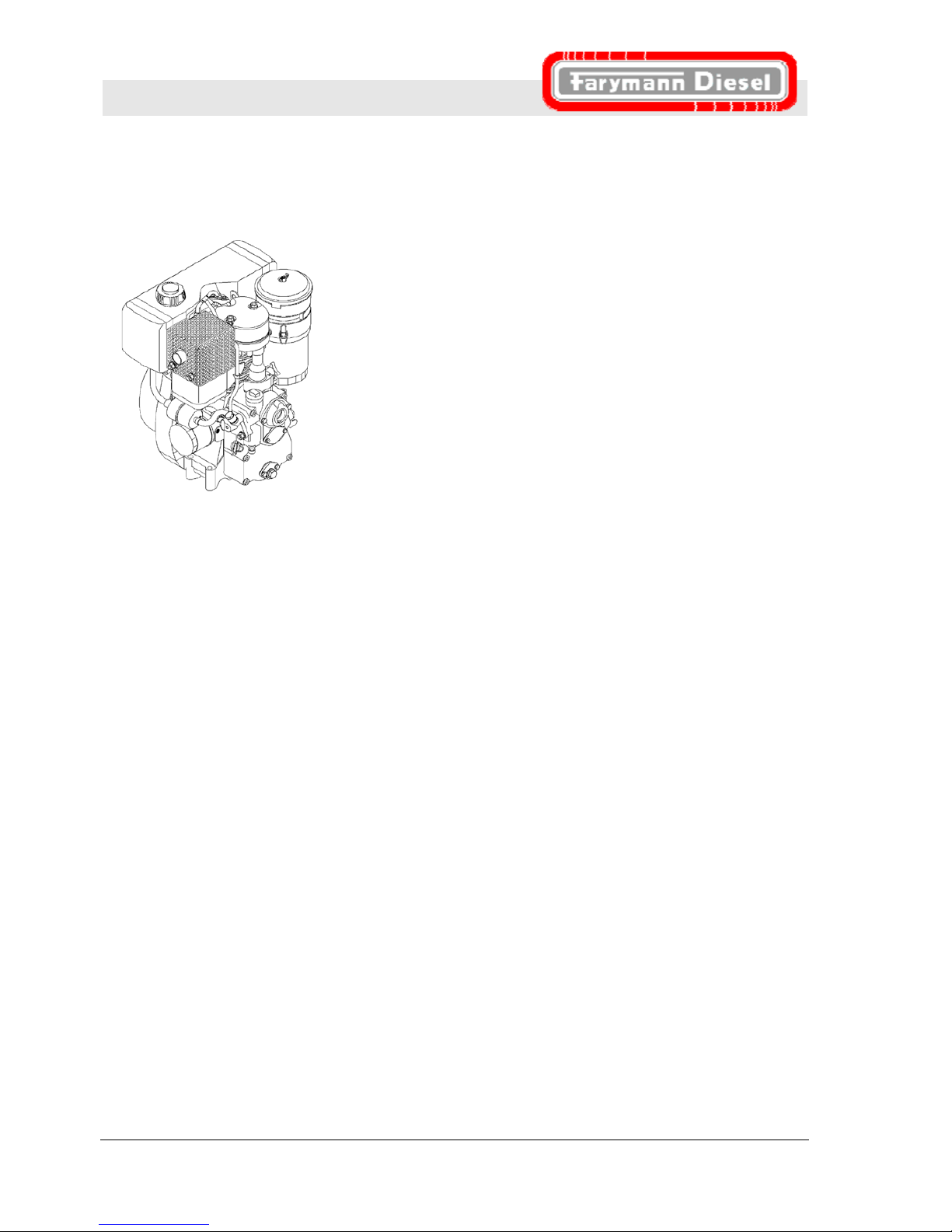

Fig. 1
Single-cylinder, four-stroke diesel engine, air-cooled, with the
following characteristics:
Direct injection (Bosch injection system)
Power take-off at the flywheel
Safe manual start with starting handle or electric starter
Automatic decompression and excess fuel device
Self-venting fuel system
Mechanical speed governor
Oil forced-feed lubrication system with gear pump, oil filter for
increased operational reliability
Exhaust silencer
Dry type air cleaner or oil bath air cleaner
Fuel tank and fuel filter
Crankcase of high tensile light alloy
Plain bearings on conrod and crankshaft on the control side
Roller bearing on output side
Cooling fan integrated in the flywheel
Engine mounting points integrally cast on the crankcase
Environmentally friendly due to internal crankcase venting and
valve stem seals
Pos: 3.3 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 3.4 /KN2006-Projekte/Bukh-Farymann/Technisc he Daten/1.1 Anwendungen 6600 @ 65\mod_1207142108550_2.doc @ 1128717
3.2 Applications
The engine series 15B/18B is suitable, for example, for the
following applications:
z Construction equipment
z Agricultural applications
z Generators
z Water pumps
z Compressors
z High pressure washers
z Special applications (according to customer requirements)
Pos: 3.5 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 3.6 /KN2006-Projekte/Bukh-Farymann/Technisc he Daten/1.1 Standard-Ausführung 6415 @ 54\mod_1196421510011_2.doc @ 834673
Diesel engine Series 15B / 18B
Technical data
2008-09-08 21
3.3 Standard configuration
The engine is delivered with the following standard configuration:
3.9 litre fuel tank
Fuel filter
Dry type air cleaner, optional oil bath air cleaner
Exhaust silencer
Crank handle (rigid)
Pos: 3.7 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
os: 3.8 /KN2006-Projekte/Bukh-Farymann/Technische Da ten/1.1 Optionen 6415 @ 54\mod_1196421 642994_2.doc @ 834691
3.4 Options
The engine is available with the following options:
4.0 litre fuel tank
Fuel feed pump
Starter (12 V or 24 V)
Solenoid valve open or closed with zero current (12 V or 24 V)
Alternator (12 V or 24 V)
Stub shafts (various versions)
Bell housings (various versions)
Additional oil sump
Oil preheater (1 heating element, 12 V or 24 V)
Air intake preheater (2 heating elements, 12 V or 24 V)
Crank handle RD (limited kickback)
Pos: 3.9 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 3.10 /KN2006-Projekte/Bukh-Farymann/Techni sc he Daten/1.1 Motortypenschild 6600 @ 65\mod_1207145566073_2.doc @ 1129154
3.5 Engine type plate

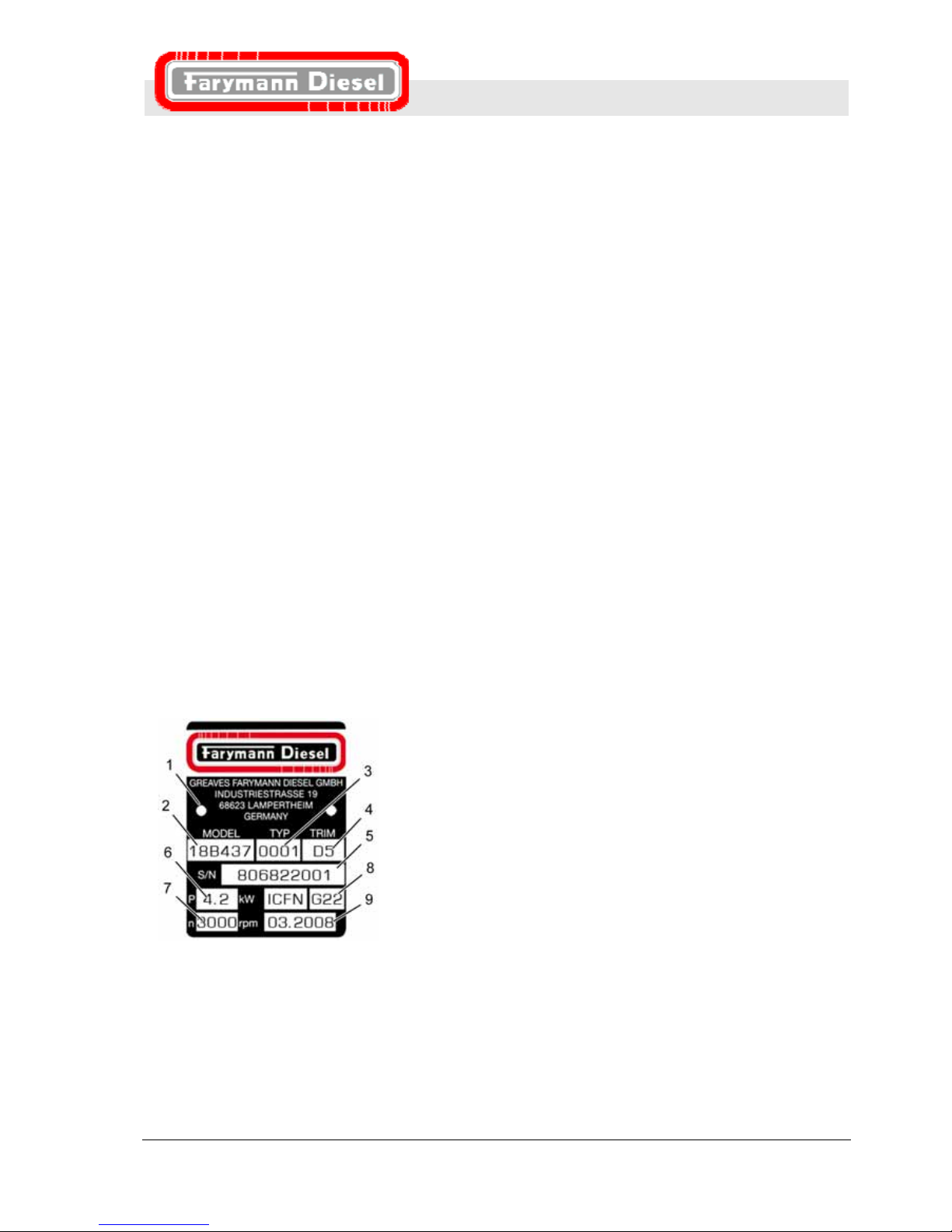

Fig. 2: Example of the engine type plate
There is an engine type plate on the engine with the following
information:
1 Manufacturer
2 Series
3 Type number
4 Version of the speed governor
5 Serial number
6 Power
7 Speed
8 Emissions code
9 Date of manufacture (e.g. 03/2008 = March 2008)
Pos: 3.11 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Technical data
22 2008-09-08
Pos: 3.12 /KN2006-Projekte/Bukh-Farymann/Techni sc he Daten/1.1 Motor-Typenschlüssel 6600 @ 65\mod_1207146542823_2. doc @ 1129206

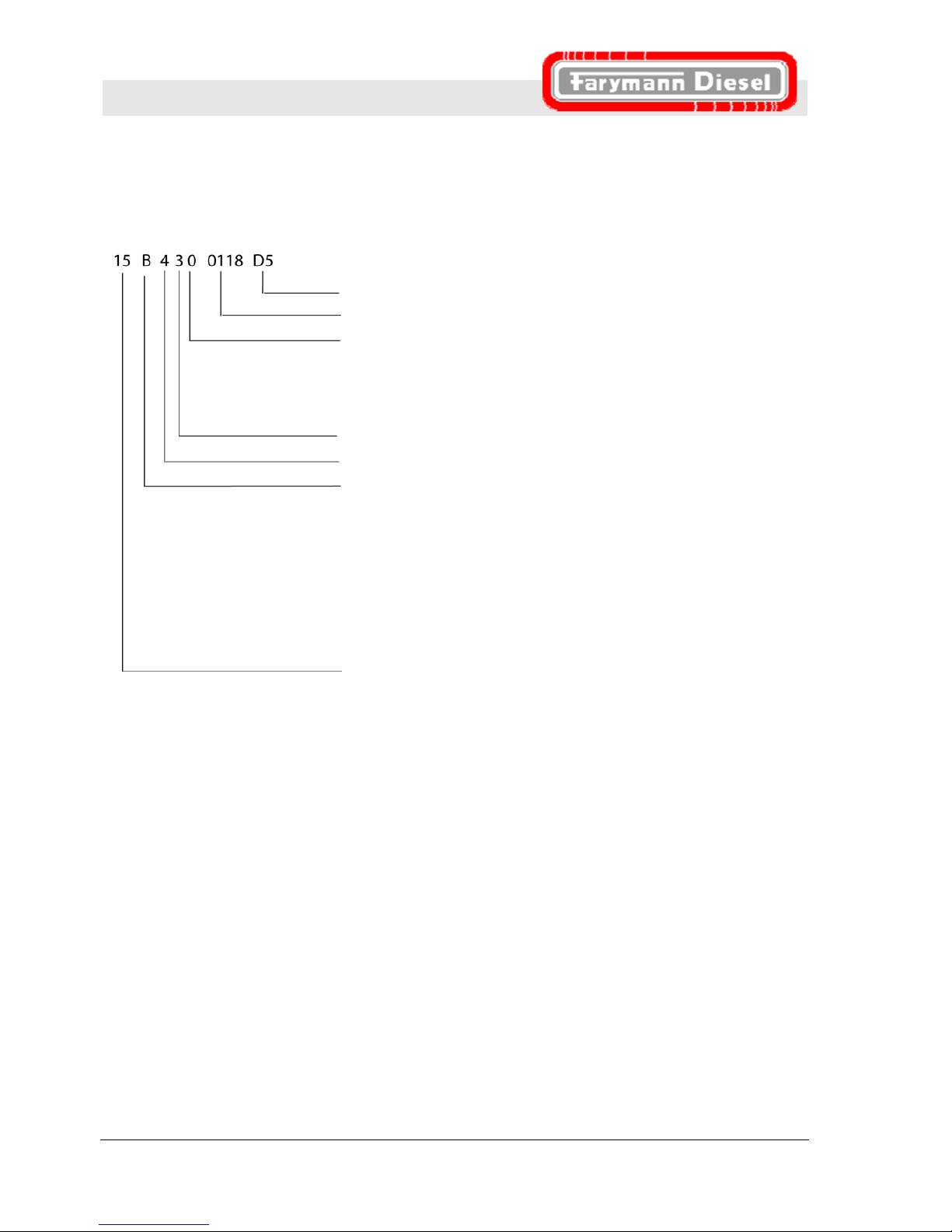

3.6 Engine type code
The engine type code is a 12-digit code in addition to the serial
number e.g. 15B 430.0118 D5
Fig. 3
Trim No. = speed governor version
Type No. = engine version
Start 0 = crank handle
5 = electric start
6 = alternator without starter
7 = alternator with starter
Bearings 3 = roller bearing on the flywheel side
Crankshaft 4 = horizontal position
Basic engine design
A = vertical cylinder, anticlockwise rotation (old version)
B = vertical cylinder, clockwise rotation (new version)
D = vertical cylinder, anticlockwise rotation (new version)
E/F = horizontal cylinder, anticlockwise rotation
W = water-cooled cylinder, anticlockwise rotation
Displacement = in cubic inches (approx.)
Pos: 3.13 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 3.14 /KN2006-Projekte/Bukh-Farymann/Techni sc he Daten/1.1 Motordaten 6600 @ 65\mod_1207147226756_2.doc @ 1129228
Diesel engine Series 15B / 18B
Technical data
2008-09-08 23
3.7 Engine data
Description Value
Type Vertical single-cylinder diesel engine
Design Vertical
Cylinder 1
Operating method Four-stroke
Combustion method Direct injection
Rotation direction Clockwise rotation
(as seen from output or flywheel side)
Type of cooling Air-cooled
Valve control Overhead valves with push rods and
rocker arms
Valves Two-valve technology
Valve clearance
(cold engine)
Intake valve
Exhaust valve
0.1 mm
0.1 mm
Type of starting
all engines
Option
Manual starting with crank handle
Starter (12 V or 24 V)
Required battery
capacity
36 Ah (12 V)
72 Ah (2 batteries, a = 12 V) for 24 V
Permitted operating
inclined position
(permanent)
25° longitudinal
25° lateral
Diesel engine Series 15B / 18B
Technical data
24 2008-09-08
3.8 Performance data
Description Value 15B Value 18B
Max. power
(at 3600 rpm)
IFN-ISO* 3.9 kW
ICFN-ISO* 3.5 kW
IFN-ISO* 4.7 kW
ICFN-ISO* 4.2 kW
Max. speed 3600 rpm
Max. torque
at min-1
11.5 Nm
2500 rpm
13.6 Nm
2500 rpm
Bore 82 mm
Stroke 55 mm
Displacement 290 cm3
Mean piston
speed
6.6 m/s (3600 rpm)
Compression ratio 20:1
Rotation direction clockwise rotation (as seen from output or
flywheel side)
* IFN-ISO
Blocked performance for intermittent load.
* ICFN-ISO
Power for constant speed and constant load. Contact the
manufacturer for continuous use outside the stated
performance limit.
Power reduction
Reduction approx. 1% for each 100 m height and approx. 2% for
each 5 °C over 20 °C. Performance guaranteed with 5 % deviation
for the run-in engine with standard air filter and exhaust silencer.
Pos: 3.15 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 3.16 /KN2006-Projekte/Bukh-Farymann/Techni sc he Daten/1.1 Maße und Gewicht 6415 @ 54\mod_1196424235031_2.doc @ 834763
3.9 Dimensions and weight
Description Value
Overall length 310 mm
Overall height 450 mm
Overall width 370 mm
Dry weight: standard
engine with fuel tank,
air filter and exhaust
silencer
41 kg
Diesel engine Series 15B / 18B
Technical data
2008-09-08 25
Pos: 3.17 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 7547
Pos: 3.18 /KN2006-Projekte/Bukh-Farymann/Technisc he Daten/1.1 Temperaturen 43F @ 45\mod_1188035947858_2.doc @ 569957
3.10 Temperatures
Description Value
Max. permissible air
intake temperature
50 °C
Max. permissible
exhaust temperature
580 °C
Max. permissible
cooling air temperature
50 °C
Max. permissible fuel
temperature
70 °C
Max. permissible
engine oil temperature
130 °C
Pos: 3.19 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 3.20 /KN2006-Projekte/Bukh-Farymann/Techni sc he Daten/1.1 Drücke 43F @ 45\mod_1188036088956_2.doc @ 569971
3.11 Pressures
Description Value
Injector setting - nozzle
opening pressure
200 bar
Oil pressure (max.) 5 bar
Intake vacuum permitted 2 kPa
Exhaust gas back
pressure
permitted 5 kPa
Pos: 3.21 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 3.22 /KN2006-Projekte/Bukh-Farymann/Techni sc he Daten/1.1 Betriebsstoffe 6415 @ 54\mod_1196425076771_2.doc @ 834821
Diesel engine Series 15B / 18B
Technical data
26 2008-09-08
3.12 Operating materials
Description Value
Fuel Diesel EN 590
DIN 51601-OK
BS 2869 A1/A2
ASTM D 975-1D/D2
Engine oil Multigrade oil
SAE 10W 40 mineral oil API (CD or
higher)
Max. engine oil quantity
with oil filter
Standard version
approx. 1.0 litres
Engine oil refill quantity
bottom – top mark (oil
dipstick)
Standard engine
approx. 0.3 litres
Engine oil consumption 1.0 g/kWh
Pos: 3.23 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 3.24 /KN2006-Projekte/Bukh-Farymann/Techni sc he Daten/1.1 Motoröl - Spezifikation @ 45\mod_1188125176765_2.doc @ 570422
Diesel engine Series 15B / 18B
Technical data
2008-09-08 27
3.13 Engine oil specification
The engine oil quality has a significant influence on the lifetime,
performance and thus also the cost-effectiveness of the engine.
The ambient temperature at the installation location or application
of the engine is crucial for the selection of the correct viscosity
class.
Too high viscosity can result in starting difficulties; too low viscosity
can endanger the lubrication effect and result in high lubrication oil
consumption. The viscosity is classified according to SAE.
Basically, use mulltigrade oils.
Depending on the lubrication oil temperature, we recommend the
following common viscosity classes.

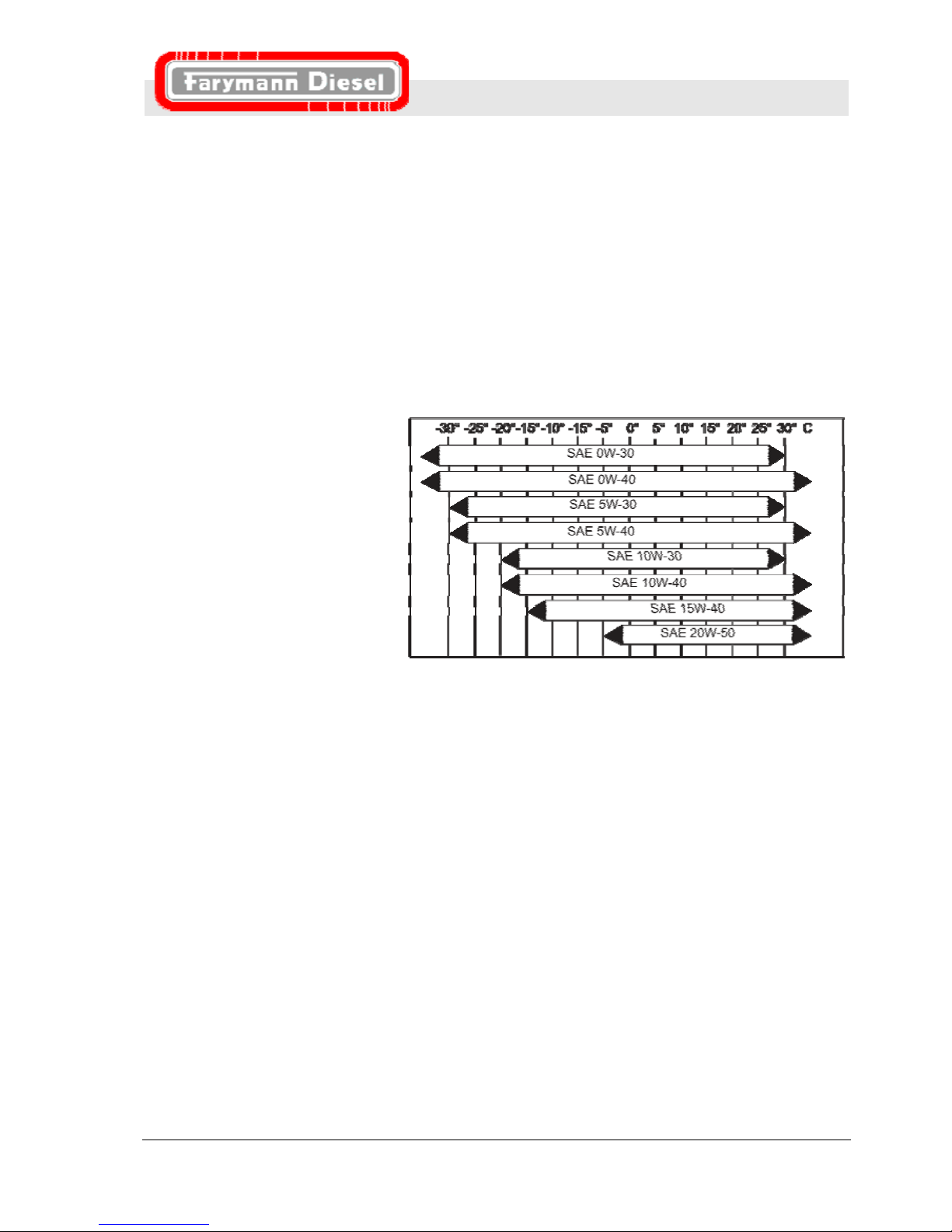

Viscosity classes according to
ambient temperature
Fig. 4
Diesel engine Series 15B / 18B
Structure and function
28 2008-09-08
Pos: 4.1 /KN2006-SM/Aufbau und Funktion/001 1 Aufbau und Funktion _Titel @ 8\mod_1143713625726_2.doc @ 83163
4 Structure and function
Pos: 4.2 /KN2006-SM/Aufbau und Funktion/002 1.1 Übersic ht_ Titel @ 9\mod_1144046023684_2.doc @ 84434
4.1 Overview
Pos: 4.3 /KN2006-Projekte/Bukh-Farymann/Aufbau und Fu nk tion/Übersicht1 6415 @ 54\mod_1196678612936_2.doc @ 836260

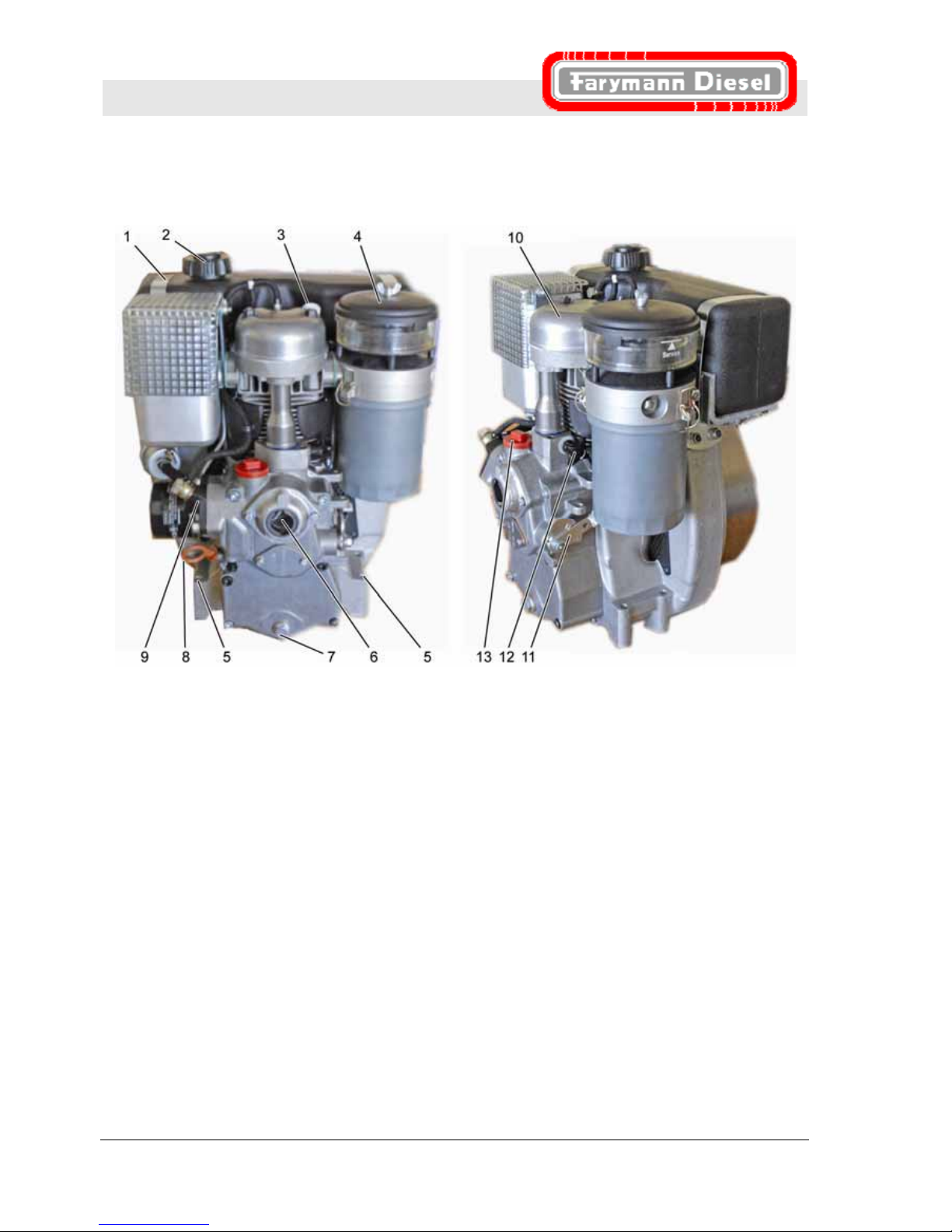

Fig. 5: Front view Left view
1 Fuel tank (4.0 litre)
2 Fuel filler cap
3 Lifting eye for transport
4 Dry type air cleaner
5 Engine mounting points
6 Starting handle support bearing
7 Oil drain plug
8 Oil dipstick
9 Injection pump
10 Valve cover
11 Speed adjusting lever
12 Decompression unit
13 Oil filler cap
Diesel engine Series 15B / 18B
Structure and function
2008-09-08 29

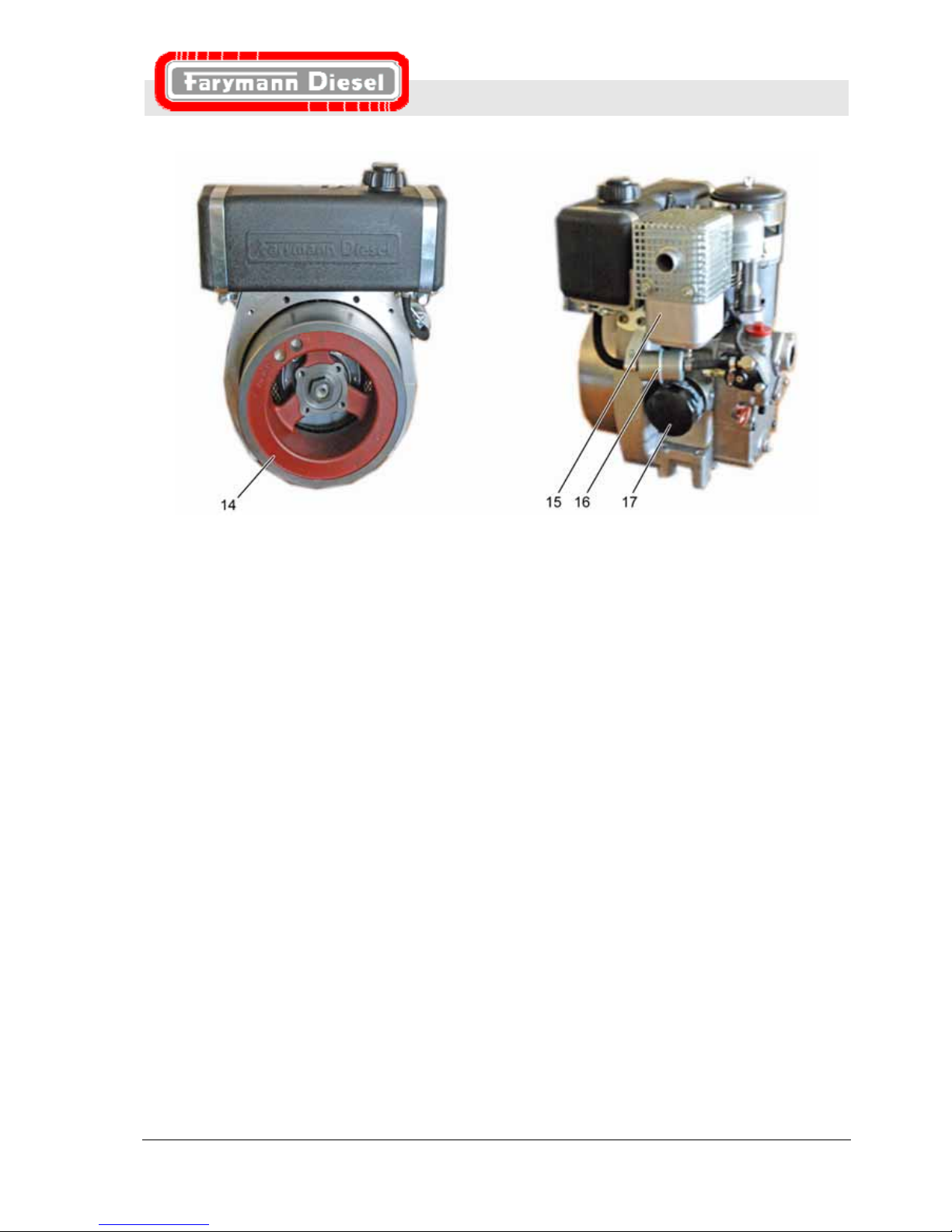

Fig. 6: Output side Right view
14 Flywheel
15 Exhaust silencer (with protection against
contact)
16 Fuel filter
17 Oil filter
Pos: 4.4 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 4.5 /KN2006-Projekte/Bukh-Farymann/Aufbau und Fu nk tion/1.1 Elektrische Anlage6415 @ 54\mod_1196518664538_2.doc @ 836018
Diesel engine Series 15B / 18B
Structure and function
30 2008-09-08
4.2 Electrical System
4.2.1 Alternator (option)

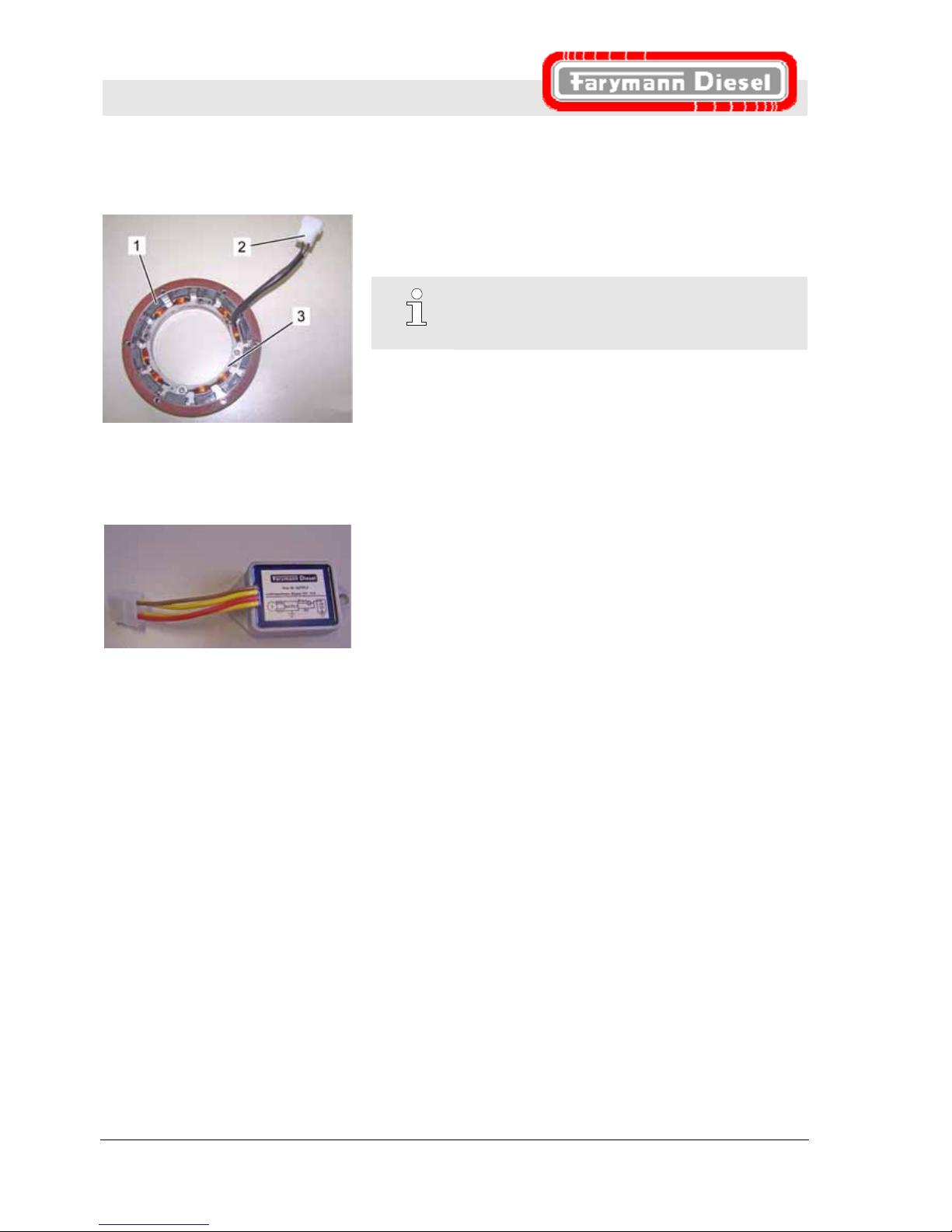

Fig. 7: Example: Alternator
The permanent magnets on the magnet carrier (1) induce an
alternating current proportional to speed in the coils
of the stator (3).
NOTE!
The connector at cable (2) on the alternator can be
one of various versions.
4.2.2 Alternator regulator (option)
Fig. 8: Example: Alternator regulator
The alternating current is rectified in the alternator regulator (fig. 8)
and constantly regulated to approx. 14.2-14.5 V.
z 2 x yellow (alternator coils input, can be connected either
way)
z 1 x red (charging current output)
z 1 x brown (charge indicator, connecting terminal 15 ignition
switch)
z Earth connection is made using mounting surface.
4.2.3 Operating conditions
Permitted operating temperatures -20 °C to 70 °C (measured
on the alternator regulator surface).
There must be an intact earth connection between alternator
regulator and engine and between alternator regulator and
external attachment (no painted mounting surfaces).
Diesel engine Series 15B / 18B
Structure and function
2008-09-08 31
4.2.4 Dangers and cause of failure
Dangers Cause of failure
Battery terminals incorrectly
connected
Damage to the charging circuit
Defective battery or complete
discharge
Destruction of the alternator
regulator
Disconnection of the battery
when the engine is running
Immediate destruction of the
alternator regulator
External start with jump leads
for defective or completely
discharged battery
Destruction of the alternator
regulator
Manual starting with
disconnected battery
Destruction of the alternator
regulator
Interruption of the earth
connection of the alternator
regulator to the engine
Destruction of the alternator
regulator
Welding work
WARNING!
Material damage due to welding work on the
machine!
Welding work on the machine can cause high
material damage.
Therefore:
– always disconnect the negative pole of the
battery in advance.
– disconnect the plug connection to the
alternator regulator.
Pos: 4.6 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 4.7 /KN2006-Projekte/Bukh-Farymann/Aufbau und Fu nk tion/1.1.1 Batterie 2032 @ 49\mod_1193135037088_2.doc @ 761139
Diesel engine Series 15B / 18B
Structure and function
32 2008-09-08
4.2.5 Batteries
Observe the following safety factors:
Batteries produce explosive gases.
Keep away from naked flames and other ignition sources. Do
not smoke.
Do not lay any tools on the battery.
Always disconnect the negative pole of the battery before
performing work on the electrical system.
Do not mix up the + (plus) and - (minus) poles of the battery.
Connect the plus cable first and the minus cable afterwards
when installing the battery.
Disconnect the minus cable first and the plus cable afterwards
when removing the battery.
Always avoid short-circuits and earth contact of live cables.
In the case of faults in the electrical system, first check the
cable connections for good contact.
Replace defective indicator lamps immediately.
Do not remove the ignition key during operation.
Do not disconnect the battery while the engine is running
(occurring voltage peaks can destroy electronic components,
e.g. the alternator regulator).
Do not spray parts of the electrical system during engine
cleaning with a water jet or high pressure jet.
Always disconnect the minus terminal of the battery and
disconnect the plug connection to the alternator regulator for
welding work.
Pos: 4.8 /KN2006-Projekte/Bukh-Farymann/Aufbau und Fu nk tion/Batterien 2032 @ 54\mod_1196412973906_2.doc @ 834161
Batteries
WARNING!
Risk of injury due to incorrect handling of
batteries!
Batteries must be handled with particular caution.
Therefore:
– Never expose batteries to high temperatures.
There is a risk of explosion.
– Escaping liquid due to incorrect use can result
in skin rashes. Avoid contact with the liquid.
Always rinse with a lot of water in the case of
contact with the liquid. If the liquid gets into the
eyes, rinse immediately with water and contact
a doctor immediately.
Diesel engine Series 15B / 18B
Transport, packing and storage
2008-09-08 33
Pos: 5.1 /KN2006-SM/Transport, Verpackung und Lagerung/001 1 Transport, Verpackung und Lagerung_Titel @ 9\mod_1144048567385_2.doc @ 84504
5 Transport, packing and storage
Pos: 5.2 /KN2006-SM/Transport, Verpackung und Lagerung/ 002 1. 1 Sicherheitshinweise für den Transport_Titel @ 9\mod_1144048644190_2.doc @ 84511
5.1 Safety notes for transport
Pos: 5.3 /KN2006-Projekte/Bukh-Farymann/Transport, Verpackung und Lagerung/Unsachgemäßer Transport @ 48\mod_1191325180893_2.doc @ 636977
Improper transport
CAUTION!
Damage due to improper transport!
Significant damage to property and injuries to
persons can occur in the case of improper
transport.
Therefore:
– Proceed carefully when unloading the packages
and on delivery and internal transport and
observe the signs and notices on the packing.
– Only use the attachment points provided.
– Do not remove packing until just before the
installation.
Pos: 5.4 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 5.5 /KN2006-SM/Transport, Verpackung und Lagerung/ 004 1. 1 Transportinspektion_Titel @ 9\mod_1144054094956_2.doc @ 84694
5.2 Transport inspection
Pos: 5.6 /KN2006-SM/Transport, Verpackung und Lagerung/ 004 1. 1.0 Transportinspektion - Inhalt, Kurzform @ 9\mod_1144054141858_2.doc @ 84751
Check the delivery immediately on receipt for completeness and
transport damage.
If externally detectable transport damage is found, proceed as
follows:
Do not accept the delivery, or only with reservation.
Record the extent of transport damage in the transport
documents or on the delivery note of the forwarding agent.
Start complaints procedure.
NOTE!
Claim any damage as soon as it is detected.
Compensation claims can only be submitted within
the applicable complaints periods.
Pos: 5.7 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Transport, packing and storage
34 2008-09-08
Pos: 5.8 /KN2006-SM/Transport, Verpackung und Lagerung/ 005 1. 1 Verpackung_Titel @ 9\mod_1144054971395_2.doc @ 84772
5.3 Packing
Pos: 5.9 /KN2006-SM/Transport, Verpackung und Lagerung/ 005 1. 1.0 Zur Verpackung @ 9\mod_1144055345537_2.doc @ 84786
Concerning packing
The individual packages have been packed to match the transport
conditions that can be expected. Only environmentally friendly
materials were used for packing.
The packing has the function of protecting the individual
components against damage, corrosion, etc., until they are finally
assembled. The packaging material must therefore not be
damaged and should only be removed just before assembly takes
place.
Pos: 5.10 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 5.11 /KN2006-SM/Transport, Verpackung und Lagerung/ 00 5 1.1.0 Umgang mit Verpackungsmaterialien @ 9\mod_1144055030585_2.doc @ 84779
Handling packing materials
If there is no returns agreement for the packing, separate materials
according to type and size and direct to further use or recycling.
CAUTION!
Environmental damage caused by incorrect
waste disposal!
Packing materials are valuable raw materials and
can continue to be used in many cases or sensibly
reconditioned and recycled.
Therefore:
– Dispose of packing materials environmentally.
– Follow the locally valid waste disposal
regulations. If necessary employ a special
waste disposal company to dispose of packing
material.
Pos: 5.12 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 5.13 /KN2006-SM/Transport, Verpackung und Lagerung/ 00 6 1.1 Transport_Titel @ 12\mod_1145448098995_2.doc @ 90990
Diesel engine Series 15B / 18B
Transport, packing and storage
2008-09-08 35
5.4 Transport
Pos: 5.14 /KN2006-Projekte/Bukh-Farymann/Transp or t, Verpackung und Lagerung/Transport mit dem Kran 6415 @ 54\mod_1196522087190_2.doc @ 836036
Transport of the engine with the
crane

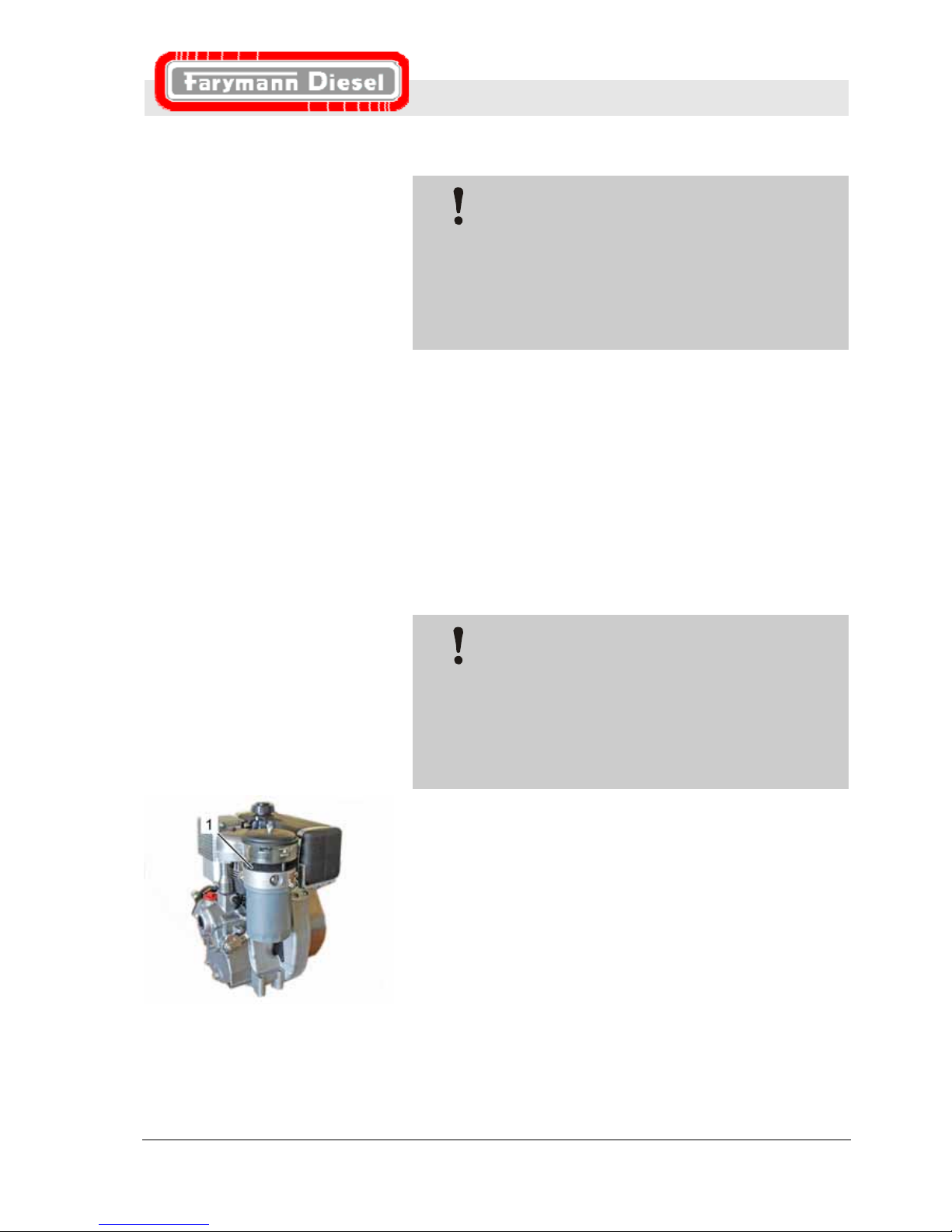

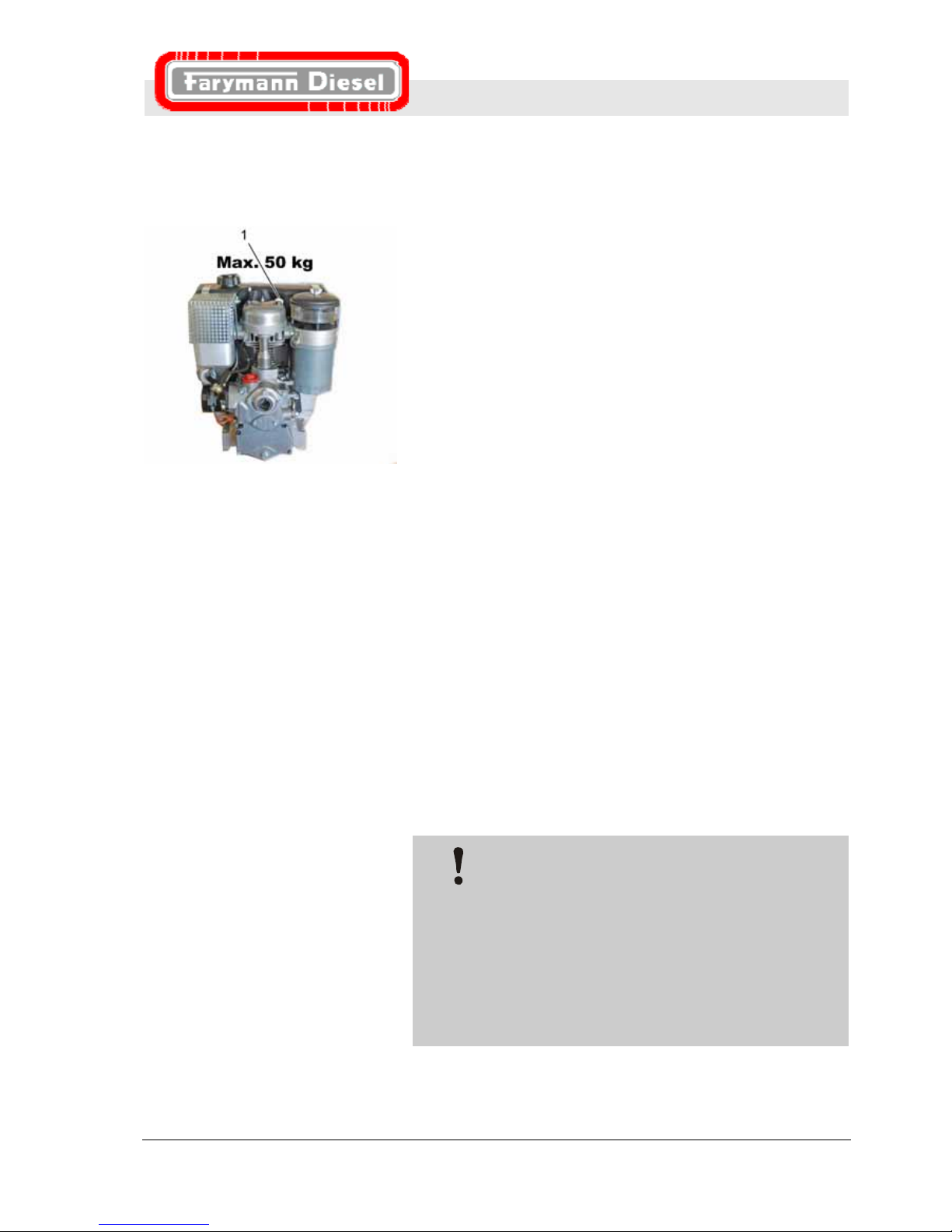

Fig. 9: Transport with the crane
The engine has one lifting eye (fig. 9/1) and can be transported
directly with a crane under the following conditions:
Crane and lifting gear must be designed for the weight of the
engine.
Only lift and transport the engine in the normal position (engine
mounting points at the bottom).
The operator must wear a safety helmet, safety shoes and
protective gloves and must be authorised to operate the crane.
Attaching:
1. Attach ropes, belts or chains accordingly (fig.9).
2. Ensure that the engine is attached straight.
3. Do not start the transport until then.
Pos: 5.15 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 5.16 /KN2006-Projekte/Bukh-Farymann/Transp or t, Verpackung und Lagerung/007 1.1.0 Lagerung des Motors @ 45\mod_1188038327592_2.doc @ 570014
Storage of the engine
Store new engines under the following conditions:
Do not store outdoors.
Store dry and dust-free.
Do not expose to any aggressive media.
Protect against direct sunlight.
Avoid mechanical vibrations.
Storage temperature: 15 to 35 °C.
Relative humidity: max. 60 %.
In the case of storage for longer than 3 months, check the
general condition of all parts and the packing regularly. If
required, refresh or renew the anti-corrosion protection.
Storage of the engines up to 12 months is possible under the
above conditions.
CAUTION!
Damage due to improper storage!
Parts of the engine can corrode and become nonfunctional in the case of too high relative
humidity or air containing salt.
Therefore:
– In the case of storage for longer than 6 months,
contact the nearest Greaves Farymann Diesel
service partner in order to agree suitable
precautions.
Diesel engine Series 15B / 18B
Installation and commissioning
36 2008-09-08
Pos: 6.1 /KN2006-SM/Installation & Inbetriebnahme/ 001 1 I nstallation und Erstinbetriebnahme_Titel @ 9\mod_1144393592402_2.doc @ 86334
6 Installation and commissioning
Pos: 6.2 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 6.3 /KN2006-SM/Installation & Inbetriebnahme/ 002 1. 1 Sicherheit_Titel @ 9\mod_1144395122392_2.doc @ 86369
6.1 Safety
Pos: 6.4 /KN2006-SM/Installation & Inbetriebnahme/003 1.1.0 Personal --> Standard --> ggf. anpassen @ 12\mod_1144395266192_2.doc @ 86376
Personnel
Installation and commissioning may be executed only by
specially trained personnel.
All work on the electrical system must be performed by a
qualified electrician.
Pos: 6.5 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 6.6 /KN2006-Projekte/Bukh-Farymann/Instal lation und Inbetriebnahme/1.1 Installation2032 @ 48\mod_1191325974338_2.doc @ 636992
6.2 Installation
Pos: 6.7 /KN2006-Projekte/Bukh-Farymann/Instal lation und Inbetriebnahme/Schwungrad anbauen 6415 @ 54\mod_1196686152882_2.doc @ 836308
6.2.1 Mounting the flywheel
Must only be performed by a specialist.
Additional protective equipment required:
z Safety footwear
Special tool needed:
z Torque wrench

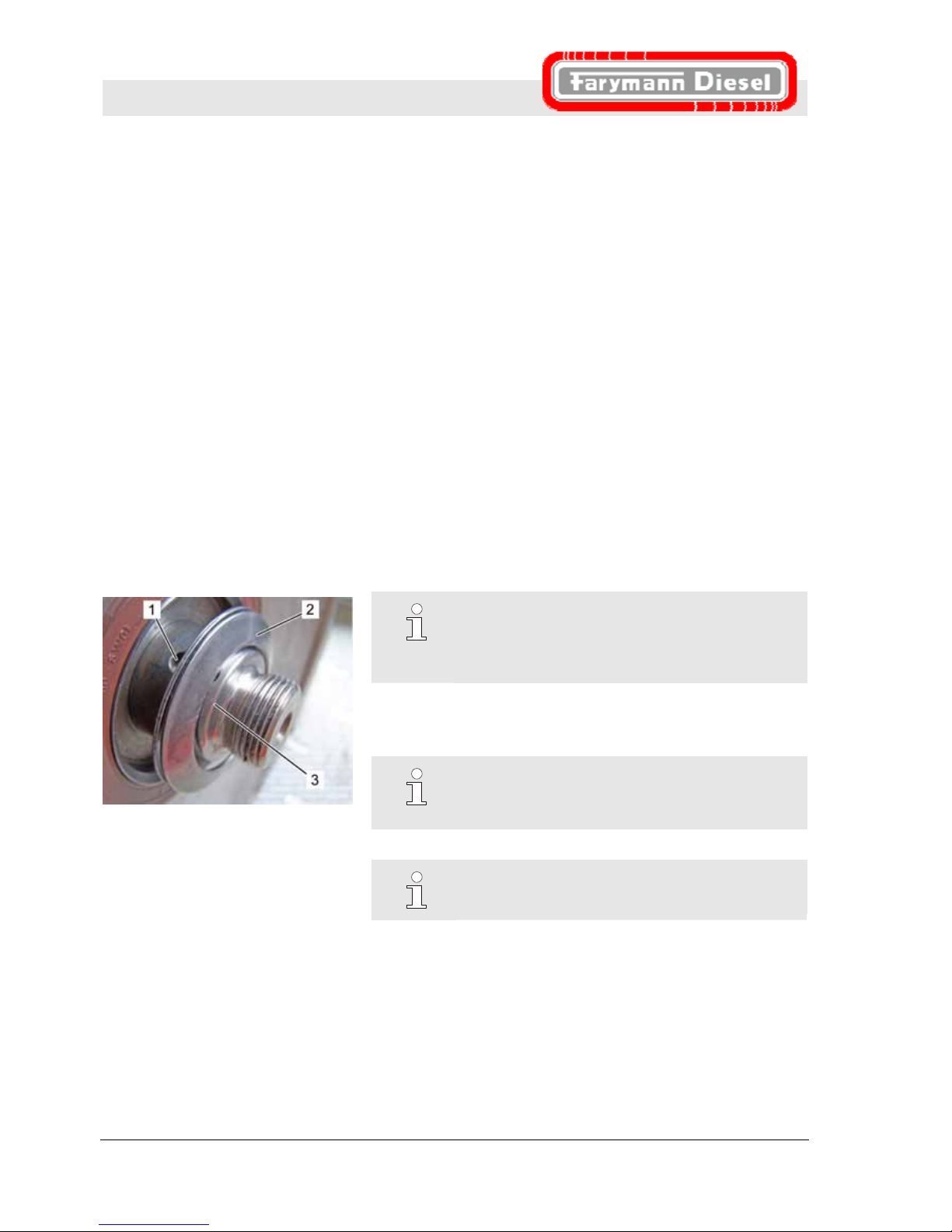

Fig. 10
NOTE!
Always check the flywheel nut with a torque
wrench for 216 to 226 Nm before every
installation in or attachment to the machine.

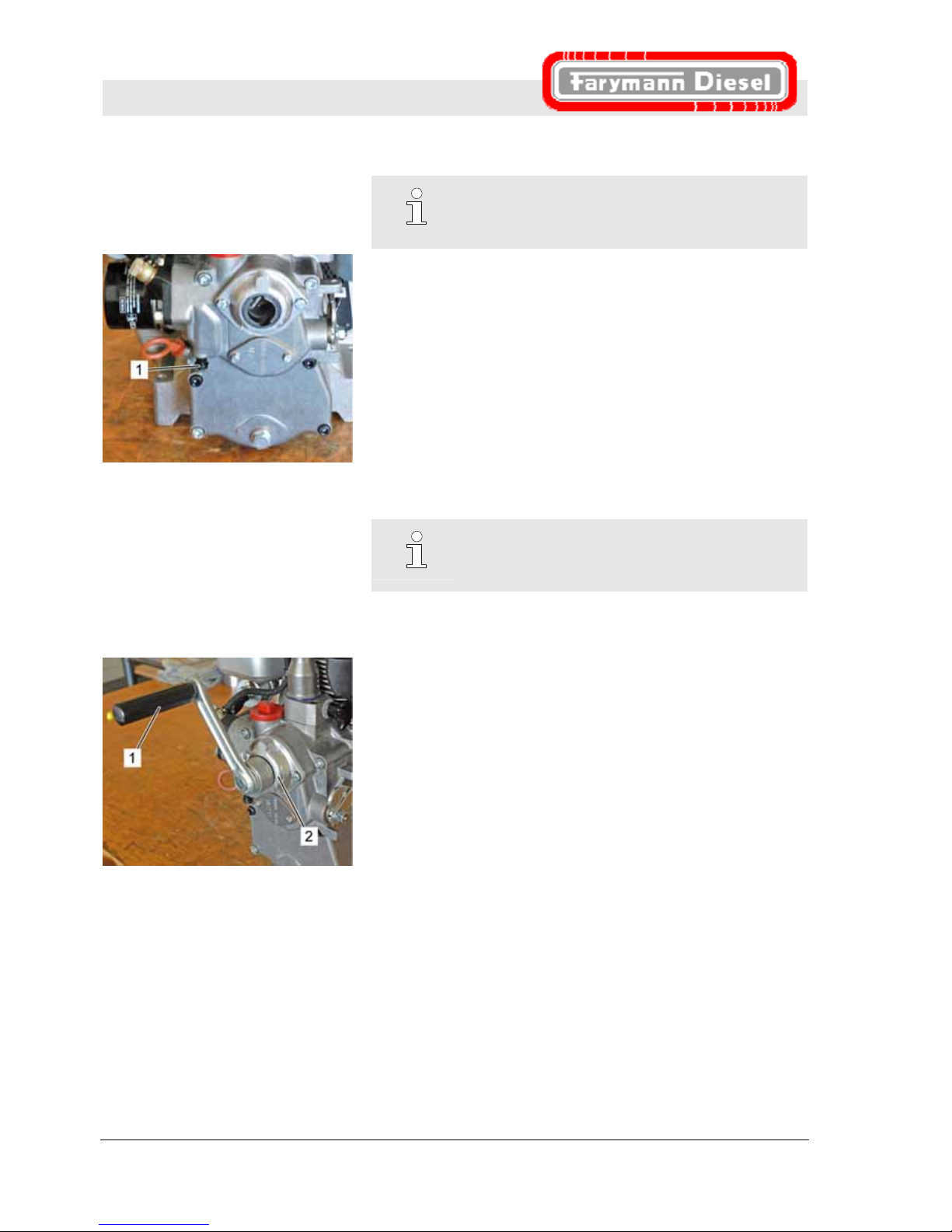

1. Install engine on suitable mounting.
2. Turn engine slowly with the crank handle until the keyway (1)
in the crankshaft (3) faces upwards.
NOTE!
This position makes installation of the flywheel
easier.
3. Place both plate washers (2) on the crankshaft (3).
NOTE!
The flat sides of the plate washers face each other.
Diesel engine Series 15B / 18B
Installation and commissioning
2008-09-08 37

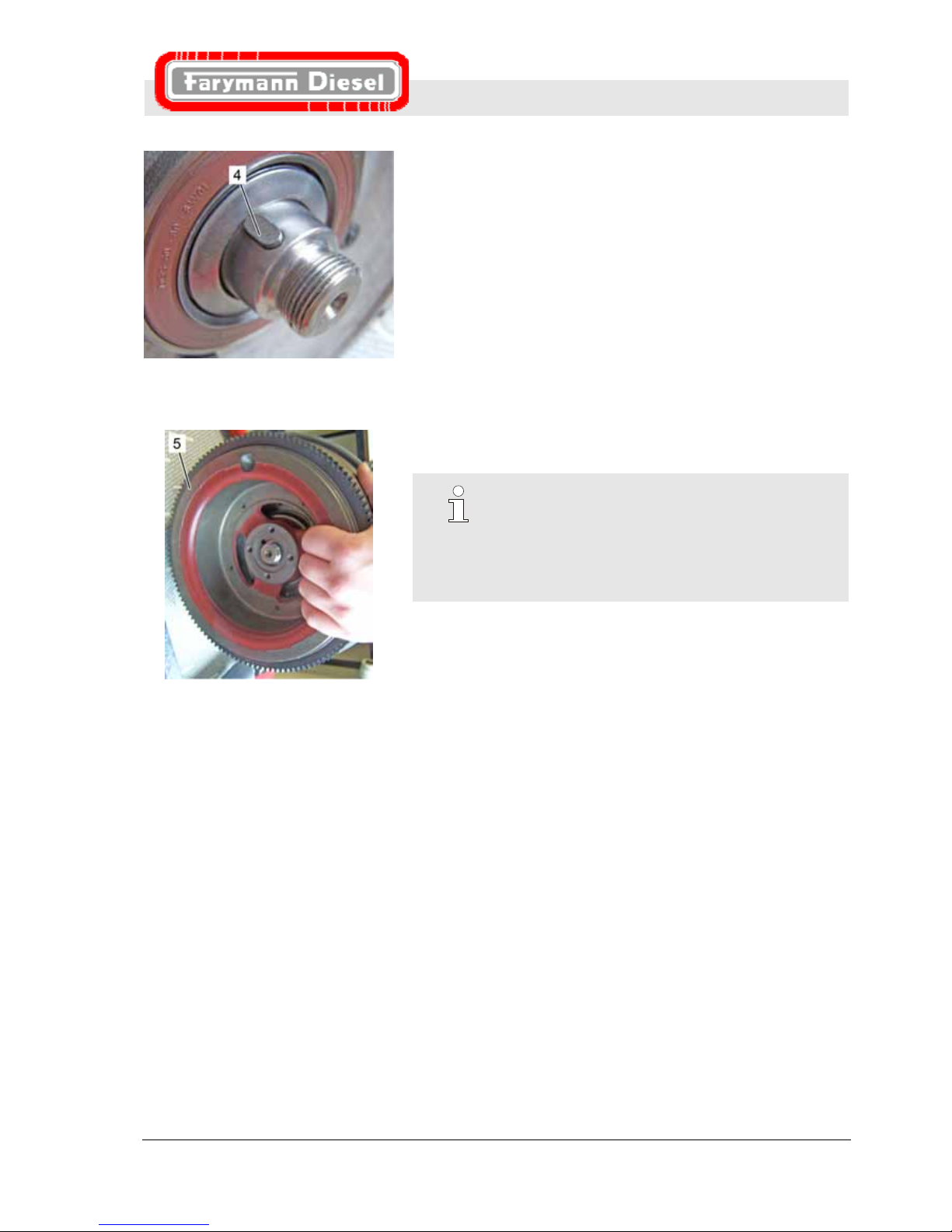

Fig. 11
4. Install key (4) into the keyway of the crankshaft and ensure
that this sits correctly.
Fig. 12
5. Install the flywheel (5) ensuring that it is not twisted during the
installation.
NOTE!
In the case of improper installation of the flywheel,
the magnets of the magnet carrier (e.g. for engines
with alternator) can be damaged. The alternator
does not function correctly if the magnets are
damaged.
Diesel engine Series 15B / 18B
Installation and commissioning
38 2008-09-08

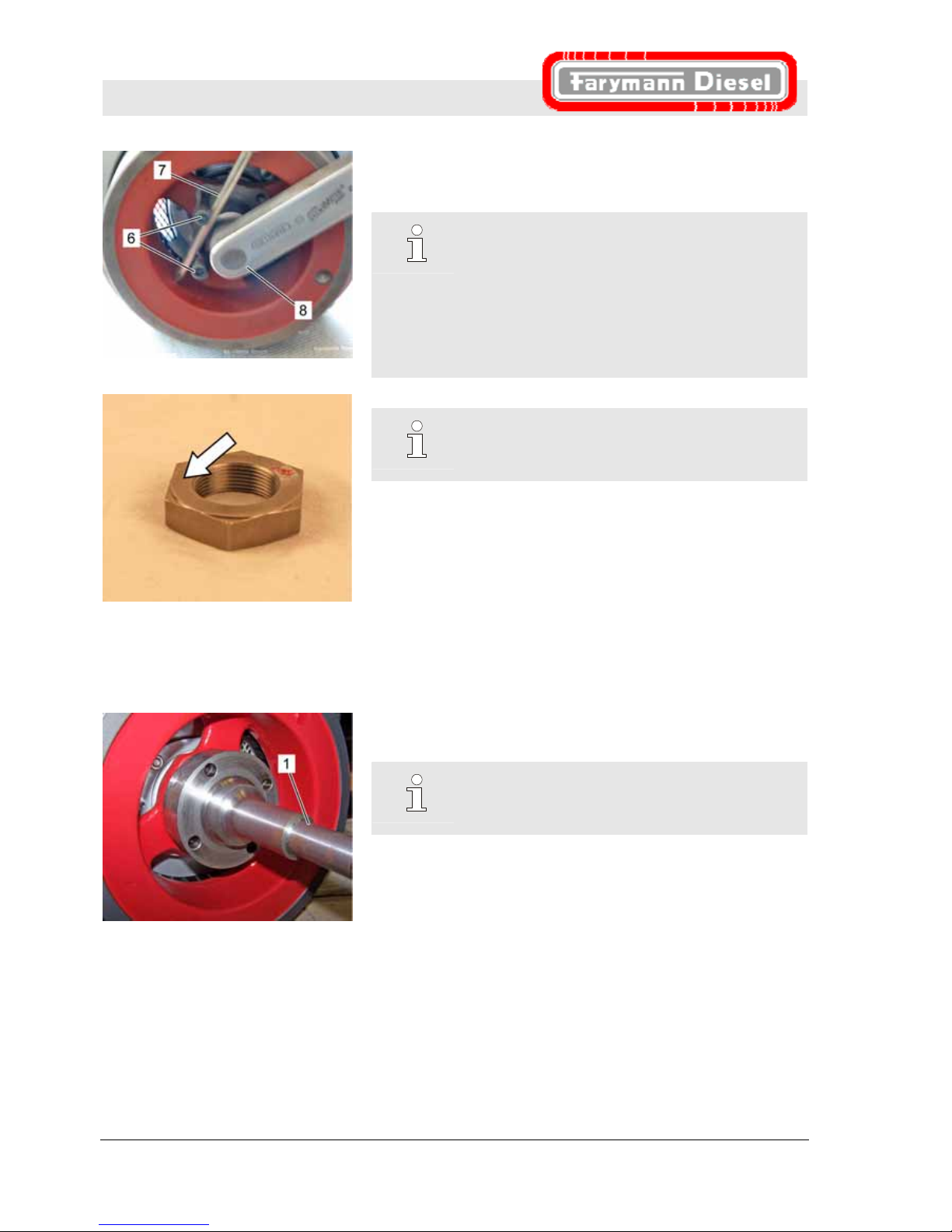

Fig. 13
Fig. 14
6. After the installation of the flywheel, check without fail that the
key is seated in the keyway of the crankshaft before screwing
on the flywheel nut.
NOTE!
In the case of improper mounting of the flywheel,
the key can fall out of the crankshaft keyway. This
results in the flywheel not being properly fixed. Due
to the missing key, the flywheel nut can slacken
when starting the engine. This results in the
crankshaft and the flywheel being severely
damaged.
7. Screw on the flywheel nut as far as possible by hand.
NOTE!
In doing so, ensure that the machined flat side
(arrow) of the flywheel nut is facing the crankshaft.
8. Screw two bolts (6) into the thread provided on the flywheel.
9. Fix the flywheel with a suitable lever (e.g. tyre lever) (7).
10. Tighten the flywheel nut with a torque wrench (8) to
216 - 226 Nm.
11. Turn the flywheel by hand and examine for unobstruct ed
movement (must not jam).
6.2.2 Attaching stub shaft (option)
Fig. 15: Example: Stub shaft
Example: Not all applications need a stub shaft.
12. Attach stub shaft (1) to the flywheel.
NOTE!
Depending on the type of installation, the stub shaft
can be different from that shown in the picture.
Diesel engine Series 15B / 18B
Installation and commissioning
2008-09-08 39
6.2.3 Attaching speed controller
NOTE!
Depending on the version and installation position
of the engine, the speed controller can be installed
differently by the device manufacturer.
Depending on the version and installation position of the engine,
different versions for the speed controller can be attached (e.g.
rods, Bowden cable, manual, electric etc.).

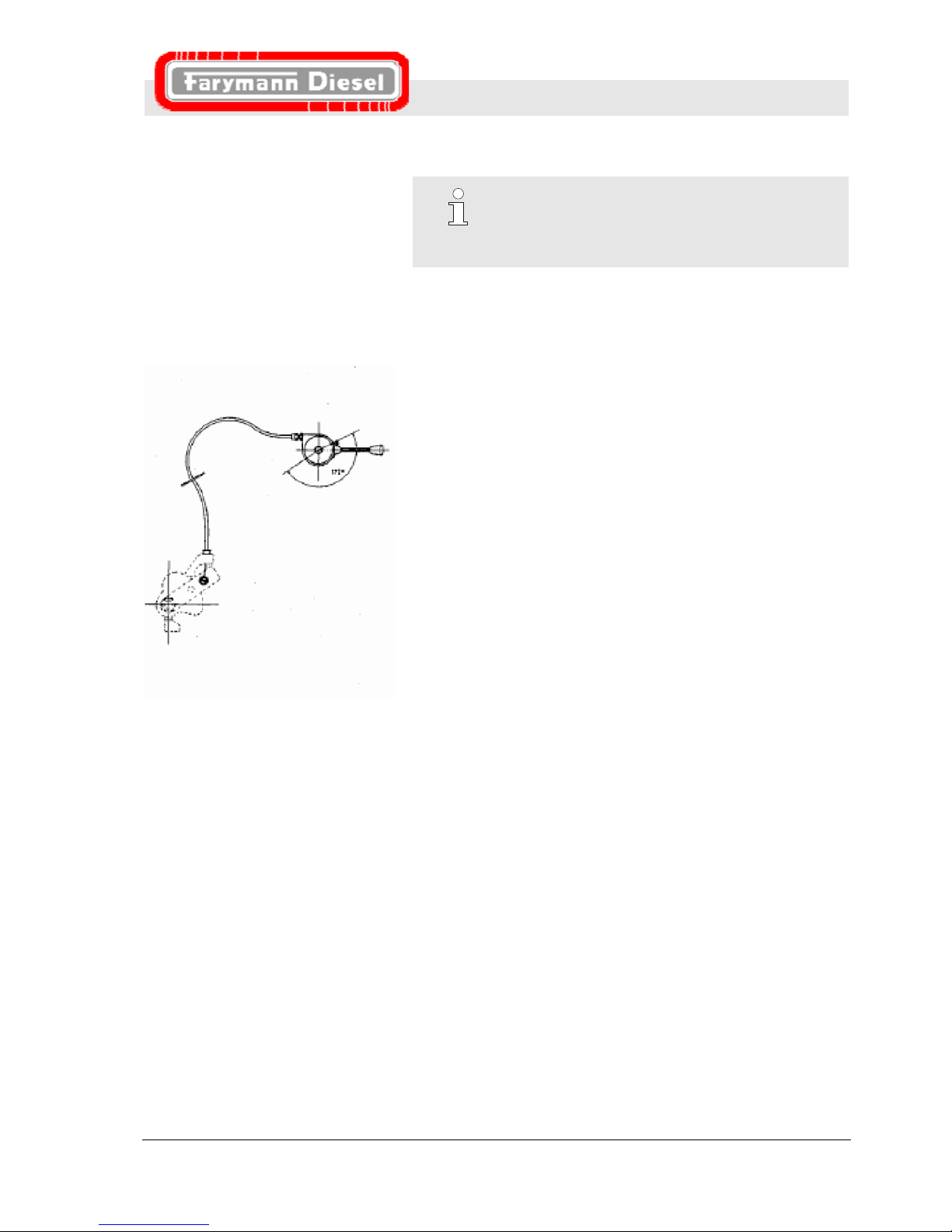

Fig. 16
Example: Speed controller with Bowden cable
Pos: 6.8 /KN2006-SM/nL.......... Seitenumbruch .......... @ 8\mod_1141998334703_0.doc @ 75491
Diesel engine Series 15B / 18B
Installation and commissioning
40 2008-09-08
Pos: 6.9 /KN2006-Projekte/Bukh-Farymann/Instal lation und Inbetriebnahme/1.1 Erstinbetriebnahme @ 47\mod_1190297379634_2.doc @ 628243
6.3 Initial commissioning
CAUTION!
Engine damage due to missing operating
materials!
The engine is delivered without operating
materials. Operation without all required
operating materials can destroy the engine.
Therefore:
– Fill with engine oil and diesel fuel before first
use.
– Only use operating materials which are
specified in the technical data.
– Observe the filling quantities.
– Before first use or after a long decommissioning
(more than 6 months), operate the engine after
starting for approx. 1 minute at low speed and
without load.
Due to this action, an optimum lubrication of all
bearings is achieved and a lack of lubrication is
avoided.
CAUTION!
Engine damage due to cold start aids!
The use of cold starting aid results in engine
damage.
Therefore:
– Never use cold starting aids.
Pos: 6.10 /KN2006-SM/nL.......... Seitenumbruch .......... @ 8\mod_1141998334703_0.doc @ 75491
Diesel engine Series 15B / 18B
Installation and commissioning
2008-09-08 41
Pos: 6.11 /KN2006-Projekte/Bukh-Farymann/Instal lation und Inbetriebnahme/1.1 Motoröl auffül len 6415 @ 54\mod_1196688564276_2.doc @ 836346
6.4 Filling with engine oil
CAUTION!
Engine damage due to incorrect oil quantity!
Too high or too low engine oil level can result in
damage to the engine.
Therefore:
– Never exceed the maximum level.
Never drop below the minimum level.
– The engine must stand up straight for checking
the oil level.

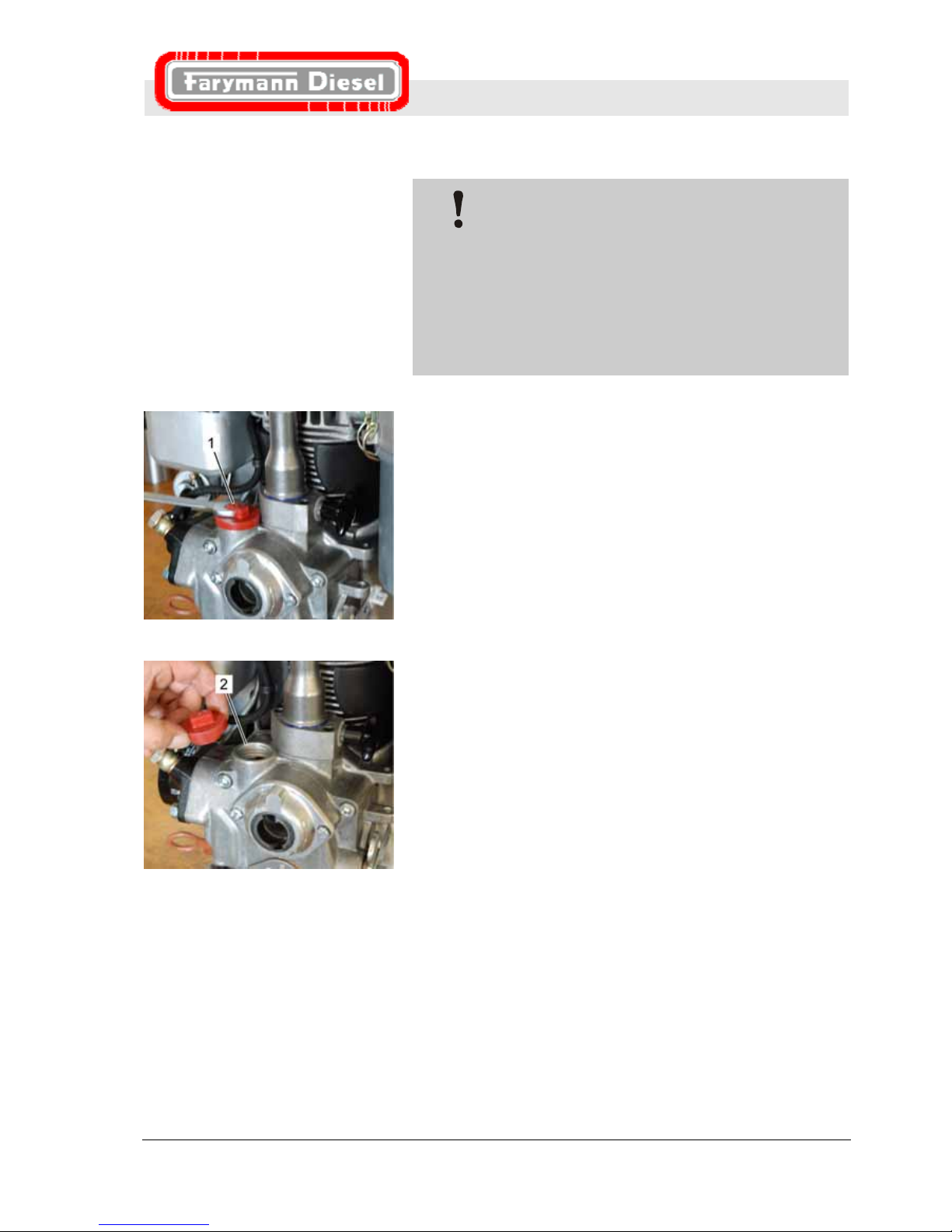

Fig. 17
1. Release oil filler cap (1) e.g. with a 13mm jaw spanner and
screw off by hand.
Fig. 18
2. Fill engine oil into the filling opening (2).
Diesel engine Series 15B / 18B
Installation and commissioning
42 2008-09-08

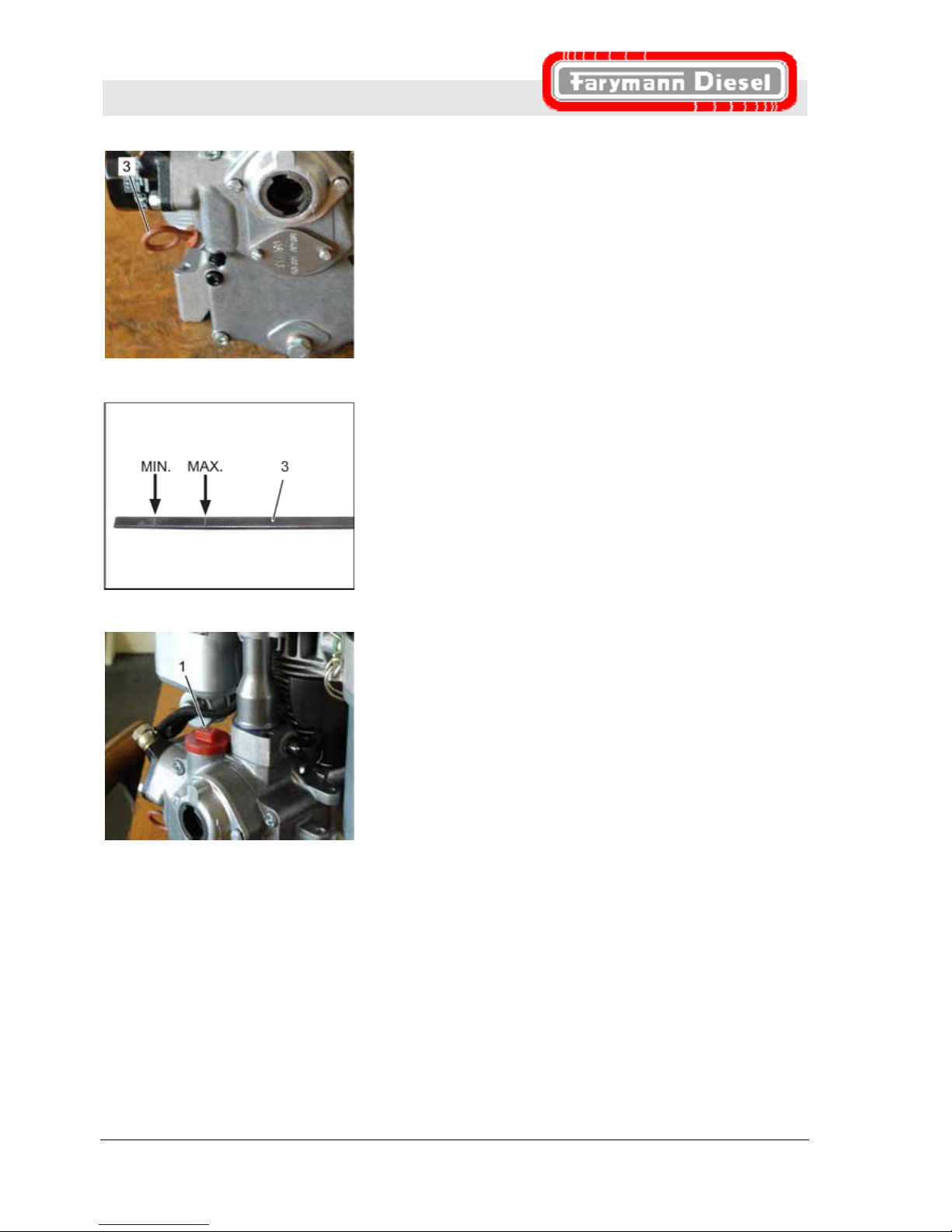

Fig. 19
3. Pull out oil dipstick (3) and clean the bottom end with a clean
and fluff-free cloth.
4. Replace the oil dipstick (3) and pull it out again.
Fig. 20
5. Check the oil level quantity. The oil level should be just under
the Max. marking.
6. Fill with engine oil if needed.
Fig. 21
7. Only tighten the oil filler cap (1) by hand (risk of breakage).
Pos: 6.12 /KN2006-SM/nL.......... Seitenumbruch .......... @ 8\mod_1141998334703_0.doc @ 75491
Diesel engine Series 15B / 18B
Installation and commissioning
2008-09-08 43
Pos: 6.13 /KN2006-Projekte/Bukh-Farymann/Instal lation und Inbetriebnahme/1.1 Kraftstoff auf f üllen 6415 @ 54\mod_1196690296374_2.doc @ 836484
6.5 Filling with fuel
CAUTION!
Engine damage due to contaminated fuel!
The injection system and the engine can be
damaged by dirt particles or other contamination in
the fuel.
Therefore:
– Only fill with clean diesel fuel according to EN
5090, DIN 590.
– Pay attention to cleanliness so that no dirt gets
into the fuel tank.
– The engine must stand up straight for filling with
fuel.
NOTE!
Use winter diesel fuel for temperatures below 0 °C.

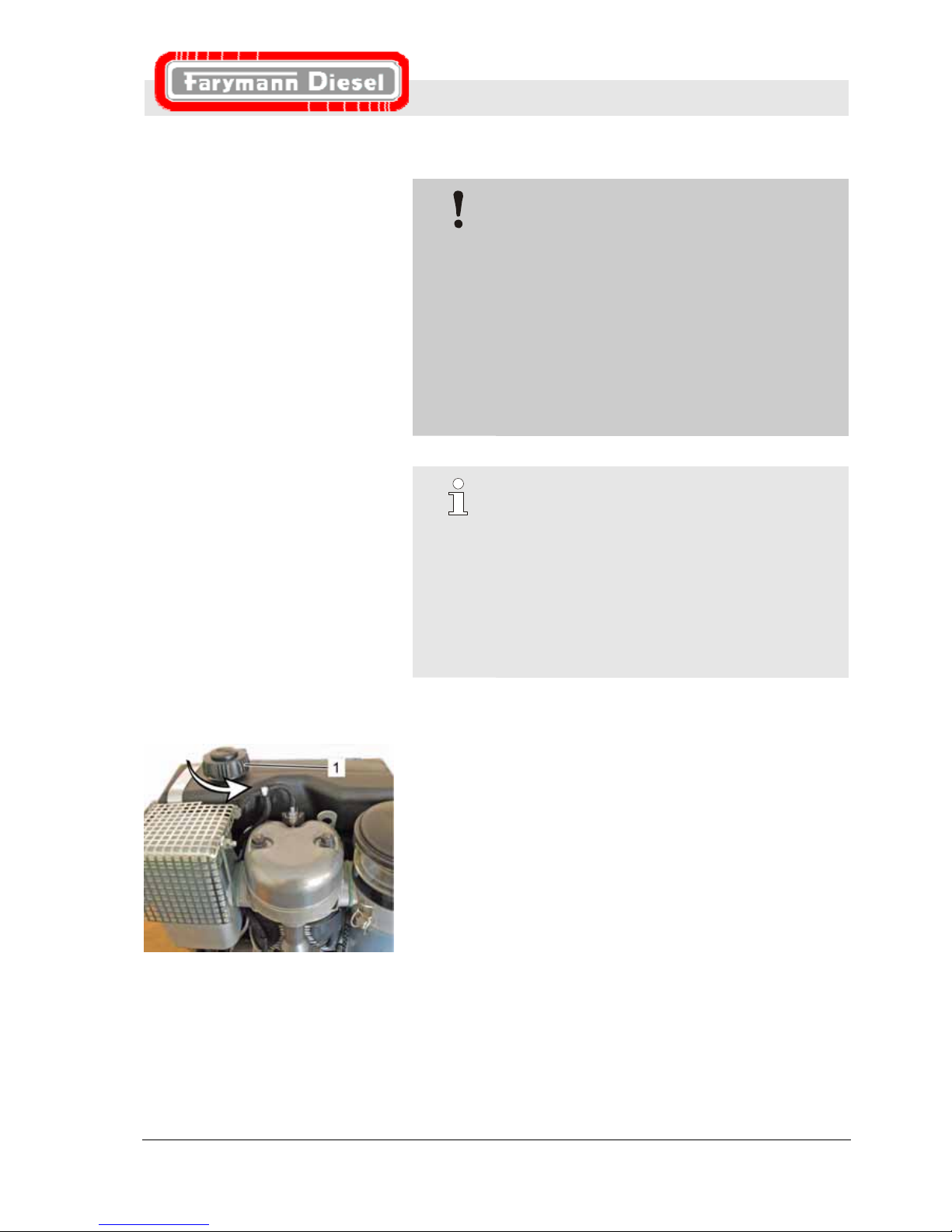

The fuel filler cap (Fig. 22/1) has a vent. Do not
make any modifications or use a non-original fuel
filler cap. Otherwise, optimum fuel supply is not
guaranteed.
Fill the tank to the maximum before first use or
after the fuel system runs empty. In this way, the
venting of the fuel system is performed
automatically (self-venting fuel system).

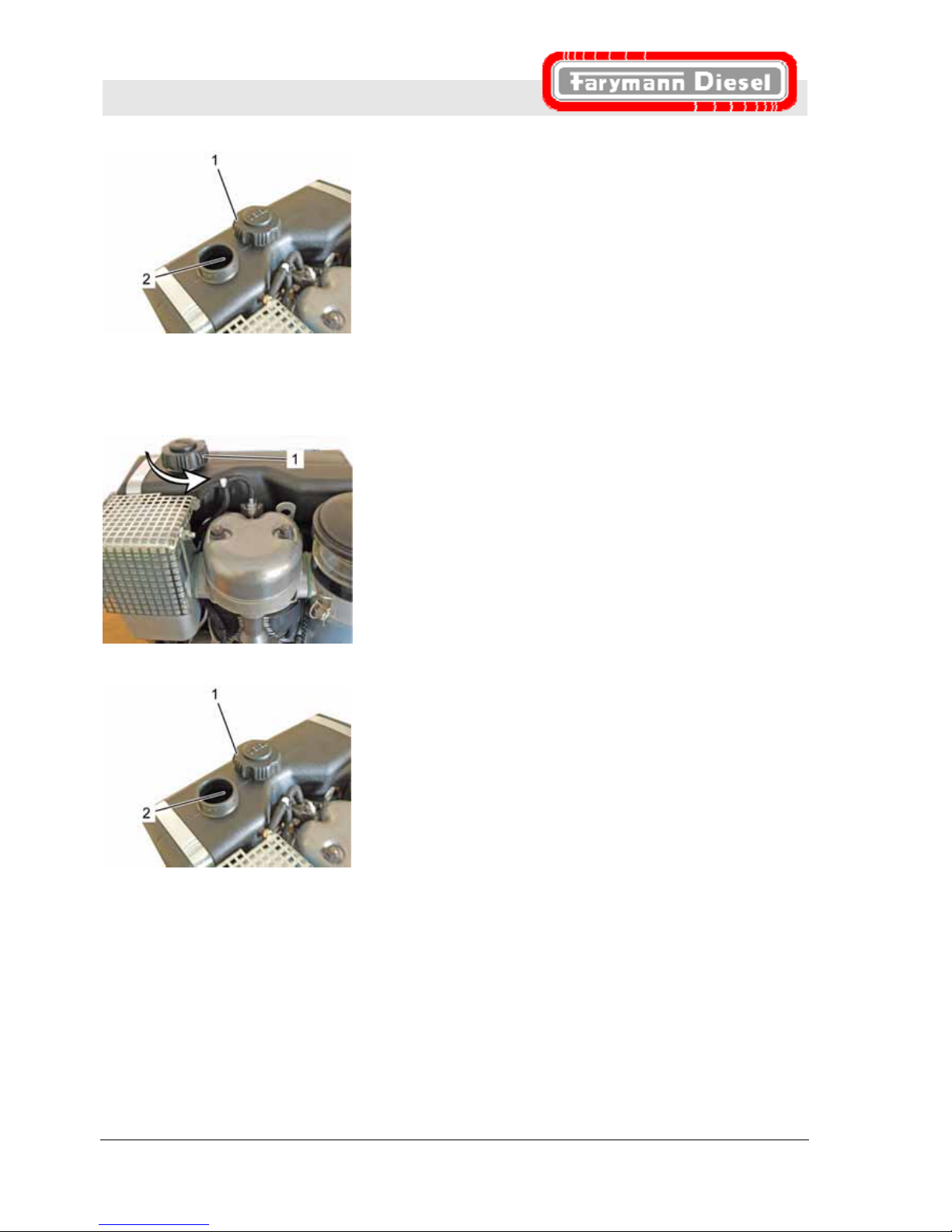

6.5.1 Filling process 4.0 litre tank (option)
Fig. 22
1. Open the fuel filler cap (1) by turning it anticlockwise.
Diesel engine Series 15B / 18B
Installation and commissioning
44 2008-09-08
Fig. 23
2. Fill with diesel fuel up to the bottom edge (2) of the tank's
filler neck as maximum.
z Tank capacity 3.9 litre (standard engine)
z Tank capacity 4.0 litre (option)
3. Determine fuel level by visual inspection.
4. Close the fuel filler cap (1) by turning it clockwise by hand.
6.5.2 Refilling, venting for engines with fuel feed pump (option)
Fig. 24
1. Open the fuel filler cap (1) by turning it anticlockwise.
Fig. 25
2. Fill with diesel fuel up to the bottom edge (2) of the tank´s
filler neck as maximum.
z Tank capacity 3.9 litre (standard engine)
z Tank capacity 4.0 litre (option)
3. Determine fuel level by visual inspection.
4. Close the fuel filler cap (1) by turning it clockwise by hand.
Diesel engine Series 15B / 18B
Installation and commissioning
2008-09-08 45
NOTE!
The engine has a self-venting fuel system. In the
case of the tank running empty, faultless operation
after refilling is ensured by the self-venting.

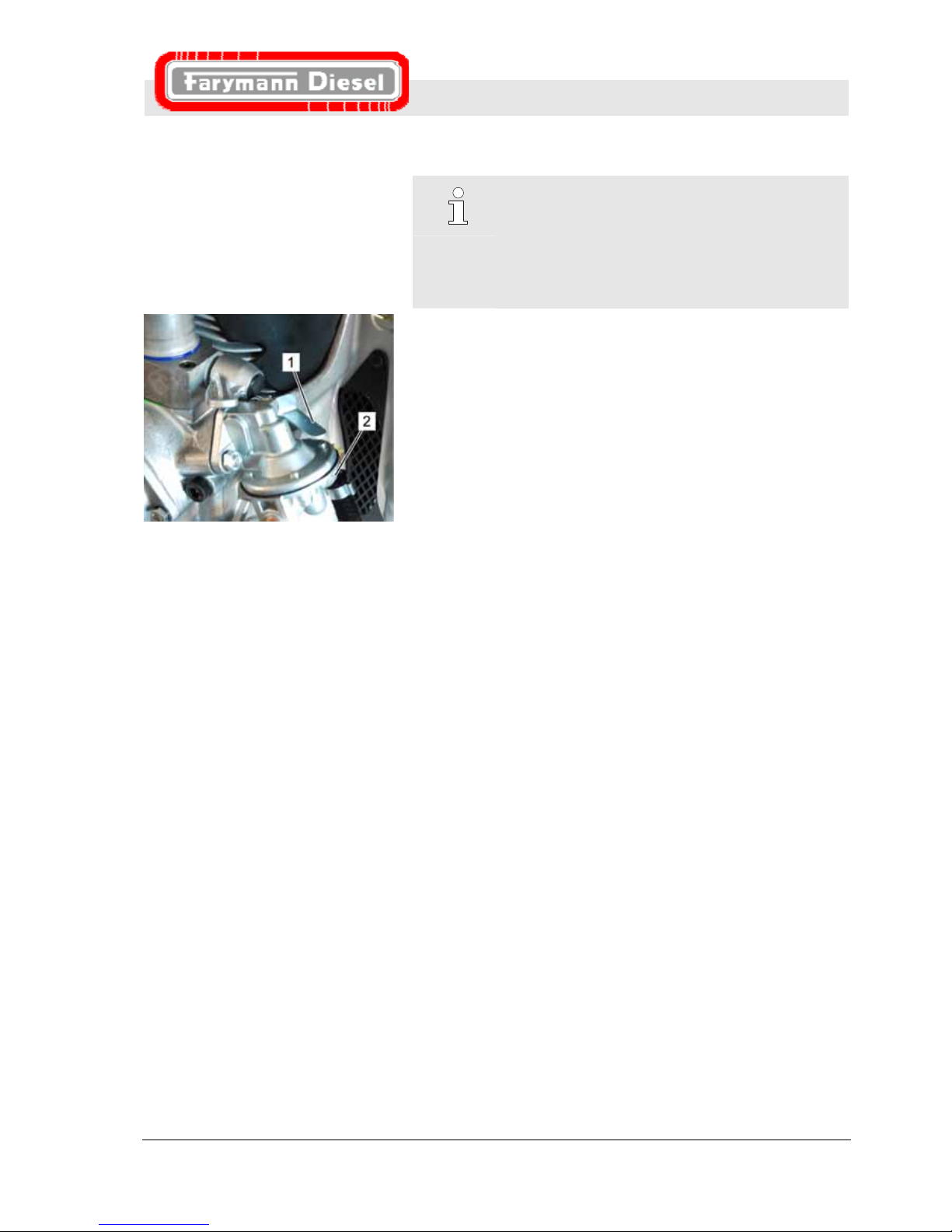

The venting can be accelerated by operating the
lever (1) on the fuel feed pump (2).
Fig. 26
5. Using the lever (1) on the fuel feed pump (2), pump by hand
until the counterpressure becomes noticeable.
This builds up the primary pressure in the fuel system and
accelerates the venting.
Pos: 6.14 /KN2006-SM/nL.......... Seitenumbruch .......... @ 8\mod_1141998334703_0.doc @ 75491
Diesel engine Series 15B / 18B
Operation
46 2008-09-08
Pos: 7.1 /KN2006-SM/Bedienung/001 1 Bedienung_Titel @ 9\ mod _11 44402040153_2.doc @ 86491
7 Operation
Pos: 7.2 /KN2006-SM/Bedienung/002 1.1 Sicherheit_Tit el @ 9\mod_1144402036547_2.doc @ 86456
7.1 Safety
Pos: 7.3 /KN2006-SM/Bedienung/003 1.1.0 Grundlegendes @ 12\ mod_1144402038705_2.doc @ 86477
Improper operation
WARNING!
Risk of injury due to improper operation!
Improper operation can result in severe personal
injuries or material damage.
Therefore:
– Perform all the operating steps in accordance
with the information in this operator´s manual.
– Ensure that all covers and safety devices are
installed and in proper working condition before
starting the work.
– Never deactivate safety equipment during
operation.
– Ensure tidiness and cleanliness in the working
area. Loose components and tools lying around
or on top of each other are sources of
accidents.
Pos: 7.4 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 7.5 /KN2006-Projekte/Bukh-Farymann/Bedienu ng/ Rotierende Bauteile 2032 @ 45\mod_1188039601537_2.doc @ 570078
Rotating parts
WARNING!
Risk of injury due to rotating parts
Rotating parts can cause severe injuries.
Therefore:
– Do not reach into or work on rotating parts
during operation.
– Do not open covers during operation.
– Note the run-on time of 10 to 20 seconds of the
engine:
Ensure there are no parts still moving and the
engine is not running before opening the
covers.
– Wear close-fitting clothing in the danger zone.
Pos: 7.6 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Operation
2008-09-08 47
Pos: 7.7 /KN2006-Projekte/Bukh-Farymann/Bedienu ng/ Abgase 2032 @ 45\mod_1188039785433_2.doc @ 570136
Exhaust gases
WARNING!
Danger of poisoning due to exhaust gases!
There is a danger of poisoning by odourless carbon
monoxide of the exhaust gases are inhaled.
Therefore:
– Never inhale the exhaust gases.
– Only operate the engine in well-ventilated
areas.
Pos: 7.8 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 7.9 /KN2006-Projekte/Bukh-Farymann/Bedienu ng/ Heiße Oberflächen Motoren @ 45\mod_1188040033883_2.doc @ 570147
Hot surfaces of the engine
components
CAUTION!
Risk of burns due to hot surfaces of the engine
components!
The engine can become very hot during operation.
Contact with the exhaust system and the engine
can cause burns.
Therefore:
– Never touch the engine during operation.
– Ensure that all parts have cooled down to the
ambient temperature before all work.
Pos: 7.10 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 7.11 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ Motoröl und Kraftstoff 2032 @ 49\mod_1193141476565_2.doc @ 761279
Engine oil and fuel
WARNING!
Danger of fire due to fuel and engine oil!
Oil and fuel vapours can ignite on contact with
ignition sources.
Therefore:
– No naked flames during work on the engine.
– Do not smoke.
– Remove oil and fuel residues from the engine
and floor.
CAUTION!
Danger of poisoning due to fuel and engine oil!
Contact with engine oil and fuel can result in
damage to health.
Therefore:
– Avoid skin contact with engine oil and fuel.
– Remove oil and fuel splashes from the skin
immediately.
– Do not inhale oil and fuel vapours.
Diesel engine Series 15B / 18B
Operation
48 2008-09-08
Pos: 7.12 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ 003 1.1.0 Persönliche Schutzausrüstung 43F (P02032) @ 31\mod_1172224750826_3.doc @ 358779
Personal protective equipment
Wear the following protective equipment for all operation work:
Protective clothing
Safety footwear
NOTE!
Protective equipment which must be worn for
certain work is specially pointed out in the warnings
of this chapter.
Pos: 7.13 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 7.14 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ Stillsetzen im Notfall @ 48\mod_1191327079687_2.doc @ 637007
The engine must be switched off as quickly as possible in
dangerous situations.
Emergency shutdown
Proceed as follow in the case of danger:
1. Switch off the engine immediately.
2. Inform the responsible person at the usage location.
3. Rescue people from the danger zone, initiate First Aid actions.
4. Switch off the main switch on the machine (if present) and
secure it against being switched on again.
5. Keep access routes clear for rescue vehicles.
After the rescue actions
6. If required for the severity of the emergency, inform the
responsible authorities.
7. Assign specialist personnel to the fault rectification.
WARNING!
Risk of fatal injury due to premature restarting!
There is a risk of fatal injury for all persons in the
danger zone when the machine is restarted.
Therefore:
– Ensure there are no persons in the danger zone
before restarting.
8. Before restarting, ensure that all safety devices are installed
and functional.
Pos: 7.15 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Operation
2008-09-08 49
Pos: 7.16 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ 1.1 Start vorbereiten 6415 @ 54\mod_1196692509502_2.doc @ 836522
7.2 Preparing for start
Checks
Carry out the following checks in order to avoid damage to the
engine:
Check engine oil level, refill with engine oil if necessary.
Check fuel level, refill with diesel fuel if necessary.
Check air filter for soiling, clean if necessary or replace air filter
element.
Check engine mounting.
Check machine for completeness of the safety equipment.
Check engine and machine for missing covers.
Check engine for damaged oil and fuel lines.
Check engine for damaged electrical cables and insulation.
Check engine for leaks.
Ensure sufficient supply of combustion and cooling air.
Diesel engine Series 15B / 18B
Operation
50 2008-09-08

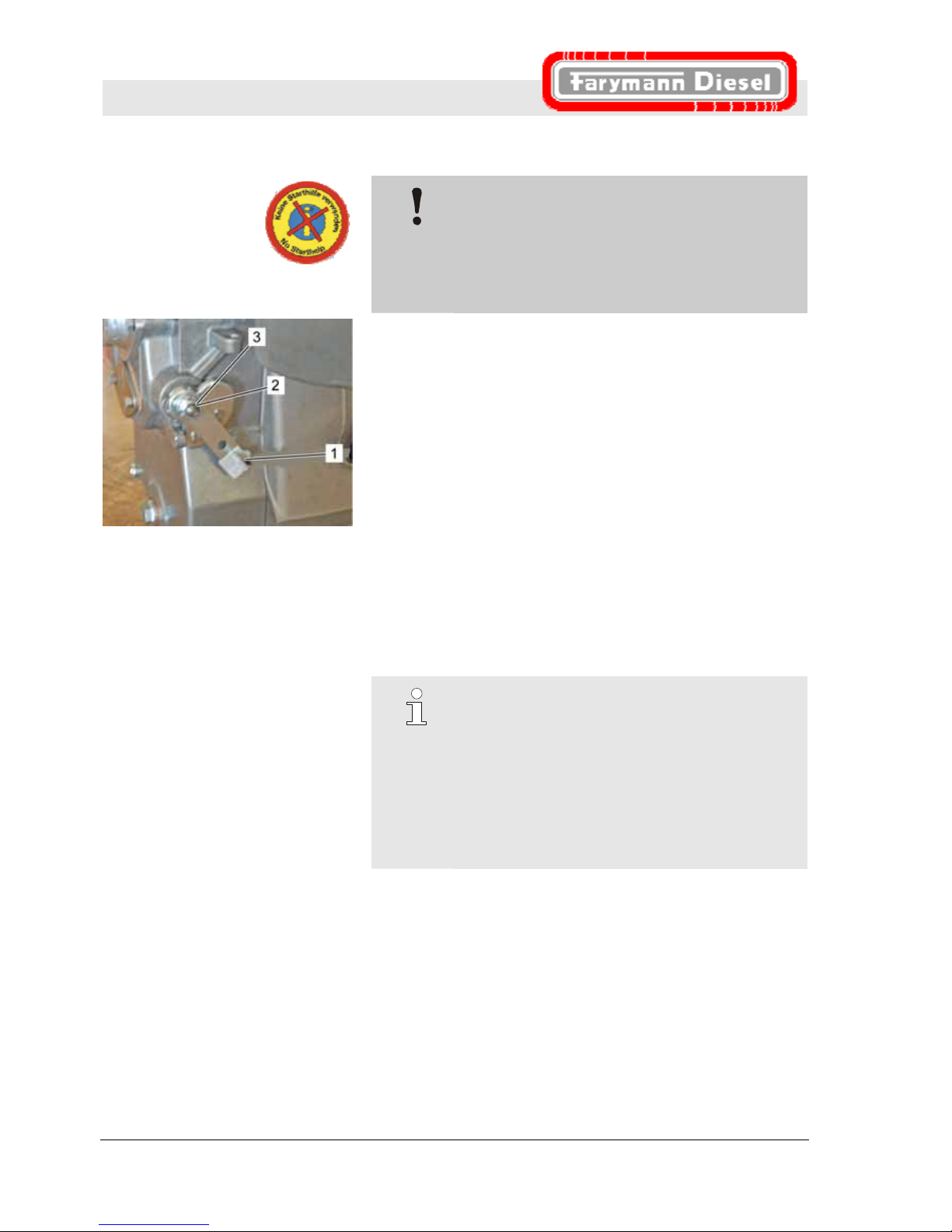

Setting cold start / warm start
CAUTION!
Engine damage due to cold start aids!
The use of cold starting aid results in engine
damage.
Therefore:
– Never use cold starting aids.
Fig. 27
The speed can be controlled using the speed adjustment lever.
The following positions are possible:
1 Stop – Engine off
2 Partial load range
3 Cold start and full load
Pos: 7.17 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 7.18 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ Handstart 6600 @ 66\mod_1207659164833_2.doc @ 1134309
7.3 Manual starting
NOTE!
In the case of outdoor temperatures below 5 °C,
the engine must be rotated to the speed
adjustment "max" position.
Put the speed adjustment lever into the increased
idle speed position in the case of a cold engine.
If the engine does not start, the starting speed is
too low. Constant and accelerated revving supports
the engine starting.
Manual starting
The engine is equipped with an automatic decompression and an
excess fuel device for a safe manual start.
Diesel engine Series 15B / 18B
Operation
2008-09-08 51

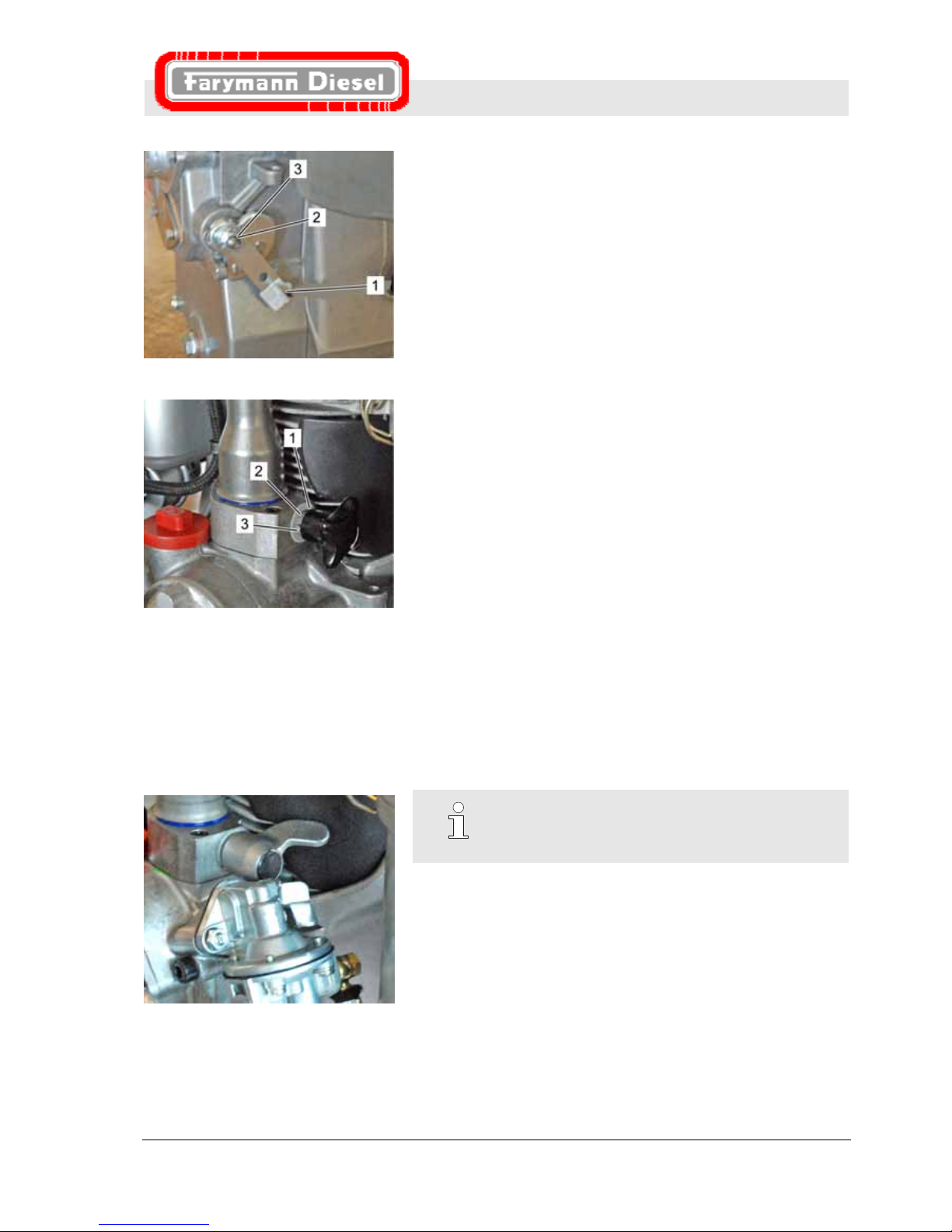

Fig. 28
1. If the engine is cold, put the speed adjustment lever (1) in the
increased idle speed position (3).
If the engine is warm, put the speed adjustment lever (1) into
position (2) (depending on the application).
Fig. 29: Example: automatic
decompression with star knob
2. Turn decompression button to the right (clockwise) to the
starting position (1).
1 Starting position
2 Neutral position
3 Operating position
Starting position: The automatic decompression operates for
the manual starting of the engine with the crank handle. If the
decompression unit's pin has moved to the operating position,
the decompression has finished. The compression begins and
the engine starts.
Neutral position: In the neutral position the compression is
switched off. By turning the engine with the crank handle all
bearings are provided with engine oil (e.g. following repair or
before commencement of cold start at extremely cold
temperatures).
Operating position: In the operating position the
decompression is switched off and the engine is under
compression.
Fig. 30: Example: automatic
decompression with lever
NOTE!
Never use the automatic decompression to
switch off the engine.
Diesel engine Series 15B / 18B
Operation
52 2008-09-08
Excess fuel device
NOTE!
The excess fuel device (Fig. 33/1) must be
pulled out for cold starting.
Fig. 31: Excess fuel device
All engines are equipped with an excess fuel device (1) to make
starting them easier.
A lever limits the injection pump control shaft's path. If the starting
excess button (1) is pulled out when starting the lever allows a
longer path for the control shaft.
As soon as the engine has reached the maximum speed permitted
by the governor the mechanical speed governor pushes the control
shaft to stop and the starting excess button returns to its starting
position.
Therefore it is important that the engine is started without load
and can reach its maximum speed. Otherwise the starting excess
button does not return to its starting position and the engine is
constantly overloaded.
NOTE!
When starting the engine when warm (operating
temperature) do not pull out the excess fuel device.
Manual starting
Fig. 32
1. Turn automatic decompression to the right (clockwise) to the
starting position (fig. 29/1).
2. Put the speed adjustment lever in the increased idle speed
position (fig. 28/3).
3. Pull out excess fuel device for cold start (fig. 31/1).
4. Insert the crank handle (1) in the starting handle support
bearing (2) and turn slowly clockwise until the crank handle is
engaged.
Diesel engine Series 15B / 18B
Operation
2008-09-08 53

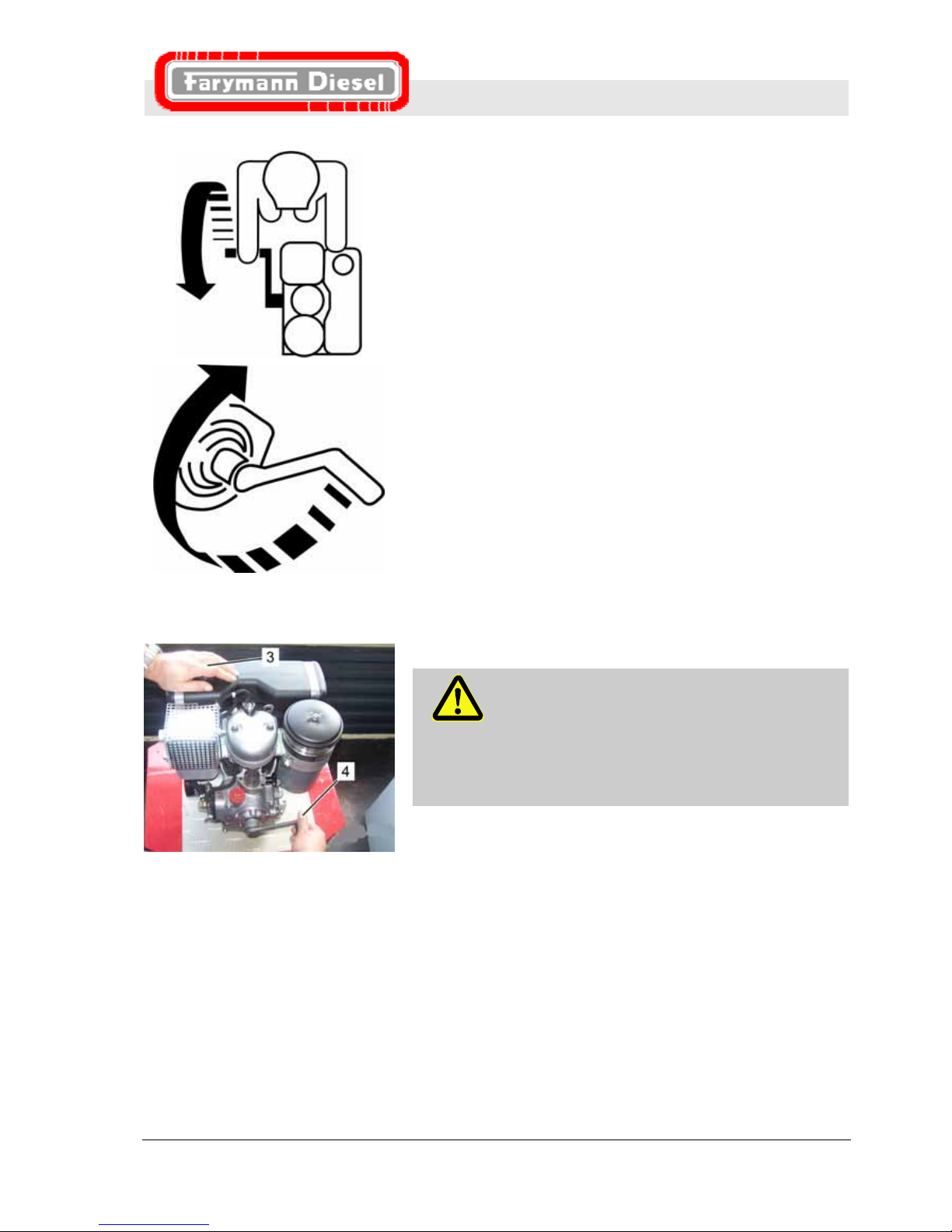

Fig. 33
5. Erect on the left in front of the engine and ensure a secure
position.
Fig. 34
6. Support the fuel tank with your left hand (3).
CAUTION!
Risk of injury due to rotating crank handle!
There is a risk of injury when starting the engine by
hand.
Therefore:
– Do not encircle the handle with your thumb.
7. Hold crank handle with your right hand and thumb on top (4)
and turn to the right (clockwise); in doing so increase the
speed continuously.
Turning further and faster with the crank handle supports starting
the engine.
Diesel engine Series 15B / 18B
Operation
54 2008-09-08
NOTE!
The automatic decompression operates for the
manual starting of the engine. If the pin has moved
to the operating position (fig. 29/3), the
decompression is finished. The compression
begins and the engine starts.
8. Absolutely continue turning after the first compression until the
crank handle is overtaken by the running engine and
disengaged.
NOTE!
If the engine does not start, repeat the starting
procedure (continuous cranking at a steadily
increasing speed will help starting) and
increase the speed.
NOTE!
When starting the engine when warm
(operating temperature) do not pull out the
excess fuel device.
Pos: 7.19 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 7.20 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ 1.1 Starten mit elektrischen Anlasser 6415 @ 54\mod_1196698 229608_2.doc @ 836658
7.4 Starting with electric starter
NOTE!
For engines with an electric starter the
automatic compression does not need to be
activated. The engine is started with e.g. a key
switch.
CAUTION!
Damage due to starting while the engine is
running!
Incorrect operation of the starter can damage it.
Therefore:
– Only operate the starter when the engine is not
running.
– Do not operate the starter for longer than 10 to
20 seconds and release the key when the
engine is running.
– Wait approx. 30 seconds before repeating
starting.
Diesel engine Series 15B / 18B
Operation
2008-09-08 55
CAUTION!
Engine damage due to cold start aids!
The use of cold starting aid results in engine
damage.
Therefore:
– Never use cold starting aids.
The engine in the version with a starter is started using a key
switch (see e.g. operating instructions of the device manufacturer).

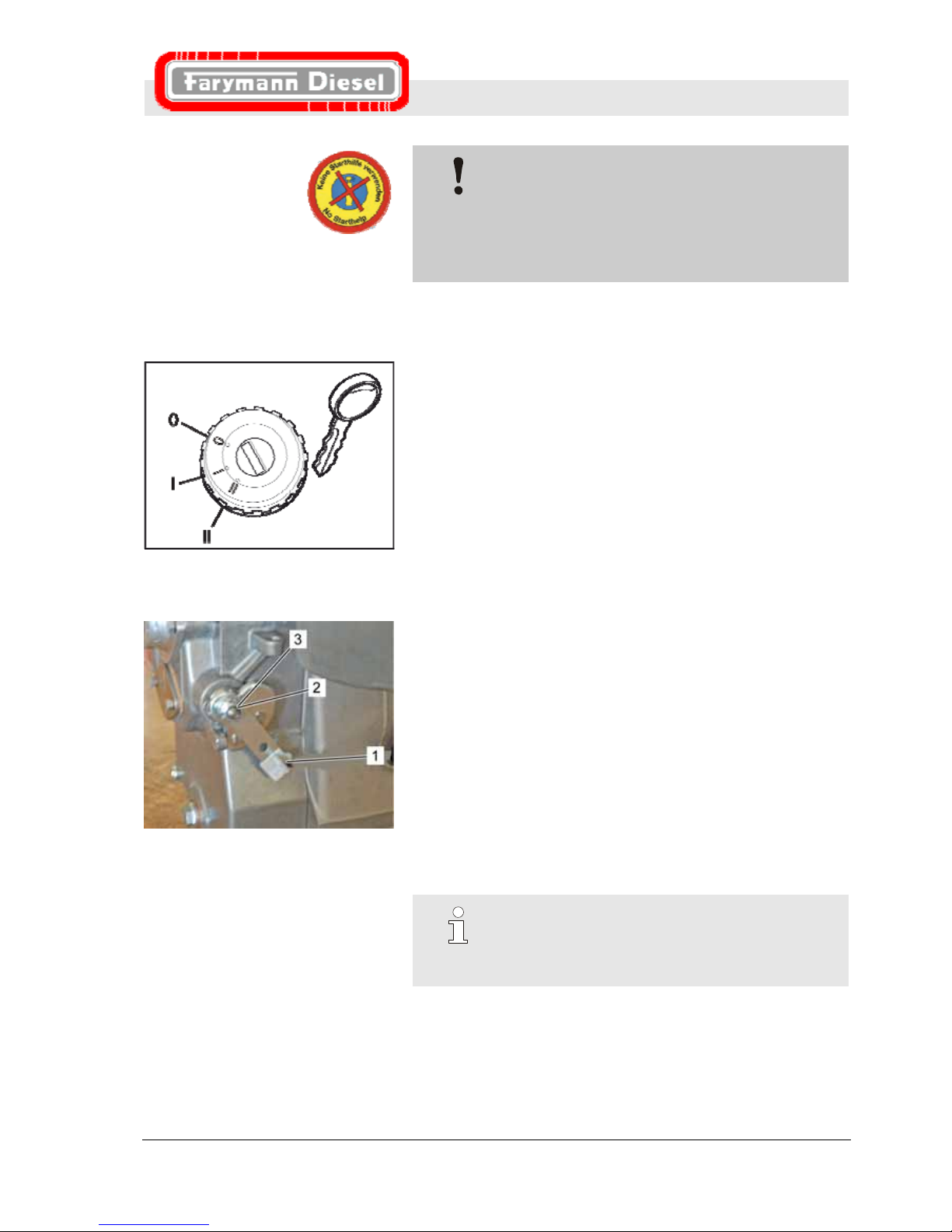

Fig. 35
Example of the key switch positions:
0 Electrical system switched off. Key can be removed.
I Electrical system switched on.
Operating position
II Electrical system switched on.
Starting position
Starting engine
Fig. 36
1. If the engine is cold, put the speed adjustment lever (1) in the
increased idle speed position (3).
If the engine is warm, put the speed adjustment lever in the
position (2) (depending on the application of the engine).
2. Turn key e.g. to position I. Any existing indicator lamps from
the machine must light afterwards (e.g. oil check, battery
charge check, etc.).
3. Press in the key, turn as far as position II and release
immediately after the engine starts.
NOTE!
If the engine does not start, the battery voltage can
be too low. Charge the battery or replace it if
necessary.
Pos: 7.21 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Operation
56 2008-09-08
Pos: 7.22 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ 1.1 Betrieb @ 45\mod_1188111341864_2.doc @ 570294
7.5 Operation
CAUTION!
Engine damage due to incorrect operation!
The lifetime of the engine can be reduced due to
incorrect operation.
Therefore:
– Strictly observe the following instructions for first
use, normal operation and continuous
operation.
CAUTION!
Engine damage due to cold start aids!
The use of cold starting aid results in engine
damage.
Therefore:
– Never use cold starting aids.
First use
WARNING!
Risk of injury due to leaking fuel!
Fuel escaping from the injection system can
penetrate the skin and eyes due to the high
pressure and cause severe injuries.
Therefore:
– Wear safety goggles during first use and check
the fuel system for leak tightness.
– If fuel escapes, switch off the engine and
contact the nearest Greaves Farymann Diesel
service partner.
Let the engine warm up for approx. 5 minutes after starting.
Increase load slowly.
After the first 25 operating hours, carry out the following
work in accordance with the maintenance work:
z Change the engine oil and replace oil filter (see Chapter 8.6
Changing engine oil and oil filter).
z Arrange for the valve clearance to be checked by the
nearest Greaves Farymann Diesel service partner (see
Chapter 8.10 Adjusting valve clearance).
Diesel engine Series 15B / 18B
Operation
2008-09-08 57
Normal operation
Let the engine warm up for approx. 5 minutes after starting.
Increase load slowly.
Do not let the engine idle longer than 30 minutes and do not
operate without load (longer idling of the engine can result in
excessive carbonisation on the piston and cylinder barrel).
Continuous operation
Let the engine warm up for approx. 5 minutes after starting.
Increase load slowly.
Check the engine oil level every 15 hours during continuous
operation and refill with engine oil if necessary (see Chapter
Filling engine oil).
For this purpose:
z Switch off the engine
z Wait 5 minutes so that the oil can flow back from all bearings
into the oil sump or additional oil sump (for engines with
additional oil sump).
z Check engine oil level and correct if necessary.
z Start the engine again.
Pos: 7.23 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 7.24 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ 1.1 Abstellen 6415 @ 54\mod_1196698488440_2.doc @ 836876
7.6 Switching off
CAUTION!
Risk of injury due to engine run-on!
After switching off, the engine runs on for approx.
10 to 20 seconds.
Therefore:
– Wait until the engine is at a standstill before
starting all work.
CAUTION!
Engine damage due to premature switching off!
Switching off under load can reduce the lifetime of
the engine.
Therefore:
– During full load operation, let the engine idle for
approx. 5 minutes without load before switching
off.
Diesel engine Series 15B / 18B
Operation
58 2008-09-08
7.6.1 Engine without electric starter

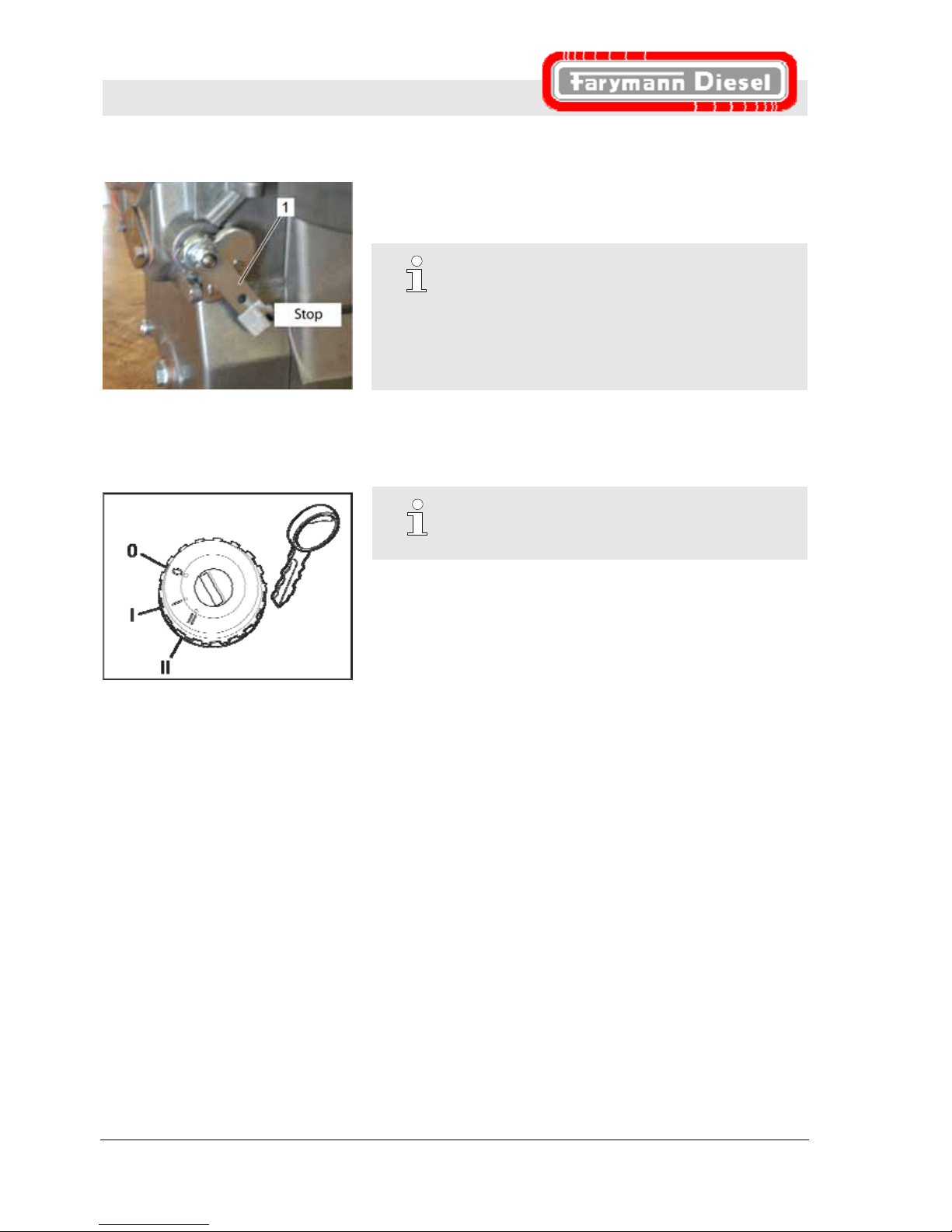

Fig. 37
Put the speed adjustment lever (1) in the STOP position and
hold it there until the engine comes to a complete standstill after
approx. 10 to 20 seconds.
NOTE!
Never turn off the engine with the automatic
decompression at full load. Before turning off first
let the engine run for approx. 5 minutes in idle
mode and then pull the speed adjustment lever to
the stop position (fig. 37/1) and hold it there until
the engine stops after approx. 10 to 20 seconds.
7.6.2 Engine with electric starter
Fig. 38: Example of key switch
NOTE!
See e.g. operating instructions of the device
manufacturer.
1. Turn the key switch to the position "0". The engine comes to a
standstill after approx. 10 to 20 seconds.
2. Remove key.
Pos: 7.25 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Operation
2008-09-08 59
Pos: 7.26 /KN2006-Projekte/Bukh-Farymann/Bedien ung/ 1.1 Stillegen @ 45\mod_1188112796949_2.doc @ 570322
7.7 Decommissioning
Decommissioning and preservation
The following preservation protects the engine during
decommissioning (e.g. winter break) for 3 months.
1. Perform thorough external cleaning of the engine.
2. Drain engine oil and fill engine with approx. 1.0 litre of
corrosion protection oil.
3. Empty fuel tank.
4. Dispose of engine oil and fuel in accordance with
environmental regulations.
5. Fill fuel tank with approx. 0.5 litre mixture of nine parts of
diesel fuel and one part of corrosion protection oil.
6. Put the speed adjustment lever in the full load position and
turn the engine slowly for approx. 20 revolutions with the
crank handle.
7. Seal inlet and exhaust openings with textile adhesive tape.
8. Store the engine in a dry place and protected against the
effects of weather.
Storing for longer than 3 months
Repeat the following work every 2 months in the case of longer
storage.
1. Remove adhesive tape from the inlet and exhaust openings.
2. Put the speed adjustment lever in the full load position and
turn the engine slowly for approx. 20 revolutions with the
crank handle.
3. Seal inlet and exhaust openings with textile adhesive tape.
4. Store the engine in a dry place and protected against the
effects of weather.
Restarting
Perform the following work for restarting the engine:
1. Perform thorough external cleaning of the engine.
2. Remove textile adhesive tape from the inlet and exhaust
openings.
3. Drain corrosion protection oil from the engine and tank into
suitable collecting containers and dispose of in accordance
with the environmental regulations.
4. Fill the engine with engine oil (see Chapter Filling with engine
oil).
5. Fill the fuel tank with diesel fuel (see Chapter Filling with fuel).
Diesel engine Series 15B / 18B
Maintenance
60 2008-09-08
Pos: 8.1 /KN2006-SM/Wartung/001 1 Wartung_Titel @ 9\mod_1144 434830143_2.doc @ 86797
8 Maintenance
Pos: 8.2 /KN2006-SM/Wartung/002 1.1 Sicherheit_Tite l @ 9\mod_1144434831619_2.doc @ 86811
8.1 Safety
Pos: 8.3 /KN2006-Projekte/Bukh-Farymann/War tung/Unsachgemäß ausgeführte Wartungsarbeiten 2032 @ 49\mod_1193144596698_2.doc @ 761339
Maintenance work not carried out
correctly
WARNING!
Risk of injury due to incorrectly carried out
maintenance work!
Improper maintenance can result in severe
personal injuries or material damage.
Therefore:
– Always undertake maintenance work when the
engine is switched off.
– Ensure there is sufficient installation clearance
before starting work.
– Ensure tidiness and cleanliness at the
workplace. Loose components and tools lying
around or on top of each other are sources of
accidents.
– Only perform maintenance work using
commercially available tools and special tools.
Incorrect or damaged tools can result in injuries.
Pos: 8.4 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.5 /KN2006-Projekte/Bukh-Farymann/War tung/Motoröl und Kraftstoff 6415 @ 65\mod_1206715780761_2.doc @ 1124154
Engine oil and fuel
WARNING!
Danger of fire due to fuel and engine oil!
Oil and fuel vapours can ignite on contact with
ignition sources.
Therefore:
– No naked flames during work on the engine.
– Do not smoke.
– Remove oil and fuel residues from the engine
and floor.
CAUTION!
Danger of poisoning due to fuel and engine oil!
Contact with engine oil and fuel can result in
damage to health.
Therefore:
– Avoid skin contact with engine oil and fuel.
– Remove oil and fuel splashes from the skin
immediately.
– Do not inhale oil and fuel vapours.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 61
Pos: 8.6 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.7 /KN2006-Projekte/Bukh-Farymann/War tung/Personal @ 48\mod_1191329198377_2.doc @ 637072
Personnel
The maintenance work described here can be performed by the
operator unless otherwise indicated.
Other maintenance work must only be performed by specially
trained qualified personnel or by specialist workshops (Greaves
Farymann Diesel service partners). This particularly applies to
work on the valve adjustment, diesel injection system and for
the engine repair.
Pos: 8.8 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.9 /KN2006-Projekte/Bukh-Farymann/War tung/003 1.1.0 Persönliche Schutzausrüstung @ 45\mod_1188121690477_2.doc @ 570333
Personal protective equipment
Wear the following protective equipment for all maintenance work:
Protective clothing
Safety footwear
NOTE!
Protective equipment which must be worn for
certain work is specially pointed out in the warnings
of this chapter.
Pos: 8.10 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
kte
NOTE!
Independent repair and adjustment work on the
engine beyond a very limited scope is forbidden for
safety reasons.
Improper work on components relevant for safety
endangers you and others.
This particularly applies to work on the valve
adjustment, diesel injection system and for the
engine repair.
Do not tighten cylinder head nuts!
In the case of use where there is an excessive
occurrence of dust, shorten the maintenance
intervals by at least half.
In the case of low operating time, the engine oil
and oil filter must be replaced at least every 12
months irrespective of the actual operating hours.
Only use original Greaves Farymann Diesel spare
parts.
Pos: 8.12 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.13 /KN2006-Projekte/Bukh-Farymann/War tung/Wartungsplan 6415 @ 61\mod_1204540507844_2.doc @ 1051993
Diesel engine Series 15B / 18B
Maintenance
62 2008-09-08
8.2 Maintenance plan
The various tasks are listed in the maintenance plan.
The maintenance intervals must be complied with as follows:
daily before every start-up
after 25 operating hours
every 250 operating hours
every 500 operating hours
NOTE!
The maintenance interval for 500 operating
hours includes all the work for the interval of
250 operating hours.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 63
Maintenance table
Components
Component
group
Work to be performed
Daily
before
every
start-up
After 25
operating
hours
Every 250
operating
hours
Every 500
operating
hours
Engine oil Check oil level, refill with engine oil
if necessary
X
Engine oil and oil
filter
Replace engine oil and oil filter at
least every 12 months
X X
Suction area and
air cooling
Check area for intake air and
cooling air, clean if necessary
X X X
Clean air filter element and air filter
case
X Dry type air
cleaner
Replace air filter element and
clean air filter case
X
Check oil contamination and oil
level several times a day in the
case of a high occurrence of dust,
if necessary fill oil up to marking or
change it.
X Oil bath air
cleaner
Change the oil bath air cleaner's
oil
X
Valve adjustment
Using Greaves Farymann Diesel
service partner:
Check valve clearance,
adjust if necessary (cold engine)
X X
Threaded
connections
Check for tightness, tighten if
necessary
(cylinder head nuts must not be
tightened)
X X
Exhaust system Check for leaks,
arrange repair by a Greaves
Farymann Diesel service partner if
necessary
X
Fuel filter Replace X
Fuel hoses Check,
replace if necessary and in any
case at least every 4 years by a
Greaves Farymann Diesel service
partner
X
Diesel engine Series 15B / 18B
Maintenance
64 2008-09-08
Components
Component
group
Work to be performed
Daily
before
every
start-up
After 25
operating
hours
Every 250
operating
hours
Every 500
operating
hours
Electric cables Check for damage,
replace by a Greaves Farymann
Diesel service partner if necessary
X
Engine Outside cleaning with engine
cleaner
as required
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 65
Maintenance for special conditions
CAUTION!
Reduced maintenance intervals in the case of
special conditions!
Additional maintenance is necessary in the case of
special operating conditions in order to maintain
the lifetime of the engine.
Therefore:
– Observe the following points.
Excessive occurrence of dust
In the case of use where there is an excessive occurrence of
dust, the maintenance intervals must be at least halved.
Low operating time
In the case of low operating time, the engine oil and oil filter
must be replaced at least every 12 months irrespective of the
actual operating hours.
Pos: 8.14 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.15 /KN2006-Projekte/Bukh-Farymann/War tung/1.1 Ansaugbereich reinigen 6415 @ 54\mod_1196762968178_2.doc @ 873781
8.3 Cleaning the intake area
CAUTION!
Engine damage due to dust in the intake area!
Dust in the combustion chamber can result in
premature engine wear and reduced engine
performance.
Therefore:
– Keep the area for the intake air free of dust and
contamination.
Fig. 39
Clean dust and contamination in the intake area (1) with a
suitable clean and dry cloth.
Diesel engine Series 15B / 18B
Maintenance
66 2008-09-08
Pos: 8.16 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.17 /KN2006-Projekte/Bukh-Farymann/War tung/1.1 Kühlluftbereich reinigen 6415 @ 54\mod_1196763902566_2. doc @ 873800
8.4 Cleaning cooling air area
CAUTION!
Overheating due to soiling!
Dirt can settle on the surfaces of the cooling fins on
the cylinder and cylinder head. The engine can
overheat as a result of this.
Therefore:
– Keep the area for the air cooling free of dust
and contamination.

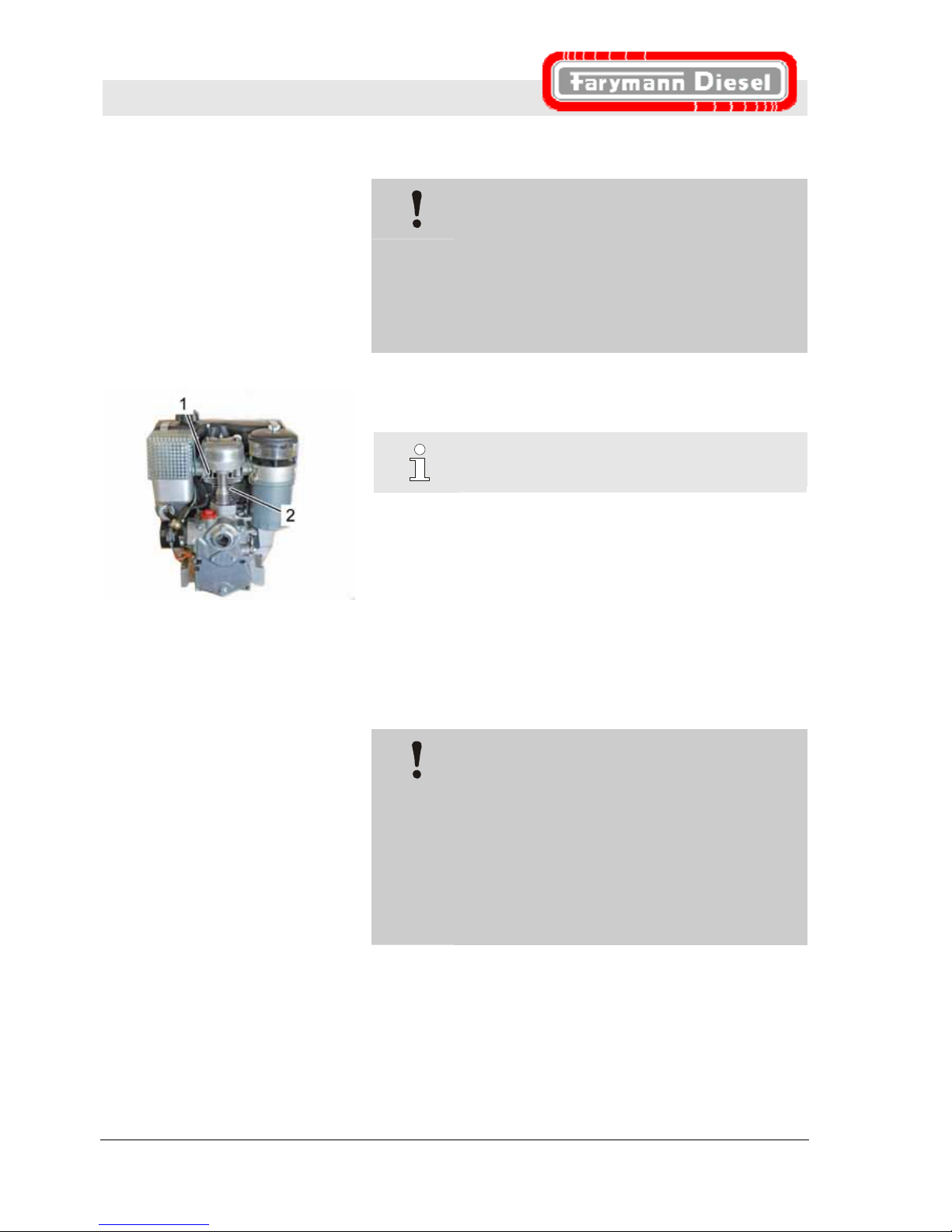

Fig. 40
Clean dust and contamination on the cooling fins of the cylinder
head (1) and cylinder (2) with compressed air.
NOTE!
Wear protective goggles!
Pos: 8.18 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.19 /KN2006-Projekte/Bukh-Farymann/War tung/1.1 Schraubverbindungen kontrollieren 6415 @ 56\mod_1199454078521_2.doc @ 891130
8.5 Checking threaded connections
CAUTION!
Damage due to too high tightening torque!
Bolts tightened too much can break off and the
thread can be damaged.
Therefore:
– Only check and tighten threaded connections
with appropriate commercially available tools
and respective special tools.
– Do not exceed the tightening torques stated
here.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 67
CAUTION!
Cylinder head nuts must not be tightened!
Therefore:
– Do not tighten cylinder head nuts without
authorisation.
– Arrange for work on the cylinder head to be
carried out by a Greaves Farymann Diesel
service partner.
Tightening torques
Threaded connection relevant for safety Tightening torque Nm
High pressure line of the injection nozzle holder 25
Mounting of the fuel filter 10
Wing nut of sealing cap of the air filter case After cleaning or replacing the
air filter only tighten the wing
nut of the air filter case by
hand.
Exhaust silencer bolts 10
Oil filter Only tighten oil filter by hand.
Valve cover 8–12
Oil drain plug 12
Pos: 8.20 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.21 /KN2006-Projekte/Bukh-Farymann/War tung/1.1 Motoröl wechseln 6415 @ 54\mod_1196764374281_2.doc @ 873819
Diesel engine Series 15B / 18B
Maintenance
68 2008-09-08
8.6 Changing engine oil
NOTE!
Only change engine oil when the engine is at a
standstill and at operating temperature. Always
replace engine oil and oil filter together.

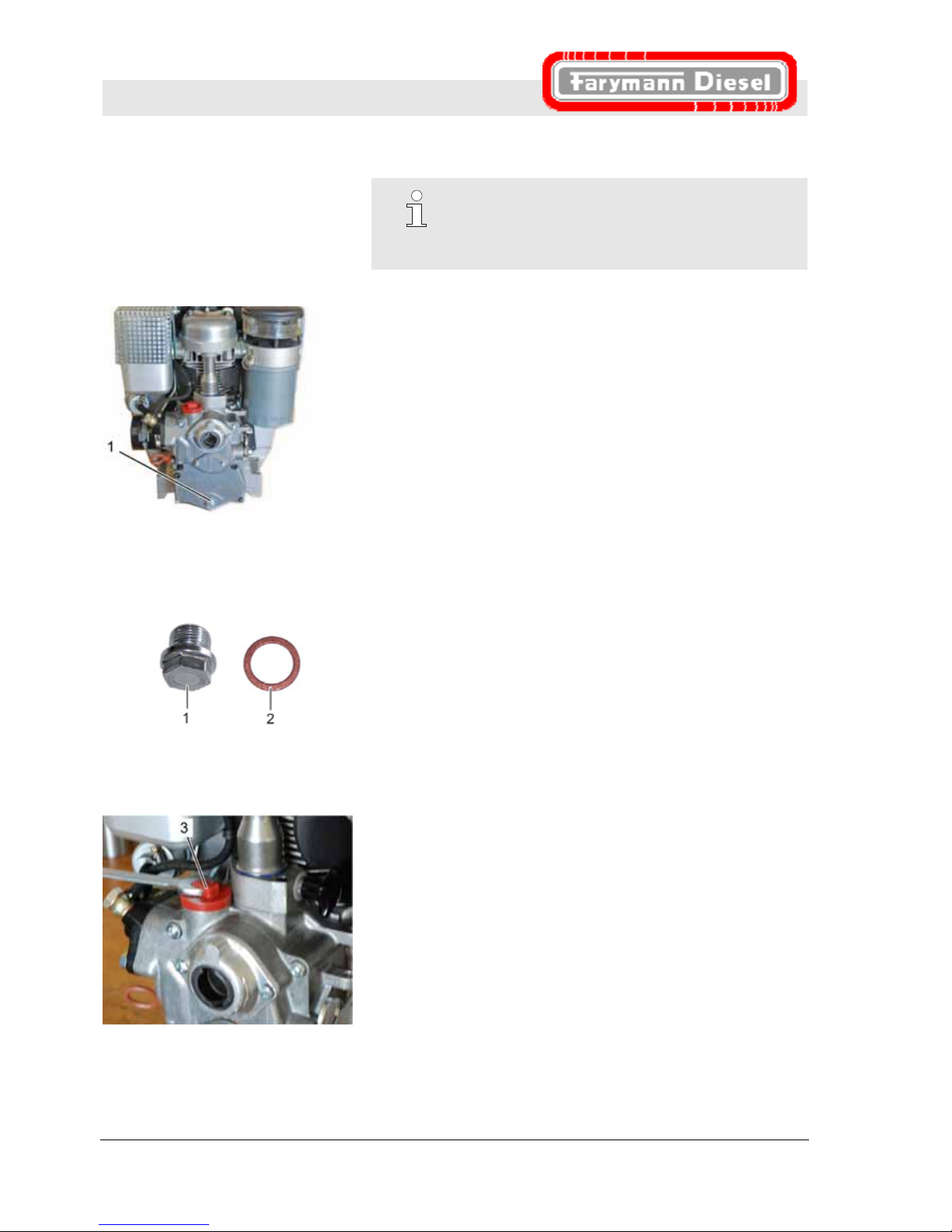

8.6.1 Version with oil drain plug
Fig. 41
1. Switch off the engine
2. Slacken oil drain plug (1) (e.g. with a ring spanner SW 13).
3. Place a suitable container underneath.
4. Screw out oil drain plug by hand.
Caution: Engine oil can be "hot".
5. Collect old oil in a suitable container and dispose of in
accordance with the environmental regulations.
Fig. 42
6. Check oil drain plug (1) for damage and replace if necessary.
7. Always replace the copper seal (2).
8. Screw in oil drain plug by hand and tighten (e.g with ring
spanner SW 13).
Tightening torque: 12 Nm
Fig. 43
9. Release oil filler cap (3) e.g. with a jaw spanner SW 13 and
screw off by hand.
10. Fill with engine oil.
11. Only tighten the oil filler cap (3) by hand (risk of brea kage).
12. Start engine and check for leaks.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 69
8.6.2 Version with oil drain valve

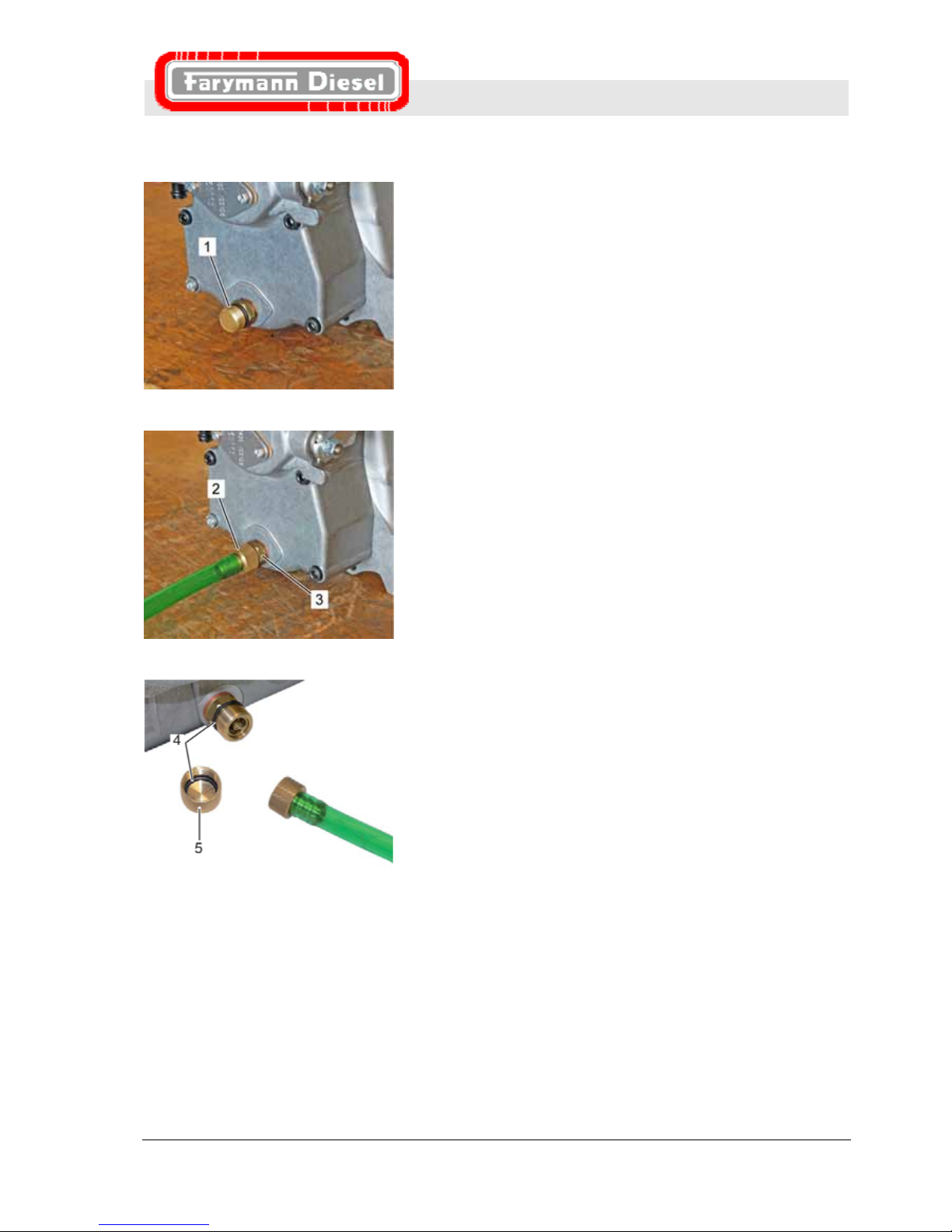

Fig. 44
1. Switch off the engine
2. Screw off the sealing cap (1) by hand.
Fig. 45
3. Screw special oil drain hose (2) onto the oil drain valve (3).
This opens the quick-release coupling.
4. Collect old oil in a suitable container and dispose of in
accordance with the environmental regulations.
5. Unscrew and remove the oil drain hose (2).
Fig. 46
6. Check O-rings (4) for damage and replace oil drain valve
(Fig. 45/3) if necessary.
7. Tighten the sealing cap (5) by hand.
Diesel engine Series 15B / 18B
Maintenance
70 2008-09-08
Fig. 47
8. Release oil filler cap (3) e.g. with a jaw spanner SW 13 and
screw off by hand.
9. Fill with engine oil.
10. Only tighten the oil filler cap (3) by hand (risk of brea kage).
11. Start engine and check for leaks.
NOTE!
Always replace engine oil and oil filter together.
Pos: 8.22 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.23 /KN2006-Projekte/Bukh-Farymann/War tung/1.1 Ölfilter wechseln 6415 @ 54\mod_1196766864335_2.doc @ 873838

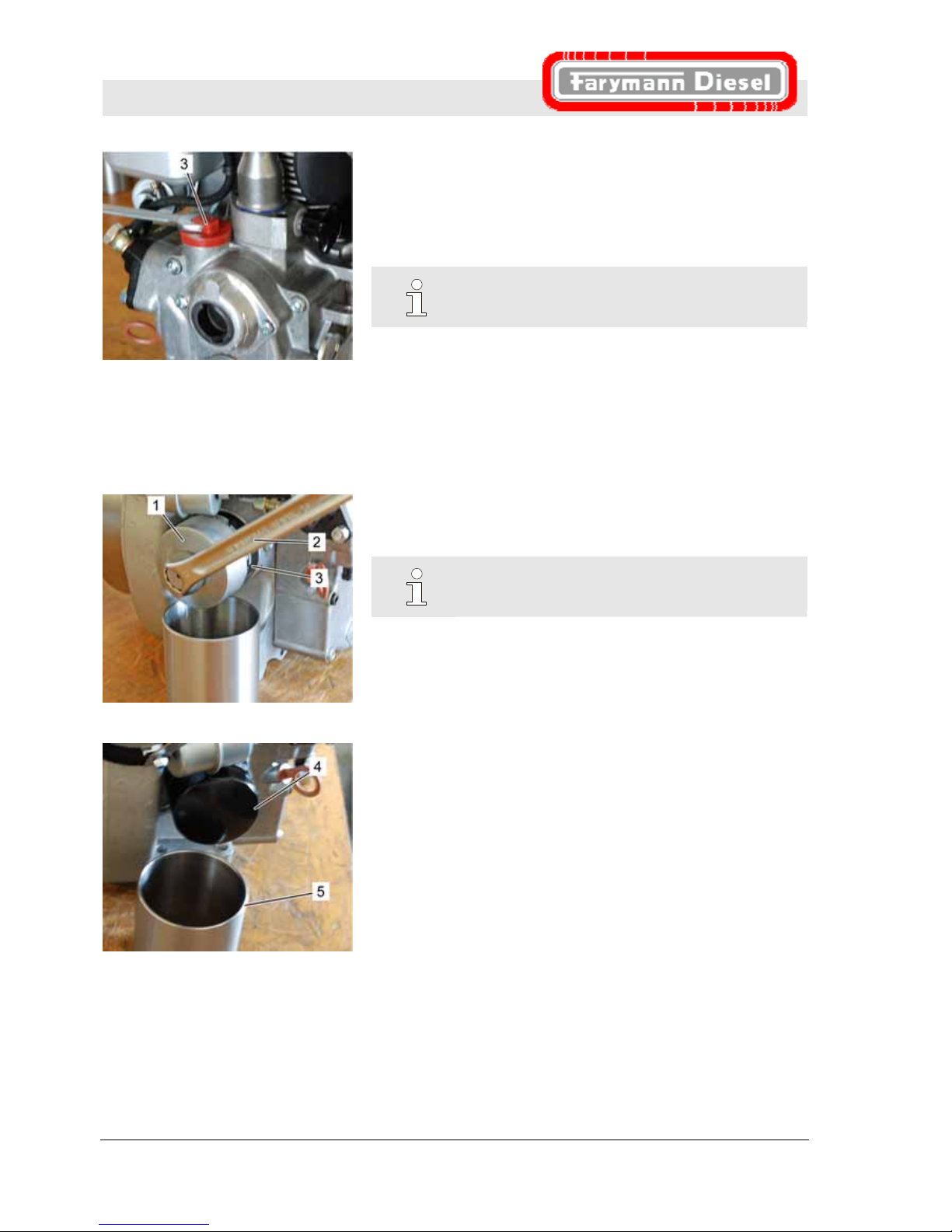

8.7 Replacing oil filter
Fig. 48
1. Slacken oil filter (3) with an oil filter wrench (1) and e.g. a ring
spanner SW 27 (2), and unscrew and remove afterwards by
hand.
NOTE!
The oil filter can be "hot".
Fig. 49
2. Collect the engine oil from the oil filter (4) and oil filter case in
a suitable container (5) and dispose of in accordance with the
environmental regulations.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 71

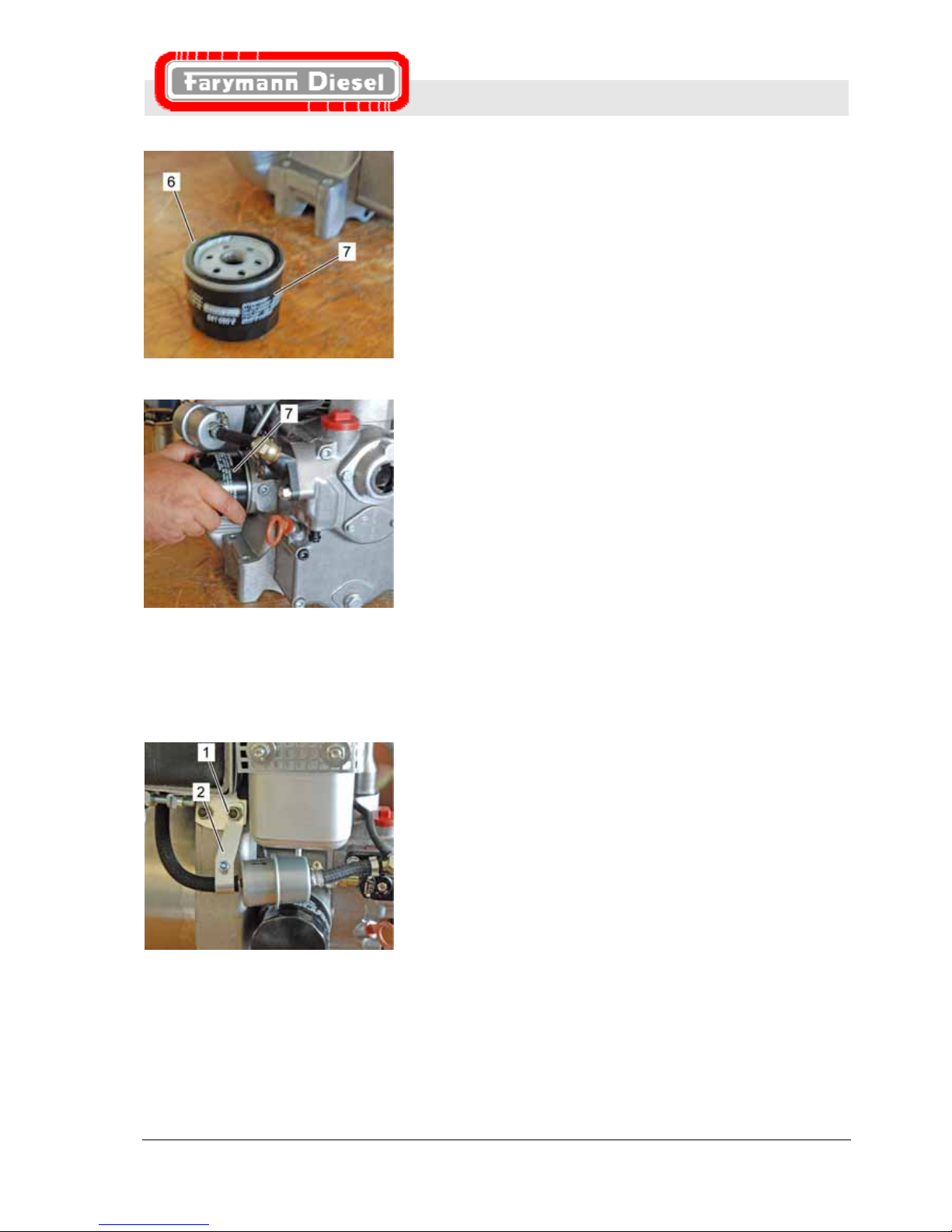

Fig. 50
3. Clean the sealing surface on the oil filter case.
4. Use new oil filter (7) and wet seal (6) with clean engine oil.
Fig. 51
5. Tighten the oil filter (7) only by hand.
6. Fill with engine oil.
7. Start engine and check for leaks.
Pos: 8.24 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.25 /KN2006-Projekte/Bukh-Farymann/War tung/1.1 Kraftstofffilter wechseln 6415 @ 54\mod_1196769127679_2.doc @ 873907
8.8 Replacing fuel filter
Fig. 52
1. Switch off the engine
2. Unscrew the nut from mounting (1) and then undo bolt from
clamp mounting (2).
Diesel engine Series 15B / 18B
Maintenance
72 2008-09-08

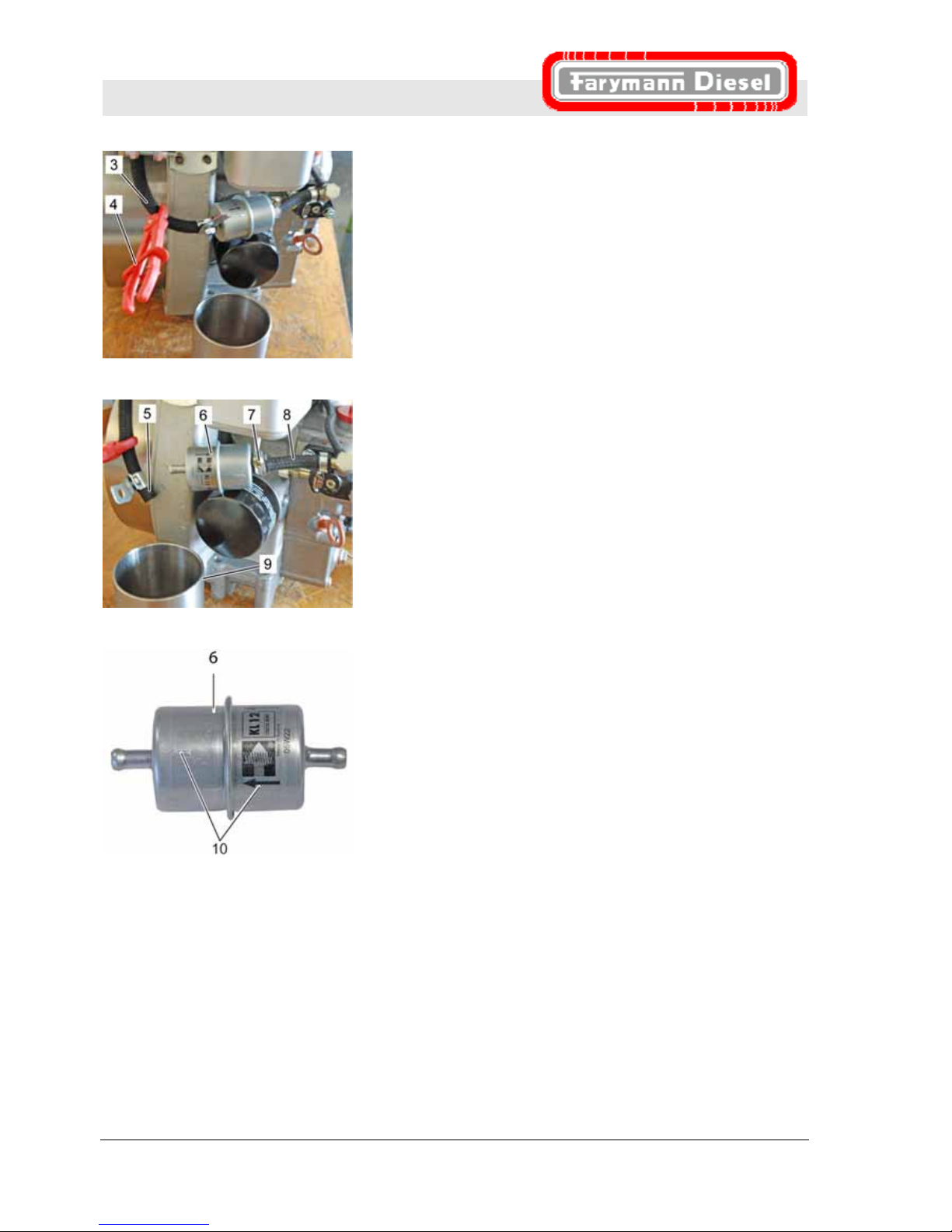

Fig. 53
3. Disconnect fuel line (3) using special fuel line disconnecting
tool (4).
Fig. 54
4. Pull fuel filter (6) off the fuel hose (5).
5. Collect the fuel from the fuel line (5) and from the fuel filter (6)
in a suitable container (9) and dispose of in accordance with
the environmental regulations.
6. Undo clamp (7) and pull off the fuel line (8) from the
fuel filter (6).
Fig. 55
7. Install new fuel filter (6) and pay attention to the flow direction.
The arrows (10) must point in the direction of the injection
pump.
8. Assembly is in the reverse order to the dismantling.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 73

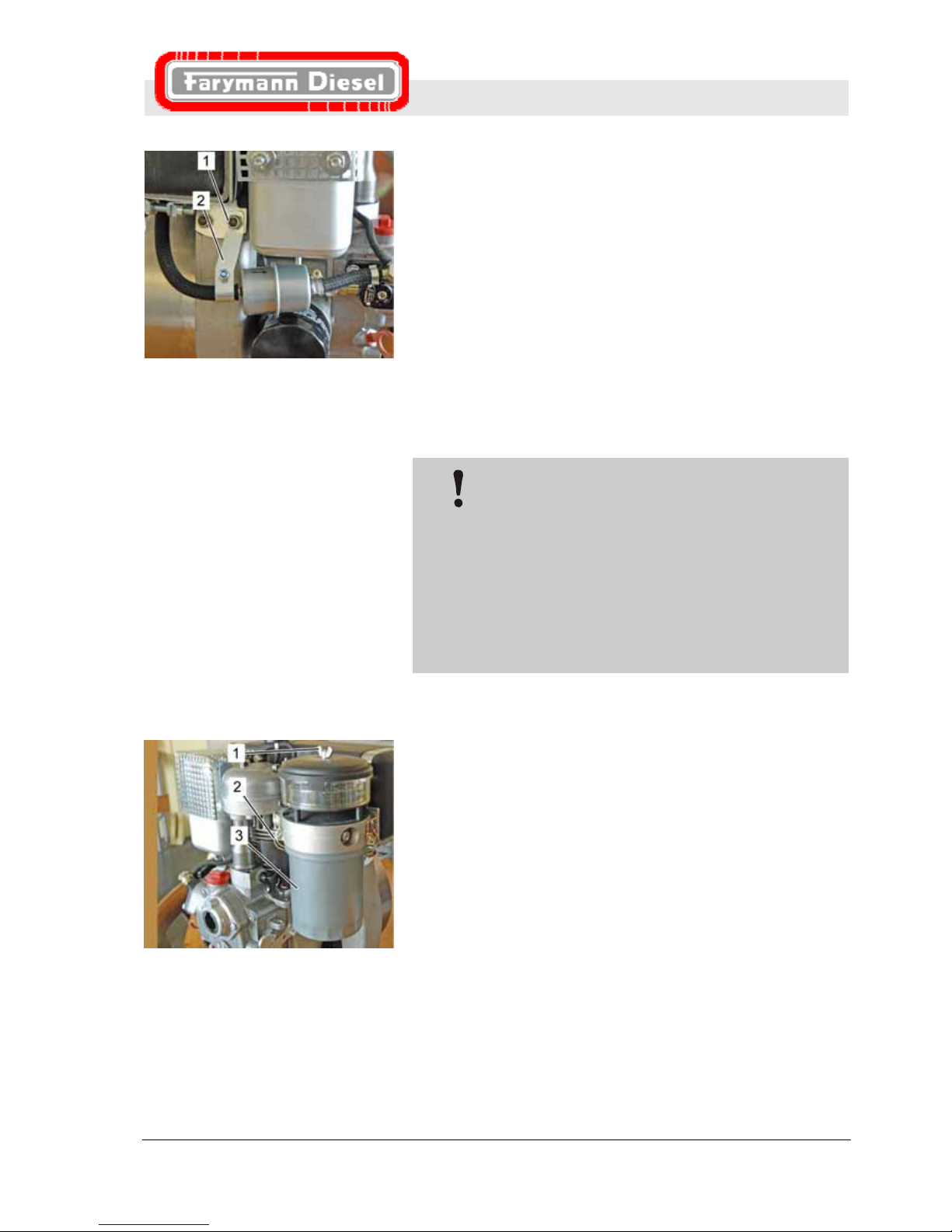

Fig. 56
9. Tighten the nut (1) of the mounting (2) on the engine.
Tightening torque: 10 Nm
10. Start engine and check the fuel system for leaks.
Pos: 8.26 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.27 /KN2006-Projekte/Bukh-Farymann/War tung/1.1 Luftfilter wechseln 6415 @ 54\mod_1196772815644_2.doc @ 873926
c
8.9 Replacing air filter
CAUTION!
Engine damage due to use of non-original air
filter!
Unfiltered air can result in rough engine running
and engine damage. A dusty air filter reduces the
engine power and increases the fuel consumption.
Therefore:
– Do not operate the engine without the air filter.
– Clean or replace air filter according to the
maintenance plan.
8.9.1 Dry type air cleaner (standard engine)
Fig. 57
1. Switch off the engine
2. Unscrew and remove the wing nut (1).
3. Release sealing clips (2) and remove air filter case (3).
Diesel engine Series 15B / 18B
Maintenance
74 2008-09-08

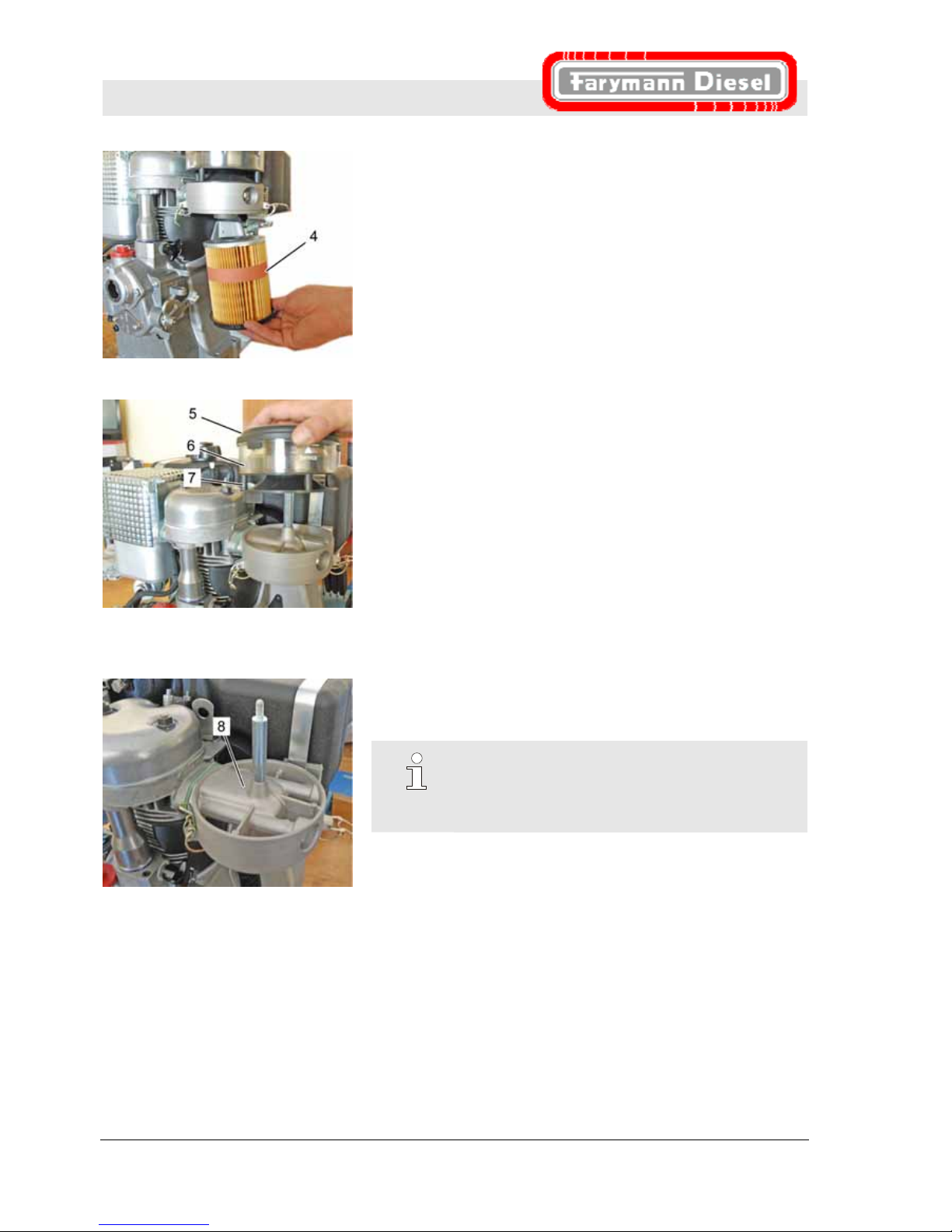

Fig. 58
4. Remove air filter element (4).
Fig. 59
5. Remove air filter cover (5) with air filter pot (6) and centring
ring (7).
Fig. 60
6. Thoroughly clean intake area (fig. 60/8), air filter cover
(fig. 59/5) and air filter pot (fig. 59/6) as well as centring ring
(fig. 59/7).
NOTE!
When removing the air filter and when cleaning the
air filter case, always ensure that no dirt gets into
the intake tract.
7. After cleaning assemble the centring ring, air filter pot and air
filter cover. While doing this only tighten the wing nut by hand.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 75

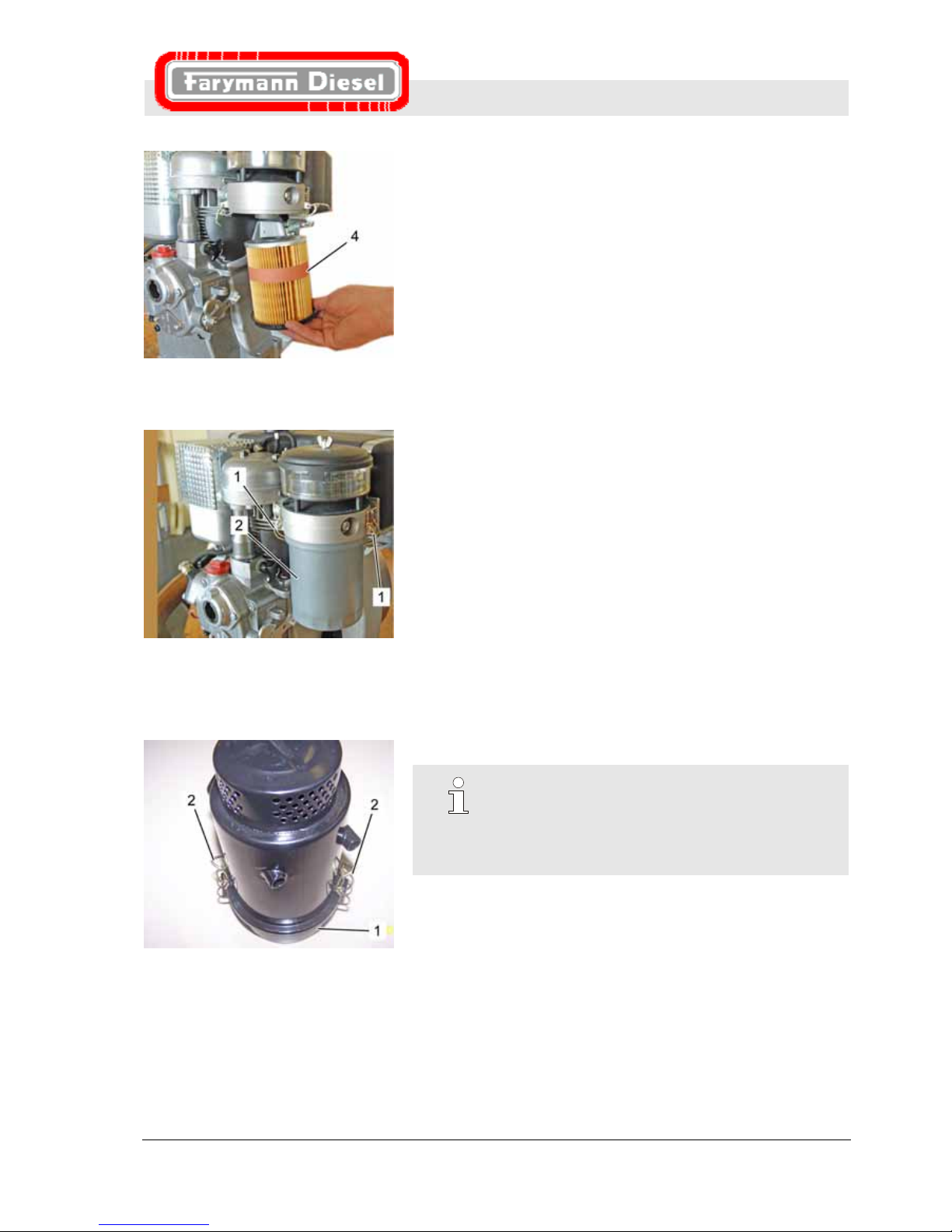

Fig. 61
8. Install new air filter element (4).
Fig. 62
9. Position air filter case (2) straight, in the process pay attention
to correct seating, and close sealing clips (1).
8.9.2 Oil bath air cleaner (standard engine)
Fig. 63
NOTE!
Check oil contamination and oil level several times
a day in the case of a high occurrence of dust, if
necessary fill oil up to marking or change it (see
maintenance plan).
1. Open fasteners (2) and remove oil container (1).
2. Remove contaminated oil and sludge from oil container.
Collect old oil and dispose of it in accordance with
environmental regulations.
3. Clean the oil container thoroughly.
Diesel engine Series 15B / 18B
Maintenance
76 2008-09-08

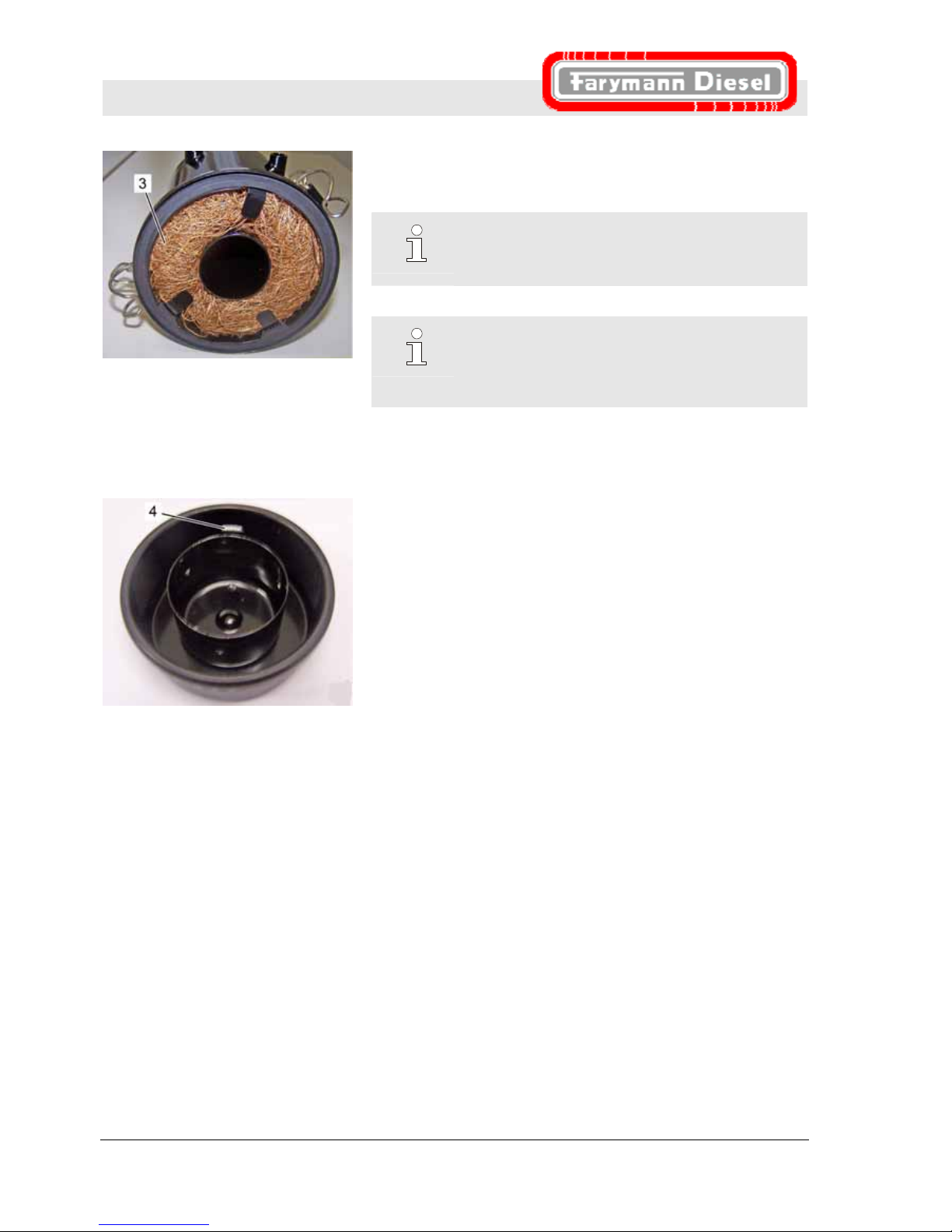

Fig. 64
4. Check filter material (3) depending on occurrence of dust. In
the case of severe contamination dismantle filter and wash
out in diesel fuel or replace complete oil bath air cleaner.
NOTE!
Before assembly of the filter let the diesel fuel drip
off sufficiently or wipe off.
NOTE!
Do not pull out the filter material (3) from the filter
case. The filter must be completely dry before
fitting.
Fig. 65
5. Fill oil container up to marking (4) with engine oil (use oil in
accordance with the viscosity classes on page 27).
6. Fix oil container to the filter, whilst doing so make sure the
filter sits correctly, and close both fasteners.
Pos: 8.28 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 8.29 /KN2006-Projekte/Bukh-Farymann/War tung/1.1 Ventilspiel einstellen 6600 @ 65\mod_1207232952990_2.d oc @ 1131006
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 77
8.10 Adjusting valve clearance
Safety
WARNING!
Risk of injury due to starting the engine!
The engine can be accidentally started when
adjusting the valve clearance and thereby cause
severe injuries.
Therefore:
– Disconnect the high pressure line on the
injection nozzle holder before starting work.
Personnel This work must only be carried out by trained specialist
personnel. In the absence of the required qualifications,
arrange for the work to be carried out by a Greaves Farymann
Diesel service partner.
Prerequisites
Only check and adjust the valve clearance when the engine is cold
(less than 35 °C).
Settings
Exhaust valve 0.1 mm
Intake valve 0.1 mm
Diesel engine Series 15B / 18B
Maintenance
78 2008-09-08
8.10.1 Engines with visible flywheel and O.T. marking
Preparations
Fig. 66
1. Switch off engine and let it cool down to the ambient
temperature.
2. Unscrew the nuts (1) on the valve cover (2) and remove
plastic seals, valve cover and valve cover gasket.
Fig. 67
3. Detach the high pressure line (3) on the injection nozzle
holder in order to prevent accidental starting of the engine.
Fig. 68
4. Turn automatic decompression to operating position (1), pin
faces forward (9 o'clock position).
NOTE!
The decompression must be turned off at the valve
adjustment (operating position: pin faces forward:
9 o'clock position), only in this way is a correct
adjustment of the valve clearance guaranteed.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 79
Adjusting inlet valve - exhaust

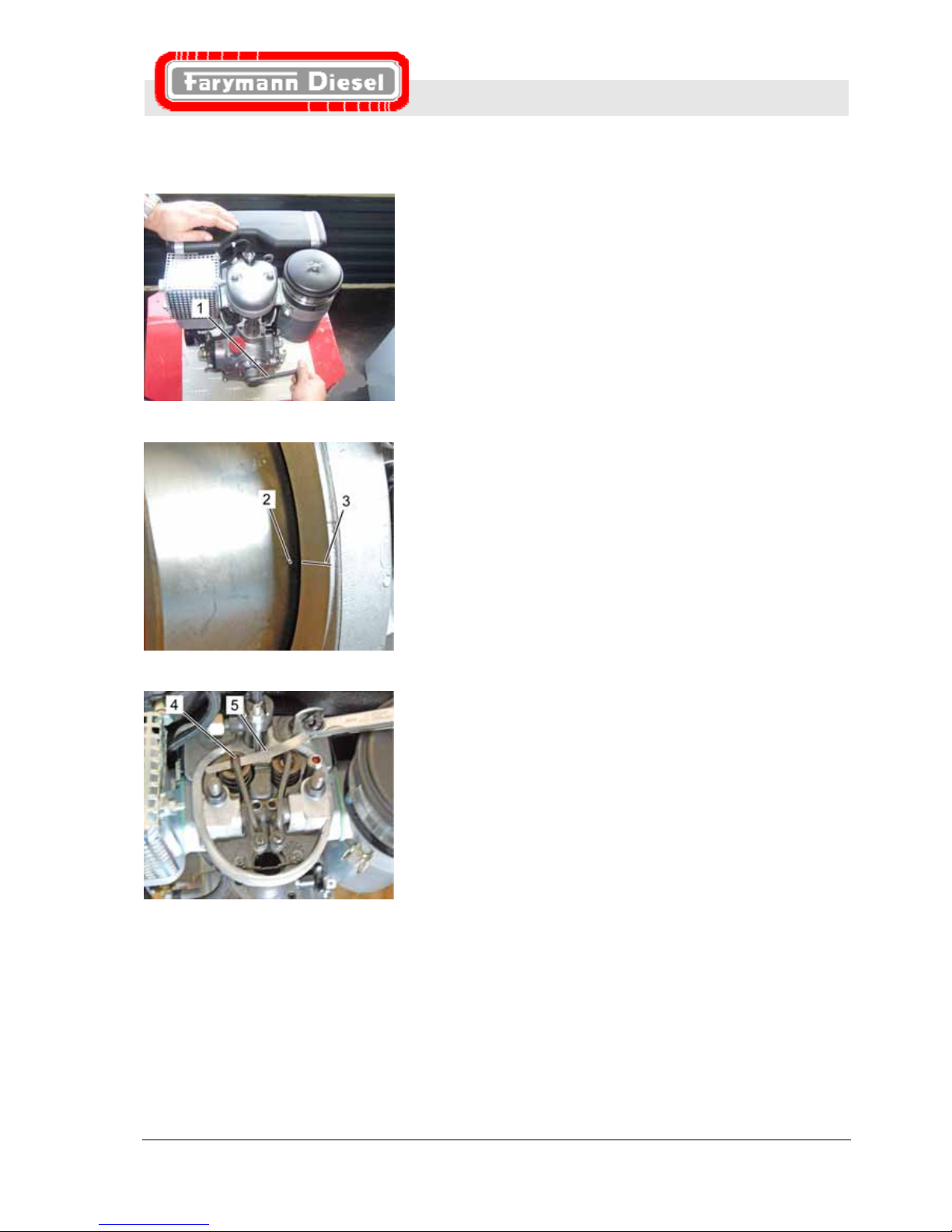

valve
Fig. 69
5. Insert crank handle (1) into the starting handle support
bearing and slowly turn the crankshaft clockwise until the end
of the compression stroke or
Fig. 70
until the O.T. marking (2) on the flywheel corresponds to the
crankcase marking (3).
Fig. 71
In this position both valves (inlet and exhaust valves) are
closed (max. clearance between rocker arm and valve stem).
Exhaust valve adjusting:
6. Slide a feeler gauge (5) with thickness 0.1 mm between
rocker arm (4) and the exhaust valve stem and check the
valve clearance of the exhaust valve.
The feeler gauge must be able to be pulled through between
the valve and the rocker arm without noticeable resistance
(drag).
Diesel engine Series 15B / 18B
Maintenance
80 2008-09-08

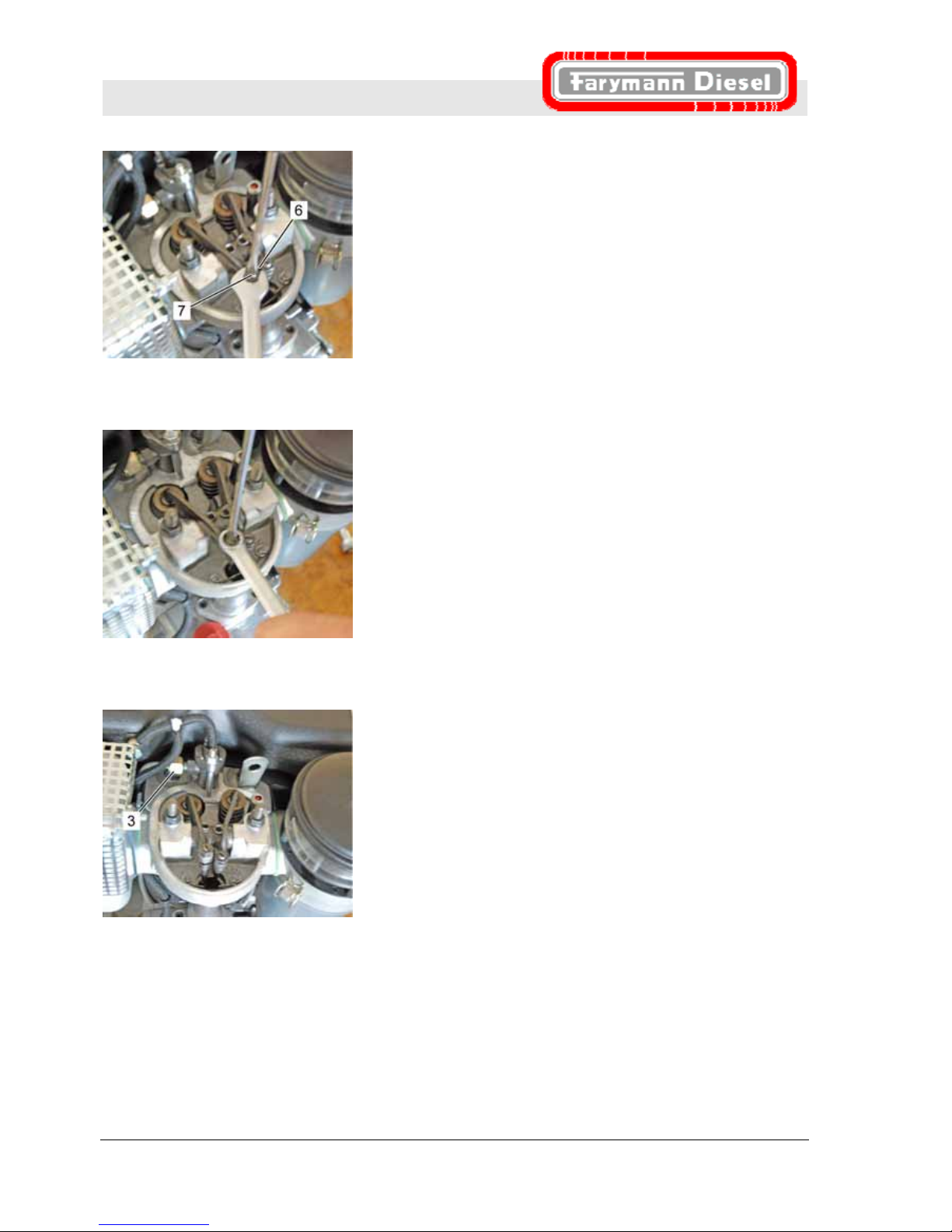

Fig. 7
7. If the clearance is too large or too small, undo the lock nut (6)
and adjust the clearance with the adjusting screw (7). The
feeler gauge must be able to be pulled through without
noticeable resistance (drag).
8. Hold the adjusting screw in place with a screwdriver and
tighten the lock nut.
9. Check the valve clearance again.
Fig. 8
Inlet valve adjusting
10. Adjusting the inlet valve is carried out in exactly the same way
as for the exhaust valve (see fig. 71).
Fig. 9
11. Tighten the high pressure line (3) on the injection nozzle
holder.
Tightening torque 25 Nm
12. Replace valve cover gasket.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 81
Fig. 10
13. Install valve cover (2) using two plasti c seals.
14. Tighten both nuts (1) of the valve cover (2).
Tightening torque 8-12 Nm
NOTE!
Always replace the valve cover gasket and the two
plastic seals under the nuts of the valve cover.
Diesel engine Series 15B / 18B
Maintenance
82 2008-09-08
8.10.2 Engines with covered flywheel (without visible O.T. marking)
Preparations

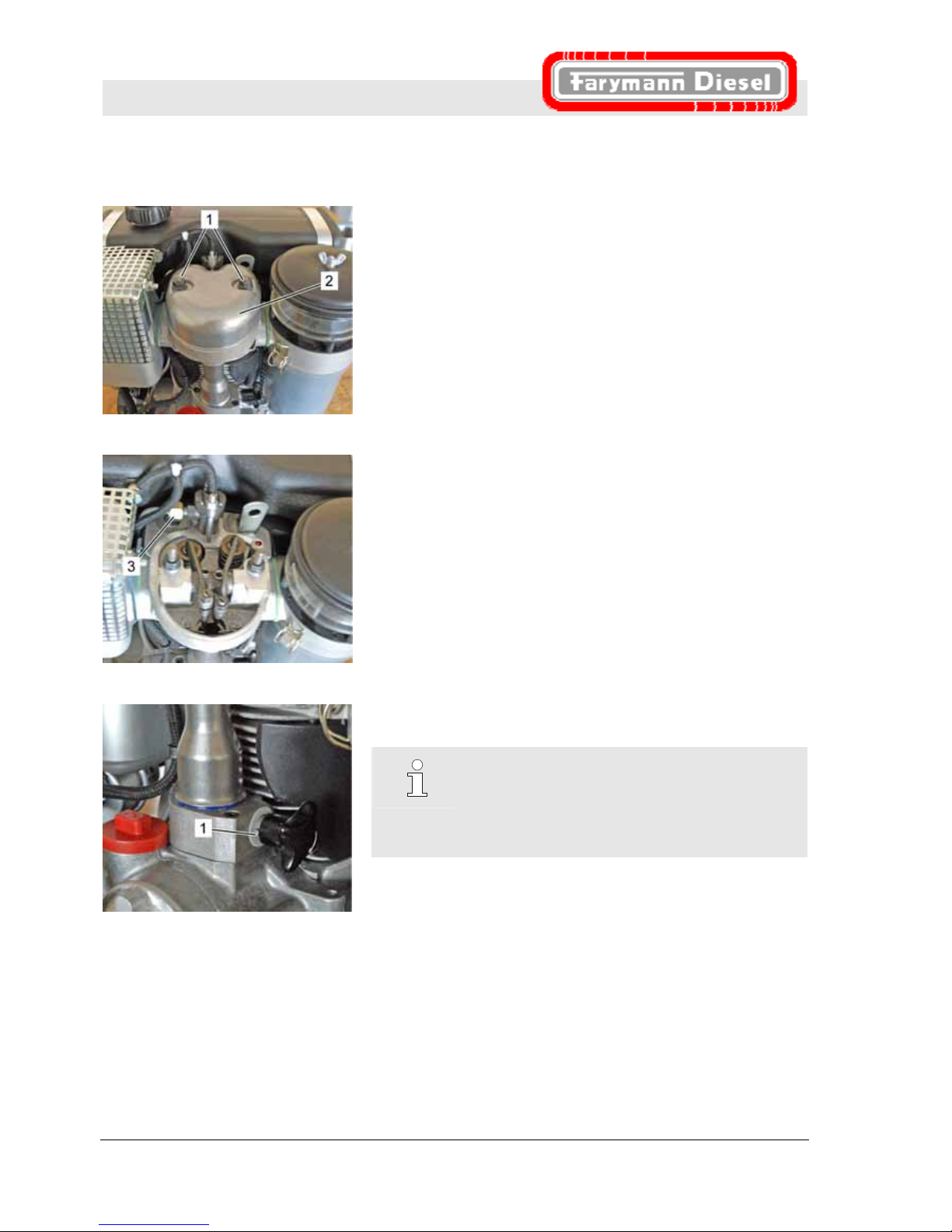

Fig. 11
1. Switch off engine and let it cool down to the ambient
temperature.
2. Unscrew the nuts (1) on the valve cover (2) and remove
plastic seals, valve cover and valve cover gasket.
Fig. 12
3. Detach the high pressure line (3) on the injection nozzle
holder in order to prevent accidental starting of the engine.
Fig. 13
4. Turn automatic decompression to operating position (1). Pin
faces forward (9 o'clock position).
NOTE!
The decompression must be turned off at the valve
adjustment (operating position: pin faces forward:
9 o'clock position), only in this way is a correct
adjustment of the valve clearance guaranteed.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 83
Adjusting exhaust valve
Fig. 14

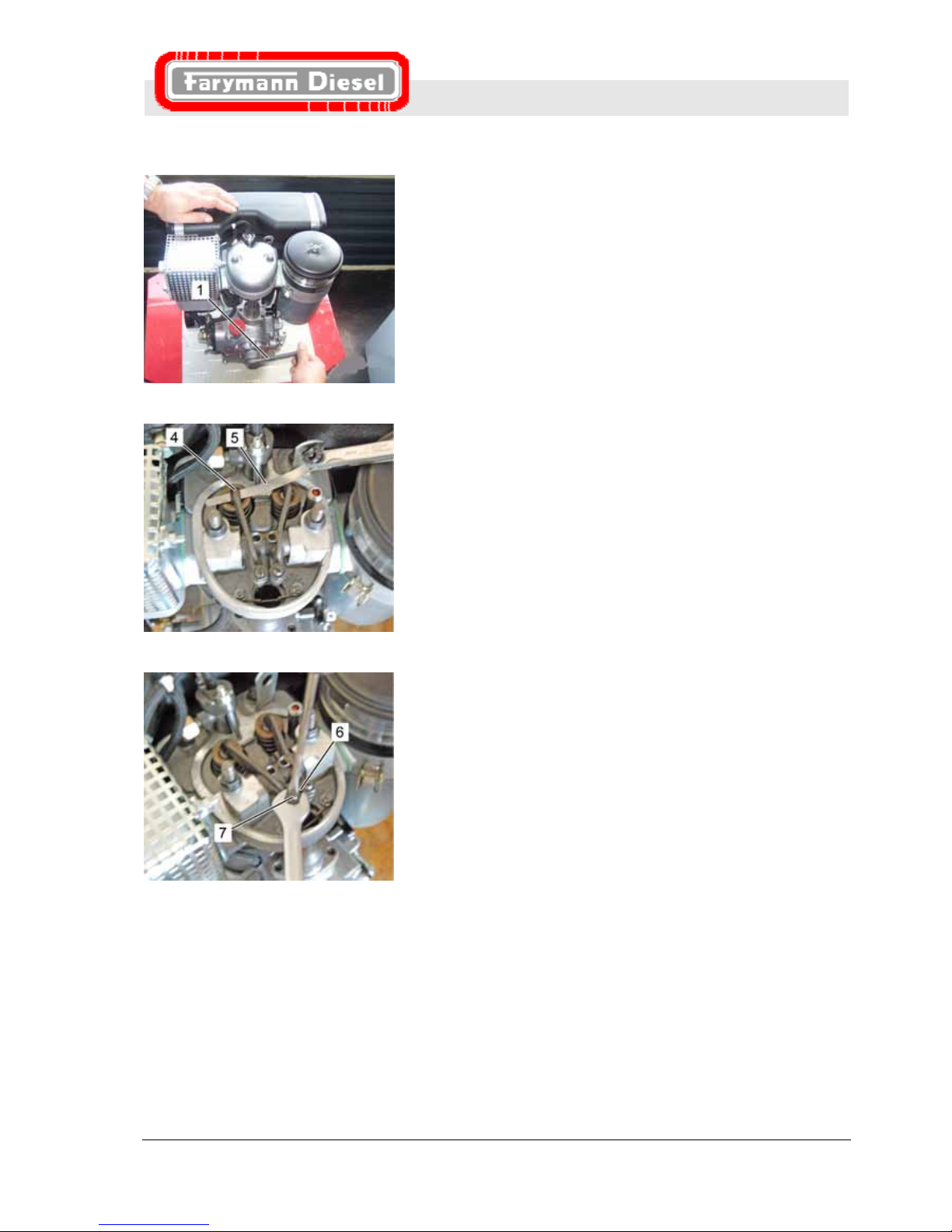

5. Insert crank handle (1) into the starting handle support
bearing and slowly turn the crankshaft clockwise until the inlet
valve's spring is pushed down completely (inlet valve is now
fully open).
Fig. 15
6. Slide a feeler gauge (5) with thickness 0.1 mm between
rocker arm (4) and the exhaust valve stem and check the
valve clearance of the exhaust valve.
The feeler gauge must be able to be pulled through without
noticeable resistance (drag).
Fig. 16
7. If the clearance is too large or too small, undo the lock nut (6)
and adjust the clearance with the adjusting screw (7). The
feeler gauge must be able to be pulled through without
noticeable resistance (drag).
8. Hold the adjusting screw in place with a screwdriver and
tighten the lock nut.
9. Check the valve clearance again.
Diesel engine Series 15B / 18B
Maintenance
84 2008-09-08
Adjusting intake valve
Fig. 17

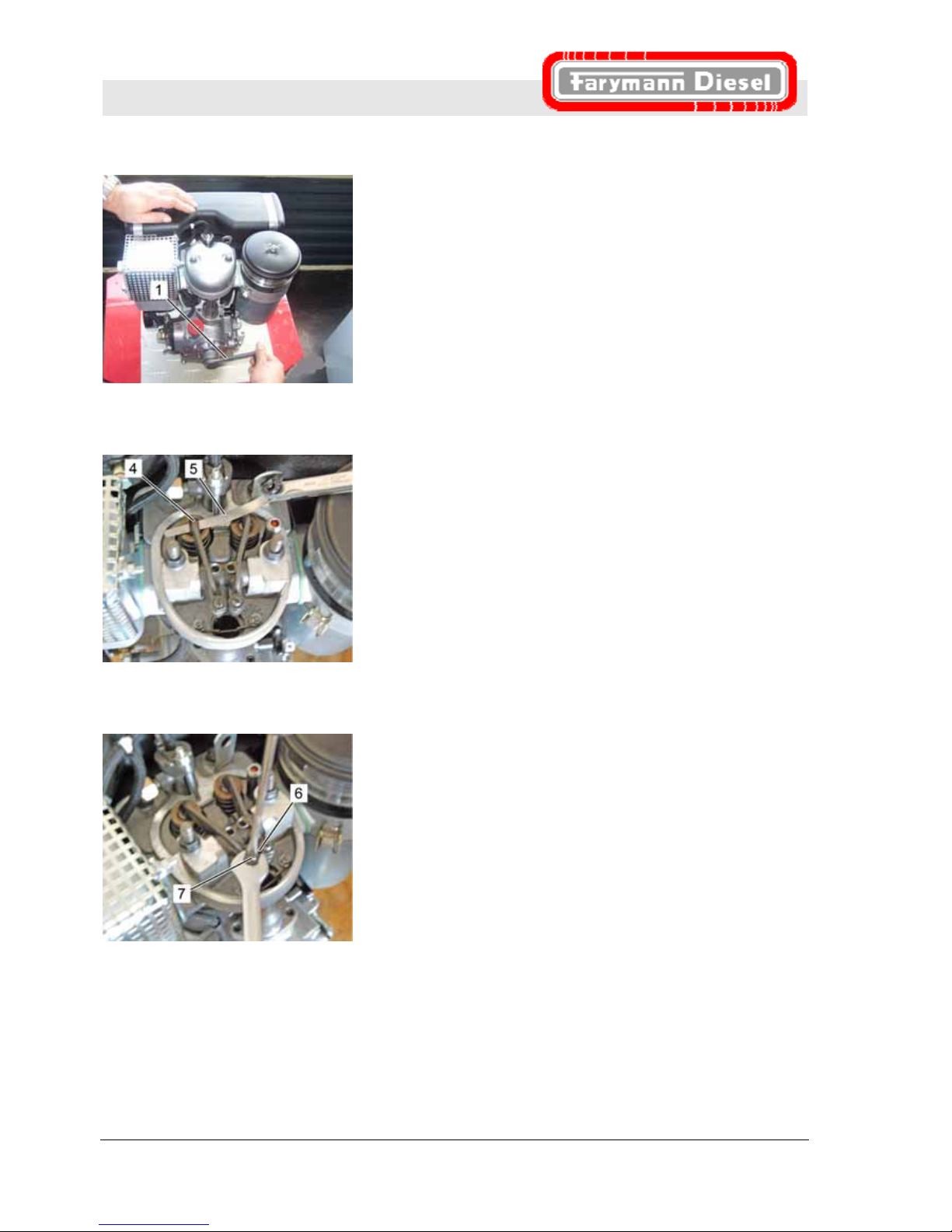

10. Insert crank handle (1) into the starting handle support
bearing and slowly turn the crankshaft clockwise until the
exhaust valve's spring is pushed down completely (exhaust
valve is now fully open).
Fig. 72
11. Slide a feeler gauge (5) with thickness 0.1 mm between rocker
arm (4) and the inlet valve stem and check the valve
clearance of the inlet valve.
The feeler gauge must be able to be pulled through without
noticeable resistance (drag).
Fig. 73
12. If the clearance is too large or too sm all, undo the lock nut (6)
and adjust the clearance with the adjusting screw (7). The
feeler gauge must be able to be pulled through without
noticeable resistance (drag).
13. Hold the adjusting screw in place with a screwdriver and
tighten the lock nut.
14. Check the valve clearance again.
Diesel engine Series 15B / 18B
Maintenance
2008-09-08 85
Fig. 18

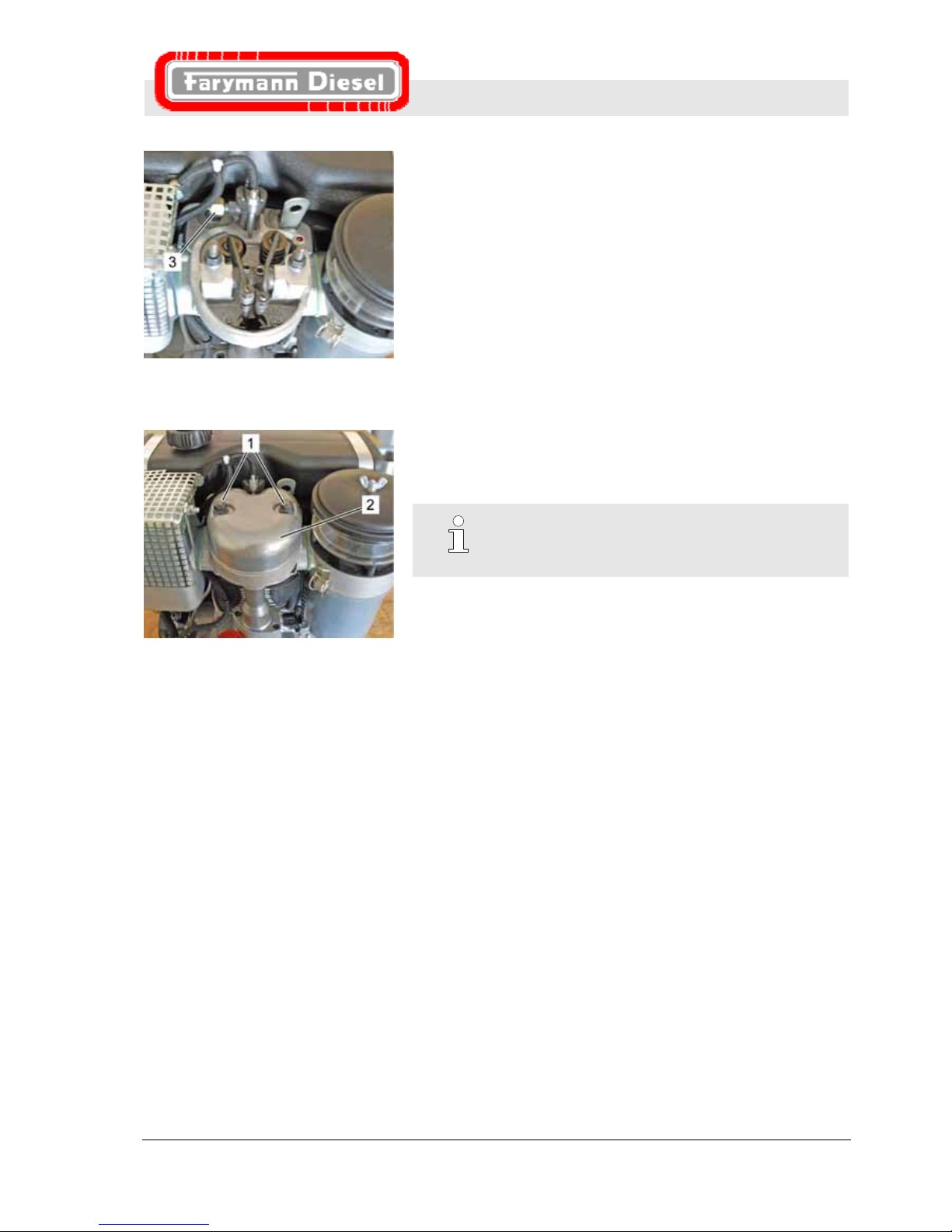

15. Tighten the high pressure line (3) on the injection nozzle
holder.
Tightening torque 25 Nm
16. Replace valve cover gasket.
Fig. 19
17. Install valve cover (2) using two plasti c seals in the process.
18. Tighten both nuts (1) of the valve cover (2).
Tightening torque 8-12 Nm
NOTE!
Always replace the valve cover gasket and the two
plastic seals under the nuts of the valve cover.
Pos: 9.1 /KN2006-Projekte/Bukh-Farymann/Störungen/ 1 Störungen @ 48\mod_1191331711711_2.doc @ 637107
Diesel engine Series 15B / 18B
Faults
86 2008-09-08
9 Faults
Possible causes of faults and the work for rectifying them are
described in the following chapter.
In the case of increasingly occurring faults, reduce the
maintenance intervals in accordance with the actual load.
In the case of faults which cannot be rectified using the following
information, contact the nearest Greaves Farymann Diesel service
partner or the manufacturer.
Pos: 9.2 /KN2006-SM/Störungen/002 1.1 Sicherheit_Tit el @ 9\mod_1144439648502_2.doc @ 86965
9.1 Safety
Pos: 9.3 /KN2006-Projekte/Bukh-Farymann/Störungen/ Personal @ 48\mod_1191332001592_2.doc @ 637122
Personnel
The work described here for fault clearance can be performed
by the operator unless otherwise indicated.
Some work must only be performed by a Greaves Farymann
Diesel service partner; this is specially pointed out in the
description of the individual faults.
Pos: 9.4 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 9.5 /KN2006-Projekte/Bukh-Farymann/Störungen/ 003 1.1.0 Persönliche Schutzausrüstung @ 45\mod_1188130066496_2.doc @ 570547
Personal protective equipment
Wear the following protective equipment for all maintenance work:
Protective clothing
Safety footwear
NOTE!
Protective equipment which must be worn for
certain work is specially pointed out in the warnings
of this chapter.
Pos: 9.6 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Diesel engine Series 15B / 18B
Faults
2008-09-08 87
Pos: 9.7 /KN2006-Projekte/Bukh-Farymann/Störungen/ Unsachgemäße Störungsbeseitigung 6415 @ 56\mod_1199459212823_2.doc @ 891229
Improper fault clearance
WARNING!
Risk of injury due to improper fault clearance!
Improper fault clearance can result in severe
personal injuries or material damage.
Therefore:
– Ensure there is sufficient installation clearance
before starting work.
– Ensure tidiness and cleanliness at the
workplace! Loose components and tools lying
around or on top of each other cause accidents.
– If parts have been removed, pay attention to
correct assembly, reinstall all fixing elements
and comply with the tightening torques for
threaded connections.
Pos: 9.8 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 9.9 /KN2006-Projekte/Bukh-Farymann/Bedienu ng/ Motoröl und Kraftstoff 2032 @ 49\mod_1193141476565_2.doc @ 761279
Engine oil and fuel
WARNING!
Danger of fire due to fuel and engine oil!
Oil and fuel vapours can ignite on contact with
ignition sources.
Therefore:
– No naked flames during work on the engine.
– Do not smoke.
– Remove oil and fuel residues from the engine
and floor.
CAUTION!
Danger of poisoning due to fuel and engine oil!
Contact with engine oil and fuel can result in
damage to health.
Therefore:
– Avoid skin contact with engine oil and fuel.
– Remove oil and fuel splashes from the skin
immediately.
– Do not inhale oil and fuel vapours.
Diesel engine Series 15B / 18B
Faults
88 2008-09-08
Pos: 9.10 /KN2006-Projekte/Bukh-Farymann/Störungen/ 003 1.1.0 Verhalten bei Störungen Motor @ 45\mod_1188130245156_2.doc @ 570562
Procedure for faults
The basic rule is:
1. Stop the engine immediately in the case of faults which
represent an immediate danger for persons or property.
2. Determine the cause of the fault.
3. Inform the responsible person at the usage location about the
fault.
4. Arrange for rectification by a Greaves Farymann Diesel
service partner or yourself depending on the type of the fault.
NOTE!
The fault table listed below gives information about
who is authorised for rectification of the fault.
Pos: 9.11 /FI/.......... Seitenumbruch ..... ..... @ 0\mod272_2.doc @ 1523
Diesel engine Series 15B / 18B
Faults
2008-09-08 89
Pos: 9.12 /KN2006-SM/Störungen/005 1.1 Störungstabe lle_Titel @ 9\mod_1144442349705_2.doc @ 87248
9.2 Troubleshooting chart
Pos: 9.13 /KN2006-Projekte/Bukh-Farymann/Störungen/ 005 1.1.0 Störungstabelle 43F @ 45\mod_1188130353128_2.doc @ 570577
9.2.1 Engine does not start
Error Possible cause Troubleshooting Clearance b y
No fuel in the tank Filling with fuel Operator
Speed adjusting lever is in the
Stop position
Put speed adjusting lever in the
"full load" position
Operator
Ventilation in the fuel filler cap
blocked
Replace fuel filler cap Operator
Fuel line interrupted Check fuel lines Operator
If the injection
noise (chattering)
cannot be heard
Fuel filter blocked Replace fuel filter Operator
Fuel line broken or leaky
connection
Replace fuel line or tighten
connection
Operator
Vapour bubble formation caused
by too hot fuel
Let fuel cool down Operator
Paraffin precipitation in the fuel
(for low external temperature
approx. -10 °C)
Drain and flush fuel system,
replace fuel filter, use winter fuel
Skilled
employee
Failure of the fuel
system; turn
engine by hand
and pay attention
to the typical
"chatter" of the
injection nozzle.
Defective injection nozzle Check injection nozzle, replace if
necessary
Skilled
employee
Petrol instead of diesel in the tank Drain tank and fuel system and
arrange for engine to be checked
by a Greaves Farymann Diesel
service partner (petrol in the tank
results in engine damage)
Skilled
employee
If the injection
noise (chattering)
can be heard
Air intake tract blocked Check intake area of the air filter
case and air filter cartridge
Operator
Incorrect valve clearance Adjust valve clearance Skilled
employee
Decompression unit defective Check decompression unit,
replace if necessary
Skilled
employee
Leaky valves Check valves, repair or replace Skilled
employee
Compression too
low
Leaky cylinder head / cylinder
head gasket
Replace cylinder head gasket Skilled
employee
Diesel engine Series 15B / 18B
Faults
90 2008-09-08
Error Possible cause Troubleshooting Clearance b y
Sticking piston rings Check piston rings, replace if
necessary and check piston ring
grooves
Skilled
employee
Compression too
low
Piston and cylinder worn Overhaul engine
(change piston and cylinder)
Skilled
employee
Starting load too high Reduce load Operator
Engine oil too viscous Change engine oil, use correct
viscosity
Operator
Engine can only
be turned with
difficulty
Main bearing or piston "seized" Overhaul engine Skilled
employee
Diesel engine Series 15B / 18B
Faults
2008-09-08 91
9.2.2 Engine starts, however runs irregularly or stops
Error Possible cause Troubleshooting Clearance
by
Fuel filter blocked Replace fuel filter Operator
Fuel line interrupted Check fuel line Operator
Leaky fuel line Check fuel line, tighten
connection
Operator
Water in the fuel Drain tank and fuel system, flush
with diesel and refill and check
injection system
Skilled
employee
Defective injection nozzle Check injection nozzle, repair or
replace
Skilled
employee
Bad fuel supply
Injection pump defective Check injection pump, repair or
replace
Skilled
employee
Incorrect valve clearance Adjust valve clearance Skilled
employee
Worn valves Replace cylinder head Skilled
employee
Sticking piston rings Check piston rings, replace if
necessary and check piston ring
grooves
Skilled
employee
Bad compression
Piston and cylinder worn Overhaul engine
(change piston and cylinder)
Skilled
employee
Defective intake
system
Intake area blocked Check intake area of the air filter
case and air filter cartridge
Operator
Defective exhaust
system
Exhaust blocked Check exhaust, clean or replace Operator
Diesel engine Series 15B / 18B
Faults
92 2008-09-08
9.2.3 Bad engine performance
Error Possible cau se Troubleshooting Clearance
by
Engine overloaded Reduce load; troubleshooting at
machine
Operator Operating conditions
Performance reduction due to
increased intake temperature
Improve operating conditions Operator
Fuel filter blocked Replace fuel filter Operator
Seal under the injection nozzle
missing or there are too many
seals installed
Install seal or correct the number
of seals, check injection nozzle
holder
Skilled
employee
Defective injection nozzle Check injection nozzle, replace if
necessary
Skilled
employee
Bad fuel supply
Injection pump defective Check injection pump, repair or
replace
Skilled
employee
Incorrect valve clearance Adjust valve clearance Skilled
employee
Incorrect end of delivery Adjust end of delivery Skilled
employee
Incorrect valve timing Check gear-wheel adjustment
markings
Skilled
employee
Incorrect adjustment
Piston incorrectly installed
(marking on piston head not
pointing in the direction of the
flywheel side)
Install piston correctly Skilled
employee
Diesel engine Series 15B / 18B
Faults
2008-09-08 93
9.2.4 Operating behaviour not faultless
Error Possible cause Troubleshooting Clearance by
Engine overloaded Reduce load Operator
Cooling fins dirty Clean cooling fins Operator
Cooling air inlet blocked Check air inlet, clean if
necessary
Operator
Cooling air supply blocked Improve cooling air supply, check
engine installation
Operator
Oil level in the crankcase too
high
Correct oil level Operator
Overheating
Defective injection nozzle Check injection nozzle, repair or
replace
Skilled
employee
Carbon deposit on piston head Remove carbon deposits on
piston, replace piston and
cylinder if necessary
Skilled
employee
Injection nozzle needle sticks /
jams
Replace injection nozzle Skilled
employee
Incorrect end of delivery
Incorrect begin of delivery
Check and adjust begin of
delivery / end of delivery
Skilled
employee
Broken piston rings Replace piston rings, check
piston and cylinder
Skilled
employee
Piston and cylinder worn Overhaul engine (change piston
and cylinder)
Skilled
employee
Main bearing, connecting road
bearing worn
Overhaul engine Skilled
employee
Loose flywheel Check flywheel and crankshaft
for damage, overhaul engine if
necessary
Skilled
employee
Knocking noises
Petrol mixture in the tank Drain tank and fuel system, flush
with diesel, fill with new fuel and
check engine, arrange overhaul if
necessary
Skilled
employee
Overheating See: Overheating Strong speed
fluctuations
Air in the fuel system Check fuel system for leaks Operator
Diesel engine Series 15B / 18B
Faults
94 2008-09-08
Error Possible cause Troubleshooting Clearance by
Speed governor jammed or
defective
Check speed governor, replace if
necessary
Skilled
employee
Fuel filter blocked Replace fuel filter Operator
Strong speed
fluctuations
Adjusting lever jammed or
defective
Check adjusting lever, replace if
necessary
Skilled
employee
Empty tank Filling with fuel Operator
Ventilation in the fuel filler cap
blocked
Replace fuel filler cap Operator
Vapour bubble formation caused
by too hot fuel
Let fuel cool down Operator
Defective injection nozzle Check injection nozzle, repair or
replace
Skilled
employee
Fuel line broken Replace fuel line Skilled
employee
"Piston seizure" Overhaul engine (change piston
and cylinder)
Skilled
employee
Engine stops
suddenly
Crankshaft bearings "seized" or
worn
Overhaul engine Skilled
employee
Oil level too high Correct oil level Operator
Crankcase ventilation valve
defective
Replace crankcase ventilation
valve
Skilled
employee
Valve stem seal on intake valve
guide defective
Replace valve stem seal Skilled
employee
Worn valves, valve guides Replace cylinder head Skilled
employee
Engine emits blue
smoke
Piston and cylinder worn Replace piston and cylinder Skilled
employee
End of delivery too late Check and adjust end of delivery Skilled
employee
Engine emits white
smoke
Injection nozzle worn Replace injection nozzle Skilled
employee
Diesel engine Series 15B / 18B
Faults
2008-09-08 95
Error Possible cause Troubleshooting Clearance by
Oil level too low Correct oil level Operator Oil pressure
warning lamp lights
(if present)
Oil pressure switch defective Replace oil pressure switch Skilled
employee
Pressure relief valve defective Check pressure relief valve,
clean, replace if necessary
Skilled
employee
Bearing seat in pressure relief
valve dirty
Check pressure relief valve,
clean, replace if necessary
Skilled
employee
Oil filter blocked Replace oil filter and engine oil Operator
Oil pressure too low
Oil pump defective Replace oil pump, overhaul
engine if necessary
Skilled
employee
Speed adjusting lever is not at
the maximum position
Set speed adjusting lever to the
maximum position (increased
speed)
Operator
Engine oil too viscous Change engine oil, use correct
viscosity
Operator
Paraffin precipitation in the fuel Drain and flush fuel system,
replace fuel filter, use winter fuel
Skilled
employee
Cold start problems
Starting speed too low Check battery, replace if
necessary
Operator
Pos: 9.14 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 9.15 /KN2006-SM/Störungen/007 1.1 Inbetriebnahme nach behobener Störung_Titel @ 12\mod_1144442691882_2.doc @ 87276
9.3 Startup after eliminating fault
Pos: 9.16 /KN2006-Projekte/Bukh-Farymann/Störungen/ 007 1.1.0 Inbetriebnahme nach behobener Störung Motor @ 45\mod_1188130378035_2.doc @ 570592
After rectifying the fault, carry out the following steps for restarting:
1. Ensure there are no persons in the danger zone.
2. Start engine and check the engine for correct functioning.
Pos: 10.1 /KN2006-SM/Ersatzteilliste/001 1 Ersatztei lliste_Titel @ 13\mod_1144444398272_2.doc @ 87325
Diesel engine Series 15B / 18B
Replacement Parts List
96 2008-09-08
10 Replacement Parts List
Pos: 10.2 /KN2006-Projekte/Bukh-Farymann/Ersatzt eile/1.1 Ersatzteilliste @ 48\mod_1191332633183_2.doc @ 637137
10.1 Spare parts
WARNING!
Risk to safety due to use of non-original spare
parts!
Defective and non-original spare parts can
adversely affect the safety and result in damage
and malfunctions or total failure of the engine.
Therefore:
– Only use original spare parts from the
manufacturer.
Spare parts can be ordered from the nearest Greaves Farymann
Diesel service partner.
Please refer to our website (www.farymann.de) or telephone us on
+49 (0)6206/507-0 for a list of our sales and service partners.
Pos: 10.3 /KN2006-Projekte/Bukh-Farymann/Ersatzt eile/1.1 Ersatzteilbestellung 6600 @ 65\mod_ 1207234638456_2.doc @ 1131028
10.2 Ordering spare parts

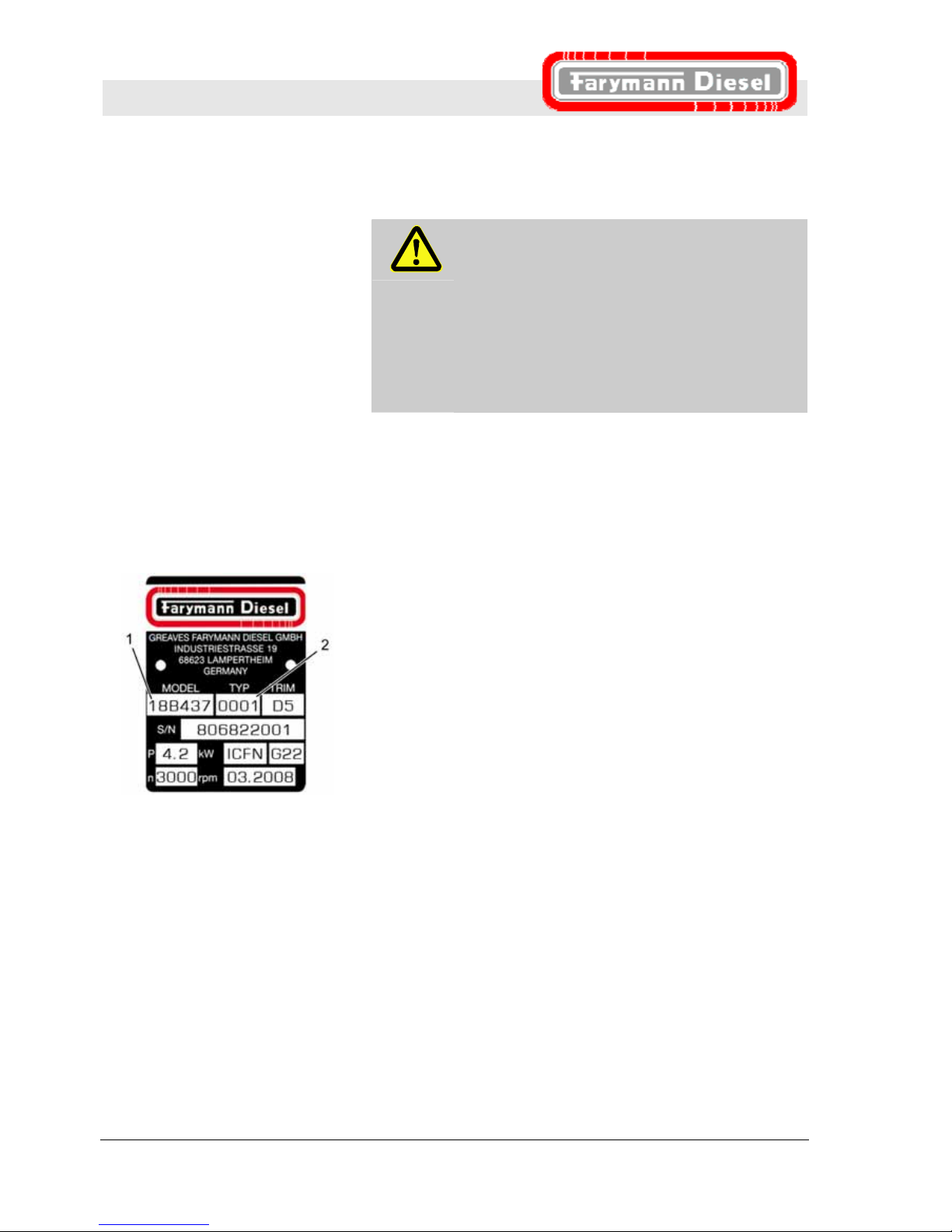

Fig. 74
Always state the following when ordering spare parts:
1 MODEL, e.g. 18B 437 (see type plate)
2 TYPE, e.g. 0001 (see type plate)
Spare parts orders without this information cannot be processed.
Spare parts can be ordered from the nearest Greaves
Farymann Diesel service partner.
Pos: 10.4 /KN2006-Projekte/Bukh-Farymann/Ersatzt eile/Verschleißteile für Wartungsarbeiten 6415 @ 54\mod_1196859666153_2.doc @ 874630
Diesel engine Series 15B / 18B
Replacement Parts List
2008-09-08 97
Wearing parts for maintenance work
Order
number
Description Quantity
541.052.2 Air filter element (dry type air cleaner) 1
555.129.1 Sealing clip 2
514.093.2 Wing nut 1
541.059.2 Air filter cover 1
541.058.2 Air filter pot 1
541.057.2 Guide-blade disc rim 1
541.056.2 Centring ring 1
512.158.2 M6 stud 1
741.138.5 Complete oil bath air cleaner 1
541.038.2 Fuel filter 1
770.142.4 Valve cover gasket 1
890.08.15 Plastic seals 8.0x17x2 2
541.050.2 Oil filter 1
890.30.03 Oil drain plug 1
890.74.25 Copper sealing ring A17x23x1.5 1
239.012.2 Oil drain valve with sealing cap 1
955.131.1 Oil drain hose 1
Diesel engine Series 15B / 18B
Replacement Parts List
98 2008-09-08

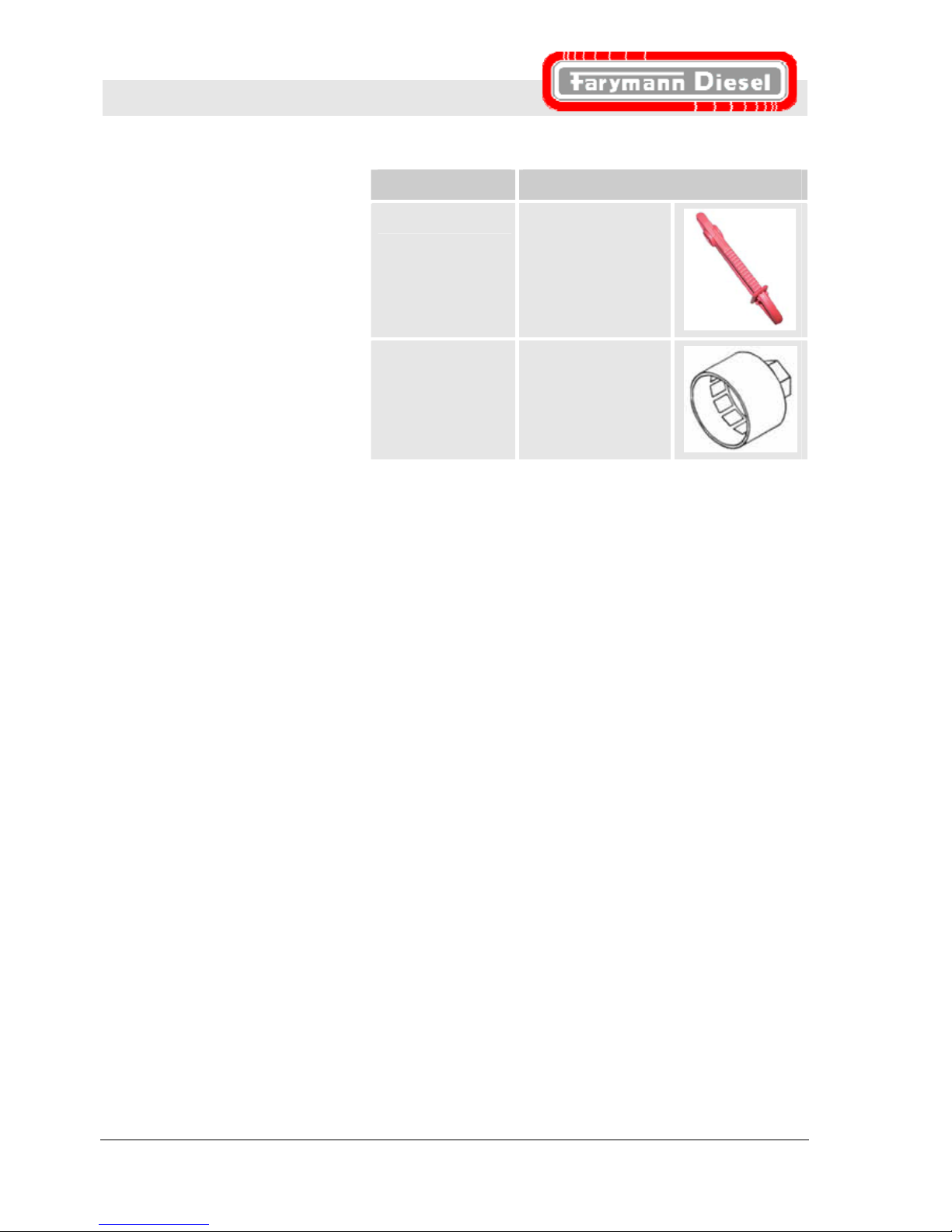

Special tools
Order number Description
748.115.6 Fuel line
disconnecting tool
748.173.2 Oil filter wrench
(dismantling the oil
filter)
Special tools can be ordered from the nearest Greaves Farymann
Diesel service partner.
Pos: 11.1 /KN2006-Projekte/Bukh-Farymann/Ser vic enachweise/1. Servicenachweise (Titel) @ 45\mod_1188133245716_2.doc @ 570654
Diesel engine Series 15B / 18B
Service history
2008-09-08 99
11 Service history
Pos: 11.2 /KN2006-Projekte/Bukh-Farymann/Ser vic enachweise/1.1 Verkaufsnachweis 6600 @ 65\mod_1207235002402_2.doc @ 113105 0
11.1 Proof of purchase

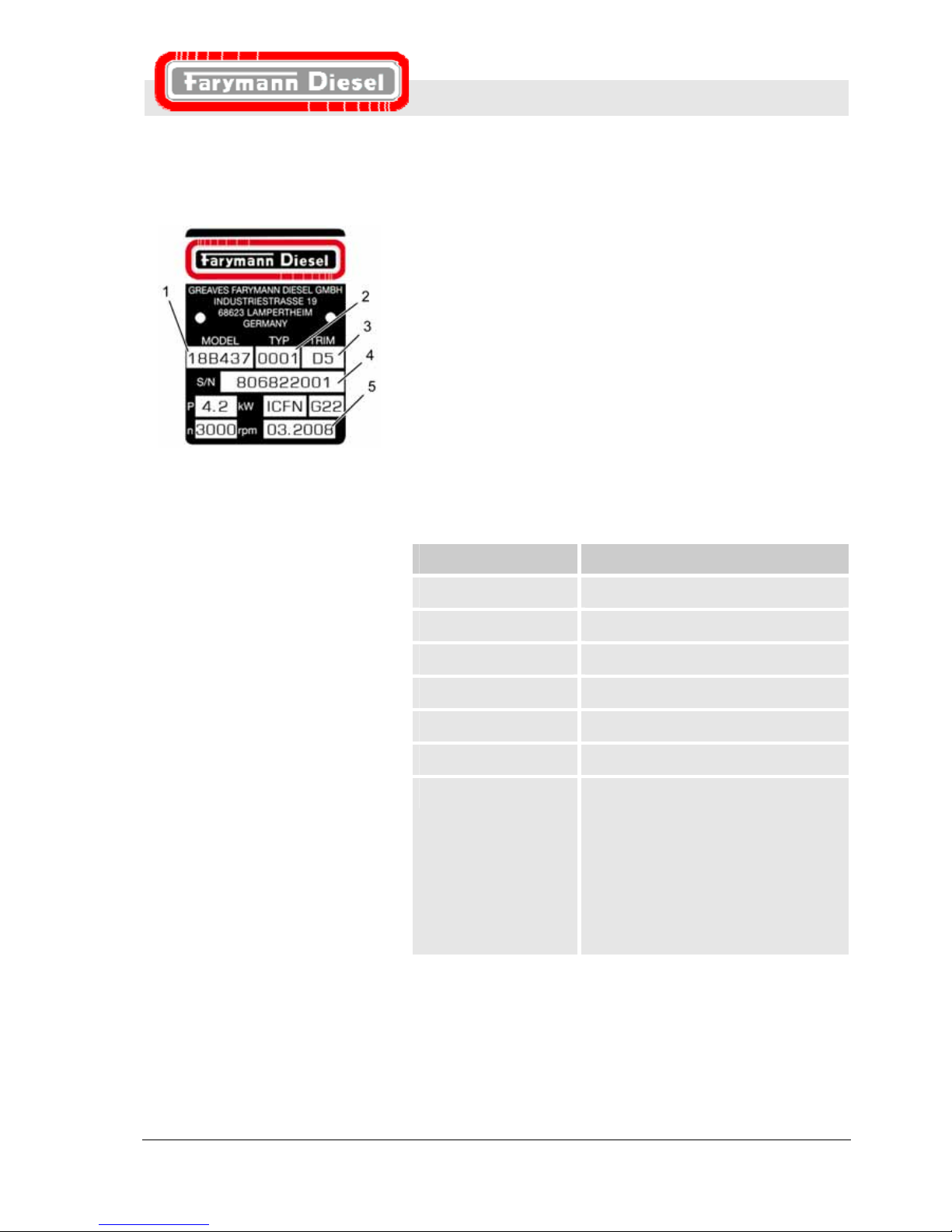

Fig. 75
Using the type plate, copy the following information on to the proof
of purchase and arrange confirmation.
There is a type plate on the engine with the following information:
1 Model
2 Type number
3 Version of the speed governor
4 Serial number
5 Date of manufacture
Pos: 11.3 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 75473
Pos: 11.4 /KN2006-Projekte/Bukh-Farymann/Ser vic enachweise/1.1.0 Verkaufsnachweis Tabelle @ 45\mod_1188133417815_2.doc @ 570696
Description Please fill in:
1 Model
2 Type number
3 TRIM
4 Serial number (S/N)
5 Date of manufacture
Date of purchase
by Dealer stamp
Pos: 11.5 /KN2006-SM/nL.......... Seitenumbruch .......... @ 8\mod_1141998334703_0.doc @ 75491
Diesel engine Series 15B / 18B
Service history
100 2008-09-08
Pos: 11.6 /KN2006-Projekte/Bukh-Farymann/Ser vic enachweise/1.1 Übergabe Wartungsnachweis @ 45\mod_1188133607616_2.doc @ 570710
11.2 Handover and servicing history
Arrange maintenance work during the warranty period and
afterwards to be carried out by one of our authorised Greaves
Farymann Diesel sales and service partners.
Comply with the maintenance intervals and have the following
evidence of maintenance confirmed by the specialist workshop.
The maintenance intervals must not be exceeded by more than
10% or maximum 25 operating hours.
Engine, equipment
installation and handover
Dealer stamp:
after 25 operating hours /
1 month
Dealer stamp:
after 250 operating hours /
6 months
Dealer stamp:
Hours ...........................
Date .............................
Hours ...........................
Date .............................
Hours ...........................
Date .............................
after 500 operating hours /
12 months
Dealer stamp:
after 750 operating hours /
18 months
Dealer stamp:
after 1000 operating hours /
24 months
Dealer stamp:
Hours ...........................
Date .............................
Hours ...........................
Date .............................
Hours ...........................
Date .............................
after 1250 operating hours /
30 months
Dealer stamp:
after 1500 operating hours /
36 months
Dealer stamp:
after 1750 operating hours /
42 months
Dealer stamp:
Hours ...........................
Date .............................
Hours ...........................
Date .............................
Hours ...........................
Date .............................
