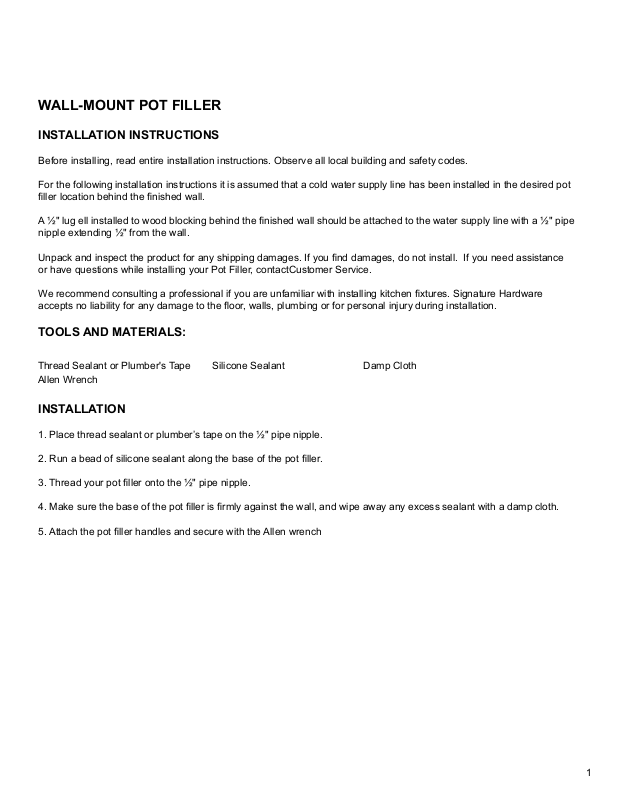

WALL-MOUNT POT FILLER
INSTALLATION INSTRUCTIONS
Before installing, read entire installation instructions. Observe all local building and safety codes.
For the following installation instructions it is assumed that a cold water supply line has been installed in the desired pot
ller location behind the nished wall.
A ½" lug ell installed to wood blocking behind the nished wall should be attached to the water supply line with a ½" pipe
nipple extending ½" from the wall.
Unpack and inspect the product for any shipping damages. If you nd damages, do not install. If you need assistance
or have questions while installing your Pot Filler, contactCustomer Service.
We recommend consulting a professional if you are unfamiliar with installing kitchen xtures. Signature Hardware
accepts no liability for any damage to the oor, walls, plumbing or for personal injury during installation.
TOOLS AND MATERIALS:
Thread Sealant or Plumber's Tape
Allen Wrench
Silicone Sealant Damp Cloth
INSTALLATION
Place thread sealant or plumber’s tape on the ½" pipe nipple.1.
Run a bead of silicone sealant along the base of the pot ller.2.
Thread your pot ller onto the ½" pipe nipple.3.
Make sure the base of the pot ller is rmly against the wall, and wipe away any excess sealant with a damp cloth.4.
Attach the pot ller handles and secure with the Allen wrench 5.
