Farstone DRIVE CLONE SERVER User Manual

DriveClone

Server

User’s Guide

No part of this publication may be copied, transmitted, stored in a retrieval system or translated into any language in any form or by any means without the expressed written permission of FarStone Technology, Inc.

FarStone gr ants you the right to use one copy of the enclosed softw are program (“SOFTWARE”) on a single computer . If the SOFTWARE is installed on a network, or more than one user can run the SOFTWARE at the same time, you must purchase an additional license for each additional user or computer.

Trademark

FarStone® is a trademark of FarStone Technology, Inc. Microsoft, Windows® and MS-DOS® are registered trademarks of Microsoft Corporation. Other product names mentioned in this User’s Guide may be trademarks or registered trademarks of their respective companies.

FarStone Technology, Inc.

U.S. Headquarters:

350 S. Hope Ave Suite A103 Santa Barbara, CA 93105 Phone: (805) 682-5678 Fax: (805) 682-4561

www.farstone.com

Asia-Pacific Offices

9F-4, No.87, Sec 4 Jhongsiao E. Rd. Taipei City 106,Taiwan Phone: 886-2-2777-2887 Fax: 886-2-2777-2857

www.farstone.com.tw

Technical Support

Answers to frequently asked questions are posted on our website at

www.farstone.com/support/faqs

Support at www.farstone.com/support Copyright

. For other support issues, please contact FarStone Technical

Software License Agreement

FARSTONE TECHNOLOGY, INC. (FARSTONE) END USER LICENSE AGREEMENT FOR DRIVECLONE, HEREAFTER REFERRED TO AS THE “SOFTWARE”

PLEASE READ CAREFULLY: THE USE OF THIS “SOFTWARE” IS SUBJECT TO THE “SOFTWARE” LICENSE TERMS OF FAR STONE AND O THER LICENSORS WHO’S SOFTWARE MAY BE BUNDLED WITH THIS PRODUCT.

BY YOUR USE OF THE “SOFTWARE” INCLUDED WITH THIS PRODUCT YOU AGREE TO THE LICENSE TERMS REQUIRED BY THE LICENSOR OF TH E “SOFTWARE” , AS SET FOR TH BELOW . IF YOU DO NOT AGREE TO THE LICENSE TERMS APPLICABLE TO THE “SOFTWARE”, YOU MAY RETURN THE ENTIRE UNUSED PRODUCT FOR A FULL REFUND.

LICENSE AND WARRANTY:

The software that accompanies this license (the “Software”) is the property of FARSTONE or its licensors and is protected by copyright law. While FARSTONE continues to own the Software, you will have certain rights to use the Software after your acceptance of this license. Except as may be modified by a license addendum which accompanies this license, your rights and obligations with respect to the use of this Software are as follows:

A. Single User License:

(a) Use the “Software” on a single computer system or network, and only by a single user at a time. If you wish to use the “Software” for more users, you will need an additional License for each user.

(b) Make one copy of the “Software” in machine-readable form solely for back-up purposes provided you reproduce FarStone’s copyright proprietary legends. Notwithstanding the foregoing, the “Software” may be used on the home, laptop or other secondary computer of the principal user of the “Software”, and an additional copy of the “Software” may be made to support such use. As used in this License, the “Software” is “in use” when it is either loaded into RAM or installed on a hard disk or other permanent memory device. The “Software” may be “in use” on only one computer at any given time. (Different License terms and fees are applicable for networked or multiple user applications.) As a specific condition of this License, you agree to use the “Software” in compliance with all applicable laws, including copyright laws, and that you will not copy, transmit, perform or distribute any audio or other content using the “Software” without obtaining all necessary Licenses or permissions from the owner of the content.

B. Multiple User License:

Make one copy of the “Software” in machine-readable form solely for back-up purposes,

provided you reproduce FarStone’s copyright proprietary legends. You must acquire and dedicate a License for each separate computer on which any part or

portion of the “Software” is installed or run As used in this License, the “Software” or any part or portion of the “Software” is “in use” when it is either loaded into RAM or installed on a hard disk or other permanent memory device including any network ed or shared environment where either direct or indirect connections are made through software or hardware which pools or aggregates connections.

As a specific condition of this License, you agree to use the “Software” in compliance with all applicable laws, including copyright laws, and that you will not copy, transmit, perform or distribute any audio or other content using the “Software” without obtaining all necessary Licenses or permissions from the owner of the content.

C. Restrictions:

You may not distribute copies of the “Software” to others or electronically transfer the “Software” from one computer to another over a network. Y ou may not post or otherwise make available the “Software”, or any portion thereof, in any form, on the Internet. You may not use the “Software” in a computer service business, including in time-sharing applications. The “Software” contains trade secrets and, in order to protect them, you may not decompile, reverse engineer, disassemble, or otherwise reduce the “Software” to a human-perceivable form. YOU MAY NOT MODIFY, ADAPT, TRANSLATE, RENT, LEASE, LOAN, RESELL FOR PROFIT, DISTRIBUTE, NETWORK OR CREATE DERIVATIVE WORKS BASED UPON THE “SOFTWARE” OR ANY PART TH EREOF.

D. Limited Warranty:

FarStone warrants that the media on which the Software is distributed will be free from defects for a period of fourteen (14) days from the date of delivery of th e Software to you. Your sole remedy in the event of a breach of this warranty will be that FarStone will, at its option, replace any defective media returned to F arStone within the warr anty period or refund the money you paid for the Software. FarStone does not warrant that the Software will meet your requirements or that operation of the Software will be uninterrupted or that the Software will be error-free.

THE ABOVE WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PAR TICULAR PURPOSE AND NONINFRINGEMENT. THIS WARRANT Y GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

E. Limitation of Liability:

IN NO EVENT WILL FARSTONE OR ITS LICENSORS BE LIABLE TO YOU FOR ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES, INCLUDING ANY LOST PROFITS, LOST SAVINGS, OR LOSS OF DATA, EVEN IF FARSTONE OR A LICENSOR HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY O THE R PARTY. Some states do not allow the exclusion or limitation of special, incidental, or consequential damages, so the above limitation or exclusion may not apply to you.

F. General:

You acknowledge that you have read this Agreement, understand it, and that by using the “Software” you agree to be bound by its terms and conditions. You further agree that it is the complete and exclusive statement of the agreement between FarStone and you, and supersedes any proposal or prior agreement, oral or written, and any other communication between FarStone and you relating to the subject matter of this Agreement. No additional or any different terms will be enforceable against FarStone unless FarStone gives its express consent, including an express waiver of the terms of this Agreement , in writing sign ed by an officer of FarStone. Y ou assume full responsibility for the use of the “Software” and agree to use the “Software” legally and responsibly.

Should any provision of this Agreement be declared unenforceable in any jurisdiction, and then such provision shall be deemed severable from this Agreement and shall not affect the remainder hereof. F arStone reserves all rights in the “Software” not specifically granted in this Agreement.

Additional Terms and Conditions:

In addition to the above agreement, the following terms and conditions will also apply to Your use of the Software:

A. You may use the Software on one Device to clone, or apply an image of a hard drive on that Device, or to another hard drive on the same Device, a replacement Device, secondary media, or network drive.

B. You may use the Software on a Device to create an image file of a hard drive on that Device and store the image file on fixed or removable media for disaster recovery purposes.

C. You may use the Software as a boot disk to re-apply the hard drive image that was created for disaster recovery purposes to the hard drive on the Device from which the disaster recovery image was made or on a replacement Device provided that the software has been removed from the original Device.

D. You may use the Softw are to clone a hard drive from a Device to a replacement Device, in the manner described in the Software documentation and to use the Software on the replacement Device provided that the Software has been removed from the original Device.

E. Y ou may not use the Software commercially or non-commercially for the purpose of creating an image on multiple Devices or hard drives, except for multiple hard drives installed in or attached directly to the original Device.

F. For the purposes of this License Agreement, a virtual device is considered the same as a

physical device. G. If the Software you have licensed includes the Pre- OS the following uses and restrictions

apply to the Software: (i) The Pre-OS contains Windows® software licensed from Microsoft Corporation. Microsoft

Corporation has no liability to You for the Component. Any support for the Component will be provided by FarStone in accordance with FarStone’s then-current support guidelines.

(ii) THE PRE-OS CONT AINS A TI ME-OUT FEA TURE THA T WILL AUTOMATICALLY RE-BOO T THE DEVICE AFTER SEVENTY-TWO HOURS OF CONTINUOUS USE. THIS TIME-OUT FEATURE WILL RESET EACH TIME THE COMPONENT IS RE-LAUNCHED.

(iii) The Pre-OS may be used as a boot, diagnostic, disaster recovery, setup, restoration, emergency service, installation, test, and configuration utility program. Use of the Component as a general purpose operating system or as a substitute for a fully functional version of any operating system product is strictly prohibited.

Windows® is a registered trademark of Microsoft Corporation.

Should you have any questions concerning this Agreement, you may contact FarStone by writing to:

FarStone Technology, Inc. Legal Department 350 S. Hope Ave., Suite A103 Santa Barbara, CA 93105

Contents

Chapter1:Introduction ........................................................................................................................ 9

1.1ProductOverview............................................................................................................................... ............. 9

1.2PowerfulBackupFeatures............................................................................................................................... 9

1.3OtherFeaturesandBenefits .........................................................................................................................10

1.4Newly‐addedFeatures .................................................................................................................................. 11

Chapter2:InstallingandUninstallingDriveClone ................................................................................12

2.1SystemRequirements ................................................................................................................................... 12

2.2StartDriveCloneInstallation ......................................................................................................................... 12

2.2.1InstallingDriveCloneServer....................................................................................................................... 12

2.3UninstallingDriveClone................................................................................................................................. 13

Chapter3:DriveCloneSpecificTerminology.........................................................................................14

3.1FileBackup.................................................................................................................................................... 14

3.2SystemSnapshot ........................................................................................................................................... 14

3.3HardDriveImaging ....................................................................................................................................... 14

3.4FullandIncrementalBackups ....................................................................................................................... 14

3.5DriveCloneUniversalRestore........................................................................................................................ 14

3.6DriveCloneSecureArea................................................................................................................................. 15

Chapter4:StartusingDriveClone ........................................................................................................16

4.1MainConsole ................................................................................................................................................ 16

4.1.1QuickStart ................................................................................................................................................. 16

4.1.2Jobs ............................................................................................................................................................ 17

4.1.3ViewLogs................................................................................................................................................... 19

4.1.4Settings ............................................................................................................................... ....................... 19

4.2BackupConsole............................................................................................................................................. 20

4.2.1CreateaSystemSnapshot.......................................................................................................................... 20

4.2.2FileBackup................................................................................................................................................. 21

4.2.3BackUpMyComputer............................................................................................................................... 24

4.3RestoreConsole ............................................................................................................................................ 25

4.3.1ReturntoaSystemSnapshot ..................................................................................................................... 25

4.3.2RestoreFiles............................................................................................................................................... 26

4.3.3RestoreYo u r Computer .............................................................................................................................. 27

4.3.4PerformUniversalRestore ......................................................................................................................... 28

4.4CloneConsole ............................................................................................................................................... 29

4.4.1CloneDrive................................................................................................................................................. 29

4.4.2ClonePartition ........................................................................................................................................... 30

4.5ToolsTab........................................................................................................................................................ 31

4.5.1CreateaBootableRescueDisk................................................................................................................... 31

4.5.2PreviewBackupImage............................................................................................................................... 32

4.5.3CheckImageIntegrity................................................................................................................................32

4.5.4ExportPXEImage....................................................................................................................................... 33

4.5.5ConvertBackuptoVirtualDisk .................................................................................................................. 33

4.5.6iSCSIInitiator.............................................................................................................................................. 34

Chapter5:DriveClonePre‐OS ..............................................................................................................35

5.1EnterDriveClonePre‐OSManager................................................................................................................ 35

5.1.1BootfromBootableRescueDisk ................................................................................................................ 35

5.1.2BootintoWindowsviaaUSBDriveorUSBKey......................................................................................... 35

5.1.3BootfromPXEServer ................................................................................................................................. 35

5.2DriveClonePre‐OSMainConsole .................................................................................................................. 37

5.2.1QuickStart ................................................................................................................................................. 37

5.2.2BackupConsole .......................................................................................................................................... 37

5.2.3RestoreConsole.......................................................................................................................................... 38

5.2.4ToolsTa b .................................................................................................................................................... 40

Chapter6:Glossary .............................................................................................................................46 

Chapter7:Appendix............................................................................................................................48

7.1FrequentlyAskedQuestions..........................................................................................................................48

Chapter 1: Introduction

1.1 Product Overview

DriveClone Server is a powerful data backup and hard disk imaging application. It creates a complete disk image of a hard drive or a single hard drive partition and stores it on a local computer, network share and even on an FTP server. The image can be used for backup and recovery , to quickly transfer all information from a server’s hard drive to a new hard drive. The image file can also be compressed and distributed across multiple hard drives or partitions.

DriveClone Server’s compressed image file contains all of the hard drive data files, partition information and security settings, by copying only the used data sectors – this keeps the size of the image to a minimum. The complete disk image can be updated quickly with incremental backups; the incremental backup contains only the hard drive changes that have occurred since the complete backup was created, or since the last incremental backup. This offers the administrator an easy and reliable way to keep the system backup data current, by storing the images on an external USB hard drive, CD or DVD set, or on a network share. The administrator would then be able to quickly recover from any type of data disaster, including data corruption or hard drive failure. With a special recovery environment (DriveClone Pre-OS), you can run DriveClone to back up and restore damaged partitions even if Windows won't start for some re ason. Also some other features of DriveClone are still available in this recovery environment. DriveClone Server offers the administrator flexible ways to protect all involved computers. System administrators will appreciate DriveClone Server’s ability to dramatically reduce the time they spend configuring multiple systems, installing software, or restoring multiple systems to an original image.

1.2 Powerful Backup Features

DriveClone’s Suite of backup features includes:

• Hard Drive Imaging: Backs up and restores a system with a complete copy of all files, installed software, partition information, and system settings.

• Incremental Backup: Manually or automatically updates save disk images without ever leaving Windows. Incremental backup points log only the changes that have occurred since the last Complete Backup.

• System Snapshots: Backs up an entire computer system automatically to the Secure Area. The system snapshots also provide a fast method to recover from software-related data disasters.

• File Backup: Manually or automatically backs up selected file/folder, file extension, etc.

• Universal Restore: Restores a complete system image of a particular configuration

to a different hardware configuration system or a Virtual Machine.

1.3 Other Features and Benefits

• Microsoft Volume Shadow Copy Service (VSS) Support (for Windows Server 2003 and higher): Easily back up VSS compatible databases (Exchange, Oracle, SQL

Server) without taking databases offline and ensuring data consistency.

• Preboot Execution Environment (PXE) Support: Boot and recover any system from PXE server without the need for a Bootable Rescue Disk.

• Complete External Backup: Store a complete system image on a USB hard drive, or on a network share.

• Easy Disk Image Updates: Incremental Backup lets you quickly update your saved disk image without ever leaving Windows.

• Flexible Backup: Back up your client’s hard drive to another local hard drive, network drive, or a USB device.

• Rapid, Controlled Recovery: Rebuild system via Complete Restore or System Snapshot in minutes, not hours or days.

• Partition Support: Supports FAT，FAT32, NTFS and other unknown partitions.

• Hardware Support: Supports IDE, EIDE, SATA, and SCSI/RAID hard drives.

• 100% Protection: Restore an operating system damaged by corrupt software,

human error, a virus attack, or a software bug.

• Quick and Safe Try: Y ou have the choice to return your computer to its original state in seconds as long as a System Snapshot is created before a new application is installed.

• Unlimited System Snapshots: DriveClone has no limit for multiple system snapshots as long as adequate space is allocated in the hard drive for DriveClone’s Secure Area.

• FTP Support: Save another data copy onto a remote FTP server to enhance the protection of files and even the whole computer.

• Virtual Machine Support: Convert the backup image into a VMware file image format to run it on a virtual machine.

1.4 Newly-added Features

• Pre-OS Restoration: 100% hardware support (i.e. RAID disk arr ay). The latest hardware is supported if a driver is manually added.

• FTP Support: Save another data copy onto a remote FTP server to enhance the protection of the files and even the whole computer.

• Virtual Machine Support: Convert the backup image into a VMware file image format to run it on a virtual machine.

• Industry Standard AES Encryption Support: File backup supports AES 128/192/256 bit encryption to enhance data security.

• Major Database Support: Provide Open File Backup feature. It backs up Oracle, SQL Server, Exchange Server, SharePoint Server in real time.

Chapter 2: Installing and Uninstalling DriveClone

2.1 System Requirements

• CPU: Pentium or higher

• RAM: 512 MB or more (1 GB or more for Vista)

• Hard Drive: 250 MB free space

• Supported Server Operating S ystems: Windows® Server 2003 Standard or Enterprise

or Data Center (32-bit & x64)SP2, Windows® Server 2003 R2 SP2, Windows® Server 2008

• Supported Desktop Operating Systems: Windows® XP (32-bit & x64), Windows®

Vista (32-bit & 64-bit)

2.2 Start DriveClone Installation

If you purchased a CD:

Insert the CD into your CD-ROM drive. The setup program should start automatically. If it doesn’t, browse the CD and double-click on the Autorun.exe. Follow the prompts displayed to finish your installation.

If you purchased an electronic download:

Save the executable file to your hard drive. Double-click on the file to launch the DriveClone installer. Follow the prompts displayed to finish your installation.

2.2.1 Installing DriveClone Server

1. Select Setup, and click Next.

2. Select the language preference of the application, and click Next.

3. Carefully read the software license agreement. If you accept the terms of the agreement, select I accept the terms in the license agreement, and click Next.

4. Enter your personal information and serial number, and click Next.

Note Installation without purchasing a serial number will acti vate a ti me-limited evaluation version of DriveClone.

5. Click Next to install to the default folder, or Change to select another location.

6. Click Install to launch the installation process.

7. Click Finish to complete the installation. Y ou are required to restart your computer to launch DriveClone Server.

2.3 Uninstalling DriveClone

1. From the Windows Start menu, select Start Æ Settings Æ Control Panel.

2. Double-click Add/Remove Programs, and select Change or Remove Programs.

3. Select DriveClone Server, and click Remove to begin uninstalling the associated

component.

Chapter 3: DriveClone Specific Terminology

3.1 File Backup

DriveClone File Backup monitors file changes. When a change is detected, DriveClone will record it and back it up according to your schedule. File backups can be stored locally or externally.

3.2 System Snapshot

System Snapshot and Hard Drive Imaging are both sector level backup functions. System Snapshot stores only the changed data sectors into the DriveClone Secure Area. The amount of storage capacity required for each snapshot is substantially le ss than the entire amount of data on the hard drive. As a result, snapshots offer a significant savings of hard drive space and an increased restoration speed when compared with hard drive imaging or complete disk cloning methods.

3.3 Hard Drive Imaging

Hard Drive Imaging can be used for bare-metal disaster recovery when hard drive failure occurs.

3.4 Full and Incremental Backups

Full and incremental backup solutions aim to make storing several copies of the source data more feasible. To accomplish this, a complete backup is taken initially and then incremental backups can be scheduled or run manually (Inc remental backup only stores the files or sectors that have changed since the previous full or incremental backup). Restoring a system to a certain point involves locating the complete backup and the incremental backups executed between the time of the complete backup and the time of the restore.

3.5 DriveClone Universal Restore

With DriveClone Universal Restore, there is no need to reinstall the operating system, applications, configuration files, individual files, and folders into the new system with different hardware configuration, or to a virtual machine. With Universal Restore, you ca n restore your system onto a similar or a different (than original) hardware configuration with a few mouse-clicks.

3.6 DriveClone Secure Area

DriveClone’s Secure Area is a virtual partition which is created onto the hard drive’s free space. This location is hidden, protected, and accessible only by DriveClone. The secure area is used to store the system snapshots and the DriveClone Pre-OS. It will not be influenced by most computer disasters, so it ensures the protection of your data and the efficiency of DriveClone recovery.

Chapter 4: Start using DriveClone

To launch DriveClone, double-click the DriveClone Server Client Module icon on your desktop, or select Start Æ All Programs Æ FarStone Æ DriveClone Server Client Module.

*DriveClone Main Console

4.1 Main Console

4.1.1 Quick Start

This displays a shortcut menu for File Backup, Back up Computer and Install System Snapshot (Undo).

File Backup – Click here to back up the selected files and folders. Back Up Computer(s) – Click here to back up the entire hard drive or partition(s) to an

external location. Install System Snapshot (Undo) – Click here to install system snapshot feature, which

backs up the whole computer and saves the backup data on its Secure Area.

Note

All system snapshots created within the trial period will be cleared once upgraded to a formal version. Once upgraded, DriveClone will create a new system snapshot.

To in stall System Snapshot, please do the following:

1. Click OK to continue after carefully reading the warning message.

2. Allocate the space for Secure Area (at least 1200 MB) and click Next.

3. Then wait patiently until the system reboots automatically.

If you don’t want to use the system snapshot feature any more, you can also uninstal l it from here by clicking OK to continue after carefully reading the warning message. Then the system will reboot automatically.

4.1.2 Jobs

View existing Snapshot, Complete Backup, and File Backup jobs.

• Snapshot – Set the frequency for the automatic creation of a S ystem Snaps hot, and intervals for automatic restoration. Also you can enable/disable System Snapshot by clicking the button Turn On or Turn Off.

Automatic creation of System Snapshots

a. Create a Snapshot every x hour(s) – Create a Snapshot every 1 to 24 hours.

*Automatic System Snapshot

Note

If the system is set to create a snapshot every hour , DriveClone will tak e the first snapshot an hour after the creation of the most recent system snapshot.

b. Create a Snapshot at system startup – Create a new System Snapshot

automatically every time the computer boots up.

• Intervals for Automatic Restoration

a. Restore computer at every startup – Check this box if you want DriveClone

to restore from the most recent System Snapshot every time you start your computer. You can either just restore the system partition or the entire hard drive. If you choose to only restore the system partition, all Snapshots created before the restore point will be available for system partition restoration only.

b. Set the time for rebooting your computer – You can also select a time to

automatically restart the computer. The computer will be restarted and restored according to these set times as well as at system startup. This option can be enabled only if you select option a.

• Back Up Computers – DriveClone shows all file backup jobs related to this computer. There are four functions you can perform on the each backup computer job.

a. Detail – View detailed information about the backup jobs you’ve created,

including the job name, source, destination, scheduled settings, description and FTP address for the selected backup.

b. Edit Schedule – Schedule incremental updates for the backup job you’ve

created; change other scheduled settings.

c. Offsite Copy – Change FTP settings or click Restore Defaults to restore the

FTP settings to be the same as it in Settings

. d. Back Up Now – Create an Incremental Backup immediately. e. Delete – Delete the selected job.

Scheduling Complete Backups

1.Complete backups and incremental updates can be created according to the pre-set schedule.

2. If the system is busy, DriveClone will not be able to perform the scheduled backup job, and will automatically try again later.

• File Backup – DriveClone displays all of the file backup jobs related to this computer, you’ll see the following options under each job:

a. Detail - View detailed information about a backup job you’ve created, including

the job name, job location, scheduled settings and FTP address. b. Edit Schedule – Change scheduled settings for the backup job you’ve created. c. Offsite Copy – Change FTP settings or click Restore Defaults to restore the

FTP settings to be the same as it in Settings

d. Add Files - Add files to your File Backup list. e. Back Up Now - Run the selected incremental File Backup job immediately. f. Delete - Delete the selected job.

Scheduling File Backups

1. If your system is busy , DriveClone will not be able to initiate the backup process. DriveClone will attempt to perform the backup after 5 minutes.

2. The following files are not backed up: a. Files in the Recycle Bin b. Files in the System Volume Information directory,

pagefile.sys, and the _$temp directory c. Hiberfil.sys d. Files with “.rit” and “.tmp” extensions e. Microsoft Office temporary files f. Files in DriveClone’s installation folder g. Files in the Backup Destination directory of the backup job

currently running h. Files in the Temp directory

4.1.3 View Logs

This feature records all events of DriveClone, including warnin gs, errors and operations.

Save - Export the logs and save the event record as an excel file. Delete - Delete the selected event(s). Delete All - Delete all the saved events.

4.1.4 Settings

• Offsite Copy - By setting the following options, users can save another image copy on an FTP server to ensure the data protection. It is the default one for your file backup and complete backup.

a. FTP information – Enter the address and port.

b. FTP account – Enter the username and password of the FTP. You can select Anonymous if the FTP server is shared to all users in the network.

c. FTP connection retry frequency – Enter Retry attempts (Maximum of 100 times), Delay between retries (Maximum of 600s).

• E-mail Notification - By configuring the below settings, DriveClone will send an E-mail to your specified E-mail account when the backup is completed.

a. E-mail configuration - Enter preferred E-mail address and other server settings. b. Send test email – Click here to test proper setting functionality. c. Notification events – Specify the events for which you would like to receive

notification via E-mail regarding the backup operation.

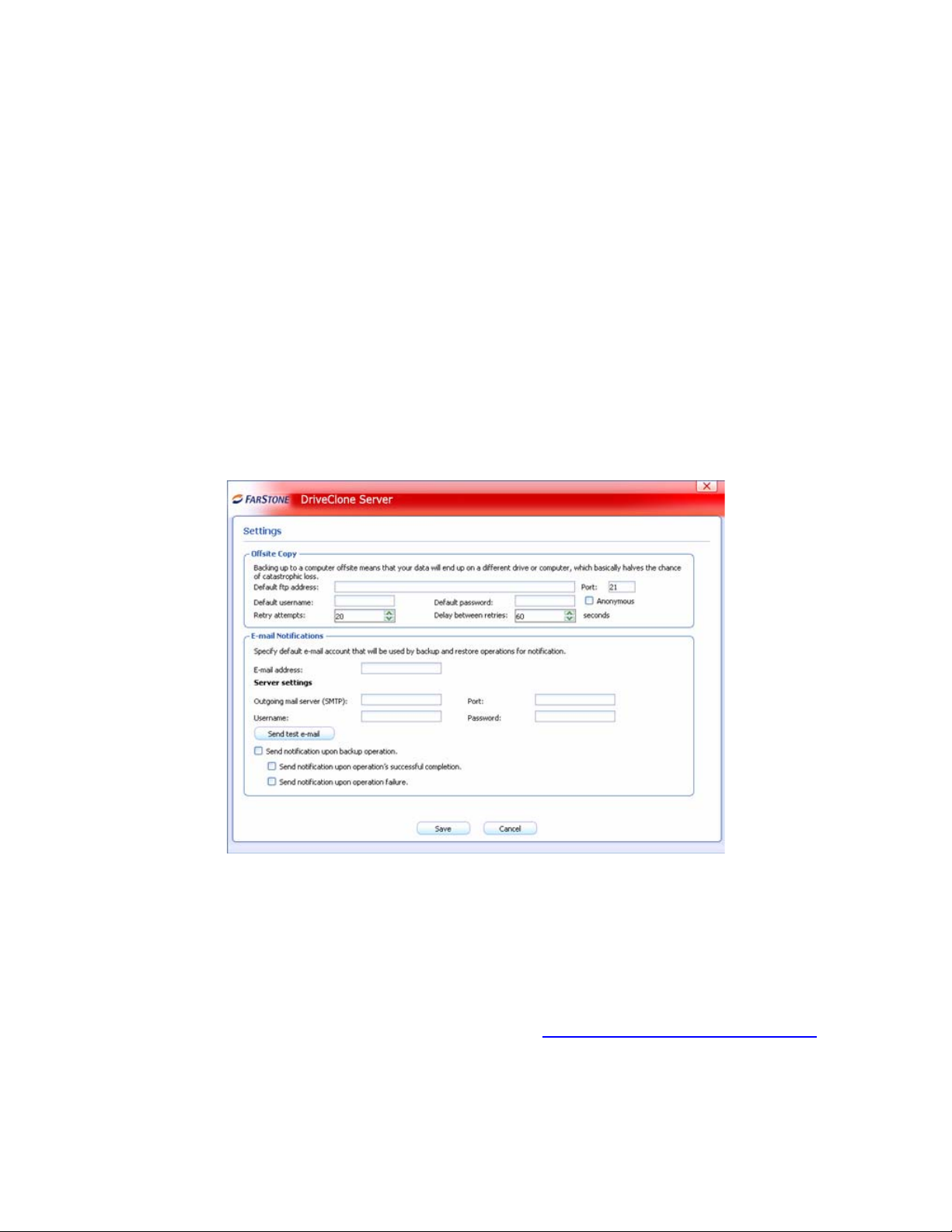

*E-mail Notification Setup

4.2 Backup Console

4.2.1 Create a System Snapshot

This feature is available only if you install it by clicking Install System Snapshot(Undo) on

the main console.

1. Click Back Up to create a System Snapshot. Yo u can also click Create a System Snapshot on the main interface of DriveClone to start creating a System Snapshot.

2. Enter a name for the System Snapshot. Cli ck Next to continue. To return to the previous menu, click Cancel.

3. After you choose a way to create the system snapshot, click Next.

i. If you select Start Now, DriveClone will initiate the process after clicking Next

twice.

ii. If you set a schedule, specify the frequency for creating or restoring from a

System Snapshot automatically . (F or more detail about scheduling, please refer

to 4.4.2)

4. Confirm all the settings, and then click Next to launch the backup process or click Previous to modify any setting.

5. If any program is currently writing data to the hard drive, DriveClone may not be able to create a System Snapshot.

6. Click Finish when a System Snapshot has been successfully created. Yo u can also click Edit Schedule to specify how often a System Snapshot should be automatically created and specify if the system need to be restored automatically.

4.2.2 File Backup

1. Start the DriveClone Program. Select Back Up and then click File Backup.

2. Select New File Backup to create a new job.

3. Enter a name for your new job

4. Select the file(s) you want to back up. You can also click Add Files/Folders or Add File Types to add file type, folder or individual file to back up according to your preference. Click Next to continue.

*Select Files for Backup or Add File/Folders

or Add File Types

Add Files/Folders: Click this to select the files or folders you want to add from Windows

Explorer. Add File Types: Click this to enter the Select File Types interface, as shown below.

a. Click Delete Type to remove file types you don’t want to back up. b. Click Add New Type to add new file type in to t he back up list. You will need to

enter a file type extension and a description. Or click Add Group to create a new file type group. You will need to enter a group name.

5. Select a location to store the backup file, such as a shared folder or locally on the system.

Click Next to continue. If you want to save one more image copy on the FTP, select Enable offsite copy (optional), and click Settings to configure these below.

*Enable Offsite Copy a. FTP information – Enter the address and port. b. FTP account – Enter the username and password of the FTP. You can select

Anonymous if the FTP server is shared to all users in the network.

c. FTP connection retry frequency – Enter Retry attempts (Maximum of 100 times), Delay between retries (Maximum of 600s).

d. Restore Defaults – Clear all FTP settings.

Tip

This feature only supports local image files. If you want to use the image file on the network or disc, you should save it on the local computer first.

The entire FTP upload process executes in the background. If the program fails to upload backup data onto FTP server, it will be recorded in logs which can be checked through View Logs. DriveClone will retry three times aut o matically until the next startup.

6. Click Start Now to proceed. Y ou can also choose to run daily , weekly , or monthly backups.

7. Click Advanced for optional settings including: backup priority , network connection speed, compression mode, password protection, image split, backup description, configuration of E-mail notification and Pre/Post command:

*Optional Advanced Settings

7. Review your information and settings, and click Next to launch the backup proce ss. For best results, close all of the files you want to back up prior to launching your backup job.

8. Click Finish to return to the main console. Or to specify your preferred Schedule Settings, click here to create a schedule now. By doing so, you can choose to repeat the backup operation at a specific scheduled time.

Updating a File Backup Job

1. Launch DriveClone.

2. Select Back Up, and click File Backup.

3. Select Incremental File Backup, and click Next.

4. Select an existing job from the Job List.

5. Review your information and settings, and click Next to launch the incremental backup.

6. Click Finish to return to the main console.

4.2.3 Back Up My Computer

1. Start the DriveClone Program. Select Back Up and then click Back Up Computer(s).

2. Select Create a New Complete Backup.

3. Enter a name for your new Complete Backup and click Next.

4. Select the partition(s) or the entire hard disk to back up, and click Next.

Tip:

If you want to restore with Universal Resto re later, you must choose your system partition (e.g. C:) to back up.

5． Enter the storage path and click Goto. Or select a destination location on a hard drive, USB

storage medium, or a network location to store the image file. If you want to save one more image copy on the FTP , select Enable offsite copy (optional), and click Settings to configure these below.

a. FTP information – Enter the address and port. b. FTP account – Enter the username and password of the FTP. You can select

Anonymous if the FTP server is shared to all users in the network.

c. FTP connection retry frequency – Enter Retry attempts (Maximum of 100 times),

Delay between retries (Maximum of 600s).

d. Restore Defaults – Clear all FTP settings.

Tip

This feature only supports the local image file. If you want to use the image file on the network or disc, you should save it on the local computer first.

The entire FTP upload process executes in the background. If the program fails to upload backup data onto FTP server, it will be recorded in log files which can be checked through View Logs; DriveClone will retry t hree times automatically until the next startup.

7. Click Next to continue.

8. Click Start Now to proceed. Y ou can also choose to run dai ly , weekly or monthly backups.

Optional settings will pop-up if you click Advanced. These settings include: backup

priority , network connection speed, compression mode, password prote ction, image split, backup description, configuration of E-mail notification and Pre/Post command.

10.

Click Next. Review the information and settings that have been specified. Click Next to launch the

11.

backup process. Or click Previous to modify setting(s).

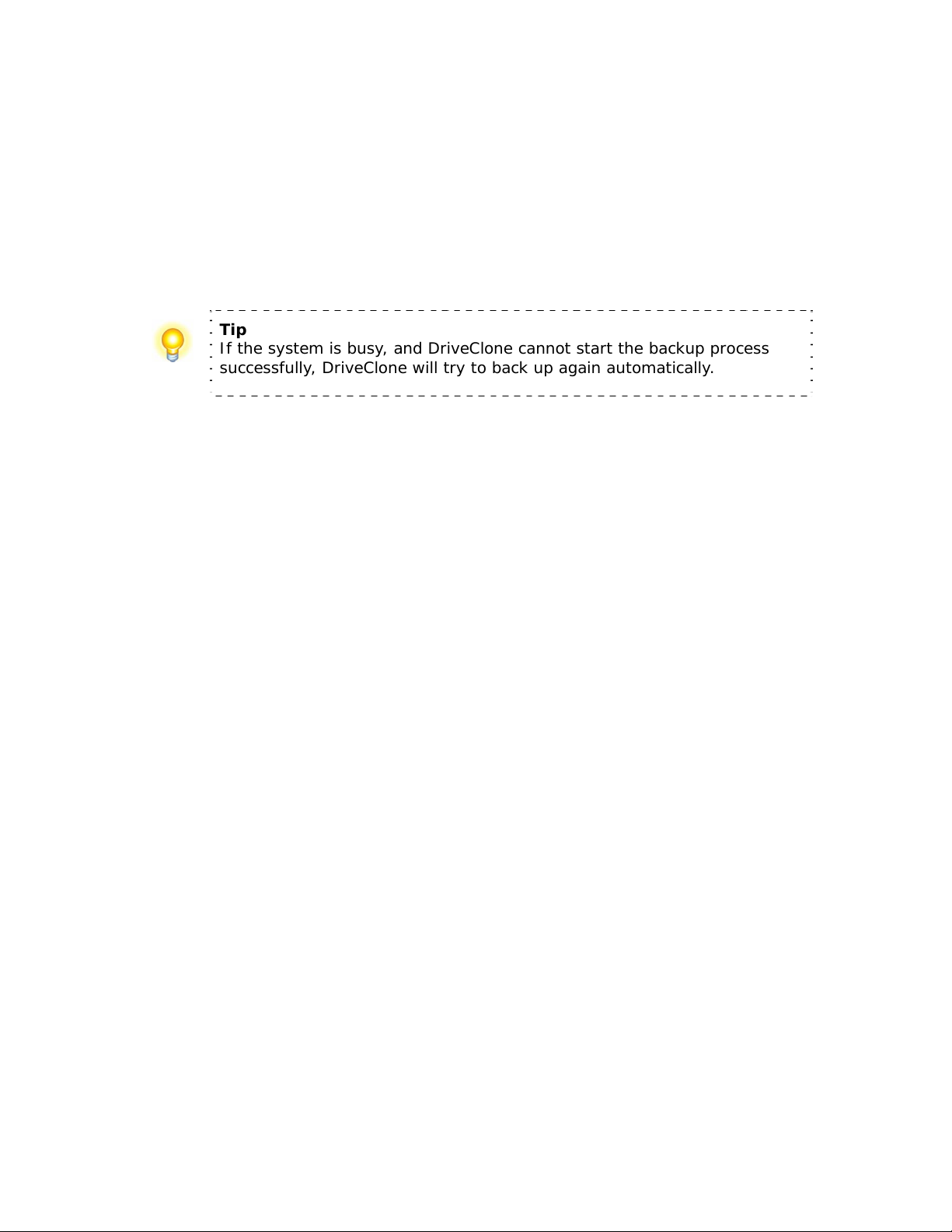

Tip

If the system is busy, and DriveClone cannot start the backup process successfully, DriveClone will try to back up again automatically.

12.

Click Finish to return to the main console. If you would like to edit the schedule for this job,

click here to create a schedule now.

Creating an Incremental Backup

1. Launch DriveClone.

2. Select Back Up and click Back Up Computer(s).

3. Select Incremental Backup and click Next.

4. Select an existing job from the Job List.

5. Review your information and settings, and click Next to launch the incremental backup.

6. Click Finish to return to the main console.

4.3 Restore Console

4.3.1 Return to a System Snapshot

This feature is only available if you install System Snapshot and take system snapshots on your system.

1. Click Restore and then click Return to a System Snapshot on the main interface.

2. Select the date you want to restore to from the calendar on the left pane and select the System Snapshot of that day you would like to restore to on the right pane and click Next. You can also click Preview System Snapshot to view its content prior to restoration. Then if you want to close the Preview Drives, click Close Preview Drives in the Tools tab or in the menu to close the Preview Drives.

3. Choose to restore the Entire Hard Drive or C : Drive Only and then click Next to

begin

the restoration.

Tip

If the user chooses to restore the C Drive only , DriveClone only restores the files of the active partition. All of the System Snapshots created before the restoration point can only be used to restore the C: drive.

4. Carefully read the warning message. Click OK to proceed to the next step. You can also click Cancel to exit.

5. Y o ur computer wi ll restart automatically to start the restoration process.

4.3.2 Restore Files

To restore file(s), please do the following:

1. Select Restore and then click Restore Files.

2. Select a backup image file from the drop down list. You can also click here to select it on a network share. Click Next to continue.

*Select backup image from network share

3. Select Files from the most recent backup or Files from a previous backup and click

Next. If you select Files from a previous backup, please select the backup point you w ant

to restore from the list.

4. Select the file(s) you want to restore.

5. Select a location to save the restored files:

a. If New Deskto p Folder is selected, the restored files will be saved in a new

folder on the client’s desktop, with the folder hierarchy preserved exactly as it was backed up.

b. If Original Location is selected, the restored files will be saved to their original

folder and will overwrite existing files in that folder with the same name.

c. If Another Folder is selected, click Select a folder to browse a folder on the

network. The restored files will be kept in their original folder h ierarchy.

6. Click Next to start the restoreafter confirming the source and the destination.

7. Click Finish to return to the main console.

4.3.3 Restore Your Computer

To rest ore a partition or the entire hard drive, please do the following:

1. Launch DriveClone.

2. Select Restore, and click Restore Your Computer.

3. Select a backup image from the list, or click here to select an image file stored on a network

share. Click Next to continue.

4. Select a Complete Backup point or any Incremental Backup point to restore from, and click

Next.

5. Select Do not use Universal Restore, and click Next.

6. Select to restore a single partition or the entire hard drive, and click Next.

7. Click OK to return to the original location, or click Cancel to select another location. If you

choose OK, skip to step 11.

8. Select a destination partition or a destination hard drive to be restored from the image file,

and click Next.

9. To restore a single partition, skip to step 10. To restore the entire hard disk, please select a

restore option.

a. Select the checkbox if you would like to modify th e destination partition size. b. Do not check the box if you have multiple systems or a hidden partition.

If you selected option a, double click the partition capacity to be resized from the list. If you selected option b, skip to step 10.

10. When it displays the structure of the destination part ition, double-click the h ighlight and

modify its size, and click Next to continue.

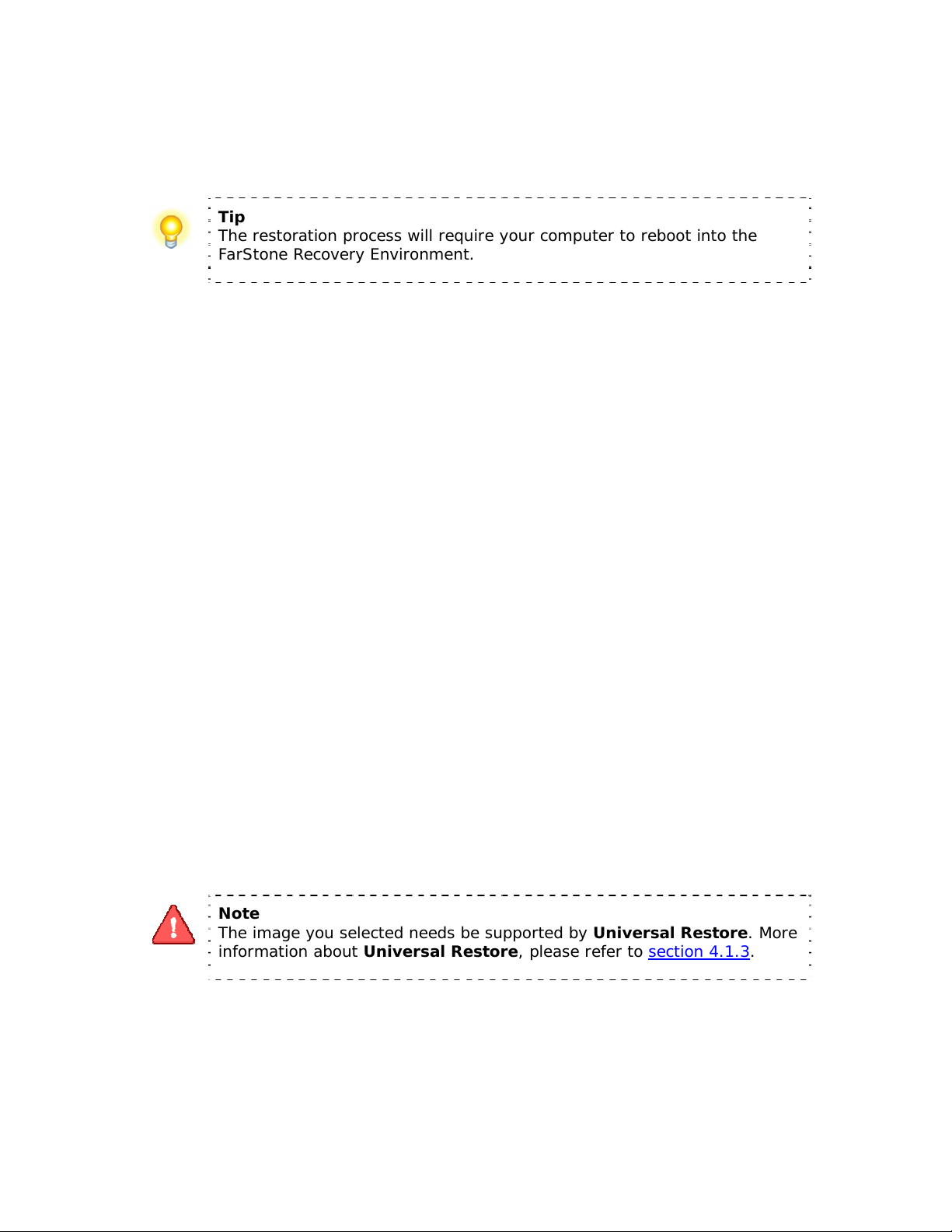

Tip

The restoration process will require your computer to reboot into the FarStone Recovery Environment.

11. Click Next to start the restoration after confirming the source and the destination.

12. Click OK to enter the FarStone recovery environment to complete the restoration process

automatically.

Your computer will restart to complete the restoration. After that, it will reboot into Windows automatically.

You will need to reallocate space for the secure area if you installed System Snapshot and want to continue to use the system snapshot feature:

1. Click OK to start the allocation.

2. Click Next to continue.

3. Click Yes to restart your computer and complete the process.

4.3.4 Perform Universal Restore

You ca n restore the system partition or the entire hard drive of the selected client to dissimilar hardware.

1. Launch DriveClone.

2. Select Restore, and click Restore Your Computer.

3. Select a backup image from the list, or click here to select an image file stored on a network

share. Click Next to continue.

Note

The image you selected needs be supported by Universal Restore. More information about Universal Restore, please refer to section 4.1.3

4. Select a Complete Backup point or any Incremental Backup point to restore from, and click

Next.

5. Select to restore with Universal Restore, and click Next.

6. When the dialog box appears, click OK to restart your system into FarStone Recovery

Environment to begin the restoration process, or Cancel to exit.

After your computer restarts to complete the Universal Restore, you need to do t he

following:

1. Select to restore a single partition or the entire hard drive, and click Next.

2. Click OK to restore to the original location, or click Cancel to select another location. If you

choose OK, skip to step 6.

3. Select a destination partition or a destination hard drive to be restored from the image file,

and click Next.

4. To restore a single p artition, skip to step 6. To restore the entire hard disk, please select a

restore option.

a. Select the checkbox to modify the destination partition size. b. Do not check the box if you have information on multiple systems

5. If you selected option a, double click the partition Capacity to be resized from the list. If you

selected option b, skip to step 5.

6. When it displays the structure of the destination partition, double click the highlight and

modify its size, and click Next to continue.

7. Click Next to begin the restoration process after confirming all settings.

After the restore, it will reboot into Windows.

You will need to reallocate space for the secure area if you installed system snapshot and want to continue to use the system snapshot feature:

1. Click OK to start the allocation.

2. Click Next to continue.

3. Click Yes to restart your computer and complete the process.

4.4 Clone Console

4.4.1 Clone Drive

Clone Drive duplicates one hard drive to another. It eliminates the need to re-install the operating system, drivers and applications, and enables you to upgr ade a new hard drive wit h only a few mouse clicks.

Tip

To use this function, you will need to have at least two hard drives on your computer.

The target hard drive should have enough space to store the data of the source hard drive.

1. Select Clone and then click Clone Drive.

2. Select the Source Disk (top pane) and then the Destination Disk (bottom pane). You can choose to modify the Destination Partition Size manually by selecting Modify the destination partition size. You can also choose not to modify the Destination Parti ti o n Size by selecting Keep the partition size of the destination drive the same as the

source drive. Click Next to continue.

Tip If you select Keep the partition size of Destination Hard Drive the same as the Source Hard Drive, please skip to step 4.

If the Hard Drive you want to clone is going to boot your system, for best result, please select Keep the partition size of Destination Hard Drive the same as the Source Hard Drive.

3. You can alter the Destination Partition size by double-clicking the entry of Destination Partition and change the size in a popup dialog box. Click Next to continue.

4. After confirming your selections, click Clone Now to proceed or you can click Previous to change your selection. If the system is busy, DriveClone will try to clone again automatically.

Note

The cloning process will overwrite all data on the destination disk. Click Continue to begin the cloning process. You can also click Cancel to exit.

5. Click Shutdown to complete the cloning process.

4.4.2 Clone Partition

With DriveClone, you can copy data from the source partition into the destination partition.

1. Select Clone and then click Clone Partition.

2. Select a Source Partition in the Hard Drive (top pane).

Note

You can only choose one partition at a time. The Source Partition and the Destination Partition cannot be the same.

3. Select a D estination Partition in the original Hard Drive or another Hard Drive (bottom pane), then click Next to continue.

Tip

The selected destination partition must have enough space to hold the data of the source partition.

4. Aft er confirming your selections, click Clone Now to start the duplicating process or you can click Previous to change your selections. Y ou can start the cloning process by clicking

Start Clone. If the system is busy, DriveClone will try to clone again automatically.

Tip

The cloning process will overwrite all data on the destination disk. Click Continue to begin the cloning process. You can also click Cancel to exit.

5. Click Return to Main Console to complete the process.

4.5 Tools Tab

4.5.1 Create a Bootable Rescue Disk

Create a bootable disk to recover from a system crash or hard drive failure

1. Insert a blank Disc or USB device.

2. Click Tools tab on the left or Tools menu on the top of the interface, and then select Bootable Rescue Disk.

3. Select the CD/DVD drive or the USB device you’ll be using to create your Bootable

Rescue Disk, and click Next.

Tip

If there is some data on the inserted device, you will be asked whether you wish to erase the disc. If you want to continue, click Erase. Click Change to insert another blank CD/DVD, or Cancel to stop the creation process.

4. Click Finish to complete the process.

4.5.2 Preview Backup Image

Preview the content of the specified partition of a complete backup image to make sure you can only restore the needed partition(s).

1. Click on the Tools tab, and then select Preview Backup Image.

Note

If you have mounted an image before, you will be prompted to dismount the previous image. Click Continue to dismount the previous image, or Cancel to exit this process.

2. Enter the storage path of the image you want to preview and click on Goto to select the

image, or select the storage path of the image you want to preview and click Next.

3. Select a complete backup point or an incremental backup point, and click Next.

4. Select the partition you want to preview, and click Mount to load the image into the

system.

5. You can now browse and copy data on the preview drive in Windows® Explorer.

6. You can click Yes to mount another image. Click No to return to main console.

If you do not want to preview the image anym ore, select Unmount Preview Drive on the the Tools tab, or select the Tools menu and click Unmount Image to close the preview partition.

4.5.3 Check Image Integrity

Use this function to check if a complete backup image file is valid and can be used for restoration.

1. Click the Tools tab in the left or the Tools menu on the top of the interface, and then select Check Image Integrity.

2. Enter the storage path of the image you want to check, and click Goto to select the image. You can also select the storage path of the image you want to check and click Next.

3. Select to validate either the Complete or Incremental Backup point, and click Next to continue.

4. After validating the backup point, click Finish to complete the Image Integrity Check.

4.5.4 Export PXE Image

Export the PXE image to restore system without using the Bootable Rescue Disk.

1. Click on the Tools tab or Tools menu, and select Export PXE Image.

2. Enter the destination path where you w ant to save the exported image and click Goto, or select the destination path locally or remotely and click Next.

3. Click Finish to return to the main console, or click the storage path to view the PXE Image.

4.5.5 Convert Backup to Virtual Disk

After converting the complete backup image as a *.vmdk format successfully, you can conveniently load it as a new hard disk on your virtual machine. In doing so, all data on the original hard disk is available on that virtual machine.

Tip

If you did not install VMware Virtual Disk Development Kits, this function will be disabled. You can visit the provided link to download it.

1. Click on the Tools tab, and select Convert Backup to Virtual Disk.

2. Enter the storage path of the backup image and click Goto, or select it locally or remotely and click Next.

3. Select a complete backup point or an incremental backup point, and click Next.

4. Select to convert a single partition or the entire hard drive, and click Next.

5. Choose to either convert to VMware 5 or VMware 6, and click Next.

6. Select a local or remote destination path to save the conversion backup. Click Next to launch the conversion process.

7. Confirm all information about this conversion. Click Next to launch the conversion process.

8. Click Finish to return to the main console when the process completes.

4.5.6 iSCSI Initiator

First, ensure that the iSCSI initiator is install ed on the machine. On Windows Vista, it is installed by default; other Windows systems require a download and manual installation. With this feature, users may connect to the iSCSI device and a ccess a great deal of information and configuration options.

1. Click on the Tools tab, and select iSCSI Initiator.

2. Select the Discovery tab.

3. Click Add and enter the IP address or DNS name and Port number for the Target Portal on which you would like to log on.

4. If your T arget Portal requires Cha p for authentication, click Advanced. Then select the Chap logon information option and enter the Target secret. Click OK twice to return to the iSCSI Initiator Properties dialog.

5. Verify the Target Portals properties displayed on the Discovery tab.

6. Select the Targets tab to view a list of available targets whi ch you can l og on to . Note that the Status for these targets is shown as Inactive prior to login.

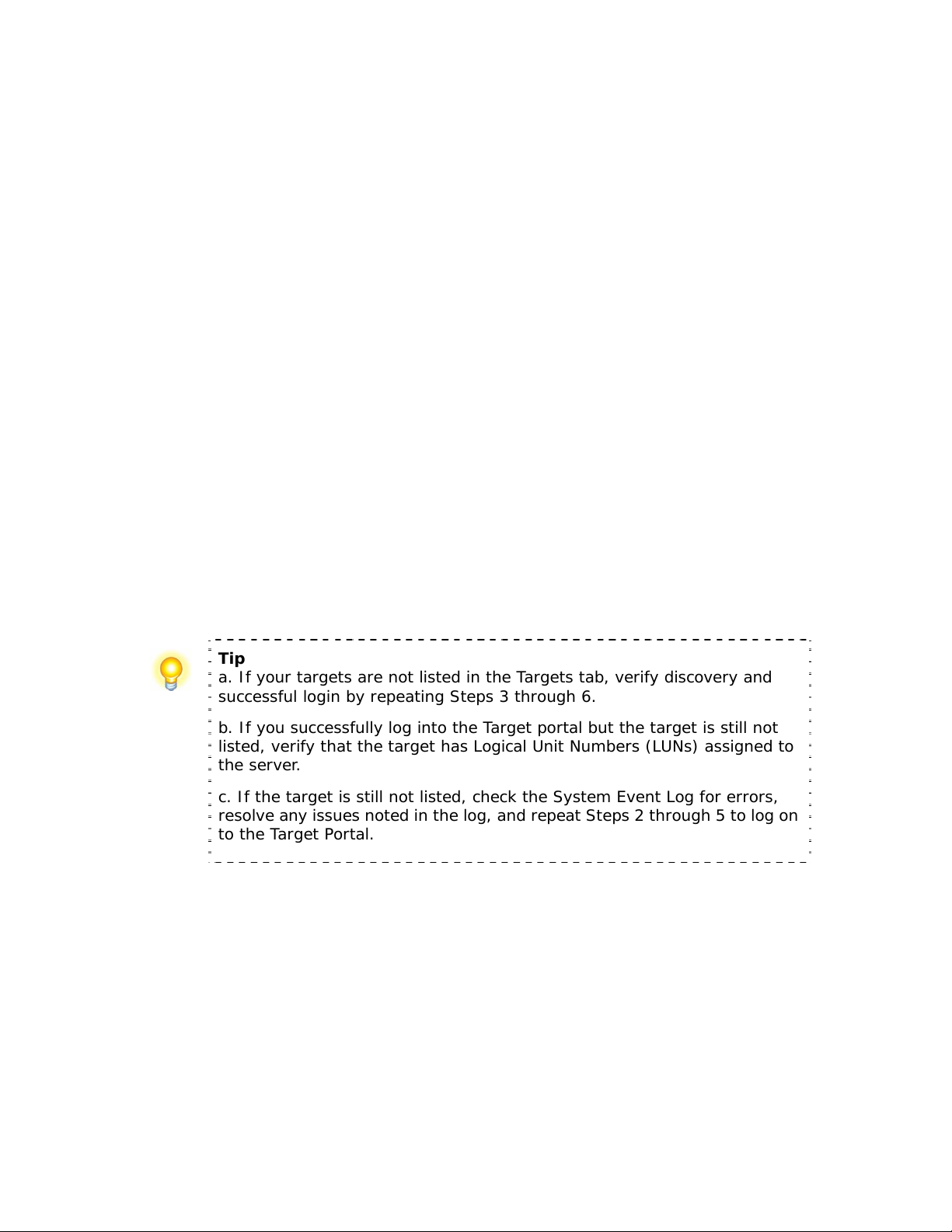

Tip

a. If your targets are not listed in the Targets tab, verify discovery and successful login by repeating Steps 3 through 6.

b. If you successfully log into the Target portal but the target is still not listed, verify that the target has Logical Unit Numbers (LUNs) assigned to the server.

c. If the target is still not listed, check the System Event Log for errors, resolve any issues noted in the log, and repeat Steps 2 through 5 to log on to the Target Portal.

7. Select the target that you want to log on to and click Log On.

8. Click Advanced and enter the username and password of the iSCSI target.

9. Verify that your target indicates “Connected” in the Status column.

Once connected, you can operate the connected iSCSI hard drive as you would a physi cal hard drive on your system (such as backup and restore)

Chapter 5: DriveClone Pre-OS

5.1 Enter DriveClone Pre-OS Manager

To launch the DriveClone Pre-OS, press the space bar after the system POST (Power-On-Self-Test), but before Windows manager via the following means, a bootable rescue disk, USB drive, USB key and PXE server.

Tip

T o prevent its use as a pirated operating syste m, Windows PE automatically stops running the shell and reboots after 72 hours of continuous use. This time period is not configurable.

begins to load. Also you can enter the Pre-OS

5.1.1 Boot from Bootable Rescue Disk

1. Insert the Bootable Rescue Disk and restart your computer, and then enter the BIOS to set the CD/DVD ROM as the first boot device.

2. After entering the DriveClone Pre-OS main consol e, you can then back up and restore your computer, return to a system snapshot, clone a hard disk and man y other useful functions.

5.1.2 Boot into Windows via a USB Drive or USB Key

With the USB Hot Drive, you can restore the entire system from a Windows environment. Follow the steps below to use the USB Hot Drive:

1. Connect the USB device, start your computer, enter the BIOS to set the USB device as the

first bootable option, and save your settings.

2. Restart the system and boot from the USB device.

3. After entering Windows, use DriveClone to restore the system. All of DriveClone’s other

features will also be available to you.

5.1.3 Boot from PXE Server

If the operating system of the PXE Server is Windows Server 2003, you can enable and configure Windows Deployment Services (WDS), and then set the boot image as DriveClone boot.wim in the configuration options of Windows Deployment Services. If you failed to configure WDS, you have to configure the TFTP Server and DHCP Server prior to booting from the PXE Server.

5.1.3.1 System Requirements for PXE

• Intel 486 (or compatible) processor or higher

• VBE2.0 Display Card or higher

• 256 MB of RAM or higher

5.1.3.2 Configuration of PXE Restore

When the operating system on a client PC cannot be accessed after a system crash, the System Administrator can use DriveClone’s Pre-OS mode (from the Client PC) to restore the system to a working status by using PXE Restore.

To do this, your Server PC and Client PC must have a network card which supports PXE Boot. You will also have to configure a DHCP Server and a TFTP Server to support the function of PXE Restore.

5.1.3.3 Configuration of a TFTP Server

Please follow the steps below to configure a TFTP Server.

1. Set the IP address of your server (example: 192.168.0.1). For best results, start the IP address with xxx.xxx.xxx.1.

2. Create a Root directory for the TFTP Server. For instance, set the C:\pxe_boot to be the Root directory (You can create the directory in any location on the TFTP Server and the directory can have any name). Then, copy all the files of Boot folder from directory of your exported PXE image to your root directory.

3. Select a tsize option for the TFTP Server.

5.1.3.4 Configuration of DHCP Server

1. Set the Boot File as boot\wdsnbp.com.

2. Configure the Boot Server with the same IP address of your TFTP Server.

3. Create a new port for DHCP Server (The port can be named with any name). Then, set the IP Address to be the IP Address of the TFTP Server, such as 192.168.0.1.

5.1.3.5 Configuration of Client PC

1. Enter the BIOS and set the boot mode as LAN Boot.

2. Turn on the DHCP and TFTP Servers. Restart the client PCPE.

3. You will be prompted to press F12 within 3 seconds to launch PXE booting process.

4. In the Pre-OS, specify your network settings (Refer to 6.7.2

) and restore your computer.

5.2 DriveClone Pre-OS Main Console

After you enter the DriveClone Pre-OS, you will see the following window.

5.2.1 Quick Start

Back Up Computer(s) – Click here to back up partition(s) or the entire hard drive for your system.

Return to a System Snapshot – Click here to restore from a specified system snapshot. Restore Your Computer – Click here to restore from a complete backup point.

5.2.2 Backup Console

5.2.1.1 Back up My Computer in PE Manager

1. Select Back Up and then click Back Up Computer(s).

2. Enter a name for your new Complete Backup, and click Next.

3. Select the partition(s) or the entire hard disk to back up, and click Next.

Tip

This backup performed in PE is not supported by Universal Restore.

4． Enter the storage path and click Goto, or select a destination location on a hard drive, USB storage medium, or a network location to store the image file. Some optional settings will b e displayed if you click Advanced; these include: compression mode, password protection,

plit, integrity check, backup description, backup priority, and network connection

peed.

5. lick Next.

6. Review the information and settings that have been ackup process, or click Previous to modify setting(s).

. Click Finish to return to main console.

specified. Click Next to launch the

.2.3 Restore Console

5.2.3.1 Return to a System Snapshot in Pre-OS Manager

1. Select Restore tab, and then click on Return to a System Snapshot icon to display a list

of System snapshot.

Snapshots. The first System Snapshot listed will be the most recently created

2. Select the date you want to restore to from the calendar on the left pane and se

Snapshot of that day you would like to restore on the right pane and click Next.

3. ore the Entire Hard Drive or C : Drive Only and then click Next to begin

Choose to rest restoration.

Tip

4. Carefully read the war

click Cancel to exit.

5. Your computer will restart automatically to start the restoration process.

A complete restore can take from 20 seconds up to 10 minutes, depending on the number of files affected. Once the system has restarted, your SYSTEM will be r estored from th e chosen System Sn removed.

apshot. All file modifications and additions made after System Snapshot date will be

ning message. And then click OK to proceed to next step. You can also

lect System

5.2.3.2 Restore Your Computer in Pre-OS Manager

To rest ore a partition or the entire hard drive, please do the following:

1. Enter into DriveClone Pre-OS manager.

2. Select Restore, and click Restore Your Computer.

3. Select a backup image from the list, or click here to select an image file stored on a network

share. Click Next to continue.

4. Select a Complete Backup point or any Incremental Backup point to restore from, and click

Next.

5. Select to restore a single partition or the entire hard drive, and click Next.

6. Select a destination partition or a destination hard drive to be restored from the image file,

and click Next. If you choose to restore a single partition, click Yes to launch the restoration process.

7. To restore the entire hard disk, please select a restore option.

a. Select the checkbox to modify the destination partition size. b. Don’t select it for fear of information loss on multiple systems or hidden partition.

If you selected option a, double click the partition Capacity to be resized from the list. If you selected option b, skip to step 9.

8. When it shows the structure of the destination partition, double click the highlight and

modify its size, and click Next to continue.

9. Click OK to begin the restoration process.

After the restoration completes, it will reboot into Windows automatically. If you want to continue to use system snapshot fe ature, you will need to reallocate space for the

secure area as prompted.

5.2.3.3 Perform Universal Restore

You can restore the system partition or the entire hard drive of the selected client to a dissimilar hardware.

1. Launch DriveClone Pre-OS manager.

2. Select Restore, and click Restore Your Computer.

3. Select a backup image from the list, or click here to select an image file supported by

Universal Restore. Click Next to continue.

Note The image you selected needs be supported by Universal Restore. More information about Universal Restore, please refer to section 4.1.3

4. Select a Complete Backup point or any Incremental Backup point to restore from, and click

Next.

5. Select to restore with Universal Restore, and click Next.

6. Select to restore a single partition or the entire hard drive, and click Next.

7. Select a destination partition or a destination hard drive to be restored from the image file,

and click Next. If you choose to restore a single partition, click Yes to launch the restoration process.

8. To restore the entire hard disk, please select a restore option.

a. Select the checkbox to modify the destination partition size. b. Don’t select it for fear of information loss on multiple sy stems.

If you selected option a, double click the partition Capacity to be resized from the list. If you selected option b, skip to step 10.

9. When it shows the structure of the destination partition, double click the highlight and

modify its size, and click Next to continue.

10. Click Next to begin the restoration process.

11. Click Finish to complete the process.

5.2.4 Tools Tab

5.2.4.1 Image Integrity Check

In this section, you can check if the backup data in your complete backup image file is valid.

1. Select Tools tab and click on Image Integrity Check icon.

2. Enter the storage path of the image you want to check, and click Goto to select the image.

You can also select the storage path of the image you want to check and click Next.

Tip

DriveClone can also check the image file stored on a mapped drive. For more detail about map network drive, please refer to section 6.7.5.2.

3. Select to validate either the Complete or Incremental Backup point, and click Next to

continue.

4. After validating the backup point, click Finish to complete the Image Integrity Check.

5.2.4.2 Map Network Drive

In this section, you can use the network folder as the local one, and assign a drive letter for it. In doing so, you can access the image files in that folder more conveniently.

After the network resource is connected successfully , you can access all data in it just like they were on your local computer.

1. Select Tools tab and click on Map Network Drive icon.

2. Select a drive letter from the drop-down list to map the shared resource

3. Enter the computer share name of the resource in this format: \\Server name\share name. Or click Browse to locate the resource.

4. Click Save.

5. In the User name and password dialogue box, type your user name in this format: domain name\username. Enter password if prompted.

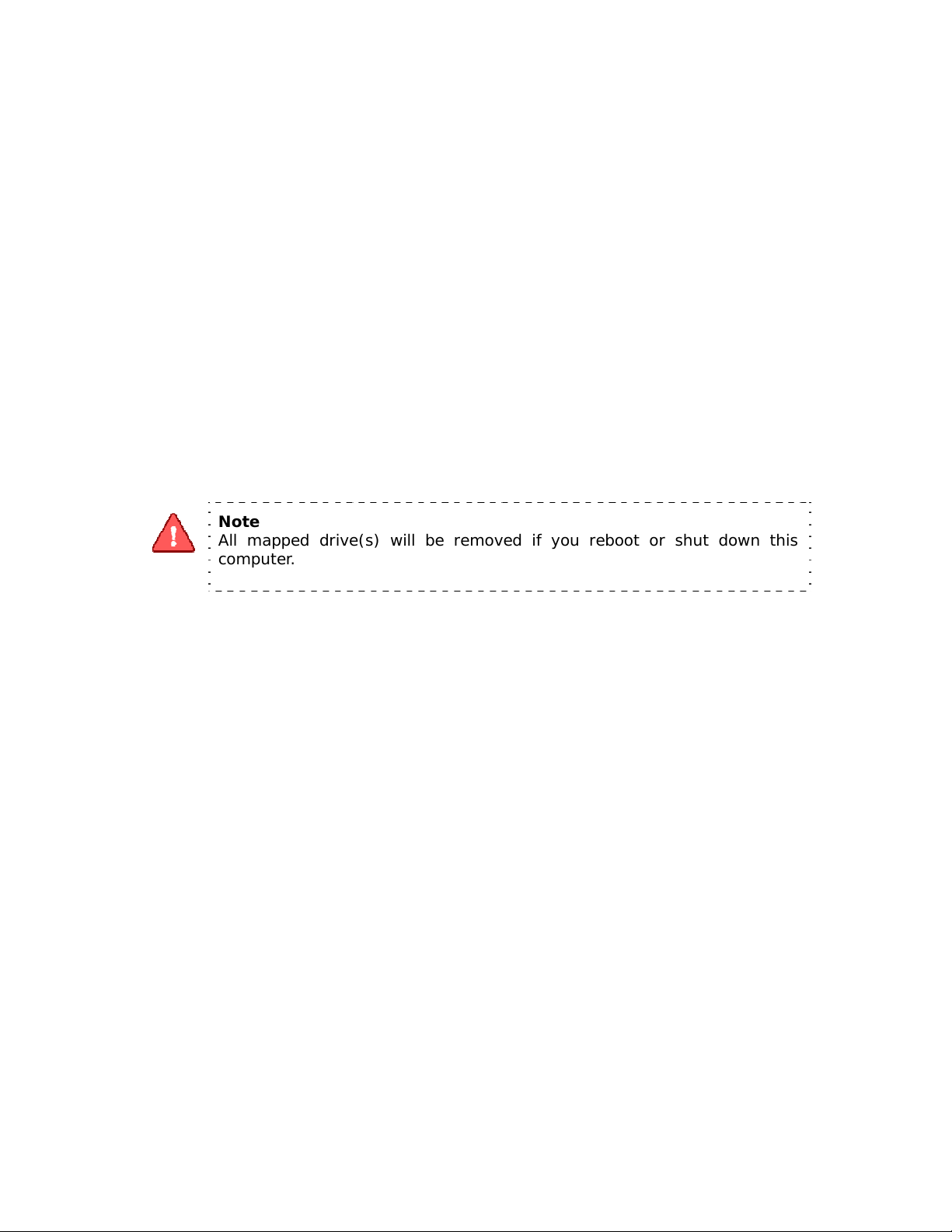

Note

All mapped drive(s) will be removed if you reboot or shut down this computer.

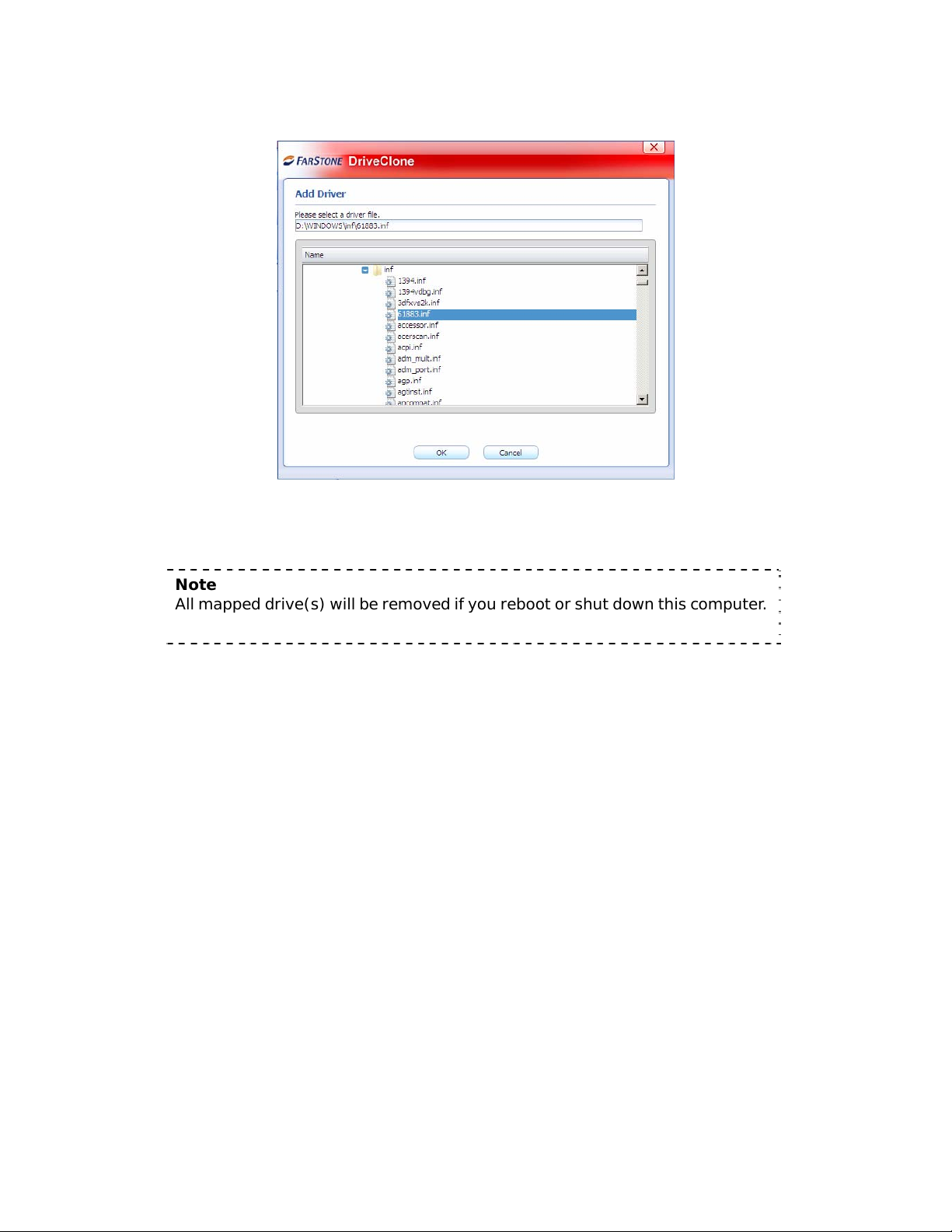

5.2.4.3 Add Driver

If DriveClone cannot detect the compatible and available driver for the applicat ion you need, you can install a third party driver manually.

1. Select Tools tab and click on Add Driver icon.

2. Select the driver file on the local computer or on the network.

*Select a driver file on your l ocal computer or shared network.

3. click OK.

Note All mapped drive(s) will be removed if you reboot or shut down this computer .

The added driver(s) can now work with the matched applications.

5.2.4.4 Configure Network Adaptor

DriveClone can back up to, or restore from a network location. T o use this feature, you should first configure your network settings. From here, y ou can configure the IP Address Settings and DNS Server Settings. Click the Tools tab and then select Network Adaptor Configuration. Or click the Tools menu and then select Settings, you will see the following screen.

You can setup your network adaptor, IP address, Subnet mask and Default gateway from here.

If you have more than one network adaptor on your system, select the adaptor to be used from the dropdown menu.

IP Address Settings:

z Obtain an IP address automatically: If your network supports DHCP (Dynamic

Host Configuration Protocol), this option will obtain an IP address automatically from a DHCP server or a Point-to-Point Protocol (PPP) dial-up network access server. DriveClone Client sets DHCP as the default option.

z IP address: Choose this option to manually specify an IP address for your network.

This option can be used when automatically obtaining an IP address fails or when there is an IP address conflict.

If your computer is on a Local Area Network (LAN), you can configure the LAN settings to back up images to or restore from a network location.

DNS Server Settings:

z Obtaining a DNS server address automatically: DNS (Domain Name S ystem) is an

internet service that translates domain names into IP addresses. It is a system for name resolution, suitable for network computers with fixed IP addresses. DriveClone sets DHCP as the default option.

z Use the following DNS server address: Manually specify the DNS server address if

needed. Yo u can enter a preferred one and an alternative one (if the former one is unavailable).

5.2.4.5 Fix System MBR

Click Fix System MBR to quickly fix the MBR of the primary bootable hard disk to boot the system normally , but the System Snapshot feature will be unavailable and DriveClone may not work normally.

Note You must carefully read the shown warning message prior to processing.

1. Select Tools tab and click on Fix System MBR icon.

2. Click OK to confirm this operation.

3. Click Next to continue.

4. Select a disk from the list and click Next. If your disk doesn’t display on the list, you can click Load Driver to search matched driver for your disk.

5. Click Next to launch the fix process after you select the checkbox.

6. Click Finish to complete the process. And you need to restart your computer to Windows manually.

5.2.4.6

DriveClone can erase all data on specified partition(s) or the entire hard drive; the erased data cannot be recovered after eradication. Be cautious before operating this function.

1. Select Tools tab and click on Data Shredding icon.

2. Select the partition(s) or the entire hard drive and enter number of the times (maximum of

49) you would like to operate eradication.

3. Confirm all information and then click Start Now.

4. Carefully read the warning message and click OK to continue, or click Cancel to return to

main console.

5. Click Finish to return to main console.

Erase Data (Data Shredding)

5.2.4.7 iSCSI Initiator

First, ensure that the ISCSI initiator is install ed on the machine. On Windows Vista, it is installed by default; other Windows systems require a download and manual installation. With this feature, users may connect to the iSCSI device and a ccess a great deal of information and configuration options. For more details regarding the configuration of iSCSI initiator, please

refer to 4.5.6.

5.2.4.8 Run Command Shell

The command shell executes programs and displays their output on the screen by using individual characters similar to the MS- DOS command interpreter Command.com. You can use the command shell to create and edit batch files (also called scripts) and to a uto mate routi ne tasks. You can perform operations more efficiently by using batch files than you can by using the user interface.

1. Select Tools tab and click on Open Command Shell Window icon.

2. Put in the command in the pop-up window and press Enter key.

3. Ty pe exit and press Enter key to return to main console.

Chapter 6: Glossary

• DriveClone Image

A DriveClone image is a file containing a complete copy of a computer’s hard drive or partitions on that hard drive. With this image, you can transfer the contents of a ha rd drive to a portable medium such as a recordable CD/DVD, USB drive, or to another hard drive, for later restoration when needed.

• Recovery CD/DVD

The Recovery CD/DVD allows users to restore their system by inserting this disc into their

CD/DVD-ROM drive. Once the system is booted up, the Recovery CD/DVD will restore the system automatically based on the content contained on the Recovery CD/DVD.

• Clone (Copy) Partition/Drive

The term "cloning" refers to the physical reading of all sectors of a source partition / disk

and the subsequent writing of this raw sector information to the corresponding sectors of a destination partition or disk. The size, file system formats, brand of the source partition/disk and target partition/disk can be different.

• Secure Area

The Secure Area is a Virtual Partition on the primary hard drive. It uses dispersed free hard drive space to create a logically continuous storage area. This area is hidden in Windows and protected and accessible only by DriveClone Server.

• System Snapshot

System Snapshots are incremental points-in-time of a computer system’s state at a given moment. DriveClone Server monitors all sector-level changes from the last Snapshot and writes any changes to a new Snapshot. This backup usually takes only seconds to complete. Snapshots offer the quickest way to restore a damaged Windows system to a working state.

• System Partition

The system partition refers to the disk volume that contains the hardware-specific files that are needed to launch Windows (for example: Ntldr, Boot.ini, and Ntdetect.com). On dynamic disks, this is known as the system volume.

• Boot Partition

The boot partition refers to the disk volume that cont ains the Win dows operating system files (by default, in the WINDOWS folder) and its support files (by default in the WINDOWS\System32 folder). The boot partition can, but is not required, to be the same partition as the system partition. There will be one (and only on e) system partition, but there will be one boot partition for each operating system in a multi-boot system. On dynamic disks, this is known as the boot volume.

• Universal Restore

Universal Restore allows you to restore your system partition and active partitions to different hardware configurations or virtual machines, such as a replaced motherboard or hard drive controller.

• Pseudo Drive

Pseudo Drive is a virtual space created in the Secure Area. DriveClone Server utilizes this space to reduce the backup data of System Snapshot and increase backup efficiency.

Chapter 7: Appendix

7.1 Frequently Asked Questions

Q. How long does it take DriveClone Server to back up or restore a system?

A: This depends on the amount of data on your system. However, DriveClone Server’s

technology minimizes the time it takes to perform a backup.

Q. I started DriveClone in Windows imme diately af ter insta llation com pleted, but a

message says that I have to restart my computer in order to run it. Why?

A: You have to restart your computer after installing DriveClone, in order for all configuration

changes to take effect.

Q. When I restored a partition from an image file, DriveClone Server prompted me

that “There is not enough space on the Destination Partition”. But I’m sure the free space on the Destination Partition is larger than the used space in the Source Partition. Why am I getting this prompt?

A: If data at the end of the source partition can not be moved, DriveClone Server will prompt

you with this notice.

Q. I created an image for Drive C: on two CD-R discs. Why can’t the disc be mounted

as a temporary partition?

A: Mounting a partition requires all the backup data of the drive. If you use one of two discs,

it cannot provide the complete information. To solve this problem, copy the image files from the two discs to the hard drive and then mount it as a temporary partition. This problem cannot be overcome by using multiple CD/DVD drives.

Q. While creating a Recovery CD/DVD, an error message appears. A: This error may occur if the quality of the recordable CD/DVD media is not good, or the disc

is incompatible with the recorder. To solve this problem, please try a differen t brand of CD/DVD media or upgrade your CD/DVD recorder.

Q. Do I need to do anything before installing DriveClone Server? A: We recommend running Windows CheckDisk to scan for hard drive errors.

Q. Bad Sectors have already been detected on a hard drive. How does this affect my

backup and restore options?

A: DriveClon e will try to copy all used sectors when performing a Complete or Incrementa l

backup. You may be prompted to skip a bad sector or a job could fail due to bad sectors.

Therefore, it’s recommended to run Windows Check Disk command to detect and repair hard drive errors, or use utilities provided by your hard drive manufacturer, when attempting to resolve this type of problem.

Q. Can DriveClone Server fix my system after my hard drive has been accidentally

formatted or repartitioned?

A: Yes — if DriveClone Server was installed prior to the incident.

Q. Can I use disk tools such as Fdisk, PartitionMagic and Norton Speed Disk after

installing DriveClone Server on my computer?

A: Currently there is no known resource conflicting with those utilities.

Q. I’ve installed three operating systems on my computer, including Linux. Can

DriveClone Server protect all three systems?

A: DriveClone Server protects multiple Windows operating systems completely, and we

recommend using Back Up Computers to protect the non-windows systems.

Q. Does DriveClone Server work in Windows Safe Mode?

A: DriveClone Server does not work in Windows Safe Mode.

Q. Can DriveClone Server protect my PC from a destructive virus?

A: While DriveClone Server cannot prevent the actual virus attack, it can restore your

computer to a point before the attack occurred, recovering your files and effectively removing the virus.

Q. Does DriveClone Server Provide support for Windows® advanced power

management?

A: DriveClone Server supports all Windows

advanced power management features (Standby,

Sleep, Hibernate).

Q. Why was my System Snapshot deleted automatically?

A: 1. If there are two operating systems on your computer with only one of the systems

installed with DriveClone Server, when you enter the operating system which does not have DriveClone Server installed and modify the hard disk data, the system s napshot will be deleted automatically.

2. If you connect your hard dive physically to another computer and modify your data, the system snapshot will be deleted automatically.

3. If you use DOS Bootable Rescue Disk to start the system and modify your data, the system snapshot will be deleted automatically.

Q. I’ve installed DriveClone Server on Windows 2003 Server. Why can’t I back up

data through VSS?

A: VSS requires an NTFS partition in the system. Please check to see if your computer has an

NTFS partition and that all other VSS requirements are met.

Q. Why does it take more time to install System Snapshot on my computer than on

other systems?

A: If there are too many dispersed/fragmented files in your system partitions, D riveClone

Server will defragment them to free up continuous space for the application’s kernel file Secure Area. This may take several minutes. Moreover , when you install System Snapshots on a FAT32 partition, DriveClone Server will divide the Secure Area, which takes much longer time than an installation on NTFS partitions.

Q. How can a PC be restored following a data disaster?

A: There are three ways to boot the PC:

1. Press the space bar upon boot up to enter the Pre-OS.

2. Use a Bootable Rescue Disk to enter the Pre-OS.

3. Configure PXE and remotely boot the Client to the Pre-OS. Upon entering the Pre-OS:

a. Select a System Snapshot to restore from. b. Connect to the network or other locally attached storage and select a Complete or

Incremental Backup Image to restore from.

Q. How can I restore without having a DHCP Server on the network?

A: If the DHCP service is not running on your network, you’ll have to manually enter a static

IP address to access the network through Network Adapter Configuration in Pre-OS.

Q. What happens if my PC misses a scheduled backup?

A: DriveClone will start the missed backup automatically at next boot up if you select t he

checkbox in the setting interface sayi ng If the computer shuts down, run the missed tasks when it boots next time. If you don’t select that checkbox, DriveClone will start the next schedule backup at next boot up.

Q. Does the DriveClone Server conflict with any other applications?

A: Please close the following applications when launching DriveClone Server: Utimaco

SafeGuard,

Besides, be aware of the following applications, which is conflict with system snapshot:

Norton GoBack, RecoveryGenius, Acronis OS Selector, Acronis Tr ueImage, SafeguardV4.2,

OSL2000

Q. Which partition types does DriveClone Server recognize?

A: NTFS, FAT, FAT32, Linux Ext2 and Ext3.

Q. Why is my backup image larger than the source partition or hard disk?

A. The source partition or hard disk may have too much of fragmentation. Please Defragment

it and then run the backup again.

Q. How can I access the computer outside the Workgroup through the network

under the Pre-OS?

A. Click on the Tools tab and select Map Network Drive. And then map the directory on the

remote computer as you wish.

Q. How can I get SDK download location correctly before I use Convert Backup to

Virtual Disk feature?

A. VMware Home Page (www.vmware.com

->VMware Virtual Disk Development Kit

) ->Download ->VMware SDK&APIs ->Virtual Disk

Farstone DRIVE CLONE SERVER User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1: Introduction

1.1 Product Overview

1.2 Powerful Backup Features

1.3 Other Features and Benefits

1.4 Newly-added Features

Chapter 2: Installing and Uninstalling DriveClone

2.1 System Requirements

2.2 Start DriveClone Installation

2.2.1 Installing DriveClone Server

2.3 Uninstalling DriveClone

Chapter 3: DriveClone Specific Terminology

3.1 File Backup

3.2 System Snapshot

3.3 Hard Drive Imaging

3.4 Full and Incremental Backups

3.5 DriveClone Universal Restore

3.6 DriveClone Secure Area

Chapter 4: Start using DriveClone

4.1 Main Console

4.1.1 Quick Start

4.1.2 Jobs

4.1.3 View Logs

4.1.4 Settings

4.2 Backup Console

4.2.1 Create a System Snapshot

4.2.2 File Backup

4.2.3 Back Up My Computer

4.3 Restore Console

4.3.1 Return to a System Snapshot

4.3.2 Restore Files

4.3.3 Restore Your Computer

4.3.4 Perform Universal Restore

4.4 Clone Console

4.4.1 Clone Drive

4.4.2 Clone Partition

4.5 Tools Tab

4.5.1 Create a Bootable Rescue Disk

4.5.2 Preview Backup Image

4.5.3 Check Image Integrity

4.5.4 Export PXE Image

4.5.5 Convert Backup to Virtual Disk

4.5.6 iSCSI Initiator

Chapter 5: DriveClone Pre-OS

5.1 Enter DriveClone Pre-OS Manager

5.1.1 Boot from Bootable Rescue Disk

5.1.2 Boot into Windows via a USB Drive or USB Key

5.1.3 Boot from PXE Server

5.1.3.1 System Requirements for PXE

5.1.3.2 Configuration of PXE Restore

5.1.3.3 Configuration of a TFTP Server

5.1.3.4 Configuration of DHCP Server

5.1.3.5 Configuration of Client PC

5.2 DriveClone Pre-OS Main Console

5.2.1 Quick Start

5.2.2 Backup Console

5.2.1.1 Back up My Computer in PE Manager

5.2.3.1 Return to a System Snapshot in Pre-OS Manager

5.2.3.2 Restore Your Computer in Pre-OS Manager

5.2.3.3 Perform Universal Restore

5.2.4 Tools Tab

5.2.4.1 Image Integrity Check

5.2.4.2 Map Network Drive

5.2.4.3 Add Driver

5.2.4.4 Configure Network Adaptor

5.2.4.5 Fix System MBR

Erase Data (Data Shredding)

5.2.4.7 iSCSI Initiator

5.2.4.8 Run Command Shell

Chapter 6: Glossary

Chapter 7: Appendix

7.1 Frequently Asked Questions
