Chapter 1: Introduction

1.1 Product Overview

DriveClone Express is a hard drive utility that backs up or clones hard drives or partition s. It creates a compressed archive file that contains all files, partition information and security information stored on a hard drive or CD/DVD. DriveClone Express can be used for various purposes. PC users can use DriveClone Express as a quick and easy way to back up and restore their data in the event of a system crash. System administrators can use it to dramatically reduce the time they spend restoring, reconfiguring or copying data onto the hard drives of many computers. Whether you need to back up, recover, protect or upgrade PCs, DriveClone Express is an all-in-one solution.

1.2 Features and Benefits

Complete Backup

Make a complete copy of your hard drive, including system settings, partition information, documents, photos and more; save it as a compressed image file. If you suffer a system or disk crash, virus attack or other failure, you can restore the entire system disk in minutes.

Clone Drives Make a complete copy of your hard drive including system settings and partition information.

Data Shredding - US DoD

Complies with the US Department of Defense (DoD) 5220.22-M clearing standard. Securely

wipe out your hard drive contents from outside of Windows. RAID Support

Supports most 0/1/5/10 hardware and software RAIDs.

Win-PE engine

100% compatible with existing hardware and future hardware. Powerful Universal Restore

Restore files or images across different hard drives regardless of hard drive format, size, brand, or operating system; or clone your computer to a new hard drive.

Pre-Windows Recovery DriveClone Express works even when your operating system doesn't, allowing you to restore your system regardless of OS functionality.

Image Integrity Verification Automatically ensures that backup images work properly.

Complete External Backup

5220.22-M Standard Complied

Enables you to store your hard disk image on a USB hard drive. CD/DVD Support

Use the built-in burner to save a copy of your hard drive on a CD or DVD Bare Metal Restore

Copy a complete system image onto a brand new hard drive without needing to install an operating system first.

Partition Support DriveClone Express supports FAT32, NTFS, Linux EXT2/3 and other unknown partitions.

1.3 System Requirements

Storage Media

The following storage locations are supported:

• Hard Disk Drives

• Networked Attached Storages (NAS)

• Network Share Folders

• CD-R/RW, DVD-R/RW, DVD+R/RW

• USB Hard Drives and Storages

• PATA (IDE), SATA, SCSI, IEEE1394 (FireWire), USB 1/2.0 drives, ESATA and PC-Card

storage devices

Supported Operating Systems

• Windows Vista Series

• Windows 2008 Series

• Windows XP Series

• Windows 2003 Series

• Windows 2000 Series

• Linux

• Unix

• CPU: Pentium-class processor or higher

• RAM: 512 MB

• Disk space: No installation required

Supported File Systems

• FAT16/32, NTFS, Linux Ext2/Ext3, ReiserFS, Linux Swap and other unknown partitions.

Chapter 2: Start using DriveClone Express

To launch the DriveClone Express Main Console:

1. Double-click the DriverClone Express icon.

2. Enter your serial number, and click OK to continue.

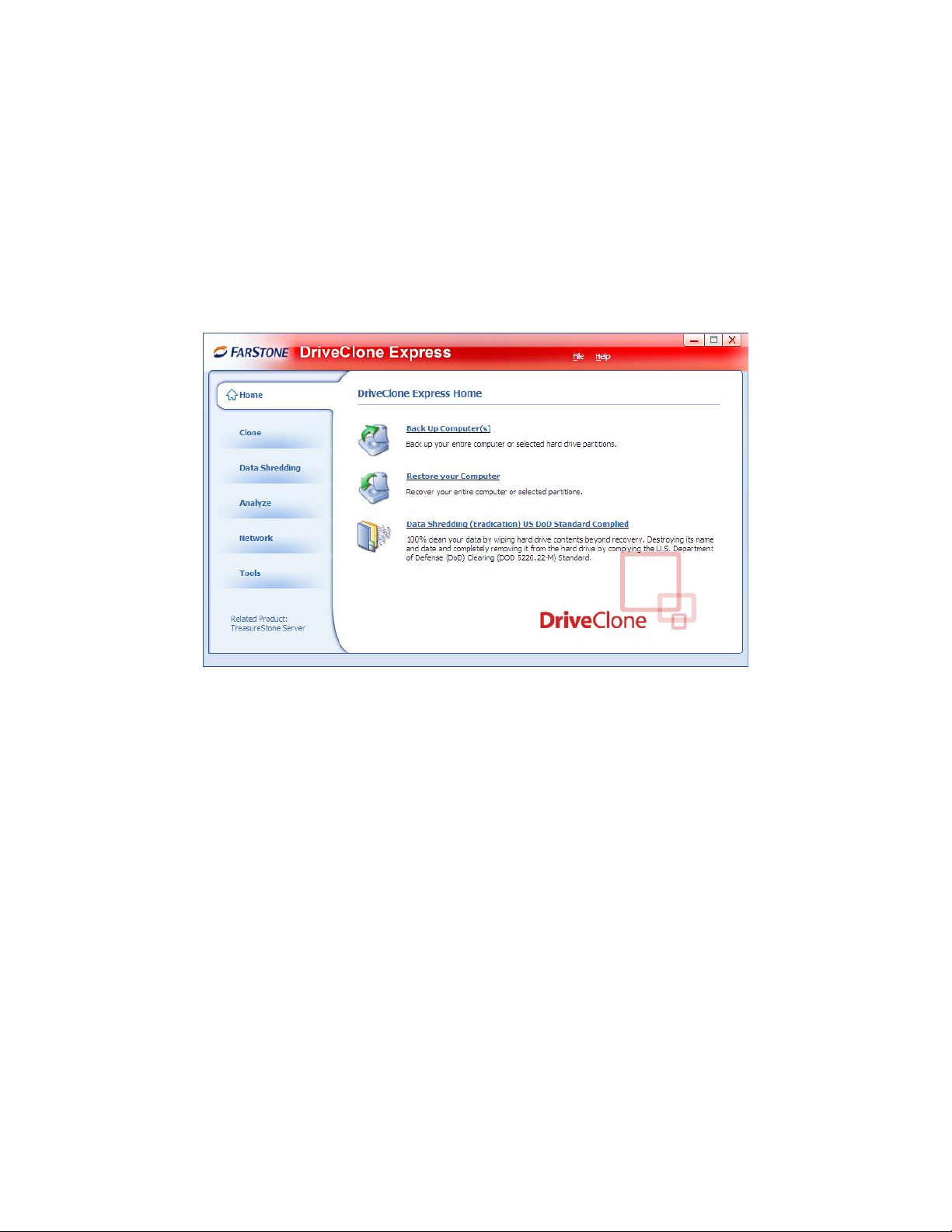

2.1 Main Console

2.1.1 Create Bootable USB Drive

Create a bootable disk of DriveClone Express to recover from a system crash or hard drive failure.

1. Insert a USB device.

2. Click Bootable USB Disk on the main console.

3. Select the USB device you’ll be using to create your Bootable Disk and click Start.

4. Click Finish to complete the process.

5. You will need to enter the BIOS to set the USB disc as the first boot device.

2.1.2 Create Start-up CD/DVD Disc

Use this disc to restore your system within DriveClone Express if a system crash occurs.

1. Insert a writable CD/DVD disc.

2. Click Create a Start-up CD/DVD Disc.

3. Select a CD/DVD writer.

4. Click Start to burn the image onto the disc.

5. Click Finish to complete the process and return to Main Console.

6. In order to use DriveClone Express, you will need to enter the BIOS to set CD ROM as the first boot device.

2.1.3 Extract ISO File for Windows/Linux

Create and store the ISO file on a specified location such as a local hard drive, removable storage device, or network storage device.

1. Click Extract ISO File.

2. Specify a location and click Goto, or select a location and click Start to store the ISO file.

Tip

1. If you want to store the ISO file onto CD/DVD disc, you can use a third party software to burn the ISO file onto CD/DVD disc.

2. The CD/DVD disc which contain the ISO file can be used as a Start-up Disc to launch DriveClone Pre-OS mode to restore your computer.

3. If you select a location on the network, you may be prompted to provide a username and password. If your system does not respond when you try to save the ISO file to a network location, please contact your network administrator to check your connection status and access privileges.

3. Click Finish to complete the process and return to Main Console.

Chapter 3: Use DriveClone Express

3.1 Enter DriveClone Express

3.1.1 Boot via Start-up CD/DVD Disc

To use DriveClone Express with a Start-up CD/DVD Disc: Insert the Start-up Disc and restart your comp uter, and then enter the BIOS to set the CD/DVD

ROM as the first boot device.

3.1.2 Boot via Bootable USB Disk

To launch DriveClone Express with Bootable USB Disk:

1. Connect the USB device, start your computer, enter the BIOS to set the USB device as the

first bootable option, and save your settings.

2. Restart the system and boot from the USB device.

3. Click Yes to back up the entire system to the USB device automatically . Or click No to enter DriveClone Express main console.

4. Verify all information about this complete backup, and then click Next to launch it.

5. Click Finish to complete the backup and return to main console.

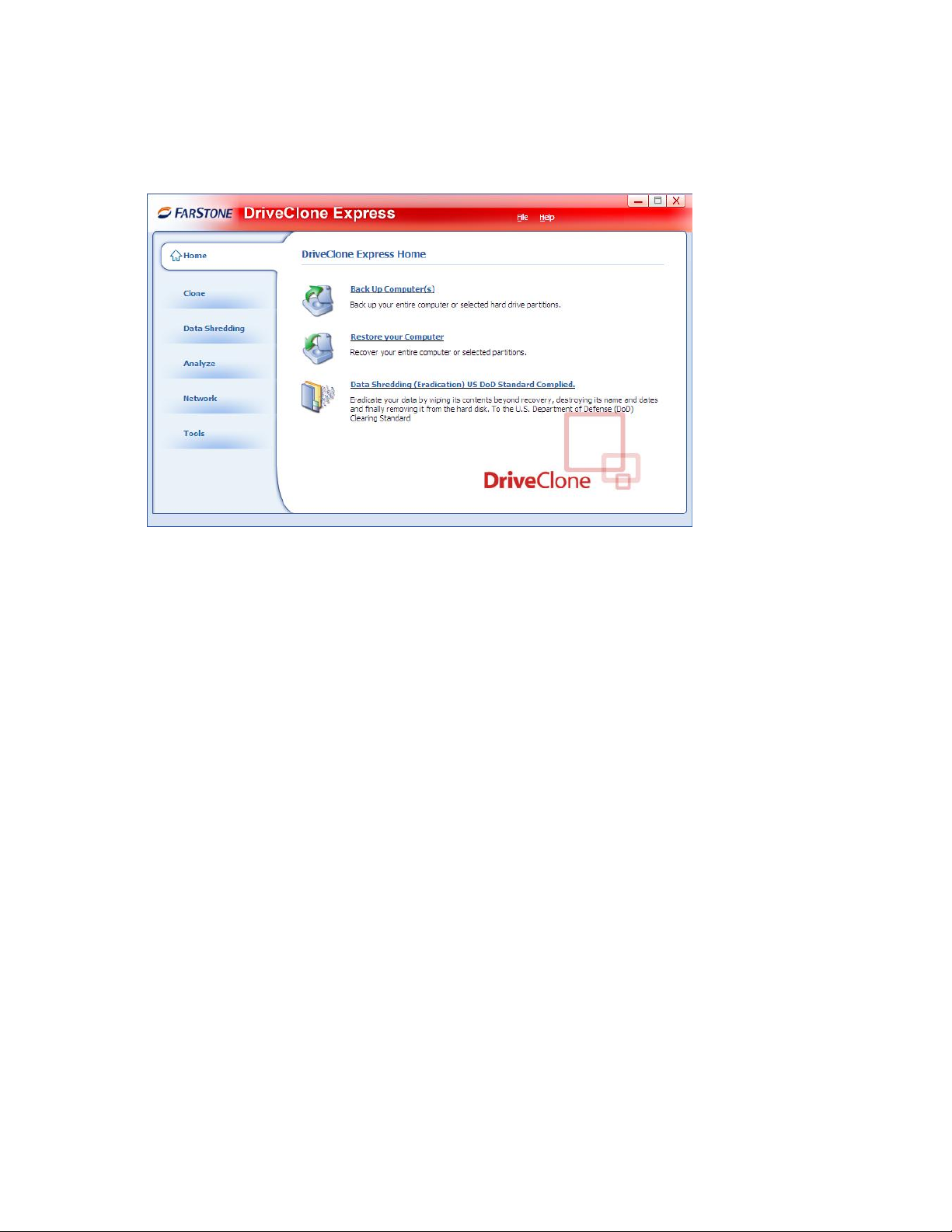

3.2 DriveClone Express Main Console

3.2.1 Quick Start

Back Up My Computer – Click here to back up partition(s) or the entire hard drive for your system.

Restore Your Computer – Click here to restore from a complete backup point.

Data Shredding (Eradication) US Department of Defense Standard Complied – Click

here to erase all data on a specified partition or the entire hard drive.

3.2.2 Back Up and Restore My Computer

3.2.2.1 Back up My Computer

1. Click on Back Up Computer(s) on the main console.

2. Enter a name for your new Complete Backup and click Next.

3. Select partition(s) or the entire hard disk to back up, and click Next.

4．Enter the storage path and click Goto. Or select a destination location on a hard drive, USB storage medium, or a network location to store the image file. Some optional settings will display if you click Advanced, including compression mode, password protection, image split, integrity check, backup description, backup priority, and network connection speed.

4. Click Next.

6. Review the information and settings that have been specified. Click Next to launch the

backup process. Or click Back to modify setting(s).

7. Click Finish to return to main console.

3.2.2.2 Restore Your Computer

To restore a partition or the entire hard drive, please do the following:

1. Enter into DriveClone Express main console.

2. Click on Restore Your Computer.

3. Select a backup image from the list and click Next to continue. If the backup image you want

to use is not listed, you will be prompted to search for the image by clicking Browse.

4. Choose whether you’d like to restore a single partition or the entire hard drive, and click

Next.

5. Select a destination partition or a destination hard drive to be restored from the image file,

and click Next. If you choose to restore a single partition, click Yes to launch the restoration process.

6. To restore the entire hard disk, please select a restore option.

a. Select the checkbox to modify the destination partition size. b. Don’t select it for fear of information loss on multiple systems or hidden partition.

If you selected option a, double click the partition Capacity to be resized from the list. If you selected option b, skip to step 8.

7. When it shows the structure of the destination partition, double click the highlight and

modify its size, and click Next to continue.

8. Click Next to begin the restoration process.

3.2.2.3 Perform Universal Restore

To restore the system partition or the entire hard drive of a selected client to dissimilar hardware please do as follows:

1. Launch DriveClone Express.

2. Click on Restore Your Computer.

3. Select a backup image from the list and click Next to continue. If the backup image you

want to use is not listed, you will be prompted to search for the image by clicking Browse.

4. Select to restore with Universal Restore, and click Next.

5. Select to restore a single partition or the entire hard drive, and click Next.

6. Select a destination partition or a destination hard drive to be restored from the image file,

and click Next. If you choose to restore a single partition, click Yes to launch the restoration process.

7. To restore the entire hard disk, please select a restore option.

a. Select the checkbox to modify the destination partition size.

b. Don’t select it if you have information on multiple systems

If you selected option a, double click the partition Capacity to be resized from the list. If you selected option b, skip to step 9.

8. When it shows the structure of the destination partition, double click the highlight and

modify its size, and click Next to continue.

9. Click Next to begin the restoration process.

10. Click Next to complete the process.

3.2.3 Clone Tab

3.2.3.1 Clone Drive

Clone Drive duplicates one hard drive to another. It eliminat es the need to re-install the operating system, drivers and applications, and enables you to upgr ade a new hard drive wit h only a few mouse clicks. To clone a hard drive, please do the following:

Tip

To use this function, you will need to have at least two hard drives on your computer.

The target hard drive should have enough space to store the data of the source hard drive.

1. Select Clone and then click Clone Hard Disk.

2. Select the Source Disk (top pane) and then the Destination Disk (bottom pane). You can

choose to modify the Destination Partition Size manually by selecting Modify the destination partition size. You can also choose not to modify the Destination Partition Size by selecting Keep the partition size of the destination drive the same as the

source drive. Click Next to continue.

Tip If you select Keep the partition size of Destination Hard Disk the same as the Source Hard Drive, please skip to step 4.

If the Hard Drive you want to clone is going to boot your system, please select Keep the partition size of Destination Hard Disk the same as

the Source Hard Drive.

3. You can alter the Destination Partition size by double-clicking the entry of Destination

Partition and change the size in a popup dialog box. Click Next to continue.

4. After confirming your selections, click Clone Now to proceed or you can click Previous to

change your selection. If the system is busy, DriveClone will try to clone again automatically.

Note

The cloning process will overwrite all data on the destination disk. Click Continue to begin the cloning process. You can also click Cancel to exit.

5. Click Return to Main Console to complete the process.

3.2.3.2 Clone Partition

With DriveClone, you can co py data from the source partition into the destination partition. To clone a partition, please do the following:

1. Select Clone and then click Clone Partition.

2. Select a Source Partition in the Hard Drive (top pane).

Note

You can only choose one partition at a time. The Source Partition and the Destination Partition cannot be the same.

3. Select a D estination Partition in the original Hard Drive or another Hard Drive (bottom

pane), then click Next to continue.

Tip

The selected destination partition must have enough space to hold the data of the source partition.

4. After confirming your selections, click Clone Now to start the duplicating process or click

Previous to change your selections. You can start the cloning process by clicking Start Clone. If the system is busy, DriveClone will try to clone again automatically.

Tip

The cloning process will overwrite all data on the destination disk. Click Continue to begin the cloning process. You can also click Cancel to exit.

5. Click Return to Main Console to complete the process.

3.2.4 Data Shredding Tab

DriveClone can erase all data on the specified partition(s) or the entire hard drive, and the erased data cannot be recovered after eradi cation. Be cautious before operating thi s function.

1. Select Data Shredding tab.

2. Select the partition (s) or t he en tire h ard drive and ent er the t imes (maximu m of 49) you want to operate eradication.

3. Confirm all information and then click Start Now.

4. Carefully read the warning message and click OK to continue, or click Cancel to return to

main console.

5. Click Finish to return to main console.

Tip

If the eradication operation is interrupted, the partition and all data on it may be damaged.

3.2.5 Analyze Tab

3.2.5.1 Check Backup Image

In this section, you can check if the backup data in your complete backup image file is valid.

1. Select Analyze tab and click on Check Backup Image icon.

2. Enter the storage path of the image you want to check, and click Goto to select the image. You can also select the storage path of the image you want to check and click Next.

Tip

DriveClone can also check the image file stored on a mapped drive. For more detail about map network drive, please refer to Configure Network Adaptor.

3. Select to validate either the Complete or Incremental Backup point, and click Next to continue.

4. After validating the backu p point, click Finish to complete the Image Integrity Check.

3.2.5.2 Check Hard Drive

In this section, you can check if the backup data in your complete backup image file is valid.

1. Select Analyze tab and click on Check Hard Disk for Errors icon.

2. Select the partition to be checked.

3. Do one of the following to launch checking process.

a. To check for errors without repairing them, click Check Now without selecting either of

the check boxes above.

b. To check for and correct system errors, make the appropriate selections in the check

boxes. And then click Check Now.

4. Click Finish to return to the main console.

3.2.5.3 Run Command Shell

The command shell executes programs and displays their output on the screen by using individual characters. Y ou can use the command shell to create and edit batch files (also called scripts) to automate routine tasks. You can perform operations more efficiently by using batch files than you can by using the user interface.

1. Select Analyze tab and click on Open Command Shell Window icon.

2. Put in the command in the pop-up window and press Enter key .

3. Close the window after the command completes.

3.2.6 Network Tab

3.2.6.1 Map Network Drive

In this section, you can use the network folder as the local one, and assign a drive letter for it. In doing so, you can access the image files in that folder more conveniently.

1. Select Network tab and click on Map Network Drive icon.

2. Select a drive letter from the drop-down list to map to the shared resource.

3. Enter the computer and share name of the resource in this form: \\Server name\share

name. Or click Browse to locate the resource.

4. Click Save.

5. In the User name and password dialog box, type your user name in this form:

domain name\username; enter your password if prompted. After the network resource is connected successfully, you can access your data.

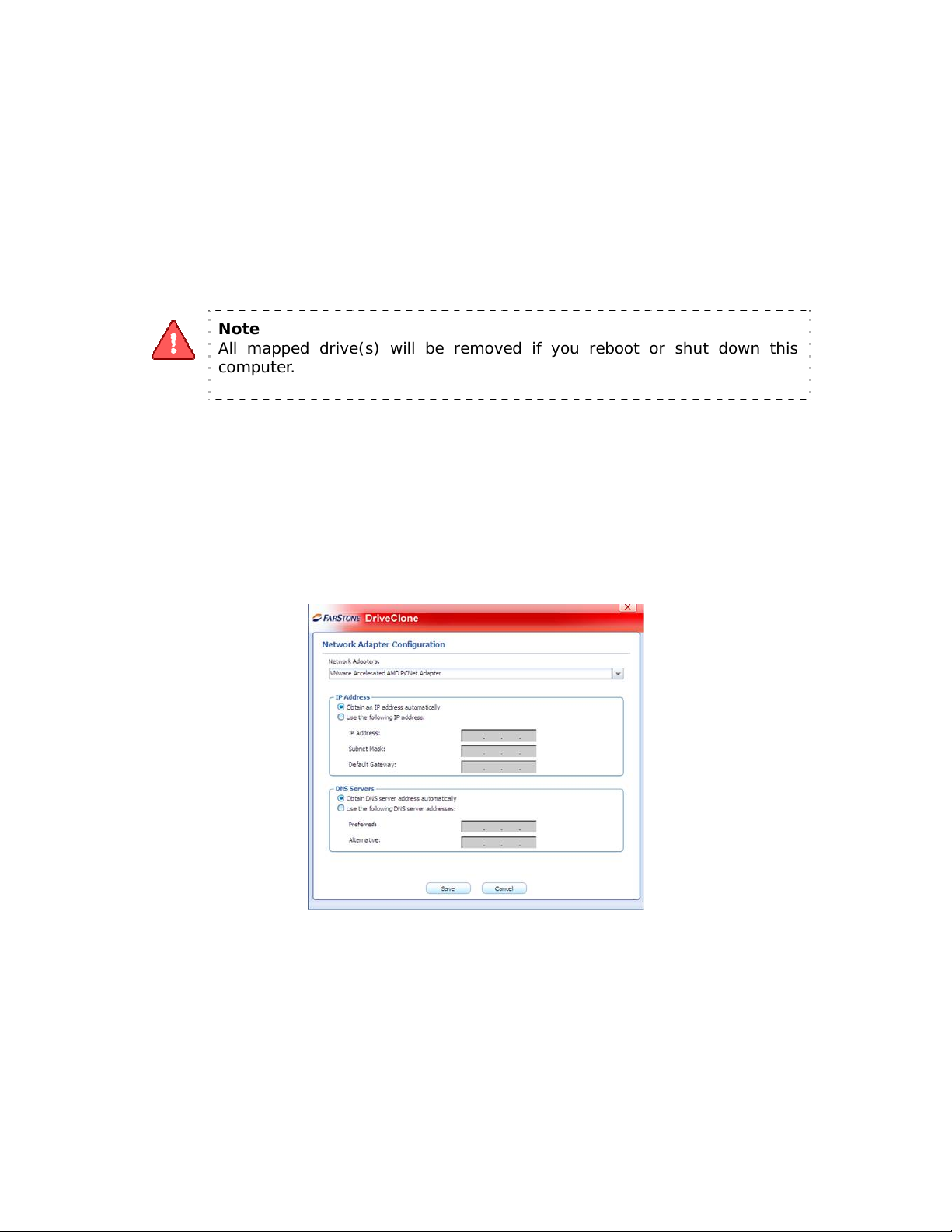

Note All mapped drive(s) will be removed if you reboot or shut down this computer.

3.2.6.2 Configure Network Adaptor

DriveClone can back up or restore from a network location. T o use this feature, you should first configure your network settings. From here, you can confi gure the IP Address Settings and DNS Server Settings. Click the Network tab and then select Network Adaptor Configuration. Or click the Tools menu and select Settings; you will see the following screen.

You can setup your network adaptor, IP address, Subnet mask and Default gateway from here.

If you have more than one network adaptor on your system, select the adaptor to be used from the dropdown menu.

IP Address Settings:

z Obtain an IP address automatically: If your network supports DHCP (Dynamic

Host Configuration Protocol), this option will obtain an IP address automatically from a DHCP server or a Point-to-Point Protocol (PPP) dial-up network access server. DriveClone Client sets DHCP as the default option.

z IP address: Choose this option to manually specify an IP address for your network.

Use this option if there is a problem automatically obtaining an IP address, or if there s an IP address conflict.

z If your computer is on a Local Area Netw ork (LAN), you can configure the LAN

settings to back up or restore images from a network location.

DNS Server Settings:

z Obtaining a DNS server address automatically: DNS (Domain Name System) is an internet

service that translates domain names into IP addresses. It is a system for name resolution, suitable for network computers with fixed IP addresses. DriveClone sets DHCP as the default option.

z Use the following DNS server address: Manually specify the DNS server address if needed.

You can enter a preferred address or an alternative one (if the former one is unavailable).

3.2.7 Tools Tab

3.2.7.1 Mount Backup Image

1. Click Tools tab and select Mount Backup Image directly on the main interface of Restore.

2. Select an image you would like to preview and click Next. Or click Browse to select an

image that is not listed in the dropdown menu. Click Next to continue.

3. Select a complete backup point or an incremental backup point and click Next.

4. Select the partition you’d like to preview and click Mount to begin previewing the image.

5. You can now browse and copy data on the preview drive in Windows® Explorer.

6. Click Yes to mount another backup image, or click No to return to main console.

After you have finished restoring an individual file or folder, you can un-mount the preview partition.

1. Click Tools and then select Dismount Backup Image.

2. Click OK to begin the unmounting process.

This operation will unmount all of the preview drives of Complete Backup image.

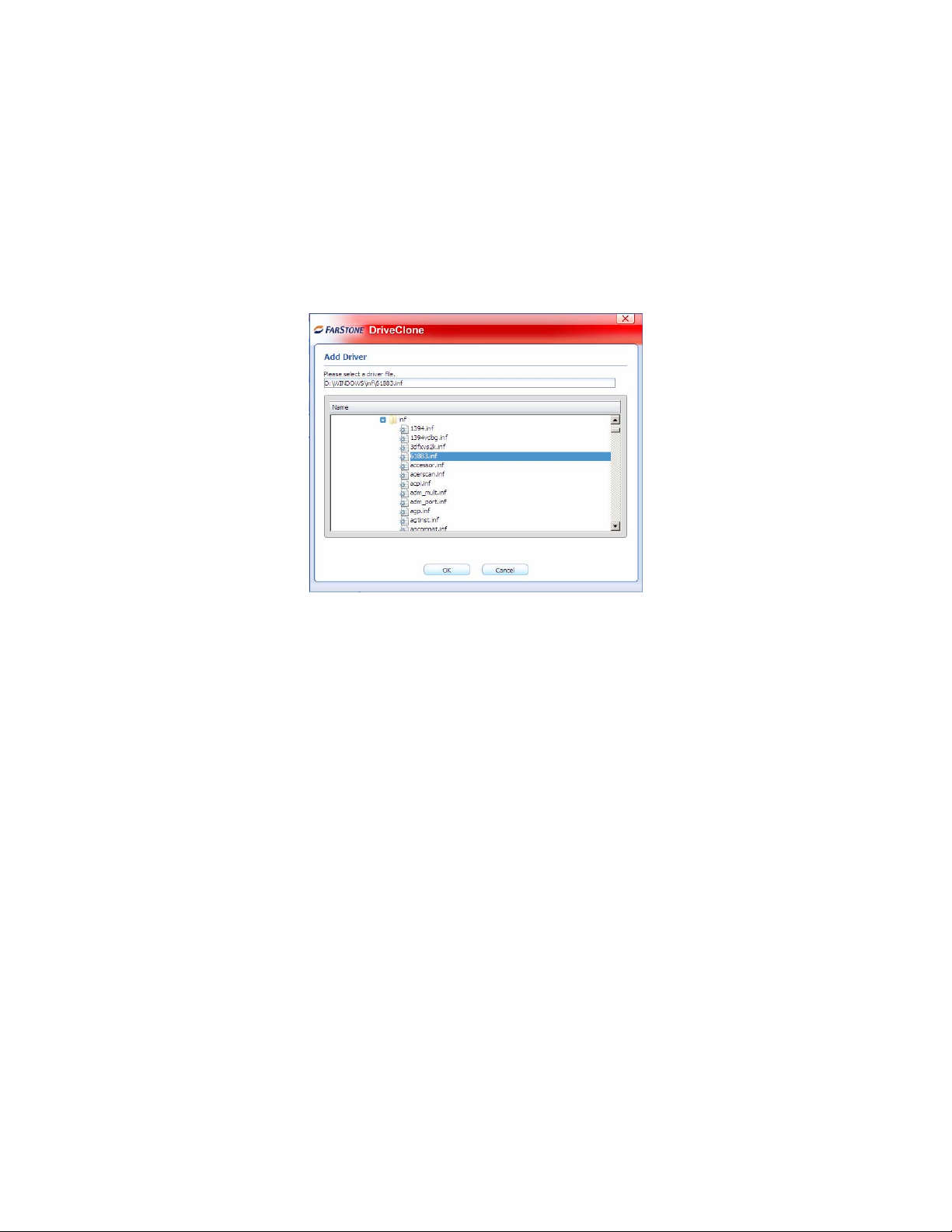

3.2.7.2 Load Driver

If DriveClone Express cannot d e tect a compatible and available driver for the application you need, you can install third party driver manually.

1. Select Tools tab and click on Load Driver icon.

2. Select the driver file on the local computer or on the network.

3. Click OK.

The added driver(s) can now work with the matched applications.

Chapter 4: Glossary

• DriveClone Image

A DriveClone image is a file containing a complete copy of a computer’s hard drive or partitions on that hard drive. With this image, you can transfer the contents of a ha rd drive to a portable medium such as a recordable CD/DVD, USB drive, or to another hard drive for later restoration.

• Recovery CD/DVD

The Recovery CD/DVD allows users to restore their system by inserting this disc into their CD/DVD-ROM drive. Once the system is booted up, the Recovery CD/DVD will restore the system automatically based on the content contained on the Recovery CD/DVD.

• Clone (Copy) Partition/Drive “Cloning” will physically read the sectors on a source partition or disk, and subsequently

copy the raw sector information to corresponding sectors of a destination partition or disk. The size, file system formats, brand of the source partition/disk and target partition/disk can be different.

• System Partition

The system partition refers to the disk volume that contains the hardware-specific files that are needed to launch Windows (for example: Ntldr, Boot.ini, and Ntdetect.com). On dynamic disks, this is known as the system volume.

• Boot Partition

The boot partition refers to the disk volume that cont ains the Win dows operating system files (by default, in the WINDOWS folder) and its support files (by default in the WINDOWS\System32 folder). The boot partition can, but is not required to, be the same partition as the system partition. There will be one (and only on e) system partition, but there will be one boot partition for each operating system in a multi-boot system. On dynamic disks, this is known as boot volume.

• Universal Restore

Universal Restore allows you to restore your system partition and active partitions to different hardware configurations or virtual machines, such as a replaced motherboard or hard drive controller.

Chapter 5: Appendix

5.1 Frequently Asked Questions

Q1. How long does it take to backup/restore a system using DriveClone?

A: It depends on the amount of data on your system. However, DriveClone’s unique

technology minimizes the amount of time it takes to backup the system.

Q2. If the source partition is a bootable partition (e.g. C:\) but the target partition is

not, can the target partition be used to boot the system after restoration?

A: Yes, however please do the following:

1. Modify your boot.ini file.

a. If you are in DOS, enter the boot partition (C:\) a nd type “edit boot.ini” to modify this file. b. If you are in Windows, the file boot.ini might be hidden. Select Show hidden files and folder from tools->folder options from the menu bar to show boot.ini, then open it (the default path to the boot.ini file is C:\boot.ini).

2. Add the following to boot.ini:

multi(0)disk(0)rdisk(X)partition(Y)\Folder=" Description " X: is the HDD (hard drive) number, generally defined as 0 – 3. Number 0 is the primary master, 1 is the primary slave, 2 is the secondary primary and 3 is the secondary slave; Y: is the partition ID, generally defined as 0-25, 0 is for the first partition. Folder: is the place storing the boot file (this is not the boot.ini file). If your system is Windows NT/2000, it should be defined as WINNT. If your system is Windows XP, it should be Windows. Description: comments for the options listed on the splash screen at system startup.

Q3. I cloned a hard drive using the Clone Drive function. Why can’t I boot from the

cloned drive?

A: This may happen if Norton GoBack is installed on your computer. Please u ninstall Norton GoBack before cloning the drive.

Q4. Are there any limitations when I restore from an image over the network?

A: DriveClone can restore an image file sized below 2GB when restoring from a network location. When backing up an image to a network location, DriveClone can automatically split the file into several volumes with a maximum size of 2GB each. You can select the first volume of the image series to be restored. But, if you select an image stored in an NTFS partition that is over 2GB, you cannot restore from it over the network. The image file must be copied back to the local computer to perform a successful restore.

Q5. Why can’t I find some Complete Backup Point Image Files that h ave been stored

on the hard drive in Pre-OS?

A: If the Image file stored in the NTFS partition has been compressed already , the Image file can be recognized and restored both in Windows and Pre-OS. If you store the Image File in NTFS partition and then compress the NTFS partition, the Image file can not be recognized and restored in Pre-OS. The solution is to copy the Image File in Windows to other partitions that have not been compressed.

Q6. I try to back up the data to network computer. Why can’t I access to the

network computer’s share folder after I have entered correct user name and password?

A: If you cannot back up the data to a network location, you may need to modify the Local Security Settings of the network computer. Please re-configure the Local Security Settings of the network computer to solve this issue.

1. After logging on the network computer, select Start Æ Control Panel Æ Administrative Tools Æ Local Security Policy.

2. Locate Security SettingsÆLocal PoliciesÆSecurity Options from the directory in the left pane.

3. Find the item Network access: sharing and security model for local accounts from the policy list in the right pane, double click it.

In the popup dialog box, select Classic-local users a uthenticate as themselves,

and click Apply.
