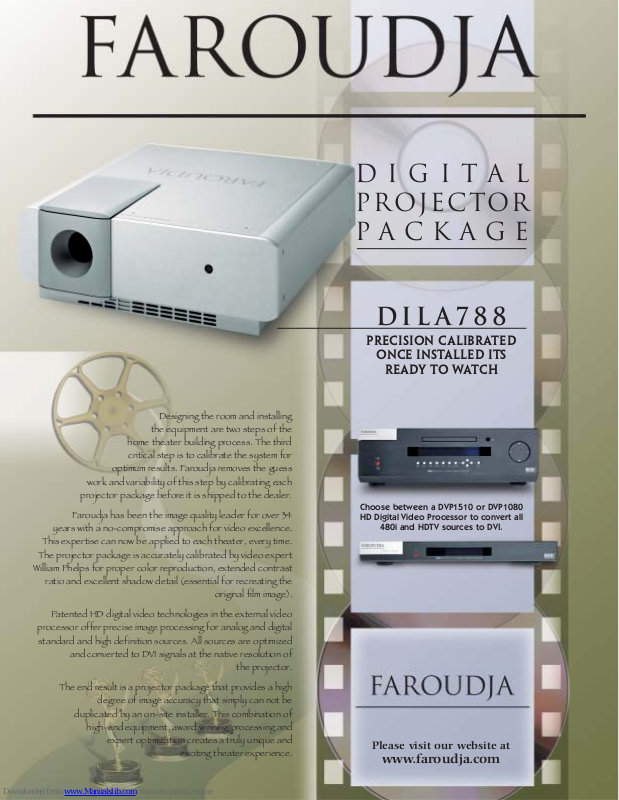

Page 1
Digital
projector
p ackage
Please visit our website at
www.faroudja.com
DILA788
Precision Calibrated
once installed its
Ready to watch
Designing the room and installing
the equipment are two steps of the
home theater building process. The third
critical step is to calibrate the system for
optimum results. Faroudja removes the guess
work and variability of this step by calibrating each
projector package before it is shipped to the dealer.
Fa roudja has been the image quality leader for over 34
years with a no-compromise approach for video excellence.
This expertise can now be applied to each theater, every time.
The projector package is accurately calibrated by video expert
William Phelps for proper color reproduction, extended contrast
ratio and excellent shadow detail (essential for recreating the
original film image).
Patented HD digital video technologies in the external video
processor offer precise image processing for analog and digital
standard and high definition sources. All sources are optimized
and converted to DVI signals at the native resolution of
the projector.
The end result is a projector package that provides a high
degree of image accuracy that simply can not be
duplicated by an on-site installer. This combination of
high-end equipment, award winning processing and
expert optimization creates a truly unique and
exciting theater experience.
Choose between a DVP1510 or DVP1080
HD Digital Video Processor to convert all
480i and HDTV sources to DVI.
Page 2
Excellent White Field Uniformity
www.faroudja.com
Specifications and features subject to change without notice.
A division of Genesis Microchip Inc.
DVP1080 Connections
DILA788 Package Highlights
• Three chip DILA 1400x788 resolution display engine
• Very small pixel spacing (pixel aperture)
• High precision imaging Look-Up-Tables (LUT)
• 2.1 to 2.6:1 manual zoom and focus
• Nine foot maximum recommended screen size
• 250 watt, NSH bulb for accurate and stable output
• Unique aluminum cabinet and quiet operation
• William Phelps Optimizing utilizing proprietary software
• D65 color balance calibrated to 128 levels of white
• D65 calibration error less than .003 from 0-100IRE
• Exact gamma curve based on light characteristics of
human eye sight, film and the projector.
• Improved contrast ratio with excellent shadow detail
• Superior Flat Field uniformity
• Excellent lens optics for corner-to-corner focus
• Converts all SD/HD sources to digital 1400x788 DVI
• Selectable output rates
• Processor stores up to 16 display Profiles
• Inputs for digital and analog SD and HD sources
• Patented DCDi
®
by Faroudja and 3:2 Pull-Down technology
• TrueLife
®
advanced 12 level detail circuit
• Internal test pattern generator
• HDCP compatible
• RS232 and direct access IR control
Accurate D6500
and Gamma tracking
5 9/16"
161/4"
16 5/8"
2 1/4"
4"
Opening 2 3/4"
10 9/16"
2 1/8"
4 1/8"
165/8"
