Page 1
G2 Passive
Aviation Headset
User Guide
Page 2
Greetings.
Congratulations on your purchase of the Faro® G2
Aviation Headset. This product has been meticulously
designed by Faro engineers in San Jose, California to bring
you years of quiet, comfortable, and enjoyable ights.
Here at Faro, we live and breathe aviation. We love pilots,
planes, and just about everything aviation has to oer.
We encourage you to visit www.FaroAviation.com where
you will nd free videos, tutorials, and articles from some
of the best ight instructors in the world.
Your headset is backed by an amazing warranty. Please
feel free to reach out to Faro for any questions and we
always appreciate your feedback.
Thank you for choosing Faro as your aviation headset.
Sincerely,
The Faro Team
2
Page 3
Contents.
Getting Started
Advisories ............................................................................ 4
Support ............................................................................... 5
Adjusting your head pad ................................................... 6
Adjusting your microphone .............................................. 7
Stereo / Mono Setting ....................................................... 8
Adjusting Volume ............................................................... 9
Auxiliary Audio ................................................................... 10
Good to know
Pro Tips ............................................................................... 11
Common Questions ........................................................... 12
Technical Specications .................................................... 14
Warranty ............................................................................. 15
Registration ........................................................................ 17
Connect with Faro .............................................................. 17
3
Page 4
Getting Started.
Advisories.
Please read the information in this booklet carefully and
completely before using your headset. Keep these
instructions and make them easily accessible to all other
users. Always include this booklet when giving this
headset to third parties.
In an unlikely event of a problem with your headset, it
is recommend to switch to an alternate communication
method and to use standard cockpit resource
management skills to minimize distraction.
Your aircraft sounds such as engines, propellers, warning
alarms, and other sound sources may sound dierently
when using a new headset.
When listening to an audio source via your Faro G2
headset, please limit the volume to safe levels to ensure
you are able to hear communication and warning alarms
from your aircraft.
Do not attempt to disassemble or service inside of the ear
cups or others parts of the headset. This will void your
warranty and may result in unexpected performance of
your headset.
Page 5
Support.
Your FARO® headset is covered by a Three-Year
Replacement Warranty and is eligible for Life-time Tear
and Wear Protection Plan.
In an unlikely event that you experience any issues with
your headset, please contact FARO® priority customer
service to promptly receive troubleshooting tips or
replacement.
USA Priority Customer Service:
1-855-359-3276
International Customer Service:
1-703-286-2700
Pilot Support Email:
Visit us online at:
www.FaroAviation.com
5
Page 6
Getting Started.
Adjusting your head pad.
Adjustment for a personalized t on the G2 is simple and
easy. Proper t is important both for comfort and optimal
noise reduction.
1. Loosen the thumb
knobs on the headset
rails.
2. Place the headset on.
3. Adjust the pressure by
moving the ear cups up or down so it is completely
over your ear. It should produce an even, gentle
pressure all around each ear.
4. Tighten the thumb knobs when appropriate t is
found.
6
Page 7
Adjusting your microphone.
G2 microphone can be rotated to be placed on the right
or the left side of the headset.

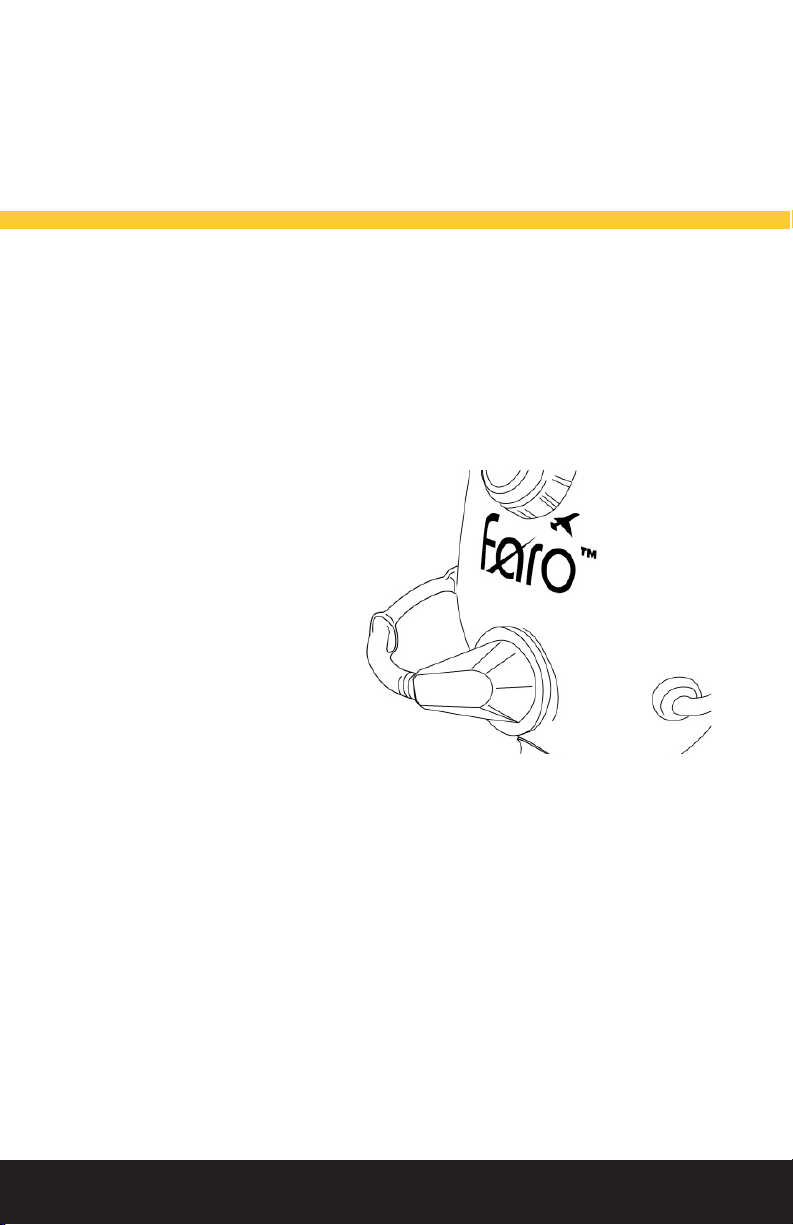

To adjust the
microphone placement,
rotate the microphone
from its base and bend
the exible boom.
For clear and crisp
communication, the microphone should be placed
approximately 1/8” from the lips.
7
Page 8
Using your G2.
Stereo / Mono Setting.
Whether you should use Mono or Stereo setting depends
on your aircraft’s avionics. Incorrect setting will result in
communication being heard in only one side. Stereo /
Mono setting does not eect the audio from your
auxiliary sources.
For most general aviation planes, Mono setting is
required.
You will nd the small Mono / Stereo switch in the
rectangular box located on the wire.
8
Page 9
Adjusting Volume.

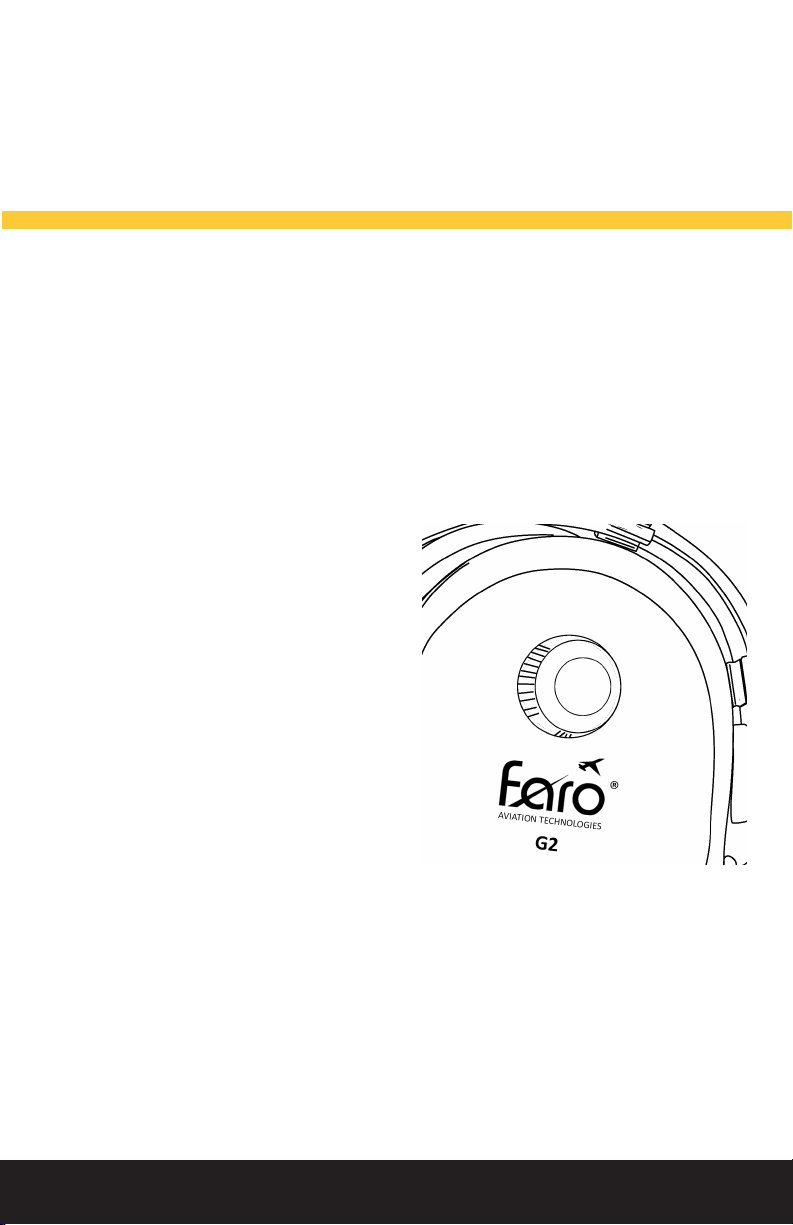

On top of each ear cup, you will nd a volume knob. Each
ear cup’s volume can be independently adjusted.
The overall headset volume
will be determined based on
the settings on the headset as
well as the aircraft’s intercom
or radio.
Caution: Avoid setting the
volume levels too high.
Exposure to loud sounds may
cause hearing damage.
9
Page 10
Using your G2.
Auxiliary Audio.
Your G2 headset can be connected to an external audio
source such as a portable audio device or a GPS via the
provided 3.5 mm cable.

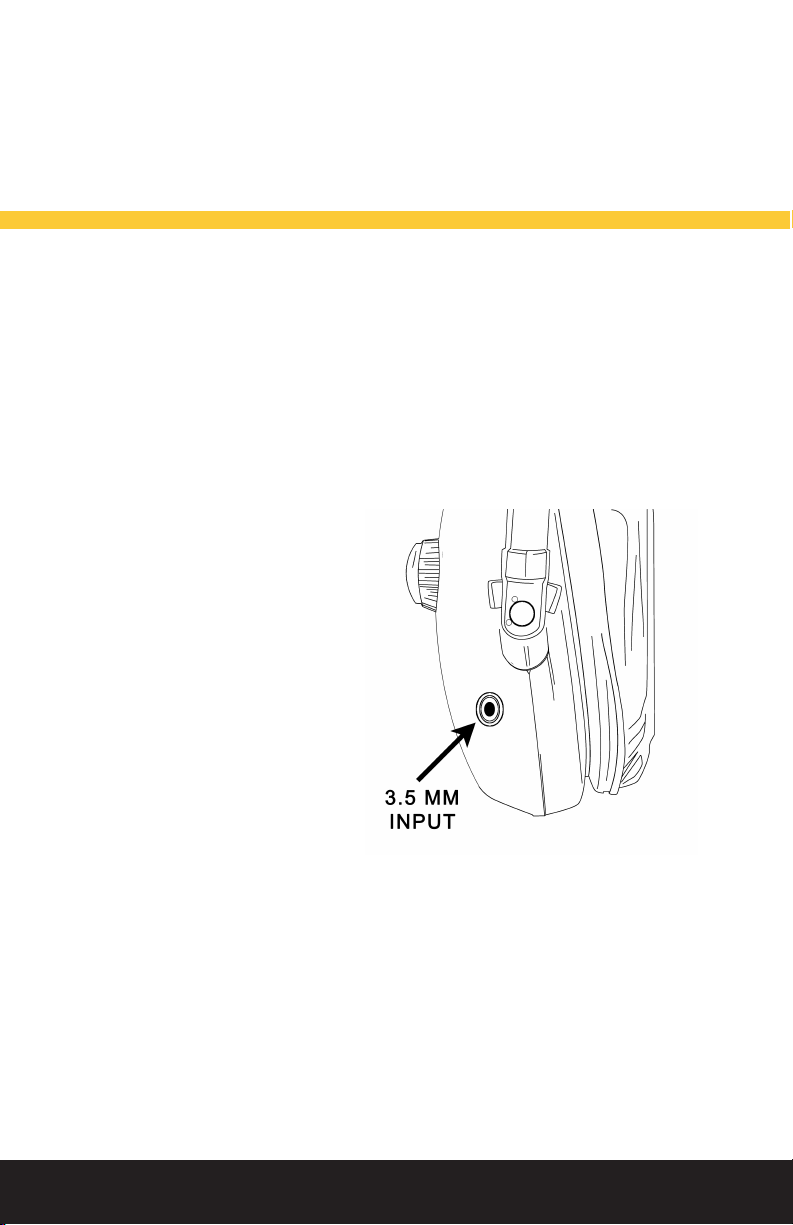

You will nd the
auxiliary input on the
opposite ear cup that
holds the microphone.
Tip: Be sure to have the
auxiliary audio at a
volume that ensures
you do not miss any important communications or air-
craft sounds.
10
Page 11
Good to know.
Pro Tips.
• Ensure G2 is tting you properly by reviewing
adjustments on page 6. Ear seals should be centered
over the ears for best performance.
• Position the microphone in front of your lips for
maximum noise cancellation.
• Set Mono / Stereo setting to match your airplane’s
avionics. For most planes, this would be mono. If set
to the incorrect setting, audio will be lost in one ear.
• Register your headset on FaroAviation.com for your
warranty, product updates, and more.
11
Page 12
Good to know.
Common Questions.
Why can I hear in only one side?
Your G2 headset is compatible with both Stereo and
Mono aircraft avionics. If your headset is set to the
incorrect setting for your aircraft, hearing will be lost in
one side. Refer to page 12 for additional information.
Where can I purchase parts for my G2 headset?
Accessories can be purchased from Faro’s authorized
dealers or by visiting www.FaroAviation.com.
What is the best way to store the headset?
Please remove the batteries before storing the headset
for a prolonged period. Store your headset in a ventilated
area away from direct sunlight.
12
Page 13
Why do I need to yell to activate the microphone?
Your avionics’ squelch setting must be adjusted. It is
common for every pilot to change the squelch setting just
like adjusting the volume. Please consult someone who is
familiar with your airplane‘s avionics if you cannot locate
the squelch knob or button.
What if I have other questions?
FARO Pilot Support is here to help. Please use one of the
following channels to contact us:
Online: www.FaroAviation.com
E-mail: [email protected]
Priority Customer Service: 1-855-359-3276
13
Page 14
Good to know.
Technical Specications.
General
Operating Temperature: -4 to 94 F / -20 to 70 C
Storage Temperature: -31 to 167 F / -35 to 75 C
Cord Length: 150 cm
Weights: 20oz / 565g
Headphone
Type: Dynamic
Frequency Response: 50 Hz-20 kHz
Sensitivity: 95±5 dB SPL
Microphone and Amplier
Type: Noise-canceling Electret
Frequency Response: 100Hz to 5 kHz
Matching Impedance: 150-1000 ohms
Sensitivity: -33±4 dB
14
Page 15
Warranty.
Product Warranty.
3-YEAR LIMITED WARRANTY FOR NEW HEADSETS SOLD BY FARO AVIATION.
Faro Aviation, LLC (“Faro Aviation”) warrants that the new aviation headset sold by Faro
Aviation (“New Headset”) is free from all material defects in workmanship and materials. For the New Headset, all warranties provided by Faro Aviation and all implied
warranties imposed by law are limited to a 3-Year period, beginning on the purchase
date shown on the New Headset’s sales receipt (“Warranty Period”). This 3-Year Limited
Warranty (“Limited Warranty”) is provided solely for the benet of the initial purchaser
of the New Headset (“Purchaser”), and it excludes all 3rd parties, including distributors,
dealers, retailers, subsequent owners, and other users of the New Headset. This Limit-
ed Warranty is not assignable and remains in full force and eect during the Warranty
Period, but only if the New Headset: (a) has been properly maintained; (b) has not
been abused or misused; and (c) has not been repaired, altered, or modied without
Faro Aviation’s approval. This Limited Warranty specically excludes all taxes, shipping
costs, and problems relating to any: (1) repair, alteration, or modication not approved
by Faro Aviation; (2) abuse or failure to properly maintain the New Headset; (3) faulty
workmanship by any person, except Faro Aviation or its approved agent; (4) operation
of the New Headset, except as specied in its operating manual; (5) ordinary wear and
tear; or (6) nish and appearance item. For each claim made under this Limited War-
ranty (“Claim”), Purchaser must, within 10 days of discovering a New Headset problem
indicating a breach of this Limited Warranty, deliver to Faro Aviation a written notice
that explains in detail the New Headset’s specic defect, that shows proof of Purchaser’s purchase of the New Headset before the end of the Warranty Period, and that
shows proof that this Limited Warranty applies to the New Headset. Faro Aviation or its
agent may investigate any Claim. Faro Aviation or its agent may investigate any Claim.
For each Claim, Faro Aviation may, in its sole discretion, choose any of the following
exclusive remedies: (I) repair or replace the New Headset or any part thereof with
same or similar Headset, without charge to Purchaser, but rst Purchaser must return
the New Headset to Faro Aviation’s authorized repair facility, pre-paying all shipping
charges, and Purchaser must accept the same as repaired or replaced at the facility’s
location (i.e., FOB the facility) within 10 days of the date of Faro Aviation’s completion
notice sent to Purchaser, or else Faro Aviation will deem the New Headset abandoned,
in which case Faro Aviation may keep, sell, or otherwise discard it; or (II) refund the
New Headset’s purchase price to Purchaser. Without paying any amount to Purchaser, Faro Aviation may keep, sell, or otherwise discard all replaced New Headsets and
parts thereof and all New Headsets where Faro Aviation has refunded the purchase
price to Purchaser. In repairing or replacing any New Headset, Faro Aviation may, in its
sole discretion, use new, used, or reconditioned parts or provide a refurbished used
headset as a replacement. In connection therewith, Faro Aviation warrants that all
new, used, or reconditioned parts or refurbished used headsets will be free from all
material defects in workmanship and materials during the Warranty Period and for a
period of up to 90 days thereafter, but only to the extent that such event occurs during
the nal 90 days of the Warranty Period. Faro Aviation may, in its sole discretion, (i)
establish separate, additional, non-warranty repair and replacement programs for any
new or used headset (“Non-Warranty Service Programs”), (ii) the Non-Warranty Service
Programs may cover any time period, before or after any Warranty Period has expired,
and (iii) charge any amount and impose any term with respect to any Non-Warranty
Service Program. For Non-Warranty Service Programs, Faro Aviation warrants that all
new, used, reconditioned, or refurbished parts and headsets used to repair or replace
any headset will be free from all material defects in workmanship and materials, but
only for a limited period of 90 days thereafter. Purchaser acknowledges that used or
reconditioned parts may be used to repair any new or used headset, and that a refurbished used headset may be provided as a replacement for any new or used headset.
15
Page 16
Warranty.
Faro Aviation may hire a 3rd party to repair or replace any new or used headset. “Including” means “including, but not limited to.”
THE TERMS IN THIS DOCUMENT ARE THE ONLY TERMS THAT GOVERN FARO
AVIATION’S WARRANTY OBLIGATIONS FOR ANY NEW OR USED HEADSET OR PART
THEREOF. NO ORAL OR OTHER WRITTEN TERM APPLIES. THIS DOCUMENT PROVIDES
THE EXCLUSIVE REMEDY FOR ALL CLAIMS AGAINST FARO AVIATION WITH RESPECT TO
ANY NEW OR USED HEADSET OR PART THEREOF. NOTWITHSTANDING ANY PROVISION
TO THE CONTRARY IN THIS LIMITED WARRANTY, FARO AVIATION RESERVES THE RIGHT
TO MODIFY, AT ANY TIME AND FROM TIME TO TIME IN ITS SOLE DISCRETION, ANY AND
ALL TERMS IN THIS LIMITED WARRANTY. EACH SUCH MODIFICATION IS DEEMED
EFFECTIVE UPON PUBLICATION ON FARO AVIATION’S WEBSITE OR OTHERWISE.
TO THE EXTENT ALLOWED BY LAW: FARO AVIATION DISCLAIMS AND PROVIDES THIS
LIMITED WARRANTY IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES,
INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. FARO AVIATION IS NOT LIABLE FOR CONSEQUENTIAL, INCIDENTAL,
PUNITIVE, INDIRECT, SPECIAL, LOST PROFITS, OR SIMILAR DAMAGES CLAIMED UNDER
ANY STATUTE OR LEGAL OR EQUITABLE THEORY. FARO AVIATION’S TOTAL LIABILITY
FOR ALL CONTRACT, TORT (INCLUDING NEGLIGENCE), STATUTORY, OR OTHER CLAIMS
ARISING FROM OR RELATING TO THIS LIMITED WARRANTY OR ANY HEADSET OR PART
THEREOF IS LIMITED TO $1,000. SOME STATES DO NOT ALLOW THE LIMITATION OF
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MIGHT NOT APPLY TO
PURCHASER. THIS LIMITED WARRANTY GIVES PURCHASER SPECIFIC LEGAL RIGHTS,
AND PURCHASER MIGHT HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
FOR PURCHASERS IN CALIFORNIA: PURCHASER HAS THE RIGHT TO HAVE THE NEW
HEADSET SERVICED AND REPAIRED DURING THE WARRANTY PERIOD. THE WARRANTY
PERIOD WILL BE EXTENDED FOR THE NUMBER OF WHOLE DAYS THAT THE NEW
HEADSET HAS BEEN OUT OF PURCHASER’S HANDS FOR WARRANTY REPAIRS. IF A
DEFECT EXISTS DURING THE WARRANTY PERIOD, THIS LIMITED WARRANTY WILL NOT
EXPIRE UNTIL THE DEFECT HAS BEEN FIXED. IF ANY WARRANTY REPAIR HAS BEEN
DELAYED BECAUSE OF CIRCUMSTANCES BEYOND PURCHASER’S CONTROL, OR IF ANY
WARRANTY REPAIR DID NOT REMEDY A DEFECT AND PURCHASER NOTIFIES FARO
AVIATION OF SUCH FAILURE WITHIN 10 DAYS AFTER THE REPAIR, THE WARRANTY
PERIOD WILL BE EXTENDED FOR A PERIOD EQUAL TO THE DURATION OF THE DELAY.
IF, AFTER A REASONABLE NUMBER OF ATTEMPTS, THE DEFECT REMAINS UNFIXED,
PURCHASER MAY RETURN THE NEW HEADSET FOR REPLACEMENT OR REFUND,
SUBJECT TO A REASONABLE DEDUCTION FOR PURCHASER’S USE OF THE NEW
HEADSET. ANY EXTENSION OF THE WARRANTY PERIOD DOES NOT AFFECT ANY
PROTECTION OR REMEDY AVAILABLE TO PURCHASER UNDER APPLICABLE LAW.
GOVERNING LAW: This non-transferable limited warranty shall be governed by the law
of the State of California, U.S.A., and by the laws of the United States of America,
excluding their conicts of laws principles. Furthermore, the United Nations
Convention on Contracts for the International Sale of Goods is hereby excluded in its
entirety from application to this non-transferable limited warranty. Jurisdiction and
venue shall be exclusive to the courts of Santa Clara County, California.
Warranty service conditions are subject to change without notice. Please refer regularly to the latest warranty terms and conditions, and additional information regarding
FARO Aviation Limited Warranty, at www.faroaviation.com or its related brands or
products. Send All Correspondences to: FARO Aviation, PO BOX 1116, Campbell, CA
95009, or via email at [email protected].
16
Page 17
Registration.
Product Registration.
Please register your headset at www.FaroAviation.com
for warranty, product updates, and access to free pilot
resources from experienced certied ight instructors.
Connect with Faro.
• Twitter
www.Twitter.com/FlyFaro
• Facebook
www.FaceBook.com/FAROAviation
• Instagram
www.Instagram.com/FlyFaro
• YouTube
www.YouTube.com/user/FAROAviation
Copyright © 2016. Faro Aviation, LLC. All Rights Reserved. Faro is a
registered trademark of Faro Aviation, LLC. Bluetooth is a registered trademark of the Bluetooth SIG.
17
Page 18
Loading...
