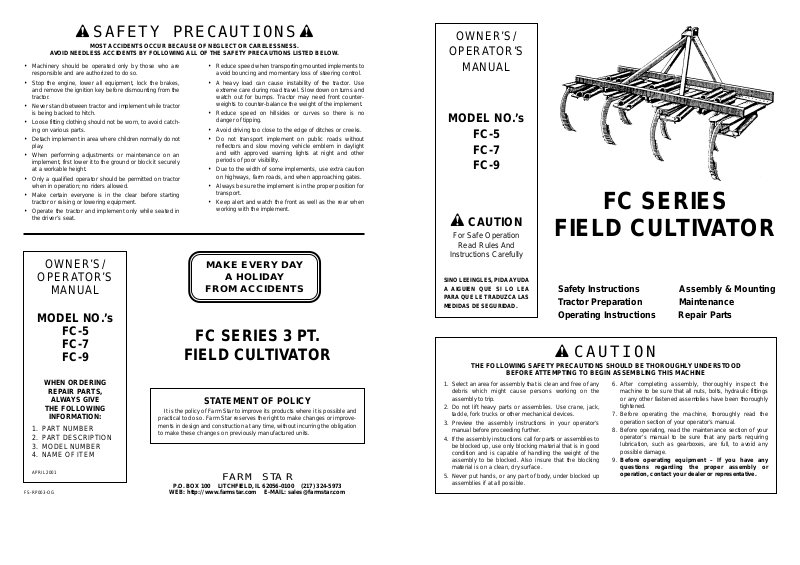

Page 1
OWNER’S/
OPERATOR’S
MANUAL
MODEL NO.’s
FC-5
FC-7
FC-9
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDAAYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
FC SERIES
FIELD CULTIVATOR
Safety Instructions Assembly & Mounting
Tractor Preparation Maintenance
Operating Instructions Repair Parts
CAUTION
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator’s
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator’s manual.
8. Before operating, read the maintenance section of your
operator’s manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
Page 2
T o the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT
SAFETY WARNING MESSAGES. CAREFULL YREAD EACH
WARNING MESSAGE THAT FOLLOWS. FAILURE TO
UNDERSTAND AND OBEY A SAFETY WARNING, OR
RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN
INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.
THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE
SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE
OPERATING AREA OF THE TRACTOR AND ATTACHED
EQUIPMENT.
IMPORTANT SAFETY INFORMATION!
Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your tractor,
before assembly or operating, to acquaint yourself with the machines. It is the implement owner’s responsibility, if this
machine is used by any person other than yourself, is loaned or rented, to make certain that the operator, prior to
operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, paying
particular attention to safety and operating instructions, prior to using. If there is something in this manual you
do not understand, ask your supervisor, or your dealer, to explain it to you.
THIS SYMBOL MEANS
– A TTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
UNDERSTAND SIGNAL WORDS
Note the use of the signal words DANGER, WARNING
and CAUTION with the safety messages. The
appropriate signal word for each has been selected
using the following guidelines:
DANGER: Indicates an imminently hazardous situation
that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme
situations typically for machine components which, for
functional purposes, cannot be guarded.
If you have questions not answered in this manual or require additional copies or the manual is damaged, please
contact your dealer or the manufacturer directly.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death
or serious injury, and includes hazards that are
exposed when guards are removed. It may also
be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
Page 3
2 7
All equipment is potentially hazardous. There is no substitute for a cautious, safe-minded operator who
recognizes potential hazards and follows reasonable safety practices.
When the use of hand tools is required to perform any part of assembly, installation, adjustment, maintaining,
repairing, removal, or moving the implement, be sure the tools used are designed and recommended by the
tool manufacturer for that specific task.
Personal protection equipment including safety glasses, safety shoes, and gloves are recommended during
assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving the implement.
Always use two people to handle heavy, unwieldy components during assembly, installation, removal, or
moving the implement.
Never place any part of your body where it would be in danger if movement should occur during assembly,
installation, operation, maintaining, repairing, removal, or moving the implement.
Never place yourself between the tractor and implement while implement is in operation.
Do not work under a raised implement unless it is securely blocked or held in position. Do not depend on the
tractor hydraulic system to hold the implement in place.
A heavy load can cause instability of the tractor. Use extreme care during travel. Slow down on turns and
watch out for bumps. The tractor may need front counter-weights to counter-balance the weight of the
implement.
Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this
equipment. Consult your doctor about operating this machine while taking prescription medications.
Do not allow others to ride on the tractor with an operator. Riders are subject to injury such as being struck by
foreign objects or being thrown off. Riders obstruct the operator’s view resulting in unsafe operation. Never
allow anyone to ride on the implement!
Do not allow anyone who is not familiar with the safety rules and operation instructions to use this implement.
Never allow children to operate or be around equipment.
Use stabilizer bars, adjustable sway chains, or sway blocks on your tractor lift arms to keep the implement from
swinging side to side. Adjust as tightly as practical for best performance.
SAFETY INSTRUCTIONS (continued)
Page 4
SAFETY INSTRUCTIONS (continued)
Keep alert and watch the front as well as the rear when working with equipment.
When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance
for the implement and tractor.
Do not operate close to ditches or creeks. Slow down when operating over rough ground.
Always be sure the implement is in the fully raised position when in transport.
When removing, or adjusting equipment, be sure that your feet are never under the implement.
Be careful to avoid catching the implements on stumps or other immovable objects.
Use extra care when working on slopes.
Avoid excessive speed during operation.
Make implement adjustments only when the implement is attached to the tractor.
Before you operate the field cultivator, check over all pins, bolts and connections to be sure all are securely in
place. Replace any damaged or worn parts immediately.
Always ease the tractor into the load. It may be necessary to raise implement slightly and then lower to desired
working depth when tractor is moving.
Watch for and avoid hidden obstructions, i.e., buried pipes, rocks, concrete piers, uneven concrete slabs,
stumps, etc., when operating equipment.
Never operate tractor and implement under trees with low hanging limbs. Operators can be knocked off the
tractor and then run over by the implement.
Operating spring loaded cultivator shanks may suddenly fling rocks and clods. Keep all bystanders 25 feet
away and operator must wear safety glasses.
When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the
day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
Reduce speed when transporting mounted implements to avoid bouncing and momentary loss of steering
control.
Do not exceed 20 mph (32 kph). Reduce speed on rough roads and surfaces.
Page 5
4 5
INSTRUCTIONS
TRACTOR REQUIREMENTS
AND PREPA R ATION
The model FC Field Cultivators can be used on both
Category I tractors (30 hp and larger) and Category II
tractors.
Model # Shanks Approx. H.P. Req.
FC-5 5 30 - 35
FC-7 7 35 - 45
FC-9 9 45 - 60
The operator is responsible for the safe operation of the
implement. The operator must be properly trained.
Operators should be familiar with the implement and
tractor and all safety practices before starting operation.
Read all safety rules.
Be sure tractor is in good condition. Read all the
safety precautions and make sure all tractor
operators are familiar with the safety rules of
operation.
CAUTION!
Read manual before operating.
CAUTION!
• Know your controls and how to stop tractor and
engine quickly in an emergency. READ THIS
MANUAL AND THE ONE PROVIDED WITH YOUR
TRACTOR.
• To avoid accident or injury, do not allow anyone to
operate this equipment without proper instructions.
Any person who operates this equipment must be
instructed in and be capable of the safe operation of
the tractor implement and all controls.
• Do not allow children to operate this machine.
SAFETY TRAINING
W ARNING!
A heavy load can cause instability in driving a
tractor. Make sure the front of the tractor is properly
counterbalanced with weights. Always drive slowly especially around turns. An unstable tractor could
steer badly and possibly tip over, causing injury or
death.
NOTE: Actual horsepower required will depend on type
of soil, operating depth, soil moisture, and operating
speed.
It is recommended that only tractors with wide front
axles be used with this implement. Tricycle front wheel
arrangements are inherently unstable and tractor rollover accidents are more likely to occur.
The tractor also needs lift arm stabilizer bars or sway
blocks to control side movement of the implement.
Check the tractor’s 3 pt. hydraulic system. Refer to your
tractor operator’s manual or dealer for any adjustments
necessary to put the hydraulic system in good working
order. (I&Tshop manuals will list most specifications and
adjustment instructions – available from most farm
equipment dealers.)
Be sure tires and rims are in good condition. Inflate tires
to the proper recommended air pressure.
It is recommended that a ROPS (Roll-Over Protection
Structure) and a seat belt be installed on all tractors.
Contact your local dealer for a ROPS for your tractor.

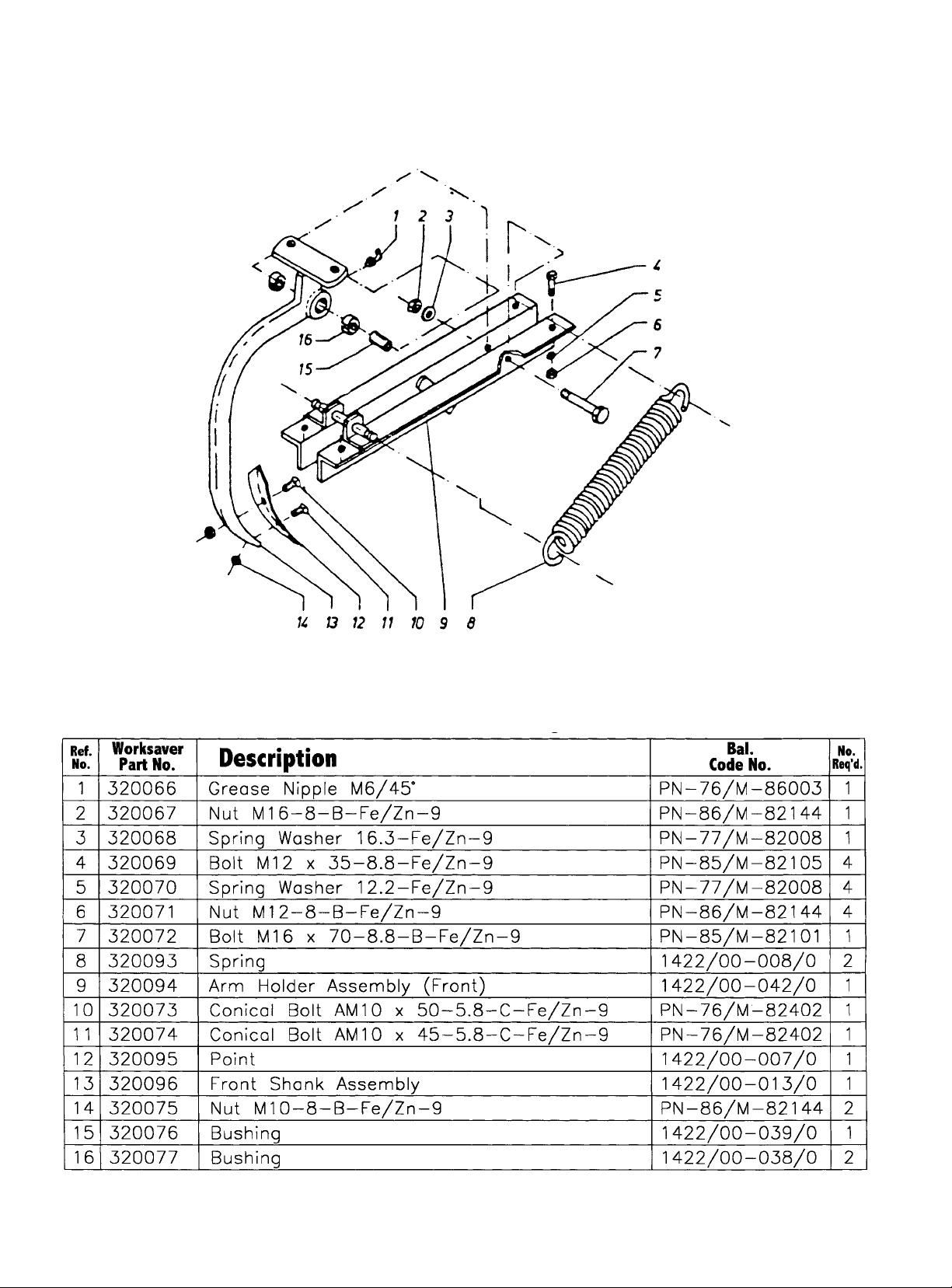

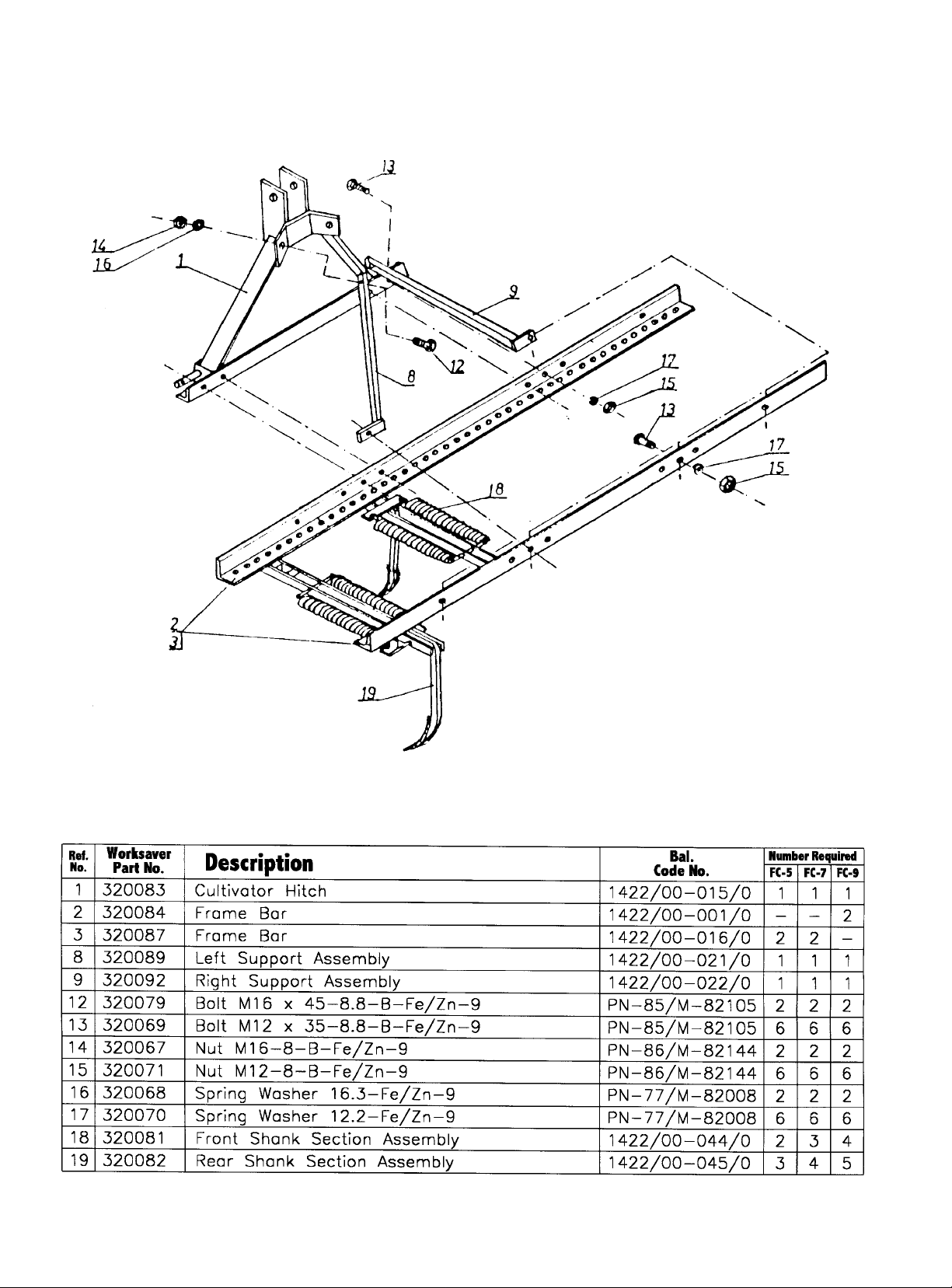

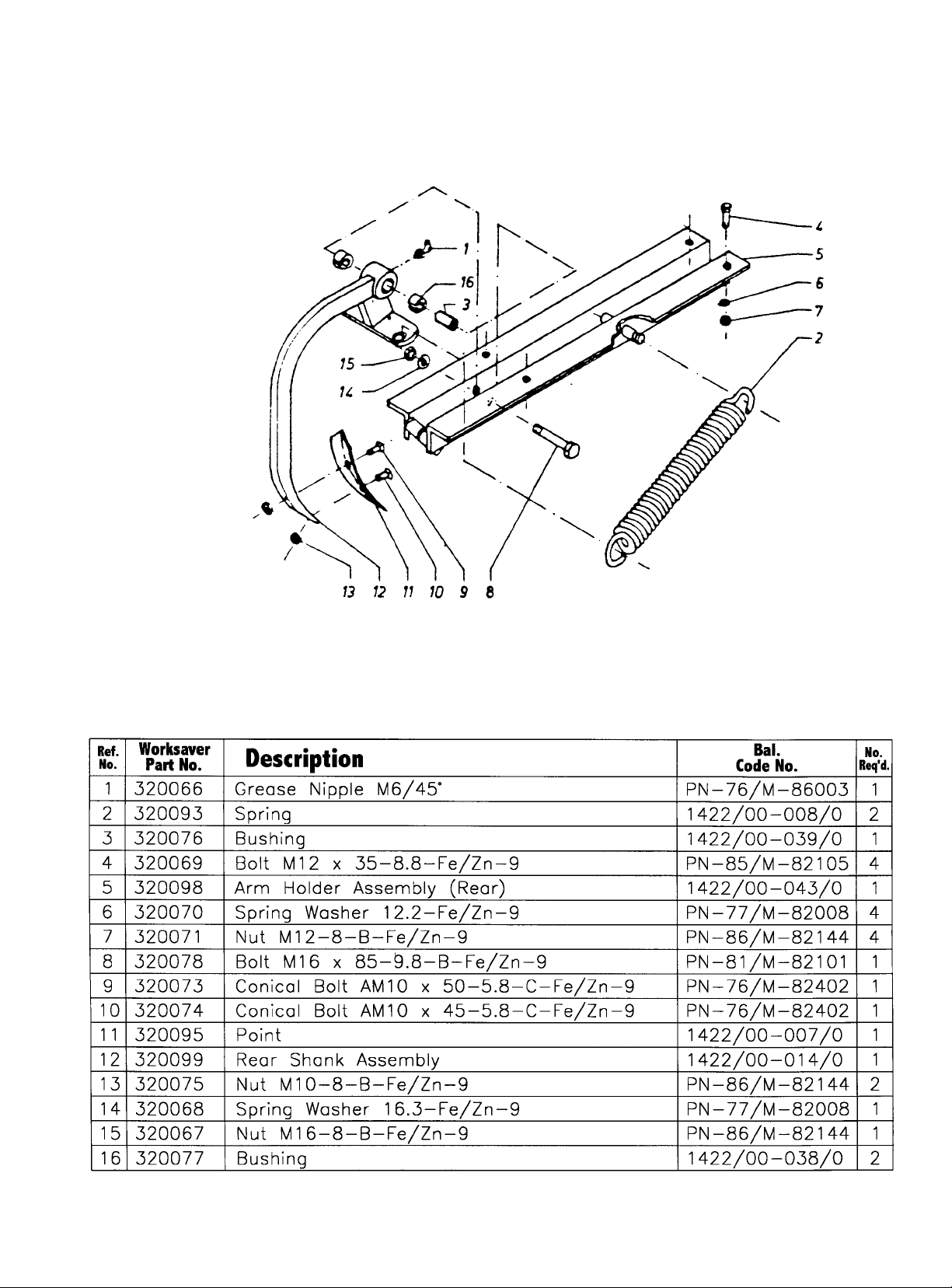

Refer to the repair parts drawing in this manual to get
an idea of how the parts need to be assembled for each
individual implement model.
The holes in the frame angle will allow the shanks to be
located at different spacing.
NOTE: All shanks must be symmetrically spaced.
Insert the draw pins into the ball sockets in the lower lift
arms of the tractor 3 pt. hitch. Lock in place with linch
pins (not furnished.)
Attach the mast of the 3 pt. main frame by installing the
tractor center link (toplink) with a toplink pin (not
furnished.)
Adjust the toplink assembly to obtain the correct angle
of the implement. Check the tractor 3 pt. lift arms and
adjust to level the implement from side to side.
ASSEMBLY AND MOUNTING
Page 6
INSTRUCTIONS (continued)
O PE R ATION
The designed and tested safety of this machine
depends on it being operated within the limitations as
explained in this manual. Be familiar with and follow all
safety rules in the manual, on the implement and on the
tractor.
The safe operation of this machine is the responsibility
of the owner / operator. The operator should be familiar
with the field cultivator and tractor and all safety practices before starting operation. Read the safety rules.
Never let anyone stand between the rear of the tractor
and the implement while the tractor is backing up to
connect to the implement. Always stand to the side until
tractor has come to a complete stop and the brakes set
or the tractor shift placed in “PARK”.
Attaching the field cultivator to the tractor increases the
overall length of the working unit. Allow additional
clearance for the implement to swing when turning.
Check for ditches, stumps, holes, or other obstacles
that could upset tractor or damage cultivator.
For proper operation, level the field cultivator by adjusting the tractor linkage. This will assure that the cultivator
will run level.
The tractor 3 pt. hydraulic lift system should be set to
transfer most of the field cultivator’s weight and draft to
the tractor to maximize traction (There may not be a 3 pt.
Draft control on some small or older tractors – Refer to
Tractor Owner’s Manual.)
Set hydraulic lift control arm stop for the operating
depth.
The deeper you operate the cultivator, the more tractor
horsepower and traction will be required.
In very hard soil or in dry conditions (or with a small
tractor), it may not be possible to operate the cultivator at
the desired depth. In these cases, it may be necessary to
make several passes. (Increase the depth with each
pass until the desired depth is reached.)
The best “shattering” action will be realized at forward
speed of 21/2to 4 miles per hour. It is not recommended
to exceed 5 MPH as it will only increase fuel consumption, horsepower required, and wear on the tractor and
implement.
NOTE: Do not make turns with the field cultivator in the
ground. Damage to cultivator will occur. Always raise
implement and lower after turn is made.
Do not attempt to operate the field cultivator when soil
is wet. Wet soil will not shatter or break up and you will
compact the soil.
It is suggested that when you make several passes
across a field that you operate the field cultivator diagonal to the direction of the first pass.
The points of the field cultivator are reversible. When
the first point wears back, remove the bolts, reverse the
point and reinstall the bolts.
Do not let the point wear back so far that wear occurs
on the lower shank body.
1. Check all nuts and bolts and make sure they are tight.
2. Check points for wear and damage. Replace when
necessary.
3. Grease shank bushings each 30 working hours.
MAINTENANCE
TROUBLE-SHOOTING
PROBLEM: Tractor will not pull implement
1. Insufficient horsepower – Use larger, heavier tractor.
2. Soil too wet – Let soil dry.
3. Soil too hard and dry – Wait for rain.
4. Points too dull – Replace points.
5. Insufficient traction – (See tire slippage below)
6. Attempting to operate too deep – Reduce depth setting and make several passes, gradually increasing
depth.
PROBLEM: Excessive tractor tire slippage
1. Tractor too small – Use larger, heavier tractor.
2. Insufficient traction – Dual rear tire or add ballast,
increase draft control, operate at shallower depth.
3. Operating too deep – See #6 above.
PROBLEM: Excessive point wear
1. Soil too dry – Wait for rain.
2. Abrasive soil – Consider having points hard surfaced
by local welder.
3. Operating too fast – Reduce forward speed.
Page 7
6 3
MODEL FC FIELD CULTIVAT O R
EXPLODED PA RTS VIEW
FRONT SHANK
ASSEMBLY
FRONT SHANK ASSEMBLY PA RTS LIST
Page 8
MODEL FC FIELD CULTIVAT O R
EXPLODED PA RTS VIEW
REAR SHANK
ASSEMBLY
REAR SHANK ASSEMBLY PA RTS LIST
Page 9
8 1
MODEL FC FIELD CULTIVAT O R
EXPLODED PA RTS VIEW
FRAME
ASSEMBLY
3- POIN T HI TCH PA RTS LIST
Page 10
9
LIMITED WARRANTY
Farm Star warrants its implements, parts and accessories to be free from defects in materials and workmanship for a period of six (6) months from date of purchase for non-commercial, state, and municipalities’. Use
ninety (90) days for commercial use from date of retail sale.
SPECIAL WARRANTY PROVISION
Warranty shall only apply to defects in material and workmanship. In no case shall the manufacturer be liable
to the purchaser for the bending or breakage of any part of the blade by abuse or misuse, such as striking
hidden objects, grubbing stumps, or turning with the field cultivator engaged in the ground, whether intentional
or unintentional.
DISCLAIMER OF IMPLIED WARRANTIES & CONSEQUENTIAL DAMAGES
Farm Star’s obligation under this warranty, to the extent allowed by law, is in lieu of all warranties, implied or
expressed, including implied warranties of merchantability and fitness for a particular purpose and any liability
for incidental and consequential damages with respect to the sale or use of the items warranted. Such
incidental and consequential damages shall include but not be limited to: transportation charges other than
normal freight charges; cost of installation other than cost approved by Farm Star; duty; taxes; charges for
normal service or adjustments; loss of crops or any other loss of income; rental of substitute equipment,
expenses due to loss, damage, detention or delay in the delivery of equipment or parts resulting from acts
beyond the control of Farm Star.
THIS WARRANTY SHALL NOT APPLY:
1. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident.
2. If parts not made or supplied by Farm Star have been used in connection with the unit, if, in sole
judgement of Farm Star such use affects its performance, stability, or reliability.
3. If the unit has been altered or repaired outside of an authorized Farm Star dealership in a manner which,
in the sole judgement of Farm Star affects its performance, stability or reliability.
4. To expendable or wear items such as points, shovels, and other items that in the company’s sole judgement
is a wear item.
NO EMPLOYEE OR REPRESENTATIVE OF FARM STAR IS AUTHORIZED TO CHANGE THIS
WARRANTY IN ANY WAY OR GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS MADE IN
WRITING AND SIGNED BY FARM STAR’S SERVICE MANAGER, POST OFFICE BOX 100, LITCHFIELD,
ILLINOIS 62056-0100.
Page 11
OWNER’S/
OPERATOR’S
MANUAL
MODEL NO.’s
FC-5
FC-7
FC-9
WHEN ORDERING
REPAIR PARTS,
ALWAYS GIVE
THE FOLLOWING
INFORMATION:
1. PART NUMBER
2. PART DESCRIPTION
3. MODEL NUMBER
4. NAME OF ITEM
APRIL 2001
FS-RP003-OG
SAFETY PRECAUTIONS
MOST ACCIDENTS OCCUR BECAUSE OF NEGLECT OR CARELESSNESS.
AVOID NEEDLESS ACCIDENTS BY FOLLOWING ALL OF THE SAFETY PRECAUTIONS LISTED BELOW.
• Machinery should be operated only by those who are
responsible and are authorized to do so.
• Stop the engine, lower all equipment, lock the brakes,
and remove the ignition key before dismounting from the
tractor.
• Never stand between tractor and implement while tractor
is being backed to hitch.
• Loose fitting clothing should not be worn, to avoid catch-
ing on various parts.
• Detach implement in area where children normally do not
play.
• When performing adjustments or maintenance on an
implement, first lower it to the ground or block it securely
at a workable height.
• Only a qualified operator should be permitted on tractor
when in operation; no riders allowed.
• Make certain everyone is in the clear before starting
tractor or raising or lowering equipment.
• Operate the tractor and implement only while seated in
the driver’s seat.
• Reduce speed when transporting mounted implements to
avoid bouncing and momentary loss of steering control.
• A heavy load can cause instability of the tractor. Use
extreme care during road travel. Slow down on turns and
watch out for bumps. Tractor may need front counterweights to counter-balance the weight of the implement.
• Reduce speed on hillsides or curves so there is no
danger of tipping.
• Avoid driving too close to the edge of ditches or creeks.
• Do not transport implement on public roads without
reflectors and slow moving vehicle emblem in daylight
and with approved warning lights at night and other
periods of poor visibility.
• Due to the width of some implements, use extra caution
on highways, farm roads, and when approaching gates.
• Always be sure the implement is in the proper position for
transport.
• Keep alert and watch the front as well as the rear when
working with the implement.
STATEMENT OF POLICY
It is the policy of Farm Star to improve its products where it is possible and
practical to do so. Farm Star reserves the right to make changes or improvements in design and construction at any time, without incurring the obligation
to make these changes on previously manufactured units.
FARM STA R
P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973
WEB: http://www.farmstar.com E-MAIL: [email protected]
MAKE EVERY DAY
A HOLIDAY
FROM ACCIDENTS
FC SERIES 3 PT.
FIELD CULTIVATOR
Loading...
