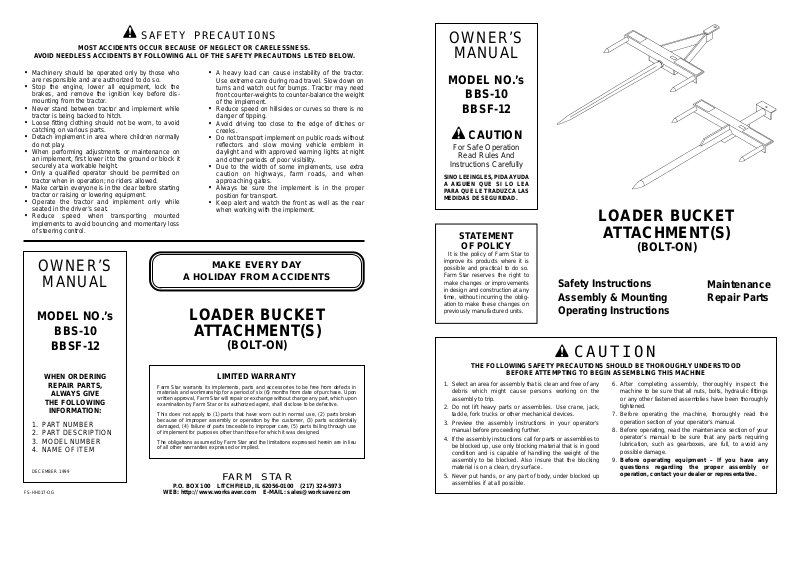

Page 1
OWNER’S
MANUAL
MODEL NO.’s
BBS-10
BBSF-12
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDAAYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.

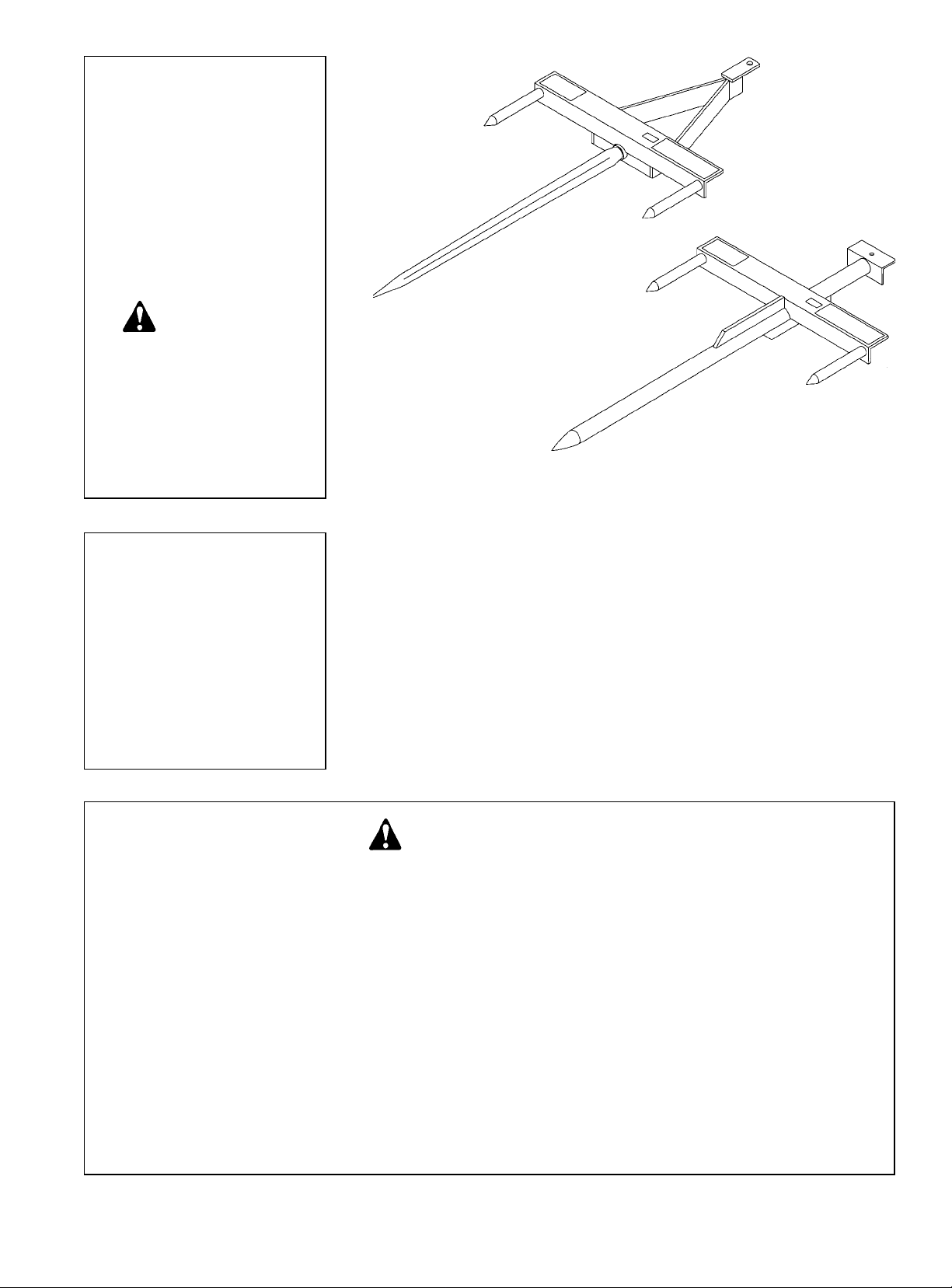

LOADER BUCKET
ATTACHMENT(S)
(BOLT-ON)
Safety Instructions
Assembly & Mounting
Operating Instructions
Maintenance
Repair Parts
CAUTION
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator’s
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator’s manual.
8. Before operating, read the maintenance section of your
operator’s manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
STATEMENT
OF POLICY
It is the policy of Farm Star to
improve its products where it is
possible and practical to do so.
Farm Star
reserves the right to
make changes or improvements
in design and construction at any
time, without incurring the obligation to make these changes on
previously manufactured units.
Page 2
1
T o the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT
SAFETY WARNING MESSAGES. CAREFULLY READ EACH
WARNING MESSAGE THAT FOLLOWS. FAILURE TO
UNDERSTAND AND OBEY A SAFETY WARNING, OR
RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN
INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.
THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE
SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE
OPERATING AREA OF THE TRACTOR AND ATTACHED
EQUIPMENT.
IMPORTANT SAFETY INFORMATION!
Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your tractor,
before assembly or operating, to acquaint yourself with the machines. It is the implement owner’s responsibility, if this
machine is used by any person other than yourself, is loaned or rented, to make certain that the operator, prior to
operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, paying
particular attention to safety and operating instructions, prior to using. If there is something in this manual you
do not understand, ask your supervisor, or your dealer, to explain it to you.
THIS SYMBOL MEANS
– A TTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
UNDERSTAND SIGNAL WORDS
Note the use of the signal words DANGER, WARNING
and CAUTION with the safety messages. The
appropriate signal word for each has been selected
using the following guidelines:
DANGER: Indicates an imminently hazardous situation
that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme
situations typically for machine components which, for
functional purposes, cannot be guarded.
If you have questions not answered in this manual or require additional copies or the manual is damaged, please
contact your dealer or the manufacturer directly.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death
or serious injury, and includes hazards that are
exposed when guards are removed. It may also
be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
Page 3
2
SAFETY INSTRUCTIONS (continued)
To prevent injury or death, use a tractor equipped with a Roll-Over Protective System (ROPS). Do not paint
over, remove or deface any safety signs or warning signs on your equipment. Observe all safety signs and
practice the instruction on them.
Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question -
DON’T TRY IT.
Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and
could affect the life of the equipment.
In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also
to Safety Messages and Operation instruction in each of the appropriate sections of the Tractor and Loader
Manuals. Pay close attention to the Safety Signs affixed to the Tractor and the Loader.
Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this
equipment. Consult your doctor about operating this machine while taking prescription medications.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a
responsible adult familiar with farm machinery and trained in this equipment’s operations. Do not allow per-
sons to operate or assemble this unit until they have read this manual and have developed a thorough
understanding of the safety precautions and of how it works.
EQUIPMENT SAFETY GUIDELINES
Keep safety signs clean and legible at all times.
Replace safety signs that are missing or have become illegible.
Replaced parts that displayed a safety sign should also display the current sign.
Safety signs are available from your Distributor or Dealer Parts Department or the factory.
Be sure that the installation area is clean and dry.
Be sure temperature is above 50˚F (10˚C).
How to Install Safety Signs:
SAFETY SIGNS
Page 4
SAFETY INSTRUCTIONS (continued)
Safety is a primary concern in the design and manufacture of our products. Unfortunately , our efforts to provide
safe equipment can be wiped out by a single careless act of an operator.
Know your controls and how to stop tractor, engine, and implement quickly in an emergency. Read this manual
and the one provided with your tractor.
In addition to the design and configuration of equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation,
transport, maintenance and storage of equipment.
It has been said, “The best safety device is an informed, careful operator.” We ask you to be that kind of an
operator. It is the operator’s responsibility to read and understand ALL Safety and Operating instructions in the
manual and to follow these. Accidents can be avoided.
Train all new personnel and review instructions frequently with existing workers. A person who has not read
and understood all operating and safety instructions is not qualified to operate the machine. An untrained
operator exposes himself and bystanders to possible serious injury or death.
Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your
tractor, before assembly or operating, to acquaint yourself with the machines. It is the equipment owner’s
responsibility, if this machine is used by any person other than yourself, is loaned or rented, to make certain
that the operator, prior to operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
SAFETY TRAINING
Do not allow children to operate this machine.
3
Remove the smallest portion of the split backing paper.
Align the sign over the specified area and carefully press the small portion with the exposed sticky backing in
place.
Slowly peel back the remaining paper and carefully smooth the remaining portion of the sign in place.
Small air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper.
How to Install Safety Signs (continued):
Decide on the exact position before you remove the backing paper.
Page 5
4
SAFETY INSTRUCTIONS (continued)

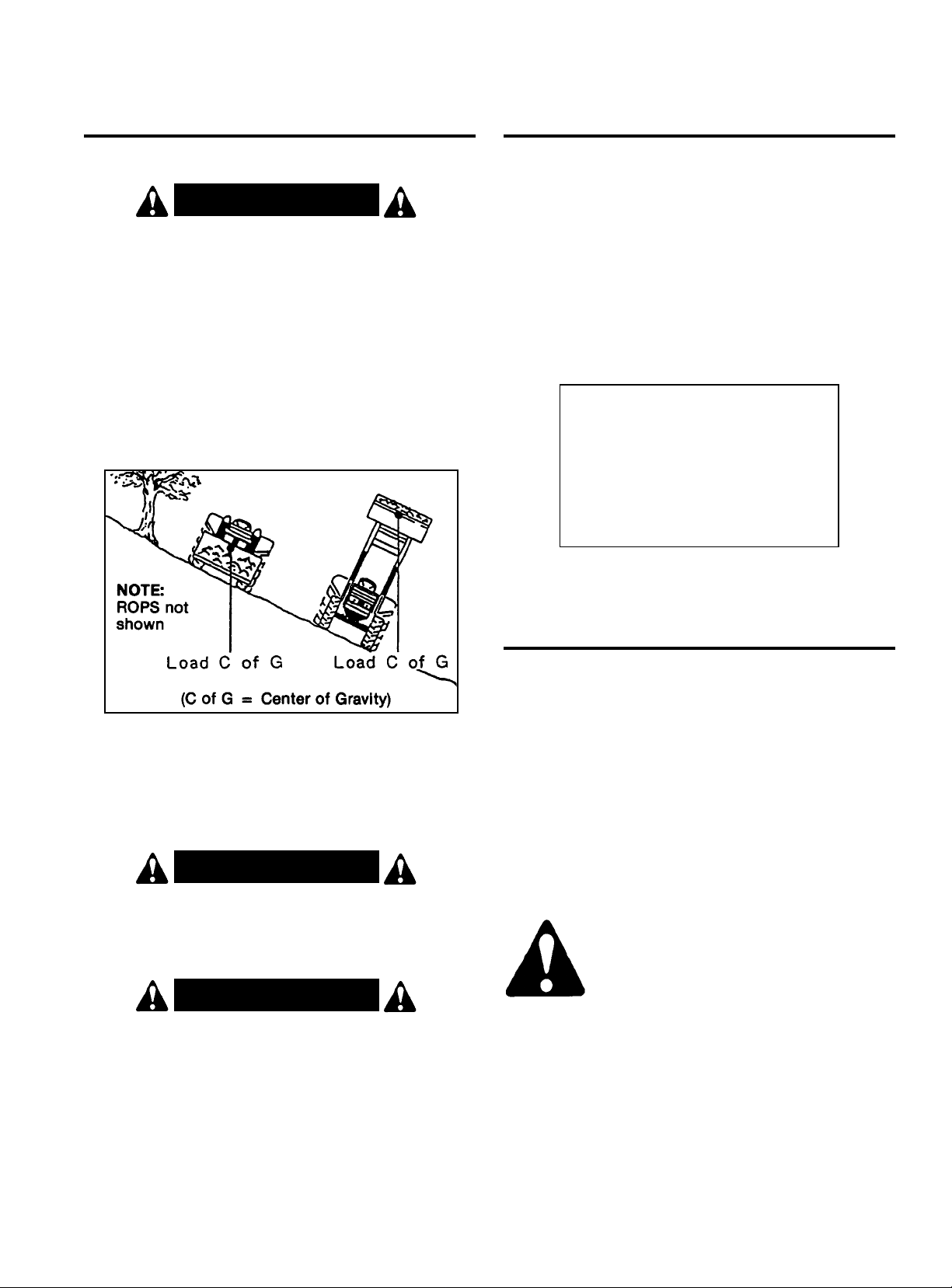

The use of any loader attachment is NOT recommended on tractor with a tricycle wheel arrangement. Tricycle
type tractors are unstable for front loader use.
A heavy load can cause instability in driving a tractor. Make sure the front or rear of the tractor is properly
counter-balanced with weights. Always drive slowly – especially around turns. An unstable tractor could steer
badly and possibly tip over, causing injury or death.
Never permit any person other than the operator to ride or board the tractor or implement at any time. ALLOW
NO RIDERS!
Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended
during assembly , installation, operation, adjustment, maintaining, repairing, removal, or moving the implement.
Do not allow long hair, loose fitting clothing or jewelry to be around moving parts.
OPERATIONAL SAFETY
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, paying
particular attention to safety and operating instructions, prior to using. If there is something in this manual you
do not understand, ask your supervisor, or your dealer, to explain it to you.
Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders at a safe distance.
REMEMBER FALLING BALES CAN ROLL OR TUMBLE.
Beware of low electrical wires when loader is raised. Serious injury or death can result if contact is made.
Always insert spears into the bale – NEVER under the bale. Failure to insert spears into bale can allow bale
to roll back when loader is raised, causing serious injury or death.
Do not handle bales that exceed the bale weight limitations of the loader.
When handling round bales on a slope, always approach the bale with the tractor facing uphill.
Operate the loader controls smoothly, avoiding jerky operation.
Carry the bale slowly and as low as possible to the ground.
Never use the tractor/loader to stop a rolling bale.
Only use a tractor equipped with a ROPS cab or rollover protective structure.
When stacking bales, ALWAYS MAKE SURE BALES ARE PLACED SO THE STACK IS STABLE.
Page 6
5
SAFETY INSTRUCTIONS (continued)
OPERATIONAL SAFETY (continued)
For operator safety, always keep bale in front of tractor hood. NEVER position bale back over operator.
ALWAYS BE CAREFUL!
When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance
for the tractor, loader, and bale. Drive slowly.
Always load rear of tractor first and unload last when using a front loader.
Beware of lift clearance when raising loader to maximum height.
Keep alert and watch the rear as well as the front when working with the loader.
Stop loader gradually when lowering or lifting loads.
Operate loader from operator’s seat only. Remain at controls until operating cycle is complete.
Allow for additional length of loader and bale on tractor while turning.
Never allow anyone to walk or work under a raised loader.
Be sure that people, livestock, or pets are not standing near the machine while operating.
Do not use loader for a work platform.
Do not lift or carry anyone on loader or in bucket or on attachment.
ALWAYS lower loader to the ground or block securely before performing any maintenance work.
Use extreme care and maintain minimum ground speed when transporting on hillside, over rough ground and
when operating close to ditches or fences. Be careful when turning sharp corners.
Stay alert for holes, rocks and roots in the terrain and other hidden hazards. Keep away from drop-offs.
Reduce speed on slopes and sharp turns to minimize tipping or loss of control. Be careful when changing
directions on slopes. Do not start or stop suddenly on slopes. Avoid operation on steep slopes.
Page 7
6
Avoid excessive speed during operation.
ALWAYS lower spear points to the ground when parking tractor. Raised spear points could cause injury to
people or livestock.
Always shut off tractor and shift to “Park” or set brakes when leaving tractor. Always lower bucket or attachment to ground. Remove key when leaving tractor unattended.
Before operating equipment: if you have any questions regarding the proper assembly or operation, contact
your dealer or representative.
SAFETY INSTRUCTIONS (continued)
OPERATIONAL SAFETY (continued)
When using a unit, a minimum 20% of tractor and equipment weight must be on tractor front wheels. Without
this weight, tractor could tip over, causing personal injury or death. The weight may be attained with a front
end loader, front wheel weights, ballast in tires of front tractor weights. When attaining a minimum 20% of
tractor and equipment weight on the front wheels, you must not exceed the ROPS weight certification. Weigh
the tractor and equipment. Do not guess or estimate!
Comply with state and local laws governing highway safety and movement of farm machinery on public roads.
The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use.
Local laws should be checked for all highway lighting and marking requirements.
When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the
day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
Always be sure the implement is in the proper raised position for transport.
Reduce speed when transporting mounted implements to avoid bouncing and momentary loss of steering
control.
TRANSPORT SAFETY
Transporting large round bales on front loaders can limit visibility. Keep load low and go slow if visibility is
obstructed. Always use extra care.
Make sure large round bales transported on tractor rear 3 pt. hitch do not obstruct visibility of tractor’s flashing lights or SMV sign.
When transporting large round bales, keep load as low as practical to maximize tractor stability.
Turn curves or go up or down hills only at a low speed and at a gradual steering angle. Make certain that at
least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow down on rough or
uneven surfaces, and loose gravel.
Use extreme care and maintain minimum ground speed when transporting on hillside, over rough ground and
when operating close to ditches or fences. Be careful when turning sharp corners.
Never allow riders on either tractor or implement. Falling off can kill.
Page 8
7
SAFETY INSTRUCTIONS (continued)
Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in a closed building.
The exhaust fumes may cause asphyxiation.
Before working on this machine, drive to a level area, disengage the PTO, lower implement (or if working
underneath, raise and block securely), shut off the engine, set the brakes, and remove the ignition keys.
Never work under equipment unless it is blocked securely. Never depend on hydraulic system to keep
implement in raised position.
Always use personal protection devices such as eye, hand and hearing protectors, when performing any
service or maintenance.
Keep all persons away from operator control area while performing adjustments, service, or maintenance.
Periodically tighten all bolts, nuts and screws and check that all cotter pins are properly installed to ensure unit
is in a safe condition.
When completing a maintenance or service function, make sure all safety shields and devices are installed
before placing unit in service.
Never use your hands to locate a hydraulic leak on attachments. Use a small piece of cardboard or wood.
Hydraulic fluid escaping under pressure can penetrate the skin.
Openings in the skin and minor cuts are susceptible to infection from hydraulic fluid. If injured by escaping
hydraulic fluid, see a doctor at once. Gangrene and death can result. Without immediate medical treatment,
serious infection and reactions can occur.
MAINTENANCE SAFETY
Check to ensure all safety signs are installed and in good condition. (See safety sign section for location
drawing.)
Never replace hex bolts with less than grade five bolts unless otherwise specified, i.e. shear bolts. Refer to
bolt torque chart for head identification marking.
Page 9
8
SAFETY INSTRUCTIONS (continued)
Where replacement parts are necessary for periodic maintenance and servicing, genuine factory replacement
parts must be used to restore your equipment to original specifications. The manufacturer will not claim
responsibility for use of unapproved parts and/or accessories and other damages as a result of their use.
If equipment has been altered in any way from original design, the manufacturer does not accept any liability
for injury or warranty.
Following operation or when unhooking, stop the tractor, set the brakes, disengage the PTO, shut off the
engine and remove the ignition keys.
Store the unit in an area away from human activity . Do not permit children to play on or around the stored unit.
Do not park equipment where it will be exposed to livestock for long periods of time. Damage and livestock
injury could result.
Make sure all parked machines are on a hard, level surface and engage all safety devices.
If blocking is used, make sure it is solid and secure before leaving area.
MAINTENANCE SAFETY (continued)
STORAGE SAFETY
ALWAYS OBEY ALL SAFETY RULES!
ALWAYS BE CAREFUL!
Page 10
9
• Read and follow owner’s
manual before installing,
operating, or performing
maintenance on this loader.
Observe safety recommendations in manual.
• Loader must have a lift
capacity 1000 lb. greater
than the weight of bale to
be handled.
• Do not lift or carry anyone
on loader or in bucket or
attachment.
• For operator safety, always
keep bale in front of tractor
hood. NEVER position bale
back over operator.
• Add recommended wheel
ballast or rear weight for
stability. When handling
loads on both ends of
tractor, load rear first and
unload last.
• Set wheels wide for
increased stability.
•
Never raise loader to extreme
heights on steep inclines.
• Do not stand or work under
raised loader.
•
Stop engine, lower arms,
relieve all hydraulic pressure, and lock brakes before
leaving operator’s seat.
•
When handling round bales
with fork type equipment,
be sure bolt-in stabilizer
spike is installed. Without
spike, uncontrolled bale
movement could occur.
•
Failure to observe the above
precautions could result in
serious injury or death.
101026
CAUTION
SAFETY SIGNS
NOTICE
1500 LB.
CAPACITY
101040
NOTICE
1800 LB.
CAPACITY
101112
Replace
Safety Decals
if damaged
or missing.
MOUNTING INSTRUCTIONS
BBS-10 & BBSF-12 (Bolt-On)
Page 11
INSTRUCTIONS
TRACTOR AND LOADER
REQUIREMENTS AND
PREPARATION
INTRODUCTION
The bolt-on loader bucket attachments provide a means
of leaving the bucket on your tractor loader and easily
converting the loader to handle large, round bales.
The attachments are easily installed or removed from
your front loader in minutes. The models BBS-10 and
BBSF-12 mount under the loader bucket with the weight
of the bale carried on the front edge or lip of the bucket.
The 1/2” bolt holds the attachment to the bucket.
ASSEMBLY
Check your loader to make sure it is in good working
order.

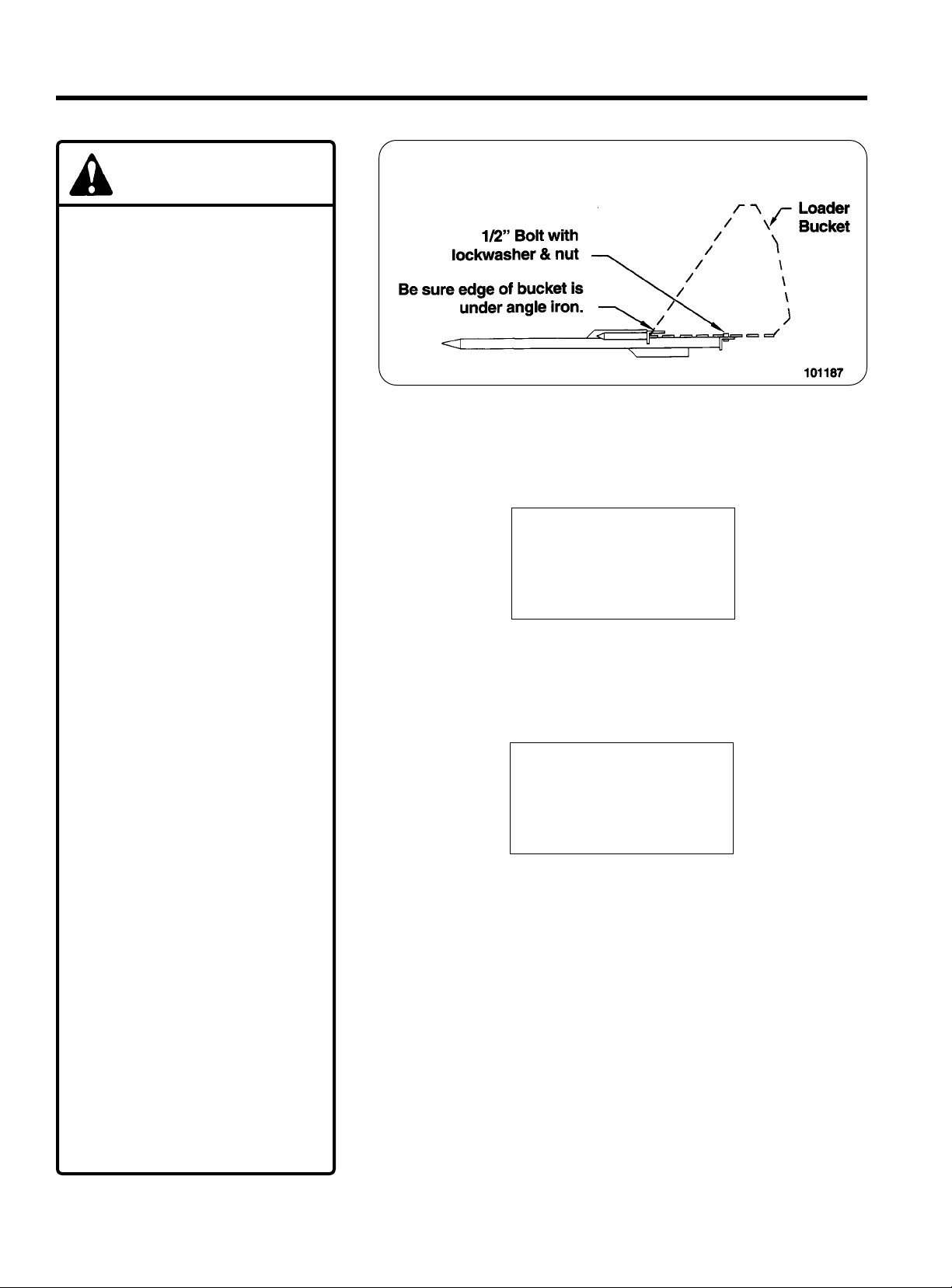

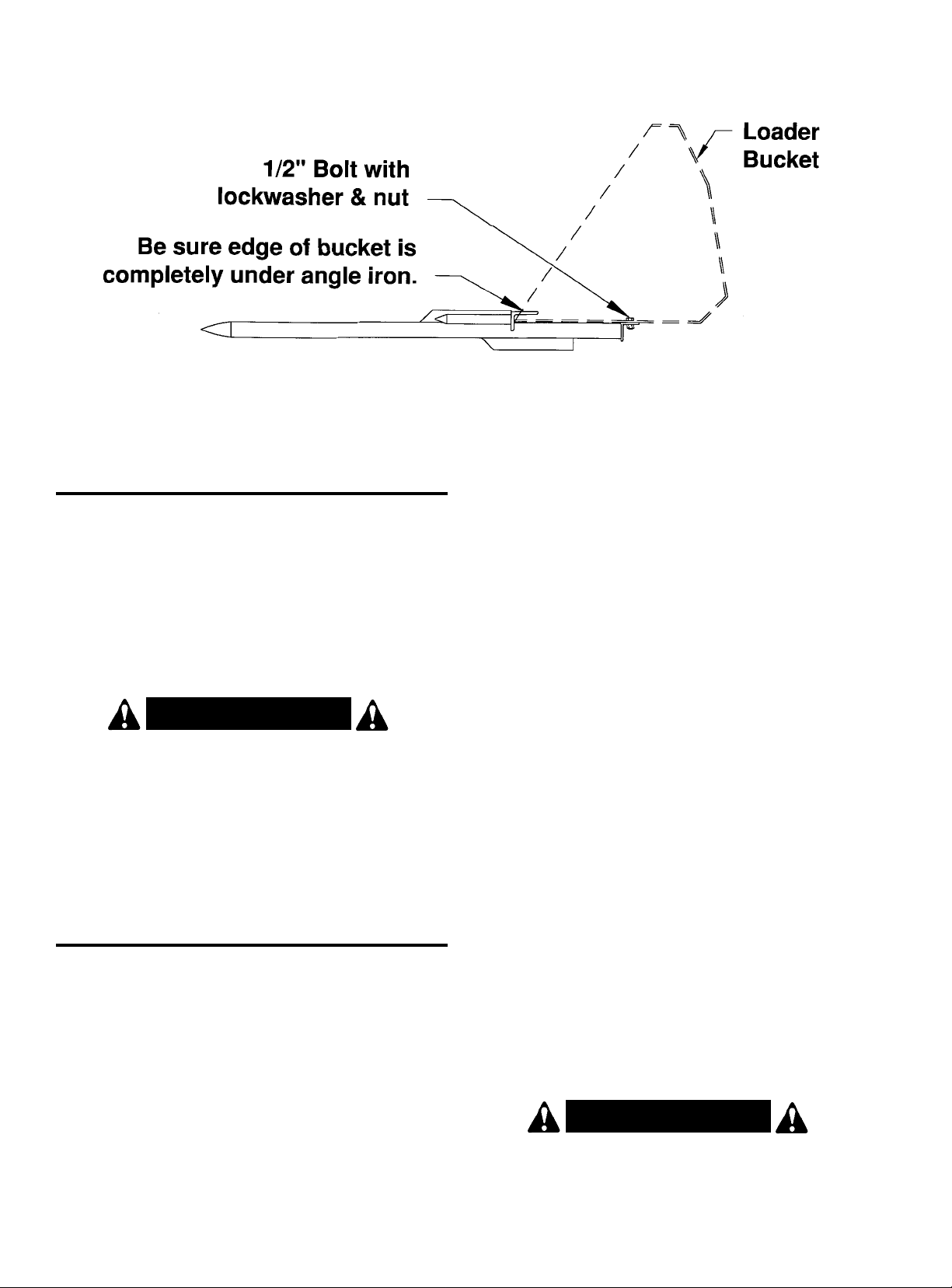

Refer to the line drawing on page 11 for proper orientation of the Bale Spear attachment and the bolt, washer,
and nut.
Slide the front cutting edge of your loader bucket under
the angle iron lip of the bucket attachment.
Raise the loader slightly so that the bottom of the
attachment is about two or three feet off the ground and
tilt the bucket all the way back for easier access to the
bottom of the loader bucket. Engage tractor parking
brake and shut off the engine.
Place some solid blocking under the bottom of the
loader bucket for safety.
Mark the location for the hole required to bolt on the
loader spear.
Remove the attachment and drill a 17/32” dia. hole in the
bottom of your loader bucket at the marked location.
CAUTION!
Bolt-on bucket attachments hold the load in front of
the loader bucket. The loader must have a lift capacity 1000 lbs. greater than the weight of the bale to be
handled. If the loader does NOT have this capacity,
then a different attachment that requires the removal
of the bucket should be considered.
NOTE: The maximum load for the attachments is as
follows:
BBS-10 . . . . . . . . . . . . . . . . . . 1500 lbs.
BBSF-12 . . . . . . . . . . . . . . . . . . 1800 lbs.
CAUTION!
The use of any loader attachment is NOT recommended on tractors with a tricycle wheel arrangement. Tricycle type tractors are unstable for front
loader use.
CAUTION!
It is recommended that tractors be equipped with a
rollover protective structure (ROPS) or cab.
Check your tractor and front loader to make sure they
are in good working condition. Check all frame mounting
bolts to make sure they are tight.
Loaders that attach to the tractor frame rails should
have a cross-tie installed for stability.
Check the hydraulic system. Be sure the tractor
hydraulic oil and filter have been serviced according to
the tractor manufacturer’s recommendations.
CAUTION!
Be sure your tractor is in good condition. Read all
the safety precautions and make sure all tractor operators are familiar with the safety rules of operation.
CAUTION!
A heavy load can cause instability in driving a tractor. Make sure the front or rear of the tractor is
properly counter-balanced with weights. Always
drive slowly – especially around turns. An unstable
tractor could steer badly and possibly tip over, causing injury or death.
W ARNING!
Do not exceed the maximum recommended large
round bale weight listed for each of the loader spear
models. Damage to the equipment or serious
personal injury could result.
The required size of the tractor and front loader will be
determined by the size and weight of the bales to be
handled.
Remember, high moisture hay (silage) bales are very
heavy in relation to similar size dry hay bales.
Always use a tractor and front loader large enough to
safely handle your bales.
10
Page 12
ASSEMBLY
(continued)
Place the attachment back in position and install a
Grade 5 1/2” hex bolt with a lockwasher and nut. If the
location of the hole in your bucket is where the steel is
thin, then it is recommended that a flat washer be
installed on the top side of the loader bucket floor.
Tighten the 1/2” bolt securely.
INSTRUCTIONS (continued)
OPERATION
Make sure all operators have read all the safety
warnings and precautions in this manual and those in the
tractor operator’s manual.
Be sure tractor is properly counterbalanced with
weights before attempting to lift any load with the Bale
Spear Attachment.
If you are handling bales with both the front end loader
and the 3 pt. hitch on the tractor, always load the 3 pt.
attachment first and unload last.
Using the bucket tilt cylinders, adjust the angle of the
spear(s) so they are parallel with the center of the hay
bale.
With the tractor, push the spear(s) into the large hay
bale. Make sure you have penetrated the hay bale far
enough so the bale doesn’t want to come off the end of
the spear(s). If, when you initially pick the bale up, it
tends to droop forward, this would indicate you have not
penetrated the bale far enough.
Tilt the ends of the spear(s) upward (about 15-20
degrees) when transporting the hay bales. This will
reduce any tendency for the bale to slide off the spear(s)
while being transported.
When you have placed the hay bale in the desired
location, it is recommended to tilt the spear ends slightly
downward (5-7 degrees) so as you pull away from the
bale it will slide off the spear(s) more easily. Different
location and circumstances will determine the best
withdraw angle to use.
NOTE: Always make sure bale spear fully penetrates the
bale. Partial penetration locates all the weight of the bale
on the outer end and can damage spear. Not covered
under warranty.
NOTE: In cold weather, a bale frozen to the ground may
exceed the lifting capacity of spear and loader. Damage
to spear or loader may occur. Not covered under
warranty.
NOTE: Soft center bales will tend to droop after being
lifted by a single spear. Placing the spear in a lower
position in the bale will allow for more lifting height and
lessen the load on the stabilizer spears.
CAUTION!
Never exceed the lift capacity of the tractor-loader
used with the spear or forklift attachment.
W ARNING!
DO NOT operate loader and attachment if it is not
securely fastened to the loader bucket. If loose, the
bale and attachment could come off the loader
bucket creating a dangerous situation that could
lead to personal injury or death.
11
BBS-10 & BBSF-12 (Bolt-On)
Page 13
12
INSTRUCTIONS (continued)
REPLACE
SAFETY SIGNS
IF DAMAGED
OR MISSING.
When stacking hay bales or loading vehicles, make
sure you are operating in an area AWAY FROM OVERHEAD WIRES.
SAFETY . . .
YOU CAN LIVE WITH IT!
CAUTION!
NEVER LET ANYONE CLIMB ON STACKED ROUND
HAY BALES!
CAUTION!
For operator safety, always keep bales in front of
tractor hood. NEVER position bale back over operator. ALWAYS BE CAREFUL!
O PER ATION (continued)
When working on side hills, DO NOT
RAISE LOADER TOO HIGH. Keep an
eye on terrain changes. Keep load low.
MAINTENANCE
Check the pins at the ends of the loader arms. Make
sure they are locked in place with the linchpins or cotter
pins.
Periodically check all bolts to make sure they are tight.
Check the large nut on the forged spears to make sure
it is tight.
Lubricate loader as per instructions in loader manual.
Replace safety signs and instruction decals if damaged
or missing.
STORING SAFELY
• Never store equipment with fuel in the tank inside a
building where fumes may reach an open flame or
spark. Allow engine to cool before storing in an
enclosure.
• Always store attachment in a clean, dry location away
from children and livestock.
• Storage location should be level and solid to make
hitching and unhitching easy.
DANGER!
Beware of low electrical wires when loader is
raised. Serious injury or death can result if contact is
made.
When stacking bales, ALWAYS MAKE SURE BALES
ARE PLACED SO THE STACK IS STABLE.
Keep all bystanders at a safe distance. REMEMBER –
FALLING BALES CAN ROLL OR TUMBLE.
Page 14
13
BBS-10
PA RTS LIST
1 831231 Bale Spear Weldment 1
2 101026 Safety Sign – Caution (Instructions) 1
3 101040 Safety Sign – Notice (1500 lb. Capacity) 1
4 101187 Safety Sign – Mounting Instructions 1
REF
NO.
PART NO. DESCRIPTION
NO.
REQ.
Page 15
14
1 831241 Hay Tine Mount Weldment 1
2 831290 Forged Hay Tine 1
3 831291 Special Tine Nut 1
4 101026 Safety Sign – Caution (Instructions) 1
5 101112 Safety Sign – Notice (1800 lb. Capacity) 1
6 101187 Safety Sign – Mounting Instructions 1
REF
NO.
PART NO. DESCRIPTION
NO.
REQ.
BBSF-12
PA RTS LIST
Page 16
SAFETY PRECAUTIONS
MOST ACCIDENTS OCCUR BECAUSE OF NEGLECT OR CARELESSNESS.
AVOID NEEDLESS ACCIDENTS BY FOLLOWING ALL OF THE SAFETY PRECAUTIONS LISTED BELOW.
• Machinery should be operated only by those who
are responsible and are authorized to do so.
• Stop the engine, lower all equipment, lock the
brakes, and remove the ignition key before dismounting from the tractor.
• Never stand between tractor and implement while
tractor is being backed to hitch.
• Loose fitting clothing should not be worn, to avoid
catching on various parts.
• Detach implement in area where children normally
do not play.
• When performing adjustments or maintenance on
an implement, first lower it to the ground or block it
securely at a workable height.
• Only a qualified operator should be permitted on
tractor when in operation; no riders allowed.
• Make certain everyone is in the clear before starting
tractor or raising or lowering equipment.
• Operate the tractor and implement only while
seated in the driver’s seat.
• Reduce speed when transporting mounted
implements to avoid bouncing and momentary loss
of steering control.
• A heavy load can cause instability of the tractor.
Use extreme care during road travel. Slow down on
turns and watch out for bumps. Tractor may need
front counter-weights to counter-balance the weight
of the implement.
• Reduce speed on hillsides or curves so there is no
danger of tipping.
• Avoid driving too close to the edge of ditches or
creeks.
• Do not transport implement on public roads without
reflectors and slow moving vehicle emblem in
daylight and with approved warning lights at night
and other periods of poor visibility.
• Due to the width of some implements, use extra
caution on highways, farm roads, and when
approaching gates.
• Always be sure the implement is in the proper
position for transport.
• Keep alert and watch the front as well as the rear
when working with the implement.
OWNER’S
MANUAL
MODEL NO.’s
BBS-10
BBSF-12
WHEN ORDERING
REPAIR PARTS,
ALWAYS GIVE
THE FOLLOWING
INFORMATION:
1. PART NUMBER
2. PART DESCRIPTION
3. MODEL NUMBER
4. NAME OF ITEM
DECEMBER 1999
FS-HH017-OG
LIMITED WARRANTY
Farm Star warrants its implements, parts and accessories to be free from defects in
materials and workmanship for a period of six (6) months from date of purchase. Upon
written approval, Farm Star will repair or exchange without charge any part, which
upon
examination by
Farm Star
or its authorized agent, shall disclose to be defective.
This does not apply to (1) parts that have worn out in normal use, (2) parts broken
because of improper assembly or operation by the customer, (3) parts accidentally
damaged, (4) failure of parts traceable to improper care, (5) parts failing through use
of implement for purposes other than those for which it was designed.
The obligations assumed by Farm Star and the limitations expressed herein are in lieu
of all other warranties expressed or implied.
MAKE EVERY DAY
A HOLIDAY FROM ACCIDENTS
LOADER BUCKET
ATTACHMENT(S)
(BOLT-ON)
FARM STA R
P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973
WEB: http://www.worksaver.com E-MAIL: [email protected]
Loading...
