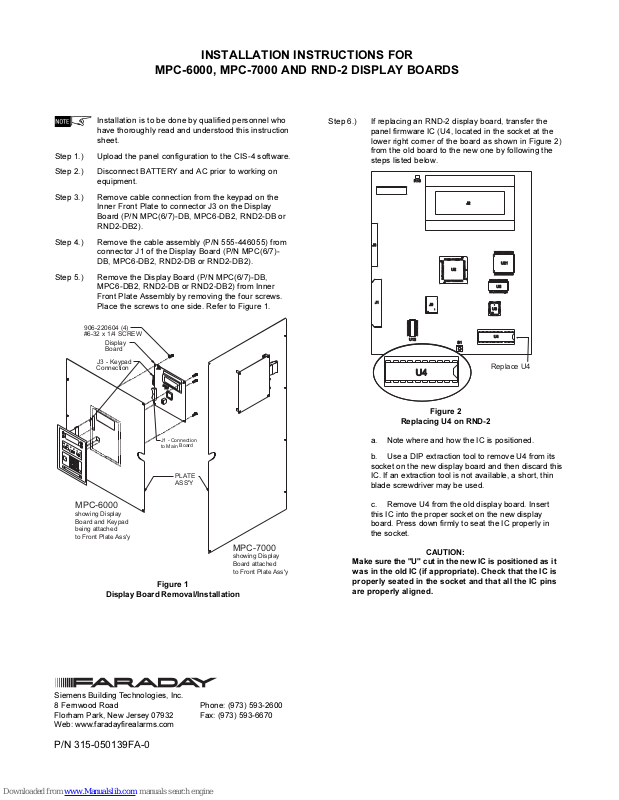

INSTALLATION INSTRUCTIONS FOR
MPC-6000, MPC-7000 AND RND-2 DISPLAY BOARDS
Installation is to be done by qualified personnel who
have thoroughly read and understood this instruction
sheet.
Step 1.) Upload the panel configuration to the CIS-4 software.
Step 2.) Disconnect BATTERY and AC prior to working on
equipment.
Step 3.) Remove cable connection from the keypad on the
Inner Front Plate to connector J3 on the Display
Board (P/N MPC(6/7)-DB, MPC6-DB2, RND2-DB or
RND2-DB2).
Step 4.) Remove the cable assembly (P/N 555-446055) from
connector J1 of the Display Board (P/N MPC(6/7)DB, MPC6-DB2, RND2-DB or RND2-DB2).
Step 5.) Remove the Display Board (P/N MPC(6/7)-DB,
MPC6-DB2, RND2-DB or RND2-DB2) from Inner
Front Plate Assembly by removing the four screws.
Place the screws to one side. Refer to Figure 1.
906-220604 (4)
#6-32 x 1/4 SCREW
Display
Board
J3 - Keypad
Connection
Step 6.) If replacing an RND-2 display board, transfer the
panel firmware IC (U4, located in the socket at the
lower right corner of the board as shown in Figure 2)
from the old board to the new one by following the
steps listed below.
R13
J2
J3
U2
J1
J9
U12
S1
U4
U21
U5
U6
U4
Replace U4
Figure 2
Replacing U4 on RND-2
J1 - Connection
Board
to Main
PLATE
ASS'Y
MPC-6000
showing Display
Board and Keypad
being attached
to Front Plate Ass'y
MPC-7000
showing Display
Board attached
to Front Plate Ass'y
Figure 1
Display Board Removal/Installation
Siemens Building Technologies, Inc.
8 Fernwood Road Phone: (973) 593-2600
Florham Park, New Jersey 07932 Fax: (973) 593-6670
Web: www.faradayfirealarms.com
a. Note where and how the IC is positioned.
b. Use a DIP extraction tool to remove U4 from its
socket on the new display board and then discard this
IC. If an extraction tool is not available, a short, thin
blade screwdriver may be used.
c. Remove U4 from the old display board. Insert
this IC into the proper socket on the new display
board. Press down firmly to seat the IC properly in
the socket.
CAUTION:
Make sure the "U" cut in the new IC is positioned as it
was in the old IC (if appropriate). Check that the IC is
properly seated in the socket and that all the IC pins
are properly aligned.
P/N 315-050139FA-0
Step 7.) Reattach the cable connection from the keypad on the
Inner Front Plate to connector J3 on the Display Board
(P/N MPC(6/7)-DB, MPC6-DB2, RND2-DB or RND2-DB2).
a. Keypad with releasing application LEDs for
MPC-6000 only
Align the keypad connector (P/N 215-649557FA) to J3
of the MPC6-DB2 as shown below. Insert the keypad
connector to the J3 header with pin 1 of J3 properly
aligned with the keypad connector until it is a tight fit.
(Refer to Figure 3.)
J3
Keyboard with
Releasing LEDs
connector
(P/N 215-649557FA)
LCD Contrast Adjust
J3
LCD location
Backside of MPC6-DB2
1
Keyboard with no
Releasing LEDs
connector
(P/N 215-649113FA)
J1
Figure 4
Keypad without Releasing Application LEDs
26-pin ribbon cable
connected to the
Main Board
J1
26-pin ribbon cable
connected to the
Main Board
Figure 3
Keypad with Releasing Application LEDs
b. Keypad without releasing application LEDs
Align the keypad connector (P/N 215-649113FA) to J3
of the MPC6-DB2 as shown in Figure 4. Insert the
keypad connector to the J3 header with pin 1 of J3
properly aligned with the keypad connector until it is a
tight fit. Verify that pins 19-22 (last four pins) of J3
are not connected to the keypad.
Step 8.) Secure Display Board (P/N MPC(6/7)-DB, MPC6-
DB2, RND2-DB or RND2-DB2) to Inner Front Plate
Assembly using the four screws removed in Step 5.
Refer to Figure 1.
Step 9.) Plug the Cable Assembly (P/N 555-446055) into
connector J1 of the Display Board (P/N MPC(6/7)-DB,
MPC6-DB2, RND2-DB or RND2-DB2) and to
connector J11 of the Main Board (P/N MPC6-MB,
MPC6-MB2 or MPC7-MB).
Step 10.) Apply power to system.
Step 11.) Download the panel configuration from the CIS-4 to
the panel and swap.
a. We recommend copying the primary configuration
to the secondary after swapping.
P/N 315-050139FA-0
