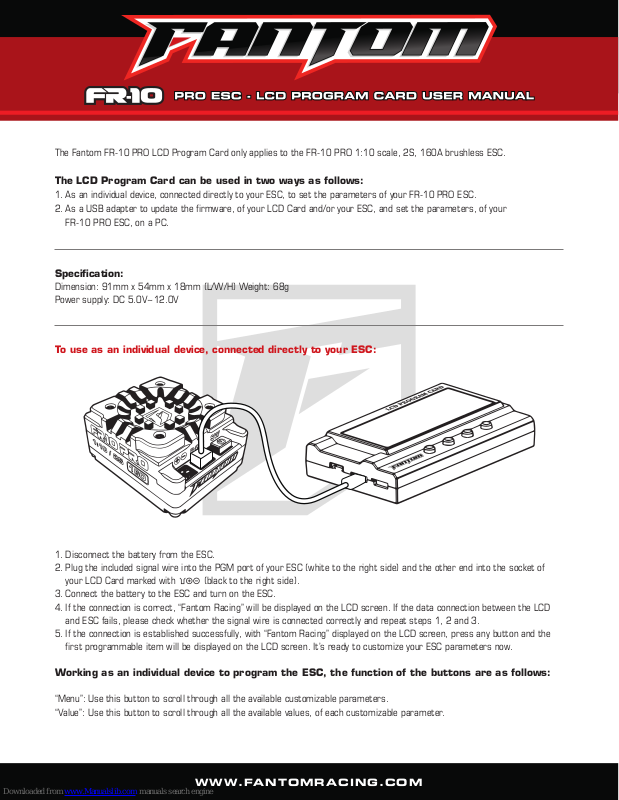

PRO ESC - LCD PROGRAM CARD USER MANUAL
The Fantom FR-10 PRO LCD Program Card only applies to the FR-10 PRO 1:10 scale, 2S, 160A brushless ESC.
The LCD Program Card can be used in two ways as follows:
1. As an individual device, connected directly to your ESC, to set the parameters of your FR-10 PRO ESC.
2. As a USB adapter to update the firmware, of your LCD Card and/or your ESC, and set the parameters, of your
FR-10 PRO ESC, on a PC.
Specification:
Dimension: 91mm x 54mm x 18mm (L/W/H) Weight: 68g
Power supply: DC 5.0V~12.0V

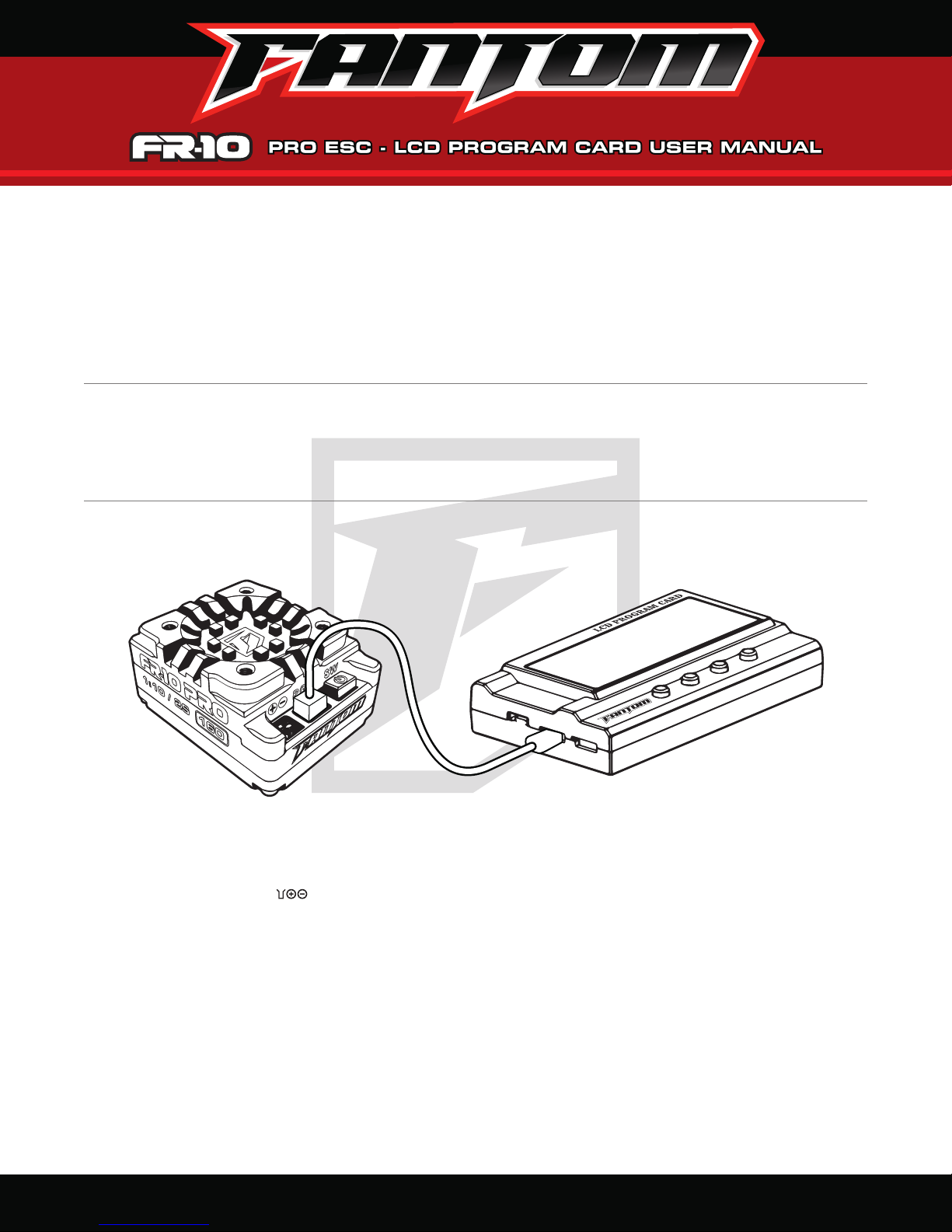

To use as an individual device, connected directly to your ESC:
1. Disconnect the battery from the ESC.
2. Plug the included signal wire into the PGM port of your ESC (white to the right side) and the other end into the socket of
your LCD Card marked with (black to the right side).
3. Connect the battery to the ESC and turn on the ESC.
4. If the connection is correct, “Fantom Racing” will be displayed on the LCD screen. If the data connection between the LCD
and ESC fails, please check whether the signal wire is connected correctly and repeat steps 1, 2 and 3.
5. If the connection is established successfully, with “Fantom Racing” displayed on the LCD screen, press any button and the
first programmable item will be displayed on the LCD screen. It’s ready to customize your ESC parameters now.
Working as an individual device to program the ESC, the function of the buttons are as follows:
“Menu”: Use this button to scroll through all the available customizable parameters.
“Value”: Use this button to scroll through all the available values, of each customizable parameter.
WWW.FANTOMRACING.COM
Working as an individual device to program the ESC (continued)
Note: Keeping the “Menu” or “Value” button held down will scroll through the parameters and values quickly.
“Reset”:
Use this button to return your ESC to all default settings. After pushing this button, follow immediately with
pressing the “OK” button, to confirm that you want to reset all parameters back to the default settings.
“OK”: Use this button to save your customized parameters into the ESC. IMPORTANT: You must press this button every time
you want to save a customized parameter in the ESC. If you don’t press the “OK” button, the customized setting will not be
saved and updated into the ESC. If you just press the “Menu” button, the customized settings are just saved into the program
card; not into the ESC. For example: First, use the “Menu” button to scroll through the available customizable parameters and
stop on one that you would like to customize (i.e. cut-off voltage 3.2/cell, etc.). Second, press the “Value” button to scroll
through the available values. Third, once your desired value is shown on the screen, press the “OK” button to save the setting
into the ESC. Press “Menu” to scroll to the next parameter, and so on.
Note: All default settings are preceded by a “*”. For example: G7: BEC Output
*1: 6V
LCD PROGRAM CARD PARAMETER IDENTIFICATION, FUNCTIONS & DESCRIPTIONS
GENERAL (G)
G1: RUNNING MODE – *Forward/Brake, Forward/Brake/Reverse, Forward/Reverse – Use this function
to set whether you want forward & brake only, forward and brake and reverse, or forward & reverse only. Most tracks do not
allow reverse during racing. The default setting of “Forward & Brake” only is the recommended setting for all racing applications.
G2: LOW VOLTAGE CUTOFF - Disable,*Auto, custom 3.0v to 11.1v (0.1v increments) - Over-discharging a
battery will cause permanent damage. To avoid over-discharging the battery, use this function to protect the battery voltage
from being discharged too low. The ESC will stop running, once the chosen minimum battery voltage setting is reached during
operation. Recommended settings: 1S=3.3v, 2S=6.6v, 3S=9.9v
G3: ESC OVER-HEAT PROTECTION -
Fahrenheit (130˚ Celsius) -
Over-heating an ESC will cause permanent damage. To avoid over-heating the ESC, use this function
to protect the ESC temperature from going too high. The power output of the ESC will drop, once the chosen maximum ESC
temperature is reached during operation.
G4: MOTOR ROTATION -
*Normal, Reverse -
counter-clockwise).
G5: RACE MODE -
*Stock (Blinky), Modified -
motors. Most tracks require all stock / spec classes to use "Blinky" mode. Select "Modified" to run modified motors, typically
4.5T to 9.5T motors.
WWW.FANTOMRACING.COM
Disable, 203˚ Fahrenheit (95˚ Celsius), *221˚ Fahrenheit (*105˚ Celsius), 266˚
Use this function to change the motor rotation direction (clockwise or
Select "Stock" to run in Blinky mode, typically with 10.5T and over stock/spec
LCD PROGRAM CARD PARAMETER IDENTIFICATION, FUNCTIONS & DESCRIPTIONS (continued)
G6: DEADBAND -
12 steps (1% increments – default = 4%) -
Use this function to adjust the sensitivity of the neutral
position, of the throttle trigger (throttle and braking). In other words, how much the throttle needs to be pulled or pushed
before the ESC will receive input. By changing the value, you can customize how quickly your throttle and braking inputs react
from the neutral position. Lowering the value increases the sensitivity. Raising the value decreases the sensitivity.
G7: BEC OUTPUT - *6v, 7.4v - Use this function to set your BEC output voltage to 6v or 7.4v. You can determine the
correct voltage setting from your servo manual. WARNING: An incorrect BEC voltage setting can cause permanent damage to
your servo.
THROTTLE (TH)
TH1: INITIAL POWER LIMITER - 30 steps (*15) - Use this function to control the initial power to the motor.
Increasing the value increases the initial power delivery to the motor. Typically set the value higher for high-traction tracks and
lower for low-traction tracks.
TH2: THROTTLE RATE - 30 steps (*15) - Use this function to control the overall throttle power feeling. Increasing the
value increases the overall power feeling. Typically set the value higher for high-traction tracks and lower for low-traction
tracks.
TH3: DRIVE FREQUENCY - 1K, 2K, 4K, 8K,*16K - Use this function to control the response feel of the throttle.
Low values provide more aggressive feel. High values provide a smoother feel. Typically use the lower values for spec/stock
motors and the higher values for modified motors.
TH4: RPM LOCK - 1% to *100% (1% increments) - Use this function to lock the motor RPM, typically used for
drift cars. Leave this at the default setting of 100% for all racing applications.
TH5: THROTTLE CURVE - *Linear, Custom - Use this function to customize the balance between your throttle input
and the ESC output. For example, in "linear" mode, if you pull the throttle 10%, the ESC will put out 10% power. If you pull the
throttle 50%, the ESC will put out 50% power and so on. In "custom" mode, you can customize the balance between your
throttle input and ESC output. For example, you can set it so that when you pull the throttle 10%, the ESC will put out 25%
power and so on. The settings can also be reversed. For example, you can set it so that when you pull the throttle 10%, the
ESC will put out 5% power and so on. Typically use the linear mode with modified motors and the custom mode with stock
motors, to increase the power delivery to the motor.
BRAKE (B)
B1: INITIAL BRAKE - 1% to 20% (1% increments – default = 10%) - Use this function to control the instant
brake force to the motor, when the throttle is pushed from the neutral position to the initial brake position. Increasing the value
increases the initial brake force to the motor.
B2: DRAG BRAKE - 0% to 100% (1% increments – default = 10%) - Use this function to control the amount of
automatic brake, when the throttle is returned from the forward to the neutral position. Increasing the value increases the
amount of automatic braking applied to the motor.
WWW.FANTOMRACING.COM
LCD PROGRAM CARD PARAMETER IDENTIFICATION, FUNCTIONS & DESCRIPTIONS (continued)
B3: BRAKE FORCE - 0% to 100% (12.5% increments – default = 75%) - Use this function to control the
brake force applied to the motor. Increasing the value increases the brake force applied to the motor. The formula for the brake
parameters is: y=ax+b, whereas "y" is brake force, "a" is brake rate, "b" is initial brake, "x" is the throttle, which means the
final brake force is determined by the brake rate and initial brake values.
B4: INITIAL BRAKE RESPONSE - 20 steps (*5) - Use this function to control the initial brake power response to the
motor. Increasing the value increases the initial brake response to the motor. Typically set the value higher for high-traction
tracks and lower for low-traction tracks.
B5: BRAKE RATE - 20 steps (*5) - Use this function to control the overall brake power feeling. Increasing the value
increases the overall brake power feeling. Typically set the value higher for high-traction tracks and lower for low-traction
tracks.
B6: BRAKE FREQUENCY - 1K, 2K, 4K, *8K, 16K - Use this function to control the response feel of the brakes.
Low values provide more aggressive feel. High values provide a smoother feel.
B7: BRAKE CURVE - *Linear, Custom - Use this function to customize the balance between your brake in put and the
ESC brake output. For example, in
"linear" mode, if you push the brake 10%, the ESC will brake 10%. If you push the brake
50%, the ESC will brake 50% and soon. In "custom" mode, you can customize the balance between your brake input and ESC
brake output. For example, you can set it so that when you push the brake 10%, the ESC will brake 25% and so on. The
settings can also be reversed. For example, you can set it so that when you push the brake 10%, the ESC will brake 5% and
so on. Typically use the linear mode with spec motors and the custom mode with modified motors, to increase the brake power
delivery to the higher RPM motors.
B8: OFF BY RADIO - *Yes, No - Select "yes" to enable turning off the ESC by holding the throttle in the full brake
position for 5 seconds. Select "no" to disable this function.
BOOST (T)
NOTE: Boost settings T1 through T3 are not accessible when “*Stock (Blinky)” mode is selected in “G5: RACE MODE”
WARNING: Boost is an advanced feature and should only be used by experienced racers. Improper boost settings can cause
poor performance and/or permanent damage to your ESC and/or motor, which is not covered under warranty.
T1: BOOST TIMING - 0° to 64° (1° increments – default = 0°) - Use this function to control the maximum
amount of dynamic timing the ESC applies to the motor. Boost timing is effective throughout the entire throttle range. Boost
timing starts based on the "BOOST TRIGGER LEVEL" setting. Boost timing is not constant but varies based on throttle
position, starting from the "BOOST TRIGGER LEVEL" point until full throttle.
T2: BOOST TRIGGER LEVEL - 50 steps (*1) - Use this function to set the throttle position that is required to
activate the "BOOST TIMING". Increasing the value increases the amount of advanced throttle that is required to activate the
"BOOST TIMING".
T3: BOOST TRIGGER RATE - 10 steps (*1) - Use this function to set the throttle position that is required to activate
the maximum "BOOST TIMING" that was set in the "BOOST TIMING" function. Increasing the value increases the amount of
advanced throttle that is required to activate maximum "BOOST TIMING".
WWW.FANTOMRACING.COM
LCD PROGRAM CARD PARAMETER IDENTIFICATION, FUNCTIONS & DESCRIPTIONS (continued)
TURBO (T)
NOTE: Turbo settings T4 through T10 are not accessible when “*Stock (Blinky)” mode is selected in “G5: RACE MODE”
WARNING: Turbo is an advanced feature and should only be used by experienced racers. Improper boost settings can cause
poor performance and/or permanent damage to your ESC and/or motor, which is not covered under warranty.
T4: TURBO TIMING - 0° to 64° (1° increments – default = 0°) - Use this function to control the amount of
dynamic TURBO timing the ESC applies to the motor. Turbo timing is typically activated on long straightaways, to maximize the
full potential of the motor. Turbo timing is constant and is activated and deactivated based on the "START RPM", "TURBO
DELAY", "ACTIVATION METHOD", "TURBO ON RATE", and "TURBO OFF RATE" settings.
T5: ACTIVATION METHOD - *Full Throttle, RPM, Full Throttle + RPM - Use this function to control when
"TURBO TIMING" is activated. If "Full Throttle" is selected, "TURBO TIMING" will be activated only once the throttle is in the full
throttle position and the "TURBO DELAY" time has been achieved. If "RPM" is selected, "TURBO TIMING" will be activated only
once the RPM is reached, that was set in the "START RPM" function. If "Full TH+RPM" is selected, "TURBO TIMING" will be
activated only once the throttle is in the full throttle position and the RPM is reached, that was set in the "START RPM"
function, and the "TURBO DELAY" time has been achieved.
T6: TURBO DELAY - Instant, 0.05 seconds to 1 second (.05 second increments – default = 0.3 seconds) -
Use this function to control the delay time required to activate the "TURBO TIMING", once the activation conditions are
achieved, from the settings made in the other functions.
T7: START RPM - 8,000 RPM to 50,000 RPM (1000 RPM increments – default = 20,000 RPM) -
Use this function to control the RPM that the motor must achieve to activate the "TURBO TIMING". If "Full TH" is selected in
the "ACTIVATION METHOD" function, the default start RPM is 20,000. If "RPM" or "Full TH+RPM" is selected in the
"ACTIVATION METHOD" function, then the start RPM can be customized.
T8: TURBO ON RATE - 10 steps (*5) - Use this function to control how fast "TURBO TIMING" fully comes on. Increasing the value increases how long it takes to ramp up.
T9: TURBO OFF RATE - Instant, 10 steps (*5) - Use this function to control how fast the "TURBO TIMING" RPM
ramps off when the throttle is returned to the neutral position. Increasing the value ramps the RPM down faster.
DATA
To enter the Data Analysis Mode, at any time, press and hold the Mode and Value buttons together for approximately 2
seconds. In the Data Analysis Mode, your motor RPM, battery low voltage, and ESC temperature can be reviewed, from your
last run. Press the Menu button to scroll through the available data readings. Press and hold the Mode and Value buttons
together, for approximately 2 seconds, to exit the Data Analysis Mode.
A: MIN BATTERY VOLTAGE - Indicates the minimum battery voltage that was reached during operation.
B: MAX ESC TEMP - Indicates the maximum ESC temperature that was reached during operation.
C: MAX MOTOR RPM - Indicates the maximum motor RPM that was reached during operation.
WWW.FANTOMRACING.COM

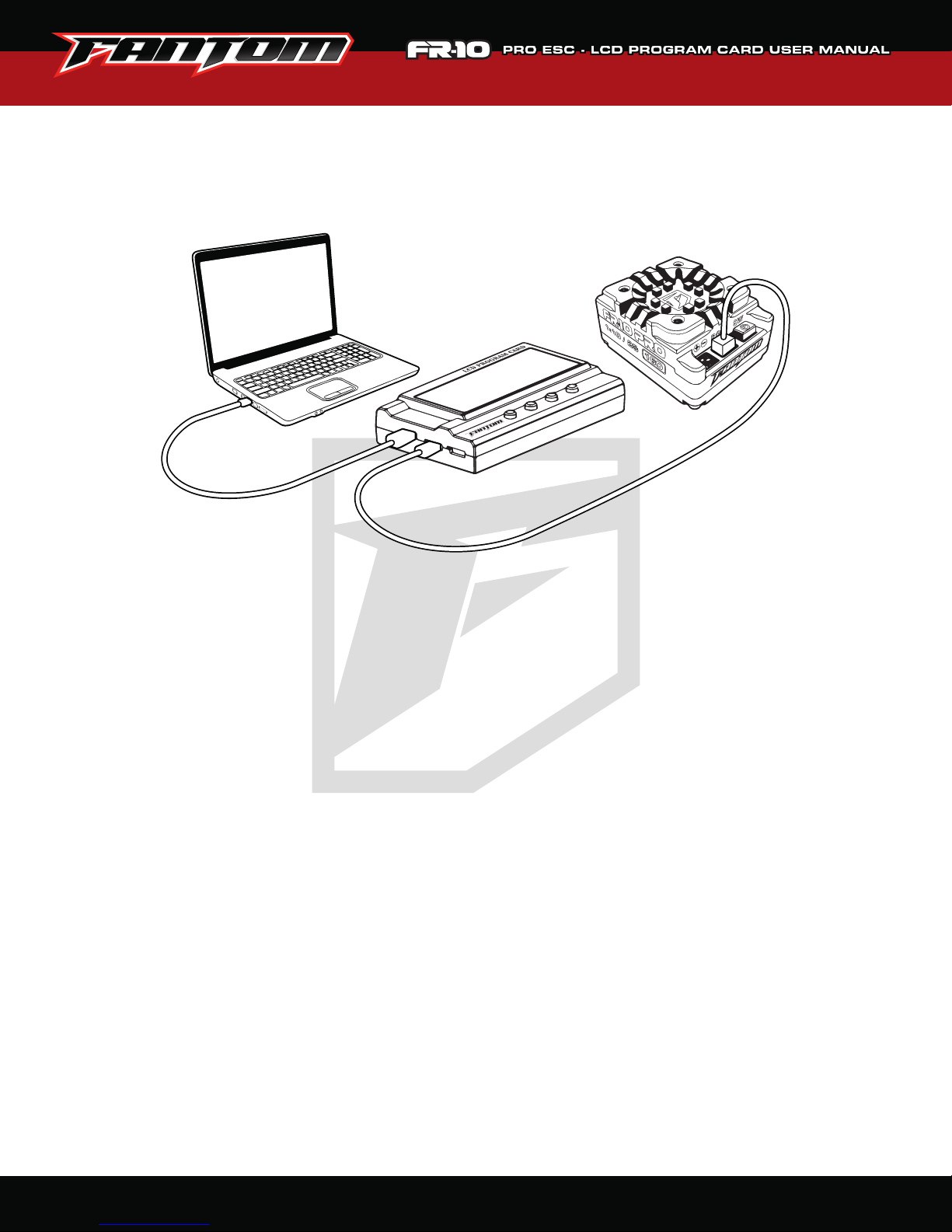

To use as a USB adapter, to update the firmware, of your LCD Card and/or of your ESC, and set
the parameters, of your FR-10 PRO ESC, on a PC:
• First, the Fantom PC Interface app, LCD Card firmware, and ESC firmware need to be downloaded to your computer, by
following the next 4 steps.
Note: The LCD Card firmware and ESC firmware only need to be downloaded to your computer if we have released new
firmware. This can be determined once you have set up the PC Interface app and connecting your LCD Card and/or ESC and
verifying the current firmware installed and comparing it to the latest firmware version listed on our website (instructions
below).
1. Download the Fantom PC Interface app here: www.fantomracing.com/downloads
2. Install the Fantom PC Interface app on to your computer. Supported Windows systems include: XP SP2, Windows 7,
Windows 8 and Windows 10.
3. Download latest Fantom LCD Program Card firmware here: www.fantomracing.com/downloads
4. Download latest Fantom FR-10 PRO ESC firmware here: www.fantomracing.com/downloads
5. The above 4 steps only need to be done once,
unless we release new updates to the PC Interface app or new
firmware.
• Once the Fantom PC Interface app is installed on your computer and the LCD Card firmware is downloaded on to your
computer, follow the next 9 steps to check what version firmware is on your LCD Program Card and/or to update it to the
latest firmware.
1. Open the Fantom PC Interface app on your computer.
2. Plug the included USB cable into a USB port on your computer and the other end into the USB port of your LCD Card.
3. If the connection is correct, “PC Connect USB Interface” will be displayed on the LCD screen and the “USB” button, on
the home screen of the PC Interface app should change from gray to red.
4. At the top/left of the PC Interface app, click on “Device”, followed by “LCD Program Box”.
WWW.FANTOMRACING.COM
Use as an USB adapter,
to update the firmware (continued)
5. This will bring up a new screen, showing that the device is the LCD Card, the current software version and the update
option button.
6. Click on the “Update” button and find the “Fantom LCD Program Card” firmware that you saved to your computer in an
earlier step.
7. Double click on the Fantom LCD Program Card firmware file and the PC Interface app will automatically begin updating
your LCD Program Card.
8. Once your LCD Program Card is updated, a new window will open stating “Update Complete”. Click “OK”.
9. Close the PC Interface program and disconnect the USB cable from your computer.
10. Your LCD Card is now ready to use for updating the firmware of your FR-10 PRO ESC and/or changing the
parameters of your ESC, using a PC.
11. The above 9 steps only need to be done once, unless we release new updates to the LCD Program Card firmware.
• Once the Fantom PC Interface app is installed on your computer, your LCD Card firmware is updated and the latest ESC
firmware is downloaded on to your computer, follow the next 12 steps to check what version firmware is on your FR-10 PRO
ESC and/or to update it to the latest firmware.
1. Open the Fantom PC Interface app on your computer.
2. Plug the included USB cable in to a USB port on your computer and the other end in to the USB port of your LCD Card.
3. Disconnect the battery from the ESC.
4. Plug the included signal wire into the PGM port of your ESC (white to the right side) and the other end into the socket
of your LCD Card marked with (black to the right side).
5. Connect the battery to the ESC and turn on the ESC.
6. If the connection is correct, “PC Connect USB interface” will be displayed on the LCD screen and the “USB” and “ESC”
buttons, on the home screen of the PC Interface app should change from gray to red.
7. In the menu options, click on the “Firmware” tab.
8. This will bring up a new screen, showing device, hardware, software version, information, and the update
option button.
9. Click on the “Update” button and find the “Fantom FR-10 PRO ESC” firmware that you saved to your computer in an
earlier step.
10. Double click on the Fantom FR-10 PRO ESC firmware file and the PC Interface app will automatically begin updating
your ESC.
11. Once your ESC is updated, a new window will open stating “Update Complete”. Click “OK”.
12. Close the PC Interface program and disconnect the USB cable from your computer and the signal wire from your ESC.
13. Your ESC is now ready to use, with the default settings, or can be customized by changing any of the available
parameters. Your ESC parameters can be changed by using the LCD Program Card as an individual device, by
connecting it directly to your ESC, as explained previously, or your ESC parameters can be changed by using the
Fantom PC Interface app, using a PC and connecting your ESC to your computer using the LCD Program Card.
14. The above 12 steps only need to be done once, unless we release new updates to the FR-10 PRO ESC firmware.
WWW.FANTOMRACING.COM
Use as an USB adapter,
to update the firmware (continued)
• Once the Fantom PC Interface app is installed on your computer, your LCD Card firmware is updated and the latest ESC
firmware is installed on your ESC, follow the next 5 steps to customize your FR-10 PRO ESC, by changing any of the available
parameters, using a PC.
1. Plug the included signal wire into the PGM port of your ESC (white to the right side) and the other end into the socket
of your LCD Card marked with (black to the right side).
2. Plug the included USB cable in to a USB port on your computer and the other end into the USB port of your LCD Card.
3. Open the Fantom PC Interface app on your computer.
4. If the connection is correct, “PC Connect USB Interface” will be displayed on the LCD screen and the “USB” button, on
the home screen of the PC Interface app will be red and the “ESC” button will remain gray.
5. Connect the battery to the ESC and turn on the ESC.
6. If the connection is correct, “PC Connect USB Interface” will be displayed on the LCD screen and the “ESC” button, on
the home screen of the PC Interface app will change from gray to red.
• You are now ready to use the PC Interface to customize your ESC.
1. Click on the General, Throttle, Brake, Boost, or Turbo tabs to open the available customizable options.
2. Use the “LCD PROGRAM CARD PARAMETER IDENTIFICATION, FUNCTIONS & DESCRIPTIONS” guide, shown previously
in this manual, to determine what parameters you would like to customize.
3. Remember, if you ever get lost, you can always go back to the default setting(s), which are preceded by an asterisk “*”.
4. Once you are satisfied with your changes, click on the “Apply” tab and select “OK” to apply the changes to your ESC.
5. If you ever want to revert to ALL the original default settings, click on the “Default” tab and select “OK” to change your
ESC back to all the original default settings.
6. The “Data” tab can be selected to view the following information:
A: MIN BATTERY VOLTAGE - Indicates the minimum battery voltage that was reached during the last operation.
B: MAX ESC TEMP - Indicates the maximum ESC temperature that was reached during the last operation.
C: MAX MOTOR RPM - Indicates the maximum motor RPM that was reached during the last operation.
WWW.FANTOMRACING.COM
ESC FIRMWARE FLOW CHART (Fantom LCD Program Card required to edit)
PROGRAMMABLE ITEM PROGRAMMABLE VALUESECTION
ApplicationThrottleBrakeTiming
Running Mode
Low Voltage Cut-off
ESC Over-heat
Motor Rotation
Race Mode
Dead Band
BEC Output
IP- Limiter
Throttle Rate
Drive Frequency
RPM Lock
Throttle Curve
Initial Brake
Drag Brake
Brake Force
I-Brake Response
Brake Rate
Brake Frequency
Brake Curve
Off By Radio
Boost Timing
Boost Trigger Level
Boost
Boost Trigger Rate
Forward / Brake
Disable
203˚F / 95˚C 221˚F / 105˚C 266˚F / 130˚C Disable
Normal
Modified
6.0V 7.4V
Linear Custom (must use PC Interface)
0% 12.5% 25% 37.5% 50% 62.5% 75% 87.5% 100%
Linear Custom (must use PC Interface)
Yes No
Turbo Timing
Forward / Brake / Reverse
Auto(3.3V/Cell)
4%-15% (1% increments)
1-30 (1 step increments)
1-30 (1 step increments)
1K, 2K, 4K, 8K, 16K
1%-100% (1% increments)
1%-20% (1% increments)
0%-100% (1% increments)
1-20 (1 step increments)
1-20 (1 step increments)
1K, 2K, 4K, 8K, 16K
0-64˚ (1˚ increments)
1-50 (1 step increments)
1-10 (1 step increments)
0-64˚ (1˚ increments)
Forward / Reverse
Custom 3.0v to 11.1v (0.1v increments)
Reverse
Stock (Blinky)
Turbo
WWW.FANTOMRACING.COM
Activation
Method
Turbo Delay
Turbo Timing
Start RPM
Turbo On
Rate
Turbo Off
Rate
Instant
0.05s
RPMFull Throttle
0.35s
0.4s
0.45s
0.1s
0.2s
0.15s
8,000 RPM to 50,000 RPM (1,000 RPM increments)
Instant 1-10 (1 step increments)
0.3s
0.25s
1-10 (1 step increments)
Full Throttle + RPM
0.6s
0.5s
0.7s
0.8s
0.9s
1.0s
Product Limited Warranty
Fantom products are manufactured to the highest quality standards. Due to the intended use of this product, this product is
guaranteed against workmanship and manufacturing defects only. This warranty is in effect for a period of 90 days from the
original date of purchase. The purchase date must be verified by an itemized cash register sales receipt. No hand-written
receipts will be accepted. NO EXCEPTIONS. Warranty coverage is at our discretion upon reviewing the product.
For warranty claims, ship your LCD Program Card to:
FANTOM RACING
15170 Dickson Rd,
White Pigeon, Ml 49099
Include the following:
1. Original cash register sales receipt.
2. Your name, return address, day time phone number, and email address.
3. A brief note explaining the problem you are experiencing.
4. Your LCD Program Card well protected inside the box.
If we receive your LCD Program Card without all the information requested above, we will not contact you to retrieve the
information, and we will not replace your LCD Program Card until all the information is provided. Unclaimed products after 60
days will be considered abandoned.
Warranty is void if any of the following condition(s) are found, or evidence of the following is determined, but not limited to:
• No sales receipt is provided
• Misuse, abuse, or normal wear
• Physical damage to the case
• Physical damage to the electronic components, plugs, wires, or cables
• Humidity/Water inside the case
• Incorrect wiring
• If modifications have been made
• If attempts to repair have been made, other than by Fantom
WWW.FANTOMRACING.COM
IMPORTANT INFORMATION
• No Fantom dealers, distributors, or resellers of any kind, are authorized to repair and/or replace any Fantom products. ALL
warranty claims and/or repairs must be handled directly with Fantom.
• Fantom will not reimburse any expenses incurred to return any Fantom product, whether for warranty claim or repair.
• Fantom is NOT responsible for any lost or stolen items once they are in the possession of the shipping company. Fantom is
not responsible for items delivered to the wrong address. Fantom will not be responsible for replacing any lost, stolen, or
incorrect delivery of any item.
• Before sending your ESC in for warranty review, please review the troubleshooting chart and make sure that you have tried
all the actions listed. Also, please double check that all the installation and setup procedures have been done correctly.
Upon review of your returned ESC, if we find that no problems exist with the ESC, a $10 diagnosis fee plus the return
shipping cost will be charged.
• The receiver wire is required for diagnosis. If your ESC is returned with a clipped receiver wire, a $15 service fee will be
charged for the replacement, even if your ESC is otherwise covered under warranty.
• This warranty is non-transferable.
• Fantom’s liability shall never exceed the product’s original cost.
• Because Fantom has no control over the use of this product the purchaser accepts all responsibility and cannot hold Fantom
responsible for any damages and/or injury incurred by improper use or improper judgment in using this product.
Fantom Racing reserves the right to change the provisions of this warranty at any time without prior notification. The
information provided on our website is based on our experience and is only our opinion. Because there are so many variables,
your experience may differ from ours. By no means is any information given as a guarantee to a product’s performance, and
the purchaser assumes all risk and liabilities.
If we are unable to service a defective product, that is no longer available, your product will be repaired or replaced with a
product that equals or exceeds your original item, with all applicable charges applied.
Due to ongoing development, prices, products, availability, and specifications are subject to change without notification.
DISCLAIMER:
By using this product, you agree with and acknowledge that you have read and understand all the instructions and warnings
contained in this document and that you agree to take full responsibility and assume all risks associated with the use and/or
misuse of this product and related products. You also agree that Fantom Racing owners, employees, affiliates, manufacturers,
dealers, distributors, and resellers cannot be held responsible for any damage and/or injury caused from the use and/or
misuse of this product. If you disagree with anything written in this document, please return this product. The product must
be in brand new condition to be accepted for return.
CONTACT INFO:
Email: support@fantomracing.com
Phone: 269.483.0200
www.fantomracing.com
WWW.FANTOMRACING.COM
Loading...
