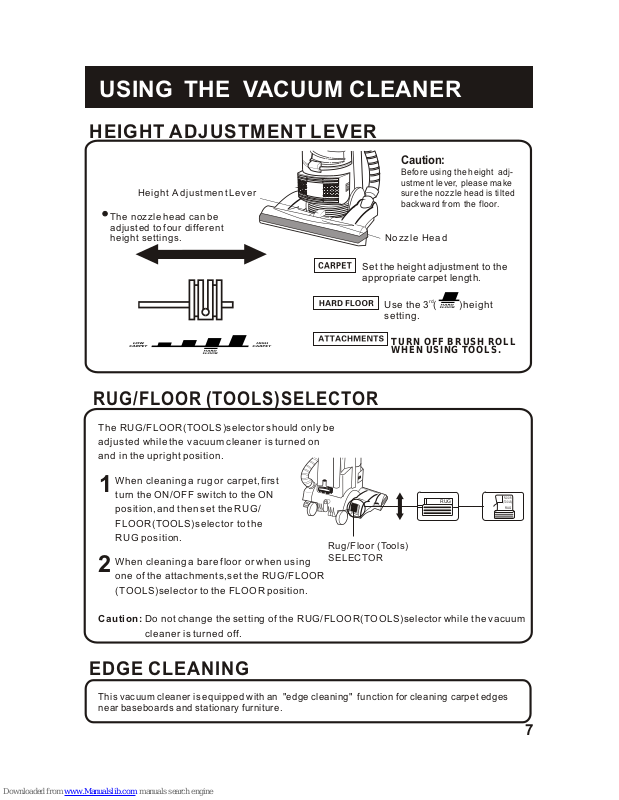

USING THE VACUUM CLEANER
EDGE CLEANING
This vacuum cleaner is equipped with an "edge cleaning" function for cleaning carpet edges
near baseboards and stationary furniture.
7
1
2

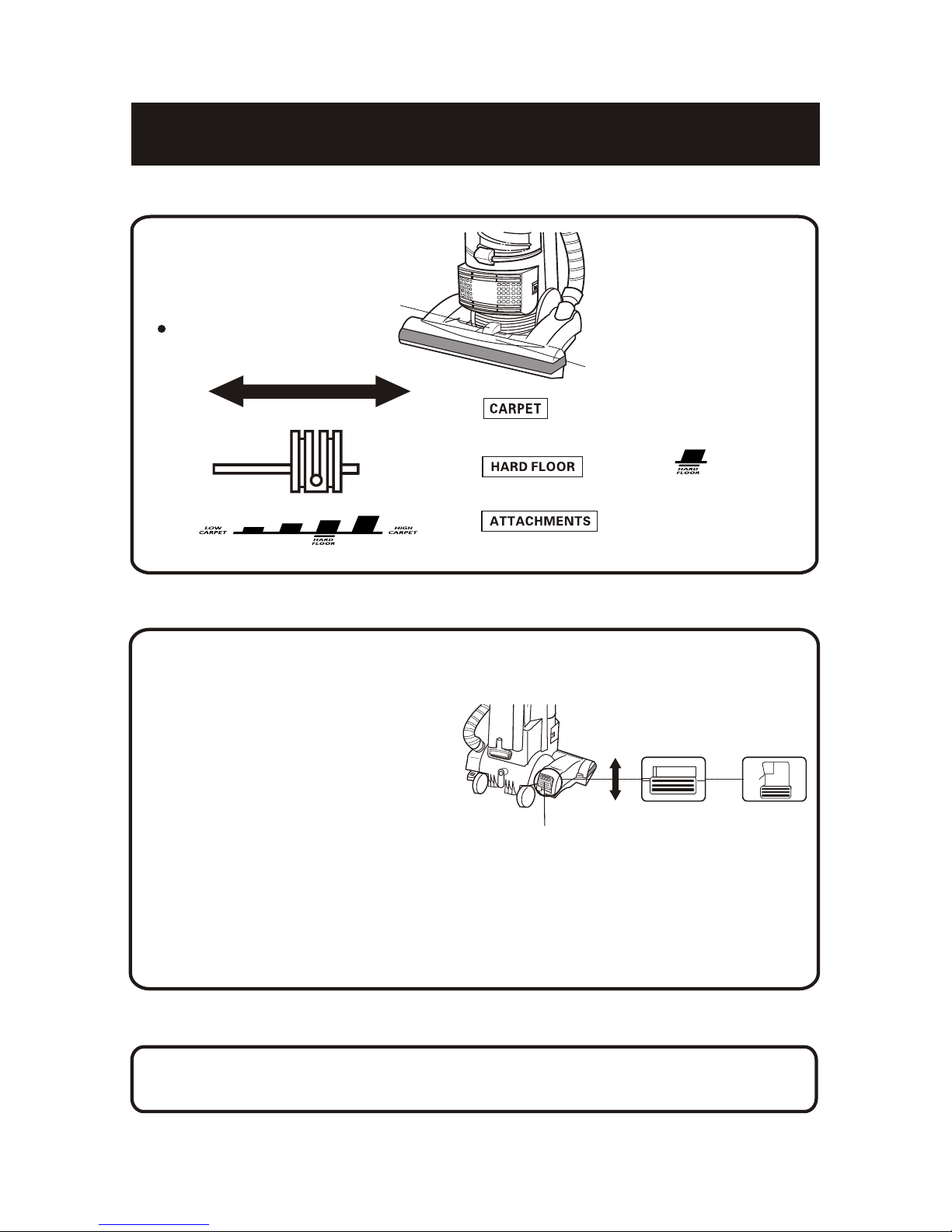

RUG/FLOOR (TOOLS)SELECTOR
The RUG/FLOOR(TOOLS)selector should only be
adjusted while the vacuum cleaner is turned on
and in the upright position.
When cleaning a rug or carpet,first
turn the ON/OFF switch to the ON
position,and then set the RUG/
FLOOR(TOOLS)selector to the
RUG position.
When cleaning a bare floor or when using
one of the attachments,set the RUG/FLOOR
(TOOLS)selector to the FLOOR position.
Caution: Do not change the setting of the RUG/FLOOR(TOOLS)selector while the vacuum
cleaner is turned off.
Rug/Floor (Tools)
SELECTOR
RUG
FLOOR
(TOOLS)
RUG
Nozzle Head
Height Adjustment Lever
HEIGHT ADJUSTMENT LEVER
The nozzle head can be
adjusted to four different
height settings.
Set the height adjustment to the
appropriate carpet length.
rd
Use the 3 ( )height
setting.
TURN OFF BRUSH ROLL
WHEN USING TOOLS.
Before using the height adjustment lever,
please make
sure the nozzle head is tilted
backward from the floor.
Caution:
Caution: When using one of the attachments during cleaning,set the vacuum
cleaner to the upright position.
1
2
3

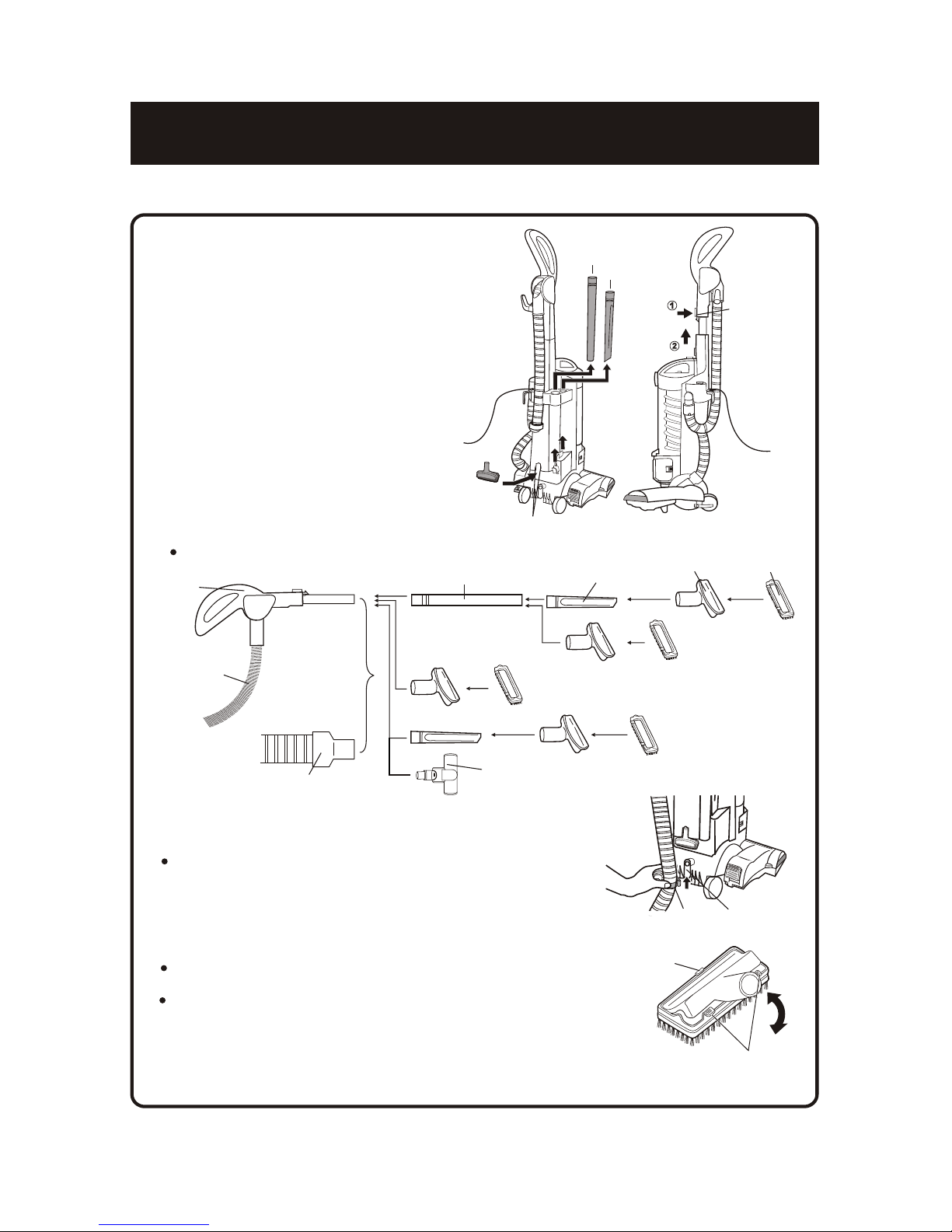

USING THE ATT ACHMENTS
Press the re lease button C to
disconne ct th
e handl e f rom the
vacuum
cleaner.
Remov
e the att ac hments from the
vacuu
m cleane r.
Caution
:
Whe
n removing the attachments, pu ll
the
m in the direct io ns shown in the
illustra ti on.Pullin
g th em in the wrong
directio
n or pul li ng them forcefully may
caus
e damage t o the attachment clamp.
Attach
the attac hm ents as shown bel ow.
8
Hook the hose holder onto the ho ld er mount.
Caution:
Before
using the attachments, pl ea se make sure
the
hose is ho ok ed on the holder mou nt .
Holder
Mount
Hose
Holder
When you have finish ed using the attachments, replace them
in their origi na l positions as shown on page 4.
Tabs
Groove
Upholstery tool & Dusting brush
To detach the dusting brush from the upholstery tool: Press the
tabs on the brush downward to remove it.
To reattach the dusting brush to the upholstery tool: Insert
the front of the upholstery tool under the hook on the front of the
dusting brush. Press down on the back of the upholstery tool to
snap it into place under the dusting brush tabs.
Suction Hose A
Wand
Crevice Tool
Upholstery
Tool
Dusting
Brush
Suction Hose B
Attach the attachments on th e handle or
the suc tion hose B.
Handle
Caution:
Before using the suction hose B,
please make sure the handl e is
reatta ched on the body.
Attachment Cla mp
Wand
Crevice To ol
Release
Button C
Turbo Brush
USING THE ATTACHMENTS
9
Caution: When using one of the attachments during cleaning,set the vacuum
cleaner to the upright position.

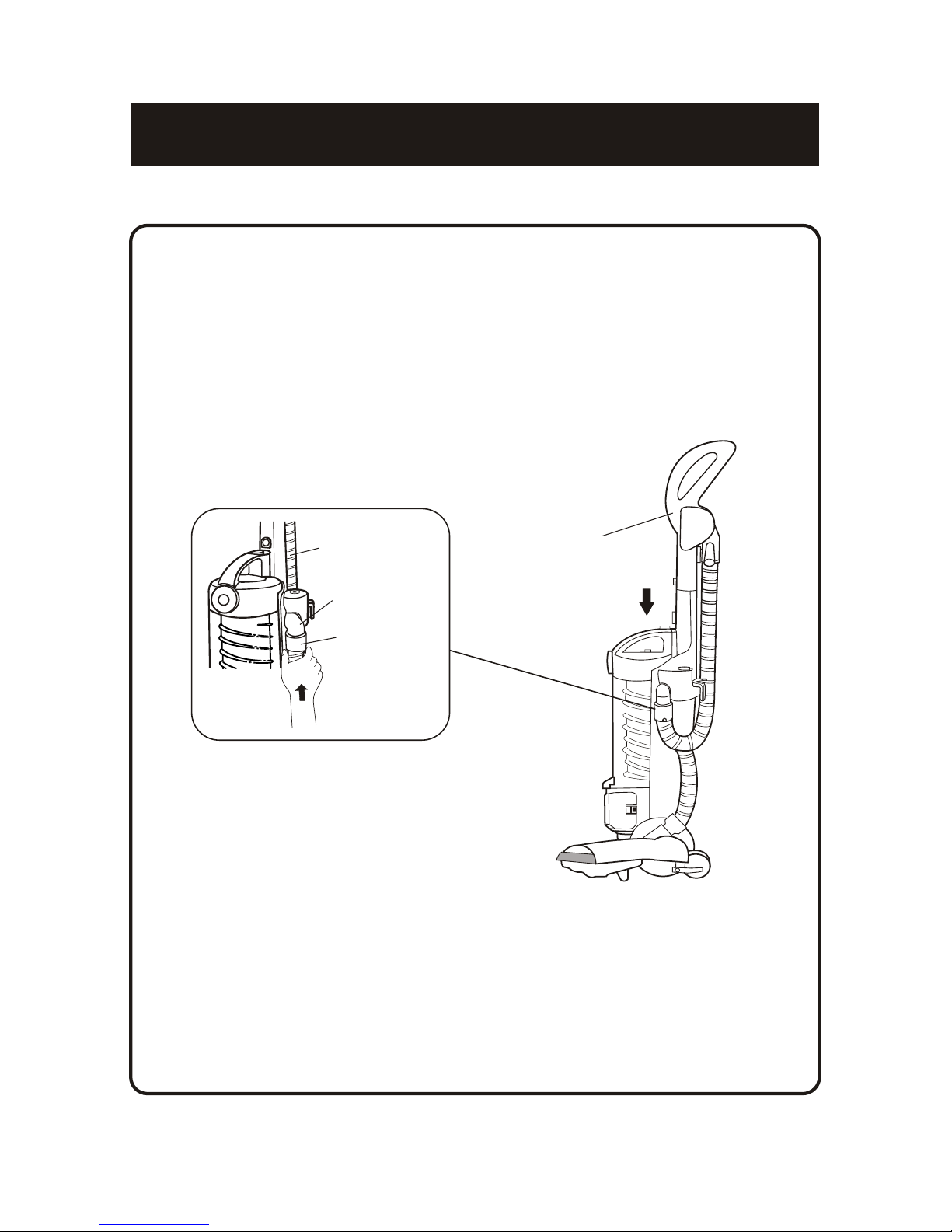

Hose Attachment
Hose Cuff
Suction
Inlet
Suction Hose A
Handle
Line up notches
push hose in till it
clicks.
AIR DRIVEN TURBO BRUSH
10
Using the Unit With Air Driven Turbo Brush
The efficiency of your Air Driven turbo brush depends on the bristle brush rotating at high speed.
Strong air suction is needed to accomplish this. In order to ensure that maximum air suction is
maintained, please read the following instructions:
1. Always empty the dust cup container frequently during use. Follow instructions on dust
container.
2. Ensure that the rotating brush is kept free of hair and string which may accumulate and
decrease brush performance.
3. Keep Air Driven Turbo Brush turbine free of dirt and foreign matter. (see illustration below
for cleaning instructions.)
IMPORTANT TURBO BRUSH INSTRUCTIONS
The efficiency of your Air Driven Turbo Brush depends on the bristle brush rotating at high
speed. Strong air suction is needed to accomplish this.
In order to ensure that maximum air suction is maintained, please read the following
instructions:
1) Empty the Dust Container frequently during use. Follow instructions for dust container.
2) Ensure that the rotating brush is kept clear of hair and string.
3) Inspect the turbine regularly to ensure that the air passage is free of dirt and debris.

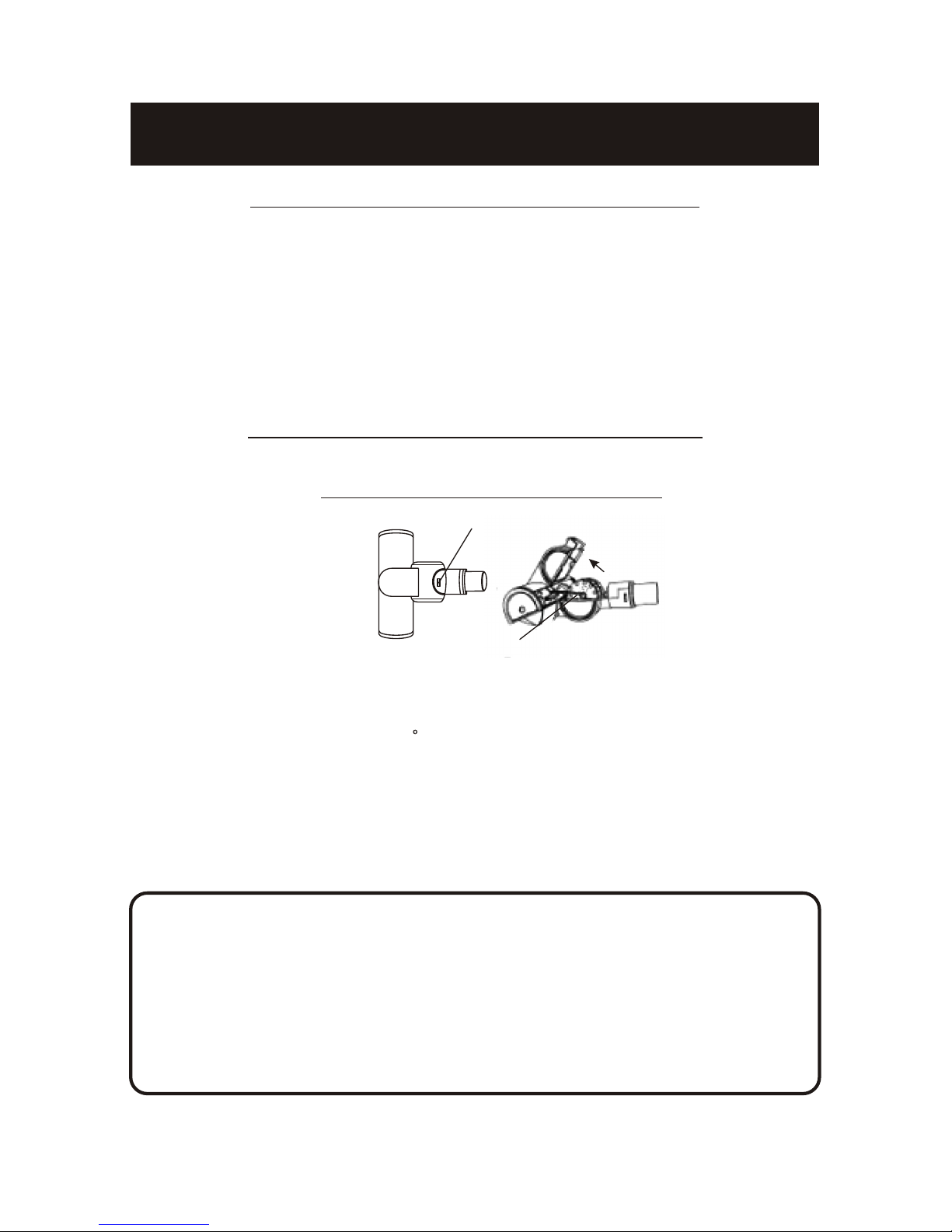

From time to time, the turbine of your Turbo Brush will require cleaning. To do this:
1. Remove the turbo brush from the hose or extension tube.
2. Slide locking latch forward then tilt the top housing of the brush upwards. The top housing is
hinged and will tilt up approximately 45 only.
3. There may be some dust, lint, hair, etc. on the turbine wheel. Remove as much of this as possible.
4. You may also use the unit's hose with crevice tool attached and use the vacuum to remove
any additional debris from the turbine.
5. Ensure that the turbine wheel moves freely by rotating it with your finger. If the turbine does
not rotate, call FANTOM Customer Service for help.
6. Once clean, close the top cover of the Turbo Brush and slide the locking latch toward the rear
of the brush to lock.
Cleaning Air Driven Turbo Brush
Your Air Driven turbo Brush may be used with either the extension tubes or the flexible hose.
Using The Unit With Air Driven Turbo Brush
Turbine
Locking Latch
Tilt
Upwards
