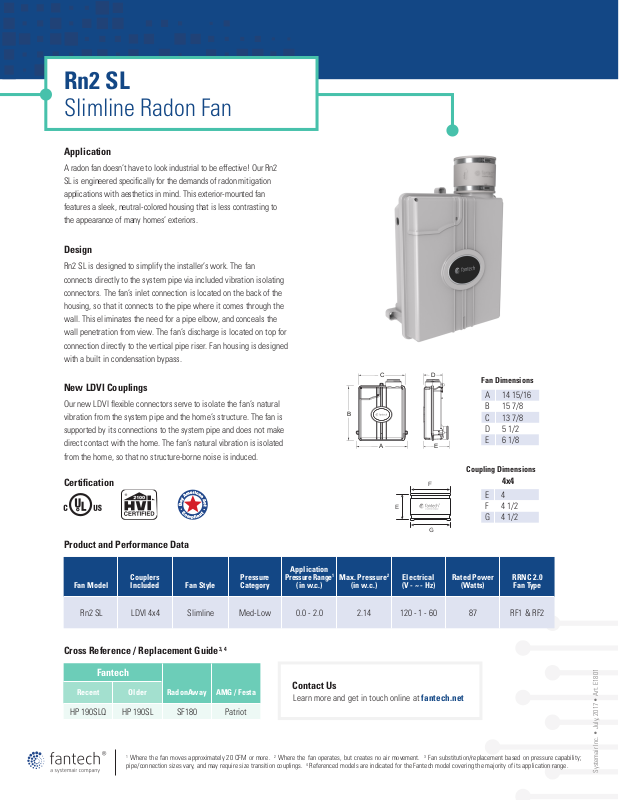

Rn2 SL
Slimline Radon Fan
Application
A radon fan doesn’t have to look industrial to be effective! Our Rn2
SL is engineered specifically for the demands of radon mitigation
applications with aesthetics in mind. This exterior-mounted fan
features a sleek, neutral-colored housing that is less contrasting to
the appearance of many homes’ exteriors.
Design
Rn2 SL is designed to simplify the installer’s work. The fan
connects directly to the system pipe via included vibration isolating
connectors. The fan’s inlet connection is located on the back of the
housing, so that it connects to the pipe where it comes through the
wall. This eliminates the need for a pipe elbow, and conceals the
wall penetration from view. The fan’s discharge is located on top for
connection directly to the vertical pipe riser. Fan housing is designed
with a built in condensation bypass.
New LDVI Couplings
Our new LDVI flexible connectors serve to isolate the fan’s natural
vibration from the system pipe and the home’s structure. The fan is
supported by its connections to the system pipe and does not make
direct contact with the home. The fan’s natural vibration is isolated
from the home, so that no structure-borne noise is induced.
Certification
Product and Performance Data
C
D
Fan Dimensions
A 14 15/16
B
B 15 7/8
C 13 7/8
D 5 1/2
A
E
F
E 6 1/8
Coupling Dimensions
4x4
E 4
E
F 4 1/2
G 4 1/2
G
Fan Model
Rn2 SL LDVI 4x4
Couplers
Included
Fan Style
Slimline
Cross Reference / Replacement Guide
Fantech
Recent
HP 190SLQ
Older
HP 190SL
1
Where the fan moves approximately 20 CFM or more. 2 Where the fan operates, but creates no air movement. 3 Fan substitution/replacement based on pressure capability;
pipe/connection sizes vary, and may require size transition couplings. 4 Referenced models are indicated for the Fantech model covering the majority of its application range.
RadonAway
SF180
Pressure
Category
Med-Low
3, 4
AMG / Festa
Patriot
Application
Pressure Range
(in w.c.)
0.0 - 2.0
1
Max. Pressure
(in w.c.)
2.14
2
Electrical
(V - ~ - Hz)
120 - 1 - 60
Contact Us
Learn more and get in touch online at fantech.net
Rated Power
(Watts)
87
RRNC 2.0
Fan Type
RF1 & RF2
Systemair Inc. • July, 2017 • Art. E1801
