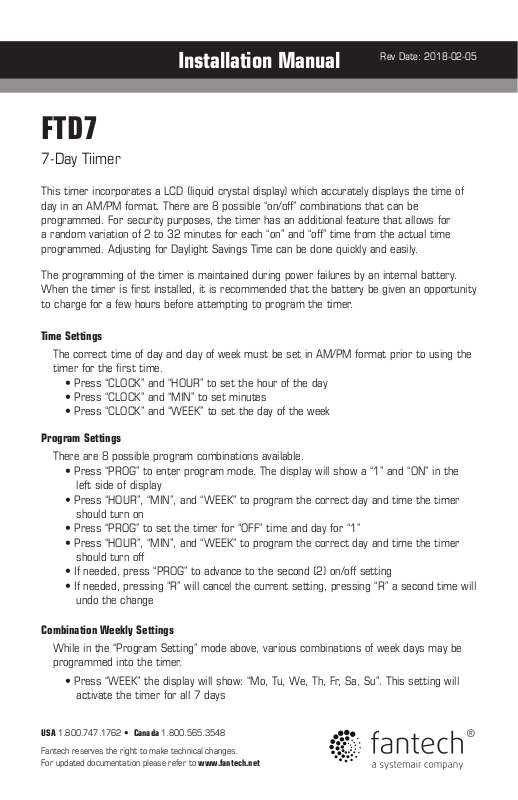

Installation Manual
Rev Date: 2018-02-05
FTD7
7-Day Tiimer
This timer incorporates a LCD (liquid crystal display) which accurately displays the time of
day in an AM/PM format. There are 8 possible “on/off” combinations that can be
programmed. For security purposes, the timer has an additional feature that allows for
a random variation of 2 to 32 minutes for each “on” and “off” time from the actual time
programmed. Adjusting for Daylight Savings Time can be done quickly and easily.
The programming of the timer is maintained during power failures by an internal battery.
When the timer is first installed, it is recommended that the battery be given an opportunity
to charge for a few hours before attempting to program the timer.
Time Settings
The correct time of day and day of week must be set in AM/PM format prior to using the
timer for the first time.
• Press “CLOCK” and “HOUR” to set the hour of the day
• Press “CLOCK” and “MIN” to set minutes
• Press “CLOCK” and “WEEK” to set the day of the week
Program Settings
There are 8 possible program combinations available.
• Press “PROG” to enter program mode. The display will show a “1” and “ON” in the
left side of display
• Press “HOUR”, “MIN”, and “WEEK” to program the correct day and time the timer
should turn on
• Press “PROG” to set the timer for “OFF” time and day for “1”
• Press “HOUR”, “MIN”, and “WEEK” to program the correct day and time the timer
should turn off
• If needed, press “PROG” to advance to the second (2) on/off setting
• If needed, pressing “R” will cancel the current setting, pressing “R” a second time will
undo the change
Combination Weekly Settings
While in the “Program Setting” mode above, various combinations of week days may be
programmed into the timer.
• Press “WEEK” the display will show: “Mo, Tu, We, Th, Fr, Sa, Su”. This setting will
activate the timer for all 7 days
USA 1.800.747.1762 • Canada 1.800.565.3548
Fantech reserves the right to make technical changes.
For updated documentation please refer to www.fantech.net
Page 2
Installation Manual
• Press “WEEK” again and the individual day of the week will be shown
• When “Su” is shown, pressing “WEEK” again will show: “Mo, Tu, We, Th, Fr” only.
This allows programming for the work week as shown
• Press “WEEK” again and the display will show: “Sa, Su”. This will allow programming
for the weekend. Continuing to press “WEEK” will provide the following additional
combinations
• Press “WEEK” again and every day but “Su” is displayed
• Press “WEEK” again and “Mo, We, Fr” are displayed
• Press “WEEK” again and “Tu, Th, Sa” are displayed
• Press “WEEK” again and “Mo, Tu, We” are displayed
• Press “WEEK” again and “Th, Fr, Sa” are displayed
• Press “R” to cancel current setting, press “R” again to undo cancel.
Special Functions
• Press “WEEK” and “HOUR” simultaneously. The display will show “O” at the right hand
side and indicates that the timer is in “RANDOM” on/off mode and varies the on/off
timing from the actual settings from 2 to 32 minutes.
• Press “HOUR” and “MIN” simultaneously. The display will show a clock symbol at the
right hand side and the correct time of day will move forward 1 hour to adjust for
Daylight Savings Time. Press “HOUR” and “MIN” again to revert correct time of day
back to standard time.
• “ON/AUTO/OFF” override. Press “ON/AUTO/OFF” or the button with the “HAND”
symbol to force the timer into permanent “ON”, “AUTO” program or permanent “OFF”
mode.
• The accuracy of the timer is 2 minutes per month.
Rev Date: 2018-02-05
Starting Timer After Programming
• When within the programmed window (preset time period), cycle through “ON/AUTO/
OFF” button to “ON” mode (indicated by lighted red LED above display), and then
“AUTO”.
• When outside of the programmed window (preset time period), cycle through “ON/
AUTO/OFF” button to “OFF” mode, and then “AUTO”.
Warranty
This Fantech product is warranted from manufacturing defects for one year after the
purchase date. Our warranty does not cover damage caused by accident, abuse, or
misuse.
We assume no further liability with respect to the sale or use of this product. This
warranty is in lieu of all other warranties, expressed or implied, including the warranty
of merchantability. We make no warranty with respect to the fitness of any goods for
the users particular application.
This warranty gives you specific legal rights,
and you may also have other rights,
which may vary from state to state.
