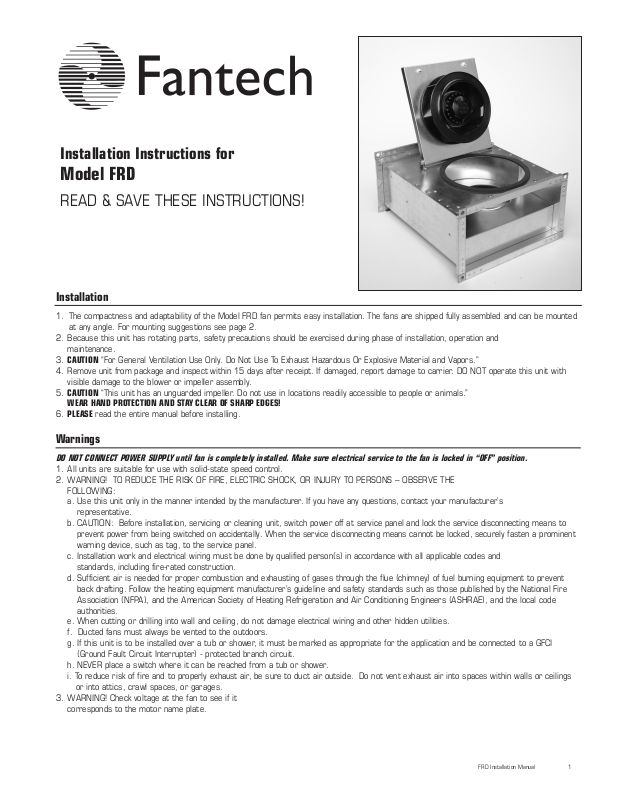

Fantech FRD12-6-230 Installation Manual

Installation Instructions for

Model FRD

READ & SAVE THESE INSTRUCTIONS!

Installation

1. The compactness and adaptability of the Model FRD fan permits easy installation. The fans are shipped fully assembled and can be mounted
at any angle. For mounting suggestions see page 2.

2. Because this unit has rotating parts, safety precautions should be exercised during phase of installation, operation and

maintenance.

3. CAUTION “For General Ventilation Use Only. Do Not Use To Exhaust Hazardous Or Explosive Material and Vapors.”

4. Remove unit from package and inspect within 15 days after receipt. If damaged, report damage to carrier. DO NOT operate this unit with

visible damage to the blower or impeller assembly.

5. CAUTION “This unit has an unguarded impeller. Do not use in locations readily accessible to people or animals.”

WEAR HAND PROTECTION AND STAY CLEAR OF SHARP EDGES!

6. PLEASE read the entire manual before installing.

Warnings

DO NOT CONNECT POWER SUPPLY until fan is completely installed. Make sure electrical service to the fan is locked in “OFF” position.

1. All units are suitable for use with solid-state speed control.

2. WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS – OBSERVE THE

FOLLOWING:

a. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact your manufacturer's

representative.

b. CAUTION: Before installation, servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to

prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent
warning device, such as tag, to the service panel.

c. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and

standards, including fire-rated construction.

d. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent

back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire
Association (NFPA), and the American Society of Heating Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code

authorities.
e. When cutting or drilling into wall and ceiling, do not damage electrical wiring and other hidden utilities.
f. Ducted fans must always be vented to the outdoors.
g. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI

(Ground Fault Circuit Interrupter) - protected branch circuit.
h. NEVER place a switch where it can be reached from a tub or shower.
i. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings
or into attics, crawl spaces, or garages.

3. WARNING! Check voltage at the fan to see if it

corresponds to the motor name plate.

FRD Installation Manual 1

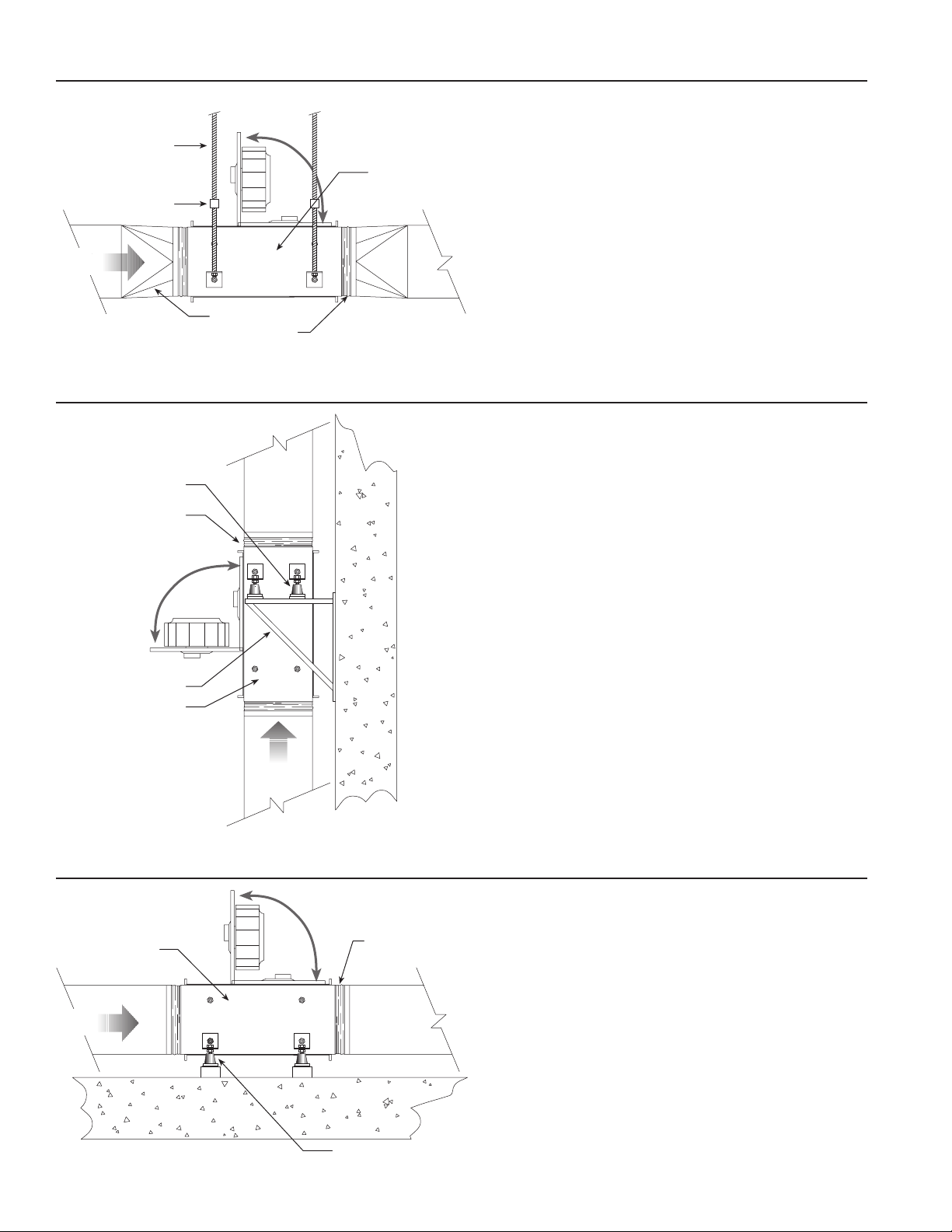

Mounting Illustration 1

Air

Flow

Air

Flow

Air

Flow

Suspended from
structure with
threaded rod

Vibration Isolator

Transition as required

Flexible Connections

Mounting Illustration 2

Vibration Isolator

Flexible Connections

Fantech FRD
Series Fan

Please follow all applicable codes when installing this unit.

1. Determine the fan location and preferred mounting method.

2. If needed, install the included mounting bracket on fan. Be sure to
use all four brackets and plug any unused holes.

3. Place fan in position and support with temporary fixture.

4. Connect fan to support structure. Vibration isolation mounts (sup­plied by others) are recommended.

5. Once fan is secure, temporary fixture can be removed.

6. Make duct connections. Flexible connectors (supplied by
others) are recommended.

7. Make electrical connections according to the appropriate
diagram on the next page.

Please follow all applicable codes when installing this unit.

1. Determine the fan location and preferred mounting method.

2. If needed, install the included mounting bracket on fan. Be sure to
use all four brackets and plug any unused holes.

3. Place fan in position and support with temporary fixture.

4. Connect fan to support structure. Vibration isolation mounts (sup­plied by others) are recommended.

5. Once fan is secure, temporary fixture can be removed.

6. Make duct connections. Flexible connectors (supplied by others)
are recommended.

7. Make electrical connections according to the appropriate diagram
on the next page.

Support Structure

Fantech FRD
Series Fan

Mounting Illustration 3

Fantech FRD
Series Fan

2 FRD Installation Manual

Flexible
Connections

Vibration Isolator

Please follow all applicable codes when installing this unit.

1. Determine the fan location and preferred mounting method.

2. If needed, install the included mounting bracket on fan. Be sure to
use all four brackets and plug any unused holes.

3. Place fan in position and support with temporary fixture.

4. Connect fan to support structure. Vibration isolation mounts (sup­plied by others) are recommended.

5. Once fan is secure, temporary fixture can be removed.

6. Make duct connections. Flexible connectors (supplied by others)
are recommended.

7. Make electrical connections according to the appropriate diagram
on the next page.

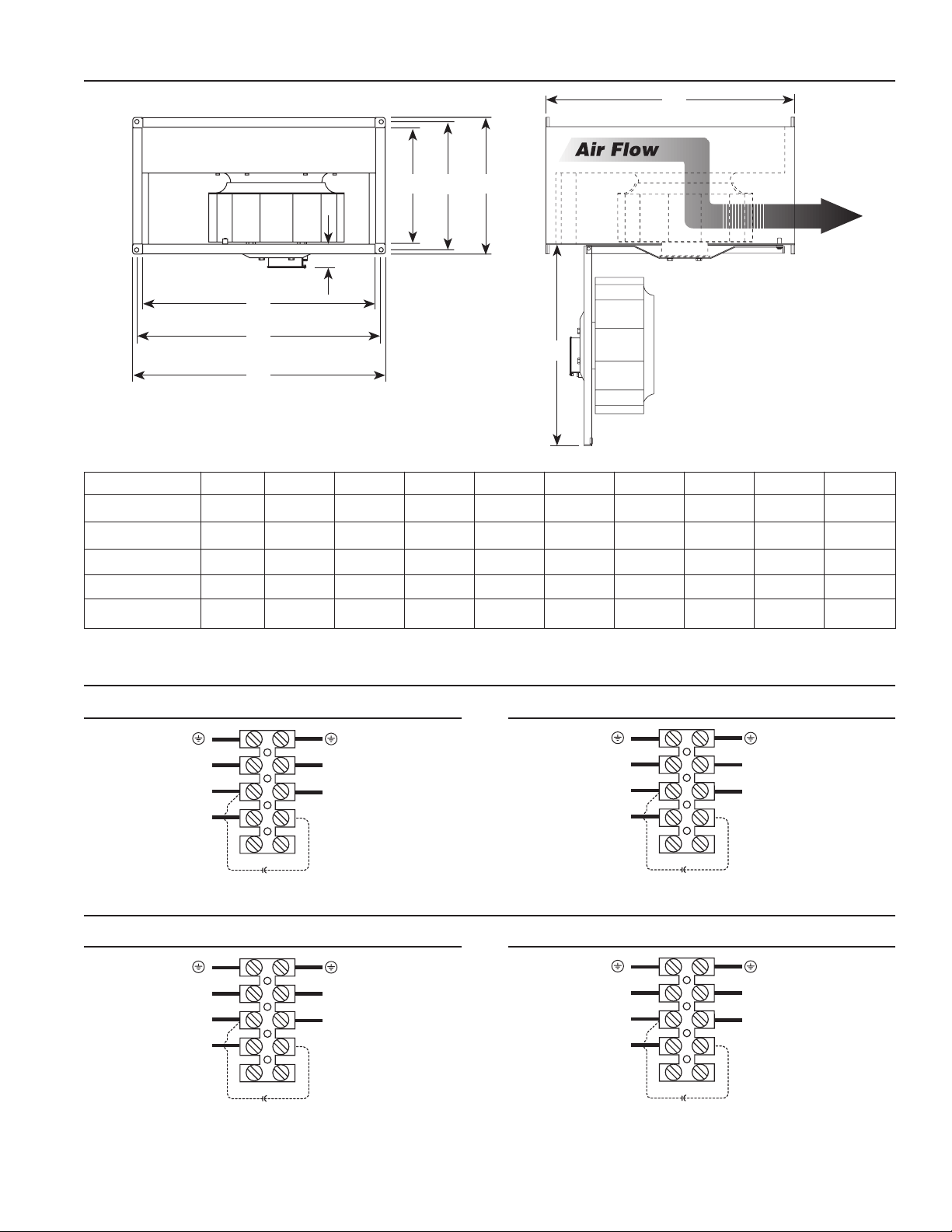

Dimensions

G

A

C

B

J

D

E

H

F

Dimensional Data

Model A B C D E F G H J Weight

FRD 12-6 57/, 63/4 75/8 117/8 123/4 135/8 153/4 11 13/4 18

FRD 16-8 73/4 83/ 4 93/8 153/4 161/2 173/8 193/4 15 13/4 23

FRD 16-8XL 73/4 83/4 93/8 153/4 161/2 173/8 193/4 15 13/4 29

FRD 20-10 93/4 105/8 113/8 195/8 201/2 213/8 203/8 18 13/4 41

FRD 24-14 133/4 145/8 153/8 235/8 243/8 251/4 281/2 20 — 62

All dimensions in inches, Weight in pounds.

Wiring 120V

FRD 12-6, FRD 16-8, FRD 16-8XL & FRD 20-10

Green/Yellow ( )

Motor
Leads

Blue

Black

Brown

Capacitor

(Ground)

N (White)

L (Black)

Supply

Voltage

Wiring 230V

FRD 12-6, FRD 16-8, FRD 16-8XL & FRD 20-10

Green/Yellow ( )

Motor
Leads

Blue

Black

Brown

(Ground)

Line 2

Line 1

Supply

Voltage

FRD 24-14

Green/Yellow ( )

Motor
Leads

FRD 24-14

Green/Yellow ( )

Motor
Leads

Brown

Blue

Black

Brown

Blue

Black

Capacitor

(Ground)

L (Black)

N (White)

(Ground)

Line 1

Line 2

Supply

Voltage

Supply

Voltage

Capacitor

Notes:

1. All leads are color coded.

2. Capacitor leads may be reversed. Fan operation will not be affected.

Capacitor

FRD Installation Manual 3

Three (3) Year Warranty

DURING ENTIRE WARRANTY PERIOD:

FANTECH will repair or replace any part which has a factory defect in
workmanship or material. Product may need to be returned to the
Fantech factory, together with a copy of the bill of sale and identified
with RMA number.

FOR FACTORY RETURN YOU MUST:

• Have a Return Materials Authorization (RMA) number. This may be

obtained by calling FANTECH either in the USA at 1.800.747.1762
or in CANADA at 1.800.565.3548. Please have bill of sale avail­able.

• The RMA number must be clearly written on the outside of the car­ton, or the carton will be refused.

• All parts and/or product will be repaired/replaced and shipped back

to buyer; no credit will be issued.

OR

The Distributor may place an order for the warranty part and/or prod­uct and is invoiced. The Distributor will receive a credit equal to the
invoice only after product is returned prepaid and verified to be defec­tive.

FANTECH WARRANTY TERMS DO NOT PROVIDE FOR REPLACEMENT
WITHOUT CHARGE PRIOR TO INSPECTION FOR A DEFECT.
REPLACEMENTS ISSUED IN ADVANCE OF DEFECT INSPECTION ARE
INVOICED, AND CREDIT IS PENDING INSPECTION OF RETURNED
MATERIAL. DEFECTIVE MATERIAL RETURNED BY END USERS
SHOULD NOT BE REPLACED BY THE DISTRIBUTOR WITHOUT
CHARGE TO THE END USER, AS CREDIT TO DISTRIBUTOR’S
ACCOUNT WILL BE PENDING INSPECTION AND VERIFICATION OF

ACTUAL DEFECT BY FANTECH.

THE FOLLOWING WARRANTIES DO NOT APPLY:

• Damages from shipping, either concealed or visible. Claim must be

filed with freight company.

• Damages resulting from improper wiring or installation.

• Damages or failure caused by acts of God, or resulting from

improper consumer procedures, such as:

1. Improper maintenance

2. Misuse, abuse, abnormal use, or accident, and

3. Incorrect electrical voltage or current.

• Removal or any alteration made on the FANTECH label control num­ber or date of manufacture.

• Any other warranty, expressed, implied or written, and to any con­sequential or incidental damages, loss or property, revenues, or
profit, or costs of removal, installation or reinstallation, for any
breach of warranty.

WARRANTY VALIDATION

• The user must keep a copy of the bill of sale to verify purchase

date.

• These warranties give you specific legal rights, and are subject to

an applicable consumer protection legislation. You may have addi­tional rights which vary from state to state.

Limitation of Warranty and Liability

This warranty does not apply to any FANTECH product or part which has failed as a result of faulty installation or abuse, incorrect electrical con­nections or alterations made by others, or use under abnormal operating conditions or misapplication of the product or parts. We will not approve
for payment any repair not made by us or our authorized agent without prior written consent. The foregoing shall constitute our sole and exclusive
warranty and our sole exclusive liability, and is in lieu of any other warranties, whether written, oral, implied or statutory. There are no warranties
which extend beyond the description on the page hereof. In no event, whether as a result of breach of contract, or warranty or alleged negligence,
defect incorrect advice or other causes, shall FANTECH be liable for special or consequential damages, including, but not limited to, loss of profits
or revenue, loss of use of equipment or any other associated equipment, cost of capital, cost of substitute equipment, facilities or services, down­time costs, or claims of customers of purchase for such damages. FANTECH neither assumes or authorizes any person to assume for it any other
liability in connection with the sale of product(s) or part(s). Some jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages so the above limitations and exclusions may not apply to you.
FANTECH, INC. products are designed and manufactured to provide reliable performance, but they are not guaranteed to be 100% free from

Warning

defects. Even reliable products will experience occasional failures and this possibility should be recognized by the user. If these products are used
in a life support ventilation system where failure could result in loss or injury, the user should provide adequate backup ventilation, supplementary
natural ventilation, failure alarm system, or acknowledge willingness to accept the risk of such loss or injury.

United States

10048 Industrial Blvd.

Lenexa, KS 66215

Phone: [phone]

Fax: [phone]

www.fantech.net; [email protected]

Canada

50 Kanalflakt Way

Bouctouche, NB E4S 3M5

Phone: [phone]

Fax: [phone]

www.fantech.net; [email protected]

Fantech reserves the right to modify, at any time and without notice, any

or all of its products’ features, designs, components and specifications to

maintain their technological leadership position.

Item #: 400076 • Rev Date: 063011
