Page 1
FRONT PANEL
DESCRIPTION
eSATA in use / access
USB in use / acce ss
eSATA on/off line
USB on/off line
Smart Fan automatic mode
Smart Fan manual mode
Fan speed level 1
Fan speed level 2
Fan speed level 3
Synchronization 3 modesǺ
Blue When the PC is off, the device goes off in 15 seconds.
Orange When the PC is off, the device goes to sleeping mode.
Off Synchronization is off.
Smart fan SwitchǺ!auto, manual and fa n speed from level 1 to level 3
Button 17 and 18 need to be pre ssed for 3 seconds to switch the device's mode.
This design will prevent acc idental execution of these fu nctions.
Power Prees 3 seconds to power off the device.
Blue power on
Orange standby
HDD1 / HDD2 / H DD3 / HDD4 a ctive
Interface switch
Synchronization mode switch
FRONT COVER
METAL FRAME

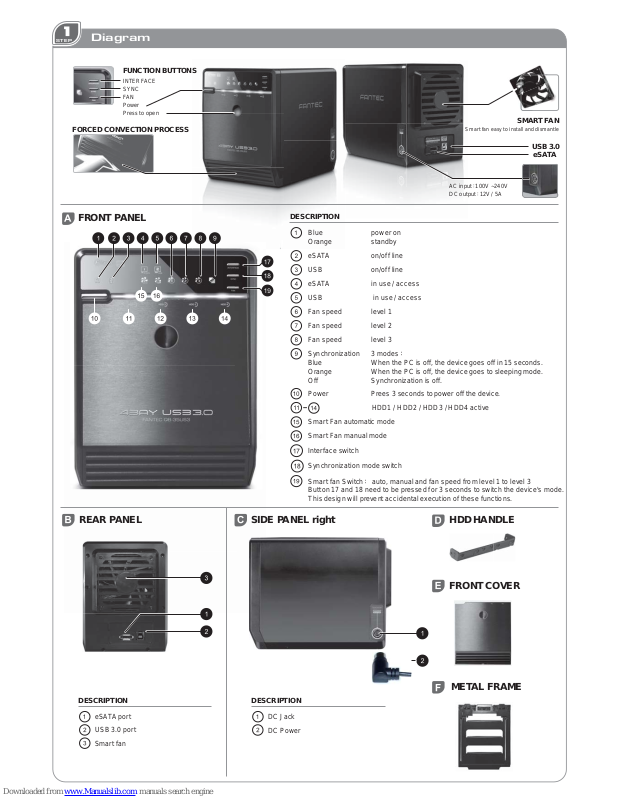

Diagram
Power
Press to open
FORCED CONVECTION PROCESS
INTERFACE
SYNC
FAN
SMART FAN
Smart fan easy to install and dismantle
USB 3.0
eSATA
AC input烉100V ~240V
DC output烉12V / 5A
FUNCTION BUTTONS
STEP
REAR PANEL
SIDE PANEL right
HDD HANDLE
eSATA port
USB 3.0 port
Smart fan
DESCRIPTION
DC Jack
DESCRIPTION
DC Power
Page 2
Quick Installation Guide
STEP
Please use the provided handles to secure
the 4 HDD s with screws.
Press the circular deepening to open the cover.
Slide 4 HDDs into the chassis a nd make sure th ey are secur ely
installed in order from up to down
.
Adjust the metal frame that was removed back to the chassis and
close the cover (bas ed on how it was o pened in Step 2).
Connect the FANTEC Q B-3 5US3 to the power adapte r, plug in
USB or eSATA cable in the rear pane l and power on the device.
If the HDD is unforma tted, you have to i nitialize it a t your PC.
Please run the steps as followed: At first click “Start”, “Execute” at your
Windows b ased PC and key in “diskmgmt.msc”. After that please
press th e “RETURN” key.
Take the transport paper board out of the device.
Press down the rib to d e tach the m e tal fram e and remove it .
NOTE: Make sure the HDD1 is securely installed in slot 1. Otherwise the
PC may not recognize the device. The content of slot 2 - 4 may very.
Page 3
Macintosh 10.X O.S
STEP
In “Disk Utility” function to “Erase” or “Partiti on” disk.
Diskmgmt.msc
Windows Vista/7 (32/64bit)
STEP
Initialize D isk if it is a new one.
Format finis hed
t f
inish
ed
Create a new partition and format the hard drive: Next ʈfinish
Windows 2000 / XP
STEP
Format finis hed
Diskmgmt.msc
Page 4
If you forgot to attach the metal frame before you close d
the cover, simply press the down the rib as shown below.
The cover will slowly release and open outwards.
Please do not attempt to open the cover with something sharp.
To take the HDD out from t he device,
slightly press down the handle and pull it out.
Please visit our website for drivers:
www.fantec.de
STEP
Trouble Shooting
If there is noise with the fan, unscrew the fan, take out the
cover, clean the fan and assemble it back.
If the FANTEC QB-35US3 (4 HD Ds installed) is connected to the
PC with eSATA cable and the PC does not recognize these
4 SATA HDDs, please check if the eSATA controller supports
Port Multi plier o r update the eS ATA driver version.
If the transfer rate seems to be too low, please check if the SATA
HDD jumpe r is set up in 1.5 or 3.0 Gbps.
If the FANTEC QB-35US3 (4 HDDs installe d) takes too long
to initial, please check if the HDD is securely installed or
update the eSATA driver version.
Temperature: 0ɗ 60ɗ
Humidity: 0%~ 90% R.H.
Operation Environment:
Note
STEP
USB port of your PC must supp ort power-off function so that the
device would go to sleeping mode. Setting up motherboard's
( power management ) in S3 is stro ngly recommended. For mor e
details, please refer to user guide of motherboard BIOS setting.
Simply press the POWER button to power the device on and
press the button for 3 seconds to power off the device.
Operatio n System : Window s 2000 / Se rver / XP / Vi s ta (32/64 bit)
Windows 7 (32/64bit), Macintosh 10.x, Linux
Maximum HDD capacity: 2TB each HDD, 8TB per unit
4 single hard drives are displayed at PC (JBOD)
USB1.1 / 2.0 / 3.0 compatible
Smart fan controlled by the built-in thermal sensor and it comes
with 2 modes (auto / manual) and 3 levels of speedǺ
Low
Medium
High
below 45°C | 1200rpm
between 45°C~55°C | 1800rpm
hotter than 55°C | 2500rpm
Alternative the USB and eSATA interface can be connected
at 2 working PCs but only 1 interface can be used at one time.
You can switch between USB and eSATA by pressing the
INTERFACE button at the FANTEC QB-35US3.
The interface selection is only for Macintosh to Macintosh or
Windows to Windows system.
Hot-plug for USB / eSATA interface
USB3.0 transfer data up to 5Gbps
eSATA transfer data up to 1.5~3.0G bps
