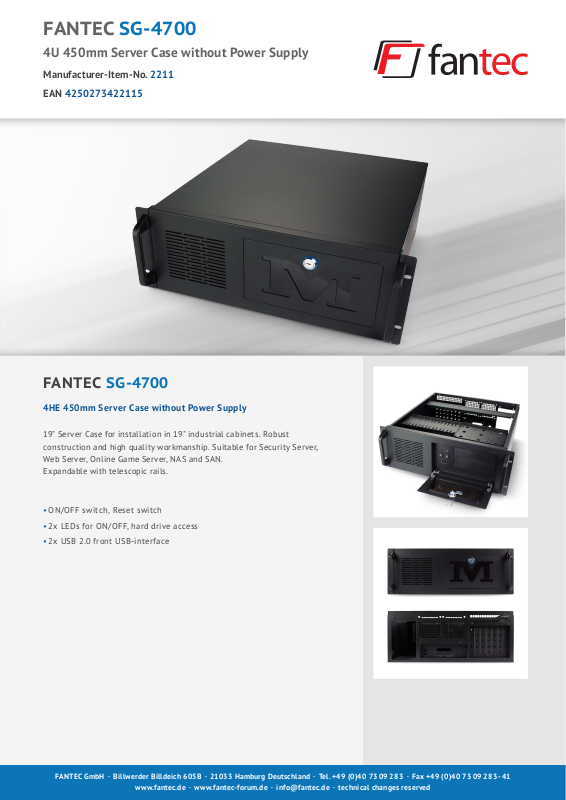

Page 1
FANTEC SG-4700
4U 450mm Server Case without Power Supply
Manufacturer-Item-No. 2211
EAN 4250273422115
FANTEC SG-4700
4HE 450mm Server Case without Power Supply
19" Server Case for installation in 19" industrial cabinets. Robust
construction and high quality workmanship. Suitable for Security Server,
Web Server, Online Game Server, NAS and SAN.
Expandable with telescopic rails.
• ON/OFF switch, Reset switch
• 2x LEDs for ON/OFF, hard drive access
• 2x USB 2.0 front USB-interface
FANTEC GmbH · Billwerder Billdeich 605B · 21033 Hamburg Deutschland · Tel. +49 (0)40 73 09 2 83 · Fax +49 (0)40 73 09 2 83 - 41
www.fantec.de · www.fantec-forum.de · info@fantec.de · technical changes reserved
Page 2
FANTEC SG-4700
4U 450mm Server Case without Power Supply
Manufacturer-Item-No. 2211
EAN 4250273422115
Technical Data
Short Description
• 4U Server Case
• Mainboard type: 12" x 9.6" / ATX
Special Features
• supports ATX PC power supply
• 1x Power LED
• 1x HDD LED
Type and Form Factor
• Housing type: 19 inch storage case
• Height: 4 U
• Dept h: 450mm
Drive Bays
• 7x 3.5" hard disk
• 2x 5.25" modules
• 1x 2.5" HDD/SSD
Fan
• Fan type: 1x 120mm in the front,
2x 80mm in the back prepared for
optional use
Slots
• 7x PCI slots
Interfaces
• Data Inter faces: 2x USB 2.0 host
• Network Interfaces: not available
Included Supply
• Mounting material
Logistic data
• Article Measurements
(Installation Dimension)
430 x 450 x 176 mm (W x D x H)
• Net Weight Article (total)
9 kg
• Dimensions Carton
540 x 580 x 240 mm (W × D × H)
• Item-No.: 2211
• EAN 4250273422115
• Country of Origin
China
Housing Material / Color
• Casing: 0.8mm steel, SPCC, black
• Handles: plastic, black
Features
• 2x USB 2.0 Front USB
FANTEC GmbH · Billwerder Billdeich 605B · 21033 Hamburg Deutschland · Tel. +49 (0)40 73 09 2 83 · Fax +49 (0)40 73 09 2 83 - 41
www.fantec.de · www.fantec-forum.de · info@fantec.de · technical changes reserved
