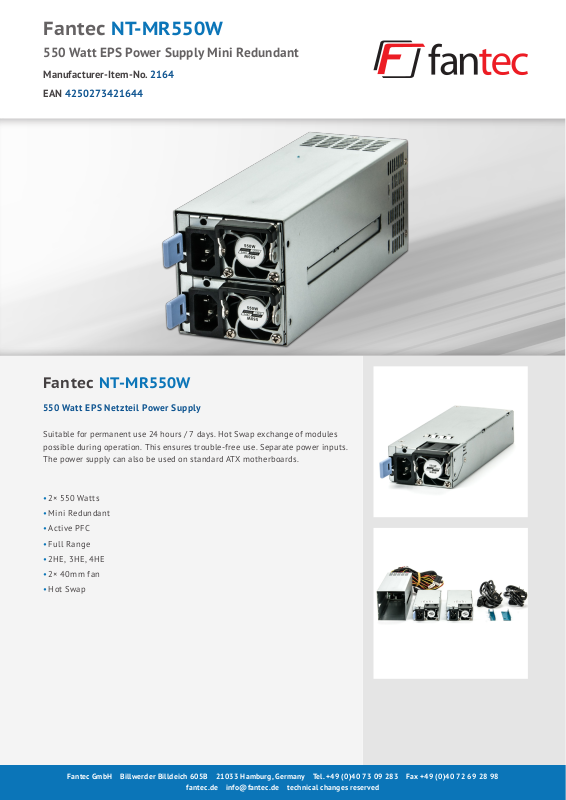

Fantec NT-MR550W User Manual

Fantec NT-MR550W

550 Watt EPS Power Supply Mini Redundant

Manufacturer-Item-No. 2164

EAN 4250273421644

Fantec NT-MR550W

550 Watt EPS Netzteil Power Supply

Suitable for permanent use 24 hours / 7 days. Hot Swap exchange of modules

possible during operation. This ensures trouble-free use. Separate power inputs.

The power supply can also be used on standard ATX motherboards.

• 2× 550 Watts

• Mini Redundant

• Active PFC

• Full Range

• 2HE, 3HE, 4HE

• 2× 40mm fan

• Hot Swap

Fantec GmbH Billwerder Billdeich 605B 21033 Hamburg, Germany Tel. [phone] Fax [phone]

fantec.de [e-mail] technical changes reserved

Fantec NT-MR550W

550 Watt EPS Power Supply Mini Redundant

Manufacturer-Item-No. 2164

EAN 4250273421644

Technical Data

Features

• 2× 550 Watts

• Mini Redundant

• Full Range

• 2HE, 3HE, 4HE

• 2× 40mm fan

• Active PFC

• Hot Swap

Special Features

• Active power factor correction

• Overload protection: < 825W

• Overvoltage protection

• Short circuit protection

• Working temperature: 0 °C ~ 50°C

• Storage temperature: -40°C ~ 70°C

• Power Good Signal: Delay 100ms ~ 500ms

• Safety: ROHS

• EMI: GB9254-2008 class A, GB17625.1-

2012 class A , GB/ T17626.5, L-N, 1000V,

L,N-GND, 200 0V

Power

• 550 Wa tts

Input Current

• Full range

• 110V ~ 240V,

autom. switching 47Hz ~ 63Hz

• Dual AC IN

Output Current

Voltage +3.3 V +5V +12 V +12 V -12 V +5VSB

Minimum 0.8 0.5 1.0 1.0 0 0.1

Maximum 24.0 38 .0 45. 0 45. 0 0.5 3.0

Peak 30.0 40.0 58.5 58.5 – 5.2

Failure Rate

• MTBF > 100.000 hours at 25°C and 100%

load

Formfaktor

• 2 U

Included Supply

• 2× power cable

• Bracket for 2HE SRC-server cases

Logistic data

• Article Measurements

84 × 77 × 230 mm ( W × D × H)

• Packaging Unit Measurements

355 × 190 × 230 mm (W × D × H)

• Net Weight Article (total)

3,4 kg

• Gross Weight Packaging Unit

3,4 kg

• Packaging Unit

1 Pcs. per Carton

• Country of Origin

China
