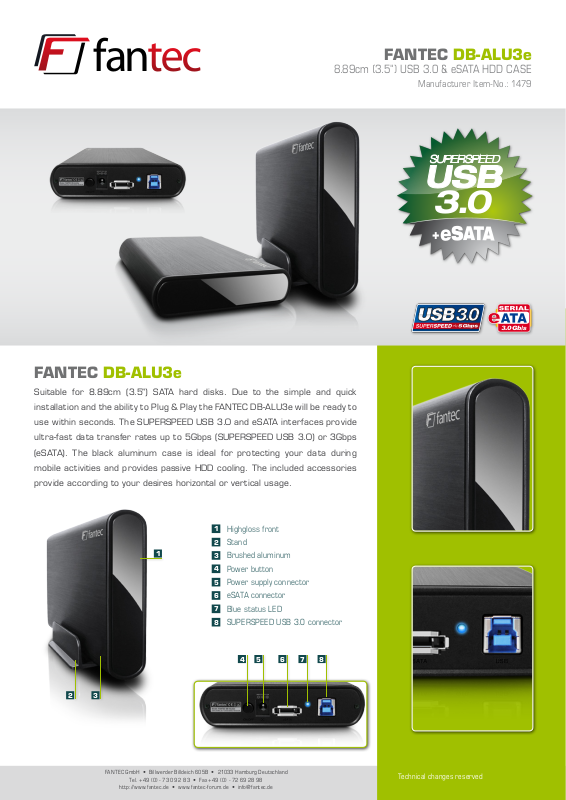

Page 1
FANTEC DB-ALU3e
8.89cm (3.5") USB 3.0 & eSATA HDD CASE
Manufacturer Item-No.: 1479
+
FANTEC DB-ALU3e
Suitable for 8.89cm (3.5") SATA hard disks. Due to the simple and quick
installation and the ability to Plug & Play the FANTEC DB-ALU3e will be ready to
use within seconds. The SUPERSPEED USB 3.0 and eSATA interfaces provide
ultra-fast data transfer rates up to 5Gbps (SUPERSPEED USB 3.0) or 3Gbps
(eSATA). The black aluminum case is ideal for protecting your data during
mobile activities and provides passive HDD cooling. The included accessories
provide according to your desires horizontal or ver tical usage.
1
Highgloss front
2
Stand
1
3
Brushed aluminum
4
Power button
5
Power supply connector
6
eSATA connector
7
Blue status LED
8
SUPERSPEED USB 3.0 connector
4 5 6
3
2
FANT EC GmbH • Bill werder Billdeich 605 B • 21033 Hambur g Deutsc hland
Tel. +49 (0) - 73 0 9 2 83 • Fax +4 9 (0) - 72 69 28 98
http: //www.fantec.de • w ww.fant ec-for um.de • info @fant ec.de
7 8
Technical changes reserved

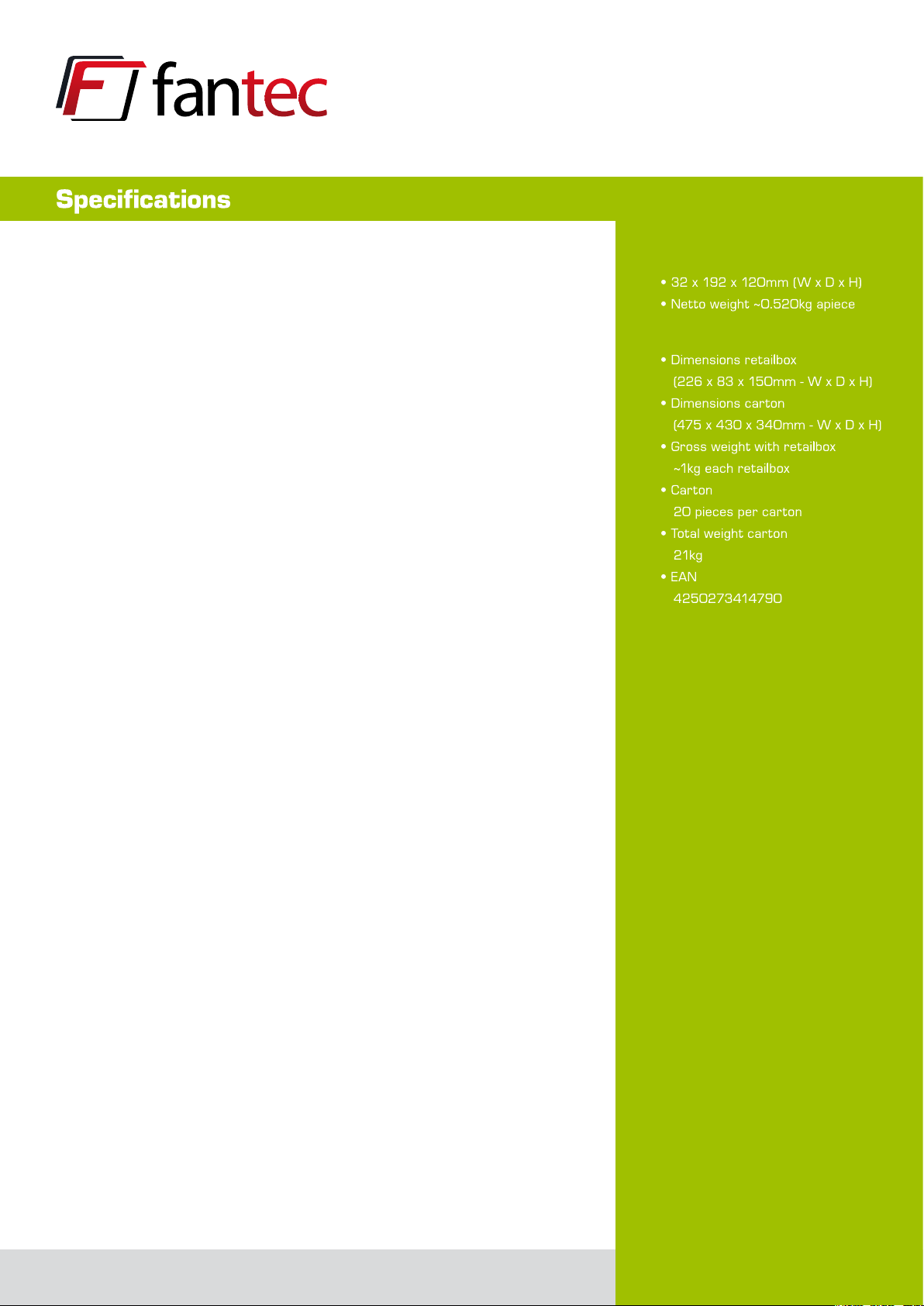

Page 2
Specifications
FANTEC DB-ALU3e
8.89cm (3.5") USB 3.0 & eSATA HDD CASE
Manufacturer Item-No.: 1479
Equipment
• External HDD case
• Suitable for a 8.89cm (3.5") HDD
(Max. 3TB capacit y)
• SUPERSPEED USB 3.0 connector
• eSATA connector
• Status LED (rear)
• Brushed aluminum case (black)
Connectors
• 1x SATA (internal)
• 1x SUPERSPEED USB 3.0 (rear)
• 1x eSATA (rear)
• Power supply connector (rear)
Power supply
• Input 100-240V ~50-60Hz 0,8A
• Output +12V 2,0A, 24 Watt
Operating system
• Microsoft Windows, MacOS, Linux
Package contents
• 1x USB 3.0 cable
(compatible to USB 2.0 & 1.1)
• 1x eSATA cable
• 1x external power supply
• Manual
• Stand & rubber pads
Dimensions (item)
• 32 x 192 x 120mm (W x D x H)
• Netto weight ~0.520kg apiece
Logistical data
• Dimensions retailbox
(226 x 83 x 150mm - W x D x H)
• Dimensions carton
(475 x 430 x 340mm - W x D x H)
• Gross weight with retailbox
~1kg each retailbox
• Carton
20 pieces per carton
• Total weight carton
21kg
• EAN
4250273414790
FANT EC GmbH • Bill werder Billdeich 605 B • 21033 Hambur g Deutsc hland
Tel. +49 (0) - 73 0 9 2 83 • Fax +4 9 (0) - 72 69 28 98
http: //www.fantec.de • w ww.fant ec-for um.de • info @fant ec.de
Technical changes reserved
