Fantec DB-ALU2e User Manual

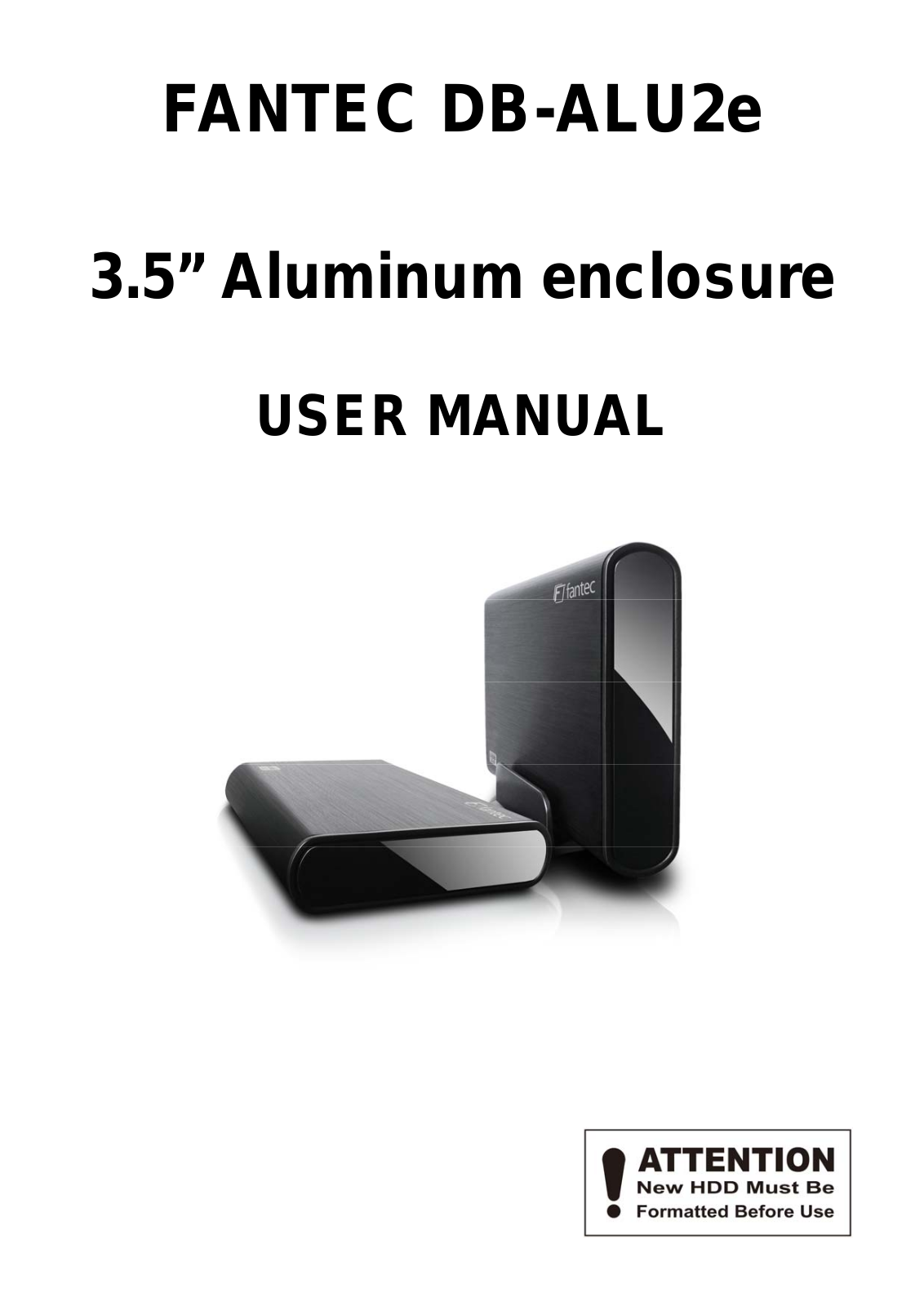

FANTEC DB-ALU2e

3.5” Aluminum enclosure

USER MANUAL

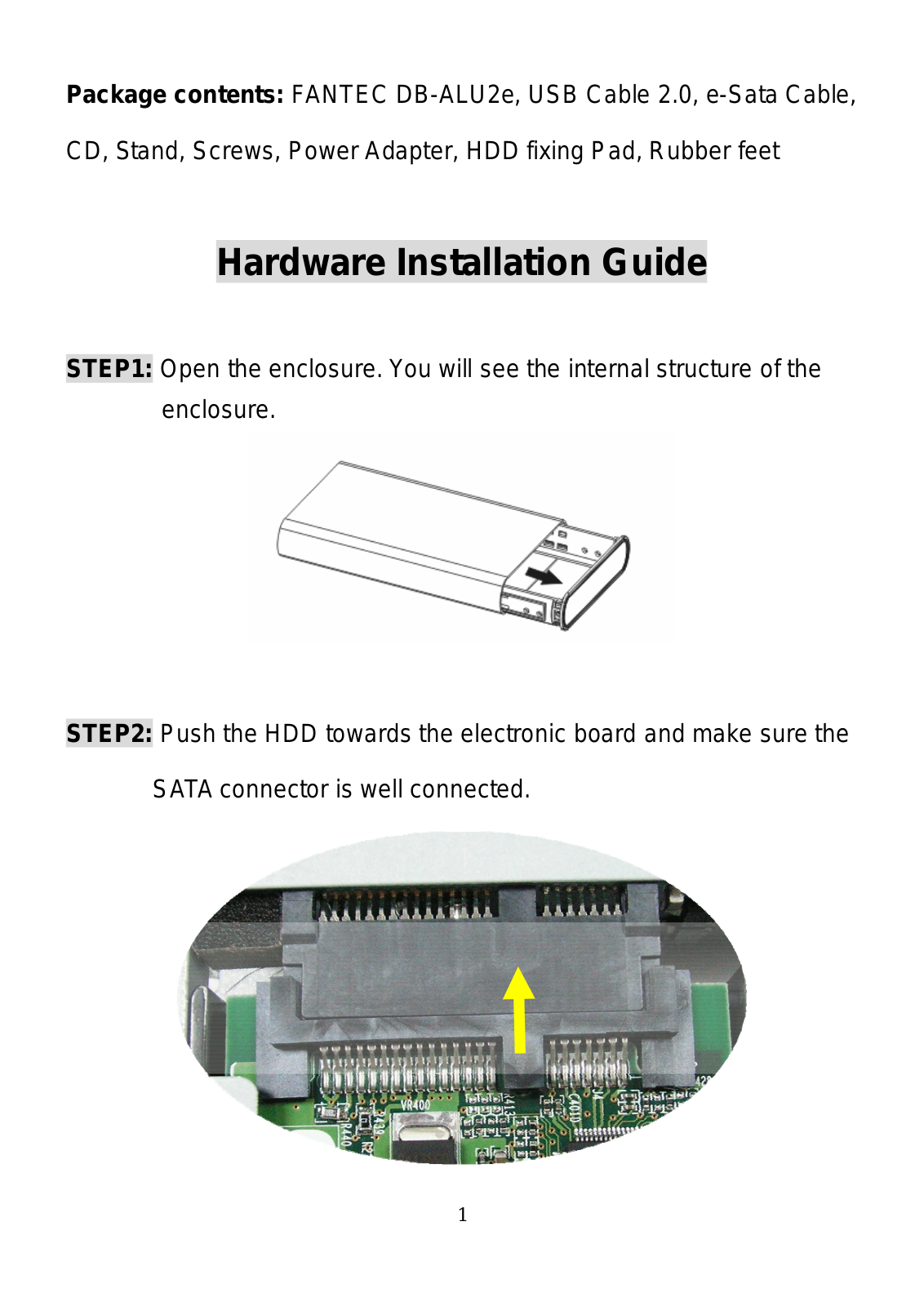

Package contents: FANTEC DB-ALU2e, USB Cable 2.0, e-Sata Cable,

CD, Stand, Screws, Power Adapter, HDD fixing Pad, Rubber feet

Hardware Installation Guide

STEP1: Open the enclosure. You will see the internal structure of the

enclosure.

STEP2: Push the HDD towards the electronic board and make sure the

SATA connector is well connected.

1

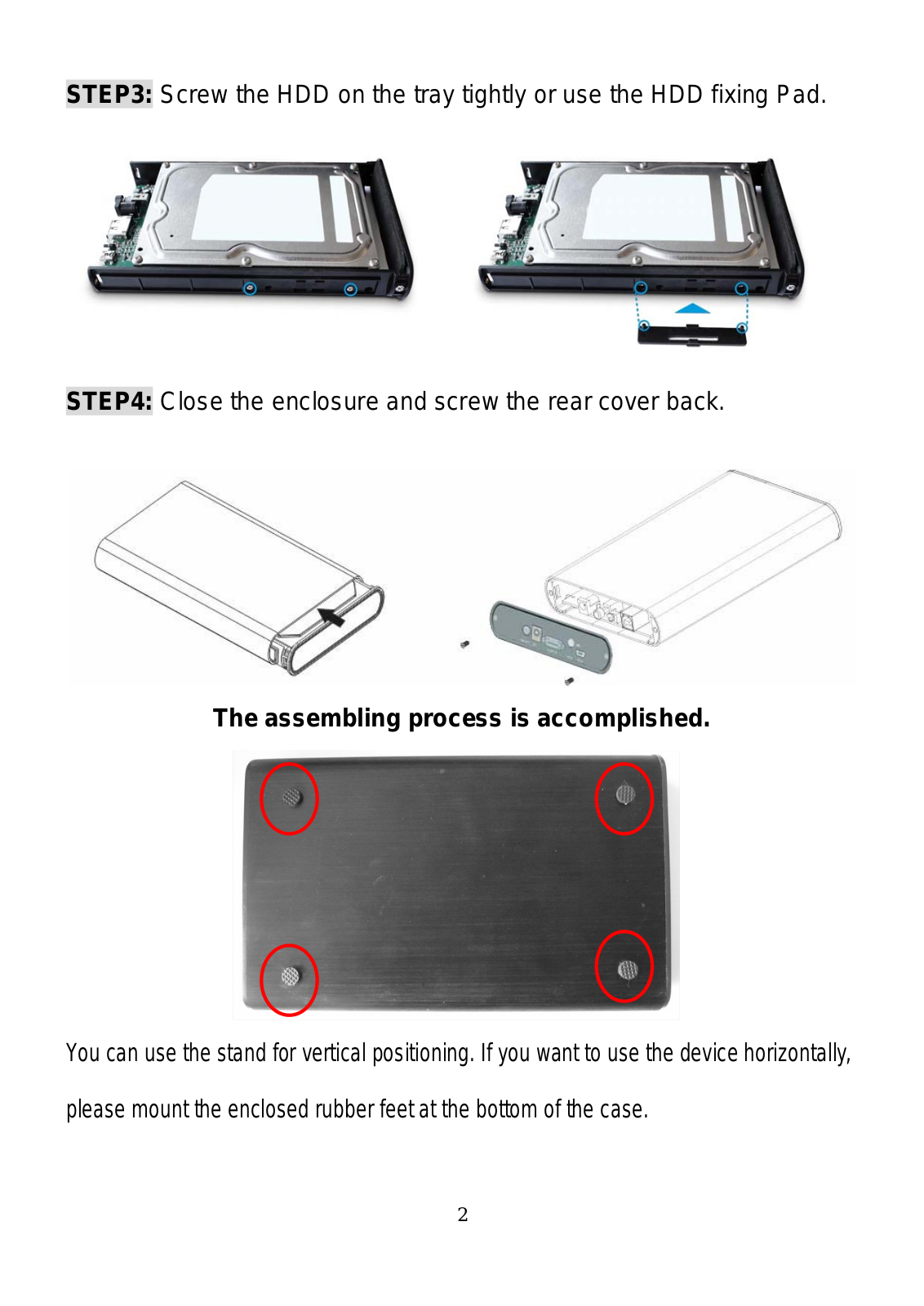

STEP3: Screw the HDD on the tray tightly or use the HDD fixing Pad.

STEP4: Close the enclosure and screw the rear cover back.

The assembling process is accomplished.

You can use the stand for vertical positioning. If you want to use the device horizontally,
please mount the enclosed rubber feet at the bottom of the case.

2

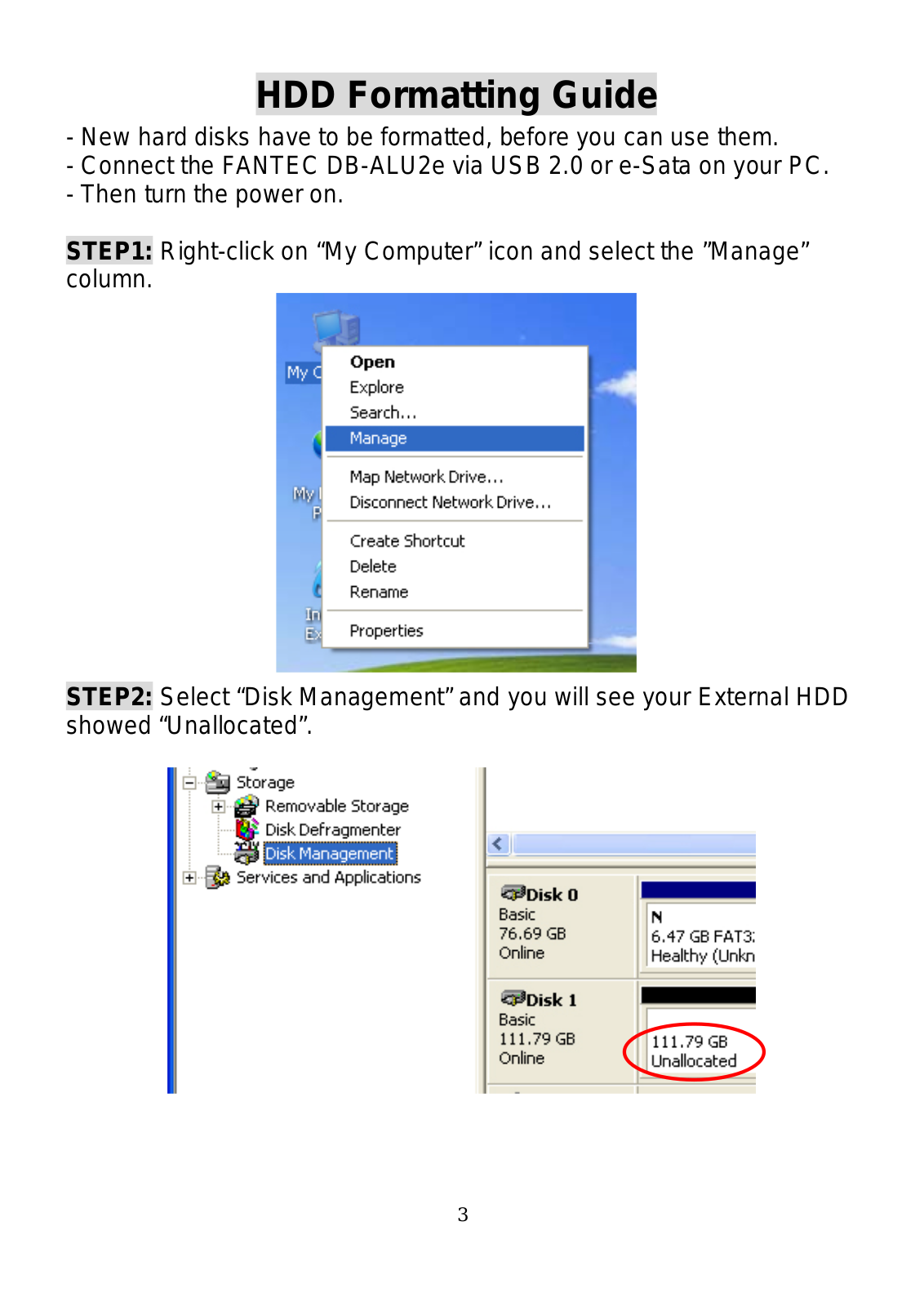

HDD Formatting Guide

- New hard disks have to be formatted, before you can use them.

- Connect the FANTEC DB-ALU2e via USB 2.0 or e-Sata on your PC.

- Then turn the power on.
STEP1: Right-click on “My Computer” icon and select the ”Manage”

column.

STEP2: Select “Disk Management” and you will see your External HDD
showed “Unallocated”.

3
