Assembly Instructions
TALLBOY 5 DRW
VER 1.1
HAYMAN

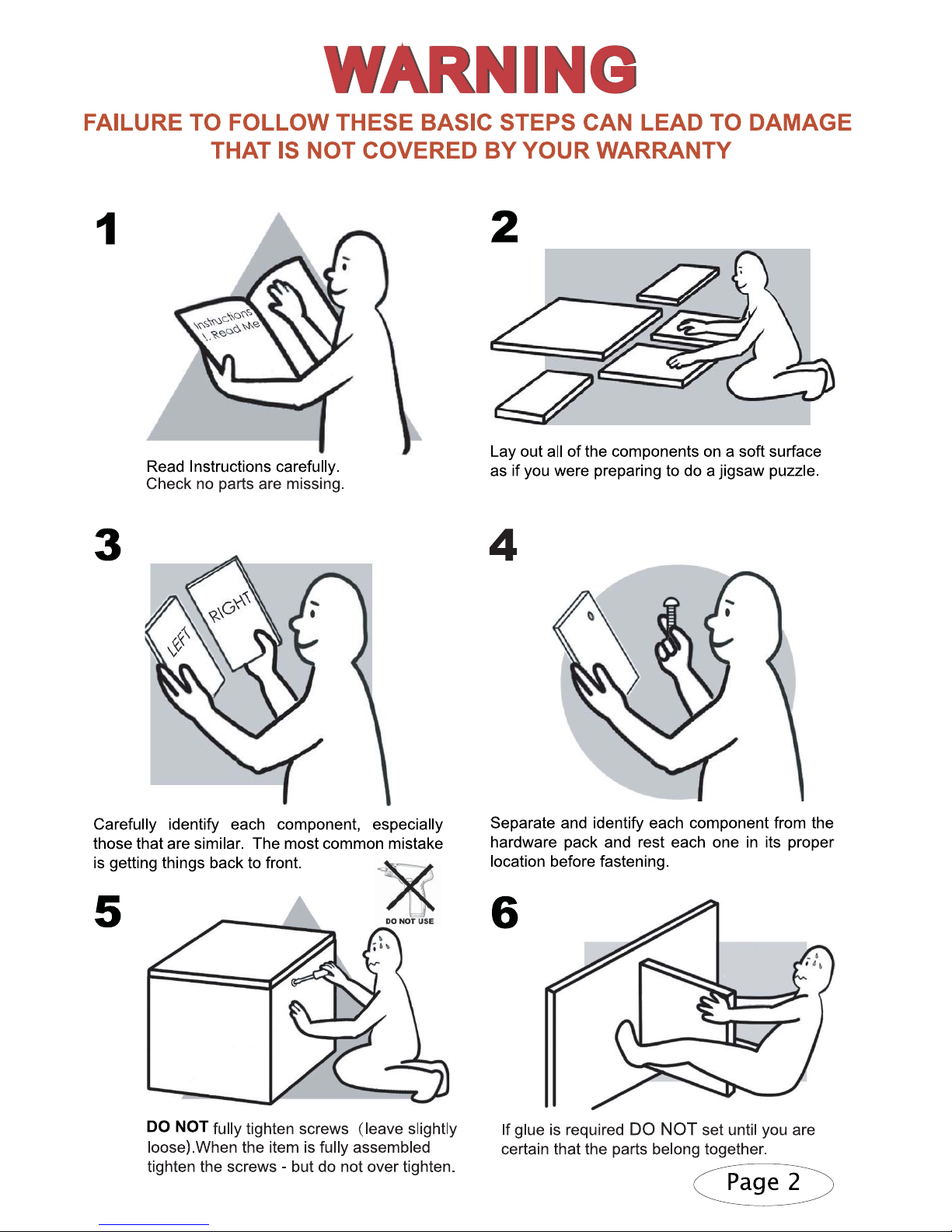

Page 3

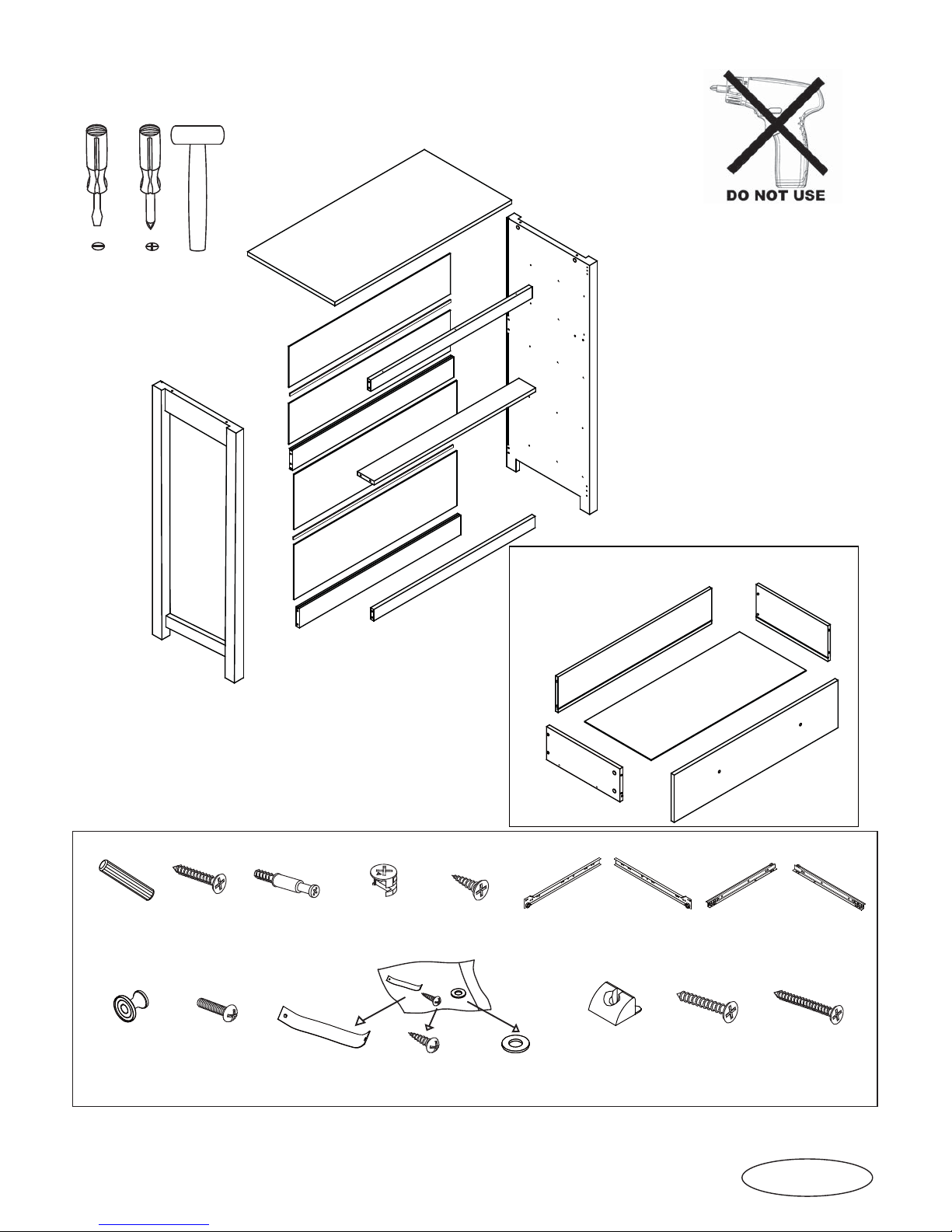

What You Need
To Assemble The Body
Top Panel
(P1)
Right Side
Panel
(P3)
Left
Drawer
Side (P10)
Drawer Front
(P9)
×5
Right Drawer
Side (P11)
Drawer Back
(P13)
Drawer
Base
(P12)
Left Side
Panel
(P2)
Rail
(P15)
Rail
(P4)
Rail
(P6)
Rail
(P5)
Rail
(P7)
4 x Back
Panels
(P8)
2 x
Connect
Stick
(P14)
(Tools not provided)
Flat Blade Screwdriver
Phillips Head Screwdriver
Mallet
8 x Dowels
(H1)
20 x Long
Screws
(H2)
50 x Small
Screws
(H5)
5 x CL Runner
Tracks
(H6)
40 x Cam Bolts
(H3)
40 x Cam Nuts
(H4)
5 x CR Runner
Tracks
(H7)
5 x DL
Runners
(H8)
5 x DR
Runners
(H9)
10 x Handles
(H10)
Please make sure you have all these parts before you start.
10 x
Bolts
(H11)
1 x Screw
(H13)
1 x Safety
Strap
(H12)
2 x Washers
(H14)
1x Safety
Strap Set
8 x Wedges
(H15)
8 x Screws
(H16)
3 x Long Screws
(H17)
Page 4
Step 1
You will need:
5 x CL Runner
Tracks
(H6)
5 x CR Runner
Tracks
(H7)
30 x Small
Screws
(H5)

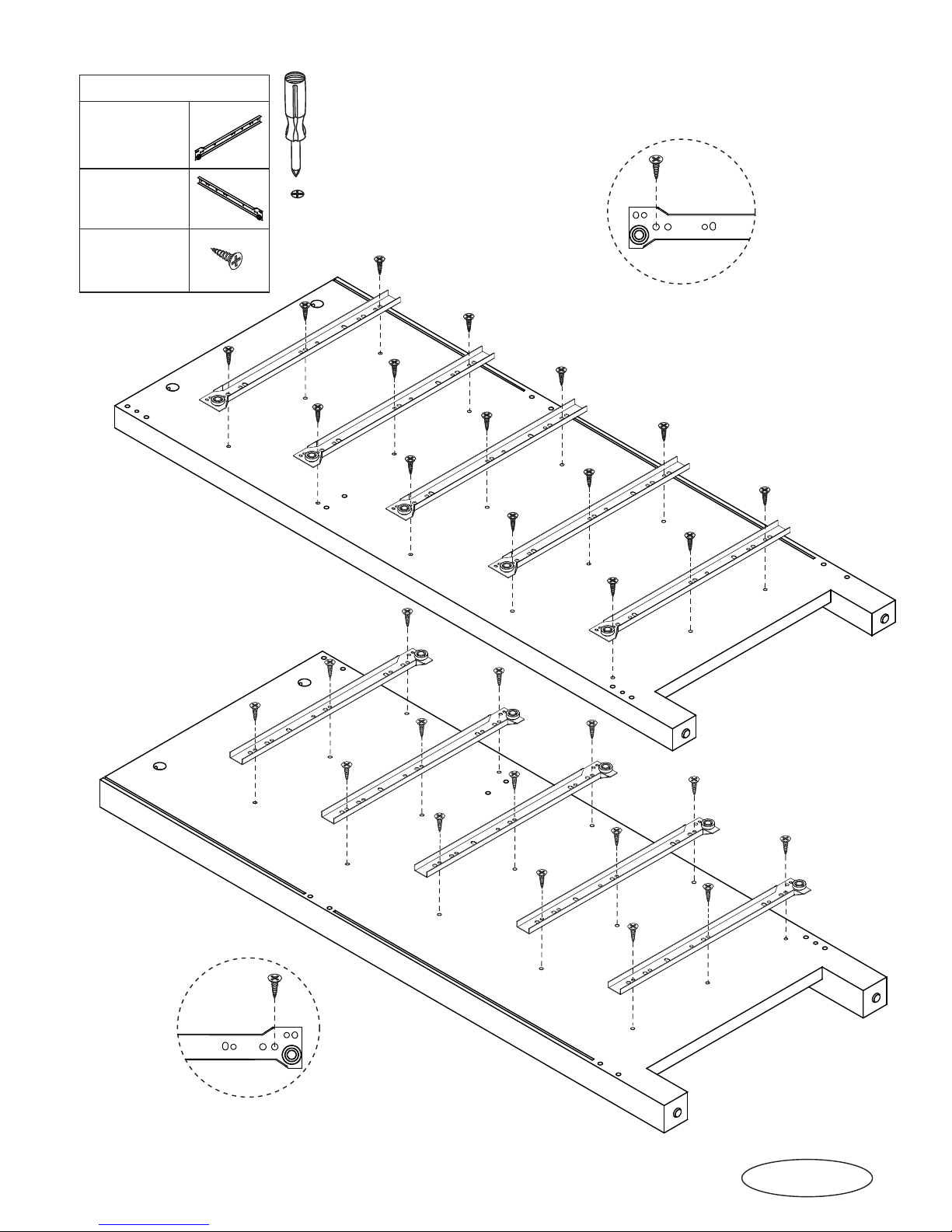

Attach 5 x CL Runner Tracks (H6) to Left Side Panel (P2) with 15 x Small Screws (H5).
Attach 5 x CR Runner Tracks (H7) to Right Side Panel (P3) with
15 x Small Screws (H5).
H6
CL
H5
H7
CR
H5
H5
H5
H6
H6
H6
H6
H5
H5
H5
H6
H5
H5
H5
H5
H5
H5
H5
H5
(P2)
H5
H5
H5
H5
H5
H5
H5
H5
H5
H7
H7
H7
H7
H7
H5
H5
(P3)
H5
H5
H5
H5
H5
H5
Step 2
You will need:
Page 5
Step 3
4 x
Dowels
(H1)
16 x
Cam Bolts
(H3)
H3
H3
H3
H3
H3
You will need:
4 x Cam Nuts
(H4)
Insert 4 x Dowels (H1) into Left Side Panel (P2).
Attach 16 x Cam Bolts (H3) into Side Panels (P2) and (P3) as shown.
Insert 4 x Cam Nuts (H4) into the holes
of Rails (P6) and (P7).
Rotate the cam nuts so the arrows point towards the incoming cam bolts.
Attach Rails (P6) and (P7) to Left Side Panel (P2), then tighten the cam nuts.
This is how a cam nut works........
The head of the cam
bolt goes into the open
mouth of the cam nut.
You then turn the cam
nut so it tightens over
the bolt.
(P2)
(P6)
(P7)
(P3)
H3
H3
H3
H3
H3
H3
H3
H3
H1
H1
H3
H3
H1
H1
H3
(P2)
H4
H4
H4
H4
(P15)
(P4)
(P2)
(P4)
(P15)
(P5)
(P6)
(P7)
(P5)
(P6) (P7)
(P8)
(P14)
Page 6

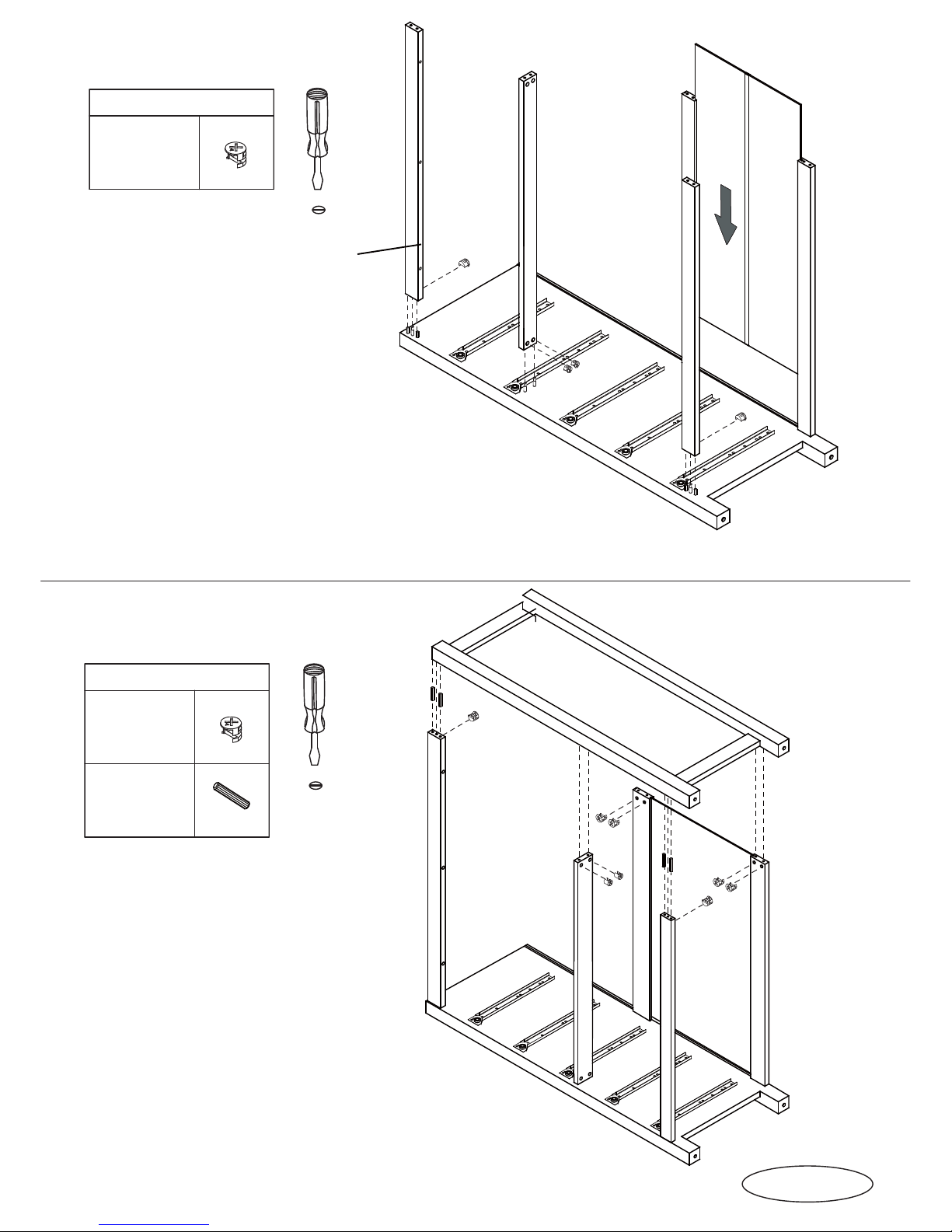

Step 4
(P2)
(P3)
You will need:
4 x Cam Nuts
(H4)
Insert 4 x Cam Nuts (H4) into the holes
of Rails (P4, P5) and (P15).
Rotate the cam nuts so the arrows point towards the incoming cam bolts.
Attach Rails (P4, P5) and (P15) to Left Side Panel (P2), then tighten the cam nuts.
Join 2 x Back Panels (P8) with Connect Stick (P14), then put into the groove of Rails (P6) and (P7).
Insert 4 x Dowels (H1) into Rails (P4).
Insert 8 x Cam Nuts (H4) into the holes
of Rails (P4) and (P5,P6,P7,P15).
Rotate the cam nuts so the arrows point towards the incoming cam bolts.
Push Right Side Panel (P3) into place and tighten the cam nuts.
H1
H1
H1
H1
Step 5
You will need:
8 x Cam Nuts
(H4)
4 x
Dowels
(H1)
H4
H4
H4
H4
H4
H4
H4
H4
H4
H4
H4
H4
Make sure the side with bigger holes
is facing to Rail (P4).
(P1)
(P2)
(P14)
(P8)
(P3)
You will need:
4 x Cam Bolts
(H3)
H3
H3
H3
H3
Page 7
Step 6
Step 7
You will need:
4 x Cam Nuts
(H4)
H4
H4
H4

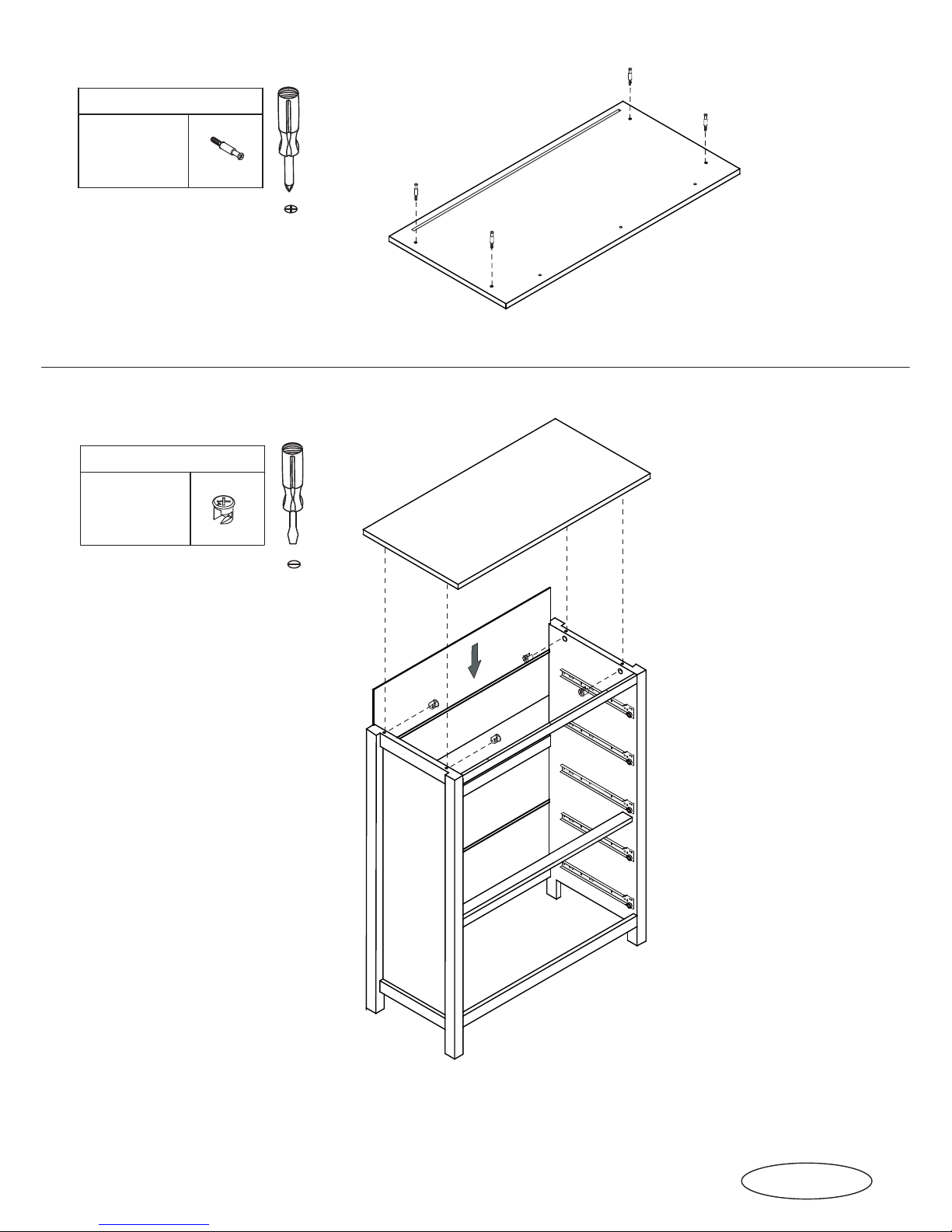

Attach 4 x Cam Bolts (H3) into Top Panel (P1) as shown.
Join 2 x Back Panels (P8) with Connect Stick (P14),
then put into the groove of Side Panels (P2) and (P3).
Insert 4 x Cam Nuts (H4) into the holes
of Side Panels (P2) and (P3).
Rotate the cam nuts so the arrows point towards the incoming cam bolts.
Attach Top Panel (P1) and tighten the cam nuts.
Page 8
(P1)
(P8)
(P8)

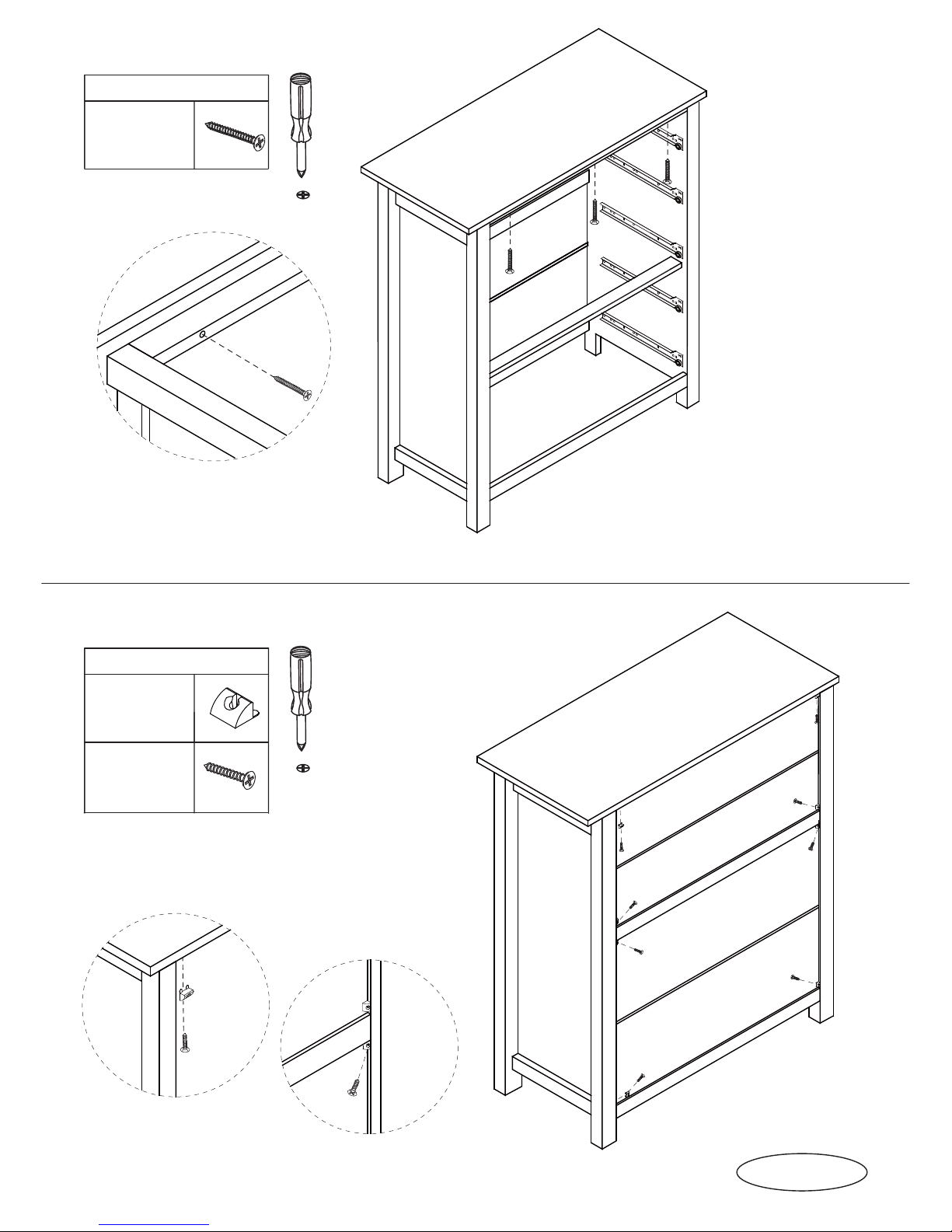

Step 8
You will need:
Step 9
You will need:
8 x Wedges
(H15)
8 x Screws
(H16)
Make sure Wedge (H15) is facing
to the bottom of Top Panel (P1) as shown.
Secure Back Panel (P8) in place with 8 x Wedges (H15) using 8 x Screws (H16).
H15
H16
H15
H16
3 x Long Screws
(H17)
Attach Rail (P15) to Top panel (P1) with 3 x Long Screws (H17).
(P1)
H17
H17
H17
(P15)
H17
(P15)
(P1)
H3
H3
H3
H3
H4
H4
H4
H4

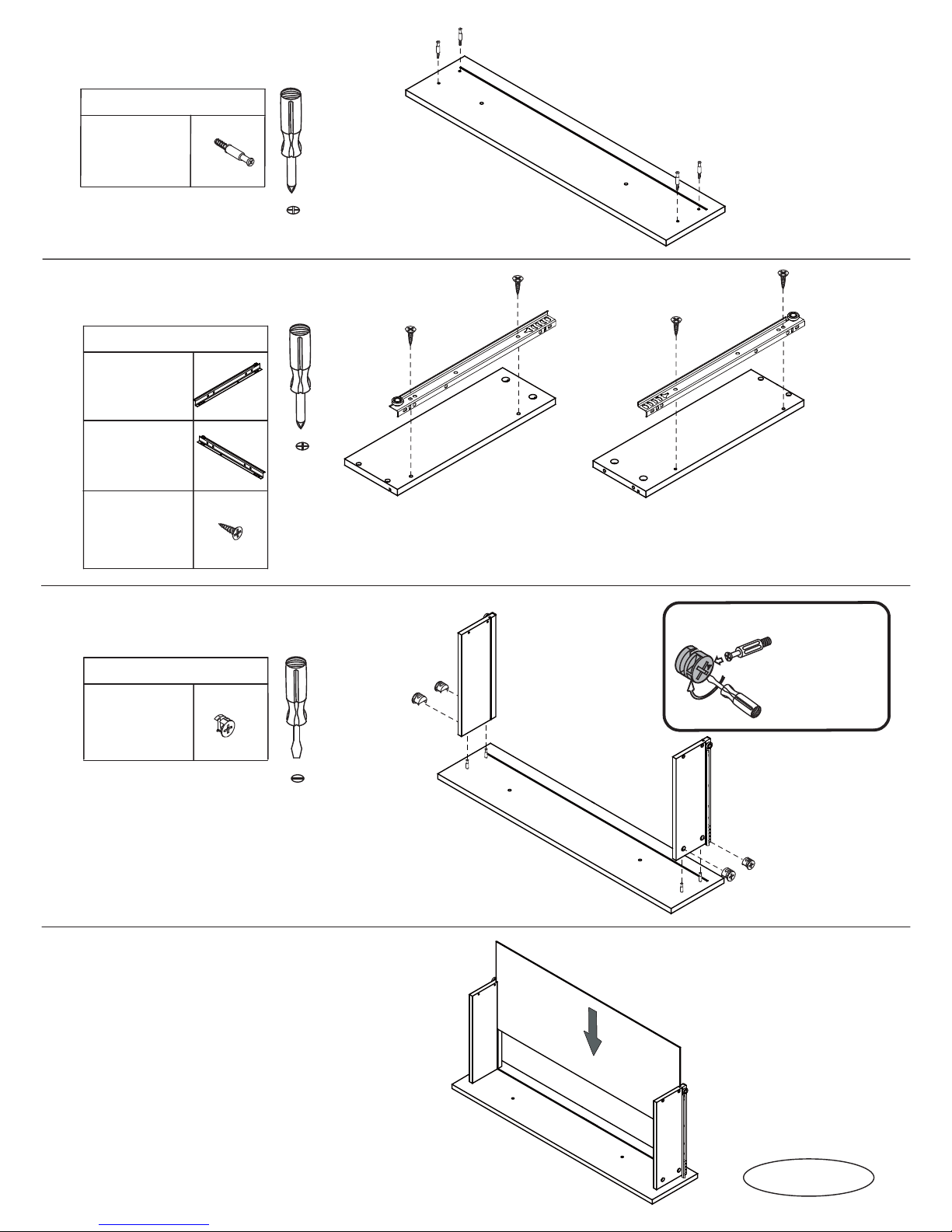

Step 10
You will need:
4 x Cam Bolts
(H3)
Step 12
Step 13
You will need:
(P9)
(P10)
(P11)
(P9)
(P9)
(P12)
(P10)
(P10)
(P11)
(P11)
4 x Cam Nuts
(H4)
Attach 4 x Cam Bolts (H3) to Drawer Front (P9) as shown.
Insert 4 x Cam Nuts (H4) into the holes
of
Drawer Sides (P10,P11).
Rotate the cam nuts
so the arrows point towards the incoming cam bolts.
Push
Drawer Sides (P10,P11)
into place and tighten the cam nuts.
Slide Drawer Base (P12) into the groove
in Drawer Sides (P10) and (P11).
This is how a cam nut works........
The head of the cam
bolt goes into the open
mouth of the cam nut.
You then turn the cam
nut so it tightens over
the bolt.
Page 9
Step 11
You will need:
1 x DR Runner
(H9)
1 x DL Runner
(H8)
4 x Small
Screws
(H5)
Attach 1 x DL Runner (H8) to Left Drawer Side (P10)
and 1 x DR Runner (H9) to Right Drawer Side (P11)
with 4 x Small Screws (H5).
H5
H9
H8
H5
H5
H5
Page 10
H2
H10
H11
H10
H11

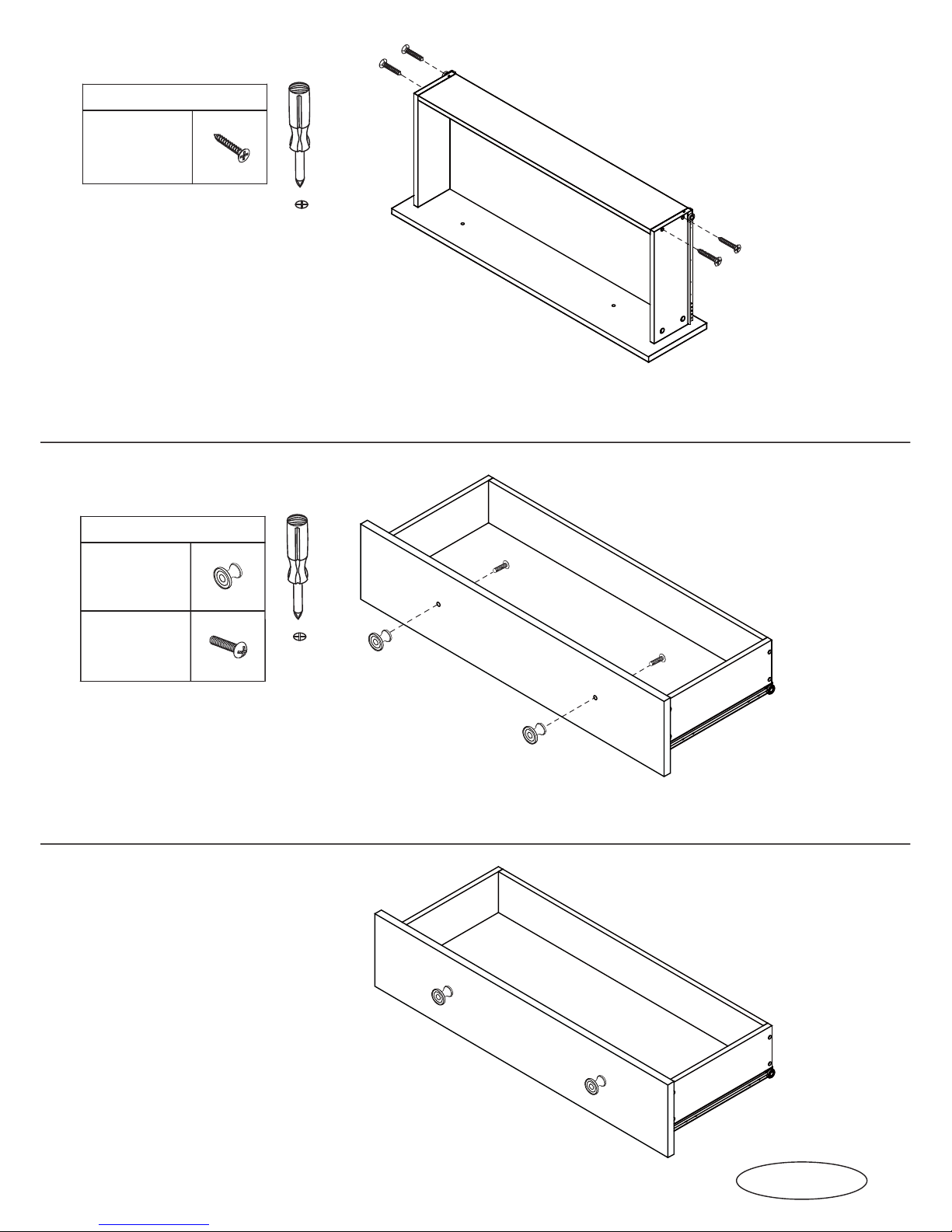

Step 14
You will need:
4 x Long Screws
(H2)
Step 15
Step 16
(P13)
(P10)
(P11)
H2
H2
H2
Attach 2 x Handles (H10) to Drawer Front (P9) with 2 x
Bolts
(H11).
Repeat Step 10 to Step 15 to assemble other drawers.
Attach Drawer Back (P13) to Drawer Sides (P10,P11) with 4 x Long Screws (H2).
Make sure that the groove lines up the whole way around the drawer.
You will need:
2 x Handles
(H10)
2 x Bolts
(H11)

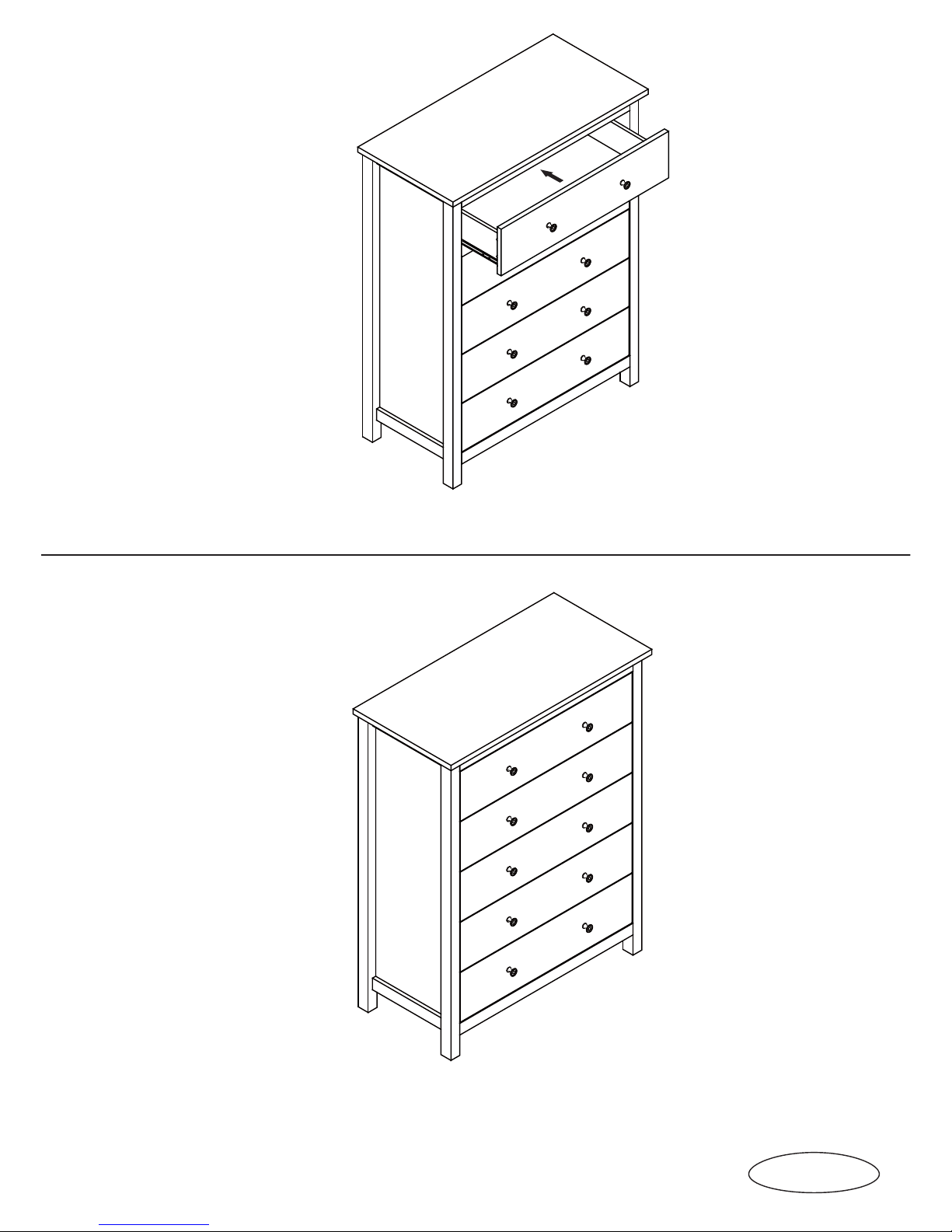

Step 17
Put the drawers into the chest.
Page 11
Please make sure your chest is sitting squarely on the floor, then tighten
all the screws and bolts – being careful not to over tighten
You will need:
You will need:
The job is now complete!
In the interest of our environment
Please dispose of all packaging thoughtfully.

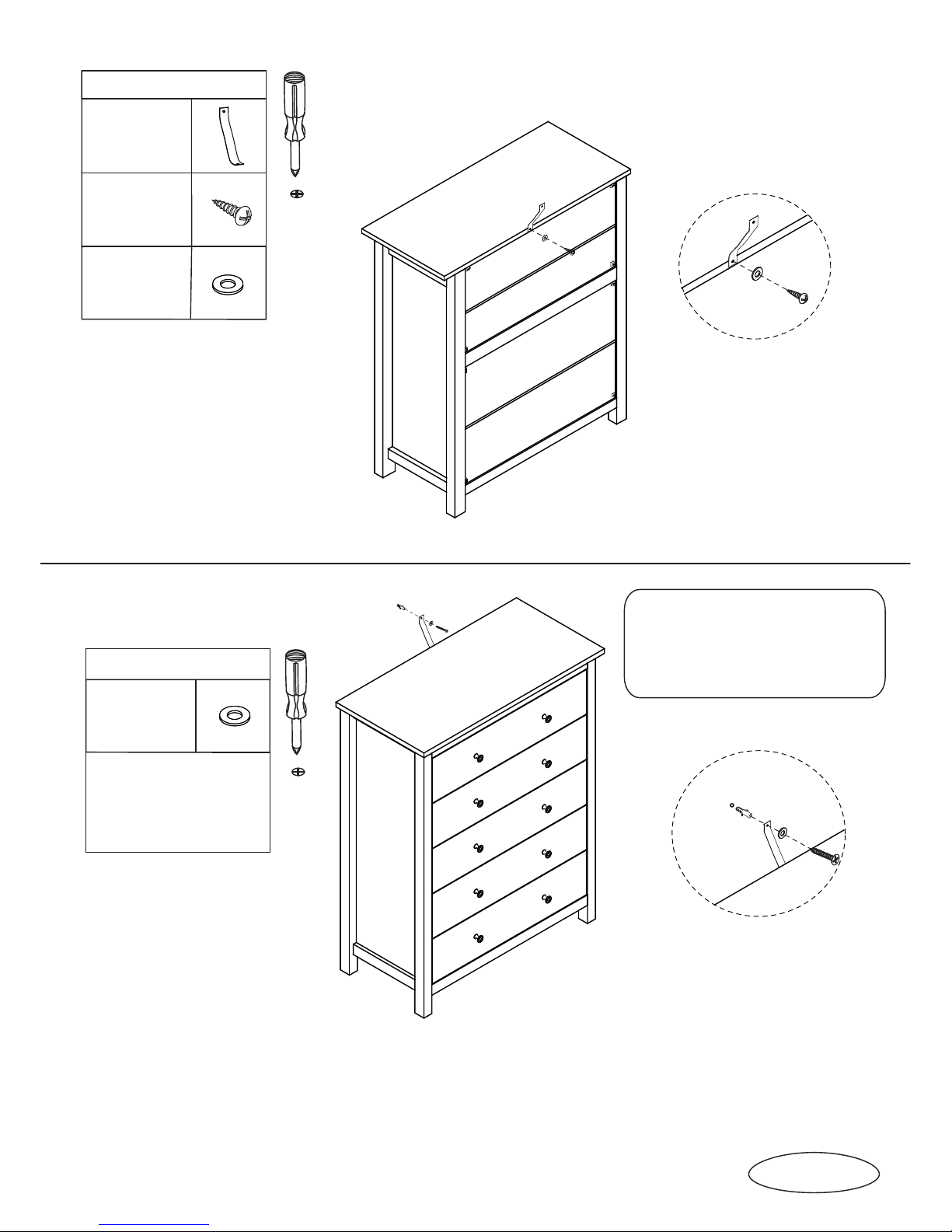

Step 18
Step 19
Attach
Safety Strap
(H12) to the Top Panel (P1) using 1 x Screw (H13) and 1 x Washer (H14).
Page 12
We strongly advise that you use
the wall safety strap provided to
prevent the unit toppling
Screw and wall plug
which are not provided.
Please use appropriate
fixtures for your wall.
Seek advice from a qualified
trades person on how to
attach this safety strap to
your specific wall.
wall
Move the chest to the final position. Attach the safety strap to the wall.
Make sure it is firmly attached and make sure it is snug fit.
1 x Safety Strap
(H12)
1 x Screw
(H13)
1 x Washer
(H14)
H12
H13
H14
Screw
H14
1 x Washer
(H14)
