After use, before opening, always rinse with fresh water (with
Digital
Slave Strobe
inside) and then immerse in fresh water for 30 minutes
minimum, to dissolve any salt deposits.
Dry the housing surface with a soft dry cloth. Open the housing, making
sure no water drops fall inside, and take the Digital Slave Strobe out
carefully.
Never use petroleum, alcohol, benzene and paint thinner to clean the
housing and the O-Ring.
Do not use or store this housing in high temperatures (above 60C/140F
degrees).
Dry the housing thoroughly in a well ventilated area out of direct sunlight.
Keep the Front and Rear Covers open when storing the housing. Be sure
not to store the housing with the Digital Slave Strobe inside.
In very clear water and bright conditions, such as shallow depth and white
sandy bottom, strobe sensor may not "see" camera's flash, and will
not trigger Digital Slave Strobe. Try connecting a commercially
available fiber optic cable not included between the housing's diffuser
holder and camera housing.
To soften light, or reduce strobe light output, attach one of the included
diffusers to the diffuser holder.
Usage Tips
10
12
11

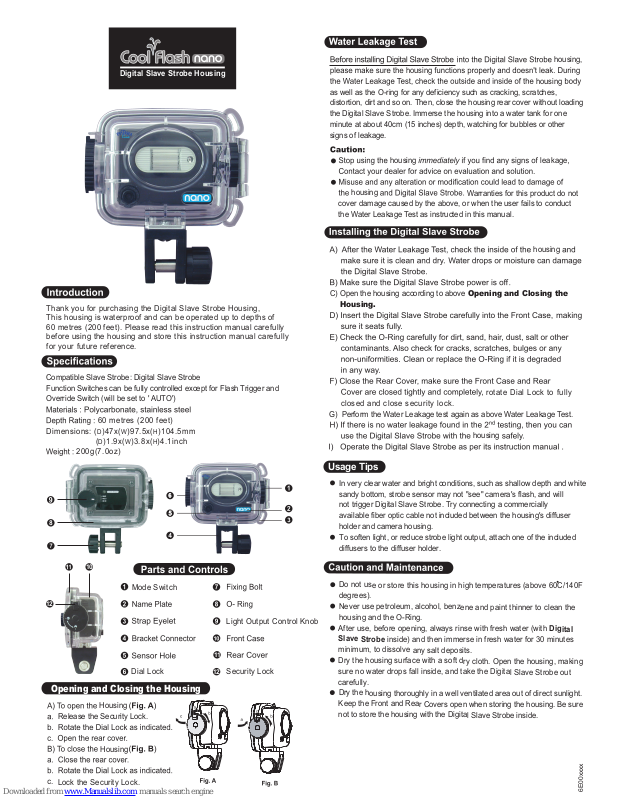

Thank you for purchasing the Digital Slave Strobe Housing,
This housing is waterproof and can be operated up to depths of
60 metres (200 feet). Please read this instruction manual carefully
before using the housing and store this instruction manual carefully
for your future reference.
Dimens io ns: (D)47x(W)97.5x (H)104.5 mm
(D)1.9x(W)3.8x(H)4.1in ch
60 met re s (200 fe et)
Warranties for this product do not
housing,
housing
housing
housing
housing
housing
C) Open the housing according to above Opening and Closing the
Housing.
G) Perform the Water Leakage test again as above Water Leakage Test.
housing
Light Output Control Knob
as well as the O-ring for any deficiency such as cracking, scratches,
distortion, dirt and so on. Then, close the housing rear cover without loading
the Digital Slave Strobe. Immerse the housing into a water tank for one
minute at about 40cm (15 inches) depth, watching for bubbles or other
signs of leakage.
Security Lock
Lock the Security Lock.
Mode Switch
Dial Lock
200g( 7. 0oz)
leakage
cover damage caused by the above, or when the user fails to conduct
the Water Leakage Test as instructed in this manual.
rotate D ial Loc k to full y
closed a nd clos e securit y lock.
Housing
Release the Security Lock.
Housing
12
Compatible Slave Strobe: Digital Slave Strobe
Function Switches can be fully controlled except for Flash Trigger and
Override Switch (will be set to ' AUTO')
Opening and Closing the Housing
6E00xxxx
Digital Slave Strobe Housing
