FANTA E-SPARK BLUE Instruction Manual

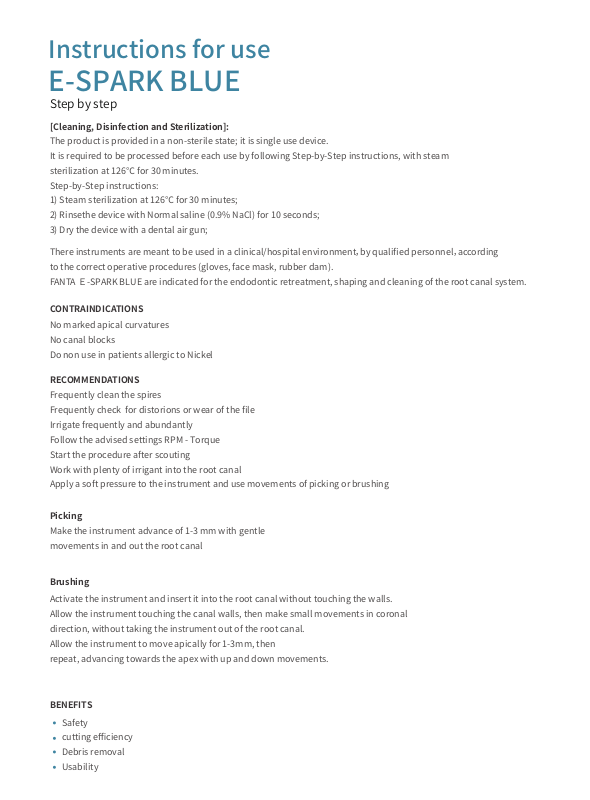

Instructions for use

E-SPARK BLUE

Step by step

[Cleaning, Disinfection and Sterilization]:

The product is provided in a non-sterile state; it is single use device.
It is required to be processed before each use by following Step-by-Step instructions, with steam
sterilization at 126℃ for 30 minutes.
Step-by-Step instructions:

1) Steam sterilization at 126℃ for 30 minutes;

2) Rinsethe device with Normal saline (0.9% NaCl) for 10 seconds;

3) Dry the device with a dental air gun;

There instruments are meant to be used in a clinical/hospital environment，by qualified personnel，according
to the correct operative procedures (gloves, face mask, rubber dam).
FANTA Ｅ-SPARK BLUE are indicated for the endodontic retreatment, shaping and cleaning of the root canal system.

CONTRAINDICATIONS

No marked apical curvatures
No canal blocks
Do non use in patients allergic to Nickel

RECOMMENDATIONS

Frequently clean the spires
Frequently check for distorions or wear of the file
Irrigate frequently and abundantly
Follow the advised settings RPM - Torque
Start the procedure after scouting
Work with plenty of irrigant into the root canal
Apply a soft pressure to the instrument and use movements of picking or brushing

Picking

Make the instrument advance of 1-3 mm with gentle
movements in and out the root canal

Brushing

Activate the instrument and insert it into the root canal without touching the walls.
Allow the instrument touching the canal walls, then make small movements in coronal
direction, without taking the instrument out of the root canal.
Allow the instrument to move apically for 1-3mm, then
repeat, advancing towards the apex with up and down movements.

BENEFITS

Safety
cutting efficiency
Debris removal
Usability

Instructions for use

E-SPARK BLUE

Step by step

Step by step

EASY

DIFFICULT

Manual Scouting

Speed:400-500 rpm
Torque：2.5 N

A

B

Mechanical Scouting

400 in difficult cases
500 in simple cases

Take 1 or more periapical X-Rays to assess
length, width and curvature of the root canal(s).

Determine the complexity of the case

EASY:

straight and wide canals

DIFFICULT:

canals with single or double curvatures.
thin or calcified canals

Access Cavity: design an access to the root
canal openings as a function of the anatomy
of the tooth, with particular care to the
smoothing of the internal axial walls and to
enlarge the root canal openings.

Scout coronal 2/3 of canals with manual or
mechanical instruments (add AF blue open
file in difficult cases)
Scout and enlarge the apical 1/3 of the canal

W.L.

Glide Path

EASY

A

the glide path.

13/02, 16/02 with brushing or

picking motion.

Rinse thoroughly after every passage of the
instruments and

verify the patency

with .10
