USER INSTRUCTIONS
ICH2P
INDUSTRIAL QUAR T Z RADIANT HEATER
AC230V 50Hz 2000W IPX4
Page 2
1. FUNCTION OVERVIEW
Thank you for choosing our quartz radiant heater. We hope that you will enjoy using this product. To
improve your enjoy ment o f the prod uct, y ou should r ead throu gh the user man ual car efully and keep it for
future reference.
1. Heating element
2. Knob
3. Housing
4. Heat setting selector (lev el 0-4)
5. Cord
6. Screw cap for height adjustme nt
7. Upper post assembly
8. M5 X 10 screws (QTY 3)
9. Middle post
10. M5 X 10 screws (QTY 3)
11. Lower post assembly
12. Power cord
13. Base (cover)
14. M6 X 30 screws (QTY 4)
15. Foot plate/base
The following parts accompany the patio heater:
A bag of accessories with 6x M5 X 10 screws and
4x M6 X 30 screws
Operation:
You can turn the heater on and off by pulling the
cord (5). Any gentle vibrations that occur when you
turn on the heater will stop within a few sec onds.
-Position 0: OFF
-Position 1: 650W (nor mal pow er )
-Position 2: 1,300W (normal power)
-Position 3: 2,000W (full p ow er )
The quartz radiant heater is also equipped with a safeguard device, which turns the heater off if it is
knocked over.
Page 3
2. SAFETY INSTRUCTIONS
1) Rea d al l instructions before using this heater.
2) Nev er touch the heater when in operation (r i sk of burns).
3) Nev er touch the heater with wet hands.
4) Nev er place anything on the heater’s hot surfaces as this may cause overheating (e.g. towels)
-After use
-In the event of malfunction
-Before cleaning it.
5) WARNING: Ensur e t he heater is not located directly below a mains power socket outlet
6) Do not use the heater with a programmer, timer or any other device that switch the heater on
automatically.
7) Do not use this heater in the immediat e surrounding of a bath, a shower or swimming pool.
8) If the power cord is damaged, it must be replaced by the manufacture or i ts service agent or a fully
qualified electrician in order to avoid a hazard.
9) This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or ment a l or in struc tion conc er ning use o f the app lianc e by a perso n respon sible for the ir
safety.
10) Children should be su per vised to ensure that they do not play with the appliance.
11) WARNING: In order to avoid overheating, do not cover the heater
12) WARNING: This heater is not equipped with device to control the room temperature, do not use this
heater in small rooms when they’re occupied by persons not capable of leaving the room on their own,
unless constant super vision provided.
3. INSTALLATION

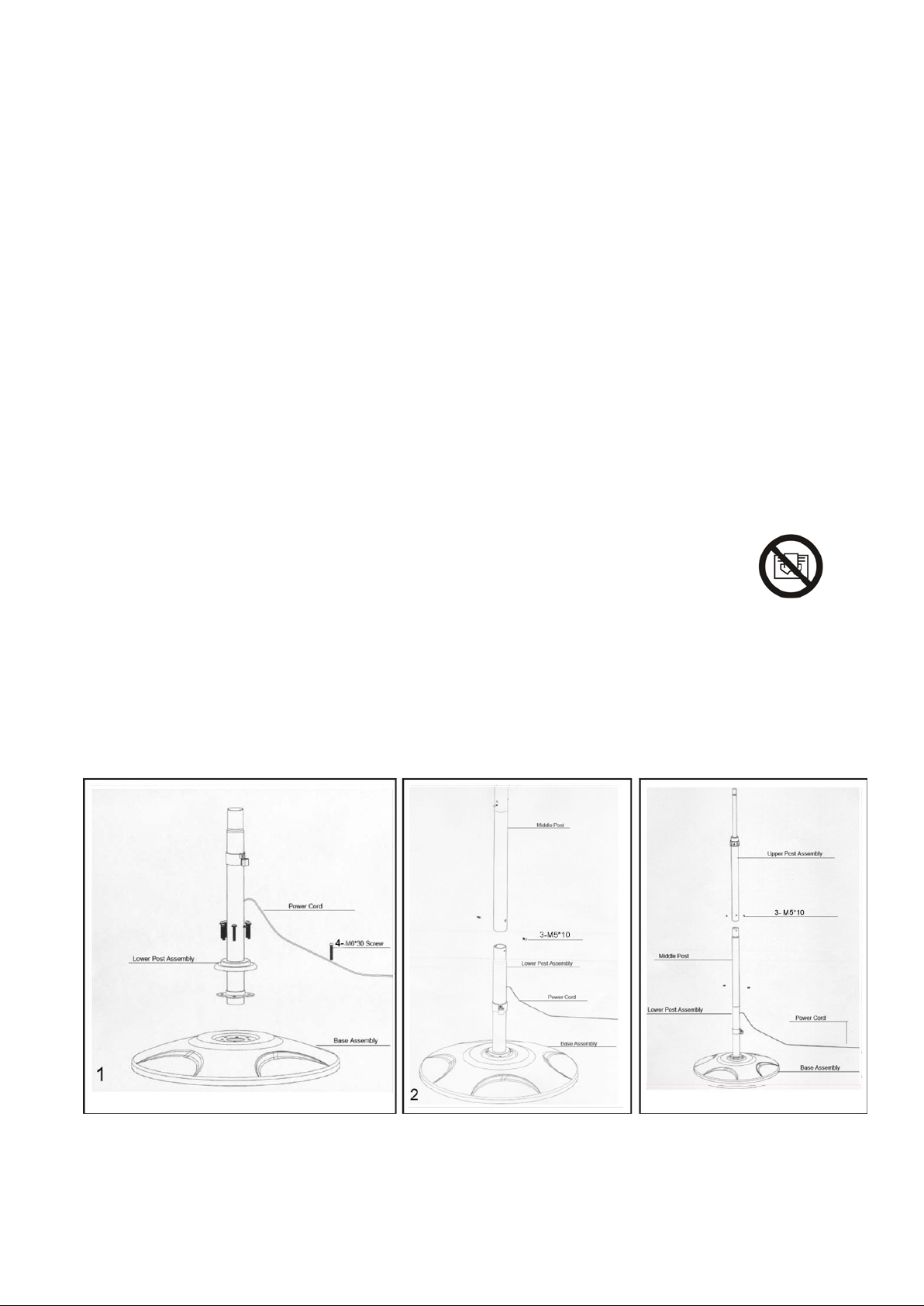

Insert the lower post assemb ly (11)
Into the foot plate/base (1 5) and
secure it using 4x M6 X 30 scr ews
(fig.1)
Secure that the lower post
assembly (11) and the middle
post (9) using 3 x M5 X 10
screws
Secure the upper post assembly
(7) and the middle post (9) using
3x M5 X 10 screws (fig.3)
(fig.2)
Page 4

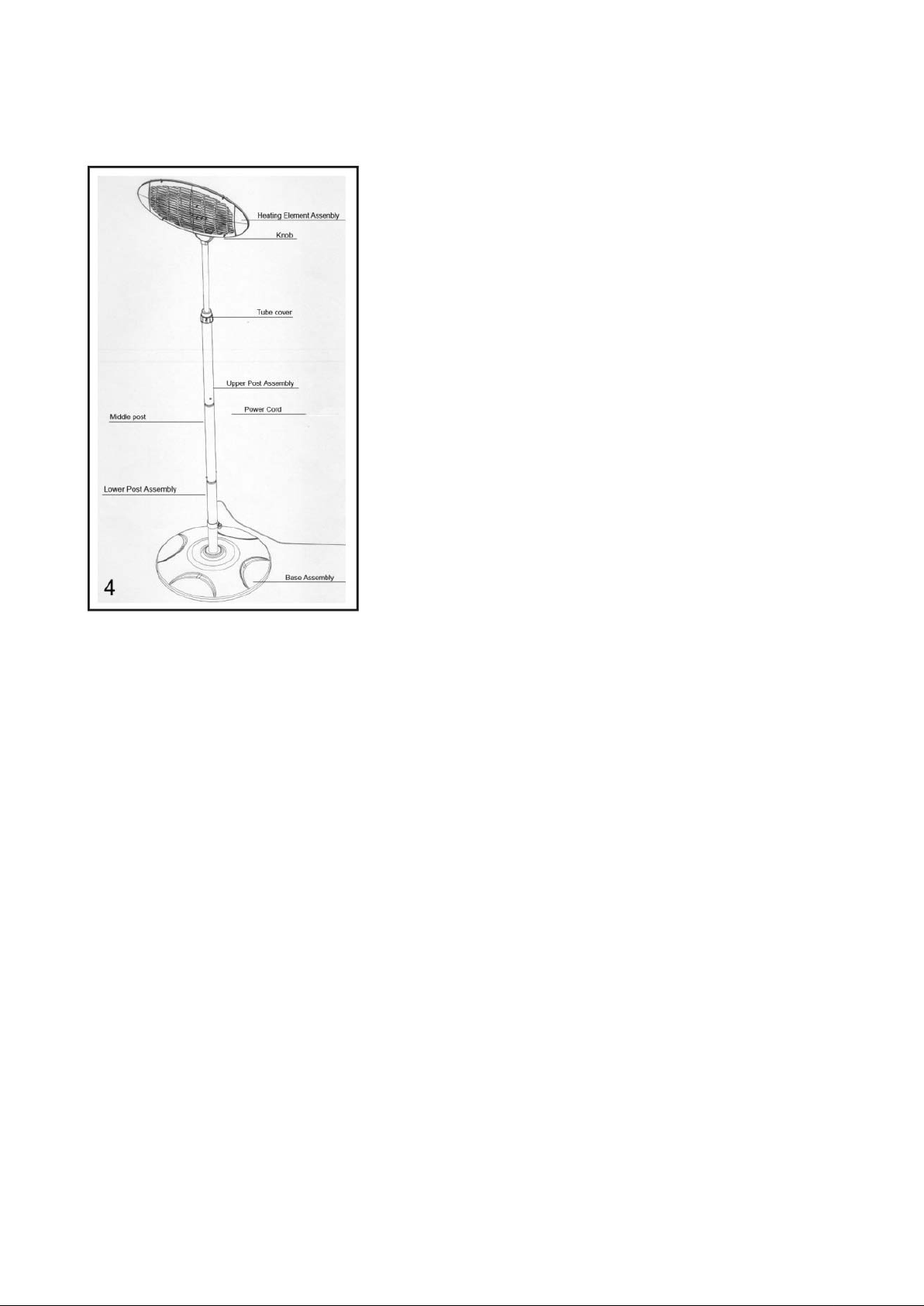

Attach the heating element (1)
to the upper post assembly (7)
and secure it by tightening t he
button (fig.4)
4. WARRANTY
Any claim under this warr ant y must be made within 12 months of the date of purchase of the product. To
make a claim under the warr ant y, take the product (with proof of purchase) to the store wher e you
purchased the product or cont act Fanmaster Pty Ltd.
Fanmaster Pty Ltd will pa y your reasonable, direct expe nses of claiming under this warranty. You may
submit details and proof o f y our expense claim to Fanmaster Pty Ltd for consideration.
This warranty is given by Fanmaster Pty Ltd
ABN: 45 353 934 457
Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232
P: 02 9524 9999
This warranty is provided i n addition to other rights and remedies you have under law: Our goods come
with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled to
replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if th e goods fail to be of acceptable
quality and the failure doe s not amount to a major failure.
Page 5
5. SPECIFICATIONS
Output (W) 2000
Reflector heater
Electro-galvanized steel head
Quartz heating element
IP class ification IPX4
Voltage (V) 230V~
Approvals SAA,CE,GS
CORRECT DISPOSAL OF THIS PRODUCT
√
√
√
