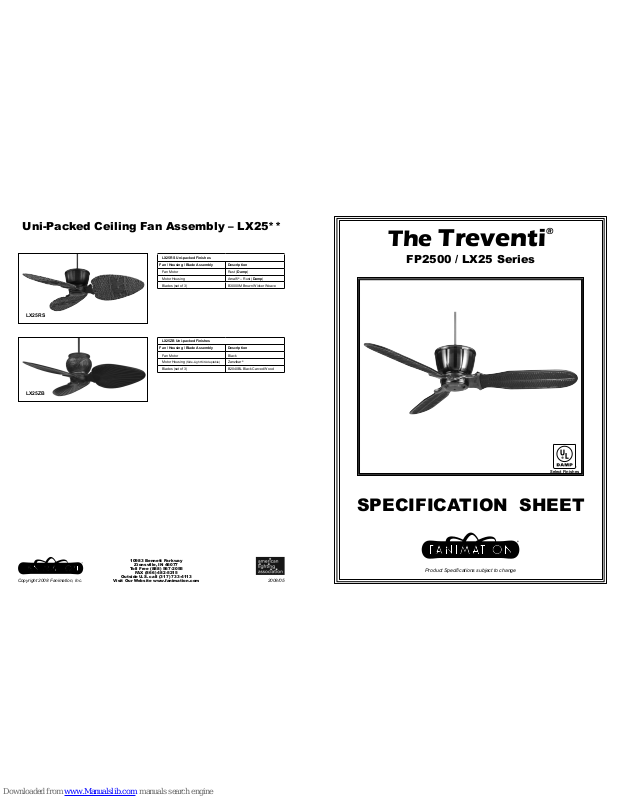

Fanimation Treventi FP2500 Series, Treventi LX25 Series Specification Sheet
10983 Bennett Parkway
Zionsville, IN 46077
Toll Free (888) 567-2055
FAX (866) 482-5215
Outside U.S. call (317) 733-4113
Visit Our Website www.fanimation.com
SPECIFICATION SHEET
Product Specifi cations subject to change
Copyright 2008 Fanimation, Inc. 2008/05
The Treventi
®
FP2500 / LX25 Series
Select Finishes
Uni-Packed Ceiling Fan Assembly – LX25**
LX25RS Uni-packed Finishes
Fan / Housing / Blade Assembly Description
Fan Motor Rust (Damp)
Motor Housing Amalfi
®
– Rust (Damp)
Blades (set of 3) B3000IM Brown Wicker Weave
LX25ZB Uni-packed Finishes
Fan / Housing / Blade Assembly Description
Fan Motor Black
Motor Housing
(Side-Light Kit Adaptable) Zanzibar
®
Blades (set of 3) B2040BL Black Carved Wood
LX25RS
LX25ZB
A
7´ min
Floor
Ceiling
Blade Sweep
B2000 Series Wooden Blades:
24˝ Blade - 56˝ dia
26˝ Blade - 60˝ dia
B3000 Series Blades:
24˝ Blade - 56˝ dia
Net Hanging Weight: Approx. 30–35 lbs
(depending on Housing, Blade, & Accessory choices)
5¾˝dia
18° Blade Pitch
The Treventi® Fan Assembly – FP2500**
**Available Finishes
BL Black (Damp)
PW Pewter
RS Rust (Damp)
Dimensions shown in inches
Distance from Ceiling
to Edge of Blade
A
Fan w/7˝ downrod 18˝
Fan w/12˝ downrod 23˝
Fan w/18˝ downrod 29˝
Fan w/24˝ downrod 35˝
Fan w/36˝ downrod 47˝
Fan w/48˝ downrod 59˝
Fan w/60˝ downrod 71˝
Fan w/72˝ downrod 83˝
12˝
Product Specifications subject to change
Uni-Packed Ceiling Fan Assembly – LX25**
LX25IM Uni-packed Finishes
Fan / Housing / Blade Assembly Description
Fan Motor Rust
Motor Housing
(Side-Light Kit Adaptable) Islamorada
®
Blades (set of 3) B2070CP Cairo Purple Wood
General Specs (see previous page for more detailed specs information)
Electrical Requirements 120 VAC, 60 Hz, 15 amp
Blade Sweep / Pitch 56˝ / 18°
Dimension (w/7˝ DR) 18˝ from ceiling to blade edge
Fan Controls C22 Remote & C23 Wall Controls
Built-in Uplight (bulbs not included) 3-40 watts, candelabra
Down Light Kit / Glass Optional – Sold Separately
Net Hanging Weight 30 – 35 lbs
Damp Location Usage Not Recommended (except LX25RS)
INSTALLATION REQUIREMENTS:
Ceiling fan is secured to a structural member such as a ceiling joist and must be capable of withstanding a load of at least
50 pounds. A lag bolt will pass through the junction box and into the wood member above.
ELECTRICAL REQUIREMENTS / MOTOR ASSEMBLY (MA25**):
Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. 220 VAC, 50 Hz version is
available.
FAN SPEEDS:
Material, shape, and size of fan blade will affect the speed of the fan. In general, the larger blades will turn slower than
the smaller blades and the narrower blades will turn faster than the wide blades.
HOUSING ASSEMBLY (HA25 ):
The motor housing (sold separately) are available in many different styles, materials and finishes to fit your decor.
See catalog or visit our website, www.fanimation.com for more housing selections.
CONTROL OPTIONS:
The remote control (C22), wall control (C23, includes white faceplate) and receiver (P2550) are all included. Push button
control with frequency code settings located on both the transmitter and the receiver units. Each push button unit will
consist of 3 separate speeds, reverse, up/down light controls, and off button. Installation and operating instructions
provided with each control.
LIGHTING OPTIONS:
The 3-bulb uplight fi xture is included with this fan assembly, with a maximum of 120 watts (candelabra bulbs, 40 watt max
- not included). Optional Side-Light Kit (LK25 - bulbs included) is available. Maximum wattage including uplight, sidelight
and downlight not to exceed 300 watts. See catalog or visit our website, www.fanimation.com for more lighting options.
DOWN ROD OPTIONS:
The Treventi® fan comes with a standard 7˝ down rod. Optional down rods are available in 12˝, 18˝, 24˝, 36˝, 48˝, 60˝,
and 72˝. For installations requiring a longer down rod, a down rod coupler is available. The Treventi® fan can be mounted
on a sloped ceiling up to 30°. Most sloped ceiling installations require a down rod longer than the standard 7˝ down rod.
Optional sloped ceiling ball kits (SCB52) are available for up to 52°. Call tech support for more information.
BLADE SETS:
B2000 & B3000 Series Blades: (sold separately) are available, see catalog or visit our website, www.fanimation.com
for more blade selections.
LX25PW Uni-packed Finishes
Fan / Housing / Blade Assembly Description
Fan Motor Pewter
Motor Housing Amalfi® – Pewter
Blades (set of 3) B2070CP Cairo Purple Wood
LX25ML Uni-packed Finishes
Fan / Housing / Blade Assembly Description
Fan Motor Black
Motor Housing
(Side-Light Kit Adaptable)
Malawi
®
Blades (set of 3) B2040BL Black Carved Wood
LX25IM
LX25ML
LX25PW
