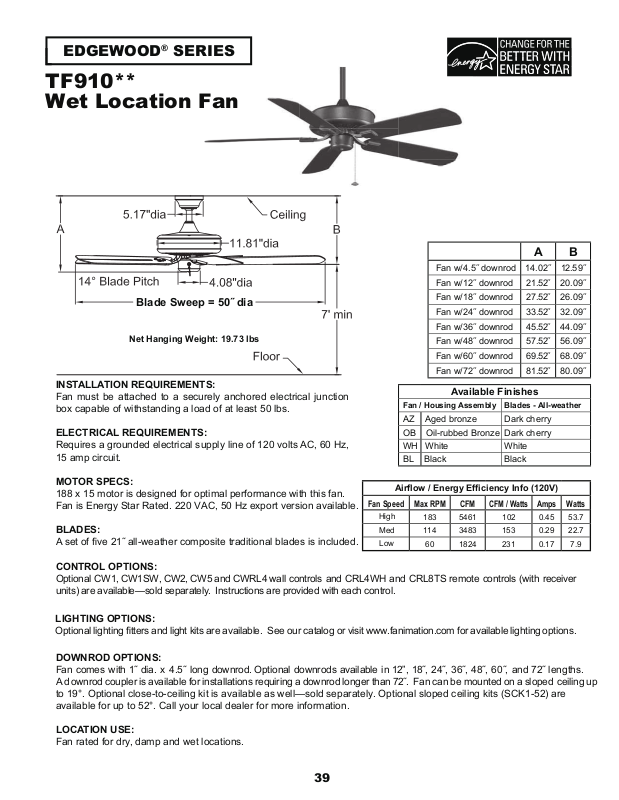

EDGEWOOD® SERIES
TF910**
Wet Location Fan
Blade Sweep = 50˝ dia
Net Hanging Weight: 19.73 lbs
INSTALLATION REQUIREMENTS:
Fan must be attached to a securely anchored electrical junction
box capable of withstanding a load of at least 50 lbs.
ELECTRICAL REQUIREMENTS:
Requires a grounded electrical supply line of 120 volts AC, 60 Hz,
15 amp circuit.
A B
Fan w/4.5˝ downrod 14.02˝ 12.59˝
Fan w/12˝ downrod 21.52˝ 20.09˝
Fan w/18˝ downrod 27.52˝ 26.09˝
Fan w/24˝ downrod 33.52˝ 32.09˝
Fan w/36˝ downrod 45.52˝ 44.09˝
Fan w/48˝ downrod 57.52˝ 56.09˝
Fan w/60˝ downrod 69.52˝ 68.09˝
Fan w/72˝ downrod 81.52˝ 80.09˝
Available Finishes
Fan / Housing Assembly Blades - All-weather
AZ Aged bronze Dark cherry
OB Oil-rubbed Bronze Dark cherry
WH White White
BL Black Black
MOTOR SPECS:
188 x 15 motor is designed for optimal performance with this fan.
Fan is Energy Star Rated. 220 VAC, 50 Hz export version available.
BLADES:
A set of five 21˝ all-weather composite traditional blades is included.
Airflow / Energy Efficiency Info (120V)
Fan Speed Max RPM CFM
High
Med
Low
183 5461 102 0.45 53.7
114 3483 153 0.29 22.7
60 1824 231 0.17 7.9
CFM / Watts
Amps Watts
CONTROL OPTIONS:
Optional CW1, CW1SW, CW2, CW5 and CWRL4 wall controls and CRL4WH and CRL8TS remote controls (with receiver
units) are available—sold separately. Instructions are provided with each control.
LIGHTING OPTIONS:
Optional lighting fitters and light kits are available. See our catalog or visit www.fanimation.com for available lighting options.
DOWNROD OPTIONS:
Fan comes with 1˝ dia. x 4.5˝ long downrod. Optional downrods available in 12”, 18˝, 24˝, 36˝, 48˝, 60˝, and 72˝ lengths.
A downrod coupler is available for installations requiring a downrod longer than 72˝. Fan can be mounted on a sloped ceiling up
to 19°. Optional close-to-ceiling kit is available as well—sold separately. Optional sloped ceiling kits (SCK1-52) are
available for up to 52°. Call your local dealer for more information.
LOCATION USE:
Fan rated for dry, damp and wet locations.
39
