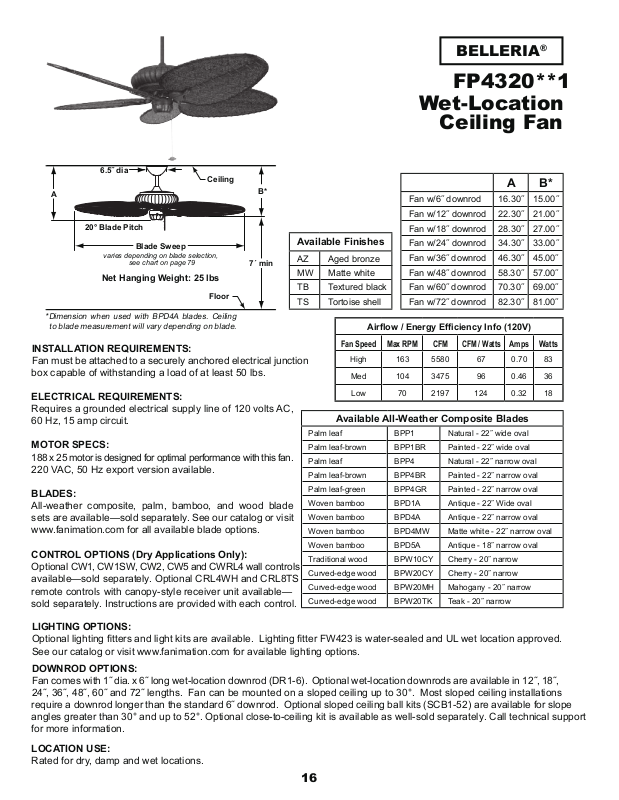

BELLERIA
®
FP4320**1
Wet-Location
Ceiling Fan
6.5˝ dia
A
20° Blade Pitch
varies depending on blade selection,
see chart on page 79
Net Hanging Weight: 25 lbs
*Dimension when used with BPD4A blades. Ceiling
to blade measurement will vary depending on blade.
Blade Sweep
Ceiling
Floor
B*
7´ min
Available Finishes
AZ Aged bronze
MW Matte white
TB Textured black
TS Tortoise shell
INSTALLATION REQUIREMENTS:
Fan must be attached to a securely anchored electrical junction
box capable of withstanding a load of at least 50 lbs.
ELECTRICAL REQUIREMENTS:
Requires a grounded electrical supply line of 120 volts AC,
60 Hz, 15 amp circuit.
MOTOR SPECS:
.naf siht htiw ecnamrofrep lamitpo rof dengised si rotom 52 x 881
220 VAC, 50 Hz export version available.
BLADES:
All-weather composite, palm, bamboo, and wood blade
sets are available—sold separately. See our catalog or visit
www.fanimation.com for all available blade options.
CONTROL OPTIONS (Dry Applications Only):
Optional CW1, CW1SW, CW2, CW5 and CWRL4 wall controls
available—sold separately. Optional CRL4WH and CRL8TS
remote controls with canopy-style receiver unit available—
sold separately. Instructions are provided with each control.
A B*
Fan w/6˝ downrod 16.30˝ 15.00˝
Fan w/12˝ downrod 22.30˝ 21.00˝
Fan w/18˝ downrod 28.30˝ 27.00˝
Fan w/24˝ downrod 34.30˝ 33.00˝
Fan w/36˝ downrod 46.30˝ 45.00˝
Fan w/48˝ downrod 58.30˝ 57.00˝
Fan w/60˝ downrod 70.30˝ 69.00˝
Fan w/72˝ downrod 82.30˝ 81.00˝
Airflow / Energy Efficiency Info (120V)
Fan Speed Max RPM CFM
High 163 5580 67 0.70 83
Med 104 3475 96 0.46 36
Low 70 2197 124 0.32 18
Available All-Weather Composite Blades
Palm leaf BPP1 Natural - 22˝ wide oval
Palm leaf-brown BPP1BR Painted - 22˝ wide oval
Palm leaf BPP4 Natural - 22˝ narrow oval
Palm leaf-brown BPP4BR Painted - 22˝ narrow oval
Palm leaf-green BPP4GR Painted - 22˝ narrow oval
Woven bamboo BPD1A Antique - 22˝ Wide oval
Woven bamboo BPD4A Antique - 22˝ narrow oval
Woven bamboo BPD4MW Matte white - 22˝ narrow oval
Woven bamboo BPD5A Antique - 18˝ narrow oval
Traditional wood BPW10CY Cherry - 20˝ narrow
Curved-edge wood BPW20CY Cherry - 20˝ narrow
Curved-edge wood BPW20MH Mahogany - 20˝ narrow
Curved-edge wood BPW20TK Teak - 20˝ narrow
CFM / Watts
Amps Watts
LIGHTING OPTIONS:
Optional lighting fitters and light kits are available. Lighting fitter FW423 is water-sealed and UL wet location approved.
See our catalog or visit www.fanimation.com for available lighting options.
DOWNROD OPTIONS:
Fan comes with 1˝ dia. x 6˝ long wet-location downrod (DR1-6). Optional wet-location downrods are available in 12˝, 18˝,
24˝, 36˝, 48˝, 60˝ and 72˝ lengths. Fan can be mounted on a sloped ceiling up to 30°. Most sloped ceiling installations
require a downrod longer than the standard 6˝ downrod. Optional sloped ceiling bal
l kits (SCB1-52) are available for slope
angles greater than 30° and up to 52°. Optional close-to-ceiling kit is available as well-sold separately. Call technical support
for more information.
LOCATION USE:
Rated for dry, damp and wet locations.
16
