Fanimation KW3118 Specifications

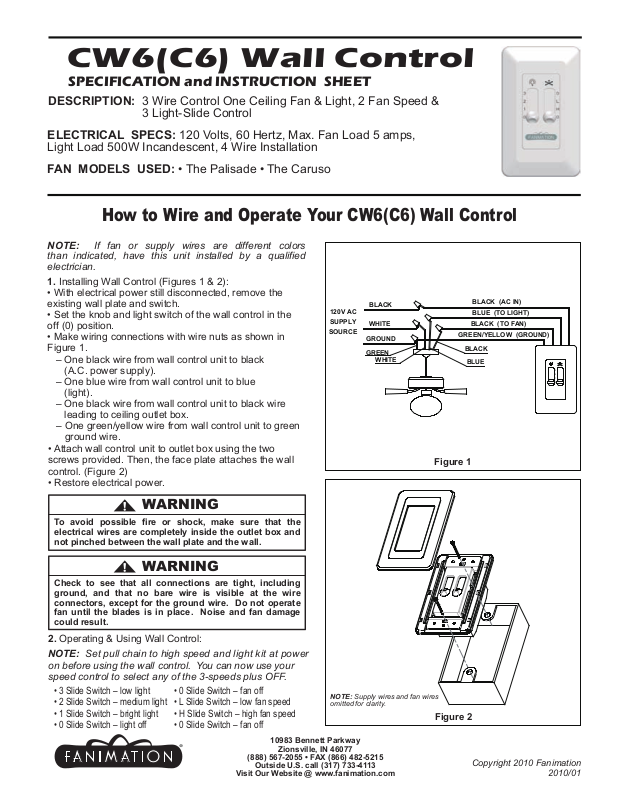

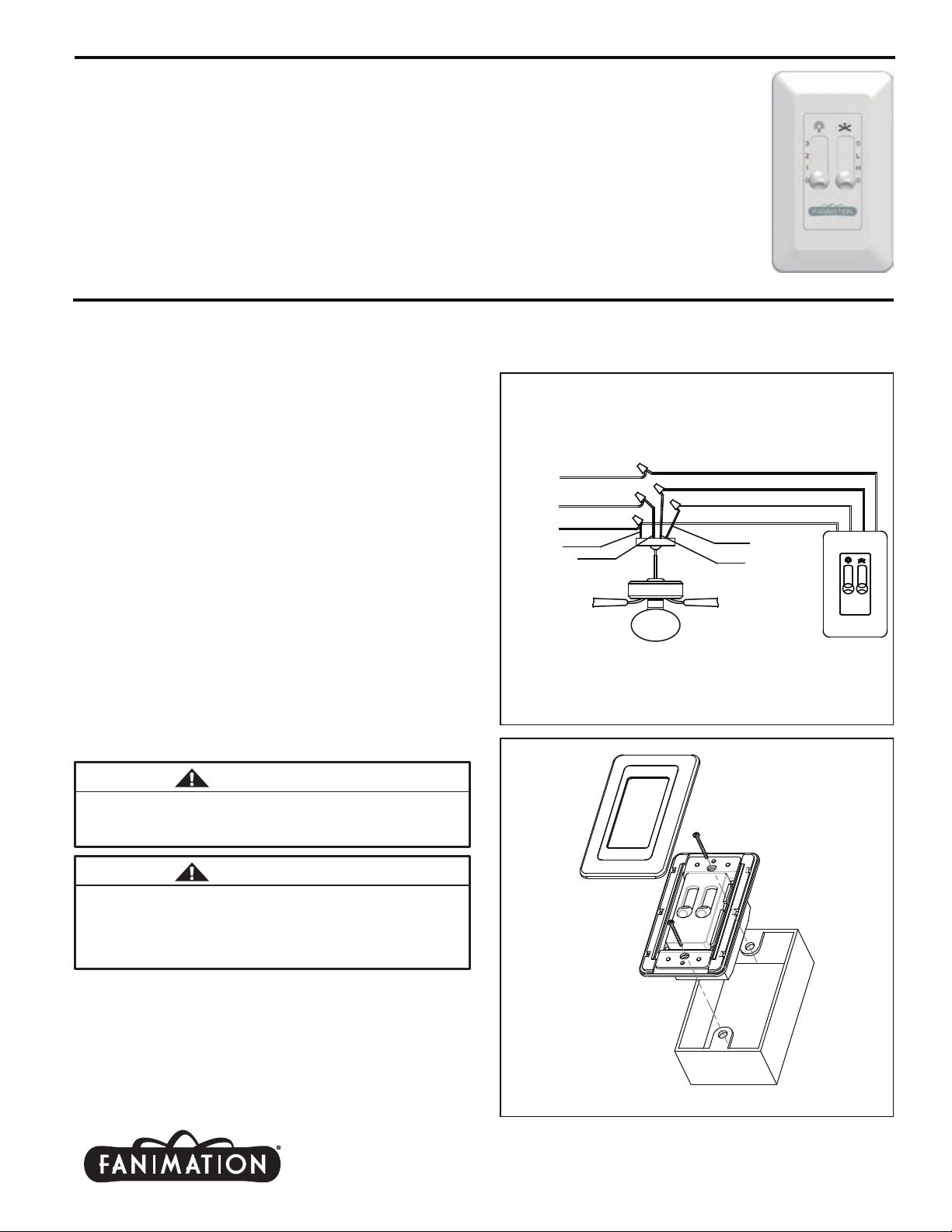

CW6(C6) Wall Control

SPECIFICATION and INSTRUCTION SHEET

DESCRIPTION: 3 Wire Control One Ceiling Fan & Light, 2 Fan Speed &

3 Light-Slide Control

ELECTRICAL SPECS: 120 Volts, 60 Hertz, Max. Fan Load 5 amps,
Light Load 500W Incandescent, 4 Wire Installation

FAN MODELS USED: • The Palisade • The Caruso

How to Wire and Operate Your CW6(C6) Wall Control

NOTE: If fan or supply wires are different colors
than indicated, have this unit installed by a qualified
electrician.

1. Installing Wall Control (Figures 1 & 2):

• With electrical power still disconnected, remove the
existing wall plate and switch.

• Set the knob and light switch of the wall control in the
off (0) position.

• Make wiring connections with wire nuts as shown in

Figure 1.

– One black wire from wall control unit to black
(A.C. power supply).
– One blue wire from wall control unit to blue

(light).

– One black wire from wall control unit to black wire
leading to ceiling outlet box.
– One green/yellow wire from wall control unit to green
ground wire.

• Attach wall control unit to outlet box using the two
screws provided. Then, the face plate attaches the wall

control. (Figure 2)

• Restore electrical power.

120V AC

SUPPLY

SOURCE

BLACK

WHITE

GROUND

GREEN

WHITE

BLACK (AC IN)

BLUE (TO LIGHT)

BLACK (TO FAN)

GREEN/YELLOW (GROUND)

BLACK

BLUE

Figure 1

3

2

1

0

WARNING

To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the wall plate and the wall.

WARNING

Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until the blades is in place. Noise and fan damage
could result.

2. Operating & Using Wall Control:

NOTE: Set pull chain to high speed and light kit at power
on before using the wall control. You can now use your
speed control to select any of the 3-speeds plus OFF.

• 3 Slide Switch – low light

• 2 Slide Switch – medium light

• 1 Slide Switch – bright light

• 0 Slide Switch – light off

• 0 Slide Switch – fan off

• L Slide Switch – low fan speed

• H Slide Switch – high fan speed

• 0 Slide Switch – fan off

10983 Bennett Parkway

Zionsville, IN 46077

[phone] • FAX [phone]

Outside U.S. call [phone]

Visit Our Website @ www.fanimation.com

NOTE: Supply wires and fan wires
omitted for clarity.

Figure 2

Copyright 2010 Fanimation

2010/01
